FS IMC-1S1XMG User manual

INDUSTRIAL ETHERNET MEDIA
CONVERTERS
Quick Start Guide V1.0
CONVERTISSEURS DE MÉDIAS ETHERNET
INDUSTRIELS
INDUSTRIELLE ETHERNET-MEDIENKONVERTER
Quick-Start Anleitung
Guide de Démarrage Rapide
P1
10G SFP+
10GBASE-T
2.5G
10G/1G
5G/100
IMC-1S1XMG
P2 Fault

EN 1
Introduction
IMC-1S1XMG
Thank you for choosing the Industrial Ethernet Media Converters. This
guide is designed to familiarize you with the layout of the media
converters and describes how to deploy them in your network.
IMC-2M2T
Accessories
IMC-1S1XMG
P1
10G SFP+
10GBASE-T
2.5G
10G/1G
5G/100
IMC-1S1XMG
P2 Fault
IMC-2M2T
P1 P2 Alarm
100/1G /2.5G
10/100 /1000T
10/100
1000
100/1G /2.5G
SFP 1
2
3
4
ACT
LNK/
SFP
ACT
LNK/
LNK/ACT
LNK/ACT
2.5G
1000
100
Mounting Bracket x2 Dust Cap x1 Screw x4

2 EN
Hardware Overview
Front Panel Ports
Ports Description
SFP+
RJ45
SFP+ ports for 10G fiber connection
100M/1G/2.5G/5G/10GBase-T ports for Ethernet
connection
P1
10G SFP+
10GBASE-T
2.5G
10G/1G
5G/100
IMC-1S1XMG
P2 Fault
RJ45
SFP+
IMC-1S1XMG
IMC-2M2T
Mounting Bracket x2 Dust Cap x2 Screw x4

EN 3
Ports Description
RJ45
SFP SFP ports for 100M/1G/2.5GBase-X fiber connection
10/100/1000Base-T ports for Ethernet connection
Front Panel LEDs
IMC-1S1XMG
IMC-2M2T
IMC-2M2T
P1 P2 Alarm
100/1G /2.5G
10/100 /1000T
10/100
1000
100/1G /2.5G
SFP 1
2
3
4
ACT
LNK/
SFP
ACT
LNK/
LNK/ACT
LNK/ACT
2.5G
1000
100
SFP
RJ45
P1
10G SFP+
10GBASE-T
2.5G
10G/1G
5G/100
IMC-1S1XMG
P2 Fault
RJ45
SYS

4 EN
LEDs State Description
SYS
Green
Green
Green
Orange
Green
Power 1 is on.
Power 2 is on.
Power 1 is off.
Red
P1
P2
Fault
10/2.5/1G
5G/100M
RJ45
Power 2 is off.
Either Power 1 or Power 2 fails.
No failure.
The copper port is operating at
10/1Gbps.
The copper port is operating at
2.5Gbps.
The copper port is operating at
5G/100Mbps.
Off
Off
Off
IMC-2M2T
IMC-2M2T
P1 P2 Alarm
100/1G /2.5G
10/100 /1000T
10/100
1000
100/1G /2.5G
SFP 1
2
3
4
ACT
LNK/
SFP
ACT
LNK/
LNK/ACT
LNK/ACT
2.5G
1000
100
RJ45
SFP
SYS

EN 5
NOTE: Although the 2.5G LED is a bi-color light, the actual color
is close to orange.
LEDs State Description
SYS
Green
Blinking
Orange
Blinking
Green
Orange
Blinking
Green
Orange
+ Green
Green
Red
Power 1 is on.
The alarm LED is triggered.
Power 2 is on.
Blinking
Orange
P1
P2
Alarm
10/100
LNK/ACT
1000
LNK/ACT
RJ45
SFP
The link through that port is successfully
established at 10/100Mbps.
The converter is sending or receiving
data over that port.
The link through that port is successfully
established at 1000Mbps.
The link through that port is
successfully established at 100Mbps.
The converter is sending or receiving
data over that port.
The converter is sending or receiving
data over that port.
100
LNK/ACT
The link through that port is successfully
established at 1000Mbps.
1000
LNK/ACT The converter is sending or receiving
data over that port.
2500
LNK/ACT
The link through that port is successfully
established at 2500Mbps.
The converter is sending or receiving
data over that port.
Green
Orange
Green

6 EN
DIP Position
Fiber Mode
On
Off
Function
Fiber Redundancy
Switch Mode
Upper Panel
IMC-1S1XMG
IMC-2M2T
DC Input: 12-48V , 0.6A
AC Input: 24V~, 0.6A
Max. Fault Alarm Loading: 24V, 1A
1 2 3 4 5 6
V1+ V1- V2+ V2-
PWR1 Alarm PWR2
Redundant
Fiber
Mode
Switch
Grounding Point Terminal Block Connector
DIP Switch
Fault Alarm Contacts
DC Input: 12-48V , 0.6A max.
AC Input: 24V~, 0.2A max.
Max. fault loading: 24V, 1A
1 2 3 4 5 6
V1+ V1- V2+ V2-
PWR1
Fault
PWR2
Grounding Point Terminal Block Connector
Fault Alarm Contacts

Before the installation, make sure that you have the
following conditions ready:
EN 7
NOTE: 1. Fault Alarm Contacts are energized (CLOSE) for
normal operation and will OPEN when a failure occurs.
2. The Alarm relay circuit accepts a maximum of 24V DC and 1A
current.
3. If the Redundant Mode is used, one of the two fiber ports will
be redundant while the other 1 or 2 copper ports are in
operation.
Installation Requirements
Phillips screwdriver.
Category 6 or higher RJ-45 Ethernet cables and fiber optical cables
for connecting network devices.
Back Panel
IMC-1S1XMG/IMC-2M2T
DIN Rail Mounting Kit

8 EN
Site Environment:
Ensure that the operating temperature is maintained at -40°C~75°C
and the humidity at 5%~95%.
Do not install the equipment in a dusty environment.
The installation site must be free from leaking or dripping water,
heavy dew, and humidity.
The installation site should be well-ventilated.
Make sure that the converter is level and stable to avoid any
hazardous conditions.
Mounting the Converter
DIN Rail Mounting
1. Tilt the converter upwards to clamp the upper end of the DIN rail
mounting kit to the track.

EN 9
2. Press the converter down to clamp the lower end of the mounting
kit to the track. Shake the converter slightly to check if it is tightly
secured.
3. If you need to remove the converter, lightly pull the lower end of
the mounting kit out of the track, and lift the converter up to
remove it from the track.
1
2

10 EN
NOTE: Please keep the accessories properly after removal in
case of need.
1. Remove the DIN rail mounting kit from the converter.

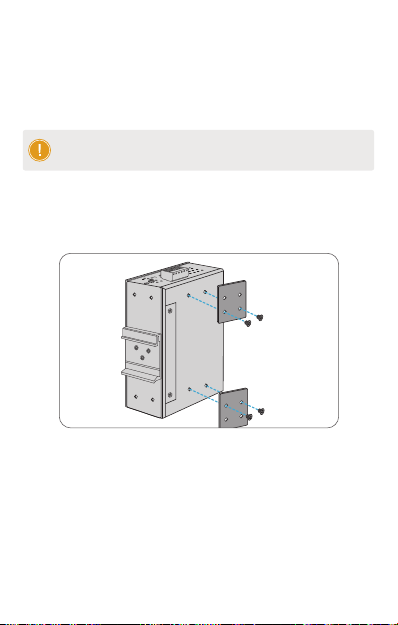

2. Secure mounting brackets to the back panel of the converter
using the supplied screws.
Wall Mounting
DCI nput: 12-48V ,0.6A max.
ACInput: 24V~, 0.2A max.
PWR1
Fault
PWR2
V1+ V1- V2+ V2-
1 2 3 4 5 6
Max.fault lo ading: 24V,1A
P1
10G SFP+
10GBASE-T
2.5G
10G/1G
5G/100
IMC-1S1XMG
P2 Fault
DC Input: 12-48V ,0.6A max.
AC Input: 24V~, 0.2A max.
Max. fault loading: 24V,1A
V1+ V1- V2+ V2-
PWR1
Fault
PWR2
1
2
3456

EN 11
NOTE: The expansion bolts and related accessories are
purchased separately.

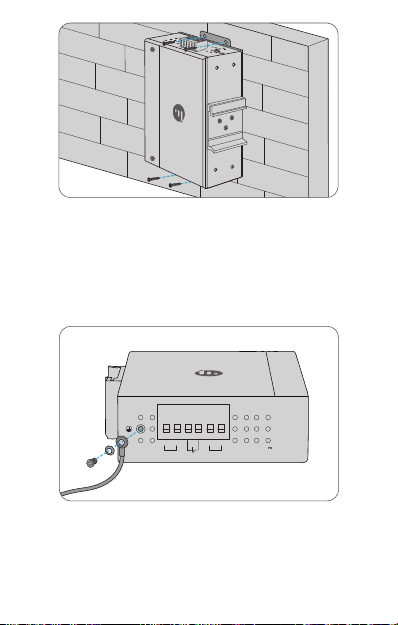

3. Drill four right-sized holes in the wall. Knock wall plugs into the
holes.
4. Align the holes with expansion bolts and insert the bolts.
5. Adjust the position of the converter and tighten the expansion
bolts.
Side Wall Mounting
DCI nput: 12-48V ,0.6A max.
ACInput: 24V~, 0.2A max.
PWR1
Fault
PWR2
V1+ V1- V2+ V2-
1 2 3 4 5 6
Max.fault lo ading: 24V,1A

12 EN
IMC-2M2T also supports side wall mounting, and the procedures are
similar to the wall installation. Please follow the pictures.
Grounding the Converter
1. Connect one end of the grounding cable to the proper earth
ground.
2. Secure the grounding lug to the grounding point on the converter
upper panel with a screw and washers.
DC Input: 12-48V , 0.6A max.
AC Input: 24V~, 0.2A max.
Max. fault loading: 24V, 1A
1 2 3 4 5 6
V1+ V1- V2+ V2-
PWR1
Fault PWR2
Max. fault loading: 24V,1A
V1+ V1- V2+ V2-
PWR1
1
2
345
DCI nput: 12-48V ,0.6A max.
ACInput: 24V~, 0.2A max.
PWR1
Fault
PWR2
V1+ V1- V2+ V2-
1 2 3 4 5 6
Max.fault lo ading: 24V,1A

EN 13
NOTE: The grounding cable is not included in the accessories.
CAUTION: The device MUST be grounded. EMD (Lightning)
damage is not covered under the warranty.
Connecting the RJ45 Port
1. Connect a Category 6/6a/7 cable to the RJ45 port of the media
converter.
2. Connect the other end of the cable to a switch, wireless AP, PC,
server, or another network device.
P1
10G SFP+
10GBASE-T
2.5G
10G/1G
5G/100
IMC-1S1XMG
P2 Fault
DC Input: 12-48V ,0.6A max.
AC Input: 24V~, 0.2A max.
Max. fault loading: 24V,1A
V1+ V1- V2+ V2-
PWR1
Fault
PWR2
3456
SYS ID MGMT
CON
MGMT
S5850-24XMG
21
43
65 87
10
9
12
11
14
13 16
15

14 EN
NOTE: The SFP+/SFP optical module is hot-pluggable and
hot-swappable.
Connecting the SFP+/SFP Port
1. For IMC-2M2T, set the DIP switch of SFP Port 1 or Port 2 to the
"OFF" position with the fiber speed auto-detection.
2. Plug a compatible SFP+/SFP optical module into the SFP+/SFP
port.
3. Attach a duplex LC connector on the fiber optic cable to the
SFP+/SFP optical module. Connect the other end of the cable to a
switch, fiber NIC on a workstation, or another media converter.
16
18
17
20
19
22
21 24
23
123
26 100G
25
4Breakout
P1
10G SFP+
10GBASE-T
2.5G
10G/1G
5G/100
IMC-1S1XMG
P2 Fault
DC Input: 12-48V , 0.6A max.
AC Input: 24V~, 0.2A max.
Max. fault loading: 24V, 1A
V1+ V1- V2+ V2-
PWR1
Fault
PWR2
1
2
3456
Max. fault loading: 24V, 1A
V1+ V1- V2+ V2-
PWR1
1
2
345

EN 15
CAUTION: Directly pulling out the optical module with force
could damage the optical module and SFP+/SFP port.
Remove the Optical Module
1. Remove the fiber optic cable gently.
2. Turn the lever of the optical module to a horizontal position.
3. Pull out the optical module gently with the lever.
P1
10G SFP+
10GBASE-T
2.5G
10G/1G
5G/100
IMC-1S1XMG
P2 Fault
DC Input: 12-48V , 0.6A max.
AC Input: 24V~, 0.2A max.
Max. fault loading: 24V, 1A
V1+ V1- V2+ V2-
PWR1
Fault
PWR2
456
1
2
Connecting the Power
The 6-contact terminal block connector is used for two DC
redundant power inputs. Please follow the steps below:
1. Insert positive/negative DC power wires into contacts 1 and 2 for
Power 1, or contacts 5 and 6 for Power 2.

16 EN
NOTE: 1. The fault alarm contacts are in the middle (3 and 4) of
the terminal block connector. Inserting the wires, the product
will detect the fault status of the power failure.
2. The fault alarm contacts are energized CLOSE for normal
operation and will OPEN when failure occurs.
2. Tighten the wire-clamp screws for preventing the wires from
loosening.
DC Input: 12-48V , 0.6A max.
AC Input: 24V~, 0.2A max.
Max. fault loading: 24V, 1A
1 2 3 4 5 6
V1+ V1- V2+ V2-
PWR1
Fault
PWR2
Name
V1+, V2+
V1-, V2-
Description
Live line/positive
Null line/negative
Fault alarm contacts
Pin 2 / 6
Positive (+) Pin Negative (-) Pin
Pin 1 / 5
V1+ V1- V2+ V2-
PWR1 PWR2
123456

EN 17
Troubleshooting
Port LEDs Are Not Lit
Check the cable connection of the media converter.
Performance Is Bad
1. Check the speed duplex mode of the partner device. The converter
usually runs in an auto-negotiation mode.
2. If the partner is set to the half duplex, the performance will be poor.
Port LEDs Are Lit, but the Traffic Is Irregular
1. Check if the connected device is not set to dedicate full duplex.
2. For some devices, a physical or software switch may be used to
change duplex modes. Auto-negotiation may not recognize this type
of full duplex setting.
The Media Converter Isn't Connected to the Network
1. Check the port LEDs on the converter.
2. Check if the right-type cable is installed properly.
3. Turn off the power. After a while, turn on the power again.
NOTE: 1. The wire gauge for the terminal block connector
should be in the range of 12 to 24 AWG.
2. The DC power input range is 12V to 48V DC and supports 24V
AC.
3. Use a single input when using the 24V AC power.

18 EN
Online Resources
Download
Help Center
Contact Us
https://www.fs.com/products_support.html
https://www.fs.com/service/fs_support.html
https://www.fs.com/contact_us.html
Product Warranty
Warranty: The products enjoy a 2-year limited warranty
against defects in materials or workmanship. For more
details about the warranty, please check at
https://www.fs.com/policies/warranty.html
2
Return: If you want to return the item(s), information on
how to return can be found at
https://www.fs.com/policies/day_return_policy.html
FS ensures our customers that for any damage or faulty items due to
our workmanship, we will offer a free return within 30 days from the
day you receive your goods. This excludes any custom-made items or
tailored solutions.

DE 19
Einführung
IMC-1S1XMG
Vielen Dank, dass Sie sich für die Industriellen Ethernet-
Medienkonverter entschieden haben. Diese Anleitung soll Sie mit dem
Aufbau der Medienkonverter vertraut machen und beschreibt, wie Sie
sie in Ihrem Netzwerk einsetzen.
IMC-2M2T
Zubehör
IMC-1S1XMG
P1
10G SFP+
10GBASE-T
2.5G
10G/1G
5G/100
IMC-1S1XMG
P2 Fault
IMC-2M2T
P1 P2 Alarm
100/1G /2.5G
10/100 /1000T
10/100
1000
100/1G /2.5G
SFP 1
2
3
4
ACT
LNK/
SFP
ACT
LNK/
LNK/ACT
LNK/ACT
2.5G
1000
100
Montage-Halterung x2 Staubkappe x1 Schraube x4
