Fuji Electric FVR-C9S-7UX User manual

1
FVR-C9S-7UX
Instruction Manual
FVR-C9S-7UX Drive Series
Single-phase 240 VAC Input Type

2
FVR-C9S-7UX
CAUTION
• Make sure that you read this instruction manual thoroughly
before installing, wiring, operating and inspecting this drive.
• Please make sure that this instruction manual accompanies the
drive to the end user.
• Keep this instruction manual so that it will always be available
for the duration of the drive’s operating life.
• Product specifications are subject to change without notice.

3
FVR-C9S-7UX
Thank you for purchasing the Fuji “FVR-C9S” drive marketed by GE Fuji Drives USA, Inc. This
instruction manual is included with the drive and equipment and is provided for the conve-
nience of the end user. Please be sure it accompanies the drive.
CONTENTS
0. Safety Precautions .................................... 4
1. Inspection Upon Receipt .......................... 6
2. Part Names ............................................... 7
3. Warning and Caution ................................ 7
4. Specifications ........................................... 8
5. External Dimensions ............................... 10
6. Installation Instructions ........................... 12
7. Wiring ...................................................... 12
8. Basic Wiring Diagrams............................ 14
9. Application of Wiring and Equipment ..... 16
10. Terminal Function Explanation ................ 17
11. Operation ................................................ 19
12. Keypad Panel .......................................... 21
13. Function Explanation .............................. 23
14. Protective Functions ............................... 34
15. Warranty Parts and Service .................... 35
16. Electromagnetic Compatibility ................ 37
17. EC Declaration of Conformity ................. 40

4
FVR-C9S-7UX
0. Safety Precautions
Before carrying out installation, wiring, mainte-
nance or inspection of the drive, read this in-
struction manual thoroughly to gain a full under-
standing of the correct operation procedures.
Make sure that you have read all product details,
safety information, warnings and cautions before
use. The following classifications for warnings
and cautions are used throughout this manual.
WARNING:
Denotes operating procedures and practices that
may result in severe injury or loss of life if not
correctly followed.
CAUTION:
Denotes operating procedures and practices
that, if not strictly observed, may result in per-
sonal injury or damage to the equipment.
WARNING:
FIRE AND PERSONAL INJURY HAZARD
This drive is designed for variable-speed opera-
tion of three-phase induction motors. It cannot
be used with single-phase motors or for any
other applications, otherwise fire may result.
The drive cannot be used by itself for elevators,
life-preservation equipment or other equipment
which is directly related to human safety. In such
situations, sufficient consideration should be
given to overall system configuration, not just to
the drive, otherwise serious accidents could
result.
INSTALLATION
WARNING:
FIRE AND PERSONAL INJURY HAZARD
Install the drive to a non-flammable surface such
as a metal surface, otherwise fires may result.
Do not place the drive near flammable materials,
otherwise fires may result.
Do not hold the drive by its cover when trans-
porting. Otherwise the drive could be damaged
and cause injury to personnel.
Do not let any scraps of thread, paper, sawdust,
dirt, metal shavings or other foreign objects get
inside the drive or onto the cooling fins, other-
wise fire or problems with operation may result.
AC input fuses are required to validate UL listing
of this device.
Do not install and operate the drive if it is dam-
aged or if some of the parts are missing. Doing
so may result in severe personal injury.
Do not touch the drive cooling fin because the
cooling fin reaches high temperatures during
operation, otherwise personal injury may result.
Install the drive in the environment of pollution
degree 2. If environment is pollution degree 3 or
4, the drive should be installed in a cabinet of
IP54. Required for CE Certification.
WIRING
WARNING:
FIRE AND ELECTRIC SHOCK HAZARD.
When connecting the drive to a power supply, be
sure to connect it via a circuit breaker, a leakage
current breaker or a fuse, otherwise fires may
result.
AC input fuses are required to validate the UL
listing of the drive.
Use only fuses and circuit breakers with rated
capacities that are suitable for use with the drive.
Failure to do so may result in fire.
Connect the drive with a secure ground, other-
wise electric shocks or fires may result.
Wiring work should only be carried out by suit-
ably qualified personnel, otherwise electric
shocks may result.
Make absolutely sure that the power supply is
turned off (open) before wiring, otherwise electric
shocks may result.
Wiring work should only be carried out after the
drive has been installed, otherwise electric
shocks or injury may result.

5
FVR-C9S-7UX
CAUTION:
Do not touch the cooling fins, as they become
hot during drive operation.
Because it is relatively easy to set the drive to
high speed operation, be sure to check the
capacity of the motor and the equipment being
operated before changing the drive function
setting.
The drive braking function cannot be substituted
for mechanical means. Attempting to do so may
result in injury.
MAINTENANCE, INSPECTION AND PART
REPLACEMENT
WARNING:
ELECTRIC SHOCK HAZARD
Wait at least five minutes after turning off the
power before carrying out inspection. Check that
the charge indication lamp has gone out. Do not
touch the drive parts if the lamp is still lit, other-
wise electric shocks may result.
Maintenance, inspection and parts replacement
should only be carried out by suitably qualified
personnel. Remove any metallic accessories
such as watches and rings before starting work,
and use only properly insulated tools, otherwise
electric shocks may result.
DISPOSAL
CAUTION
Disposal of the drive should be entrusted to a
suitably-qualified disposal agency, otherwise
injury may result.
PACKING
CAUTION
Do not stand or sit on the drive as injury may
result.
The number of packing cartons that can be
stacked together is printed on the packing
container. Do not stack the containers any higher
than this or injury may result.
CAUTION:
Check that the phase and voltage of the AC
power supply being connected matches the
input phase and rated input voltage of the drive.
Using an improper power supply may cause
injury or damage to the equipment.
Do not connect AC power to the output termi-
nals (U, V, W) otherwise injury may result.
The drive, motor and wiring produce electromag-
netic noise during operation. Make sure that this
does not interfere with the operation of sensors
or other equipment nearby, otherwise accidents
may result.
OPERATION
WARNING:
ELECTRIC SHOCK HAZARD
Always install the drive cover before turning on
the power supply. In addition, do not remove the
drive cover while the power is on. Failure to
observe these precautions may result in electric
shocks.
Do not operate any of the switches with wet
hands, otherwise electric shocks may result.
WARNING:
FIRE AND PERSONAL INJURY HAZARD
If the retry function has been activated and a trip
occurs, the drive will restart automatically de-
pending on the cause of the trip. Make sure that
the system is set up properly so that there will be
no danger to personnel when the drive starts.
The STOP key is only effective when keypad
panel operation has been selected in the func-
tion settings. A separate switch should be
installed for emergency stopping purposes.
If an alarm reset is carried out while a run signal
(FWD/REV) is being input, the drive will suddenly
restart. Always check that the run signal is not
being input before carrying out the alarm reset,
otherwise accidents may occur.
Never touch the drive terminals while the power
is fed to the drive, regardless of whether the
drive is running or not.

6
FVR-C9S-7UX
1. Inspection Upon Receipt
Please inspect the following items upon receipt
of your drive.
• Check the name plate to insure the specifica-
tions correspond to those ordered.
• Inspect the unit for damage which may have
occurred during shipping.
If you have any problems or questions regarding
the drive, please contact the nearest Fuji sales
office or the distributor where the unit was
purchased.
Nameplate
UL/CSA
WARNING / AVERTISSEMENT
Hazard of electrical shock. Disconnect incoming
power before working on this control.
Risque de choc electrique. Couper l’alimentation
avant le depannage de sette commande.
More than one live circuit. See diagram. Cet
equipment renferme plusieurs circuits sous
tension. Voir le schema
CAUTION ATTENTION
Dangerous voltage exists until charge light is off.
Prede tensions dangereuses tant que le voyant
n’est pas eteint.
Suitable for use on a circuit capable of delivering
not more than 5,000 rms symmetrical amperes.
240V maximum.
• Use 60/75°C copper wire only.
• Use Class 1 wire only.
• Open type equipment
• Tightening torque and wire range for field
␣ ␣ ␣ wiring terminals are as follows:
Model Required Wire
torque (N.m) range
FVRF12C9S-7UX 0.98 14
FVRF25C9S-7UX 0.98 14
FVRF50C9S-7UX 0.98 14
FVR001C9S-7UX 0.98 14
FVR002C9S-7UX 0.98 14
Control board
terminal 0.7 24
Use the listed quick-acting fuse in series. Fac-
tory recommendation is a Bussman type JKS or
equivalent. Fuses are required to validate the UL
and CSA listings.
Model Dist. fuse size,600V
FVRF12C9S-7UX 20
FVRF25C9S-7UX 20
FVRF50C9S-7UX 20
FVR001C9S-7UX 20
FVR002C9S-7UX 30
Field wiring connection shall be made by a UL
listed and CSA Certified closed-loop terminal
connector sized for the wire gauge involved.
Connector must be fixed using the crimp tool
specified by the connector manufacturer.
OTHER
WARNING:
FIRE AND PERSONAL INJURY HAZARD
Do not carry out any modifications to the drive.
Doing so may result in electric shock and injury.
GENERAL CAUTION
All of the illustrations in this instruction manual
show the drive with the covers and other protec-
tive equipment removed in order to facilitate
explanation of detailed parts of the drive. Be
absolutely sure to return all covers and protective
equipment to the prescribed positions before
operating the drive, and make sure that all opera-
tions are carried out in accordance with the
instructions in this manual.
TYPE
SOURCE
OUTPUT
SER. NO.
FVRF 12C9S-7UX
1PH 200-240V 1.7A 50/60 HZ
3PH 200-230 0.66A 1/8HP 1-120HZ
Fuji Electric Co. Inc. Japan
1
2 3 4
5 6 7
8

7
FVR-C9S-7UX
1. Type
2. Phase: 1AC - Single-phase
3. Voltage range: 220V - 240V
AC200V Series
4. Frequency: 50/60Hz
5. Rated output capacity
6. Rated output current
7. Output frequency range: 1- 120 Hz
8. Serial No.
2. Part Names

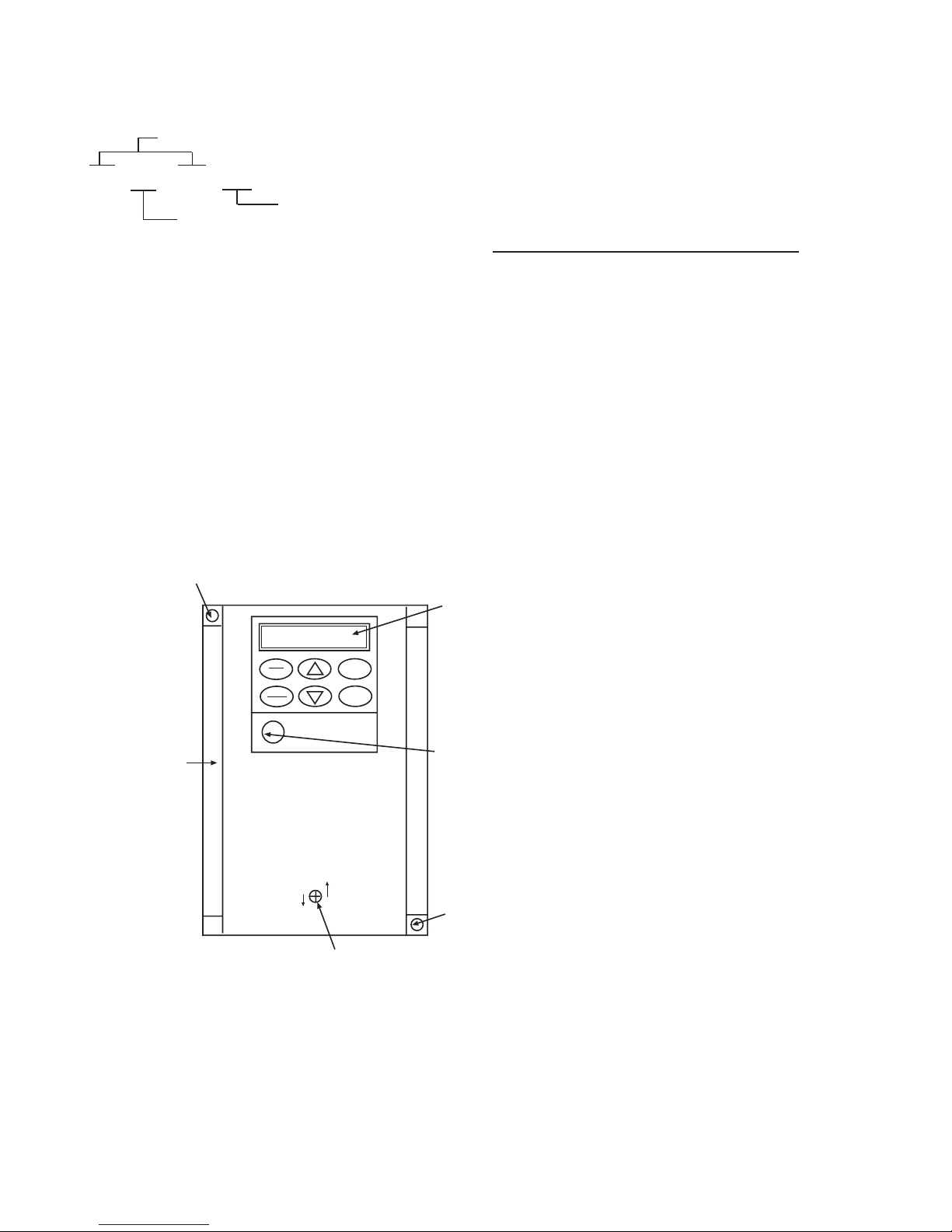

1. Drive Cover
2. Keypad Panel
3. Frequency Setting VR
4. Mounting Screw Holes
5. Drive Cover Screw
PRG
RESET
FUNC
DATA
RUN
STOP
CLOSED OPEN
FVR-C9S
1
2
4
3
5
4
F V R F 2 5 C 9 S 7 U X
Drive Series
Applicable motor output (Hp)
Power Series: 200V UX Series
3. Warning and Caution
Improper wiring will result in damage to, and
failure of the unit. Please carefully note the
items listed below, and use the unit as indi-
cated.
WARNING AND CAUTION
1. Do not connect the power supply to
voltage that exceeds the standard speci-
fication voltage with permissible fluctua-
tion. (Permissible voltage: AC220V -
240V)
2. Do not connect power supply to the drive
output terminals (U, V, W). Connect
power supply only to the power terminals
(L1, L2)
3. Whenever removing the drive cover,
always switch off the power supply. Do
not switch on the power supply to the
drive with the drive cover removed.
4. Do not touch the live part until the CRG
lamp located above the main circuit
terminals goes out.
5. Avoid using a magnetic contactor (ON/
OFF) installed in the line side of the drive
for RUN and STOP. Use the FWD-CM
(forward) and REV-CM (reverse) terminals
for RUN and STOP.
6. Do not connect a power factor correcting
capacitor to the output side of the drive.
7. Do not perform a megger test between
the drive terminals or on the control
circuit terminals.

8
FVR-C9S-7UX
4. Specifications
Type (FVR _ _ _ C9S-7UX) F12 F25 F50 001 002
Applicable motor output
1
[Hp] 1/8 1/4 1/2 1 2
Rated capacity
2
[kVA] 0.27 0.5 0.87 1.5 2.7
Voltage [V] Three-phase 220-240V 50/60 Hz (Output voltage is proportional
to input voltage)
Output Rating Rated current [A] 0.66 1.2 2.1 3.7 6.4
Overload current rating 150% 1 min.
Rated frequency [Hz] 50/60 Hz
Phase, voltage, frequency Single-phase 220-240V 50/60 Hz
Allowable variation in Voltage: =10 - 15% Frequency: 15% (Imbalance in power
Input power voltage/frequency supply voltage: 3%)
supply Instantaneous voltage drop
withstanding capacity
Required power supply
capacity [kVA] 0.3 0.6 1.0 1.7 3.1
Adjustment Max. freq.
4
[Hz] 50-120 Hz Setting variable (in increments of 1 Hz)
Base freq. [Hz] 50-120 Hz Setting variable (in increments of 1 Hz)
Starting freq. [Hz] 1-6 Hz Setting variable (in increments of 1 Hz)
Output Accuracy Analog setting: ±1.0% of max. frequency (25±10°C)
frequency Digital setting: ±0.01% of max. frequency (-10 - +50°C)
Setting resolution Analog setting:1/255 of max. frequency
(ex. 0.25 Hz / 60 Hz, 0.5 Hz / 120 Hz)
Digital Setting: 0.1 Hz (99.9 Hz max) 1 Hz (100-120 Hz)
Control method Sine wave PWM control
(Extremely low noise by high frequency carrier)
Control Operation Keypad operation: Operation control by RUN/STOP keys
Terminal strip: Forward command. Reverse command.
Coast-to-stop command. Reset.
External alarm.
1) "Applicable motor" indicates a standard 4-pole motor.
C92-7-13
2) "Rated capacity" indicates a capacity at 240V rating.
3) This applies to the case where momentary power failure occurs under such conditions that rated voltage is
inputted and load factor is 85%.
4) Shows the case where an applicable motor equipped with an AC reactor (option) on the input side is used.
Drive is kept running if voltage is 165V or more. If voltage drops
more than 165V from rated volta
g
e
,
drive is run for 15ms.
3

9
FVR-C9S-7UX
Type (FVR _ _ _ C9S-7UX) F12 F25 F50 001 002
Applicable motor output
1
[Hp] 1/8 1/4 1/2 1 2
Frequency setting Key operation: Setting with UP/DOWN keys
Potentiometer: Terminal for 1-5K ohm VR is provided
Analog signal: 0-5 VDC 0-10 VDC (resistance = 12k ohm)
4-20 mA (resistance = 250 ohm)
Display Run mode Output frequency is displayed. (3 digit LED)
Fault mode Cause of fault is displayed.
Other LED comes on with charging voltage applied.
Acceleration/Deceleration time 0-60s (Variable setting) Acceleration time and deceleration
Control time can be set independently.
Voltage frequency characteristics Setting of maximum frequency/base frequency is variable.
Restart after momentary power failure "Automatic restart" setting makes it possible to keep motor
running and restart drive in case of a momentary power failure.
High Limiter & Low Limiter Upper limit and lower limit of frequency can be set.
Bias setting Bias setting is possible with respect to analog frequency setting.
Jump frequency Three jump points and one jump width can be set.
Torque boost Setting variable in 32 steps.
Starting torque [%] 150% for 60 seconds.
Braking torque
5
[%] 150% 1 min. 100% 1 min. 50% 1 min.
Braking DC brake Brake starting frequency: 3 Hz (fixed)
Setting of braking current / braking time is variable.
Overload Detects overload current and stops drive.
Momentary overcurrent Protects drive In case of ground fault (detects at start) and
short circuit of output circuit.
Overvoltage Detects overvoltage of DC bus and stops drive.
Protection Overheating of cooling element Detects abnormal temp. rise of cooling element and stops drive.
Motor protection Protects standard 4-pole motor and forced-air cooled motor by
means of electronic thermal overload relay.
Alarm protection Outputs contact signal in case of a trip for protection
(1c contact capacity: AC250V 0.3A cos = 0.3)
Installation location Indoor at an altitude of 3283 feet (1000m) or less and free of
dust, corrosive gas and oil mist.
Ambient temperature -10 to 50°C
Ambient humidity 20 -90% RH (There shall be no dew condensation)
Environment Vibration 19 feet/s
2
(5.9m/s
2
) or less
Vibration frequency: 5 - 55 Hz
Storage temperature -25 to 65°C
Atmospheric pressure Operation/storage: min 900 mb (equivalent to 3283 feet (1000m)
Transport: min 660 mb (equivalent to 10720 feet (3265m)
Enclosure IP20
Cooling method Self-cooling (up to 1 Hp), forced-air cooling (2 Hp)
5) This indicates average braking torque of a single motor. (Value varies according to motor efficiency.
C92-7-14

10
FVR-C9S-7UX

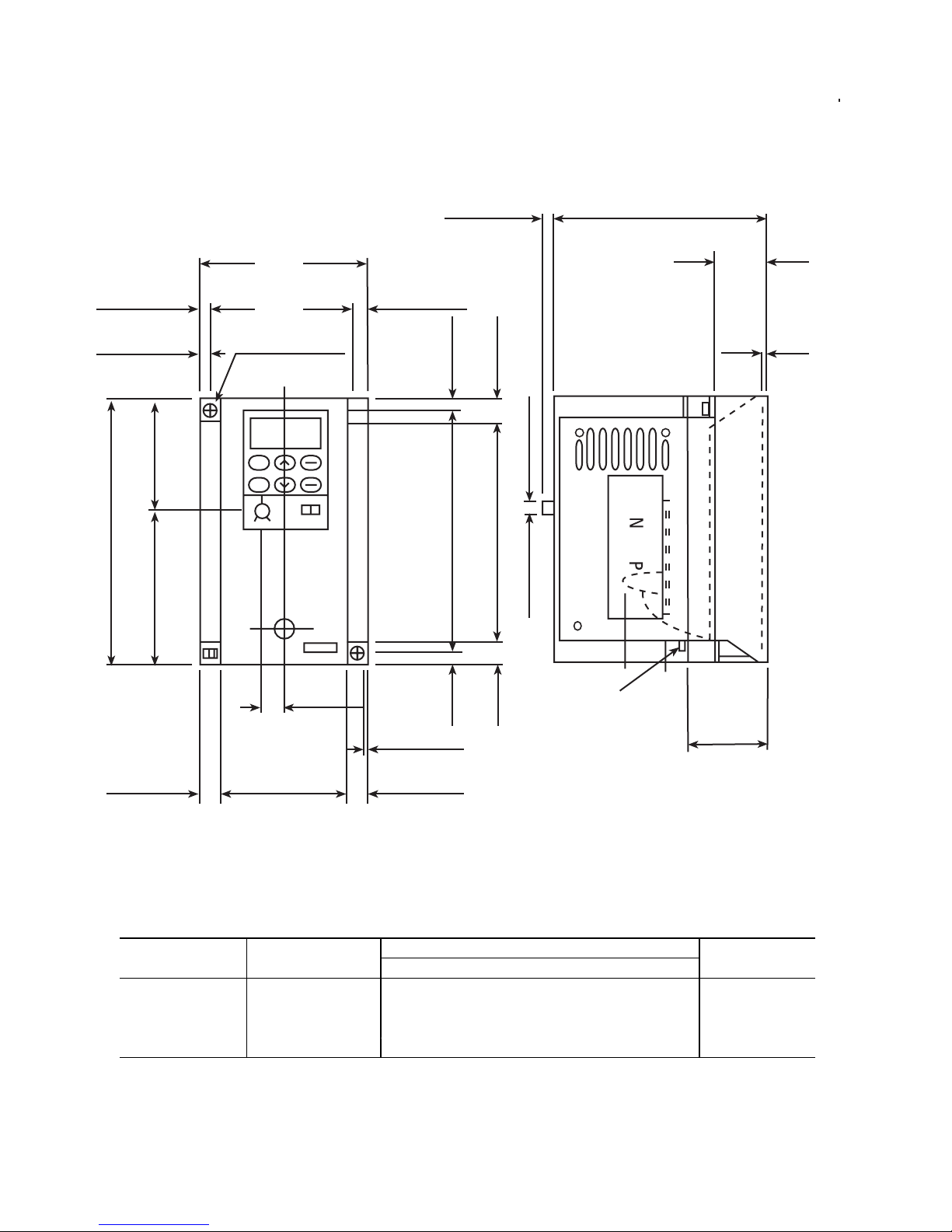

5. External Dimensions

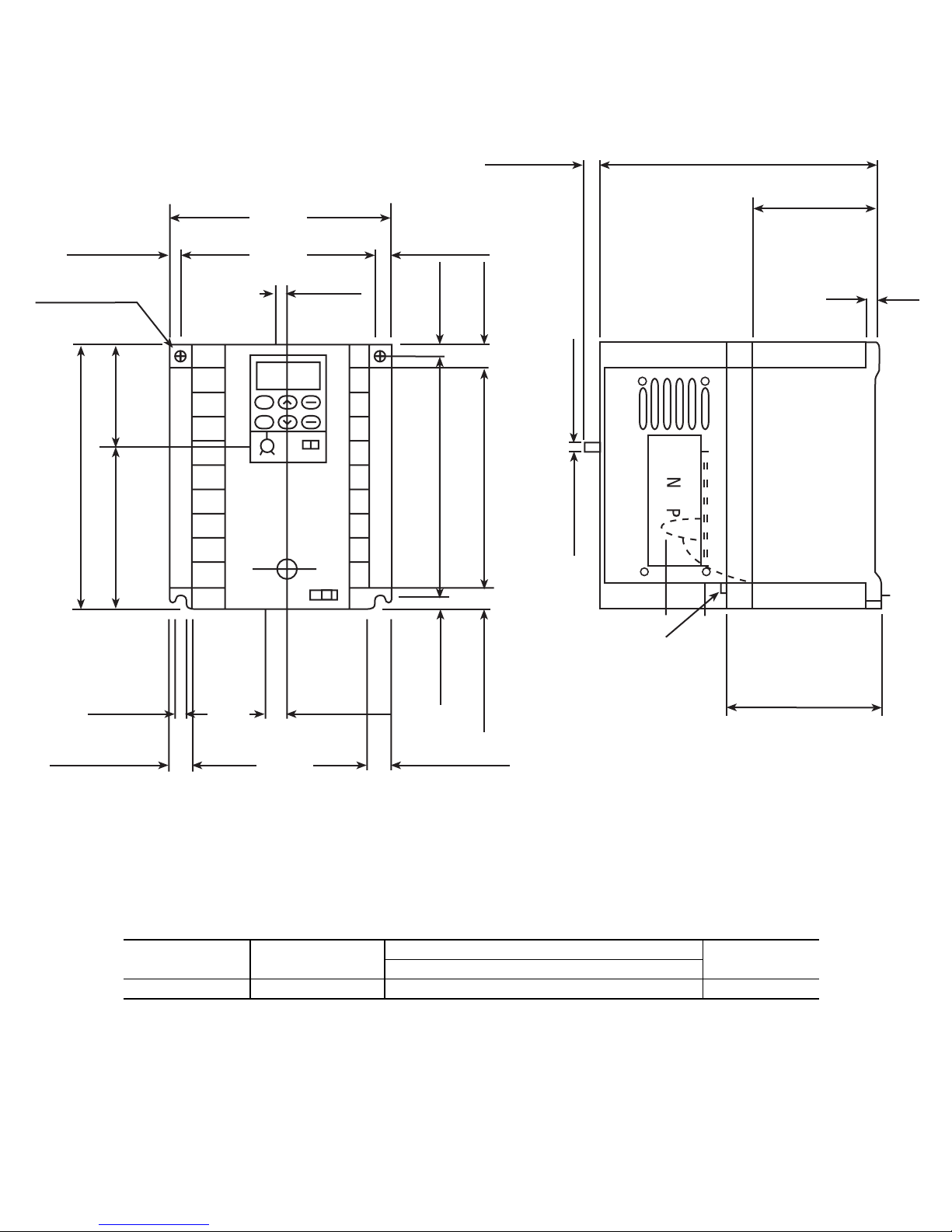

Rated Current External Dimensions: inches (mm) DWG No.
Type [A] D D1 D2
FVRF12C9S-7UX 0.66 3.37 (85.5) 0.89 (22.5) 0.39 (10)
FVRF25C9S-7UX 1.2 3.56 (90.5) 1.08 (27.5) 0.59 (15) DWG 1
FVRF50C9S-7UX 2.1 3.96 (100.5) 1.48 (37.5) 0.98 (25)
FVR001C9S-7UX 3.7 5.53 (140.5) 2.46 (62.5) 1.97 (50)
3.15 (80)
2.64 (67)
2 - 0.20 X 0.24
(2 - 5 X 6.2)
0.26 (6.5)
0.06 (1.5)
0.26 (6.5)
4.72 (120)
1.97 (50)2.76 (70)
DWG 1: FVRF12C9S-7UX to FVROO1C9S-7UX
0.20 (5)
0.39 (10)
4.33 (110) 3.94 (100)
0.20 (5)
0.39 (10)
2.36 (50)0.39 (10) 0.39 (10)
0.06 (1.5)
0.43 (11) TERMINAL M3.5
D1
0.24 (6.2)
0.24 (6.2) D
D2
0.06 (1.5)

11
FVR-C9S-7UX
Rated Current External Dimensions: inches (mm) DWG No.
Type [A] D D1 D2
FVR002C9S-7UX 6.4 5.53 (140.5) 3.05 (77.5) 2.56 (65) DWG 2
7-'005
3.86 (98)
2 - dia. 0.20
(2 - dia. 5)
0.24 (6.2)
0.18 (4.5)
0.24 (6.2)
DWG 2: FVR002C9S-7UX
0.24 (6)
0.45 (11.5)
TERMINAL M3.5
D1
0.24 (6.2)
0.24 (6.2) D
D2
0.24 (6.2)
4.65 (118) 4.21 (107)
4.33 (110)
5.12 (130)
0.20 (5)
1.97 (50)3.15 (80)
0.24 (6.2)
0.45 (11.5)
0.45 (11.5)
0.43 (11)
3.43 (87) 0.45 (11.5)

12
FVR-C9S-7UX
Mounting plate: Heat sink temperature will
reach +90°C during operation. Please use
thermostable material for drive mounting
plate.
Multi-mounting: When 2 or more drives are
installed within the drive switchboard, ar-
range them side by side, keeping space
(shown in the above figure) between each
drive. If the drives must be lined up vertically,
provide adequate ventilation so that the hot
air from each drive will not affect the one
above it.

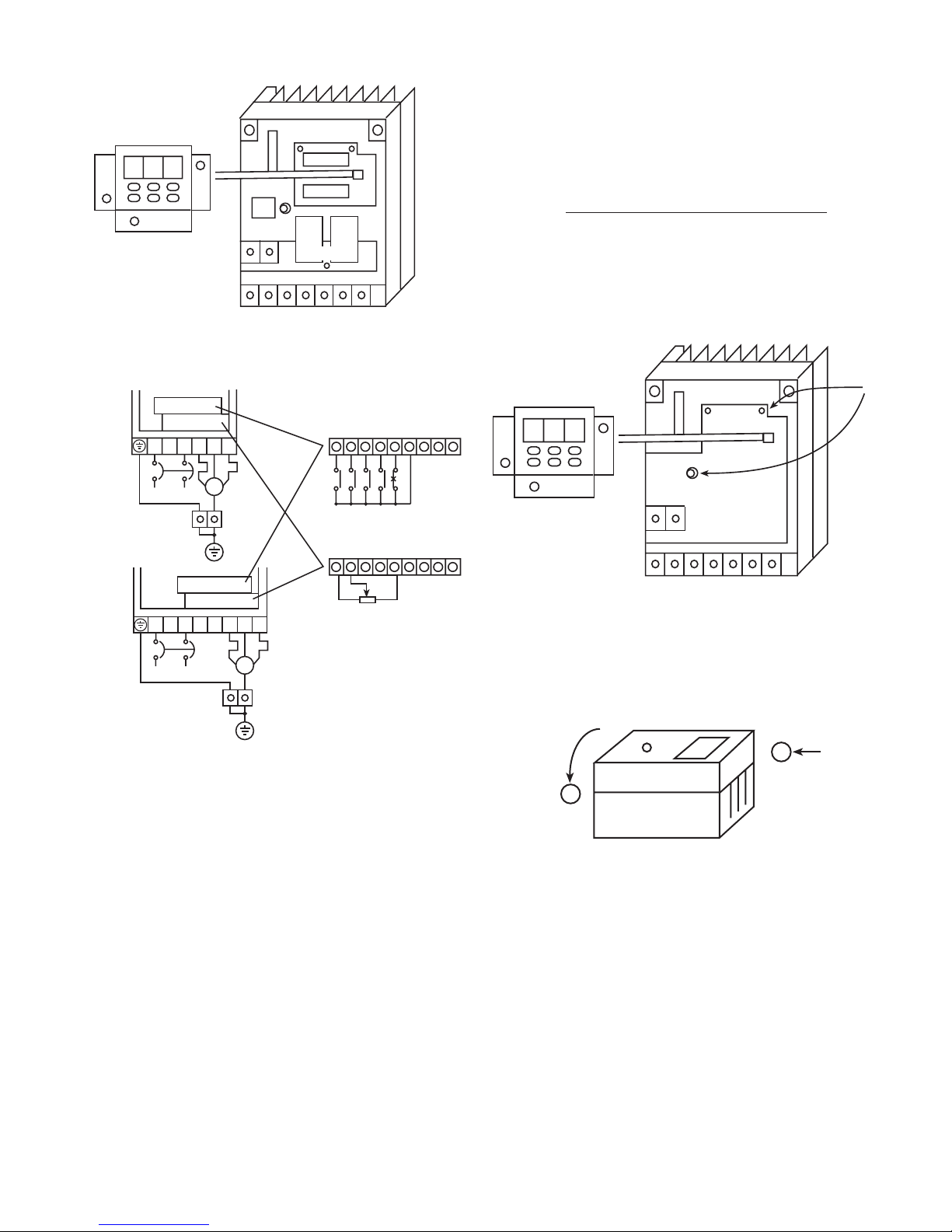

7. Wiring
Perform wiring in accordance with the fol-
lowing procedure:
1) Remove the cover mounting screw at the
center of the cover.
2) Hold the lower end of the cover, lift it up
and remove the cover
3) Remove the keypad panel from the main
unit, and disconnect the harness from the
CN2 at the same time.
6. Installation Instructions
Installation Conditions
Install the drive in a location which meets the
following requirements:
• The ambient temperature should be be-
tween -10°C and +50°C.
• Install the drive in the environment of
pollution degree 2. If environment is pollu-
tion degree 3 or 4, the drive should be
installed in a cabinet of IP54.
• Install the drive in the atmospheric pres-
sure of 900mbar or more.
• Install the drive in the vibration of 232
inches/s2(5.9m/s2) or less.

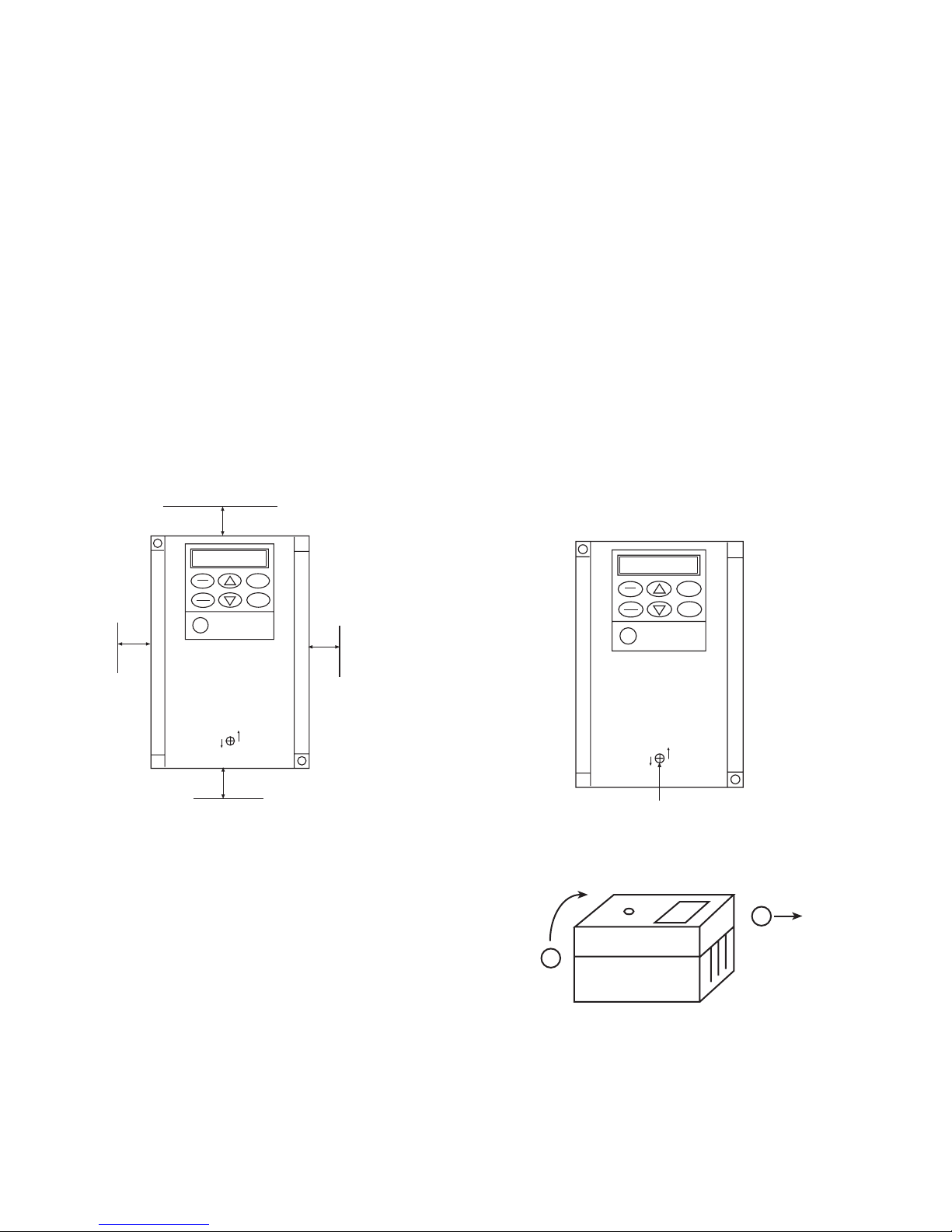

Mounting Direction and Space
NOTICE: The durability and reliability of the
drive will be affected by the ambient tem-
perature. Do not place the unit where ambi-
ent temperature is not proper.
Direction: Insert M4 size screws in the
mounting screw holes in the left upper and
right lower of the drive, and install the drive
with these screws. Install the drive vertically.
Horizontal or other positional installation will
cause the drive to overheat.
Space: The drive will generate heat during
operation. Allow sufficient space around the
unit as shown in the above figure.
PRG
RESET
FUNC
DATA
RUN
STOP
CLOSED OPEN
FVR-C9S
3.94”
(10cm)
0.394”
(1cm)
3.94”
(10cm)
0.394”
(1cm)
PRG
RESET
FUNC
DATA
RUN
STOP
CLOSED OPEN
FVR-C9S
Cover Mounting Screw
2
1
Side view of inverter

13
FVR-C9S-7UX
4) Arrange the main circuit and the control
circuit wiring as follows.
1. Motor coast-to-stop
2. Reset signal
3. Reverse-direction operation command
4. Forward-direction operation command
5. External alarm
6. Frequency setting VR
7. Combined alarm relay output
Note 1) FWD and THR are connected to CM
at the factory. In this condition,
starting/stopping can be performed
via RUN/STOP keys on the keypad
panel.
Note 2) In case of using an external potenti
ometer, remove the connector
which the keypad panel and the
CN2 on the drive main unit are
connected.
Note 3) Connect the power supply of over
voltage category II. If the power
supply is over voltage category III,
place the devices to limit the over
voltage below 2.5kV.
Required for CE Certification.
5) Reinstall the cover. Connect the harness
of the keypad panel to the CN2 on the main
unit, then reinstall the keypad panel fitting it
onto the guide pins.
6) As shown below, reinstall the cover onto
the drive main unit, and fix it with the mount-
ing screw.
1
B
X
3 5 7742
R
S
T
R
E
V
F
W
D
T
H
R
C
M
3
O
C
3
O
B
Note 1
6
1
1
6 76
1
2
1
3
F
M
3
O
A
Note 2
L1 L2 U V W
FVRF12C9S-7UX to FVR001C9S-7UX
Power Supply 3-Phase
motor
Cabinet PE
terminals
M
FVR002C9S-7UX
Power Supply
3-Phase
motor
Cabinet PE
terminals
M
L1 L2 U V W
CN 2
CN 1
8. 8. 8.
Disconnect
CRG Lamp
CN 1
8. 8. 8.
Connect
CN 2 CN 2
Guide Pin
1
2
Side view of inverter

14
FVR-C9S-7UX

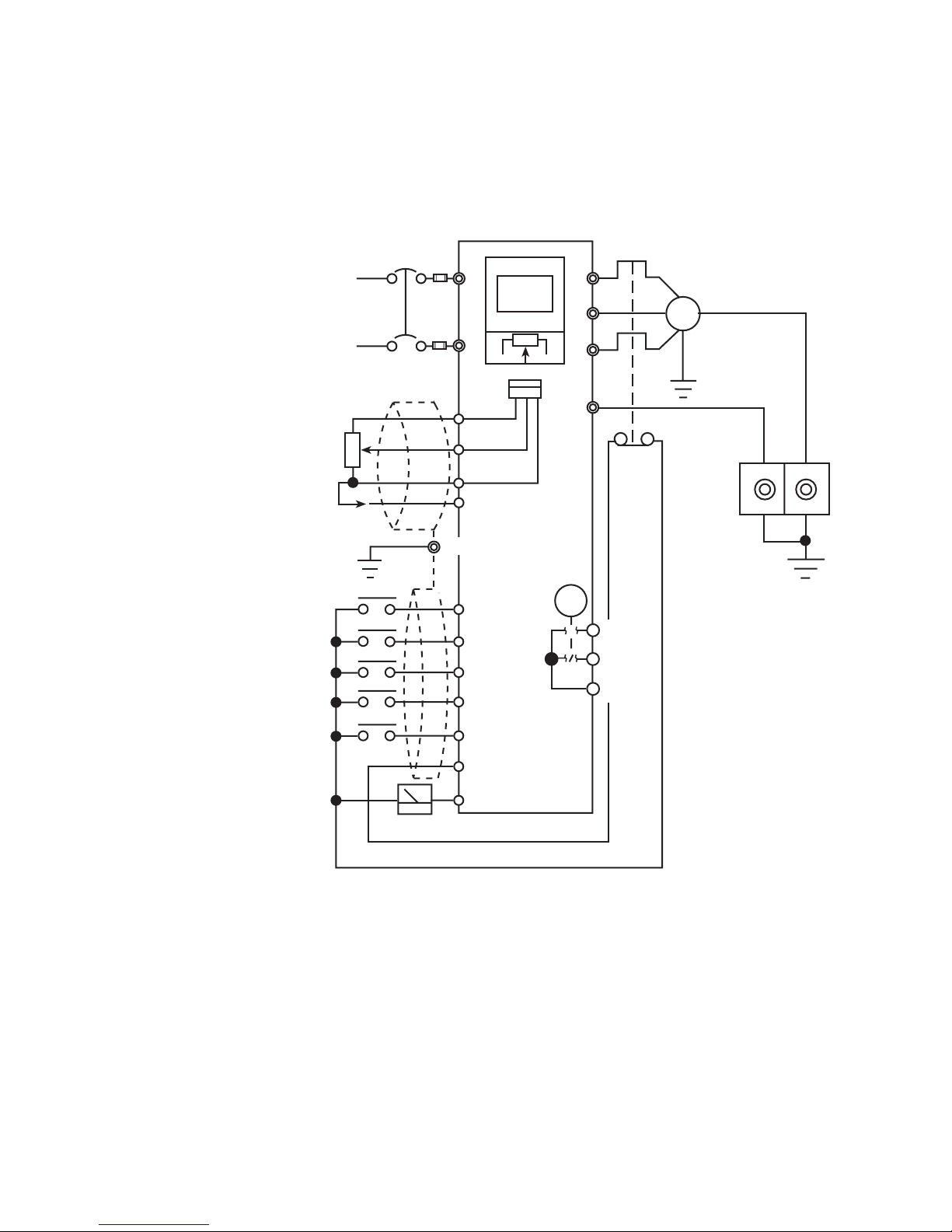

8. Basic Wiring Diagram
1) Keypad Panel Operation
From the factory, the drive is set for frequency control by means of the potentiometer control
knob on the keypad panel. The RUN/STOP function of the drive is controlled by the RUN/
STOP keys on the keypad panel.
* PE terminal blocks for the drive and motor should be provided in the cabinet in which the
drive is installed in.
M
FAB
8 8 8
CN2
10V 1mA
L1
L2
U
V
W
13
12
11
C1
FWD
REV
RST
BX
CM
THR
FM
Power Supply
AC220 - 240V
50/60 Hz
1-phase
30A
30B
30C
Fault
★
PE
E(G)

15
FVR-C9S-7UX
2) External Signal Operation
Ensure that the connection is as shown in the following diagram in case of operating the drive
by means of external frequency setting potentiometer or contact signal.
Note 1) Set function F02 to 1.
Note 2) In case of using an external frequency setting potentiometer, disconnect the potenti-
ometer connector (CN2) from the keypad panel. Use of an external potentiometer together
with the potentiometer on the keypad panel may result in damage to the drive.
* PE terminal blocks for the drive and motor should be provided in the cabinet in which the
drive is installed in.
Power supply
AC220-240V
50/60Hz
1 Phase
Potentiometer for
frequency setting
FAB Thermal Relay
Forward-direction operation command
U
V
W
FM
THR (X1)
CM
RST
BX (X2)
REV
FWD
M
L1
L2
13
12
11
x
CN2
888
FVR-C9S
Reverse-direction operation command
Motor coast-to-stop command
External alarm input
Analog monitor
10V 1mA
Alarm reset
★
PE
30A
30B
30C
C1
Fault
E(G)
E(G)

16
FVR-C9S-7UX
CAUTION:
The control circuit terminal wiring should be
kept as far as possible from the main circuit
wiring to prevent operational error due to
noise interference. Never install them in the
same duct or conduit. (A separation distance
of 4 inches [10cm] or more is recom-
mended.) If the control circuit wiring must
cross the main circuit wiring, make sure it
crosses at a right angle.
Use shielded, twisted wire for the control
circuit wiring , which should be as short as
possible (65 feet [20m] or less).
Install a surge absorber in parallel with any
magnet contactors, solenoids, relays or
timer coils, which are close to the drive.
Applicable motor output [Hp] 1/8 1/4 1/2 1 2
Drive type FVRF12 FVRF25 FVRF50 FVRF001 FVRF002
C9S-7UX C9S-7UX C9S-7UX C9S-7UX C9S-7UX
Output rated capacity [kVA] 0.27 0.5 0.87 1.5 2.7
Applicable wire size Main circuit 14 12
(AWG) Contol circuit 24
MCCB 6 10 16 20
ELCB 6 10 16 20
Listed fuse* 20 30
* The use of quick-acting fuses is required to validate UL listing. The factory
C92-7-15
recommendation is Bussman type JKS or equivalent.
Long wiring lengths between the motor and
the drive will result in increased capacitance
and leakage current. This may cause earlier
activation of such protective functions as:
overcurrent protection, overheating protec-
tion and electronic thermal overload, or the
error in current detection may become large.
To avoid these, adjust the length of wiring
between the drive and the motor so that is
does not exceed the length shown below.
FVRF12C9S-7UX : 165 feet (50m)
FVRF25 to 002C9S-7UX : 325 feet (100m)
9. Application of Wiring and Equipment

17
FVR-C9S-7UX
Terminal Function Explanation
Classi-
fication Terminal Code Terminal Name Explanation of Function
Main
Circuit L1, L2 Commercial power supply input
terminals For connection of 1-Phase 220 to 240V commercial power supply
U, V, W Drive Output Terminals For connection of a 3-Phase motor
E (G) Drive Grounding Terminals Grounding terminal of drive chassis (case). Be sure to ground
the drive to prevent electric shock or to lower noise
Frequency
Setting 13 Power Supply for Frequency
Setting Used as a power supply for frequency setter (variable resistor: 1 - 5K ohm) (DC + 10V, 10mA max)
12 Frequency Setting Voltage Input DC 0 - +10V / 0 - 100% (Input resistance: 22K ohm)
11* Frequency Setting Common
Terminal Common terminal for frequency setting signals 12 and 13
C1 Frequency Setting
Current Input (+) DC4 to 20 mA / 0 to 100% (Input resistance: 250 ohm)
Control
Input FWD Forward/Stop Command Input
Terminal
Forward-direction operation takes place when FWD-CM is
closed. Drive decelerates and stops when FWD-CM is
opened
REV Reverse/Stop Command Input
Terminal Reverse-direction operation takes place when REV-CM is closed. Drive decelerates and stops when REV-CM is opened
BX Motor Coast-to-Stop Input
Terminal •Drive output is cut off instantly and motor will coast-to- stop when BX-CM is closed. Alarm signal is not outputted.
•This functions as multistep frequency selection terminal X2
when changing function.
THR External Alarm Input Terminal •When THR-CM is opened during operation, drive output is cut (motor will coast-to-stop) and an alarm signal is
outputted. This signal is latched and reset by RST input.
•This functions as multistep frequency selection terminal X1
when changing functions.
RST Alarm Reset Terminal When RST-CM is closed, the drive fault is reset.
CM* Control Input Common Terminal Common terminal for control input signals
C92-7-03
* Electric potential of 11 terminal is identical with that of CM terminal.
10. Terminal Function Explanation

18
FVR-C9S-7UX
Terminal Function Explanation
Classi-
fication Terminal Code Terminal Name Explanation of Function
Output for
Motor FM Analog Monitor
Outputs + 10VDC between FM and CM terminals. When
frquency setting is equal to the maximum frequency setting,
outputs + 10VDC at 150% current when monitoring output
current.
• Two DC voltmeters (internal resistance of 10K ohm or
greater) can be connected.
• In case of DC ammeter (1mA full scale), it is necessary to
add series resistance of 10K ohm (1/2W)
• This output is a pulse output constant frequency (38. 1 Hz)
which has a variable duty.
Contact
Output 30A, B, C Combined Alarm Output
Terminals Output via no volt signal (contact1c) to indicate that the drive's protective function has been activated by an alarm.
• Contact capacity (DC48V. 0.3A)
C92-04
Terminal Function Explanation cont.

19
FVR-C9S-7UX
11. Operation
Pre-Operation Inspection
• Check for wiring errors.
• Check that all loose wire stands, metal
chips and unnecessary screws, etc. have
been removed.
• Check that no screws, terminals, etc. are
loose.
• Check that the wire ends of crimp terminal
are not in contact with other terminals.
Test Run Check Points
• Smooth rotation and correct rotation
direction.
• No abnormal vibrations and noise from
the motor.
• Smooth acceleration and deceleration.
Frequency Setting Method
• Frequency setting by potentiometer con-
trol (factory preset at the time of ship-
ment; F01:1). As wired at the factory,
frequency setting can be performed by
turning the potentiometer control knob on
the keypad panel. Turn the potentiometer
control knob clockwise to increase fre-
quency.
• Frequency setting by digital signal (F01 :
0). With the function F01 set to 0, fre-
quency can be increased or decreased by
the
UP/DOWN) keys on the keypad panel.
UP: Frequency up
DOWN: Frequency down
RUN/STOP Method
• RUN/STOP by keypad panel operation
(Factory preset at the time of shipment
F02:0).
• The drive is shipped with a factory in-
stalled jumper, between FWD-CM. Only
forward operation is possible. To enable
reverse operation, remove the jumper
from FWD/CM and install the jumper
between REV-CM.
• RUN/STOP by terminal operation (F02 : 1)
Note: Open FWD and REV terminals when
changing F02 data. Data cannot be changed
if not open.

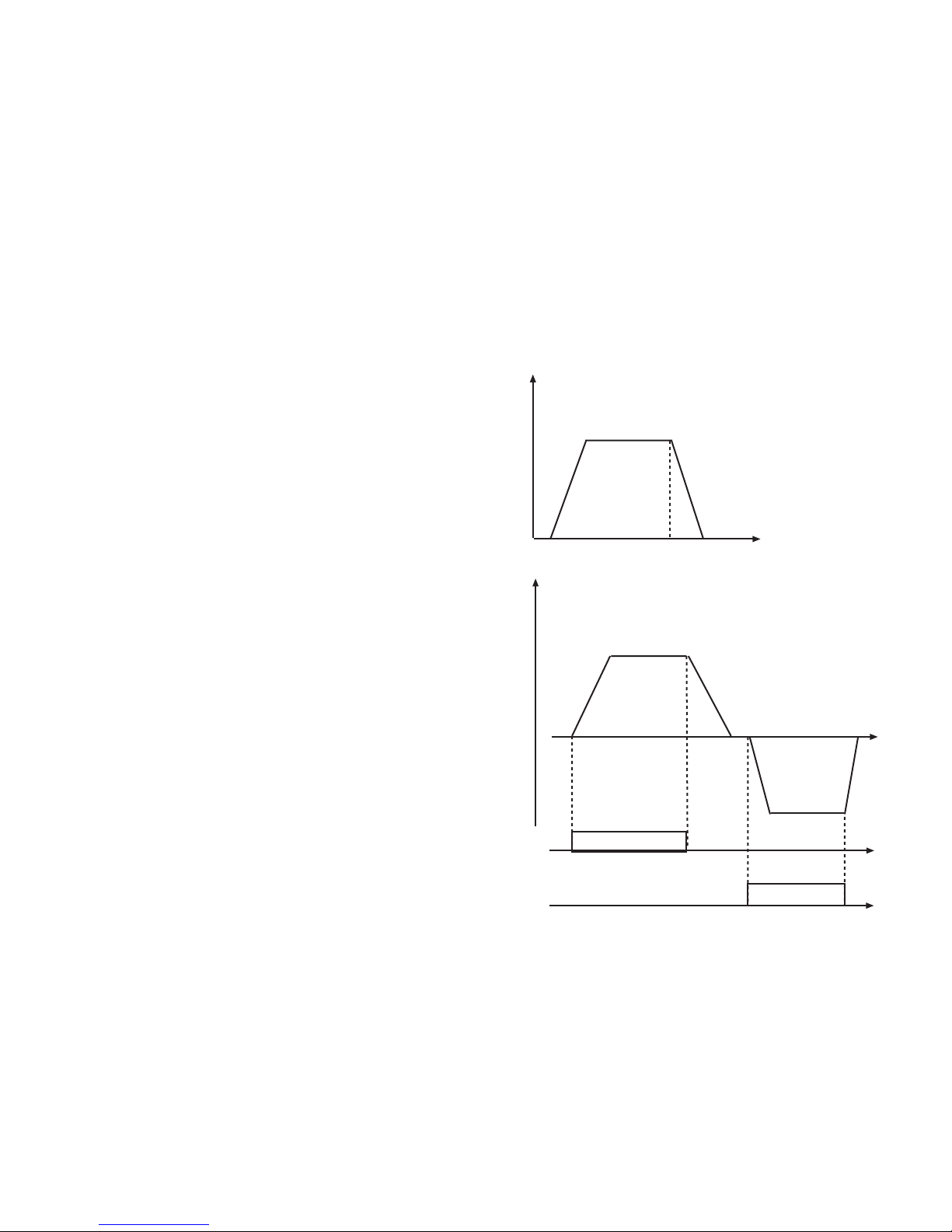

RUN STOP Time
Frequency
Forward
Reverse
FWD-CM
REV-CM
ON
ON
Frequency

20
FVR-C9S-7UX
Selecting Operation Method
With the FVR-C9S Series, the following
methods can be selected to input the
RUN/STOP signals and for frequency
setting.
Fre
q
uenc
y
Settin
g
Function Code settin
g
1
F01= 0
2
02= 0 F01= 1
3
F01= 0
4
02= 1 F01= 1
C92-07
* The frequency setting rate of change increases when FUNC/DATA key and UP/DOWN keys
are pressed simultaneously
F
RUN/STOP
Keypad panel
operation
RUN/STOP Keys
Terminal operation
(operation by external
signal, FWD/REV
terminals)
F
UP/DOWN Keys*
Analog signal (DC0 - 10V)
UP/DOWN Keys*
Analog signal (DC0 - 10V)
