FujiFilm XF56mmF1.2 R Specification sheet

DIGITAL CAMERA
XF56mmF1.2 R
SIMPLE MANUAL
-For Repair Centers without the Lens Repair Training-
WARNING
zTHE COMPONENTS IDENTIFIED WITH THE MARK “ ” IN THE SCHEMATIC DIAGRAM
AND THE PARTS LIST ARE CRITICAL FOR SAFETY.
zREPLACE THOSE COMPONENTS ONLY WITH THE COMPONENTS SPECIFIED IN THE
SCHEMATIC DIAGRAM AND THE PARTS LIST.
zIF YOU USE PARTS NOT SPECIFIED, IT CAN RESULT IN A FIRE AND AN ELECTRICAL
SHOCK.
Ref.No.: ZM01118-600
Released on 20 Feb 2014

Confidential: FUJIFILM Service Center Use Only
XF56mmF1.2 R Simple Manual
-For Repair Centers without the Lens Repair Training-
SAFETY CHECK-OUT
During repair and safety checking, conduct the followings.
1. Check if there are unsoldered or poorly
soldered connections. Check the entire
board surface for solder splasher and
bridges.
2. Check the inter-board wiring to ensure that
no wires are “pinched” or contact high-
wattage resistors.
3. Look for unauthorized replaced parts,
particularly transistors that were installed in
a previous repair. Point this out to a
customer and recommend replacing with
authorized parts.
4. Look for parts which, though functioning,
signs of deterioration. Point this out to a
customer and recommend replacing with
new parts.
5. Check the B + voltage to see if it is the
correct value.
6. Check leakage current see if exposed parts
are insulated from power supply before
returning a camera to a customer.
7.
8.
CAUTION:
FOR PROTECTION
AGAINST FIRE HAZARD,
REPLACE ONLY WITH
SAME TYPE 2.5 AMPERES
125V/250V FUSE.
ATTENTION:
AFIN D’ASSURER UNE
PROTECTION
PERMANENTE CONTRE
LES RISQUES D'INCENDIE,
REMPLACER
UNIQUEMENT PAR UN
FUSIBLE DE MEME, TYPE
2.5 AMPERES, 125/250
VOLTS.
WARNING:
TO AVOID THE ELECTRIC
SHOCK, BE CAREFUL TO
TOUCH THE PARTS.
RISK OF FIRE-
REPLACE FUSE
A
S MARKED
2.5A 125V
2.5A 125V
WARNING!
HIGH VOLTAGE
2

Confidential: FUJIFILM Service Center Use Only
XF56mmF1.2 R Simple Manual
-For Repair Centers without the Lens Repair Training-
CONTENTS
1. List of Jigs······································································································ 4
2. Inspection······································································································· 5

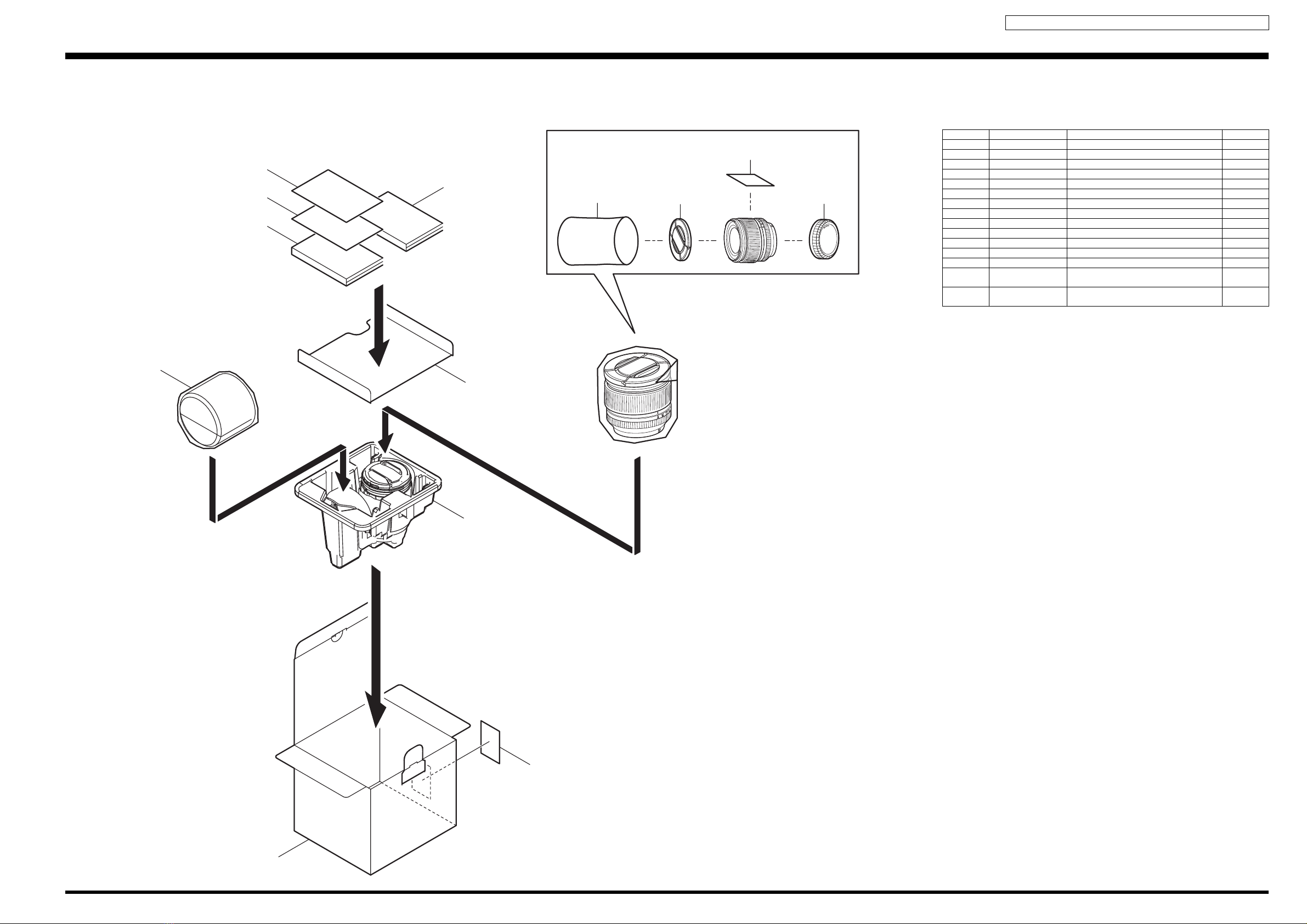

3. Parts List·······································································································13
4. Appendix·······································································································15
3

Confidential: FUJIFILM Service Center Use Only
XF56mmF1.2 R Simple Manual
-For Repair Centers without the Lens Repair Training-

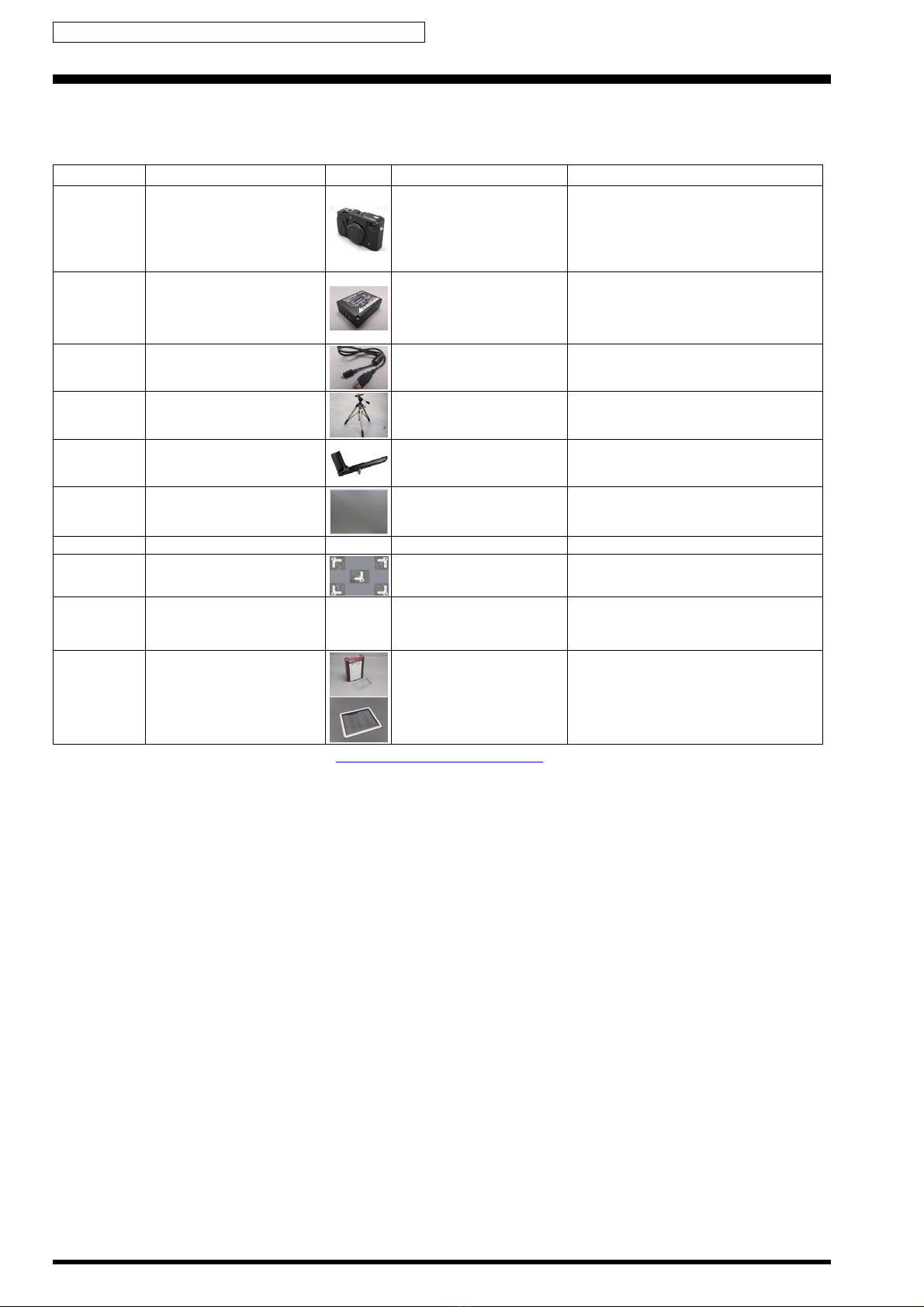

1. List of Jigs
1-1. Inspection
Parts No. Name Image Comment Remarks
---- FUJIFILM X-Pro1
• MAIN PWB Initialize
• LENS Repair Firmware
Ver3.45 Download
• Lens Set Serial
• LENS Firmware Update
• Resolution Inspection
Standard camera
Prepare the product.
* Do not use the user's X-Pro1 camera body
for lens repair. Always use a standard
camera (product).
FZ09206-100
or
FZ09206-200
or
FZ09206-300
BATTERY PACK NP-W126J
BATTERY PACK NP-W126U
BATTERY PAC K NP-W126W
This is bundled to the product (X-Pro1)
---- USB cable This is bundled to the product (X-Pro1)
---- Tripod Commercially available item
---- Hand Grip HG-XPro1 Commercially available item
ZJ00254-100 Gray Chart (Reflective type) Common with the 8mmVTR/FinePix 700
---- SD CARD ---- To check Inspection SD recording
ZJ02018-100 XF60 CIPA Resolution Chart Resolution Inspection Common with the XF60mmF2.4 R Macro
ZJ02286-100 XF56MM RESOLUTION
CHECK SOFTWARE ---- Resolution Inspection New jig *1
ZJ01898-100
or
ZJ01899-100
DUST CHART
DUST CHART 2 Lens dust for inspection
*1: Please download them from Web server (https://cs-support-eid.fujifilm.co.jp).
4

Confidential: FUJIFILM Service Center Use Only
XF56mmF1.2 R Simple Manual
-For Repair Centers without the Lens Repair Training-
2. Inspection
2-1. Inspection and Factory Settings
<Applies only to general cameras for repair>
Sequence Item Mode
Preparations for adjustment
(measurement points, subject, other)
Method of adjustment
(VRs, waveforms, required values)
Measuring
equipment
and jigs
1 Appearance check (1) Check lens visually and by
touching.
* Check parts replaced.
(1) There are no noticeable
scratches, cracks, or smudges,
or noticeable abnormalities with
coating.
There is no mistaken lettering,
noticeably out of place, or
abnormal coloring.
2 Appearance check (1) Check lens visually and by
touching.
* All of exterior.
* Check the lens compared to the
condition when you received it.
(1) • There are no defects in parts.
• There is no looseness in
screws.
• There is no leak of oil.
• There is no extra glue.
• There are no rough edges on
surface that could hurt
fingers.
• Be sure the letter “H” on the
name plate comes under the
indicator.
• There are no noticeable gaps
or unevenness compared to a
product.
• There are no stains and
smudges.
3 Lens attach and
release check
(1) Attach the lens to a camera
(2) Remove the lens.
(3) Attach the lens again.
(1) Lens can be attached smoothly.
(2) Lens can be removed smoothly.
Standard
camera
X-Pro1
4 Focus operation
check
P mode
Focus
mode [M]
(1) Turn the camera on.
(2) Turn the Focus ring.
(3) Focus moving noise.
(4) Focus operation.
(1) Check the LCD monitor.
(2) Check if the zoom moves
smoothly.
(3) Check if there is no abnormal
noise.
(4) Check if the zoom moves
smoothly.
Standard
camera
X-Pro1
5

Confidential: FUJIFILM Service Center Use Only
XF56mmF1.2 R Simple Manual
-For Repair Centers without the Lens Repair Training-
Sequence Item Mode
Preparations for adjustment
(measurement points, subject, other)
Method of adjustment
(VRs, waveforms, required values)
Measuring
equipment
and jigs
5 Aperture operation
check
A(Aperture
Priority)
(1) Turn the Aperture ring.
(2) Set the aperture to the [f/16].
(3) Press the shutter button halfway
(S1).
(4) Turn aperture a 1/3-step in the
direction of [f/1.2].
(5) Press the shutter button halfway
(S1).
(6) Repeat (4) to (5) until aperture
position reaches [f/1.2] (23
positions in all).
(1) Check if there is no abnormal
noise.
Check if the zoom moves
smoothly.
Check if there is clicking, and
there is no stopping other than
at defined positions.
(2) Check if the Aperture value is
displayed.
(3) Check if there is no abnormal
noise (aperture blades).
Check if the zoom moves
smoothly (aperture blades).
Check if aperture blades open
with the smallest setting seen
from the front.
(4) Check if each aperture value is
displayed on the monitor.
(5) Check if there is no abnormal
noise (aperture blades).
Check if the zoom moves
smoothly (aperture blades).
Check if aperture blades open
with a little wider than (3) (or
(5)) seen from the front.
Standard
camera
X-Pro1
6 Shooting check P mode
Focus
mode[S]
(1) Set an SD card to the camera.
(2) Shoot a subject with appropriate
brightness and at an
appropriate distance.
(3) Set the camera to Playback
mode.
(3) Check if there is no noticeable
abnormality with exposure.
Standard
camera
X-Pro1
* If a customer points out other things, check the thing additionally compared to a product.
6

Confidential: FUJIFILM Service Center Use Only
XF56mmF1.2 R Simple Manual
-For Repair Centers without the Lens Repair Training-

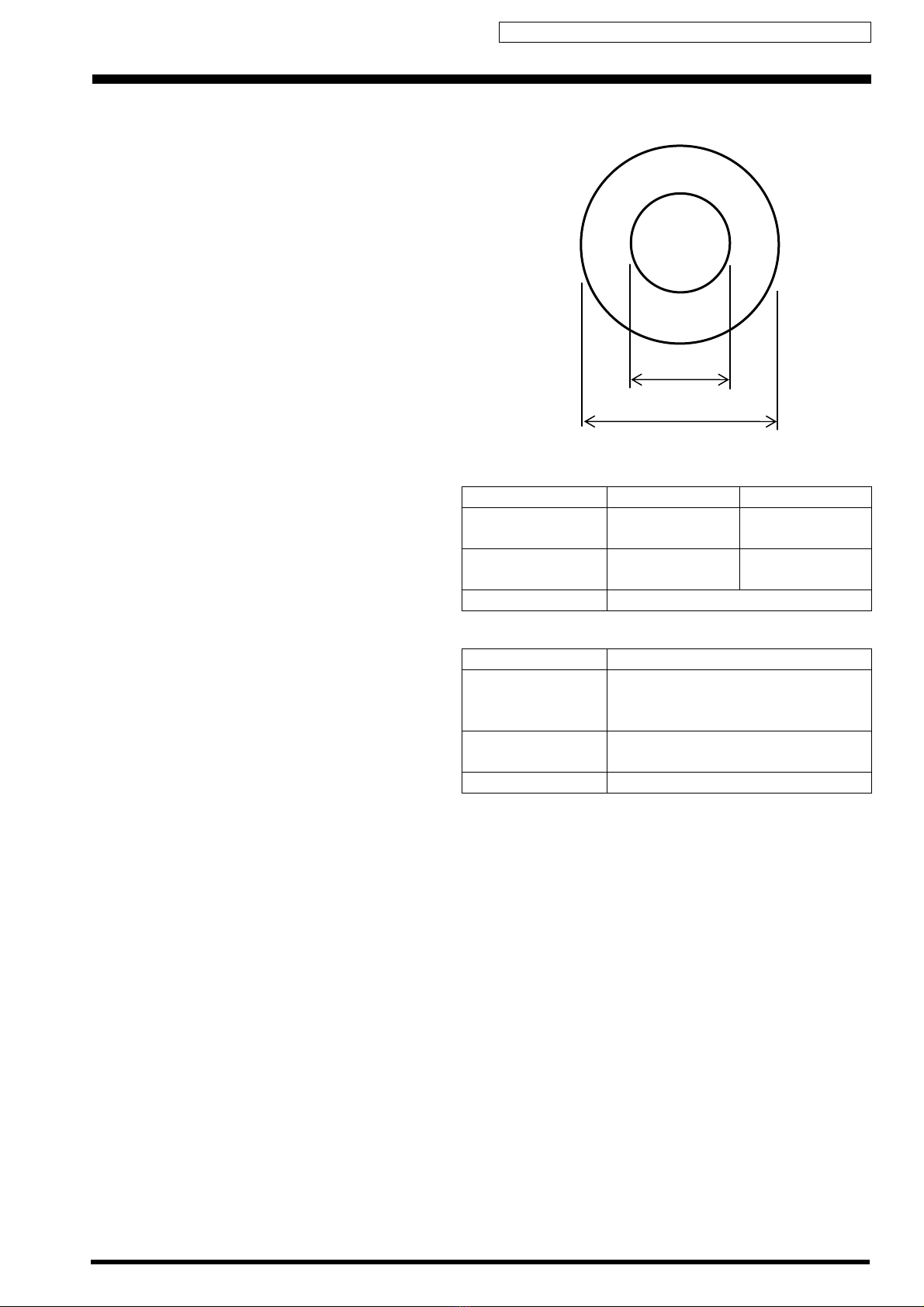

2-2. Lens Dust Check
<Settings for Lens dust check>
(1) Prepare a DUST CHART (ZJ01898-100) o
r
DUST CHART2 (ZJ01899-100).
(2) Wiped off dusts of lens surface.
(3) Compared to “DUST CHART”, measure the
sizes of dusts.
(4) Determine pass or fail referring to Figure. 1
and Table 1.
A
D/2
B
D
Figure. 1
[Specification of front lens]
A range(Center) B range(Outside)
0.15mm or less ~
0.1mm or more Out of spec Less than 2
Less than 0.1mm ~
0.08mm or more Less than 2 Including range A,
Less than 3.
Less than 0.08mm OK
[Specification of rear side lens]
A/B range
0.2mm or less ~
0.15mm or more
Less than 2.
However, it must not be in a noticeable
position.
Less than 0.15mm ~
0.1mm or more Less than 3
Less than 0.1mm OK
Table. 1
7

Confidential: FUJIFILM Service Center Use Only
XF56mmF1.2 R Simple Manual
-For Repair Centers without the Lens Repair Training-
2-3. Resolution Inspection

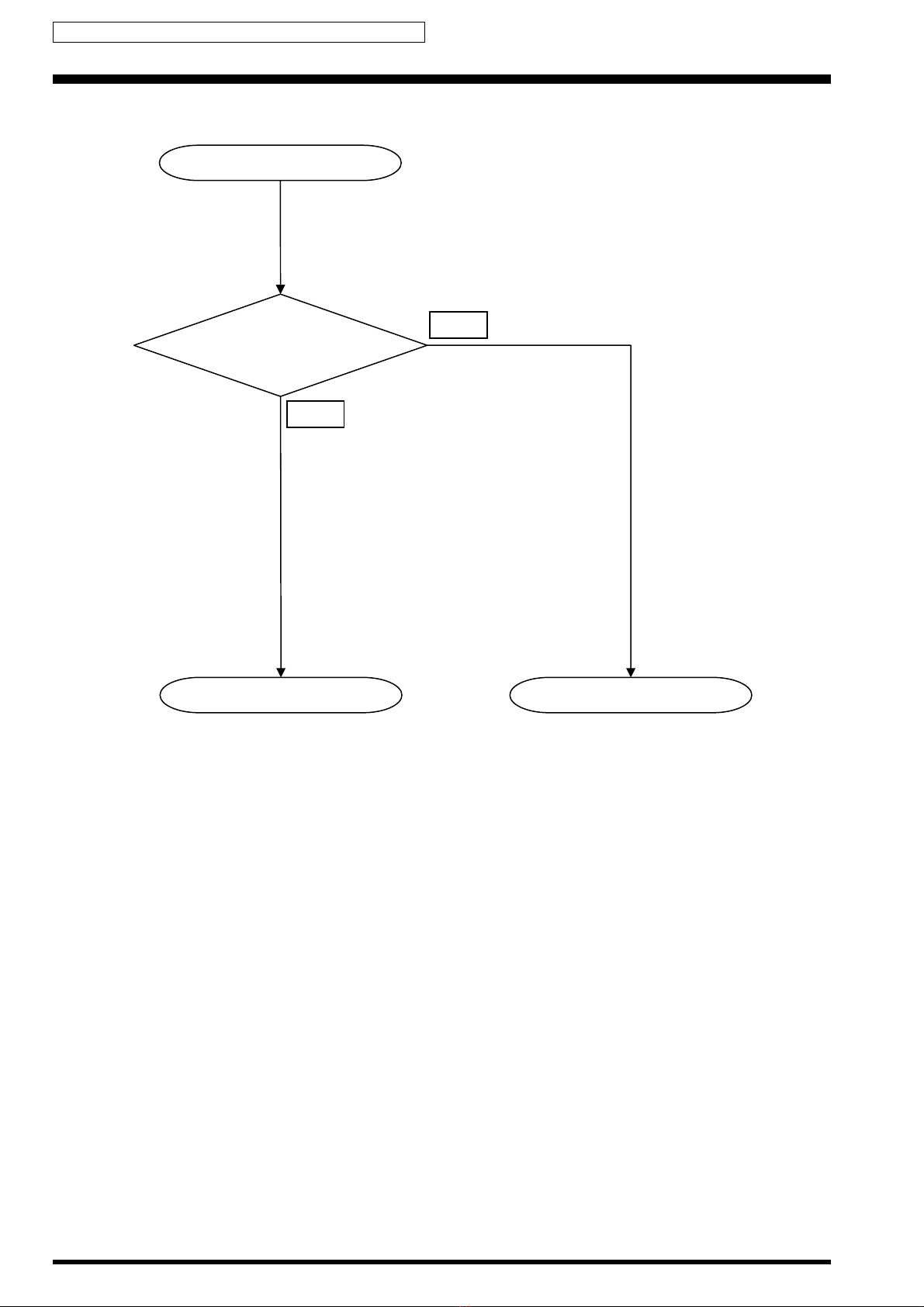

<Resolution Inspection operation flow>
Resolution Inspection
FAIL
Resolution Inspection Start
Resolution Inspection End Repair operation flo
w
PASS
* Be sure there are no problems
with repair work
8

Confidential: FUJIFILM Service Center Use Only
XF56mmF1.2 R Simple Manual
-For Repair Centers without the Lens Repair Training-
<Step 1>
[Settings for Resolution Inspection]
(1) Cut XF60 CIPA Resolution Chart (ZJ02018-
100) like figure 2, and stick it on a Gray Chart
of 917mm X 606.9mm.
(2) Referring to figure 1 on the right, prepare a
camera and the resolution chart.
(3) Light the resolution chart to make the
luminance of chart surface 500-850 lx at the
center of the chart and 0 to +400 lx in the
periphery compared to the center.
[Example]
In case that the luminance of center is 600LX,
the luminance of the periphery should be set to
600 ~ 1000LX.
Figure. 1
Light source
Resolution Chart
ZJ02018-100
Brightness of the resolution chart
Center: 500～850LX
Periphery: 0～+400LX
(Compared to the center)
The center of the chart
Chart
Gray Chart
ZJ00254-100
From imaging plane 2205 ± 3mm
<Step 2>
[Preparation of Resolution Inspection]
(1) Set an SD card to the camera.
(2) Turn the camera on.
(3) Carry out the reset of camera from MENU.
(4) Set the camera as follows:
1. Focus mode: S
2. Shutter speed: A
3. Aperture value: F1.2
4. Self-timer: 2sec
5. Other: Default
(5) Fix the camera on a tripod, and point it to the
resolution chart.
(6) Set the resolution chart with the angle of vie
w
of LCD like figure 2.
(7) Take an image.
(8) Turn the camera off. Figure. 2
(9) Take the camera from the tripod.
(10) Take out battery and SD card.
(11) Close the cover of battery.
9

Confidential: FUJIFILM Service Center Use Only
XF56mmF1.2 R Simple Manual
-For Repair Centers without the Lens Repair Training-
<Step 3>

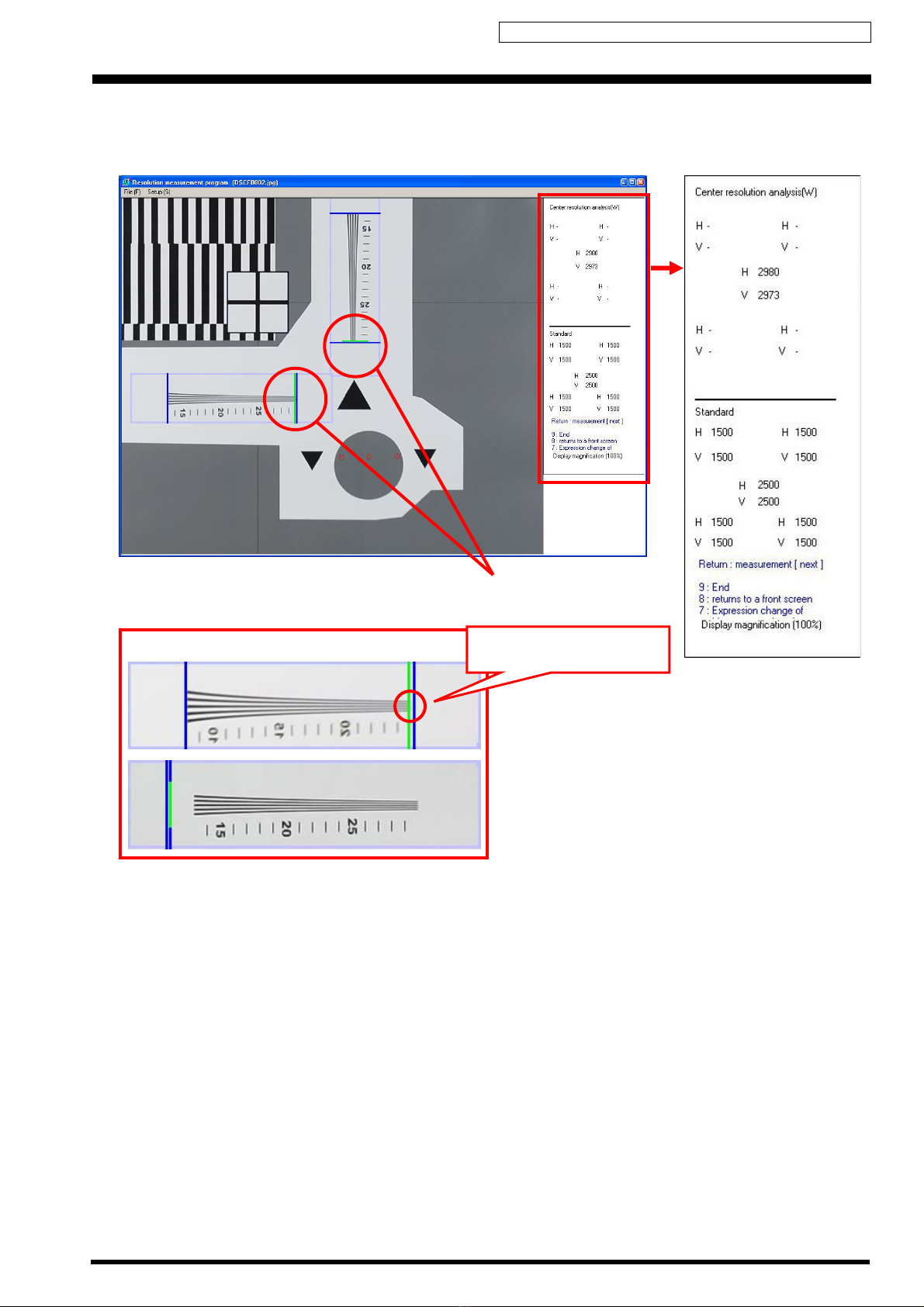

[Resolution Inspection]
(1) Download the software from the WEB and install the software to the PC.
We have uploaded the “XF56MM RESOLUTION CHECK SOFTWARE (ZJ02286-100.zip)” on our website:
(https://cs-support-eid.fujifilm.co.jp).
(2) Decompress the “ZIP type” file of “ZJ02286-100”.
(3) Copy the “FFRes_XF56mm” folder to the “C” drive on the PC.
(4) Copy shot images in the SD card to “FFRes_XF56mm” folder.
(5) Launch FFRes.exe.
(6) Use [File]-[Picture reading] to open shot images.
(7) When the window shown on the right appears,
click [Yes].
Figure. 3

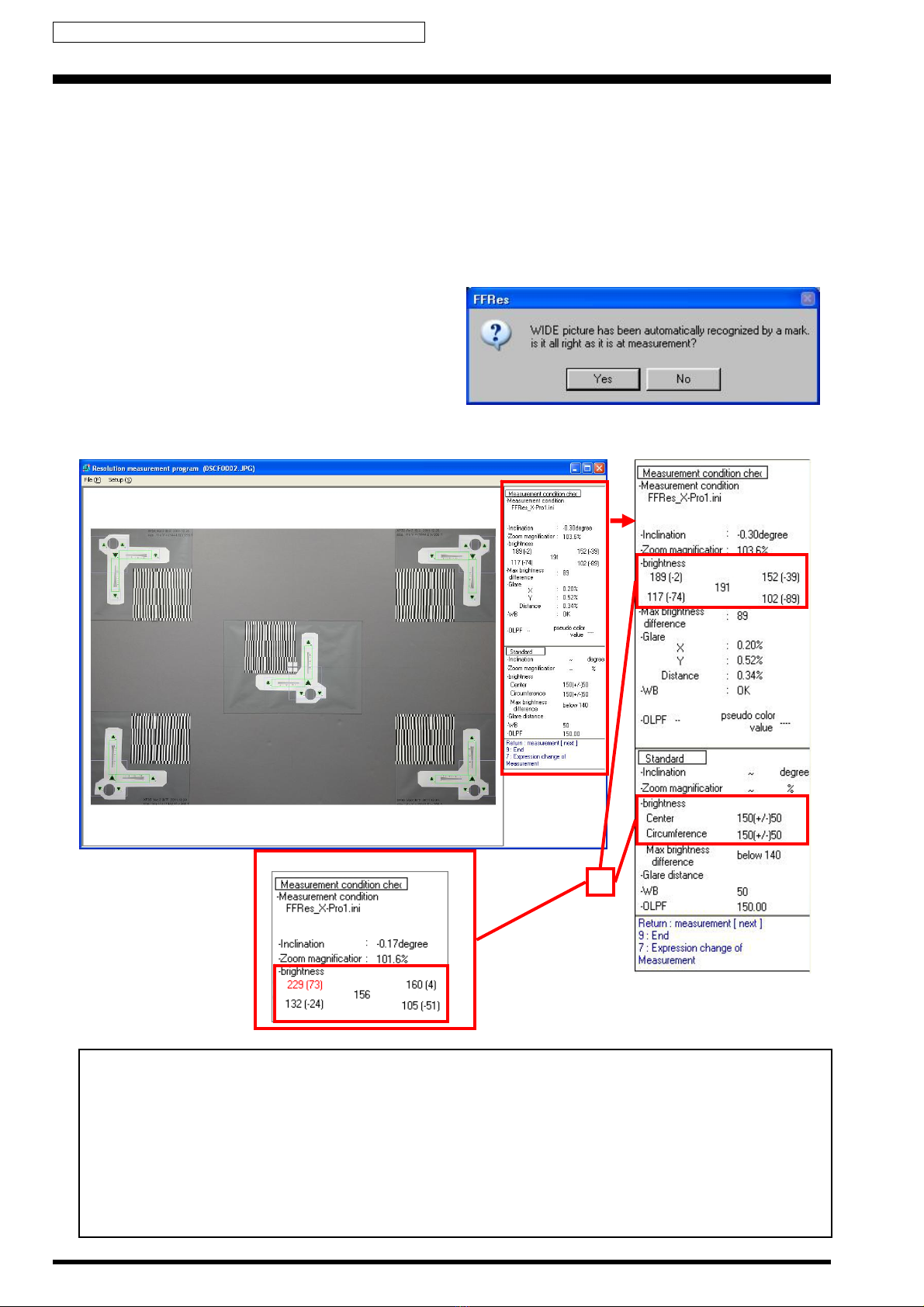

(8) The screen below will appear. If there is no error (in red) in [brightness] in [Measurement condition check] on the right,
press the [Enter] key to start measurement.
*
* Example error display
*
D
value
•
•
R
•
<S
•
If brightness for [Measurement condition check] shows an error (in red).
o the followings and shoot the chart again so that brightness in [Measurement condition check] becomes a
within the [Standard] brightnessrange.
Adjust the position of the light source (lighting).
Adjust the camera’s exposure compensation.
egarding exposure and lighting
Be sure that the illuminances where measured in each of center and periphery are well-balanced. (refer to
ettings for Resolution Check>)
Adjust overall image’s brightness level by using the camera’s exposure compensation.
10

Confidential: FUJIFILM Service Center Use Only
XF56mmF1.2 R Simple Manual
-For Repair Centers without the Lens Repair Training-
(9) The center of the chart will appear.
The chart and values determined by [Center resolution analysis] are displayed.
By pressing the [Enter] key, the measurement continues in the order of “upper left” →“lower left” →”upper right” →“lower
right”.
If blue lines are not displayed at both ends of the chart, the Software has not detected the chart correctly.
Green lines indicate the measured resolution
determined by the software.
* Example error display The blue line is away from the
“wedge”.
If it is the case, adjust the lighting and camera’s exposure, and conduct shooting again.
11

Confidential: FUJIFILM Service Center Use Only
XF56mmF1.2 R Simple Manual
-For Repair Centers without the Lens Repair Training-
(10)The measurement has been completed once “OK” is displayed for all of [Resolution measurement].
[Completing Resolution Inspection]
<Resolution criteria>
Center H: 2,500 lines or more
Center V: 2,500 lines or more
Periphery H: 1,500 lines or more
Periphery V: 1,500 lines or more
• If failed, conduct shooting 3 times. If one image at least meets the criteria, it will be OK.
• If failed with values determined automatically by the software, read visually the number of resolution lines.
If it meets the criteria, it will be OK.
12

Confidential: FUJIFILM Service Center Use Only
XF56mmF1.2 R Simple Manual
-For Repair Centers without the Lens Repair Training-
A104
A113
A105
A112
A107
A
103
A101
A110
A106
A108 A109
A111
A102
3. Parts List
3-1. Packing and Accessories
Ref No. Parts No. Description Common
A101 F012B013260720 TRAY
A102 F100A12447A10 REAR CAP
A103 F27B13249820 LENS HOOD
A104 F100A13215A10 CLOTH L
A105 F202B013260780 MANUAL FOR LENS
A106 F203B013260740 UNITARY BOX
A107 F205B013260770 U.PAD
A108 F206K1271950 LENS BAG
A109 F100A12473A10 FRONT CAP
A110 F58B12870430 SERIAL NUMBER LABEL
A111 F999K1272000 SILICA GEL
A112 FBB23334-100 PRG_ACC_CDSIZE_01
(WARRANTY BOOKLET)
A113 FBB23781-100 WWN_PRINT CD-SIZE2
(WORLDWIDE NETWORK)
13

Confidential: FUJIFILM Service Center Use Only
XF56mmF1.2 R Simple Manual
-For Repair Centers without the Lens Repair Training-
MEMO
14

Confidential: FUJIFILM Service Center Use Only
XF56mmF1.2 R Simple Manual
-For Repair Centers without the Lens Repair Training-
15
4. Appendix
4-1. List of Related Technical Updates Issued
To ensure that after-sales service is performed accurately, keep a record here of the technical updates issued that cover this
device.
Technical Update No. Date Title Details/Other

Confidential: FUJIFILM Service Center Use Only
FinePix JX420 / JX430 Service Manual
2
Midtown West, 7-3, Akasaka 9-chome, Minato-ku, Tokyo 107-0052, Japan
