FujiFilm LAS-3000 User manual

  
FUJINON LENS
SUPER CCD
COMPACT BODY

By rotating pixels 45 degrees to form an interwoven layout, the Super CCD's pixel
pitch in the horizontal and vertical directions is narrower than in the diagonal direction,
achieving higher horizontal and vertical resolution.
Super CCD chip Octagonal pixel-interwoven layout
Super CCD chip affords up to 6.3 million pixels
High-grade performance in a compact body
FUJINON LENS VRF43LMD F0.85
Equipped with a newly designed large-aperture F0.85 lens
    
  
LAS-3000mini Image Reader running on a PC can be used to specify image capture
parameters. You can specify image capture parameters, such as the exposure method,
exposure time, sensitivity, resolution, etc., according to instructions given on the screen.
You can specify the settings of the detection method and diaphragm in accordance with
the recommendations on the screen of Method / Tray position. Manual setting is not
needed for any of the image corrections required for quantitative analysis, which is
carried out automatically. Screen of Method/Tray position Screen of Exposure Increment
Compact, but packed with Proprietary
◎A digital system dispensing with dark rooms, films, and chemicals
◎High-quality images resulting from high sensitivity and smoothing function
◎Reduced exposure time due to multiple binning modes
◎Easy operation improved by Image Reader software
Equipped with a high-quality,
cooled CCD camera and a compact
image-analysis system
 
  !
The analyzer incorporates a FUJINON, a
strikingly bright lens with an F-number of
0.85. This lens has been especially de-
signed to make full use of the advantages
of Fujifilm's proprietary Super CCD chip,
and is excellent for capturing images from
distances as short as several tens of cen-
timeters. In its design, optical expertise
developed through professional applica-
tions such as broadcasting TV cameras is
fully exploited.
The same grade of camera and lens as in LAS-3000, the highest-grade model of
the LAS series, are used. By limiting the applications to the specific areas of
chemiluminescence and bioluminescence, a compact body is made possible while
still retaining the high resolution and high performance of LAS-3000. Free from the
necessity for dark rooms and chemicals, the analyzer can be placed on the top or
side of an ordinary desk, and requires no special expertise for operation.

■Applicable reagents
■MouseIgGdetectedbyWesternblotting
◎    
◎    
■HumanIgGonatiterplate,detectedbyELISA
◎   
       !
■Calcium-binding protein expressed in the rat small
intestine, detected by Western blotting
◎   "#$
◎    %&
※ #  '  '   (
)*   +
■AtlasTM Plastic Mouse 5K Microarray SpotLightTM
Chemiluminescent Hybridization & Detection kit
◎    %&
■Sample images
 * '  *      !
●Chemiluminescence：CDP-Star®, ECL PlusTM , ECLTM , SuperSignal®, ImmunoStar, CSPD®, etc.
●Bioluminescence ：Luciferase, etc.
Expertise in Bioscience
A compact image analysis system dedicated to chemiluminescence/bioluminescence applications,
the perfect standard system for Western blotting applications.
Dedicated to luminescence applications,
and particularly suitable for Western blotting applications

Specifications and system configuration subject to change for improvement without notice. All other product names mentioned herein are the trademarks of their respective owners.
Fuji Photo Film (U.K.) Ltd. Unit 12 St Martins Way, St Martins Business Centre, Bedford, MK42 OLF, U.K, Tel:[phone], Fax:[phone]・E-mail: [email protected]
Fuji Photo Film (China) Investment Co., Ltd. 31st floor, Hong Kong New World Tower, No.300 Huai Hai Zhong Road, Shanghai, P.R China, Tel:[phone] ext.363, Fax:[phone]・E-mail: [email protected]
Fuji Photo FilmCo., Ltd. 26-30,Nishiazabu 2-Chome, Minato-ku, Tokyo106-8620, Japan, Tel:[phone], Fax:[phone]・E-mail:[e-mail]
Fujifilm Medical Systems U.S.A., Inc. 419 West Avenue, Stamford, CT 06902, U.S.A. Tel:[phone] ext. 6112 (1-800-431-1850 ext. 6112 in the U.S.) Fax:[phone]・E-mail: [email protected]
Fuji Photo Film (Europe) GmbH, Heesenstr. 31, 40549 Dusseldorf, Germany, Tel:[phone], Fax:[phone]・E-mail: [email protected]
http://lifescience.fujifilm.com
宣−05・12−（F1099）・5−1（F1099） 宣伝物コード60071580
Desk is not included.
unit (mm)
< Image capturing unit >
380
170490
386
80
< Analyzing unit >
Optional Products

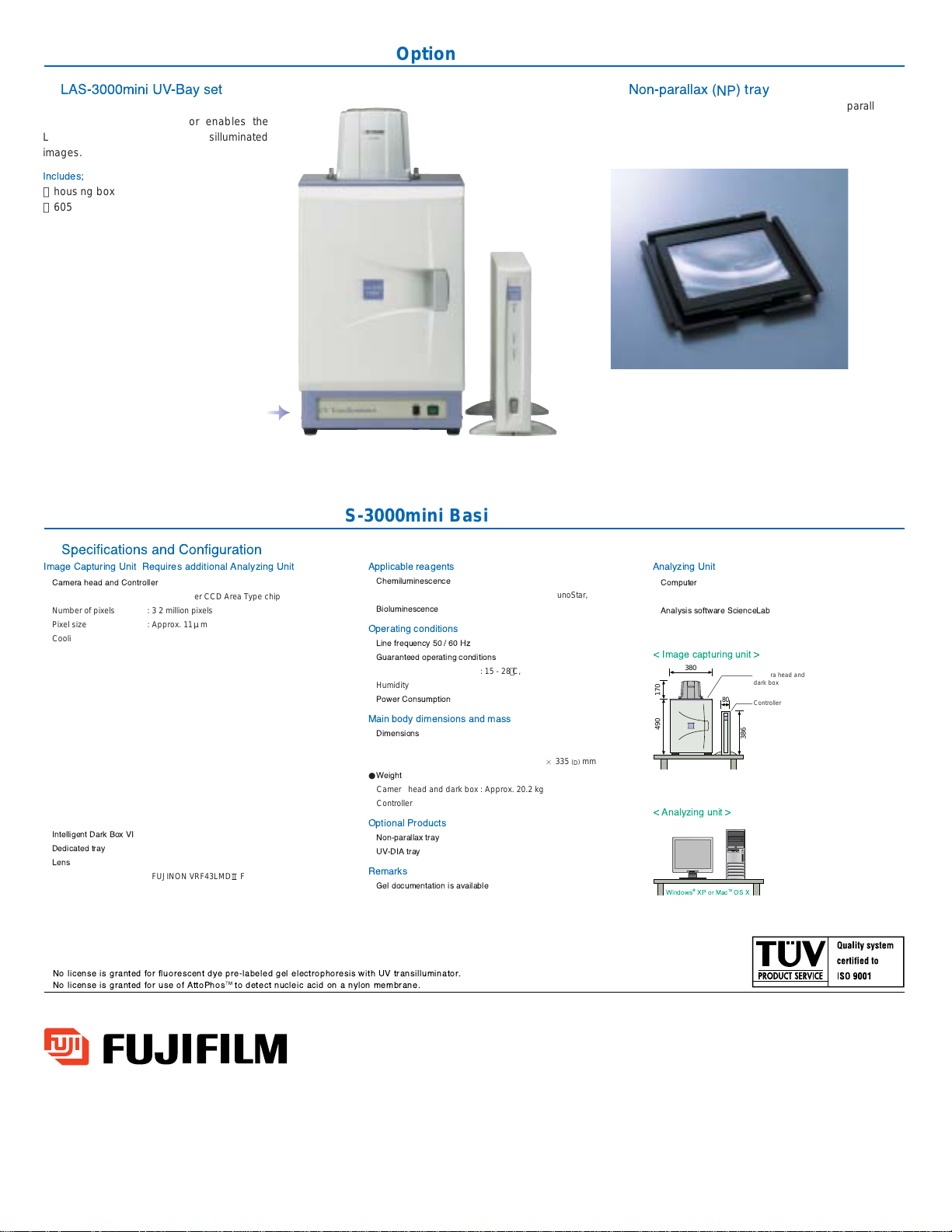

LAS-3000mini Basic Specifications
■ Specifications and Configuration
Image Capturing Unit （ Requires additional Analyzing Unit ）
● Camera head and Controller 
CCD chip : Fujifilm Super CCD Area Type chip
Number of pixels : 3.2 million pixels
Pixel size : Approx. 11μm
Cooling : Two-stage thermoelectric module with air circulation
Cooling temperature : Down to -30゜C（When room temperature is below 28℃.）
Dynamic range : Four orders of magnitude
Focusing and diaphragm : Manual
Gradation : 16 bits
Exposure mode : Automatic / manual (normal / incremental / repetitive)
Exposure time : Automatic / manual (1 / 100 seconds to 30 hours)
Pixel correction : Dark-frame correction, flat-frame correction,
distortion correction, etc.
Image quality correction : Binning and smoothing
Image size : Up to 12 MB (formats : FUJI and TIFF)
Read pixel size : Down to 35μm
Maximum sample size : 18 ×12 cm
Interface : USB 1.1
● Intelligent Dark Bo VI
● Dedicated tray : For chemiluminescence
● Lens : High-sensitivity lens:
FUJINON VRF43LMD F0.85
Analyzing Unit （separateproduct）
● Computer
OS : Windows®XP / MacTM OS X
● Analysis software ScienceLab
Applicable reagents
● Chemiluminescence : CDP-Star®, ECL PlusTM, ECLTM,
SuperSignal®, ImmunoStar, CSPD®
, etc.
● Bioluminescence : Luciferase
Operating conditions
● Line frequency 50 / 60 Hz
● Guaranteed operating conditions
Temperature: 15 - 28゜C,
Humidity: 30 - 70% (no condensation)
● Power Consumption : Approx. 0.2 kVA
Main body dimensions and mass
● Dimensions
Camera head and dark box: 380 (W)×660 (H)×370 (D)mm
Controller: 80 (W)×386 (H)×335 (D)mm
● Weight
Camera head and dark box: Approx. 20.2 kg
Controller: Approx. 5 kg
Optional Products
● Non-paralla tray
● UV-DIA tray
Remarks
● Gel documentation is available
■ No license is granted for fluorescent dye pre-labeled gel electrophoresis with UV transilluminator.
■ No license is granted for use of AttoPhosTM to detect nucleic acid on a nylon membrane.
■ LAS-3000mini UV-Bay set
Combination usage of a UV-Bay set and any
additional UV transilluminator enables the
LAS-3000mini to capture UV transilluminated
images.
Includes;
・housing box
・605DF40 optical filter for EtBr detection
＊Requires additional UV transilluminator.
■ Non-paralla (NP)tray
A non-parallax (NP) tray is used to eliminate the parallax
effect when imaging chemiluminescence in the 96-well
plate. Up to two plates can be placed.
Camera head and
dark box
Controller
Windows¨XP or MacTM OS X
