FujiFilm PICTROGRAPHY 4500 User manual

First Edition
DIGITAL IMAGE PRINTER
PICTROGRAPHY
4500/4000II
PRINTER DRIVER SOFTWARE

 Installing to Mac OS X
PP3-B504E
INSTRUCTION MANUAL
SUPPLEMENT

LICENSING AGREEMENT
1. Copyright
The copyright for this software is owned by Fuji Photo Film Co., Ltd. ("FUJI").
2. Prohibitions
You may not (1) copy, modify or adapt any or all parts of this software; (2) provide this
software to a third party in the form of a copy, loan or gift; or (3) reverse engineer this
software.
3. After-Sale Service
Should the software fail to function properly due to a defect in the medium within 7 (seven)
days after the date of purchase, please return the software to the place of purchase for a
replacement.
4. Exemptions
(1) FUJI does not guarantee that this software will achieve the results intended by the
purchaser.
(2) FUJI is not liable for problems that arise from the quality or performance of this software.
(3) FUJI is not liable for damages incurred directly or indirectly by the purchaser or a third
party through the use of this software.

1
INTRODUCTION
This manual gives procedures for installing and using the PICTROGRAPHY 4500/4000II printer driver for
Mac OS X, as well as several precautions. For information that is not contained in this instruction manual
see the first edition (Ref. No.PP3-B498E) of the instruction manual for Printer Driver Software.
This software requires a SCSI adapter. Before installation, check that a functioning SCSI adapter has been
installed in your computer.
For issues directly involving Windows, Macintosh, or other operating systems, please refer to the manual
provided with the particular operating system.
The functions and screen contents presented in this manual are subject to change as software may be
upgraded at any time. Screen contents and set-up procedures may differ according to the operating
environment which is employed (e.g. type of OS or SCSI adapter).
This manual may not be copied or transcribed in whole or in part without prior approval from the publisher.
• Adobe Photoshop is a trademark of Adobe Systems Inc. in several nations.
• Microsoft, Windows, and Windows NT are registered trademarks of Microsoft Corp. in the US and other countries.
• Macintosh, Mac OS, and AppleTalk are registered trademarks of Apple Computer Inc.
• PICTROGRAPHY is a registered trademark of Fuji Photo Film Co, Ltd.
• Other product and company names are registered trademarks of the respective companies.

2
1. PICTROGRAPHY 4500/4000II PRINTER DRIVER FOR MAC OS X............................ 3
1.1 Operating environment .................................................................................................................. 3
1.2 Setting up TCP/IP.......................................................................................................................... 3
2. INSTALLATION............................................................................................................. 4
2.1 For Local Printing........................................................................................................................... 4
2.2 For Network Printing ...................................................................................................................... 7
2.2.1 Installing to the server .................................................................................................. 7
2.2.2 Installing to client computers ........................................................................................ 8
3. UNINSTALL................................................................................................................. 10
4. USING PRINTER DRIVER........................................................................................... 11
4.1 Work flow through printing ........................................................................................................... 11
4.2 Print setup and printing................................................................................................................ 11
4.3 Print Center.................................................................................................................................. 13
4.3.1 Print Center Outline.................................................................................................... 13
4.3.2 Checking the print status............................................................................................ 13
4.3.3 Canceling printing....................................................................................................... 14
5. RESTRICTIONS........................................................................................................... 15
CONTENTS

3
1. PICTROGRAPHY 4500/4000II PRINTER DRIVER FOR MAC OS X
1.1 Operating environment
The PICTROGRAPHY 4500/4000II Printer
Driver for Mac OS X runs in the personal
computer operating environments detailed
below:
Hardware
• Model: Power Macintosh G3 or greater
• Memory: 128MB or more of available space
• HDD: 96MB or more of available space
• SCSI Adapter made by Adaptec
Software
• OS: Mac OS X 10.2.1 or later
1.2 Setting up TCP/IP
You need to set up TCP/IP to enable network
(Ethernet) printing.
Perform setup so as to permit the use of TCP/IP.

4
2. INSTALLATION
2.1 For Local Printing
To enable local printing, install the printer driver
by performing the following procedure:

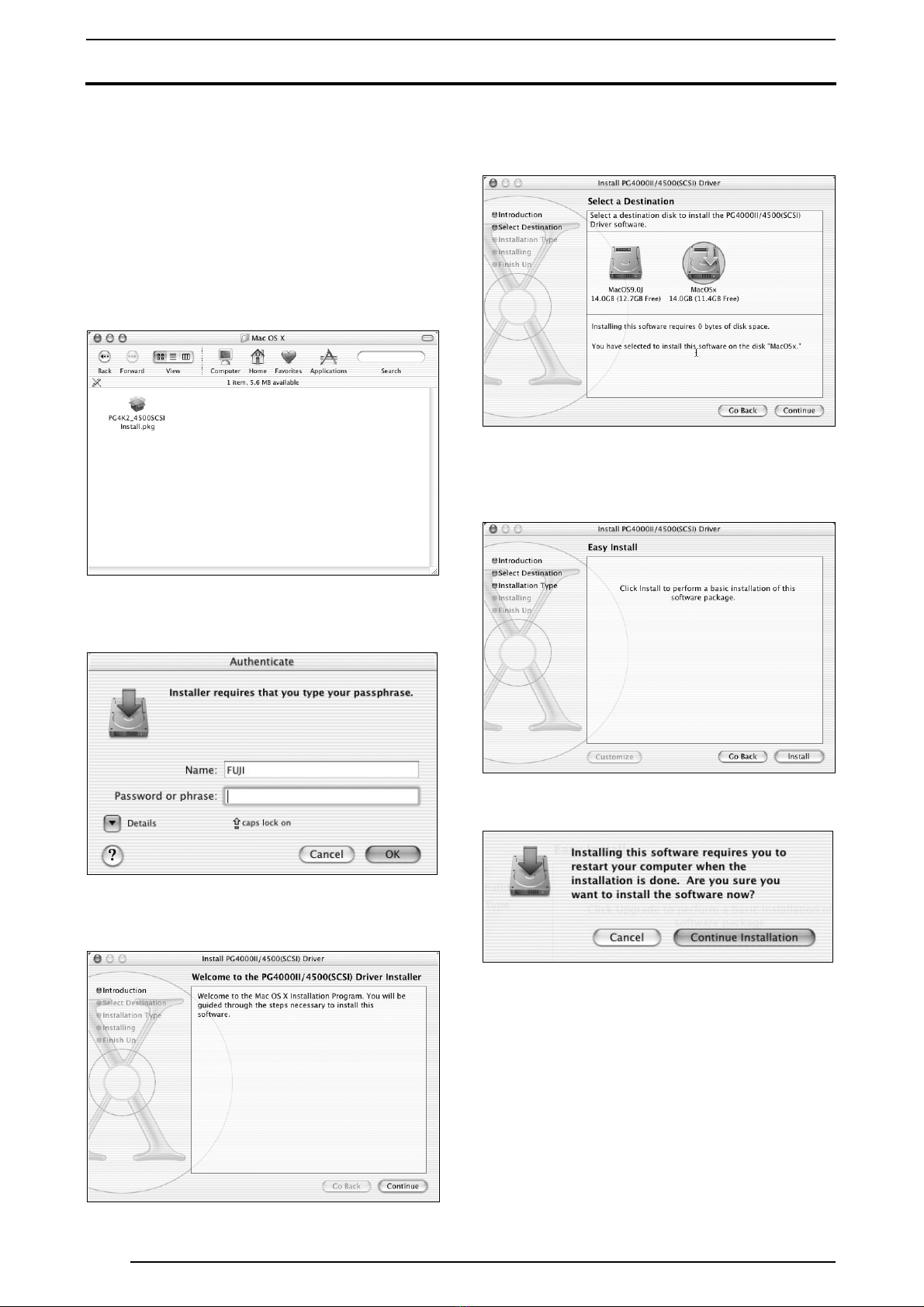

1. Insert the [PICTROGRAPHY 4000II/4500
Printer Driver] CD-ROM into the PC.
2. Open the [Mac OS X] folder on the CD-ROM.
The following appears.
3. Double-click the "PG4K2_4500SCSI
Install.pkg" file in the "Mac OS X" folder.
The following dialog box appears.
4. Enter the administrator's name and pass-
word, and then click the [OK] button.
The following dialog box appears.
5. Click the [Continue] button.
The following dialog box appears.
6. Select a destination volume to install the
printer driver and then click the [Continue]
button.
The following dialog box appears.
7. Click the [Install] button.
The following dialog box appears.

5
2. INSTALLATION
8. Click the [Continue Installation] button.

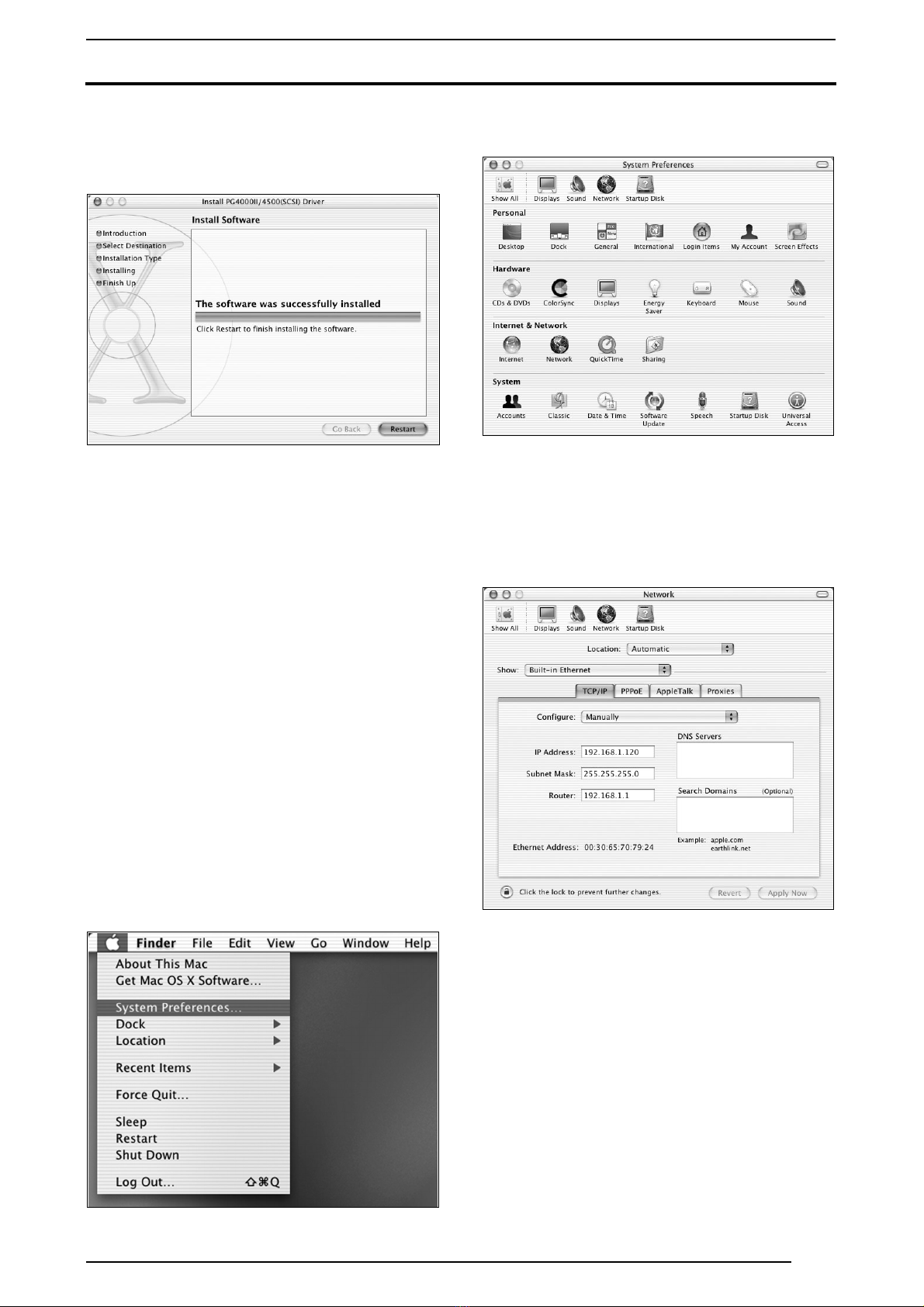

When installation is completed, the following
appears.
9. Click the [Restart] button to restart the
computer.
Installation of PICTROGRAPHY 4000II/4500
Printer Driver for Mac OS X is completed.
When the installation of PICTROGRAPHY
4500/4000II Printer Driver for Mac OS X is
completed, perform settings for making prints
with the PICTROGRAPHY 4500/4000II that is
connected to the computer.
10.Confirm that the PICTROGRAPHY 4500/
4000II and the computer are connected
properly.
11.Turn ON the PICTROGRAPHY 4500/4000II
and wait until the "Self Check" message
appears on the LCD display.
When network printing is not performed,
proceed to Step 14.
12.Select [System Preferences] from the Apple
menu.
The [System Preferences] window appears.
13.Click [Network].
The [Network] window appears.
Select [Built-in Ethernet] from the [Show]
pop-up menu and then click the [TCP/IP] tab.
The following appears.
Confirm that the TCP/IP settings are correct,
and then close the window.

6
2. INSTALLATION

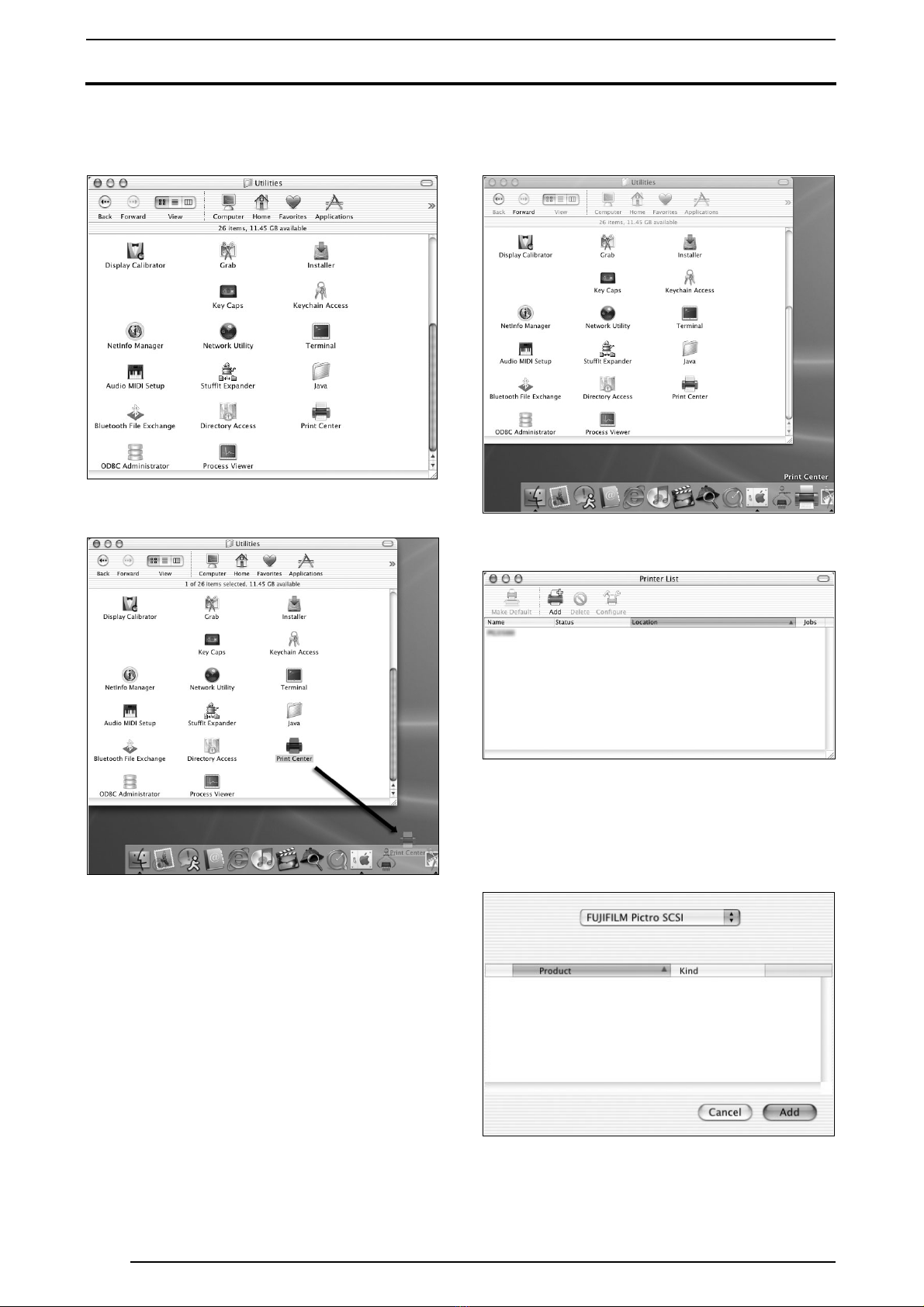

14.Open the [Applications]>[Utilities] folders on
the hard disk. The following appears.
15.Drag the [Print Center] file to Dock on the
desktop.
The [Print Center] icon is added as an item in
Dock.
16.Click the [Print Center] icon in Dock.
The [Printer List] window appears.
∗If the "You have no printers available"
message is displayed, press the [Add...]
button and then proceed to the next step.
17.Click the [Add] button.
The following appears.

7
2. INSTALLATION

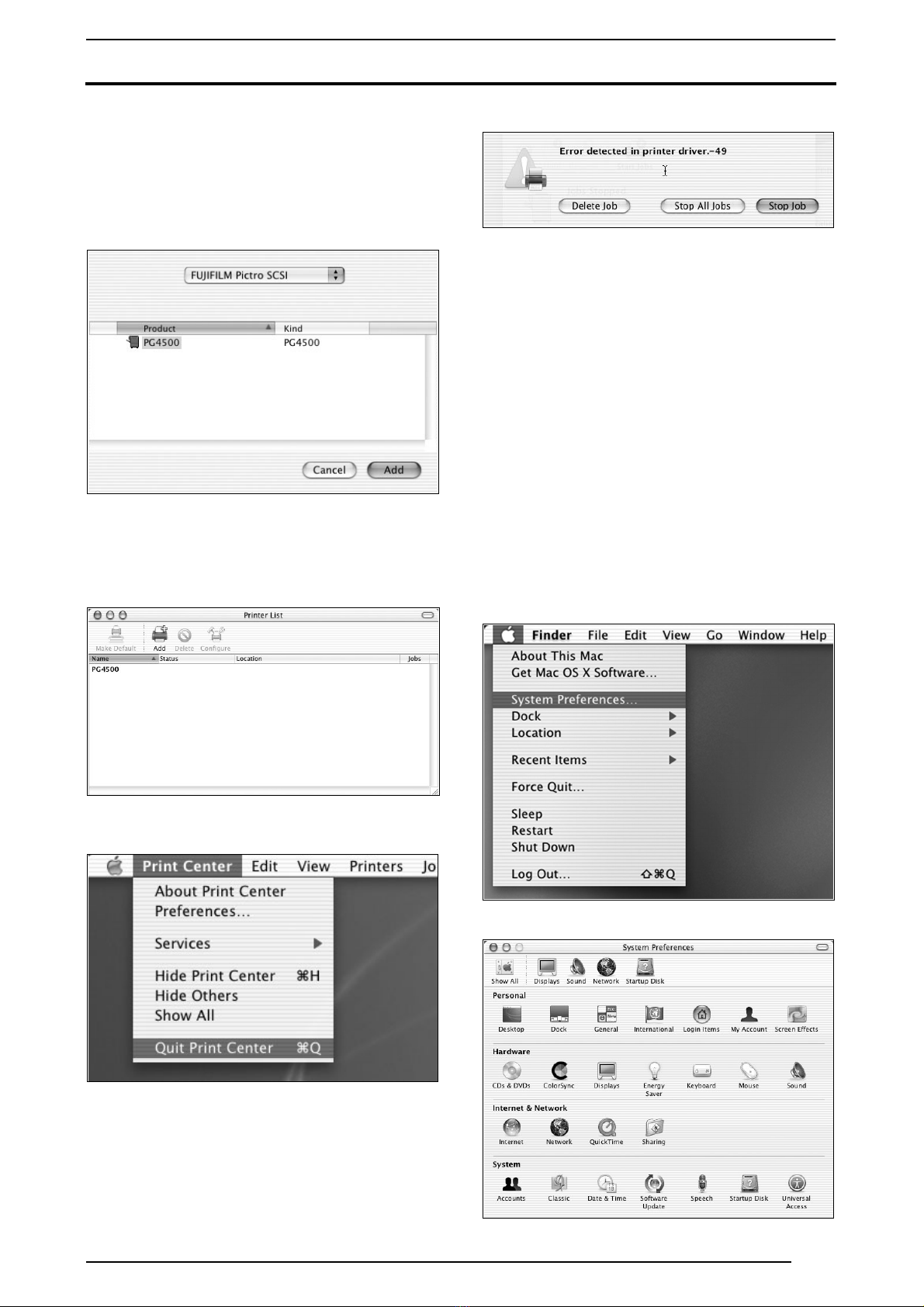

18.Select [FUJIFILM Pictro SCSI] from the pop-
up menu.
When a PICTROGRAPHY 4500/4000II con-
nected to the computer is found, its printer
name is displayed on the [Product] column.
(Screen shot for PG4500)
19.Select the PICTROGRAPHY 4500/4000II to
be used and then click the [Add] button.
The selected PICTROGRAPHY 4500/4000II
is added to the printer list.
(Screen shot for PG4500)
20.Select [Quit Print Center] from the [Print
Center] menu.
∗After adding a printer, be sure to quit Print
Center. If printing is performed without
Print Center quit, the following error
message is displayed.
Settings for making prints with the PICTRO-
GRAPHY 4500/4000II are completed.
2.2 For Network Printing
For network printing, install printer drivers on
both server and client computers by the
following procedures:
∗For network printing, Mac OS X 10.2.x must
be running on both server and client
computers.
2.2.1 Installing to the server
1. To install the printer driver, follow Steps 1.
through 22. in "2.1 For Local Printing".
2. Select [System Preferences] from the Apple
menu.
3. The [System Preferences] window appears.

8
2. INSTALLATION

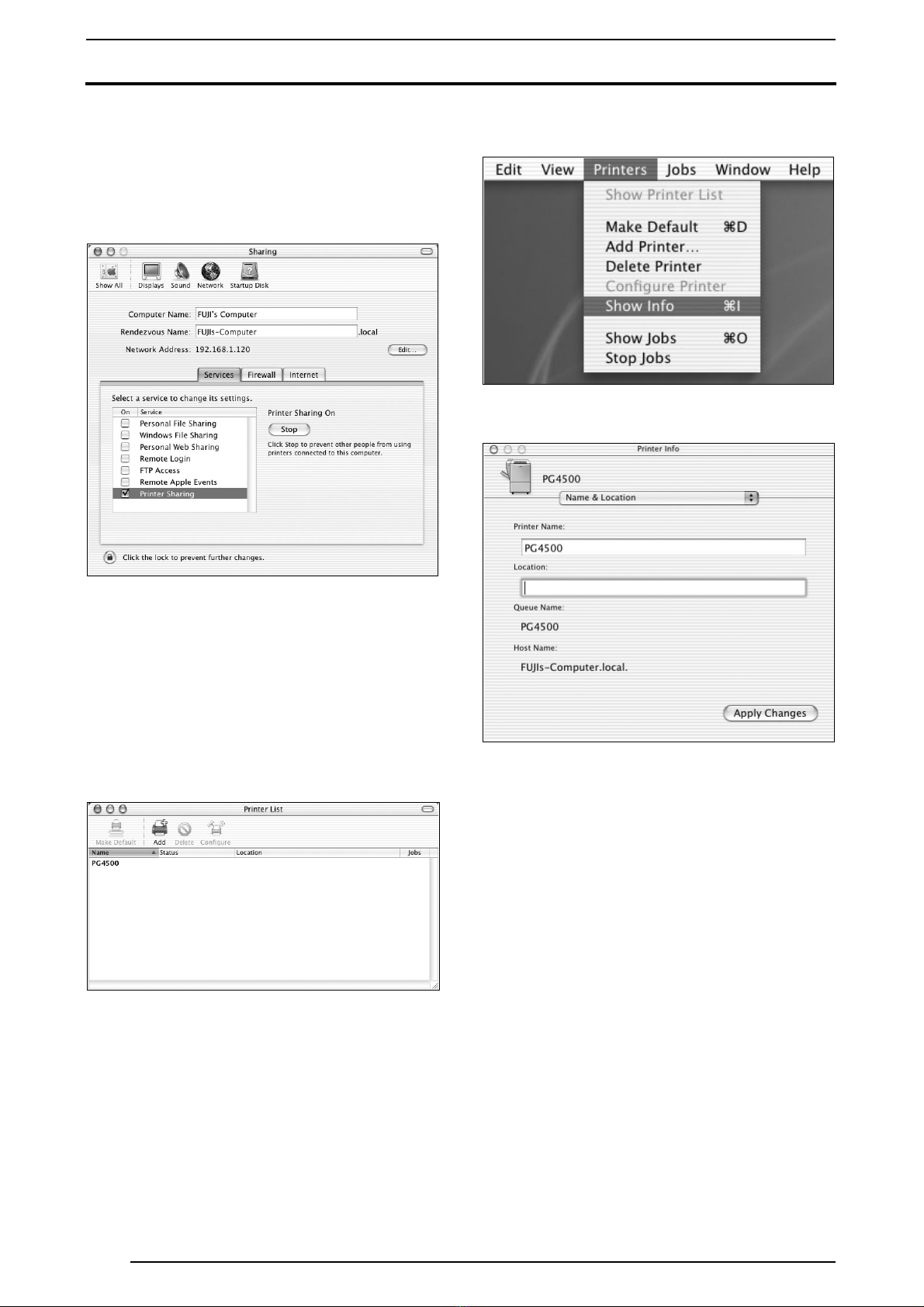

4. Click [Sharing].
The [Sharing] dialog box appears.
5. Click the [Services] tab.
The following appears.
6. Mark the [Printer Sharing] check box with a
" √" and close the [Sharing] window.
Installation of PICTROGRAPHY 4500/4000II
Printer Driver for Mac OS X is completed.
To enter the comment displayed on the
[Location] column of the [Printer List] window,
perform the following procedure.
7. Click the [Print Center] icon in Dock.
The [Printer List] window appears.
8. Click to select the installed PICTROGRA-
PHY.

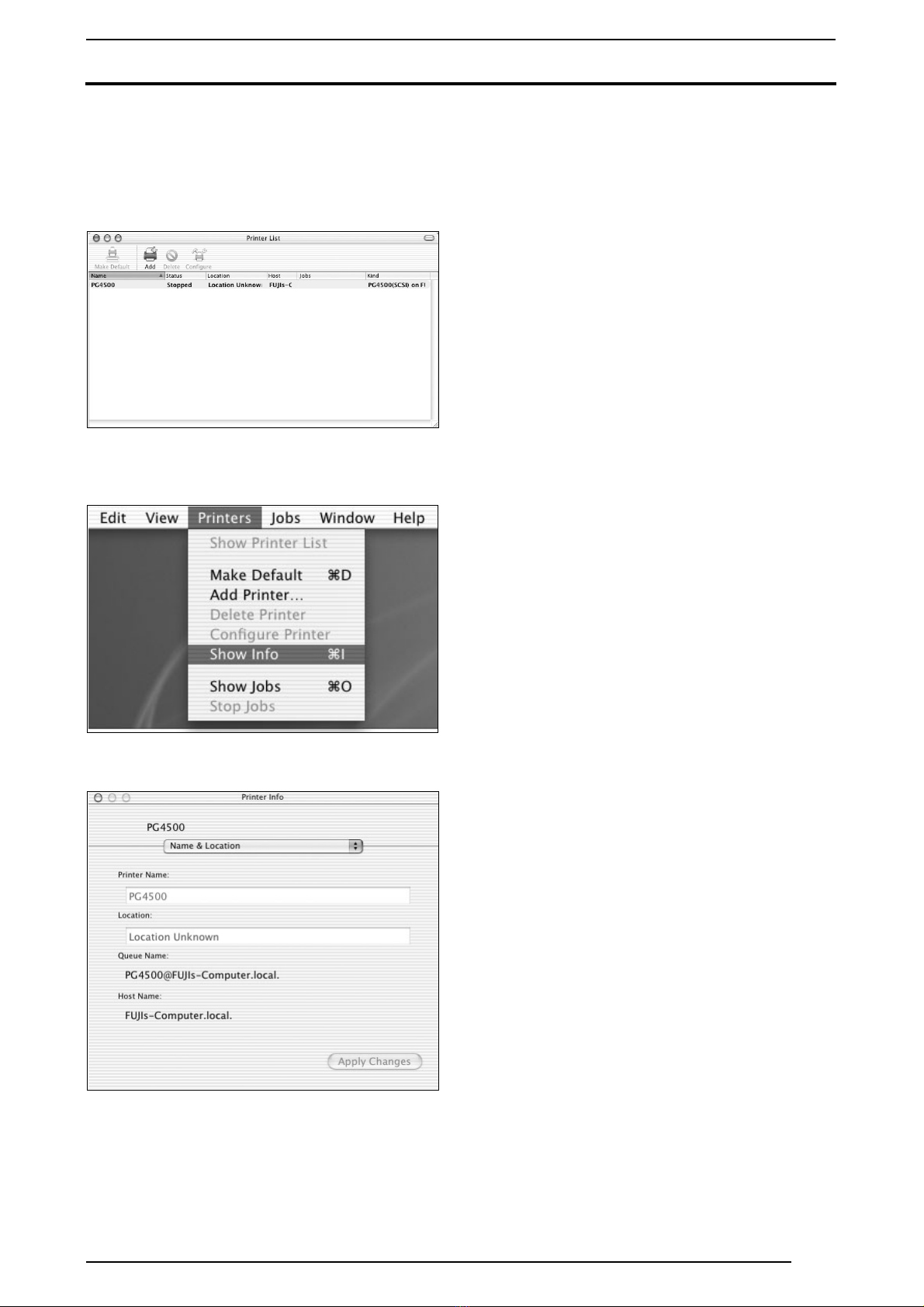

9. Select [Show Info] from the [Printers] menu.
The [Printer Info] window appears.
(Screen shot for PG4500)
10.Click the [Location] box and enter
appropriate comments.
The comments entered in this box are also
displayed on the client computer.
2.2.2 Installing to client computers
1. The server should be started beforehand.
The printer driver must be installed in the
server, and the server and client must be in
the same network segment of TCP/IP.
2. To install the printer driver, follow Steps 1.
through 9. in "2.1 For Local Printing".
This completes the installation of the printer
driver.
To display information on shared printers,
perform the following procedure.

9
2. INSTALLATION
3. Click the [Print Center] icon in Dock.
The [Printer List] window appears. Shared
printers are displayed with a colored
background.
(Screen shot for shared PG4500)
4. Click to select a shared PICTROGRAPHY.
5. Select [Show Info] from the [Printers] menu.
The [Printer Info] window appears.
(Screen shot for shared PG4500)
∗Displayed information cannot be changed
from the client computers.

10
3. UNINSTALL
The printer driver uninstall procedure is shown
below.
∗Even if the uninstall procedure below is
performed, the installed printer driver files are
not deleted. Normally, there is no need to delete
the printer driver files.
1. Click the [Print Center] icon in Dock on the
desktop.
The [Printer List] window appears.
(Screen shot for PG4500)
2. Select the printer to be deleted.
3. Click the [Delete] button.
The selected printer is deleted.
4. Close the [Printer List] window.
Uninstall is completed.

11
4. USING PRINTER DRIVER
4.1 Work flow through printing
Launching an application (preparing print data)
Start the application software and create data to
be printed. If you have already created a data
file, open that file.
4.2 Print setup and printing
The specific steps involved in printing vary with
applications. For more information, see the
instruction manual for the application. The
procedure described below uses Adobe
Photoshop 7.0 as an example.

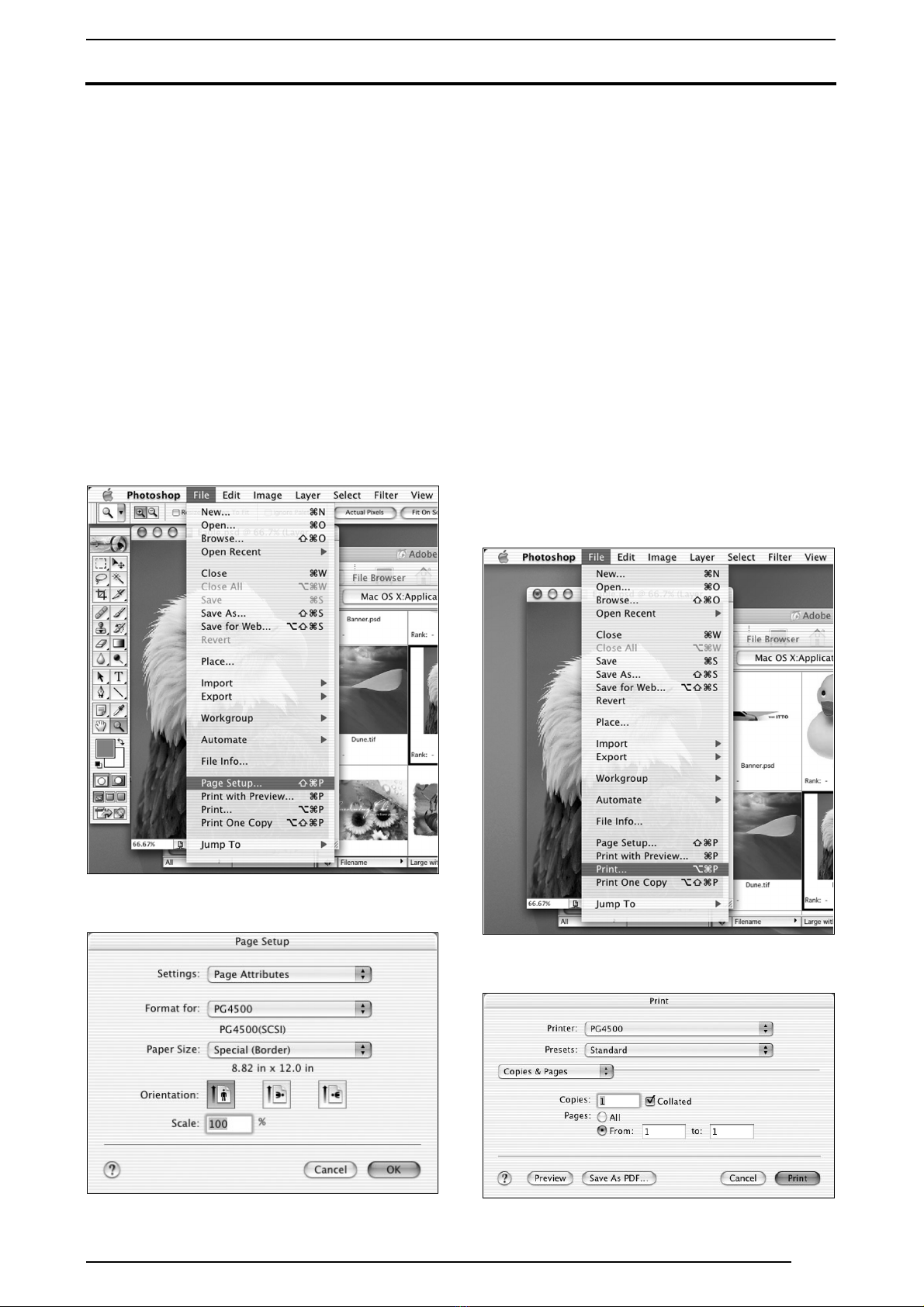

1. Setting a paper size
Open the print data file and then select
[Paper Setup...] from the [File] menu.
The [Page Setup] window appears.
(Screen shot for PG4500)
Format for
Select a destination to print (printer name).
∗Be sure to select a destination to print. If
another printer (or volume) is selected in
this menu, printing may be performed
incorrectly. If [Any Printer] is selected,
printing is performed with the print size for
the default printer.
Paper Size
Select a paper size for printing.
Note that the printable paper size depends
on the type of paper currently loaded in the
PICTROGRAPHY 4500/4000II.
Orientation
Select an orientation of printing.
2. Setting print conditions
Open the print data file and then select
[Print] from the [File] menu.
The [Print] window appears.
(Screen shot for PG4500)

12
4. USING PRINTER DRIVER
Printer
Select a destination to print (printer name).
Copies
Specify the number of copies you plan to
print. The maximum number of copies is 50.

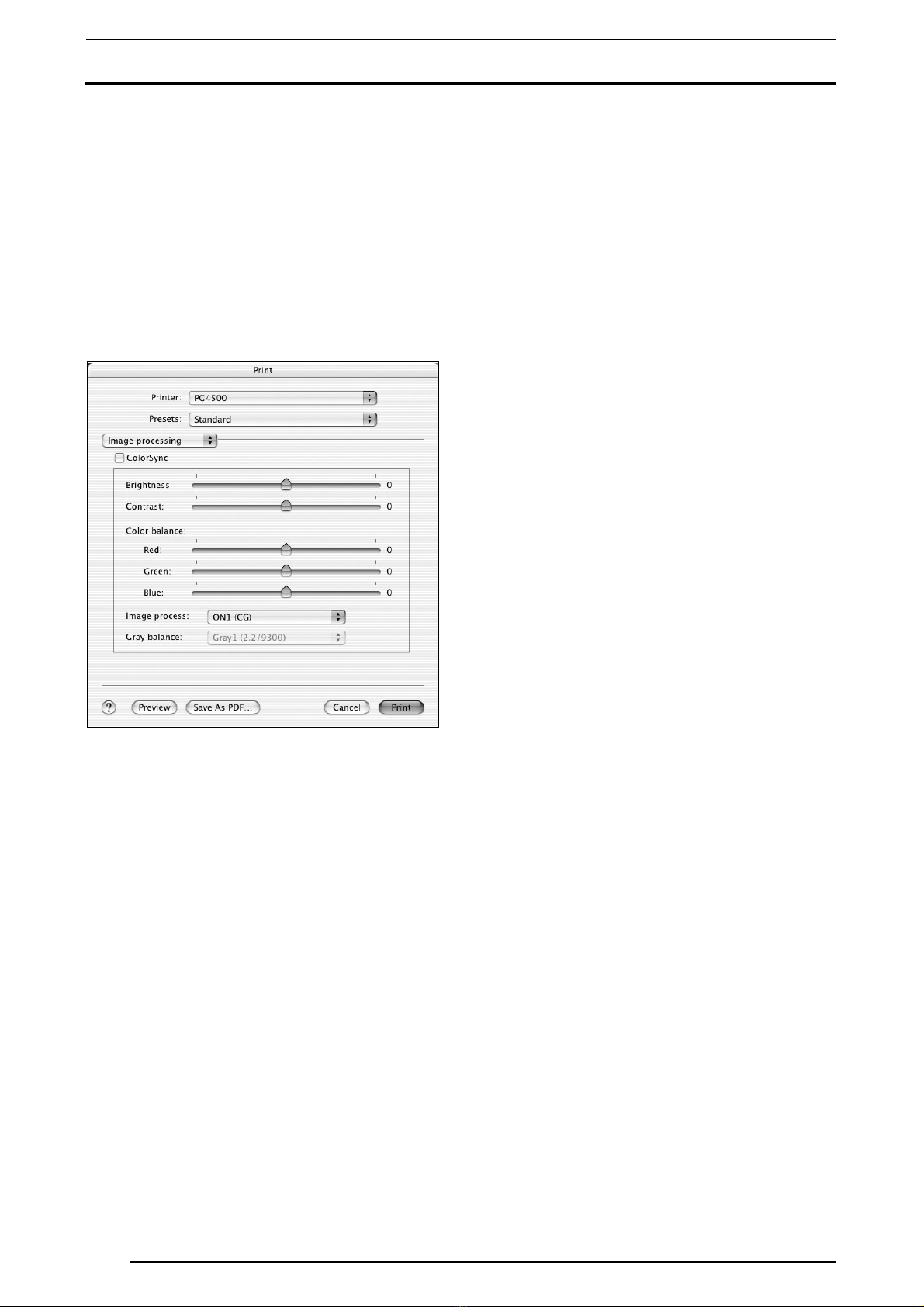

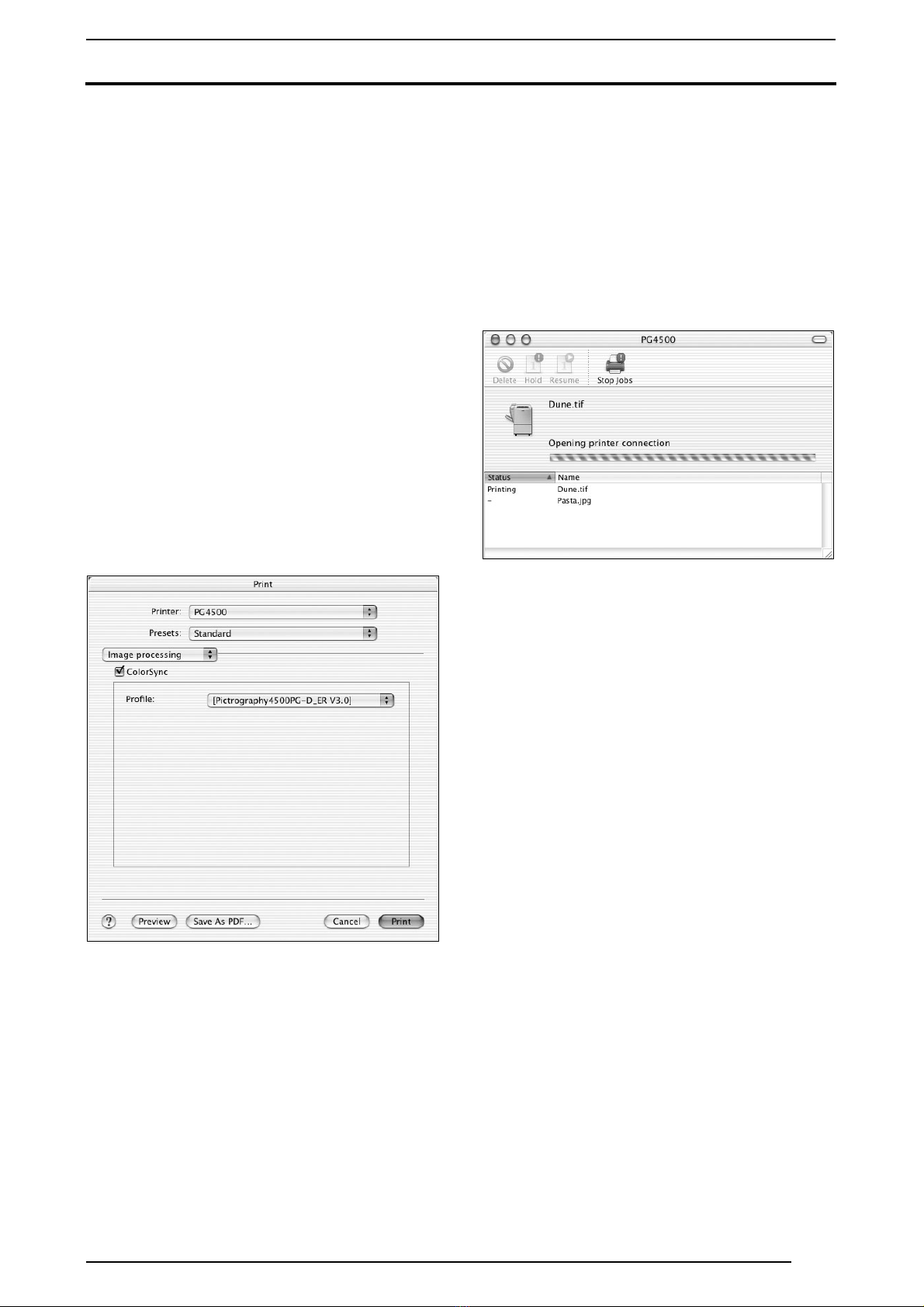

3. Setting image processing options
Click the pop-up menu displaying [Copies &
Pages] to select [Image Processing].
The following appears.
(Screen shot for PG4500)
Brightness
Adjust the print density. Settings toward the
right (plus direction) result in lighter prints,
while settings toward the left (minus
direction) result in darker prints.
Contrast
Adjust the print contrast. Settings toward the
right (plus direction) produce higher contrast,
while settings toward the left (minus
direction) produce lower contrast.
Color balance (Red/Green/Blue)
Adjust color balance for prints. Settings
toward the right (plus direction) result in
higher print density of the color specified,
while settings toward the left (minus
direction) result in lower print density of the
color specified.
Image process
Select a color-matching function. This color-
matching function refers to the one provided
with the PICTROGRAPHY 4500/4000II,
which provides the following options:
ON1 (CG): Performs color conversions
suitable for printing high-
chroma images, including
computer graphics.
Intended for monitors having
color temperatures of 9300K
*1 and γ2.2*2.
ON2 (Photo): Produces somewhat softer
prints.
Intended for monitors having
color temperatures of 6500K
and γ1.8.
ON3 (sRGB): Suitable for printing with an
sRGB*3 monitor.
As compared with ON1
setting, ON3 setting enables
to print saturated colors lower
in brightness and higher in
saturation.
ON4: A color-matching function will
(PG4000 OFF) work that produces results
close to that obtained with
PICTROGRAPHY 4000 color
matching function set to
"OFF".
OFF: Disables printer color match-
ing.
With this option selected, gray
reproduction is determined by
settings for [Gray balance].
Gray balance
Select gray gradation and color balance, if
Image process is set to OFF.
Gray1: Suitable for printing with
monitors having (2.2/9300)
color temperatures of 9300K
and γ2.2.
Gray2: Suitable for printing with
monitors having (1.8/6500)
color temperatures of 6500K
and γ1.8.
Gray3 (sRGB):Suitable for printing with an
sRGB monitor.

13
4. USING PRINTER DRIVER
*1 Color : The color of a light source is
indicated in temperature
[Kelvin degrees (K)]. The
higher the temperature is, the
more the color of a light
source is bluish. The lower the
temperature is, the more the
color of a light source is
reddish.
*2 g (gamma): This shows reproduction of
color tone using figures. The
larger the g rating is, the more
the color is contrasty. The
smaller the g rating is, the
more the color is softer.
*3 sRGB: This is adopted as the
standard RGB color base.
ColorSync
Check here to use the Mac OS color
management function (ColorSync).
Checking the ColorSync option displays the
following (Screen shot for PG4500):
Profile
Chooses an ICC profile for ColorSync.
PICTROGRAPHY 4500:
Select [Pictrography4500PG-D_ER V3.0].
PICTROGRAPHY 4000II:
Select [Pictrography4000IIPG-D_ER V3.0].
4. Click the [Print] button.
Printing is executed.
4.3 Print Center
4.3.1 Print Center Outline
Print Center is used to monitor the print status
or abort a printing process during printing. To
launch Print Center, click the [Print Center] icon
in Dock on the desktop. When Print Center is
launched, the following window opens.
(Screen shot for PG4500)
Status Display area (Upper part of the
screen)
The upper part of the Print Center screen
shows a document name and the print status
for that document, if a print job is currently
being processed.
Spool List Display area (Lower part of the
screen)
The lower part of the Print Center screen
shows a listing of document names and
various data for those documents, if the print
queue contains any jobs (spool files).
If another print job is executed when a print
job is underway, the new job is appended at
the bottom of this list.
4.3.2 Checking the print status
Click the [Print Center] icon in Dock on the
desktop. The [Print Center] window appears. If a
print job is currently in progress, the
corresponding document name and other data
are displayed in the Status Display area (upper
part of the screen).
Or, if the print queue contains other jobs to be
printed, document names and other data are
listed in the Spool List Display area (lower part
of the screen).

14
4. USING PRINTER DRIVER
4.3.3 Canceling printing

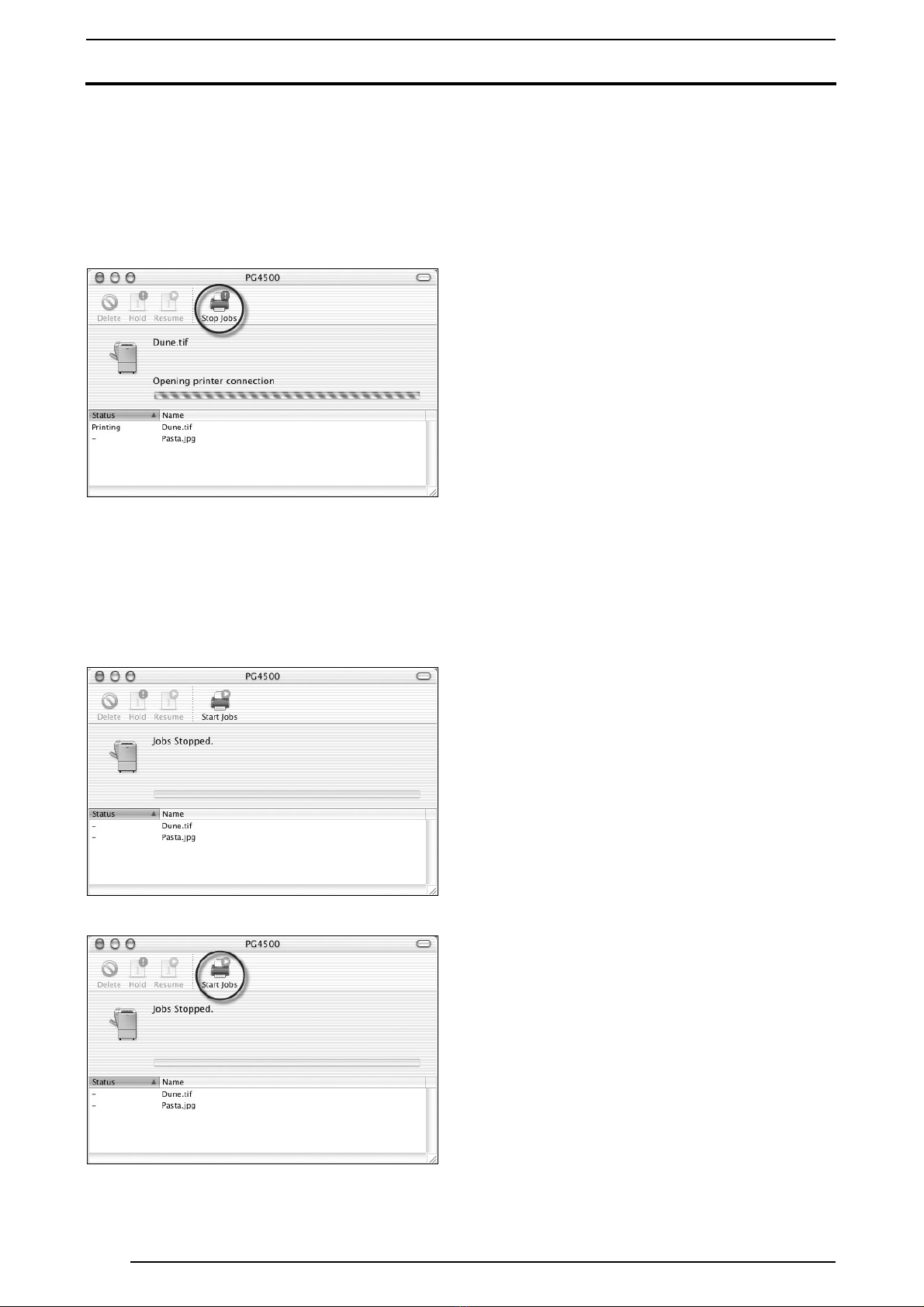

Click the [Print Center] icon in Dock on the
desktop. The [Print Center] window appears.
Click the [Stop Jobs] button. If a print job is
currently in progress, printing is suspended.
(Screen shot for PG4500)
Printing of the suspended print job is held if you
click the document name in the Spool List
Display area and then click the [Hold] button.
The held condition is canceled if you click the
[Resume] button. The suspended print job is
deleted from the Spool List if you click the
document name in the Spool List Display area
and then click the [Delete] button.
To resume printing, click the [Start Jobs] button.

15
5. RESTRICTIONS

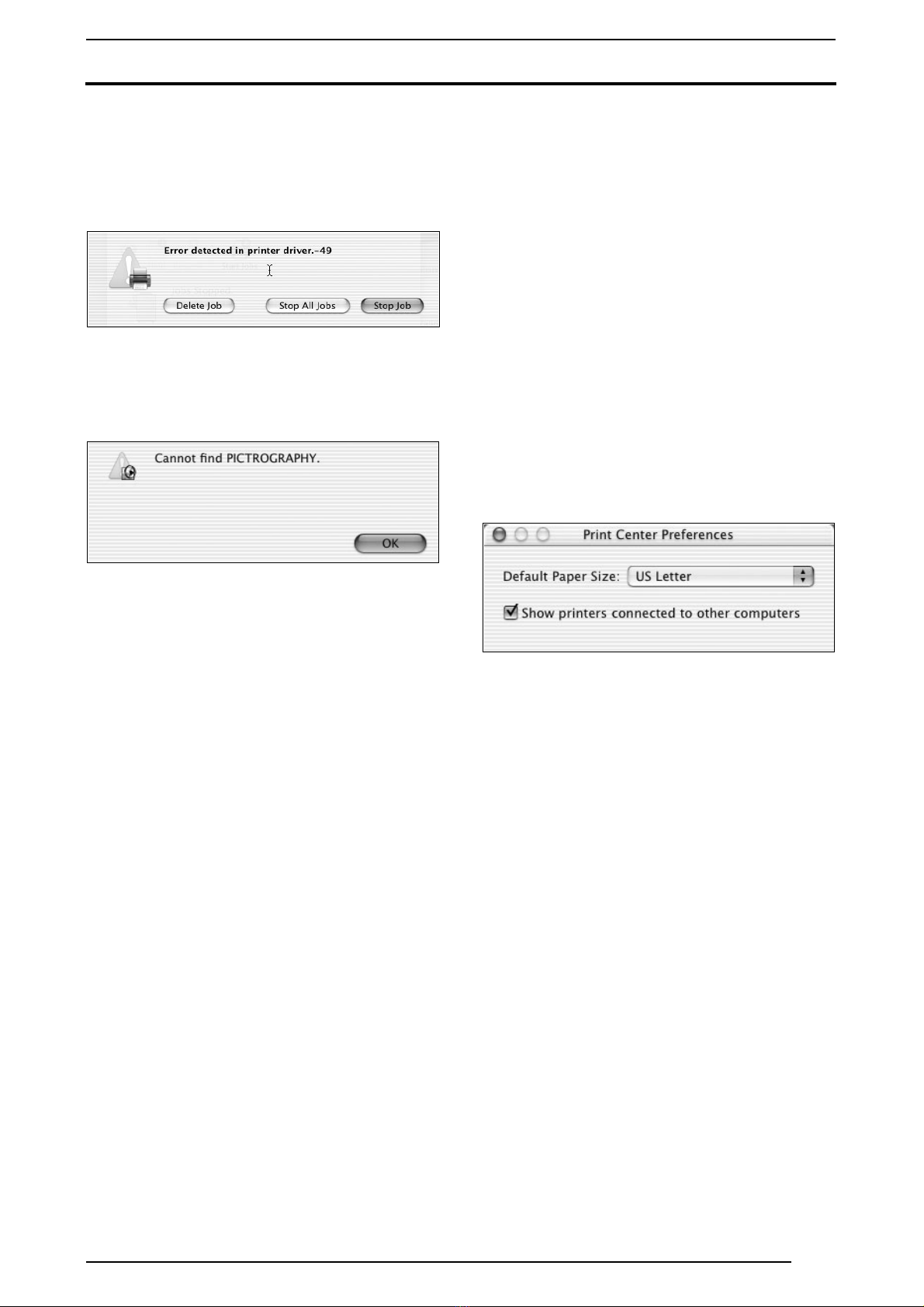

After starting up a Photoshop plug-in, if printing
is performed with the printer driver, the following
error message is displayed. Be sure to quit
Photoshop when printing is performed with the
printer driver after starting up a plug-in.
After adding a printer using Print Center, if a
Photoshop plug-in is started up without Print
Center quit, the following error message is
displayed. Be sure to quit Print Center before
starting up a Photoshop plug-in.
Error messages may not be displayed when the
PICTROGRAPHY 4500/4000II is turned OFF, or
is not connected to a network. If printing is not
performed while "Printing job" or "Opening
printer connection" remains on the Print Center
screen for a long time, check whether or not the
PICTROGRAPHY 4500/4000II is turned ON,
and is connected to a network correctly.
When printing is performed with the [Collated]
check box marked with a " √" (default setting) in
[Copies & Pages] of the [Print] screen, data
transfer to the printer is repeated for a number of
times equal to the designated number of copies.
Remove the " √" mark from the [Collated] check
box for higher efficiency when multiple copies
are made for a single-page document.
When printing an image from Photoshop 7.0, if
the size of the image is equal to the designated
paper size, the image edges may not be printed
for several lines.
When printing from Illustrator 10, collated
printing is not performed even if the [Collated]
check box is marked with a " √" in [Copies &
Pages] of the [Print] screen.
The print queue or print job in Print Center may
not be controlled by the user depending on the
timing of operation.
The positioning or scaling up/down function may
not work correctly depending on applications.
<Restrictions regarding Printer Sharing>
Install the printer driver onto the client
computers as well as server computer. Even if
the printer driver is not installed, client
computers can perform printing with a shared
PICTROGRAPHY. However, paper sizes
supported by the shared PICTROGRAPHY
cannot be selected.

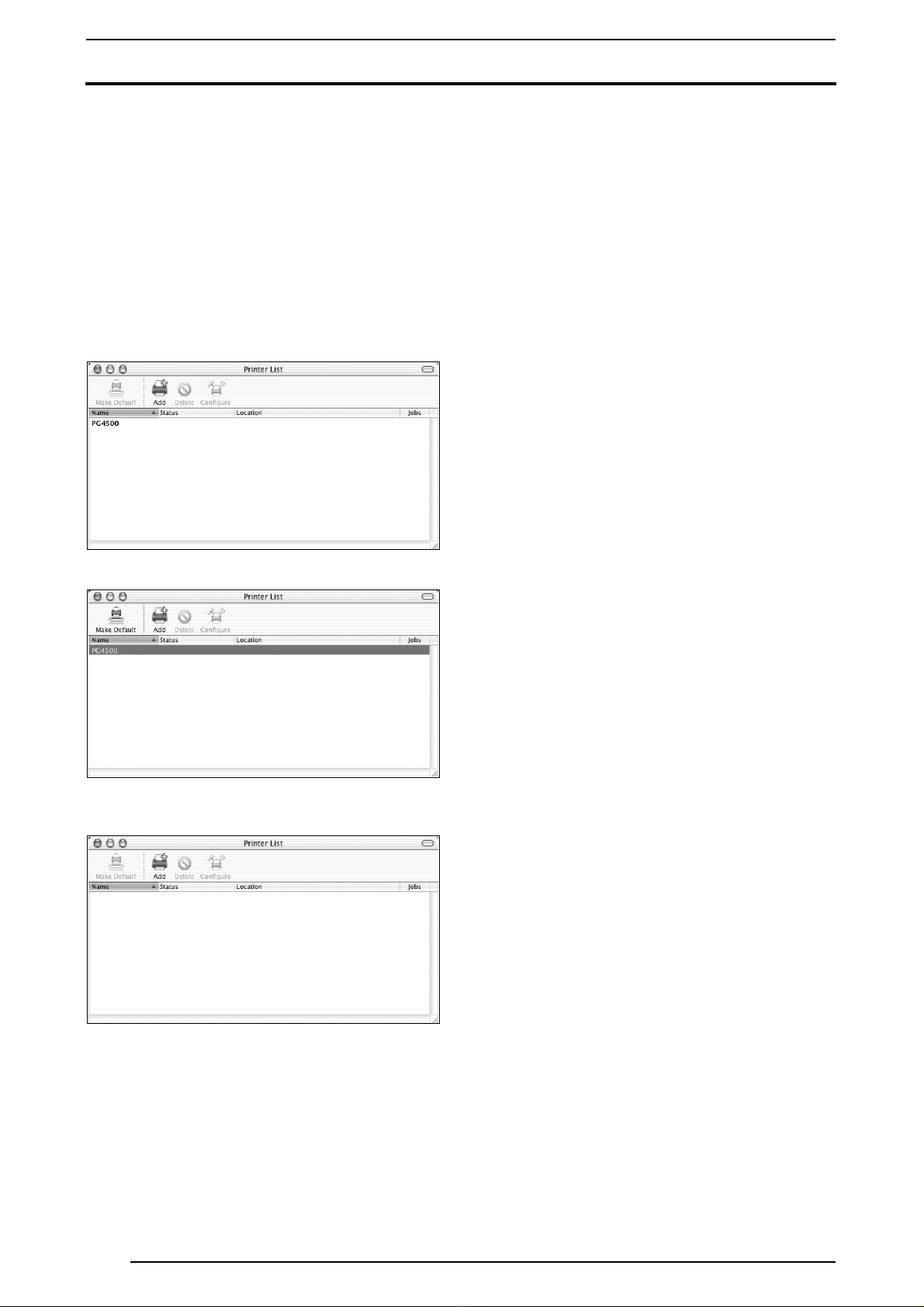

When printer sharing is set to "ON" on a
computer, all printers displayed on [Printer List]
of Print Center are shared.
If shared printers are not displayed on the
[Printer] pop-up menu in the [Print] window of an
application such as Photoshop, or on [Printer
List] of Print Center, select [Preferences...] from
the [Print Center] menu and mark the [Show
printers connected to other computers] with a
"√".
On [Printer List] of Print Center, shared printers
are displayed with a colored background.
If a computer runs Mac OS X 10.1.x or earlier
(including Mac OS 9 or earlier), the computer
cannot recognize the printers shared with the
printer sharing function of Mac OS X 10.2.x.
During printing process, print status display of
Print Center is fixed to "Waiting for job to
complete..." on the client computer.
Client computers cannot handle (stop, hold or
delete) print jobs. Only the server computer can
handle print jobs.
An error (wrong-size paper, printer error, etc) is
detected during printing process, the error
message is displayed only on the server
computer.
When a printer error is detected while
processing a print request from a client
computer, if Print Center on the server computer
is not active, the error message is not displayed.

FUJI PHOTO FILM CO., LTD.
Printed on Recycled Paper
in North America FUJI PHOTO FILM U.S.A., INC.
555 Taxter Road, Elmsford, N.Y. 10523, U.S.A.
FUJI PHOTO FILM CANADA INC.
275 Britannia Road East, Mississauga, Ontario, L4Z 2E7, Canada
FUJI PHOTO FILM HAWAII, INC.
1650 Kalakaua Avenue, Honolulu, Hawaii 96826, U.S.A.
in Europe FUJI PHOTO FILM (EUROPE) G.m.b.H.
Heesenstrasse 31, 40549 Dusseldorf, Germany
FUJI PHOTO FILM (U.K.) LTD.
Fuji Film House, 125 Finchley Road, Swiss Cottage, London NW3 6JH, England
FUJIFILM ESPAÑA, S.A.
Aragon, 180, 08011-Barcelona, Spain
FUJIFILM FRANCE SA
Parc d'Activites du Pas-du-Lac-2, Avenue Franklin, St.Quentin-en-Yvelines Cedex, France
in South America FUJI PHOTO FILM DO BRASIL LTDA.
Avenida Vereador Jose Diniz No. 3.400, Campo Belo-CEP 04.604
Cx. Postal 9.959., São Paulo-SP, Brasil
in Asia FUJI PHOTO FILM CO., LTD., HONG KONG OFFICE
Room 916, Sun Plaza, 28 Canton Road, Tsim Sha Tsui, Kowloon, Hong Kong
FUJI PHOTO FILM (SINGAPORE) PTE. LTD.
10 New Industrial Road, Singapore 536201
FUJI PHOTO FILM (THAILAND) LTD.
S.P. Building, 8th Floor, 388 Phaholyothin Road, Bangkok 10400, Thailand
FUJI PHOTO FILM (MALAYSIA) SDN. BHD.
Letter Box 3, 3rd Floor Office Block 1, Crystal Plaza Lot 4, Jalan 51A/223
46100 Petaling Jaya Selangor Darul Ehsan Malaysia
FUJI PHOTO FILM CO., LTD., TAIPEI OFFICE
Rm. 601, Hung Chong Bldg., No. 38, Sec. 6, Min Chuan E. Rd., Taipei 11412, Taiwan
FUJI PHOTO FILM CO., LTD., SEOUL OFFICE
505-19, Kasan-Dong, Kunchon-Gu, Seoul, Korea 152-020
FUJI PHOTO FILM CO., LTD., BEIJING REPRESENTATIVE OFFICE
Beijing Fortune Bldg. No. 817, 5, Dong Sanhuan Bei-lu, Chaoyang District, Beijing, China 100004
FUJI PHOTO FILM CO., LTD., HO CHI MINH OFFICE
29-31 Ton That Thiep St., Q.I Ho Chi Minh City, Vietnam
FUJI PHOTO FILM CO., LTD., NEW DELHI OFFICE
Le Meridian Commercial Tower 8F Janpath, New Delhi 110001, India
FUJI PHOTO FILM CO., LTD. MANILA OFFICE
24 Sto. Domingo St., Quezon City, Philippines
in Oceania FUJI PHOTO FILM CO., LTD., SYDNEY REPRESENTATIVE OFFICE
c/o Hanimex Pty. Limited, 114 Old Pittwater Road, Brookvale, NSW 2100, Australia
in the Middle East FUJI PHOTO FILM CO., LTD., DUBAI OFFICE
No. 4G-17, L.O.B. No. 4, P.O.BOX 17212, Jebel Ali, Dubai, U.A.E.
26-30, Nishiazabu 2-chome, Minato-ku, Tokyo 106-8620, Japan.
<FUJIFILM ABROAD>
Ref.No.PP3-B504E TD-03.01-FG (LF) Printed in Japan
