Introduction
Your new LCD (Liquid Crystal Display) monitor 3815 FA offers numerous features and functions, for
example:
• TFT display (Thin Film Transistor; active matrix)
• minimal space requirements thanks to slim housing
• height adjustment and ability to turn (portrait mode)
• optimum ergonomic characteristics (totally distortion-free, excellent picture definition and colour
purity right into the corners)
• high degree of brightness and good contrast
• high resolution (1024x768) for displaying the information content of a conventional 17-inch
screen with CRT (Cathode Ray Tube)
• presentation of up to 16.7 million colours (in conjunction with an appropriate graphics card)
• automatic scanning of horizontal frequencies from 30 to 61 kHz and refresh rates (vertical
frequencies) from 55 to 75 Hz (all absolutely flicker-free)
• digital screen controller with microprocessor for storing 18 different display modes
• freely adjustable colour alignment for matching the screen colours to the colours of various
input and output devices
• convenient operation via integrated OSD (On-Screen-Display) menu
• VESA-DDC compatibility
• VESA-FPMPMI compatibility (Flat Panel Monitor Physical Mounting Interface, mechanical
interface to swivel arm and wall bracket); 75 mm hole spacing
• plug&play capability
• power management for reducing power consumption when the computer system is not in use
• compliance with the recommendations in accordance with TCO ’99
• compliance with the ergonomic standards ISO 13406-2
In normal screen mode (dark characters against a light background) the monitor satisfies the
ergonomic requirements for the GS symbol.
This Operating Manual contains important information you require to start up and run your LCD
monitor.
A screen controller with VGA interface is required to control the 3815 FA LCD monitor. The monitor
processes the data supplied to it by the screen controller. The screen controller/the associated
driver software is responsible for setting the modes (resolution and refresh rate).
When putting the monitor into operation for the first time, the screen display should be optimally
adapted to the screen controller used and adjusted in accordance with your needs (see section
"Changing the monitor settings" in chapter "Operation of the monitor").
Target group
You don't need to be an "expert" to perform the operations described here. Do, however, read the
chapter "Important notes" in the Operating Manual of the computer and in this Operating Manual.
In the event of any problems occurring, please contact your sales outlet or our Help Desk.
Further information
Details of how you set the resolution and refresh rate are provided in the documentation on your
screen controller/the associated driver software.

Colour monitor 3815 FA
2 - English A26361-K833-Z100-1-5E19
Notational conventions
The meanings of the symbols and fonts used in this manual are as follows:
!Pay particular attention to text marked with this symbol. Failure to observe this warning
endangers your life, destroys the device, or may lead to loss of data.
i
Supplementary information, remarks, and tips follow this symbol.
Ê Text which follows this symbol describes activities that must be performed in the order shown.
"Quotation marks" indicate names of chapters or terms.
Texts in italics indicate filenames and menu items.
Important notes
!In this chapter you will find information regarding safety which is essential to take note of
with your monitor.
Safety
This device complies with the relevant safety regulations for data processing equipment, including
electronic office machines for use in an office environment. If you have any questions, contact your
sales outlet or our Help Desk.
• The display surface of the LCD monitor is sensitive to pressure and scratches. You should
therefore be careful with the display surface so as to avoid lasting damage (Newton rings,
scratches).
• If the device is brought into the installation site from a cold environment, condensation can
form. Before operating the device, wait until it is absolutely dry and has reached approximately
the same temperature as the installation site.
• During installation and before operating the device, please observe the instructions on
environmental conditions in the chapter entitled "Technical data" as well as the instructions in
the chapter "Installing an ergonomic video workstation".
• To ensure sufficient ventilation, the monitor may only be operated with the monitor base, swivel
arm or wall bracket.
• Ensure that the power socket on the device or the grounded mains outlet is freely accessible.
• The ON/OFF switch does not disconnect the device from the mains voltage. To completely
disconnect the mains voltage, remove the power plug from the socket.
• Lay all cables so that nobody can stand on them or trip over them. When attaching the device,
observe the relevant notes in the chapter "Connecting the monitor".
• No data transmission cable should be connected or disconnected during a thunderstorm.
• Make sure that no objects (e.g. jewellery chains, paper clips, etc.) or liquids get inside the
device (danger of electric shock, short circuit).

Colour monitor 3815 FA
A26361-K833-Z100-1-5E19 English - 3
• In emergencies (e.g. damaged casing, elements or cables, penetration of liquids or foreign
matter), switch off the unit, disconnect the power plug and contact your sales outlet or our Help
Desk.
• The screen background lighting contains mercury. You must observe the applicable handling
and disposal safety regulations for fluorescent tubes.
• If the LCD monitor is damaged (for example the glass is broken), avoid letting any liquids that
may escape coming into contact with any part of your body (skin, mouth, nose) or foodstuffs.
Clean parts of the body and clothing that have already come into contact with such liquids with
plenty of soap and water.
Do not breathe in any of the escaping vapours. You should contact your doctor if you have
breathed in fumes or come into contact with the liquid.
• Only qualified technicians should repair the device. Unauthorised opening and incorrect repair
may greatly endanger the user (electric shock, fire risk).
• You may set only those resolutions and refresh rates specified in the "Technical data" chapter.
Otherwise you may damage your monitor. If you are in any doubt, contact your sales outlet or
our Help Desk.
• Keep this operating manual together with your device. If you pass on the device to third parties,
you should include this manual.
Cleaning
• Always pull out the power plug before you clean the monitor.
• Do not clean any interior parts yourself, leave this job to a service technician.
• Do not use any cleaning agents that contain abrasives or may corrode plastic.
• Ensure that no liquid will run into the system.
• Ensure that the ventilation areas of the monitor are free.
• The display surface of the LCD monitor is sensitive to pressure and scratches. Clean it only
using a soft, slightly moistened cloth.
Wipe the monitor housing with a dry cloth. If the monitor is particularly dirty, use a cloth which has
been moistened in mild domestic detergent and then carefully wrung out.
Transport
• Transport the monitor with care and only in its original packaging or another corresponding
packaging fit to protect it against knocks and jolts.
• Never drop the LCD monitor (danger of glass breakage).

Colour monitor 3815 FA
4 - English A26361-K833-Z100-1-5E19
Energy Star Guidelines
The Fujitsu Siemens LCD colour monitor 3815 FA is designed to conserve
electricity by dropping to less than 5 W when it goes into standby,
suspend and OFF mode. With this new power management the 3815 FA
qualifies for the U.S. Environmental Protection Agency's (EPA) Energy
Star Computers award.
The EPA estimates that computer equipment uses 5% percent of all business electricity and that
this is growing rapidly. If all desktop computers and peripherals enter a low-power mode when not in
use, the overall savings in electricity could amount to $ 2 thousand million annually. These savings
could also prevent the emission of 20 million tons of carbon dioxide into the atmosphere - the
equivalent of 5 million automobiles.
As an Energy Star Partner, Fujitsu Siemens Computers GmbH has determined that this product
meets the Energy Star guidelines for energy efficiency.
CE marking
The shipped version of this device complies with the requirements of the EEC
directives 89/336/EEC "Electromagnetic compatibility" and 73/23/EEC "Low voltage
directive".

Colour monitor 3815 FA
A26361-K833-Z100-1-5E19 English - 5
FCC Class B Compliance Statement
The following statement applies to the products covered in this manual, unless otherwise specified
herein. The statement for other products will appear in the accompanying documentation.
NOTE:
This equipment has been tested and found to comply with the limits for a "Class B" digital device,
pursuant to Part 15 of the FCC rules and meets all requirements of the Canadian Interference-
Causing Equipment Regulations. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in strict accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV technician for help.
Fujitsu Siemens Computers GmbH is not responsible for any radio or television interference caused
by unauthorised modifications of this equipment or the substitution or attachment of connecting
cables and equipment other than those specified by Fujitsu Siemens Computers GmbH The
correction of interference caused by such unauthorised modification, substitution or attachment will
be the responsibility of the user.
The use of shielded I/O cables is required when connecting this equipment to any and all optional
peripheral or host devices. Failure to do so may violate FCC rules.
Important note on power cable
To guarantee safe operation, use the cable supplied. Use the following guidelines if it is necessary
to replace the original cable set.
• The female/male receptacles of the cord set must meet CEE-22 requirements.
• The cable has to be HAR-certified or VDE-certified. The mark HAR or VDE will appear on the
outer sheath or on the insulation of one of the inner conductors.
• For devices which are mounted on a desk or table, type SVT or SJT cable sets may be used.
For devices which sit on the floor, only SJT type cable sets may be used.
• The cable set must be selected according to the current rating for your device.

Colour monitor 3815 FA
6 - English A26361-K833-Z100-1-5E19
Power cable for devices distributed in the US and Canada
In the United States and Canada the cord set must also be UL-listed and CSA-labelled. The voltage
rating should be min. 250 volts a.c.
Please consult the following table for the selection criteria for power cables used in the United
States and Canada.
Cable type Size of conductors in cable Maximum current rating of the device
SJT 18 AWG
16 AWG
14 AWG
10 Amps
12 Amps
12 Amps
SVT 18 AWG
17 AWG 10 Amps 12 Amps
For the United Kingdom
Should the plug on the flexible cord not be of the type for your socket outlets, do not use an adapter
but remove the plug from the cord and discard. Carefully prepare the end of the supply cord and fit a
suitable plug.
WARNING
THIS APPLIANCE MUST BE EARTHED
IMPORTANT
The wires in this mains lead are coloured in accordance with the following code:
Green and Yellow: Earth
Blue: Neutral
Brown: Live
As the colours of the wires in the mains lead of this appliance may not correspond with the coloured
markings identifying the terminals in your plug, proceed as follows:
• The wire which is coloured Green and Yellow must be connected to the terminal in the plug
which is marked with the letter E or by the earth symbol or coloured Green or Green and
Yellow.
• The wire which is coloured Blue must be connected to the terminal which is marked with the
letter N or coloured Black.
• The wire which is coloured Brown must be connected to the terminal which is marked with the
letter L or coloured Red.
Disposal and recycling
This device has been manufactured to the highest possible degree from materials which can be
recycled or disposed of in a manner that is not environmentally damaging.
The device may be taken back after use to be recycled, provided that it is returned in a condition
that is the result of normal use. Any components not reclaimed will be disposed of in an
environmentally acceptable manner.
If you have any questions on disposal, please contact your local office, our Help Desk, or:
Fujitsu Siemens Computers GmbH
Recyclingcenter
D-33106 Paderborn
Tel.: +49 5251 / 81 80 10, Fax: +49 5251 / 81 80 15

Colour monitor 3815 FA
A26361-K833-Z100-1-5E19 English - 7
Checking the contents of the consignment
ÊUnpack all the individual parts.
ÊCheck the delivery for damage incurred during transportation.
ÊCheck whether the delivery agrees with the details in the delivery note.
The complete LCD monitor package includes:
− a monitor with permanently connected data cable
− a power adapter with power adapter cable
− one power cable
− one floppy disk
− one warranty card
− this Operating Manual
Should you discover that the delivery does not correspond to the delivery note, notify your local
sales outlet immediately.
i
It is recommended not to throw away the original packing material. Keep it for future
transportation.
Installing an ergonomic video workstation
Before you set up your equipment, you should select a suitable position for working at the monitor.
Please observe the following advises when installing a video workstation.
Window
permissible
reaching sector
600 mm
edge of desk
permissible
reaching sector
600 mm
Avoid direct and reflected glare. Avoid glare from electric
lighting. Position the keyboard where it is easiest to reach.
30°
30°
65°
65°
0°
60°
preferable viewing sector
permissible viewing sector
permissible
viewing sector
approx. 90°
and more
approx. 90°
Position the monitor for
optimum viewing. The viewing
distance to the monitor should
be approximately 50 cm.
Keep ventilated areas clear. Remember to maintain correct
posture.

Colour monitor 3815 FA
8 - English A26361-K833-Z100-1-5E19
Connecting the monitor
Information on the computer connections and interfaces is contained in the operating manual for
your computer.
!Please note the information provided in the "Safety" section in the chapter "Important
notes" at the beginning of this manual.
Do not cover the ventilation openings of the monitor.
2
3
4
1
a
a = Security slots for "Kensington Lock"
ÊBe sure that the monitor and the computer are switched off.
!The computer power plug must be pulled!
The permanently connected data cable is equipped with a 15-pin D-SUB plug for connection to the
computer.
ÊFirst insert the plug of the data cable through the hole in the monitor base and then connect it
to the active monitor connection of the computer and lock the connector by tightening the
locking screws (1).

Colour monitor 3815 FA
A26361-K833-Z100-1-5E19 English - 9
i
If your computer has two monitor ports ("onboard" screen controller and separate
graphics card), the monitor port for the separate graphics card is usually active.
ÊPull the display of the monitor up and turn the display by 90°into the vertical position (portrait
mode).
ÊConnect the power adapter cable of the power adapter firmly to the power connector of the
monitor (2) and check whether the socket is securely seated.
ÊConnect the power cable to the power adapter (3).
ÊConnect the plug on the power cable supplied to the monitor socket of the computer (4).
ÊPlug the power connector of the computer into a properly grounded mains outlet.
i
When you start working with your monitor for the first time you should install the
appropriate graphics drivers for your application software. Details of how to do this are
provided in the documentation on your screen controller/the associated driver software.
Anti-theft protection
A lock (Kensington Lock) can be mounted in the security slots to protect the monitor from theft. A
Kensington Lock is not included in the consignment of the monitor.

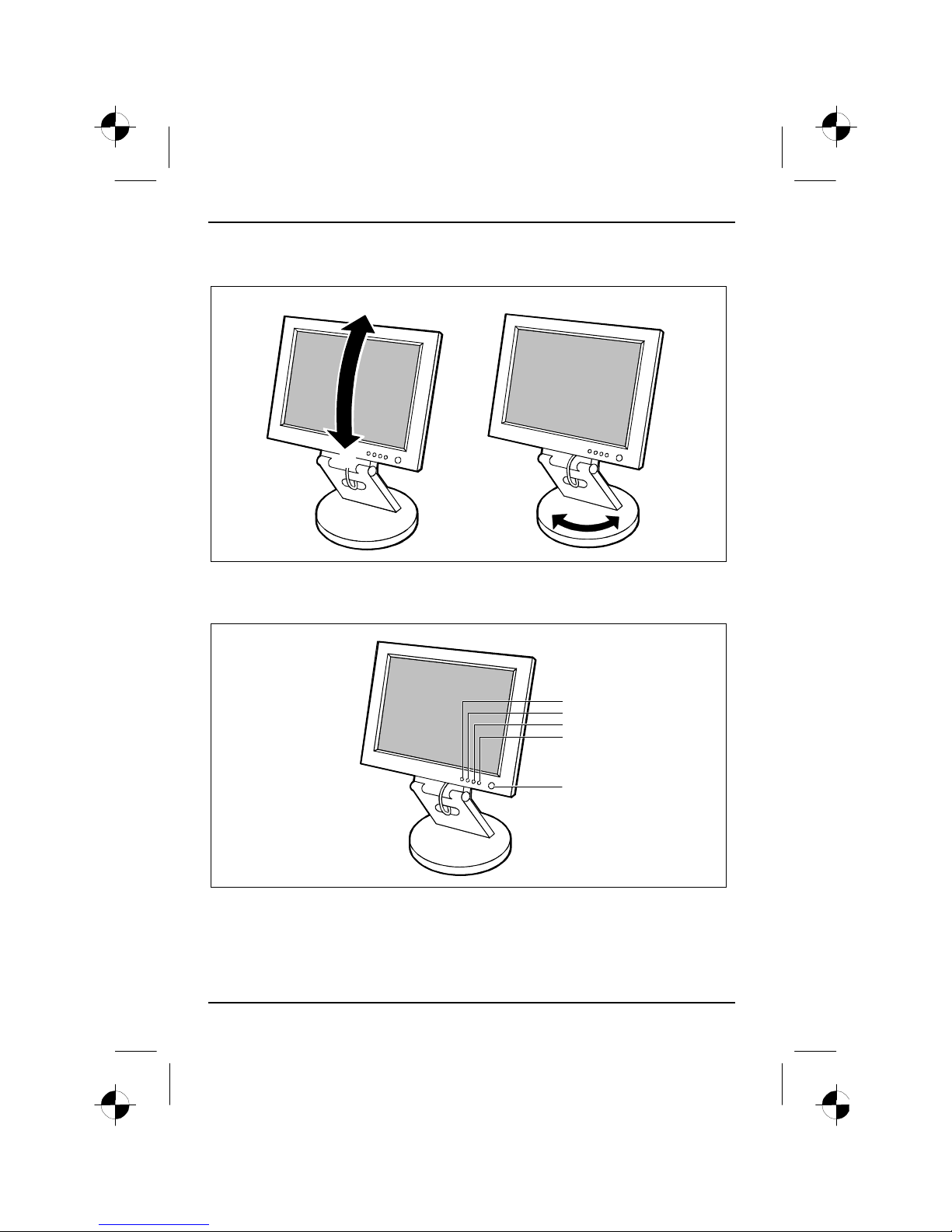

Height adjustment and ability to turn
2
1
You can conveniently adjust the height of your monitor by slightly lifting the display. In addition, you
can also turn the display by 90°into the vertical position (portrait mode). To do this you must slightly
lift the display and turn it clockwise.
i
You must use corresponding software (pivot software) so that the screen display is also
shown in the portrait mode. This software is available from specialised dealers.

Colour monitor 3815 FA
10 - English A26361-K833-Z100-1-5E19
Tilting and turning area
5°
15°
Operation of the monitor
1
2
3
4
5
1 = AUTO button
2 = Brightness
3 = Contrast
4 = MENU button
5 = ON/OFF switch

Colour monitor 3815 FA
A26361-K833-Z100-1-5E19 English - 11
Switching the monitor on/off
The ON/OFF switch (5) is used for switching the monitor on and off.
The power indicator of the ON/OFF switch glows green when the monitor and computer are
switched on. The power indicator glows amber when the monitor does not receive a video signal or
is in the energy-saving mode. The power indicator goes off when the monitor is switched off.
When you switch on the computer system, you must proceed in the following order:
ÊFirst switch the LCD monitor on with the ON/OFF switch (5).
ÊThen switch on the computer.
i
If your computer has a power management function (energy-saving mode), you should
read the "Notes on power management" of the monitor in this chapter.
Notes on power management
If your computer is equipped with power management, the monitor can support this function fully.
Here the monitor does not distinguish between the individual energy-saving modes of the computer
(standby mode, suspend mode and OFF mode), as it is capable of immediately switching into the
mode with the highest energy-saving effect.
Stage ON Energy-saving mode
Power indicator glows green glows amber
Function Monitor operating
normally Monitor is dark
Power consumption normal
<30W reduced to < 3 W
If your computer detects inactivity (no input) it sends an appropriate signal to the monitor to reduce
the power consumption (energy-saving mode). The power indicator of the monitor changes colour to
indicate the status change.
Once an input is made at the computer the screen contents are redrawn and full power is restored.
For detailed information on how energy-saving mode operates refer to the Operating Manual or
Technical Manual of your computer.
i
When the monitor is switched to the energy-saving mode by the power management
system a power consumption of up to 3 W is maintained to feed the circuit for redrawing
the screen contents.
To completely switch off the power consumption, switch off the computer or pull the plug
of the monitor power cable out of the monitor socket of the computer or of the mains
outlet.

Colour monitor 3815 FA
12 - English A26361-K833-Z100-1-5E19
Changing the monitor settings
When putting the monitor into operation for the first time, the screen display should be optimally
adapted to the screen controller used and adjusted in accordance with your needs.
Basic monitor adjustment with a test pattern
If one of the operating systems Windows for Workgroups, Windows 95/98, Windows NT,
Windows ME, Windows 2000 or OS/2 (with Windows emulation installed) is used, the basic monitor
settings can be set with the floppy disk supplied.
ÊInsert the supplied floppy disk into the floppy disk drive.
ÊRun the file LCDADJ.EXE on the floppy disk and press the AUTO button after the test pattern
appears on the screen to start the automatic picture calibration.
Your monitor should now already be properly adjusted. If none of the above operating systems is
used or minor corrections are to be made to the screen display, then change the monitor settings
with the OSD menu (Focus and Clock functions).

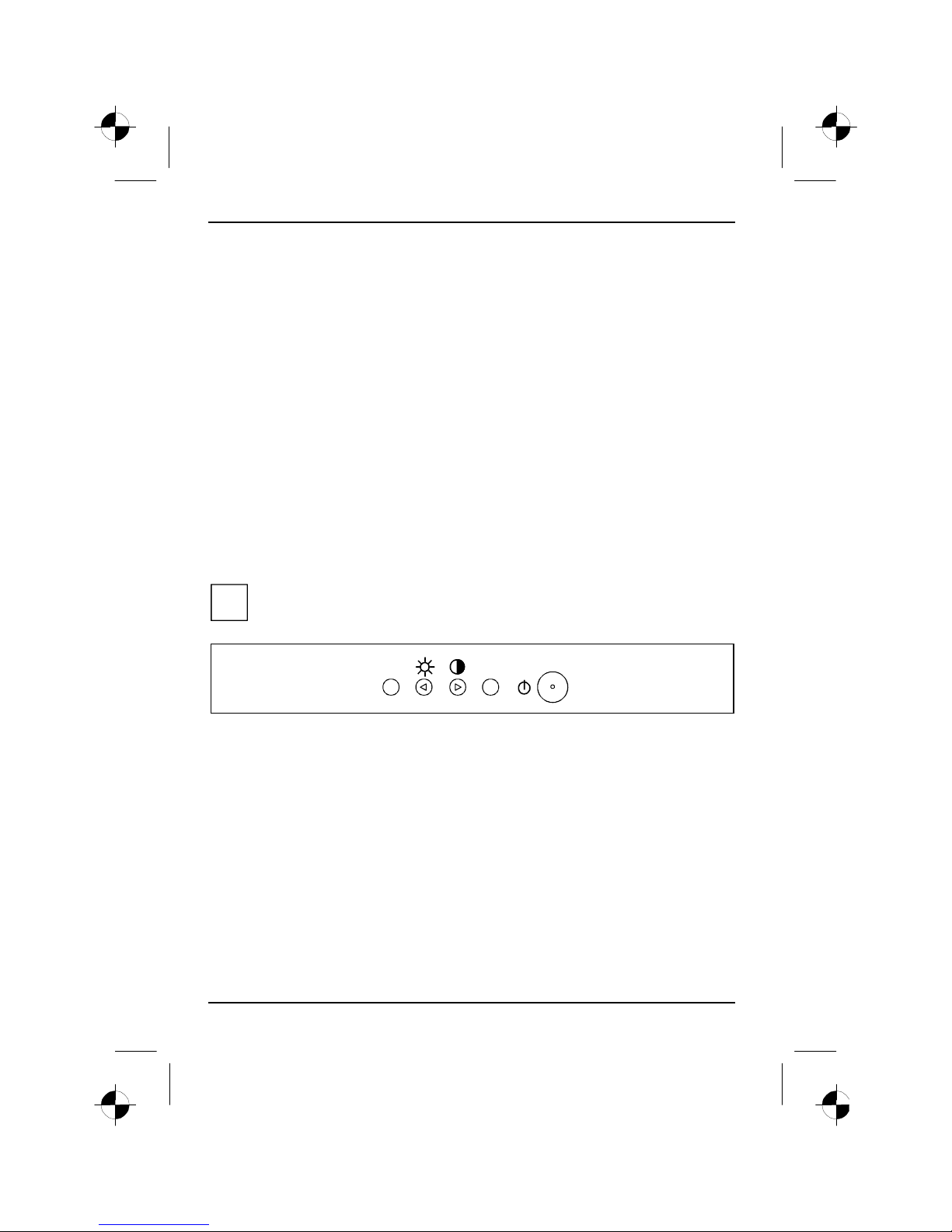

Monitor settings with the buttons of the control panel
With the buttons of the control panel, you can make the following settings directly: auto-adjustment
of the monitor, adjusting the brightness and adjusting the contrast.
i
Other settings are carried out via an integrated OSD menu (On-Screen Display). For
additional information on this subject, refer to the section "Monitor settings using the OSD
menu".
MENUAUTO
Proceed as follows:
Performing auto-adjustment of the monitor
ÊPress the AUTO button for roughly one second to start the auto adjustment function.
Clock, focus and position are set to optimum values for your system.
Adjusting the brightness
ÊPress the !button to activate the setting window for brightness (Brightness).
ÊSet the brightness with the !or "buttons, until the picture appears correct.
ÊPress the MENU button to save the settings and to switch the OSD menu off.
If you make no changes for 60 seconds, the settings will automatically be saved and the OSD
menu will be deactivated.

Colour monitor 3815 FA
A26361-K833-Z100-1-5E19 English - 13
Adjusting the contrast
ÊPress the "button to activate the setting window for contrast (Contrast).
ÊSet the contrast with the !or "buttons, until the picture appears correct.
ÊPress the MENU button to save the settings and to switch the OSD menu off.
If you make no changes for 60 seconds, the settings will automatically be saved and the OSD
menu will be deactivated.
Monitor settings using the OSD menu
You can use the buttons on the control panel to set the screen display via an integrated OSD menu
(On-Screen-Display).
i
The OSD menu is available in five languages (default setting: English). With the OSD
function Language you can select another language.
MENUAUTO
To set the OSD menu, perform the following steps:
ÊPress the MENU button to activate the OSD menu.
The main menu appears on the screen with icons for the setting functions.
The first symbol (Contrast) is highlighted.
If you want to change the contrast:
ÊPress the MENU button and make the
desired setting with the !or "button.
ÊPress the MENU button to return to the
main menu.
If you want to change another setting:
ÊUse the !or "button to mark another icon in the main menu, e.g. H.Position.
ÊPress the MENU button and make the desired setting with the !or "button.
ÊBriefly press the AUTO button to save the settings and to switch the OSD menu off.
If you make no changes for 60 seconds, the settings will automatically be saved and the OSD
menu will be deactivated.

Colour monitor 3815 FA
14 - English A26361-K833-Z100-1-5E19
If you want to change other settings, select the corresponding function from the main menu. All
possible adjustments of the monitor are described in the following.
Setting the contrast of the display (Contrast)
If the contrast is set too high, bright grey levels can no longer be distinguished from
very bright grey levels. If the contrast is set too low, the maximum brightness will not
be achieved.
Setting the brightness of the display (Brightness)
Setting the Black level
With the black value you adjust the brightness of the gray-scale values. Resetting the
monitor to the factory settings adjusts the black level to the optimal value.
If the black level is set too high, black surfaces are no longer shown as deep black,
but instead as grey (worse contrast). If the black value is too low, it is not possible to
distinguish between dark shades.
Setting the focus (picture definition) (Focus)
Eliminate picture noise and improve focus.
Setting the clock (picture width) (Clock)
Eliminate vertical interference with local fuzziness (synchronisation with the graphic
card signals).
There is only one proper setting per resolution and refresh rate for these parameters.
Adjusting the horizontal position (H. Position)
Shifting the picture to the left or to the right.
Adjusting the vertical position (V. Position)
Shifting the picture up or down.
Setting language for the OSD menu (Language)
You can choose from English (default setting), German, French, Spanish and Italian.
Setting the colour temperature
Setting the colour tone of the screen to 9300°K(more blue) or 7300°K (less blue).
Resetting the monitor to the factory settings (Reset)
Executing AUTO LEVEL function
AUTO LEVEL adjusts contrast (video gain) to optimal value and returns contrast
numerical feedback value in the OSD to 50.

Colour monitor 3815 FA
A26361-K833-Z100-1-5E19 English - 15
Locking the OSD menu (OSD Lock)
The OSD menu can be locked to prevent accidental or unauthorised changes to the monitor
settings.
ÊSwitch your monitor off.
ÊPress and hold down the !and "buttons and switch on the monitor simultaneously.
The OSD menu is locked.
If you press the MENU button and the OSD menu is locked, the message "OSD locked" appears on
the screen.
After OSD is locked brightness and contrast shortcuts and auto adjustment are still available.
Please proceed in the same manner to release the locked OSD menu again.
Displaying the OSD menu in portrait mode
ÊPress the AUTO button and switch on the monitor.
The OSD menu will be displayed rotated by 90°(portrait mode; see "Height adjustment and ability to
turn").
Notes on ergonomic colour adjustment
If you select colours for the display in your application programmes, take note of the information
below.
The primary colours blue and red on a dark background do not produce the minimum required
contrast of 3:1 and are therefore not suitable for continuous text and data entry.
When using several colours for characters and background and giving the primary colours full
modulation, you can obtain very suitable colour combinations (see the following table):
Background Characters
black white purple blue cyan green yellow red
black + + - + + + -
white + + + - - - +
purple + + -----
blue - + - + - + -
cyan + - - + - - -
green + - - + - - -
yellow + - + + - - +
red-+----+
+ Colour combination very suitable
- Colour combination not suitable because colour locations are too close together, thin
characters are not identifiable or rigorous focusing is demanded of the human eye.

Colour monitor 3815 FA
16 - English A26361-K833-Z100-1-5E19
Technical data
Dimensions and weight (LCD monitor)
Visible diagonals: 38 cm
Dot pitch: 0.297 mm
Screen size: 304 mm x 228 mm
Maximal resolution: 1024 x 768 pixels
Luminance: 200 cd/m2(typical)
Dimensions (WxHxD)incl.
monitor base: 390 mm x 385 mm x 215 mm
Turning area: 5°forward, 45°back
Weight: approx. 5.0 kg
Accessories: Power cable (1.8 m)
Storable display modes: 18
Electrical data
Rated mains voltage:
Frequency: 100 V - 240 V (±10 %) 50Hz-60Hz(±5%)
Video: analogue, positive, 0.7 Vpp,75Ω
Synchronisation: Separate Sync. TTL, positive or negative
Horizontal frequency: 30 kHz .... 61 kHz (multi-scanning)
Refresh rate: 55 Hz .... 75 Hz
Maximum pixel rate: 80 MHz
Total power consumption < 30 W (ON, Normal mode)
< 3 W in the energy-saving mode (standby mode, suspend
mode and OFF mode)
Environmental conditions
Environment class 3K2, IEC 721
Rated range of operation:
Humidity: 15 °C .... 35 °C 20 % .... 85 %
Limit range of operation:
Humidity: 5°C .... 35 °C 20 % .... 85 %
Condensation must be avoided.

Colour monitor 3815 FA
A26361-K833-Z100-1-5E19 English - 17
VESA-DDC-compatible VGA interface
Your monitor is equipped with a VESA-DDC-compatible VGA interface. VESA-DDC (Video
Electronics Standard Association, Display Data Channel) is used as the communications interface
between the monitor and the computer. If your computer is equipped with a VESA-DDC-compatible
VGA interface, it can automatically read the data for ensuring optimum operation from your monitor
and select the appropriate settings.
i
If the monitor 3815 FA is not yet displayed in the list of monitors, you can select the
following monitor instead:
C383 FA or 3814 FA
Supported operating modes
i
The display position and scanning are set to optimum values automatically for the
operating modes listed below. Depending on the screen controller used, it may be
necessary to adjust the display position and scanning. In this case, you can change and
save the settings (see "Operation of the monitor").
Screen resolution Refresh rate Horizontal frequency
720 x 400 70 Hz 31.47 kHz
640 x 480
640 x 480
640 x 480
60 Hz
66.6 Hz
75 Hz
31.47 kHz
35.00 kHz
37.50 kHz
800 x 600
800 x 600
60 Hz
75 Hz
37.88 kHz
46.88 kHz
832 x 624 75 Hz 49.73 kHz
1024 x 768
1024 x 768
1024 x 768
1024 x 768
60 Hz
70 Hz
75 Hz
74.9 Hz
48.36 kHz
56.48 kHz
60.02 kHz
60.24 kHz
For ergonomic reasons, a screen resolution of 1024 x 768 pixels is recommended. Because of the
technology used (active matrix) an LCD monitor provides a totally flicker-free picture even with a
refresh rate of 60 Hz.
i
Because of the technology used (active matrix) an LCD monitor provides a totally flicker-
free picture even with a refresh rate of 60 Hz.
