Fujitsu Siemens Computers 383V FA User manual

MONITOR
Betriebsanleitung / Operating Manual
383V FA
Deutsch - English

Sie haben ...
... technische Fragen oder Probleme?
Wenden Sie sich bitte an
unseren Help Desk (siehe Garantieheft).
Aktuelle Informationen zu unseren Produkten, Tipps, Updates usw. finden Sie im Internet:
http://www.fujitsu-siemens.com
Are there ...
... any technical problems or other
questions you need clarified?
Please contact
our Help Desk (see Warranty Booklet).
The latest information on our products, tips, updates, etc., can be found on the Internet under:
http://www.fujitsu-siemens.com

Dieses Handbuch wurde auf Recycling-Papier gedruckt.
This manual has been printed on recycled paper.
Ce manuel est imprimé sur du papier recyclé.
Este manual ha sido impreso sobre papel reciclado.
Questo manuale è stato stampato su carta da riciclaggio.
Denna handbok är tryckt på recyclingpapper.
Dit handboek werd op recycling-papier gedrukt.
Herausgegeben von/Published by
Fujitsu Siemens Computers GmbH
Bestell-Nr./Order No.: A26361-K873-Z100-1-5E19
Printed in Taiwan (R.O.C.)
AG 0103 01/03
A26361-K873-Z100-1-5E19
383V FA BETRIEBSANLEITUNG
OPERATING MANUAL

383V FA
LCD-Bildschirm
LCD monitor
Betriebsanleitung
Operating Manual
Deutsch
English
Ausgabe Januar 2003
January 2003 edition

VESA, DDC und DPMS sind eingetragene Warenzeichen der Video Electronics Standards
Association.
Copyright Fujitsu Siemens Computers GmbH 2003
Alle Rechte vorbehalten, insbesondere (auch auszugsweise) die der Übersetzung, des
Nachdrucks, der Wiedergabe durch Kopieren oder ähnliche Verfahren.
Zuwiderhandlungen verpflichten zu Schadenersatz.
Alle Rechte vorbehalten, insbesondere für den Fall der Patenterteilung oder GM-Eintragung.
Liefermöglichkeiten und technische Änderungen vorbehalten.
Dieses Handbuch wurde erstellt von
cognitas. Gesellschaft für Technik-Dokumentation mbH
www.cognitas.de
VESA, DDC and DPMS are registered trademarks of Video Electronics Standards
Association.
Copyright Fujitsu Siemens Computers GmbH 2003
All rights, including rights of translation, reproduction by printing, copying or similar methods,
even of parts are reserved.
Offenders will be liable for damages.
All rights, including rights created by patent grant or registration of a utility model or design,
are reserved.
Delivery subject to availability. Right of technical modification reserved.
This manual was produced by
cognitas. Gesellschaft für Technik-Dokumentation mbH
www.cognitas.de

A26361-K873-Z100-2-5E19 English
Contents
Introduction........................................................................................................................................1
Notational conventions ..............................................................................................................2
Important notes..................................................................................................................................2
Safety........................................................................................................................................2
Cleaning notes...........................................................................................................................3
Transport notes .........................................................................................................................3
Manufacturer’s notes .................................................................................................................3
FCC Class B Compliance Statement.........................................................................................4
Important note on power cable...................................................................................................4
Disposal and recycling...............................................................................................................5
Checking the contents of the consignment ........................................................................................5

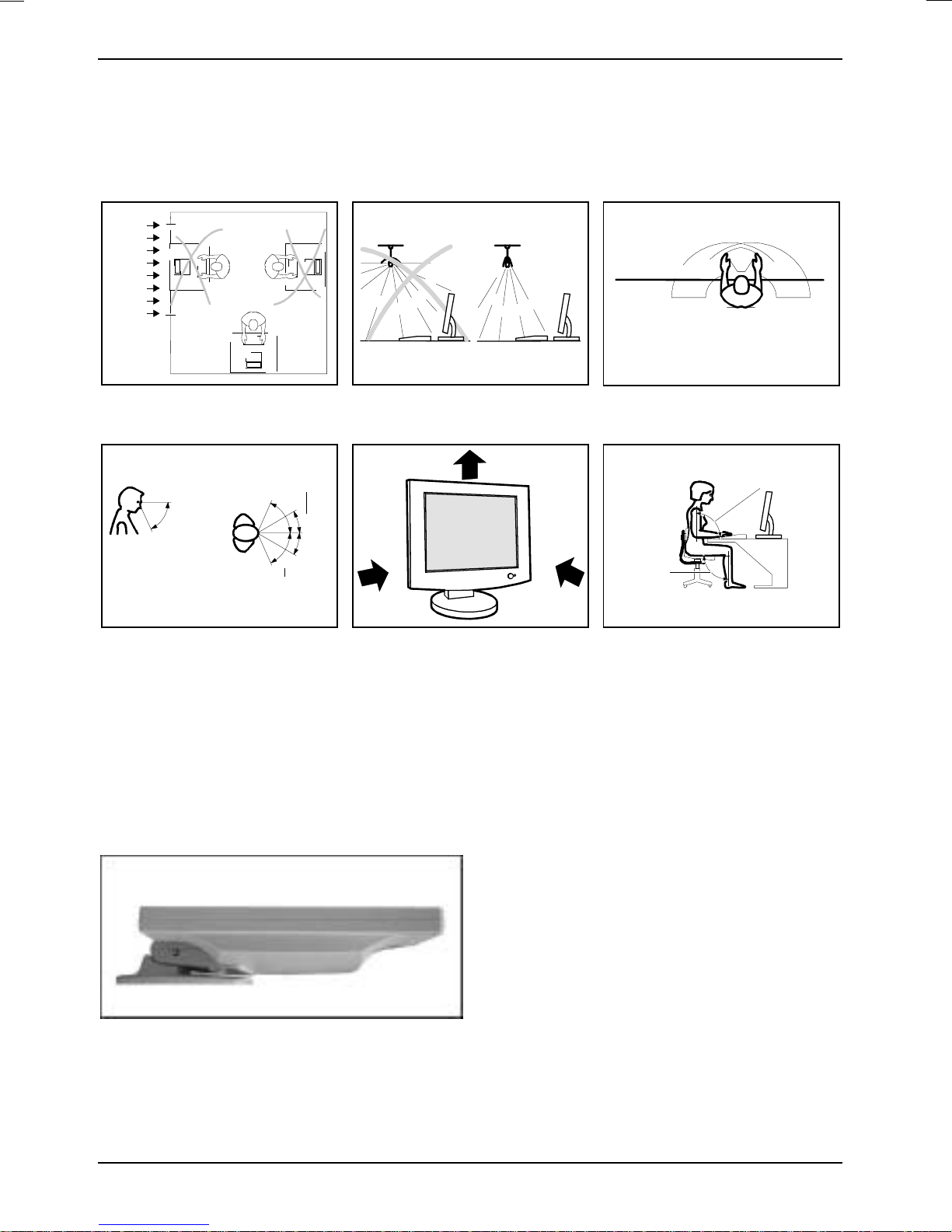

Installing an ergonomic video workstation..........................................................................................6
Setting up the monitor........................................................................................................................6
Connecting the monitor......................................................................................................................8
Connecting cables to the monitor...............................................................................................8
Connecting cables to the computer............................................................................................9
Operation of the monitor....................................................................................................................9
Switching the monitor on/off.......................................................................................................9
Notes on power management..................................................................................................10
Changing the monitor settings .................................................................................................10
Wall mounting..................................................................................................................................16
Notes on ergonomic colour adjustment............................................................................................17
Technical data.................................................................................................................................17
VESA-DDC-compatible VGA interface.....................................................................................18
Preset operating modes...........................................................................................................19
Power supply plug ...................................................................................................................19
D-SUB connector.....................................................................................................................20
Monitor port DVI-D...................................................................................................................21
Trouble shooting..............................................................................................................................21

A26361-K873-Z100-2-5E19 English - 1
Introduction
Your new LCD (Liquid Crystal Display) monitor 383V FA offers numerous features and functions, for
example:
•TFT display (Thin Film Transistor; active matrix)
•minimal space requirements thanks to slim casing
•optimum ergonomic characteristics (totally distortion-free, excellent picture definition and colour
purity right into the corners)
•high degree of brightness and good contrast
•high resolution (1024x768) for displaying the information content of a conventional 17-inch
screen with CRT (Cathode Ray Tube)
•presentation of up to 16.7 million colours (in conjunction with an appropriate graphics card)
•automatic scanning of all horizontal frequencies from 30 to 62 kHz and all refresh rates (vertical
frequencies) from 50 to 75 Hz (all absolutely flicker-free)
•digital screen controller with microprocessor for storing 32 different display modes
•freely adjustable colour alignment for matching the screen colours to the colours of various
input and output devices
•convenient operation via integrated OSD (On-Screen-Display) menu
•VESA-DDC compatibility
•VESA-FPMPMI compatibility (Flat Panel Monitor Physical Mounting Interface, mechanical
interface to swivel arm and wall bracket)
•plug&play capability
•power management for reducing power consumption when the computer system is not in use
•compliance with the recommendations in accordance with TCO ’95 and TCO ’99
In normal screen mode (dark characters against a light background) the monitor satisfies the
ergonomic requirements for the GS symbol.
This Operating Manual contains important information you require to start up and run your LCD
monitor.
A graphics card (screen controller) with VGA interface or a digital graphics card with DVI interface is
required to control the 383V FA LCD monitor. The monitor processes the data supplied to it by the
screen controller. The screen controller/the associated driver software is responsible for setting the
modes (resolution and refresh rate).
When putting the monitor into operation for the first time, the screen display should be optimally
adapted to the screen controller used and adjusted in accordance with your needs (see the
"Changing the monitor settings" section in the"Operation of the monitor" chapter).
Target group
You don't need to be an "expert" to perform the operations described here. Do, however, read the
chapter "Important notes" in the Operating Manual of the computer and in this Operating Manual.
In the event of any problems occurring, please contact your sales outlet or our Help Desk.
Further information
Details of how you set the resolution and refresh rate are provided in the documentation on your
screen controller/the associated driver software.

Colour monitor 383V FA
2 - English A26361-K873-Z100-2-5E19
Notational conventions
The meanings of the symbols and fonts used in this manual are as follows:
!Pay particular attention to text marked with this symbol. Failure to observe this warning
endangers your life, destroys the device, or may lead to loss of data.
i
Supplementary information, remarks, and tips follow this symbol.
ÊText which follows this symbol describes activities that must be performed in the order shown.
"Quotation marks" indicate names of chapters or terms.
Important notes
!In this chapter you will find information regarding safety which is essential to take note of
with your monitor.
Safety
This device complies with the relevant safety regulations for data processing equipment, including
electronic office machines for use in an office environment. If you have any questions, contact your
sales outlet or our Help Desk.
•The display surface of the LCD monitor is sensitive to pressure and scratches. You should
therefore be careful with the display surface so as to avoid lasting damage (Newton rings,
scratches).
•If the device is brought into the installation site from a cold environment, condensation can
form. Before operating the device, wait until it is absolutely dry and has reached approximately
the same temperature as the installation site.
•During installation and before operating the device, please observe the instructions on
environmental conditions in the "Technical data" chapter as well as the instructions in the
"Installing an ergonomic video workstation" chapter.
•Ensure that the monitor is sufficiently ventilated. The monitor may only be operated with the
monitor base.
•The power adapter automatically sets itself to a mains voltage in the range of 100 V to 240 V.
Ensure that the local mains voltage lies within these limits.
•Ensure that the power socket on the power adapter or the grounded mains outlet is freely
accessible.
•The ON/OFF switch does not disconnect the device from the mains voltage. To completely
disconnect the mains voltage, remove the power plug from the socket.
•Lay all cables so that nobody can stand on them or trip over them. When attaching the device,
observe the relevant notes in the chapter "Connecting the monitor".
•No data transmission cable should be connected or disconnected during a thunderstorm.

Colour monitor 383V FA
A26361-K873-Z100-2-5E19 English - 3
•Please ensure that no objects (e.g. necklaces, paperclips etc.) or liquids can get into the
interior of the device (this may cause an electrical shock or short circuit).
•In emergencies (e.g. damaged casing, elements or cables, penetration of liquids or foreign
matter), switch off the unit, disconnect the power plug and contact your sales outlet or our Help
Desk.
•The screen background lighting contains mercury. You must observe the applicable handling
and disposal safety regulations for fluorescent tubes.
•Only qualified technicians should repair the device. Unauthorised opening and incorrect repair
may greatly endanger the user (electric shock, fire risk).
•You may set only those resolutions and refresh rates specified in the "Technical data" chapter.
Otherwise you may damage your monitor. If you are in any doubt, contact your sales outlet or
our Help Desk.
•Keep this operating manual together with your device. If you pass on the device to third parties,
you should include this manual.
Cleaning notes
•Always pull out the power plug before you clean the monitor.
•Do not clean any interior parts yourself, leave this job to a service technician.
•Do not use any cleaning agents that contain abrasives or may corrode plastic.
•Ensure that no liquid will run into the system.
•Ensure that the ventilation areas of the monitor are free.
•The display surface of the LCD monitor is sensitive to pressure and scratches. Clean it only
using a soft, slightly moistened cloth.
Wipe the monitor casing with a dry cloth. If the monitor is particularly dirty, use a cloth which has
been moistened in mild domestic detergent and then carefully wrung out.
Transport notes
•Transport the monitor with care and only in its original packaging or another corresponding
packaging fit to protect it against knocks and jolts.
•Never drop the LCD monitor (danger of glass breakage).
Manufacturer’s notes
Energy Star The Fujitsu Siemens LCD colour monitor 383V FA is designed to conserve
electricity by dropping to less than 3 W when it goes into standby,
suspend and OFF mode. With this new power management the 383V FA
qualifies for the U.S. Environmental Protection Agency's (EPA) Energy
Star Computers award.
The EPA estimates that computer equipment uses 5% percent of all business electricity and that
this is growing rapidly. If all desktop computers and peripherals enter a low-power mode when not in
use, the overall savings in electricity could amount to $ 2 thousand million annually. These savings
could also prevent the emission of 20 million tons of carbon dioxide into the atmosphere - the
equivalent of 5 million automobiles.

Colour monitor 383V FA
4 - English A26361-K873-Z100-2-5E19
As an Energy Star Partner, Fujitsu Siemens Computers GmbH has determined that this product
meets the Energy Star guidelines for energy efficiency.
CE marking
The shipped version of this device complies with the requirements of the EEC
directives 89/336/EEC "Electromagnetic compatibility" and 73/23/EEC "Low voltage
directive".
FCC Class B Compliance Statement
The following statement applies to the products covered in this manual, unless otherwise specified
herein. The statement for other products will appear in the accompanying documentation.
NOTE:
This equipment has been tested and found to comply with the limits for a "Class B" digital device,
pursuant to Part 15 of the FCC rules and meets all requirements of the Canadian Interference-
Causing Equipment Regulations. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in strict accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between equipment and the receiver.
•Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
•Consult the dealer or an experienced radio/TV technician for help.
Fujitsu Siemens Computers GmbH is not responsible for any radio or television interference caused
by unauthorized modifications of this equipment or the substitution or attachment of connecting
cables and equipment other than those specified by Fujitsu Siemens Computers GmbH The
correction of interference caused by such unauthorized modification, substitution or attachment will
be the responsibility of the user.
The use of shielded I/O cables is required when connecting this equipment to any and all optional
peripheral or host devices. Failure to do so may violate FCC rules.
Important note on power cable
To guarantee safe operation, use the cable supplied. Use the following guidelines if it is necessary
to replace the original cable set.
•The female/male receptacles of the cord set must meet CEE-22 requirements.
•The cable has to be HAR-certified or VDE-certified. The mark HAR or VDE will appear on the
outer sheath or on the insulation of one of the inner conductors.
•For devices which are mounted on a desk or table, type SVT or SJT cable sets may be used.
For devices which sit on the floor, only SJT type cable sets may be used.
•The cable set must be selected according to the current rating for your device.

Colour monitor 383V FA
A26361-K873-Z100-2-5E19 English - 5
Disposal and recycling
This device has been manufactured to the highest possible degree from materials which can be
recycled or disposed of in a manner that is not environmentally damaging.
The device may be taken back after use to be recycled, provided that it is returned in a condition
that is the result of normal use. Any components not reclaimed will be disposed of in an
environmentally acceptable manner.
If you have any questions on disposal, please contact your local office, our Help Desk, or:
Fujitsu Siemens Computers GmbH
Recyclingcenter
D-33106 Paderborn
Tel.: ++ 49 5251 - 818 010/ Fax: ++ 49 5251 - 818 015
Checking the contents of the consignment
ÊUnpack all the individual parts.
ÊCheck the delivery for damage incurred during transportation.
ÊCheck whether the delivery agrees with the details in the delivery note.
The complete LCD monitor package includes:
−one monitor
−one data cable (D-SUB)
−one power cable
−a power adapter with power adapter cable
−one floppy disk
−one Warranty Booklet
−this Operating Manual
Should you discover that the delivery does not correspond to the delivery note, notify your local
sales outlet immediately.
i
It is recommended not to throw away the original packaging material. Keep it for future
transportation.

Colour monitor 383V FA
6 - English A26361-K873-Z100-2-5E19
Installing an ergonomic video workstation
Before you set up your equipment, you should select a suitable position for working at the monitor.
Please observe the following advice when installing a video workstation.
Window
permissible
reaching sector
600 mm
edge of desk
permissible
reaching sector
600 mm
Avoid direct and reflected glare. Avoid glare from electric
lighting. Position the keyboard where it is easiest to reach.
30°
30°
65°
65°
0°
60°
0°
permissible viewing sector
preferable viewing sector
permissible
viewing sector approx. 90°
and more
approx. 90°
Position the monitor for
optimum viewing. The viewing
distance to the monitor should
be approximately 50 cm.
Keep ventilated areas clear. Remember to maintain correct
posture.
The design of your LCD monitor allows you to attach the monitor to the wall without having to use a
swivel arm or wall bracket. Further information can be found in chapter "Wall mounting".
Setting up the monitor
Your monitor is folded in its packing carton in
order to save space.

Colour monitor 383V FA
A26361-K873-Z100-2-5E19 English - 7
ÊHold the monitor base firmly with one hand
and carefully tilt the display upwards with
the other hand.
Press the button on the side if you want to fold
the monitor down.
The typical monitor base allows you to adjust the
tilt of the display by 30° back.
Make sure that the display is not tilted by more
than 30° to the rear.

Colour monitor 383V FA
8 - English A26361-K873-Z100-2-5E19
Connecting the monitor
!Please note the information provided in the "Safety" section in the "Important notes"
chapter of this manual.
CE conformance and optimum picture quality are guaranteed only if you use the data
cable supplied.
Do not cover the ventilation openings of the monitor.
The computer power plug must be pulled out!
ÊBe sure that the monitor and the computer are switched off.
Connecting cables to the monitor
123
4
5
6
7
1 = Connector for the power supply
2 = D-SUB connector (ANALOG)
3 = DVI-D connector (DIGITAL)
The data cable supplied has two 15-pin D-SUB connectors for the D-SUB connector of the monitor
and of the computer.
ÊConnect one of the D-SUB connectors of the data cable to the D-SUB connector on the
monitor (2) and secure the plug-in connection by tightening the safety screws.
i
If instead of the data cable supplied you want to use a data cable with DVI-D connector o
r
if you want to connect the monitor to a second computer, proceed as follows:
ÊConnect the DVI-D connector of the data cable to the DVI-D connector on the
monitor (3) and secure the plug-in connection by tightening the safety screws.
Data cables with DVI-D connectors are available from specialised dealers.
After switching on the monitor you must select the desired input with the OSD menu (see
chapter "Monitor settings using the OSD menu").
ÊPlug the power adapter cable into the power connector (1) of the monitor.
ÊFirmly insert the socket with the power cable supplied into the power cable connection of the
power adapter (6) and check whether the socket is securely seated.

Colour monitor 383V FA
A26361-K873-Z100-2-5E19 English - 9
Connecting cables to the computer
Information on the computer connections and interfaces is contained in the operating manual for
your computer.
i
If your computer has two monitor ports ("onboard" screen controller and separate
graphics card), the monitor port for the separate graphics card is usually active.
ÊConnect the data cable (4 or 5) to the (active) monitor port on the computer and secure the
plug-in connection by tightening the safety screws.
ÊConnect the male receptacle of the power cable supplied (7) to the monitor socket of the
computer and ensure a secure connection.
ÊPlug the power connector of the computer into a properly grounded mains outlet.
i
When you start working with your monitor for the first time you should install the
appropriate graphics drivers for your application software. Details of how to do this are
provided in the documentation on your screen controller/the associated driver software.
Operation of the monitor
1
1 = ON/OFF switch with power indicator
Switching the monitor on/off
The ON/OFF switch (1) is used for switching the monitor on and off.
The power indicator glows green when the monitor and computer are switched on. The power
indicator glows amber when the monitor does not receive a video signal or is in the energy-saving
mode. The power indicator goes off when the monitor is switched off.
When you switch the computer system on, you must proceed in the following order:
ÊFirst switch the LCD monitor on with the ON/OFF switch (1).
ÊThen switch on the computer.

Colour monitor 383V FA
10 - English A26361-K873-Z100-2-5E19
i
If your computer has a power management function (energy-saving mode), you should
read the "Notes on power management" of the monitor in this chapter.
Notes on power management
If your computer is equipped with power management, the monitor can support this function fully.
Here the monitor does not distinguish between the individual energy-saving modes of the computer
(standby mode, suspend mode and OFF mode), as it is capable of immediately switching into the
mode with the highest energy-saving effect.
Stage ON Energy-saving mode
Power indicator lights green glows amber
Function Monitor operating
normally Monitor is dark
Power consumption normal
< 35 W reduced to < 3 W
If your computer detects inactivity (no input) it sends an appropriate signal to the monitor to reduce
the power consumption (energy-saving mode). The power indicator of the monitor changes colour to
indicate the status change.
Once an input is made at the computer the screen contents are redrawn and full power is restored.
For detailed information on how energy-saving mode operates refer to the Operating Manual or
Technical Manual of the computer.
i
When the monitor is switched to the energy-saving mode by the power management
system a power consumption of up to 3 W is maintained to feed the circuit for redrawing
the screen contents.
To completely switch off the power consumption, switch off the monitor or the computer.
Changing the monitor settings
When putting the monitor into operation for the first time, the screen display should be optimally
adapted to the screen controller used and adjusted in accordance with your needs.
Basic monitor settings with the floppy disk supplied
If one of the operating systems Windows for Workgroups, Windows 95/98, Windows NT,
Windows Me, Windows 2000 or OS/2 (with Windows emulation installed) is used, the basic monitor
settings can be set with the floppy disk supplied.
ÊInsert the supplied floppy disk into the floppy disk drive.
ÊOpen the Readme file on the floppy disk and follow the instructions in the file.
Your monitor should now already be properly adjusted. If none of the above operating systems is
used or minor corrections are to be made to the screen display, then change the monitor settings
with the OSD menu.

Colour monitor 383V FA
A26361-K873-Z100-2-5E19 English - 11
Monitor settings with the buttons of the control panel
2
1
AUTOMENU -+
3
1 = Buttons for the OSD menu
(On-Screen-Display) 2 = Power button 3 = Power indicator
Use the buttons of the control panel to make the following monitor settings directly while the OSD
menu is switched off.
Selecting input signal
The monitor can be operated with analogue or digital signals. You can switch between the analogue
and the digital mode (depending on the graphics card you use).
ÊPress the -button to change the mode of the input signal.
Setting the contrast automatically to an optimal value
ÊPress the +button to activate the AUTO-CONTRAST function.
Automatically adjusting image display
ÊPress the AUTO button to activate the AUTO-SYNC function.
Monitor settings using the OSD menu
You can use the buttons on the control panel to set the screen display via an integrated OSD menu
(On-Screen-Display).
i
The OSD menu is available in different languages. The English menu names are used in
the following description (default setting). You can select another language with the OSD
function LANGUAGE.

Colour monitor 383V FA
12 - English A26361-K873-Z100-2-5E19
To set the OSD menu, perform the following steps:
ÊPress the MENU button to activate the OSD menu.
The main menu appears on the screen with menu options for the setting functions.
The first option (CONTRAST)is highlighted.
ÊIf necessary, press the -or +button to mark
another option (e.g. LCD ADJUST).
ÊPress the MENU button to select the
highlighted option.
The corresponding submenu (here: LCD ADJUST) is displayed.
The first option (H-SIZE)is highlighted.
ÊIf necessary, press the -or + button to mark
another option.
ÊPress the MENU button briefly to select the
highlighted option.
All changes are stored automatically. The OSD menu disappears after 30 seconds if no button on
the control panel is pressed or if you press the MENU button for more than 2 seconds. You press
the MENU button only briefly to select a different function.
If you want to change other settings, select the corresponding function from the OSD main menu. All
possible adjustments of the main menu are described in the following.
i
The OSD menu for analogue monitor operation is described in the following. During digital
operation some functions are not available, as they are not required due to the digital
transmission technology used.
