DESIGN & TECHNICAL MANUAL

1.INDOOR UNIT
FLOOR TYPE :
AGG09LVCA
AGG12LVCA
AGG14LVCA
DTR_AG005E_02
2013.07.19

FLOOR TYPE AGG09-14LVCA FLOOR TYPE AGG09-14LVCA
CONTENTS
1. INDOOR UNIT
1. FEATURES.............................................................................................................. 01 - 01
2. WIRELESS REMOTE CONTROLLER............................................... 01 - 03
3. SPECIFICATIONS.............................................................................................. 01 - 05
4. DIMENSIONS ........................................................................................................ 01 - 07
5. WIRING DIAGRAMS........................................................................................ 01 - 08
6. CAPACITY TABLE ............................................................................................ 01 - 09
6-1. COOLING CAPACITY...................................................................................... 01 - 09
6-2. HEATING CAPACITY....................................................................................... 01 - 10
7. FAN PERFORMANCE AND CAPACITY ...........................................01 - 11
7-1. AIR VELOCITY DISTRIBUTION......................................................................01 - 11
7-2. AIRFLOW........................................................................................................... 01 - 12
8. OPERATION NOISE (SOUND PRESSURE)................................. 01 - 14
8-1. NOISE LEVEL CURVE .................................................................................... 01 - 14
8-2. SOUND LEVEL CHECK POINT..................................................................... 01 - 16
9. ELECTRIC CHARACTERISTICS........................................................... 01 - 17
10. SAFETY DEVICES ............................................................................................ 01 - 18
11. EXTERNAL INPUT & OUTPUT............................................................... 01 - 19
11-1. EXTERNAL INPUT ........................................................................................... 01 - 19
11-2. EXTERNAL OUTPUT....................................................................................... 01 - 21
12. FUNCTION SETTINGS .................................................................................. 01 - 22
12-1. INDOOR UNIT (Setting by remote controller)........................................... 01 - 22
13. OPTIONAL PARTS ........................................................................................... 01 - 27
13-1. CONTROLLERS ............................................................................................... 01 - 27
13-2. OTHERS............................................................................................................. 01 - 27

- (01 - 01) -
FLOOR TYPE AGG09-14LVCA FLOOR TYPE AGG09-14LVCA
FEATURES1.
MODEL

AGG09LVCA / AOG09LVCA
AGG12LVCA / AOG12LVCA
AGG14LVCA / AOG14LVLA
FEATURES

Energy efciency class
z
MODEL
AGG09LVCA AGG12LVCA AGG14LVCA
Cooling A++ A++ A++
Heating A+ A+ A+
All DC
z
Up and down twin fan operation
z
Up to every corner of the room especially around the feet is heated evenly
by two-direction up and down discharge.
Cooling Heating
DC Fan motor
a
DC compressor
b
aDC fan motor
DC compressor
b
DC fan motora
AOG09/12LVCA
AOG14LVL A

- (01 - 02) -
FLOOR TYPE AGG09-14LVCA FLOOR TYPE AGG09-14LVCA
Flexible & easy installation
z
Piping space is wide and connection work is easy.
Beneath standard window Standard concave portion Wall
Half concealed (Optional parts necessary)
(unit:mm)
600
740
200
700
(unit:mm)
Min.
700
Min.
590
Min.940
)mm:tinu()mm:tinu(
Max. 150
Min. 730 Max.
80
Space is wide and
piping work is easy
Fan motor
Front view
Large piping
bend R
Choice of 6-direction drain &
piping connection
Back view
Drain hose
Piping
16
52 34
Super quiet operation
z
Airow mode can be set in 4 steps and more detailed airow setting is possible.
10 °C heating operation
z
Operates in the 10 °C heating mode so that the room does not become too cold even
when you are absent during the winter, etc.
Economy operation
z
Example : Cooling operation
Temp.
Economy operation
Shift
setting
temp
Control maximum current
Normal operation Time
Set temperature
Air conditioner lter feature
z
Apple-catechin lter Ion deodorization lter
Economy operation is energy saving, as the set•
temperature of indoor unit is shifted by 1 °C and
the maximum electric value of the outdoor unit is
suppressed.

- (01 - 03) -
FLOOR TYPE AGG09-14LVCA FLOOR TYPE AGG09-14LVCA
WIRELESS REMOTE CONTROLLER2.
FEATURES

4 mode timer setup available (ON / OFF / PROGRAM / SLEEP).

Easy operation.

Easy to change signal code (max. 4 units) by button operation.

Simple function setting
z
Setting of the air conditioner selection function is performed by remote controller.
Built-in timers
z
Select from four different timer programs (ON / OFF / PROGRAM / SLEEP).
Program timer
z
The program timer operates the on and off timer once within a 24 hour period.
Sleep timer
z
The sleep timer function automatically corrects the temperature thermostat setting according to
the timer setting to prevent excessive cooling and heating while sleeping.
60min.
1 °C 2 °C
Timer setting
Set
temp.
1 °C
30min.
60min.
90min.
2 °C 3 °C 4 °C
Set
temp.
Timer setting
Cooling operation/dry operation
When the sleep timer is set, the set temperature
automatically rises 1 °C every hour. The set
temperature can rise up to a maximum of 2 °C.
Heating operation
When the sleep timer is set, the set temperature
automatically drops 1 °C every 30 minutes. The set
temperature can drop to a maximum of 4 °C.
Switching remote controller signal code
z
A B C D
A B CD
Mixed-up
I.U. I.U. I.U. I.U. I.U. I.U. I.U. I.U.
After code change
Code selector switch eliminates unit

•
being wrongly switched.
(Up to 4 codes can be set.)
*I.U.=Indoor unit

- (01 - 04) -
FLOOR TYPE AGG09-14LVCA FLOOR TYPE AGG09-14LVCA
FUNCTIONS

Display panel
16
23
24
19
17
22
18
20
21
To facilitate explanation, the accompanying
illustration has been drawn to show all possible
indicators; in actual operation, however,
the display will only show those indicators
appropriate to the current operation.
SPECIFICATION

2
7
13
5
6
4
10
11
15
12
14
1
8
9
3
SIZE (H × W × D mm) 170 × 56 × 19
WEIGHT ( g ) 85 (w/o batteries)
ACCESSORY Holder
1 Signal transmitter
2MODE button
310°C HEAT button
4SET TEMP. button ( / )
5ECONOMY button
6SLEEP button
7TIMER MODE button
8FAN button
9START/STOP button
10 SET button
11 SWING button
12 TIMER set (
+
/
-
) button
13 CLOCK ADJUST button
14 TEST RUN button
•This button is used when installing the air conditioner, and should
not be used under normal conditions, as it will cause the indoor
unit’s thermostat function to operate incorrectly.
•If this button is pressed during normal operation, the indoor
unit will switch to test operation mode, and the Indoor Unit’s
OPERATION Indicator Lamp and TIMER Indicator Lamp will
begin to ash simultaneously.
•To stop the test operation mode, press the SRART/STOP button
to stop the air conditioner.
15 RESET button
16 Remote controller display
17 Transmit indicator
18 Fan speed indicator
19 Swing indicator
20 Timer mode indicator
21 Clock indicator
22 Temperature set indicator
23 Operation mode indicator
24 Sleep indicator
Functions will be different due to type of indoor unit.
For details, refer to the operation manual.

- (01 - 05) -
FLOOR TYPE AGG09-14LVCA FLOOR TYPE AGG09-14LVCA
SPECIFICATIONS3.
NOTES:
l Specications are based on the following conditions:
Cooling : Indoor temperature of 27 °CDB/19 °CWB and outdoor temperature of 35 °CDB/24 °CWB
Heating : Indoor temperature of 20 °CDB/15° CWB and outdoor temperature of 7 °CDB/6 °CWB
Pipe length : 5 m, Height difference : 0 m (Outdoor unit–Indoor unit)
lThe protective function might work when using it in environment out of the temperature range mentioned above.
* : The maximum current is the maximum value when operated within the operation range.
Type FLOOR TYPE
INVERTER HEAT PUMP
Model name AGG09LVCA AGG12LVCA AGG14LVCA
Power source 230 V~ 50 Hz
Available voltage range 198–264V
Capacity
Cooling
Rated kW 2.60 3.50 4.20
Btu/h 8,900 11,900 14,300
Min.–Max. kW 0.9–3.5 0.9–4.0 0.9–5.0
Btu/h 3,100–11,900 3,100–13,600 3 ,10 0 –17,10 0
Heating
Rated kW 3.50 4.50 5.20
Btu/h 11,9 0 0 15,400 17,70 0
Min.–Max. kW 0.9–5.5 0.9–6.6 0.9–8.0
Btu/h 3,100–18,800 3,100–22,500 3,100–27,300
Input power
Cooling Rated
kW
0.53 0.94 1.14
Min.–Max. 0.25–1.35 0.25–1.40 0.25–1.90
Heating Rated 0.79 1.19 1.44
Min.–Max. 0. 25 –2 .10 0. 25 –2 .15 0.25–2.95
Current Cooling Rated A2.6 4.4 5.2
Heating Rated 3.8 5.5 6.4
EER Cooling kW/kW 4.91 3.72 3.68
COP Heating 4.43 3.78 3.61
Sensible capacity Cooling kW 2.33 2.66 3.15
Power factor Cooling %90 93 96
Heating 90 94 98
Moisture removal l/h (pints/h) 1.3 (2.3) 1.8 (3.2) 2.1 (3.7)
Maximum operating
current *
Cooling Max. A7.0 7.0 9.0
Heating 10.0 10.0 13.5
Fan
Airow
rate
Cooling
(UPPER :
LOWER)
High
m3/h
570 570 650
Med 460 460 520
Low 360 360 400
Quiet 270 270 270
Heating
(UPPER :
LOWER)
High 600 600 650
Med 480 480 520
Low 370 370 390
Quiet 270 270 270
Type × Q'ty Cross ow fan × 2
Motor output W 16 × 2 16 × 2 16 × 2
Sound pressure level
Cooling
High
dB (A)
40 40 44
Med 35 35 38
Low 29 29 31
Quiet 22 22 22
Heating
High 40 40 43
Med 35 35 37
Low 29 29 29
Quiet 22 22 22
Heat exchanger type
Dimensions
(H × W × D) mm 378 × 550 × 26.6
Fin pitch 1.2
Rows × stages 2 × 18
Pipe type Copper
Fin type Aluminium
Enclosure Material Polystyrene
Colour White
Dimensions
(H × W × D)
Net mm 600 × 740 × 200
Gross 700 × 820 × 310
Weight Net kg 14
Gross 17
Connection pipe Size Liquid mm Ø 6.35 (Ø 1/4 in.) Gas Ø 9.52 (Ø 3/8 in.) Ø 12.70 (Ø 1/2 in.)
Method Flare
Operation range Cooling °C 18 to 32 %RH 80 or less
Heating °C 30 or less
Remote controller type Wireless
Drain hose Material PP + LLDPE
Size mm Ø 13.8 (I.D.), Ø 15.8 to Ø 16.7 (O.D.)

- (01 - 06) -
FLOOR TYPE AGG09-14LVCA FLOOR TYPE AGG09-14LVCA
Model name AGG09LVCA AGG12LVCA AGG14LVCA
Energy efciency class Cooling A++ A++ A++
Heating (Average) A+ A+ A+
Pdesign Cooling kW 2.6 (35 °C)3.5 (35 °C)4.2 (35 °C)
Heating (Average) 2.9 (-10 °C)3.8 (-10 °C)4.7 (-10 °C)
SEER Cooling kWh/kWh 7.00 6.50 6.40
SCOP Heating (Average) 4.20 4.00 4.00
Annual energy consumption QCE kWh/a 130 188 230
QHE (Average) 967 1330 1645
Sound power level Cooling High dB (A) 55 55 58
Heating 56 56 58

- (01 - 07) -
FLOOR TYPE AGG09-14LVCA FLOOR TYPE AGG09-14LVCA
DIMENSIONS4.
MODEL
 : AGG09LVCA, AGG12LVCA, AGG14LVCA
(Unit : mm)
200
600
740
Front view
Side view
INSTALLATION PLACE

10 cm or more
8 cm or more
8 cm or more
5 cm or
more
15 cm or below
from the floor
AGG09LVCA AGG12LVCA AGG14LVCA
Refrigerant pipe are
connection
Liquid Ø 6.35 mm (Ø 1/4 in.)
Gas Ø 9.52 mm (Ø 3/8 in.) Ø 12.7 mm (Ø 1/2 in.)
Drain hose connection Drain hose Ø 13.8 (I.D.), Ø 15.8 to Ø 16.7 (O.D.)
Drain hose : L=600 mm

- (01 - 08) -
FLOOR TYPE AGG09-14LVCA FLOOR TYPE AGG09-14LVCA

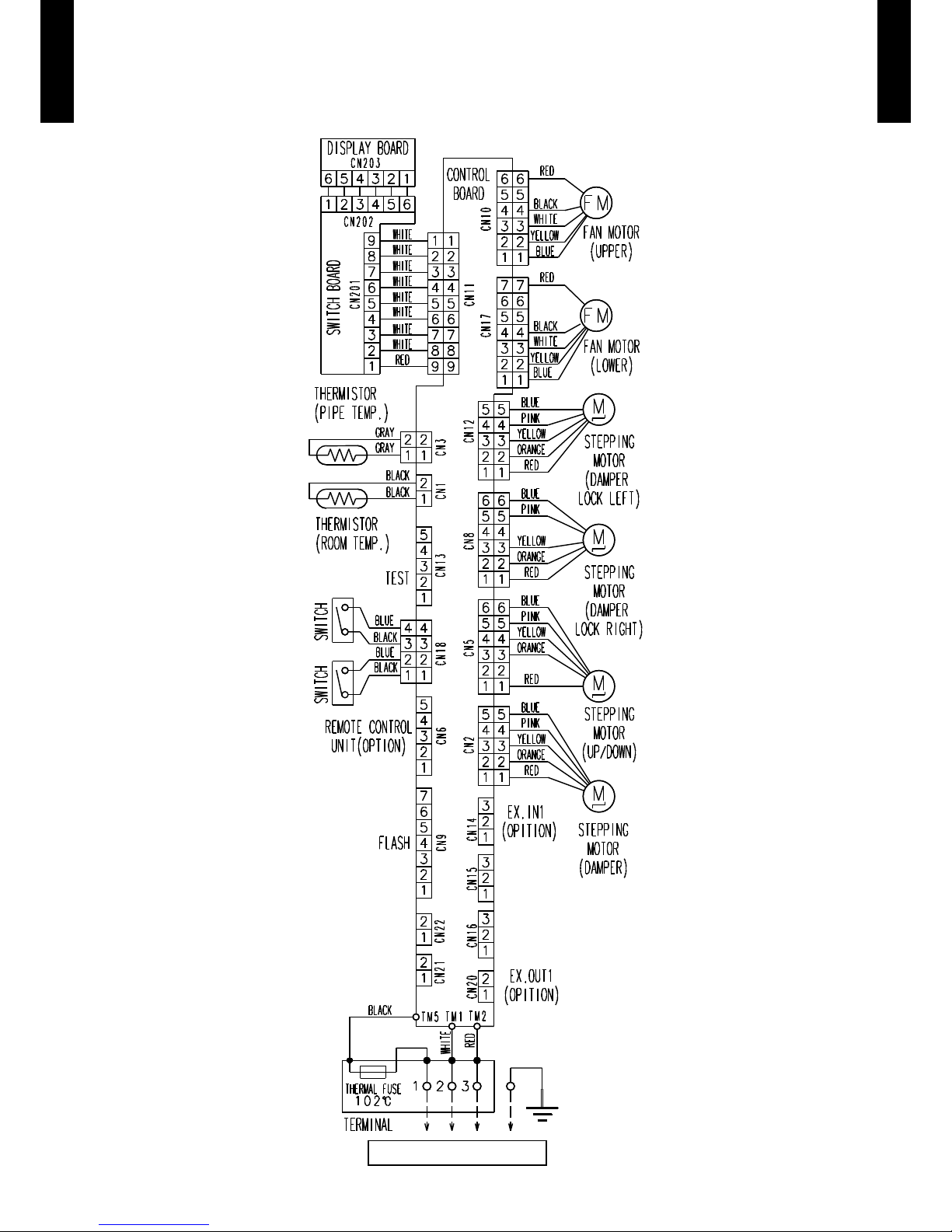

WIRING DIAGRAMS5.
MODEL
 : AGG09LVCA, AGG12LVCA, AGG14LVCA
TO OUTDOOR UNIT

- (01 - 09) -
FLOOR TYPE AGG09-14LVCA FLOOR TYPE AGG09-14LVCA
CAPACITY TABLE6.

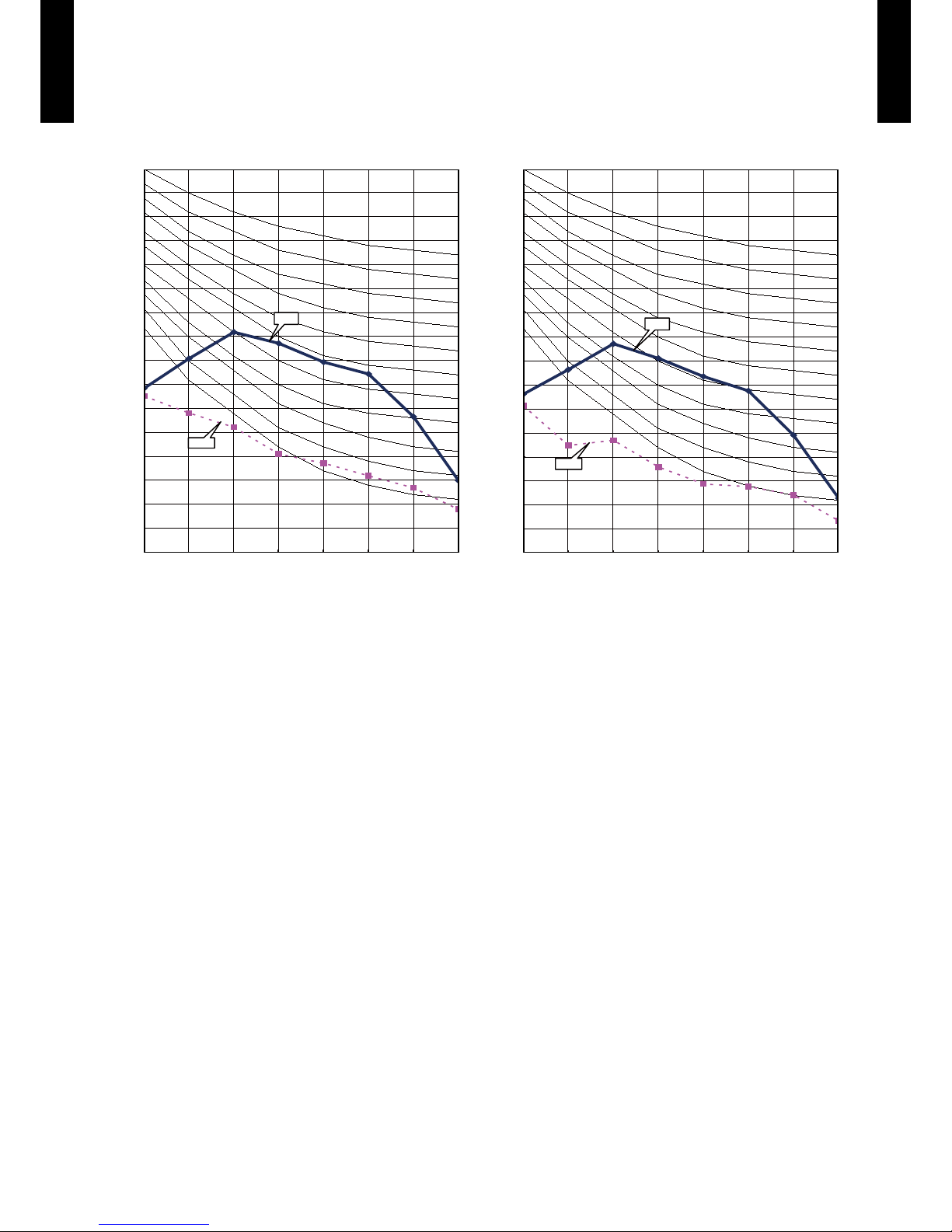

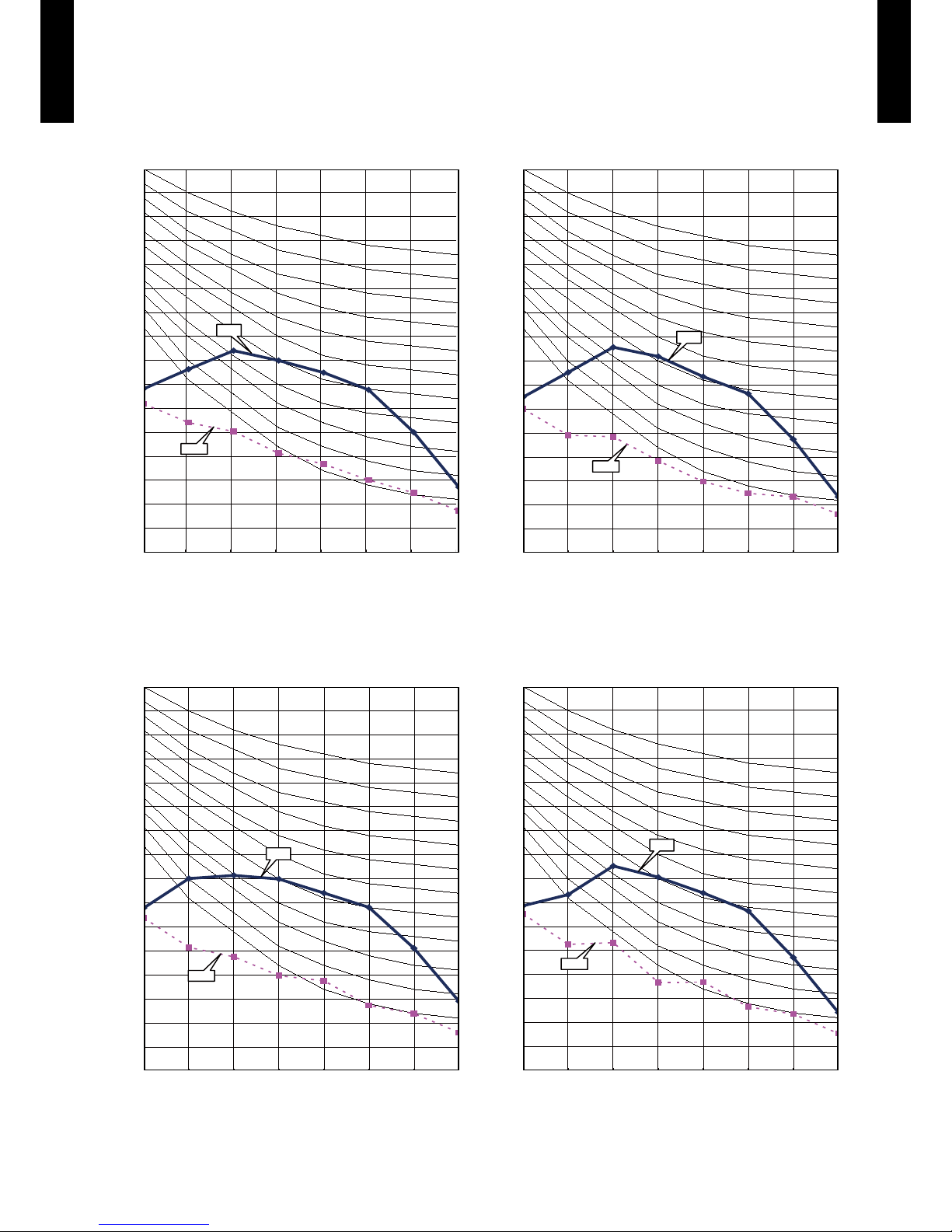

COOLING CAPACITY6-1.
MODEL
 : AGG09LVCA
MODEL
 : AGG12LVCA
MODEL
 : AGG14LVCA
AFR: Airow Rate (m³/min.)
TC: Total Capacity (kW)
SHC: Sensible Heat Capacity (kW)
IP: Input Power (kW)
AFR 9.5
Indoor temperature
°CDB 18 21 23 25 27 29 32
°CWB 12 15 16 18 19 21 23
Outdoor temperature
°CDB TC SHC IP TC SHC IP TC SHC IP TC SHC IP TC SHC IP TC SHC IP TC SHC IP
20 1.99 1.88 0.25 2.21 1.89 0.25 2.29 2.05 0.26 2.44 2.06 0.26 2.51 2.23 0.26 2.67 2.22 0.26 2.82 2.36 0.27
25 2.27 2.15 0.41 2.53 2.16 0.42 2.61 2.35 0.42 2.79 2.35 0.43 2.87 2.54 0.43 3.04 2.53 0.43 3.22 2.70 0.44
30 2.16 2.05 0.46 2.41 2.06 0.47 2.49 2.24 0.47 2.66 2.24 0.48 2.74 2.42 0.48 2.90 2.41 0.48 3.07 2.57 0.49
35 2.05 1.94 0.51 2.29 1.95 0.52 2.37 2.12 0.52 2.52 2.13 0.53 2.60 2.30 0.53 2.76 2.29 0.54 2.91 2.44 0.54
40 1.90 1.80 0.53 2.12 1.81 0.54 2.19 1.97 0.55 2.34 1.98 0.55 2.41 2.13 0.55 2.56 2.13 0.56 2.70 2.26 0.57
43 1.87 1.77 0.54 2.08 1.78 0.55 2.15 1.93 0.55 2.30 1.94 0.56 2.37 2.10 0.56 2.51 2.09 0.57 2.65 2.22 0.57
AFR 9.5
Indoor temperature
°CDB 18 21 23 25 27 29 32
°CWB 12 15 16 18 19 21 23
Outdoor temperature
°CDB TC SHC IP TC SHC IP TC SHC IP TC SHC IP TC SHC IP TC SHC IP TC SHC IP
20 2.67 2.17 0.45 2.98 2.19 0.45 3.08 2.38 0.45 3.28 2.39 0.46 3.38 2.58 0.46 3.59 2.57 0.47 3.79 2.73 0.47
25 3.05 2.48 0.74 3.40 2.50 0.75 3.52 2.72 0.75 3.75 2.73 0.76 3.87 2.94 0.76 4.10 2.93 0.77 4.33 3.12 0.78
30 2.91 2.37 0.82 3.24 2.38 0.83 3.36 2.59 0.84 3.58 2.60 0.85 3.69 2.81 0.85 3.91 2.79 0.86 4.13 2.98 0.87
35 2.76 2.25 0.91 3.08 2.26 0.92 3.18 2.46 0.93 3.39 2.47 0.94 3.50 2.66 0.94 3.71 2.65 0.95 3.92 2.83 0.96
40 2.56 2.08 0.95 2.86 2.10 0.96 2.95 2.28 0.97 3.15 2.29 0.98 3.25 2.47 0.98 3.44 2.46 0.99 3.63 2.62 1.00
43 2.52 2.05 0.96 2.80 2.06 0.97 2.90 2.24 0.98 3.09 2.25 0.99 3.19 2.43 0.99 3.38 2.42 1.00 3.57 2.57 1.01
AFR 10.8
Indoor temperature
°CDB 18 21 23 25 27 29 32
°CWB 12 15 16 18 19 21 23
Outdoor temperature
°CDB TC SHC IP TC SHC IP TC SHC IP TC SHC IP TC SHC IP TC SHC IP TC SHC IP
20 3.42 2.61 0.62 3.81 2.63 0.63 3.94 2.86 0.63 4.20 2.87 0.64 4.33 3.10 0.64 4.59 3.08 0.65 4.85 3.28 0.66
25 3.66 2.80 0.91 4.08 2.81 0.92 4.22 3.06 0.93 4.50 3.07 0.93 4.64 3.31 0.94 4.91 3.30 0.95 5.19 3.51 0.96
30 3.50 2.67 1.00 3.90 2.69 1.02 4.03 2.92 1.02 4.30 2.93 1.03 4.43 3.16 1.04 4.69 3.15 1.05 4.96 3.36 1.06
35 3.32 2.53 1.10 3.70 2.55 1.12 3.82 2.77 1.12 4.07 2.78 1.13 4.20 3.00 1.14 4.45 2.99 1.15 4.70 3.18 1.16
40 2.94 2.25 1.14 3.28 2.26 1.16 3.39 2.46 1.17 3.61 2.47 1.18 3.73 2.66 1.19 3.95 2.65 1.20 4.17 2.82 1.21
43 2.78 2.12 1.16 3.10 2.13 1.17 3.20 2.32 1.18 3.41 2.33 1.19 3.52 2.51 1.20 3.73 2.50 1.21 3.94 2.67 1.22

- (01 - 10) -
FLOOR TYPE AGG09-14LVCA FLOOR TYPE AGG09-14LVCA
HEATING CAPACITY6-2.
This table is created using the maximum capacity.
MODEL
 :
AGG09LVCA
MODEL
 :
AGG12LVCA
MODEL
 :
AGG14LVCA
AFR: Airow Rate (m³/min.)
TC: Total Capacity (kW)
IP: Input Power (kW)
AFR 10.0
Indoor temperature
°CDB 16 18 20 22 24
Outdoor temperature
°CDB °CWB TC IP TC IP TC IP TC IP TC IP
-15 -16 2.61 0.99 2.54 1.01 2.48 1.03 2.42 1.05 2.36 1.07
-10 -11 3.27 1.13 3.19 1.16 3.11 1.18 3.04 1.20 2.96 1.23
-5 -7 3.91 1.29 3.82 1.32 3.72 1.34 3.63 1.37 3.54 1.40
0-2 4.51 1.47 4.41 1.50 4.30 1.53 4.19 1.56 4.08 1.59
5 3 5.38 1.85 5.25 1.88 5.13 1.92 5.00 1.96 4.87 2.00
7 6 5.20 1.74 5.08 1.78 4.95 1.81 4.83 1.85 4.71 1.89
10 8 5.97 1.76 5.83 1.80 5.69 1.83 5.55 1.87 5.41 1.91
15 10 5.98 1.66 5.83 1.70 5.69 1.73 5.55 1.77 5.41 1.80
AFR 10.0
Indoor temperature
°CDB 16 18 20 22 24
Outdoor temperature
°CDB °CWB TC IP TC IP TC IP TC IP TC IP
-15 -16 3.34 1.40 3.26 1.43 3.18 1.46 3.10 1.49 3.02 1.52
-10 -11 3.91 1.52 3.82 1.55 3.73 1.58 3.63 1.62 3.54 1.65
-5 -7 4.47 1.65 4.36 1.69 4.26 1.72 4.15 1.75 4.04 1.79
0-2 4.99 1.80 4.87 1.84 4.76 1.87 4.64 1.91 4.52 1.95
5 3 5.76 2.01 5.62 2.05 5.48 2.10 5.35 2.14 5.21 2.18
7 6 5.57 1.90 5.43 1.94 5.30 1.98 5.17 2.02 5.04 2.06
10 8 6.39 1.92 6.24 1.96 6.09 2.00 5.94 2.04 5.78 2.08
15 10 6.39 1.81 6.24 1.85 6.09 1.89 5.94 1.93 5.79 1.96
AFR 10.8
Indoor temperature
°CDB 16 18 20 22 24
Outdoor temperature
°CDB °CWB TC IP TC IP TC IP TC IP TC IP
-15 -16 4.21 1.98 4.11 2.02 4.01 2.06 3.91 2.10 3.81 2.14
-10 -11 5.01 2.20 4.89 2.25 4.77 2.30 4.65 2.34 4.53 2.39
-5 -7 5.72 2.46 5.59 2.51 5.45 2.56 5.31 2.61 5.18 2.67
0-2 6.44 2.72 6.28 2.78 6.13 2.83 5.98 2.89 5.82 2.95
5 3 6.59 2.44 6.43 2.49 6.27 2.54 6.12 2.59 5.96 2.64
7 6 6.62 2.20 6.46 2.25 6.30 2.29 6.14 2.34 5.99 2.39
10 8 6.23 2.22 6.08 2.27 5.93 2.31 5.78 2.36 5.63 2.40
15 10 6.57 1.85 6.41 1.89 6.25 1.93 6.10 1.97 5.94 2.01

- (01 - 11) -
FLOOR TYPE AGG09-14LVCA FLOOR TYPE AGG09-14LVCA
FAN PERFORMANCE AND CAPACITY7.

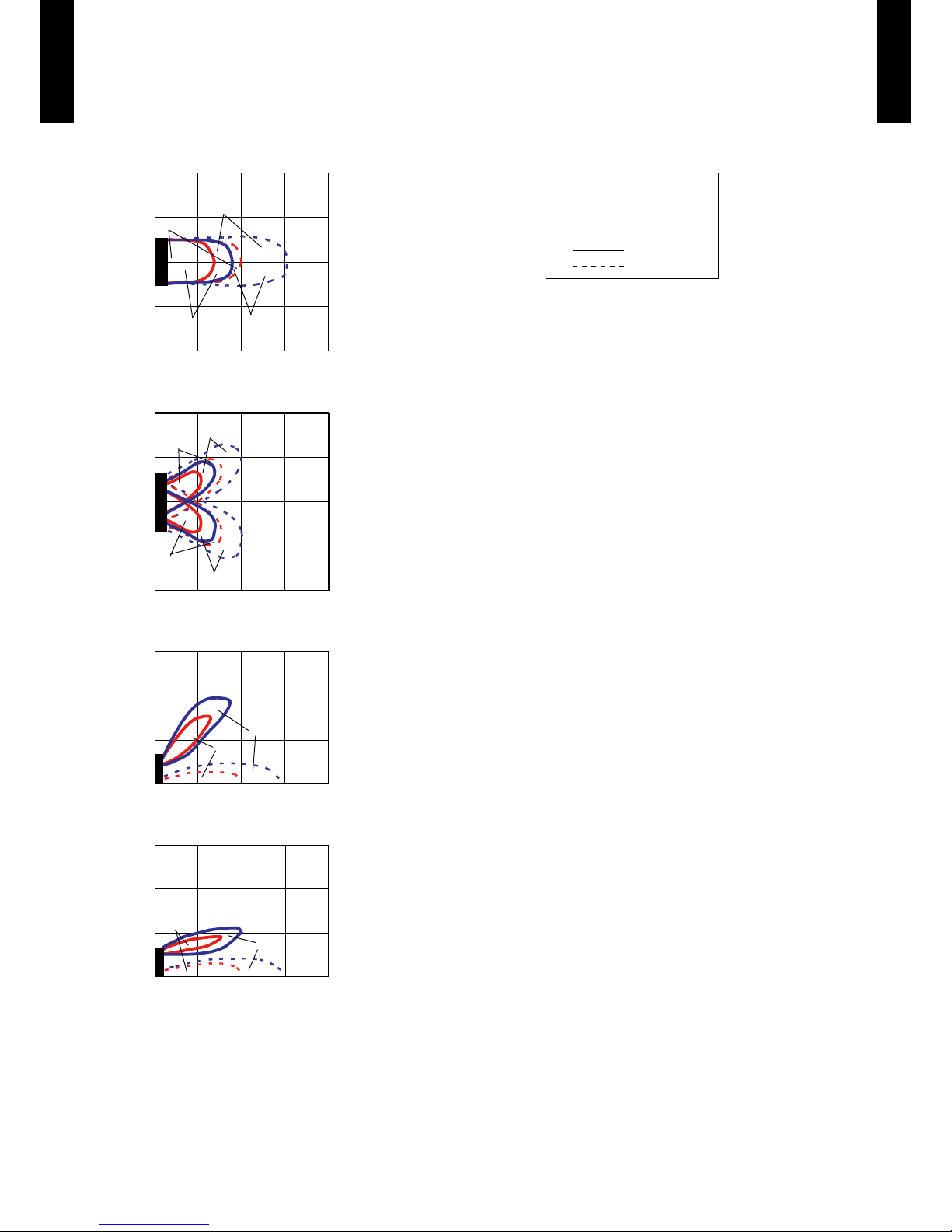

AIR VELOCITY DISTRIBUTION7-1.
MODEL
 : AGG09LVCA, AGG12LVCA, AGG14LVCA
Conditions:
Fan speed : HI
Operation mode : FAN
Fan select : UPPER&LOWER
: UPPER FAN
: LOWER FAN
0.5
UPPER LOWER
1.0
2
1
0
1
2
Unit : m/s(m)
(m)
TOP VIEW
FLOW CONTROL PANEL : Horiz.
LOUVER : Center
01234
0.5
1.0
0.5
1.0
2
1
0
1
2
Unit : m/s(m)
(m)
TOP VIEW
FLOW CONTROL PANEL : Horiz.
LOUVER : Right & Left
01234
1.0
0.5
3
2
1
0
Unit : m/s(m)
SIDE VIEW
FLOW CONTROL PANEL : Vert
LOUVER : Center
(m)
01234
1.0
0.5
3
2
1
0
Unit : m/s(m)
SIDE VIEW
FLOW CONTROL PANEL : Horiz.
LOUVER :Center
(m)
01234

- (01 - 12) -
FLOOR TYPE AGG09-14LVCA FLOOR TYPE AGG09-14LVCA
AIRFLOW7-2.
MODEL
 : AGG09LVCA, AGG12LVCA
Cooling
z
zHeating
Fan speed
Number of rotations
[r.p.m]
(UPPER/LOWER)
Airow
HIGH 1190/1000
m³/h 570
l/s 158
CFM 335
MED 1000/850
m³/h 460
l/s 128
CFM 271
LOW 820/690
m³/h 360
l/s 100
CFM 212
QUIET 660/560
m³/h 270
l/s 75
CFM 159
Fan speed
Number of rotations
[r.p.m]
(UPPER/LOWER)
Airow
HIGH 1240/1040
m³/h 600
l/s 167
CFM 353
MED 1040/880
m³/h 480
l/s 133
CFM 282
LOW 840/700
m³/h 370
l/s 103
CFM 218
QUIET 660/560
m³/h 270
l/s 75
CFM 159

- (01 - 13) -
FLOOR TYPE AGG09-14LVCA FLOOR TYPE AGG09-14LVCA
MODEL
 : AGG14LVCA
Cooling
z
zHeating
Fan speed
Number of rotations
[r.p.m]
(UPPER/LOWER)
Airow
HIGH 133 0/1120
m³/h 650
l/s 181
CFM 383
MED 110 0/93 0
m³/h 520
l/s 144
CFM 306
LOW 890/750
m³/h 400
l/s 111
CFM 235
QUIET 660/560
m³/h 270
l/s 75
CFM 159
Fan speed
Number of rotations
[r.p.m]
(UPPER/LOWER)
Airow
HIGH 133 0/1120
m³/h 650
l/s 181
CFM 383
MED 110 0/93 0
m³/h 520
l/s 144
CFM 306
LOW 860/730
m³/h 390
l/s 108
CFM 230
QUIET 660/560
m³/h 270
l/s 75
CFM 159

- (01 - 14) -
FLOOR TYPE AGG09-14LVCA FLOOR TYPE AGG09-14LVCA
OPERATION NOISE (SOUND PRESSURE)8.
NOISE LEVEL CURVE8-1.
MODEL
 : AGG09LVCA
Cooling
z
Octave band sound pressure level, dB : (0 dB=0.0002 µbar)
Octave band center frequency, Hz
80
70
60
50
40
30
20
10
0
63 125 250 500 1,000 2,000 4,000 8,000
NC-65
NC-60
NC-55
NC-50
NC-45
NC-40
NC-35
NC-30
NC-25
NC-20
NC-15
High
Quiet
Heating
z
Octave band sound pressure level, dB : (0 dB=0.0002 µbar)
Octave band center frequency, Hz
80
70
60
50
40
30
20
10
0
63 125 250 500 1,000 2,000 4,000 8,000
NC-65
NC-60
NC-55
NC-50
NC-45
NC-40
NC-35
NC-30
NC-25
NC-20
NC-15
High
Quiet
NC-65
NC-60
NC-55
NC-50
NC-45
NC-40
NC-35
NC-30
NC-25
NC-20
NC-15
Octave band sound pressure level, dB : (0 dB=0.0002 µbar)
Octave band center frequency, Hz
80
70
60
50
40
30
20
10
0
63 125 250 500 1,000 2,000 4,000 8,000
MODEL
 : AGG12LVCA
Cooling
z
High
Quiet
Heating
z
Octave band sound pressure level, dB : (0 dB=0.0002 µbar)
Octave band center frequency, Hz
80
70
60
50
40
30
20
10
0
63 125 250 500 1,000 2,000 4,000 8,000
NC-65
NC-60
NC-55
NC-50
NC-45
NC-40
NC-35
NC-30
NC-25
NC-20
NC-15
High
Quiet

- (01 - 15) -
FLOOR TYPE AGG09-14LVCA FLOOR TYPE AGG09-14LVCA
MODEL
 : AGG14LVCA
Cooling
z
Octave band sound pressure level, dB : (0 dB=0.0002 µbar)
Octave band center frequency, Hz
80
70
60
50
40
30
20
10
0
63 125 250 500 1,000 2,000 4,000 8,000
NC-65
NC-60
NC-55
NC-50
NC-45
NC-40
NC-35
NC-30
NC-25
NC-20
NC-15
High
Quiet
Heating
z
Octave band sound pressure level, dB : (0 dB=0.0002 µbar)
Octave band center frequency, Hz
80
70
60
50
40
30
20
10
0
63 125 250 500 1,000 2,000 4,000 8,000
NC-65
NC-60
NC-55
NC-50
NC-45
NC-40
NC-35
NC-30
NC-25
NC-20
NC-15
High
Quiet

- (01 - 16) -
FLOOR TYPE AGG09-14LVCA FLOOR TYPE AGG09-14LVCA
SOUND LEVEL CHECK POINT8-2.
Microphone Microphone
●●Airflow
1 m
Airflow
1 m

- (01 - 17) -
FLOOR TYPE AGG09-14LVCA FLOOR TYPE AGG09-14LVCA
ELECTRIC CHARACTERISTICS9.
Model Name AGG09 LVCA AGG12LVCA AGG14LVCA
Power Supply Voltage V 230 ~
Frequency Hz 50
Max Operating Current A 0.7
Wiring Spec. * Connection Cable mm21.5
Limited wiring length m 21
*: Selected sample based on Japan Electrotechnical Standards and Codes Committee E0005.
