Fujitsu ASUH09LMAS User manual

AIR CONDITIONER
Wall mounted type
SERVICE MANUAL
For Extra Cold Climate Area
INDOOR
ASUH09LMAS
ASUH12LMAS
OUTDOOR
AOUH09LMAH1
AOUH12LMAH1
SR_AS039EF_01
2020.12.17

Notices:
• Product specifications and design are subject to change without notice for future improvement.
• For further details, please check with our authorized dealer.
Copyright © 2020 Fujitsu General Limited. All rights reserved.

CONTENTS
1. GENERAL INFORMATION
2. TECHNICAL DATA AND PARTS LIST

1. GENERAL INFORMATION
2020.12.17
SR_CH01_AS039EF_01

CONTENTS
1. GENERAL INFORMATION
1. Specifications..............................................................................................01-1
1-1. Indoor unit ......................................................................................................................01-1
1-2. Outdoor unit....................................................................................................................01-3
2. Dimensions..................................................................................................01-4
2-1. Indoor unit ......................................................................................................................01-4
2-2. Outdoor unit....................................................................................................................01-6

1. Specifications
1-1. Indoor unit
Type
Wall mounted
Inverter heat pump
Model name ASUH09LMAS ASUH12LMAS
Power supply 208/230 V ~ 60 Hz
Power supply intake Outdoor unit
Available voltage range 187—253 V
Capacity
Cooling
Rated kW 2.64 3.52
Btu/h 9,000 12,000
Min.—Max. kW 1.0—3.37 1.0—3.90
Btu/h 3,400—11,500 3,400—13,300
Heating
Rated kW 3.52 4.69
Btu/h 12,000 16,000
Min.—Max. kW 0.82—4.69 0.82—5.60
Btu/h 2,800—16,000 2,800—19,100
Heating
(17 °F)*1
Rated kW 2.17 3.02
Btu/h 7,400 10,300
Max. kW 3.09 3.72
Btu/h 10,550 12,700
Input power
Cooling Rated
kW
0.585 0.960
Min.—Max. 0.14—1.27 0.14—1.27
Heating Rated 0.79 1.28
Min.—Max. 0.14—1.67 0.14—1.67
Heating
(17 °F)*1
Rated 0.68 1.04
Max. 1.39 1.39
Current Cooling Rated A 3.0 4.7
Heating 3.9 6.0
EER Cooling kW/kW 4.51 3.66
Btu/hW 15.4 12.5
COP Heating kW/kW 4.45 3.66
Btu/hW 15.2 12.5
SEER Cooling Btu/hW 26.5 23.0
HSPF Heating Btu/hW 13.0 12.5
Power factor Cooling %84.8 88.8
Heating 88.1 92.8
Moisture removal pints/h (L/h) 2.7 (1.3) 3.8 (1.8)
Maximum operating current*2Cooling A6.9 6.9
Heating 9.4 9.4
Fan
Airflow rate
Cooling
HIGH
CFM (m3/h)
453 (770) 453 (770)
MED 353 (600) 353 (600)
LOW 265 (450) 265 (450)
QUIET 147 (250) 147 (250)
Heating
HIGH 453 (770) 453 (770)
MED 377 (640) 377 (640)
LOW 306 (520) 306 (520)
QUIET 182 (310) 182 (310)
Type × Q'ty Crossflow fan × 1
Motor output W 49
Sound pressure level*3
Cooling
HIGH
dB (A)
43 43
MED 36 36
LOW 30 30
QUIET 19 19
Heating
HIGH 43 43
MED 38 38
LOW 33 33
QUIET 21 21
Heat exchanger type
Dimensions (H × W × D) in (mm)
Main1: 8-1/4 × 26-3/8 × 1-1/16 (210 × 670 × 26.6)
Main2: 4-7/16 × 26-3/8 × 13/16 (112 × 670 × 20)
Sub: 3-5/16 × 26-3/8 × 1/2 (84 × 670 × 13.3)
Fin pitch FPI
Man1: 21
Main2: 23
Sub: 18
Rows × Stages
Main1: 2 × 10
Main2: 2 × 7
Sub: 1 × 4
Pipe type Copper
Fin type Aluminum
Enclosure
Material Polystyrene
Color White
Approximate color of Munsell N 9.25/
Dimensions
(H × W × D)
Net in (mm) 10-5/8 × 32-13/16 × 8-3/4 (270 × 834 × 222)
Gross 10-7/8 × 36 × 13-1/16 (277 × 914 × 332)
Weight Net lb (kg) 22 (10)
Gross 29 (13)
Connection pipe Size Liquid in (mm) Ø 1/4 (6.35) Gas Ø 3/8 (Ø 9.52)
Method Flare
Drain hose Material PP+HDPE
Tip diameter in (mm) Ø17/32 (Ø 13.8) (I.D.), Ø19/32 to 21/32 (Ø 15.0 to 16.8) (O.D.)
Operation range Cooling °F (°C) 64 to 90 (18 to 32) %RH 80 or less
Heating °F (°C) 60 to 86 (16 to 30)
Remote controller type Wireless (Wired, Mobile app*4 [FGLair™] [option])
1-1. Indoor unit - (01-1) - 1. Specifications
GENERAL INFORMATION GENERAL INFORMATION

Type
Wall mounted
Inverter heat pump
Model name ASUH09LMAS ASUH12LMAS
NOTES:
• Specifications are based on the following conditions:
– Cooling: Indoor temperature of 80 °F (26.67 °CDB) /67 °FWB (19.44 °CWB), and outdoor temperature of 95 °FDB (35 °CDB) / 75 °FWB (23.9 °CWB).
– Heating: Indoor temperature of 70 °FDB (21.11 °CDB) /60 °FWB (15.56 °CWB), and outdoor temperature of 47 °FDB (8.33 °CDB) /43 °FWB (6.11 °CWB).
– *1: Heating (17 °F): Indoor temperature of 70 °FDB (21.11 °CDB) /60 °FWB (15.56 °CWB), and outdoor temperature of 17 °FDB (-8.33 °CDB) /15 °FWB (-9.44 °CWB).
– Pipe length: 25 ft (7.5 m), Height difference: 0 ft (0 m). (Between outdoor unit and indoor unit.)
• Protective function might work when using it outside the operation range.
• *2: Maximum current is maximum value when operated within the operation range.
• *3: Sound pressure level:
– Measured values in manufacturer’s anechoic chamber.
– Because of the surrounding sound environment, the sound levels measured in actual installation conditions might be higher than the specified values here.
• *4: Available on Google Play™ store or on App Store®. Optional WLAN adapter is also required. For details, refer to the setting manual.
1-1. Indoor unit - (01-2) - 1. Specifications
GENERAL INFORMATION GENERAL INFORMATION

1-2. Outdoor unit
Type Inverter heat pump
Model name AOUH09LMAH1 AOUH12LMAH1
Power supply 208/230 V ~ 60 Hz
Power supply intake Outdoor unit
Available voltage range 187—253 V
Starting current A 3.9 6.0
Fan
Airflow rate Cooling CFM (m3/h) 901 (1,530) 1,065 (1,810)
Heating 901 (1,530) 1,065 (1,810)
Type × Q'ty Propeller fan × 1
Motor output W 23
Sound pressure level *1 Cooling dB (A) 46 49
Heating 48 51
Heat exchanger type
Dimensions
(H × W × D) in (mm)
Main1: 19-13/16 × 34-11/16 × 11/16
(504 × 881 × 18.19)
Main2: 19-13/16 × 33-1/2 × 11/16
(504 × 851 × 18.19)
Fin pitch FPI 20
Rows × Stages Main1: 1 × 24
Main2: 1 × 24
Pipe type Copper
Fin type Type (Material) Aluminum
Surface treatment PC fin
Compressor Type DC rotary
Motor output W 900
Refrigerant
Type R410A
Charge lb oz 2 lb 3 oz 2 lb 3 oz
g 1,000 1,000
Refrigerant oil Type RB68A
Amount in3 (cm3)20.7 (340)
Enclosure
Material Steel sheet
Color Beige
Approximate color of Munsell 10YR 7.5/1.0
Dimensions
(H × W × D)
Net in (mm) 21-5/16 × 31-7/16 × 11-7/16 (542 × 799 × 290)
Gross 23-11/16 × 37 × 14-3/4 (602 × 940 × 375)
Weight Net lb (kg) 73 (33)
Gross 79 (36)
Connection pipe
Size Liquid in (mm) Ø 1/4 (Ø 6.35)
Gas Ø 3/8 (Ø 9.52)
Method Flare
Pre-charge length
ft (m)
49 (15)
Max. length 66 (20)
Max. height difference 49 (15)
Operation range Cooling °F (°C) 14 to 115 (-10 to 46)
Heating -15 to 75 (-26 to 24)
Drain hose Material PP
Tip diameter in (mm) Ø 1/2 (Ø 13.0) (I. D.), Ø 5/8 to 11/16 (Ø 16.0 to 16.8) (O. D.)
NOTES:
• Specifications are based on the following conditions:
– Cooling: Indoor temperature of 80 °FDB (26.67 °CDB) / 67 °FWB (19.44 °CWB), and outdoor temperature of 95 °FDB (35 °CDB) / 75 °FWB (23.9 °CWB).
– Heating: Indoor temperature of 70 °FDB (21.11 °CDB) / 60 °FWB (15.56 °CWB), and outdoor temperature of 47 °FDB (8.33 °CDB) / 43 °FWB (6.11 °CWB).
– Pipe length: 25 ft (7.5 m), Height difference: 0 ft (0 m). (Between outdoor unit and indoor unit.)
• Protective function might work when using it outside the operation range.
• *1: Sound pressure level
– Measured values in manufacturer’s anechoic chamber.
– Because of the surrounding sound environment, the sound levels measured in actual installation conditions might be higher than the specified values here.
1-2. Outdoor unit - (01-3) - 1. Specifications
GENERAL INFORMATION GENERAL INFORMATION

2. Dimensions
2-1. Indoor unit
¢Models: ASUH09LMAS and ASUH12LMAS
Unit: in (mm)
32-13/16 (834)
10-5/8 (270)
8-3/4 (222)
1/8 (3.0)
(32-13/16 [834])
13-9/16 (344) 14 (356)
12-7/8 (327) 4-7/16 (113)12-7/8 (327)2-5/8 (67)
2-7/16 (62)
1-15/16 (50) 3-5/16 (84)
1-11/16 (43)
(10-5/8 [270])
1-11/16 (43)
Outline of indoor unit
for pipe inlet Ø 2-9/16 (65) for pipe inlet Ø 2-9/16 (65)
2-7/16 (62)
2-1. Indoor unit - (01-4) - 2. Dimensions
GENERAL INFORMATION GENERAL INFORMATION

Installation space requirement
Provide sufficient installation space for product safety.
Unit: in (mm)
2 (50) or more
3 (71) or more
The flare connection
part should be installed
outdoors.
2 (40) or more
3 (70) or more
5 (107) or more
60 (1,500) or more
71 (1,800) or more
8 (183) or more
Wall hook bracket
Outline of the indoor unit
2-1. Indoor unit - (01-5) - 2. Dimensions
GENERAL INFORMATION GENERAL INFORMATION

2-2. Outdoor unit

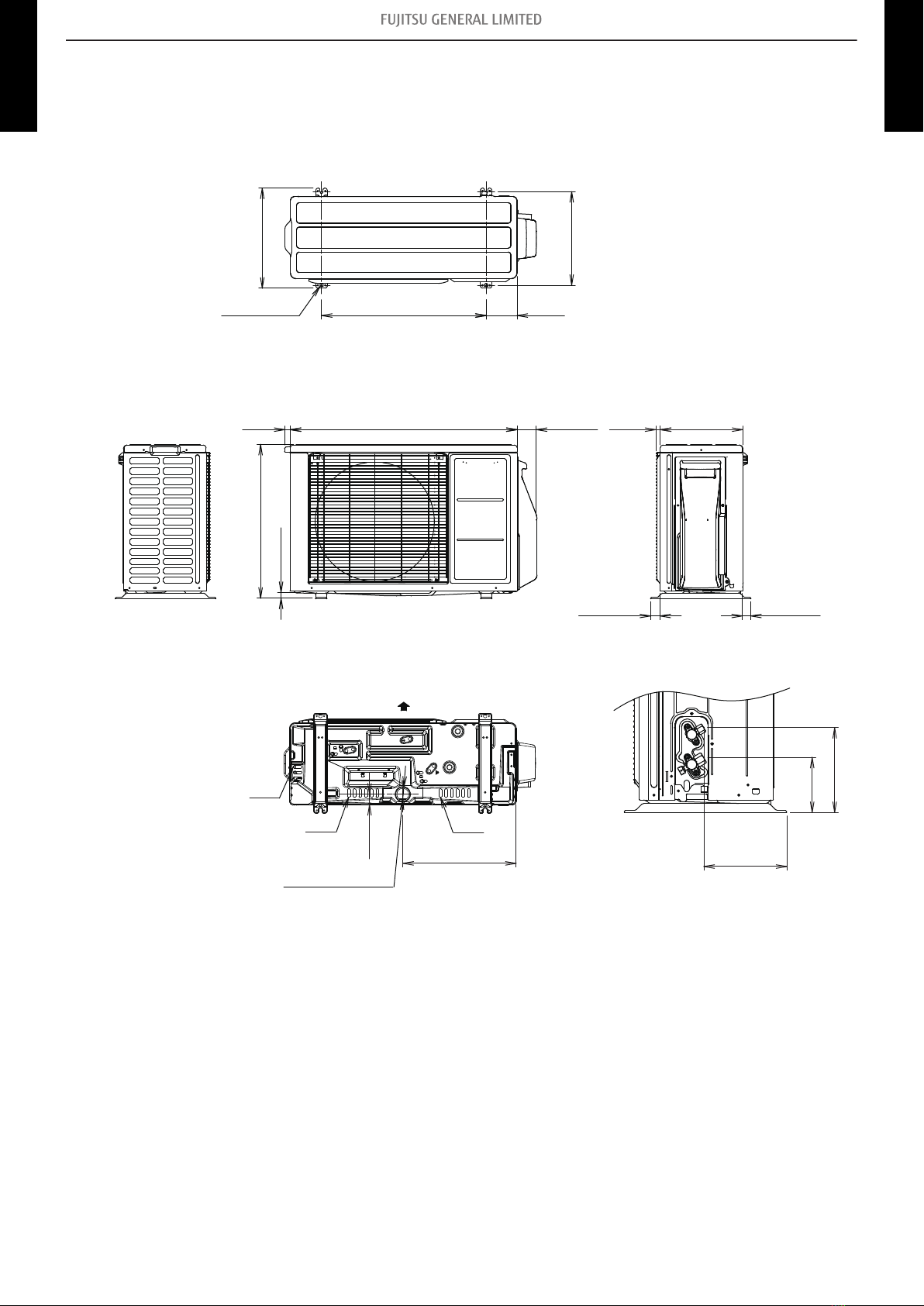

¢Models: AOUH09LMAH1 and AOUH12LMAH1
Top view
22-13/16 (580) 4-5/16 (109)
13 (330)
13-7/8 (353)
Pitch of bolts for installation
Pitch of bolts for installation
4- M1 0 hole
31-7/16 (799) 2-11/16 (68)
1-5/16 (33) 1-3/16 (30)
3/4 (19)
21-5/16 (542)
13/16 (20)
Side viewSide view Front view
11-7/16 (290)1/2 (13)
Unit: in (mm)
Bottom view
Airflow
Drain port Ø1-5/8 (42)
Side view (Valve part)
4-3/4 (120)
4-1/4 (184)
7-1/16 (180)
1-7/16 (37)
15-11/16 (399)
Hole
Hole
Hole
2-2. Outdoor unit - (01-6) - 2. Dimensions
GENERAL INFORMATION GENERAL INFORMATION

2. TECHNICAL DATA AND PARTS LIST
2020.12.17
SR_CH02_AS039EF_01

CONTENTS
2. TECHNICAL DATA AND PARTS LIST
1. Precautions..................................................................................................02-1
2. Indoor unit parts list....................................................................................02-2
2-1. Models: ASUH09LMAS and ASUH12LMAS...................................................................02-2
3. Outdoor unit parts list.................................................................................02-6
3-1. Models: AOUH09LMAH1 and AOUH12LMAH1 .............................................................02-6
4. Accessories ...............................................................................................02-10
4-1. Indoor unit ....................................................................................................................02-10
4-2. Outdoor unit..................................................................................................................02-10
5. Refrigerant system diagrams...................................................................02-11
5-1. Models: AOUH09LMAH1 and AOUH12LMAH1 ...........................................................02-11
6. Wiring diagrams ........................................................................................02-12
6-1. Indoor unit ....................................................................................................................02-12
6-2. Outdoor unit..................................................................................................................02-13
7. PC board diagrams ...................................................................................02-14
7-1. Models: ASUH09LMAS and ASUH12LMAS.................................................................02-14
7-2. Models: AOUH09LMAH1 and AOUH12LMAH1 ...........................................................02-15

1. Precautions
When you start servicing, pay attention to the following points. For detailed precautions, refer to the
installation manual of the products.
CAUTION
• Service personnel
– Any person who is involved with working on or breaking into a refrigerant circuit should hold a
current valid certificate from an industry-accredited assessment authority, which authorizes
their competence to handle refrigerants safely in accordance with an industry recognized as-
sessment specification.
– Servicing shall only be performed as recommended by the equipment manufacturer. Mainte-
nance and repair requiring the assistance of other skilled personnel shall be carried out under
the supervision of the person competent in the use of flammable refrigerants.
– Servicing shall be performed only as recommended by the manufacturer.
• Work
– Work in confined spaces shall be avoided.
– The area around the workspace shall be sectioned off.
– Electric shock may occur. After turning off the power, always wait 5 minutes before touching
electrical components.
– Do not touch the fins of the heat exchanger. Touching the heat exchanger fins could result in
damage to the fins or personal injury such as skin rupture.
– Do not place any other electrical products or household belongings under the product.
– Condensation dripping from the product might get them wet, and may cause damage or mal-
function to the property.
• Service parts information and design are subject to change without notice for product improve-
ment.
• For the latest information of the service parts, refer to our Service Portal.
https://fujitsu-general.force.com/portal/
• Precise figure of the service parts listed in this manual may differ from the actual service parts.
- (02-1) - 1. Precautions
TECHNICAL DATA AND PARTS LIST TECHNICAL DATA AND PARTS LIST

2. Indoor unit parts list
2-1. Models: ASUH09LMAS and ASUH12LMAS
¢Exterior parts
18
1
4
a
5
6
8
9
10
13
16
2
17
15
12
3
14
19
20 21
b
7
11
9
22
2-1. Models: ASUH09LMAS and ASUH12LMAS - (02-2) - 2. Indoor unit parts list
TECHNICAL DATA AND PARTS LIST TECHNICAL DATA AND PARTS LIST

Item no. Part no. Part name Service part
1 9388142005 Bracket panel ♦
2 9387471007 Louver spring ♦
3 9333608006 Bush ♦
4 9313951047 Conduit holder ♦
5 9387714036 Step motor holder assy ♦
6 9901011047 Step motor ♦
7 9332861006 Shaft cover ♦
8 9387590166 Drain pan total assy ♦
9 9387476002 Screw cap ♦
10 9387479003 U/D louver assy ♦
11 9387597035 Wire cover assy ♦
12 9387478044 Under cover R ♦
13 9387596984 Front panel total assy ♦
14 9333704005 Grille clamper R ♦
15 9387799057 Intake grill B ♦
16 9333719009 Grille clamper L ♦
17 9387473001 Air filter ♦
18 9387477047 Under cover L ♦
19 9316177017 Drain cap ♦
20 9316904002 Drain hose assy ♦
21 9318912005 Remote controller holder ♦
22 9332438772 Remote controller ♦
a— Step motor holder —
b— Front panel —
2-1. Models: ASUH09LMAS and ASUH12LMAS - (02-3) - 2. Indoor unit parts list
TECHNICAL DATA AND PARTS LIST TECHNICAL DATA AND PARTS LIST

¢Base, evaporator, and control
50
51
a
b
c
52
d
53
54
55
56
58
57
59
e
f
60 61
63
62
g
65
64
2-1. Models: ASUH09LMAS and ASUH12LMAS - (02-4) - 2. Indoor unit parts list
TECHNICAL DATA AND PARTS LIST TECHNICAL DATA AND PARTS LIST

Item no. Part no. Part name Service part
50 9387587128 Base assy ♦
51 9383765056 WLAN adapter holder assy ♦
52 9711732002 Main PCB (For 09 model) ♦
9711732019 Main PCB (For 12 model) ♦
53 9387488043 Cable guide ♦
54 9711146076 Display assy ♦
55 9711147011 Indicator PCB ♦
56 9901013010 Terminal ♦
57 9603821012 Brushless motor ♦
58 9387589061 Motor case assy ♦
59 9317250009 Air clean filter assy ♦
60 9332911008 Electric filter holder ♦
61 9387593228 Evaporator total assy ♦
62 9900627041 Thermistor assy ♦
63 9387467000 Room thermistor holder ♦
64 9333628004 Bearing D assy ♦
65 9387055047 Crossflow fan assy ♦
a— Box shield —
b— Control box —
c— PCB holder A —
d— Control cover —
e— Display case assy —
f— Motor case —
g— Motor cover
2-1. Models: ASUH09LMAS and ASUH12LMAS - (02-5) - 2. Indoor unit parts list
TECHNICAL DATA AND PARTS LIST TECHNICAL DATA AND PARTS LIST

3. Outdoor unit parts list
3-1. Models: AOUH09LMAH1 and AOUH12LMAH1
¢Exterior parts and Chassis
1
2
3
5
16
17
a
12
19 20
21
22
b
17
9
6
7
8
4
11
10
13
14
15
3-1. Models: AOUH09LMAH1 and AOUH12LMAH1 - (02-6) - 3. Outdoor unit parts list
TECHNICAL DATA AND PARTS LIST TECHNICAL DATA AND PARTS LIST
