Fujitsu AUU9RLF Service manual

AIR CONDITIONER
Cassette type
DESIGN & TECHNICAL MANUAL
INDOOR
AUU9RLF
AUU12RLF
AUU18RLF
OUTDOOR
AOU9RLFC
AOU12RLFC
AOU18RLFC
DR_AU017EF_05
2018.06.14

Notices:
• Product specifications and design are subject to change without notice for future improvement.
• For further details, please check with our authorized dealer.
Copyright © 2018 Fujitsu General Limited. All rights reserved.

CONTENTS
Part 1. INDOOR UNIT...........................................................................1
1. Specifications................................................................................................2
2. Dimensions....................................................................................................4
2-1. Models: AUU9RLF, AUU12RLF, and AUU18RLF............................................................4
3. Wiring diagram ..............................................................................................7
3-1. Models: AUU9RLF, AUU12RLF, and AUU18RLF............................................................7
4. Capacity table................................................................................................8
4-1. Cooling capacity...............................................................................................................8
4-2. Heating capacity ............................................................................................................11
5. Fan performance .........................................................................................13

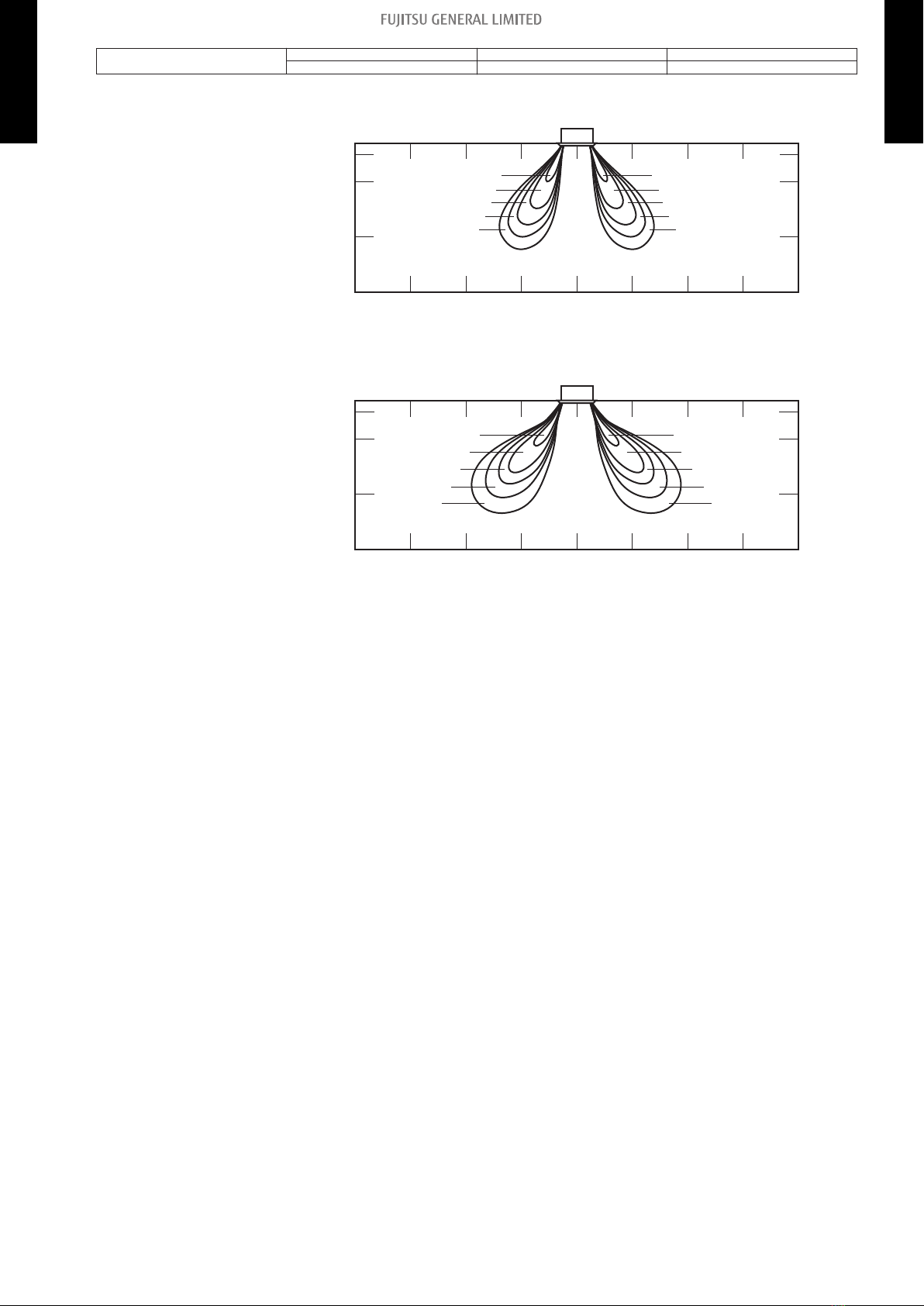

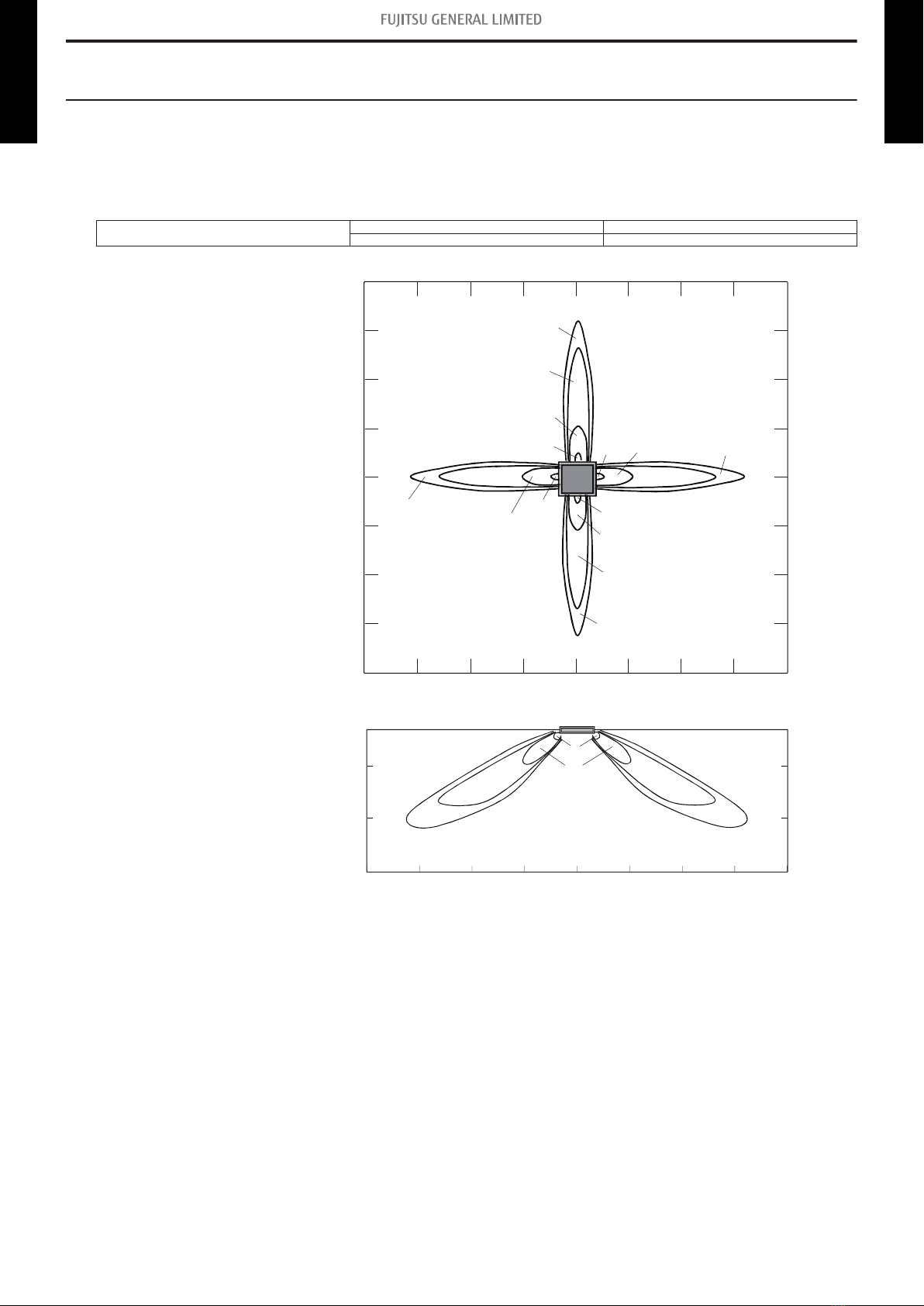

5-1. Air velocity distributions..................................................................................................13
5-2. Airflow ............................................................................................................................19
6. Operation noise (sound pressure).............................................................22
6-1. Noise level curve............................................................................................................22
6-2. Sound level check point .................................................................................................24
7. Safety devices .............................................................................................25
8. External input and output...........................................................................26
8-1. External input.................................................................................................................26
8-2. External output...............................................................................................................28
8-3. Fresh-air control output..................................................................................................29
9. Remote controller .......................................................................................30
9-1. Wired remote controller..................................................................................................30
10. Function settings ........................................................................................32
10-1.Function settings on indoor unit ....................................................................................32
10-2.Function settings by using remote controller.................................................................34
10-3.Function settings on wired remote controller.................................................................40
11. Accessories.................................................................................................42
12. Optional parts..............................................................................................43
12-1.Controllers ....................................................................................................................43
12-2.Cassette grille ...............................................................................................................44
12-3.Others ...........................................................................................................................44

Part 2. OUTDOOR UNIT.....................................................................45
1. Specifications..............................................................................................46
2. Dimensions..................................................................................................47
2-1. Models: AOU9RLFC, AOU12RLFC, and AOU18RLFC .................................................47
2-2. Installation space ...........................................................................................................48
3. Refrigerant circuit .......................................................................................51
3-1. Models: AOU9RLFC, AOU12RLFC, and AOU18RLFC .................................................51
4. Wiring diagrams ..........................................................................................52
4-1. Models: AOU9RLFC and AOU12RLFC .........................................................................52
4-2. Model: AOU18RLFC......................................................................................................52
5. Capacity compensation rate for pipe length and height difference........53
5-1. Models: AOU9RLFC and AOU12RLFC .........................................................................53
5-2. Model: AOU18RLFC......................................................................................................54
6. Additional charge calculation ....................................................................55
6-1. Models: AOU9RLFC and AOU12RLFC .........................................................................55
6-2. Model: AOU18RLFC......................................................................................................55
7. Airflow..........................................................................................................56
7-1. Model: AOU9RLFC........................................................................................................56
7-2. Model: AOU12RLFC......................................................................................................56
7-3. Model: AOU18RLFC......................................................................................................56
8. Operation noise (sound pressure).............................................................57
8-1. Noise level curve............................................................................................................57
8-2. Sound level check point .................................................................................................58
9. Electrical characteristics............................................................................59
10. Safety devices .............................................................................................60
11. Accessories.................................................................................................61
CONTENTS (continued)

Part 1. INDOOR UNIT
CASSETTE TYPE:
AUU9RLF
AUU12RLF
AUU18RLF

1. Specifications
Type
Cassette
Inverter heat pump
Model name AUU9RLF AUU12RLF AUU18RLF
Power supply 208/230 V ~ 60 Hz
Available voltage range 187—253 V
Capacity
Cooling
Rated kW 2.64 3.52 5.28
Btu/h 9,000 12,000 18,000
Min.—Max. kW 0.90—3.60 0.90—4.00 0.90—5.90
Btu/h 3,100—12,000 3,100—13,600 3,100—20,100
Heating
Rated kW 3.52 4.69 6.33
Btu/h 12,000 16,000 21,600
Min.—Max. kW 0.90—5.28 0.90—5.70 0.90—7.50
Btu/h 3,100—18,000 3,100—19,400 3,100—25,600
Input power
Cooling Rated
kW
0.62 0.94 1.61
Min.—Max. 1.40 1.45 2.15
Heating Rated 0.89 1.44 1.76
Min.—Max. 1.80 2.00 2.60
Current Cooling Rated A 3.0 4.4 7.1
Heating 4.1 6.7 7.7
EER Cooling kW/kW 4.25 3.74 3.28
Btu/h 14.5 12.8 11.2
COP Heating kW/kW 3.95 3.25 3.59
Btu/h 13.5 11.1 12.3
SEER Cooling Btu/h 24.0 21.9 20.1
HSPF Heating Btu/h 13.0 12.2 11.5
Power factor Cooling %90 94 98
Heating 94 94 99
Moisture removal pints/h (L/h) 1.3 (0.6) 2.5 (1.2) 4.6 (2.2)
Maximum operating current *1Cooling A9.3 9.4 10.0
Heating 10.8 10.9 14.0
Fan
Airflow rate
Cooling
HIGH
CFM (m3/h)
318 (540) 359 (610) 400 (680)
MED 288 (490) 312 (530) 341 (580)
LOW 259 (440) 277 (470) 288(490)
QUIET 230 (390) 241 (410) 241 (410)
Heating
HIGH 318 (540) 359 (610) 471 (800)
MED 288 (490) 312 (530) 400 (680)
LOW 259 (440) 277 (470) 341 (580)
QUIET 230 (390) 241 (410) 265 (450)
Type × Q'ty Turbo fan × 1
Motor output W 54
Sound pressure level *2
Cooling
HIGH
dB (A)
33 37 40
MED 32 33 36
LOW 29 31 32
QUIET 28 28 28
Heating
HIGH 34 37 44
MED 32 33 40
LOW 29 31 36
QUIET 27 28 30
Heat exchanger type
Dimensions (H × W × D) in (mm) 8-1/4 × 51-9/16 × 1/2 + 8-1/4 × 49-3/16 × 1/2
(210 × 1,310 × 13.3 + 210 × 1,250 × 13.3)
Fin pitch FPI 21
Rows × Stages 2 × 10
Pipe type Copper tube
Fin type Aluminum
Dimensions
(H × W × D)
Net in (mm) 9-5/8 × 22-7/16 × 22-7/16 (245 × 570 × 570)
Gross 10-7/16 × 28-3/4 × 24-5/8 (265 × 730 × 625)
Weight Net lb (kg) 33 (15)
Gross 40 (18)
Connection pipe Size Liquid in (mm) Ø1/4 (Ø6.35)
Gas Ø3/8 (Ø9.52) Ø1/2 (Ø12.70)
Method Flare
Operation range Cooling °F (°C) 64 to 90 (18 to 32) %RH 80 or less
Heating °F (°C) 60 to 86 (16 to 30)
Drain hose Material Hard PVC
Size in (mm) Ø 3/4(I.D.), Ø 1-1/16(O.D.) (Ø 20.7 [I.D.], Ø 26.6 [O.D.])
Remote controller type Wired (Wireless [option])
Cassette grille
(Standard type: Option)
Model name UTG-CCGF
Material PS
Color White
Approximate color of Munsell N 9.25/
Dimensions
(H × W × D)
Net in (mm) 1-15/16 × 27-9/16 × 27-9/16 (49 × 700 × 700)
Gross 4-3/4 × 30-1/8 × 29-3/4 (120 × 765 × 755)
Weight Net lb (kg) 5.7 (2.6)
Gross 10 (4.5)
Cassette grille
(Grid type: Option)
Model name UTG-CCGFG
Material PS
Color White
Approximate color of Munsell 9PB 9.1/0.2
Dimensions
(H × W × D)
Net in (mm) 1-15/16 × 24-7/16 × 24-7/16 (49 × 620 × 620)
Gross 4-3/4 × 30-1/8 × 29-3/4 (120 × 765 × 755)
Weight Net lb (kg) 5.1 (2.3)
Gross 10 (4.5)
- 2 - 1. Specifications
CASSETTE TYPE AUU09-18RLF CASSETTE TYPE AUU09-18RLF

Type
Cassette
Inverter heat pump
Model name AUU9RLF AUU12RLF AUU18RLF
NOTES:
• Specifications are based on the following conditions:
– Cooling: Indoor temperature of 80 °FDB (26.67 °CDB) /67 °FWB (19.44 °CWB), and outdoor temperature of 95 °FDB (35 °CDB) / 75 °FWB (23.9 °CWB).
– Heating: Indoor temperature of 70 °FDB (21.11 °CDB) /59 °FWB (15 °CWB), and outdoor temperature of 47 °FDB (8.33 °CDB) /43 °FWB (6.11 °CWB).
– Pipe length: 24 ft 6 in (7.5 m), Height difference: 0 ft (0 m). (Between outdoor unit and indoor unit.)
• Protective function might work when using it outside the operation range.
• *1: Maximum operating current is the total current of the indoor unit and the outdoor unit.
• *2: Sound pressure level:
– Measured values in manufacturer’s anechoic chamber.
– Because of the surrounding sound environment, the sound levels measured in actual installation conditions might be higher than the specified values here.
- 3 - 1. Specifications
CASSETTE TYPE AUU09-18RLF CASSETTE TYPE AUU09-18RLF

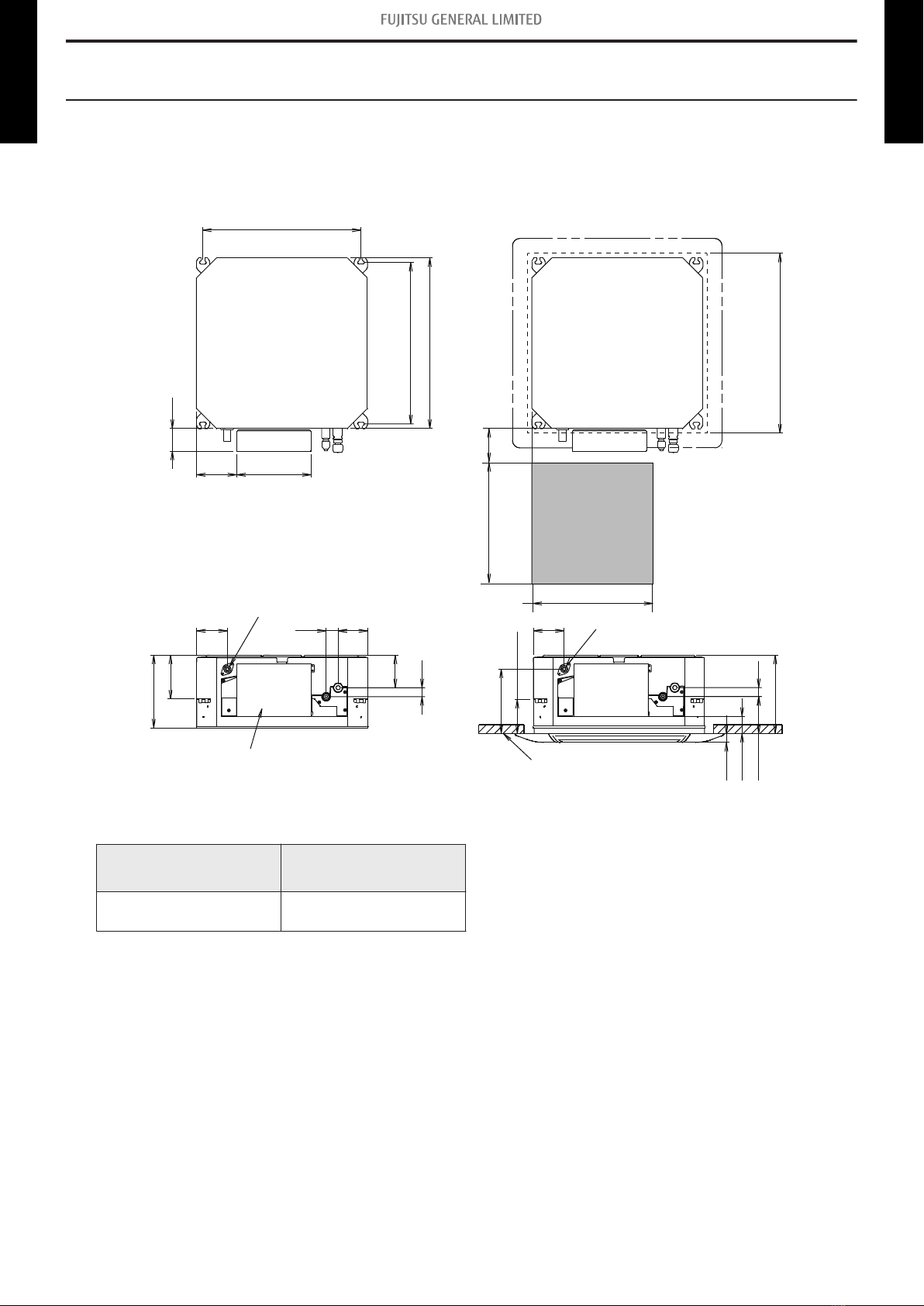

2. Dimensions
2-1. Models: AUU9RLF, AUU12RLF, and AUU18RLF
20-7/8 (530): Hanging bolt position
4 (102)
5-5/16
(135) 9-13/16 (250)
2-15/16 (75)
1-3/16 (30)
1-3/16 (30)
10-5/16 (262)
21-1/4 (540): Hanging bolt position
22-7/16 (570): Indoor unit
a (Ceiling openings)
• Cassette grille mounting state
Top view
5-14/16 to 7-7/8 (150 to 200)
Min. 17-11/16 (450)
Min. 17-11/16 (450)
Maintenance space
Side view
8-7/16 (215)
4-13/16 (123)
2-5/16 (58)
4-1/2 (114)
5-3/4 (146)
4-1/4 (108)
4 (102)
9-5/8 (245)
1-3/16 (30)
1-9/16 (40) 3-7/8 (99)
Drain port
Control box
Ceiling
Drain port
Be sure to leave
maintenance space
for future service
at the designated
position.
Unit: in (mm)
a (Ceiling openings size):
Standard type grille
UTG-CCGF
Grid type grille
UTG-CCGFG
22-13/16 to 26
(580 to 660)
22-13/16 to 24
(580 to 610)
- 4 -
2-1. Models: AUU9RLF, AUU12RLF, and AUU18RLF 2. Dimensions
CASSETTE TYPE AUU09-18RLF CASSETTE TYPE AUU09-18RLF

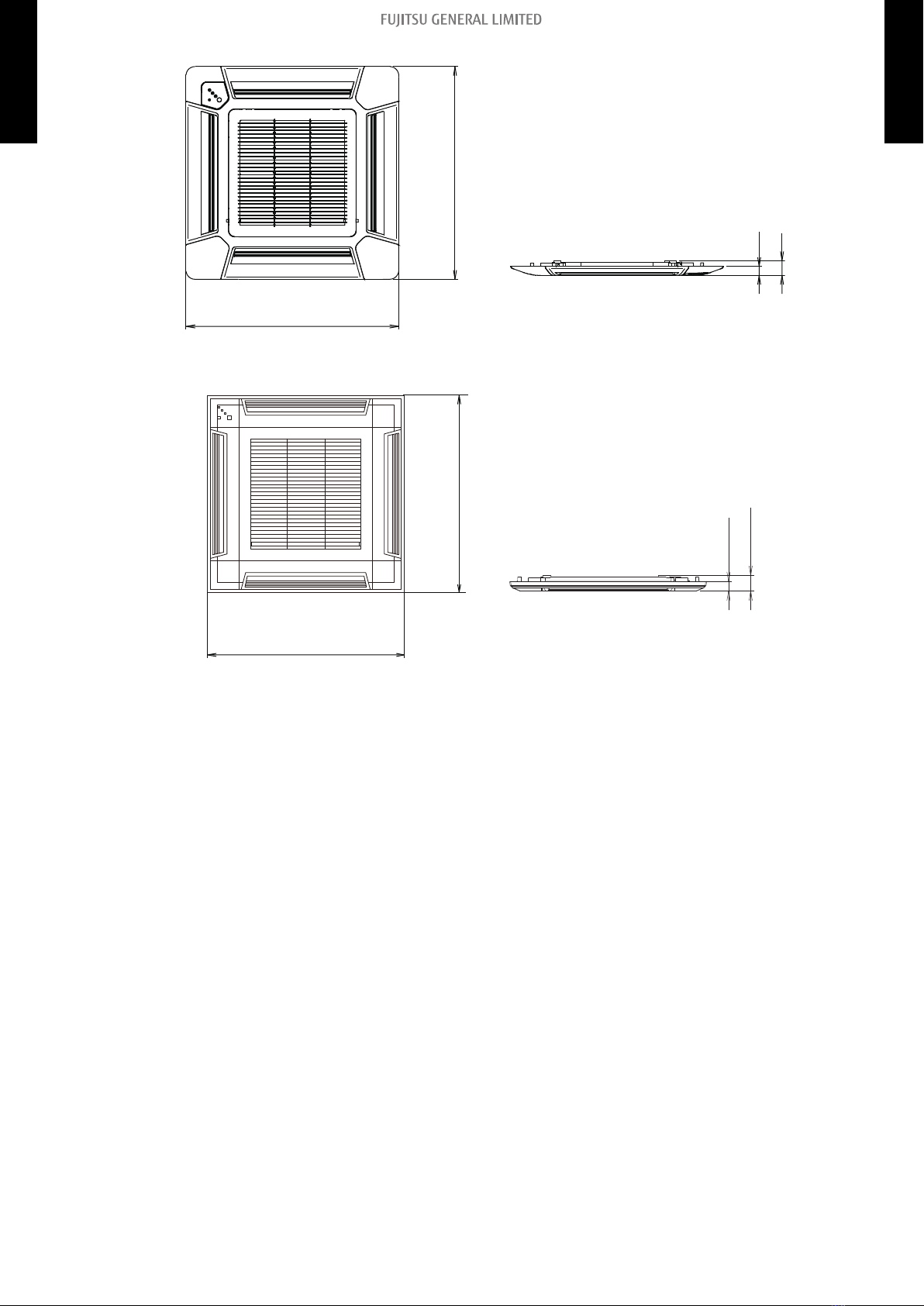

• Standard type grille (UTG-CCGF)
27-9/16 (700)
27-9/16 (700)
Bottom view
1-3/16 (30) 1-15/16 (49)
Side view
• Grid type grille (UTG-CCGFG)
24-7/16 (620)
24-7/16 (620)
Bottom view
Side view
1-3/16 (30)
1-15/16 (49)
- 5 -
2-1. Models: AUU9RLF, AUU12RLF, and AUU18RLF 2. Dimensions
CASSETTE TYPE AUU09-18RLF CASSETTE TYPE AUU09-18RLF

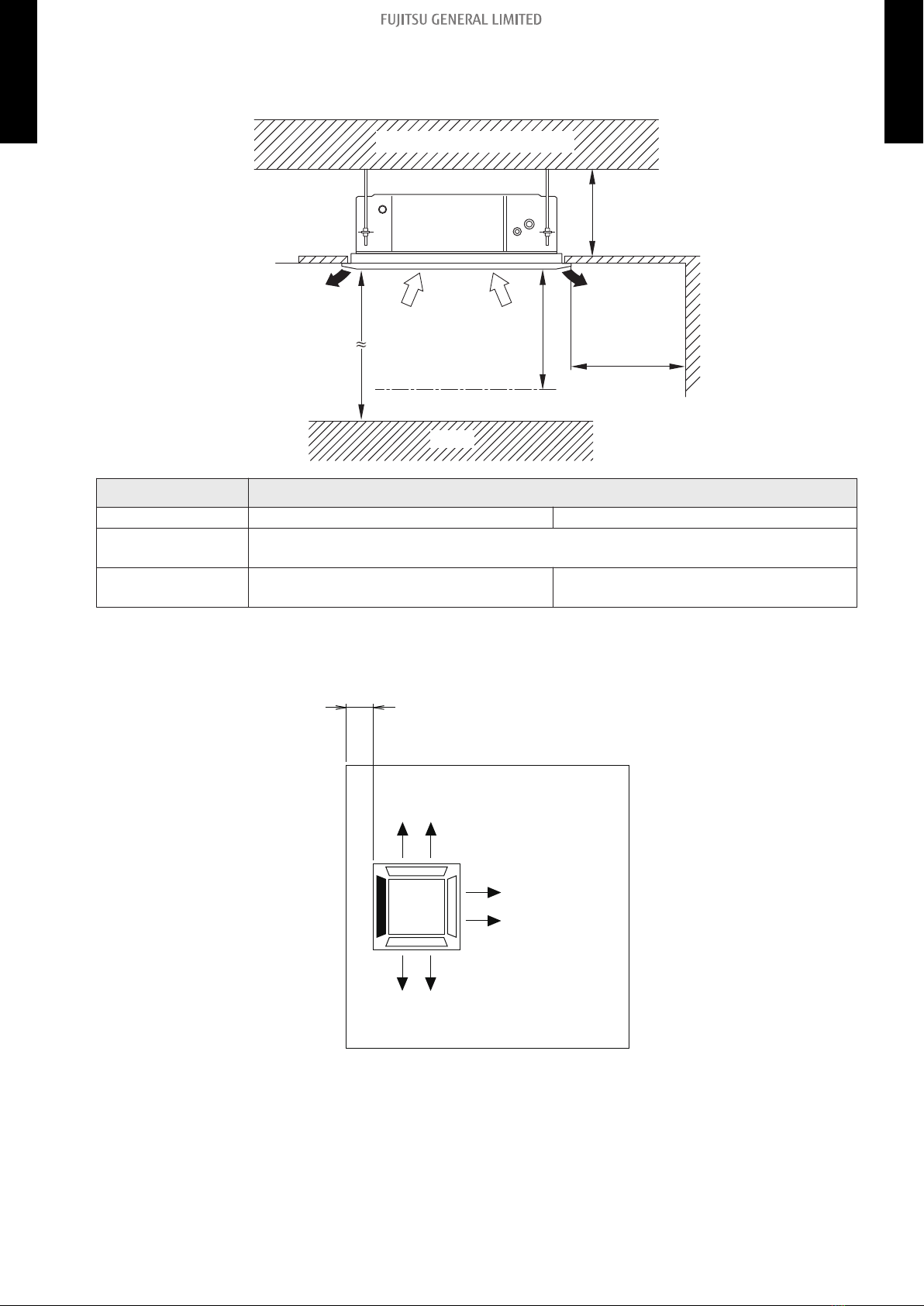

¢Installation space
40 (1,000)
or more
40 (1,000)
or more
95 (2,400)
or more
11 (262)
or more
Strong and durable ceiling
Obstruction
Floor
Unit: in (mm)
Maximum height from floor to ceiling [Unit: in (mm)]
Model name AUU9RLF AUU12-18RLF
Standard mode 107
(2,700)
High ceiling mode — 119
(3,000)
•3-way direction setting
4 (100) or more*
Unit: in (mm)
NOTES:
• *: When installing the indoor unit, be careful about the maintenance space.
• To set “3-direction”, optional Air outlet shutter plate (UTR-YDZB) must be installed, and the “out-
let-direction” need to be switched to “3-way” by remote controller.
• The ceiling height cannot be set in the 3-way outlet mode. Therefore, ceiling height setting
change by function setting 20 is prohibited. For details, refer to "Contents of function setting" on
page 36.
- 6 -
2-1. Models: AUU9RLF, AUU12RLF, and AUU18RLF 2. Dimensions
CASSETTE TYPE AUU09-18RLF CASSETTE TYPE AUU09-18RLF

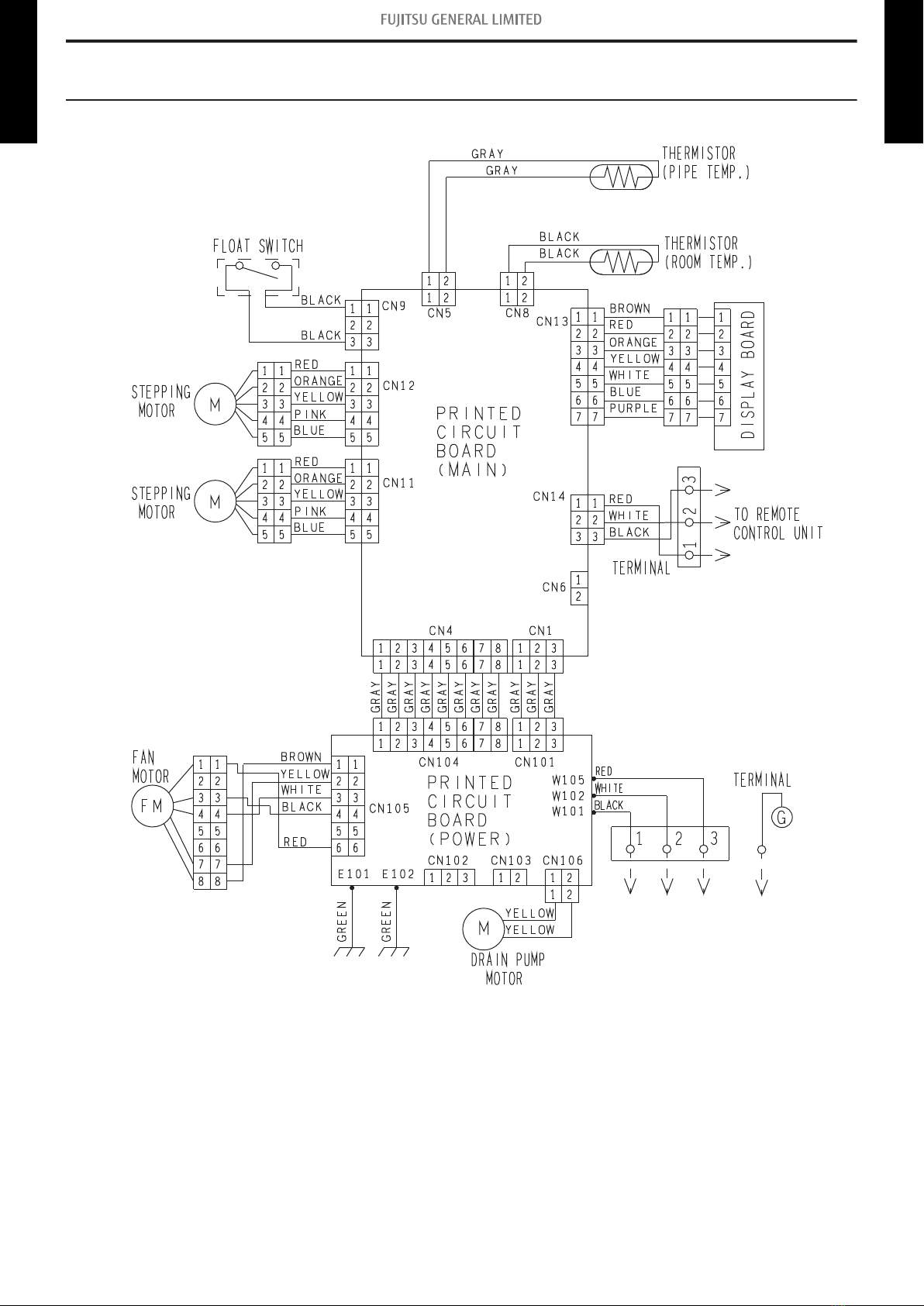

3. Wiring diagram
3-1. Models: AUU9RLF, AUU12RLF, and AUU18RLF
- 7 -
3-1. Models: AUU9RLF, AUU12RLF, and AUU18RLF 3. Wiring diagram
CASSETTE TYPE AUU09-18RLF CASSETTE TYPE AUU09-18RLF

4. Capacity table
Capacity tables show each of following values calculated based on the outdoor temperature and the
indoor temperature, under given Airflow Rate (AFR):
For cooling capacity: Total Capacity (TC), Sensible Heat Capacity (SHC), and Input Power (IP)
For heating capacity: Total Capacity (TC) and Input Power (IP)
4-1. Cooling capacity
¢Model: AUU9RLF
AFR CFM 318
Indoor temperature
°FDB 64 70 75 80 85 90
°FWB 54 60 63 67 71 73
Outdoor temperature
°FDB TC SHC IP TC SHC IP TC SHC IP TC SHC IP TC SHC IP TC SHC IP
kBtu kW kBtu kW kBtu kW kBtu kW kBtu kW kBtu kW
15 8.34 6.67 0.22 9.44 7.55 0.22 9.94 7.95 0.22 10.65 8.52 0.22 11.36 9.08 0.23 11.71 9.37 0.23
23 8.17 6.53 0.24 9.25 7.40 0.25 9.73 7.79 0.25 10.43 8.34 0.25 11.12 8.90 0.26 11.47 9.18 0.26
32 7.99 6.39 0.25 9.05 7.24 0.26 9.53 7.63 0.26 10.21 8.17 0.26 10.89 8.71 0.26 11.24 8.99 0.27
41 7.82 6.26 0.27 8.86 7.09 0.27 9.33 7.46 0.27 10.00 8.00 0.28 10.66 8.53 0.28 11.00 8.80 0.28
50 7.65 6.12 0.25 8.67 6.93 0.25 9.13 7.30 0.26 9.78 7.82 0.26 10.43 8.34 0.26 10.77 8.61 0.26
59 7.48 5.68 0.30 8.47 6.44 0.31 8.93 6.79 0.31 9.56 7.27 0.31 10.20 7.75 0.31 10.53 8.00 0.32
67 8.43 6.82 0.47 9.55 6.82 0.48 10.07 7.51 0.49 10.78 7.88 0.49 11.50 8.09 0.50 11.87 8.97 0.50
77 8.02 6.72 0.53 9.08 6.72 0.54 9.55 7.40 0.55 10.24 7.78 0.55 10.92 7.95 0.56 11.26 8.84 0.56
87 7.61 6.48 0.60 8.56 6.48 0.61 9.04 7.13 0.61 9.69 7.51 0.62 10.34 7.68 0.62 10.68 8.53 0.63
95 7.06 6.24 0.60 7.98 6.21 0.61 8.39 6.86 0.61 9.00 7.20 0.62 9.62 7.37 0.63 9.93 8.19 0.63
104 6.01 5.77 0.51 6.79 5.77 0.52 7.13 6.35 0.52 7.64 6.65 0.53 8.19 6.82 0.53 8.43 7.57 0.54
115 5.53 5.36 0.51 6.24 5.36 0.52 6.59 5.90 0.52 7.03 6.21 0.53 7.51 6.35 0.54 7.75 7.06 0.54
AFR m3/h 540
Indoor temperature
°CDB 17.8 21.1 23.9 26.7 29.4 32.2
°CWB 12.2 15.6 17.2 19.4 21.7 22.8
Outdoor temperature
°CDB TC SHC IP TC SHC IP TC SHC IP TC SHC IP TC SHC IP TC SHC IP
kW kW kW kW kW kW
-10.0 2.44 1.96 0.22 2.77 2.21 0.22 2.91 2.33 0.22 3.12 2.50 0.22 3.33 2.66 0.23 3.43 2.75 0.23
-5.0 2.39 1.91 0.24 2.71 2.17 0.25 2.85 2.28 0.25 3.06 2.45 0.25 3.26 2.61 0.26 3.36 2.69 0.26
0.0 2.34 1.87 0.25 2.65 2.12 0.26 2.79 2.23 0.26 2.99 2.39 0.26 3.19 2.55 0.26 3.29 2.63 0.27
5.0 2.29 1.83 0.27 2.60 2.08 0.27 2.73 2.19 0.27 2.93 2.34 0.28 3.12 2.50 0.28 3.22 2.58 0.28
10.0 2.24 1.79 0.25 2.54 2.03 0.25 2.68 2.14 0.26 2.87 2.29 0.26 3.06 2.45 0.26 3.16 2.52 0.26
15.0 2.19 1.67 0.30 2.48 1.89 0.31 2.62 1.99 0.31 2.80 2.13 0.31 2.99 2.27 0.31 3.09 2.35 0.32
19.4 2.47 2.00 0.47 2.80 2.00 0.48 2.95 2.20 0.49 3.16 2.31 0.49 3.37 2.37 0.50 3.48 2.63 0.50
25.0 2.35 1.97 0.53 2.66 1.97 0.54 2.80 2.17 0.55 3.00 2.28 0.55 3.20 2.33 0.56 3.30 2.59 0.56
30.6 2.23 1.90 0.60 2.51 1.90 0.61 2.65 2.09 0.61 2.84 2.20 0.62 3.03 2.25 0.62 3.13 2.50 0.63
35.0 2.07 1.83 0.60 2.34 1.82 0.61 2.46 2.01 0.61 2.64 2.11 0.62 2.82 2.16 0.63 2.91 2.40 0.63
40.0 1.76 1.69 0.51 1.99 1.69 0.52 2.09 1.86 0.52 2.24 1.95 0.53 2.40 2.00 0.53 2.47 2.22 0.54
46.0 1.62 1.57 0.51 1.83 1.57 0.52 1.93 1.73 0.52 2.06 1.82 0.53 2.20 1.86 0.54 2.27 2.07 0.54
- 8 -
4-1. Cooling capacity 4. Capacity table
CASSETTE TYPE AUU09-18RLF CASSETTE TYPE AUU09-18RLF

¢Model: AUU12RLF
AFR CFM 359
Indoor temperature
°FDB 64 70 75 80 85 90
°FWB 54 60 63 67 71 73
Outdoor temperature
°FDB TC SHC IP TC SHC IP TC SHC IP TC SHC IP TC SHC IP TC SHC IP
kBtu kW kBtu kW kBtu kW kBtu kW kBtu kW kBtu kW
15 11.11 8.65 0.33 12.56 9.79 0.34 13.24 10.31 0.34 14.19 11.06 0.34 15.15 11.81 0.35 15.61 12.17 0.35
23 10.88 8.46 0.38 12.31 9.56 0.39 12.97 10.08 0.39 13.90 10.80 0.40 14.85 11.54 0.40 15.30 11.89 0.40
32 10.66 8.46 0.42 12.05 9.57 0.43 12.70 10.08 0.43 13.61 10.81 0.43 14.54 11.54 0.44 14.99 11.90 0.44
41 10.44 7.62 0.44 11.80 8.61 0.45 12.43 9.08 0.45 13.32 9.73 0.46 14.23 10.39 0.46 14.67 10.71 0.47
50 10.21 7.21 0.44 11.54 8.15 0.45 12.16 8.59 0.45 13.03 9.21 0.46 13.93 9.84 0.47 14.36 10.14 0.47
59 9.99 7.05 0.45 11.29 7.97 0.46 11.89 8.40 0.47 12.74 9.00 0.47 13.62 9.62 0.48 14.04 9.92 0.48
67 11.26 8.29 0.72 12.73 8.29 0.73 13.41 9.14 0.74 14.36 9.59 0.75 15.35 9.83 0.75 15.83 10.92 0.76
77 10.68 8.15 0.81 12.08 8.15 0.82 12.73 9.01 0.83 13.65 9.45 0.84 14.57 9.66 0.85 15.01 10.75 0.85
87 10.13 7.88 0.90 11.43 7.88 0.92 12.04 8.70 0.93 12.90 9.11 0.94 13.82 9.35 0.95 14.23 10.37 0.95
95 9.42 7.57 0.91 10.65 7.57 0.92 11.19 8.36 0.93 12.01 8.77 0.94 12.83 8.97 0.95 13.24 9.96 0.96
104 7.98 6.99 0.77 9.04 6.99 0.79 9.52 7.71 0.79 10.20 8.12 0.80 10.92 8.29 0.81 11.26 9.21 0.81
115 7.37 6.55 0.78 8.33 6.55 0.79 8.80 7.23 0.80 9.42 7.57 0.80 10.07 7.75 0.81 10.37 8.63 0.82
AFR m3/h 610
Indoor temperature
°CDB 17.8 21.1 23.9 26.7 29.4 32.2
°CWB 12.2 15.6 17.2 19.4 21.7 22.8
Outdoor temperature
°CDB TC SHC IP TC SHC IP TC SHC IP TC SHC IP TC SHC IP TC SHC IP
kW kW kW kW kW kW
-10.0 3.26 2.54 0.33 3.68 2.87 0.34 3.88 3.02 0.34 4.16 3.24 0.34 4.44 3.46 0.35 4.58 3.57 0.35
-5.0 3.19 2.48 0.38 3.61 2.80 0.39 3.80 2.95 0.39 4.07 3.17 0.40 4.35 3.38 0.40 4.48 3.48 0.40
0.0 3.12 2.48 0.42 3.53 2.80 0.43 3.72 2.95 0.43 3.99 3.17 0.43 4.26 3.38 0.44 4.39 3.49 0.44
5.0 3.06 2.23 0.44 3.46 2.52 0.45 3.64 2.66 0.45 3.90 2.85 0.46 4.17 3.05 0.46 4.30 3.14 0.47
10.0 2.99 2.11 0.44 3.38 2.39 0.45 3.56 2.52 0.45 3.82 2.70 0.46 4.08 2.88 0.47 4.21 2.97 0.47
15.0 2.93 2.07 0.45 3.31 2.34 0.46 3.49 2.46 0.47 3.73 2.64 0.47 3.99 2.82 0.48 4.12 2.91 0.48
19.4 3.30 2.43 0.72 3.73 2.43 0.73 3.93 2.68 0.74 4.21 2.81 0.75 4.50 2.88 0.75 4.64 3.20 0.76
25.0 3.13 2.39 0.81 3.54 2.39 0.82 3.73 2.64 0.83 4.00 2.77 0.84 4.27 2.83 0.85 4.40 3.15 0.85
30.6 2.97 2.31 0.90 3.35 2.31 0.92 3.53 2.55 0.93 3.78 2.67 0.94 4.05 2.74 0.95 4.17 3.04 0.95
35.0 2.76 2.22 0.91 3.12 2.22 0.92 3.28 2.45 0.93 3.52 2.57 0.94 3.76 2.63 0.95 3.88 2.92 0.96
40.0 2.34 2.05 0.77 2.65 2.05 0.79 2.79 2.26 0.79 2.99 2.38 0.80 3.20 2.43 0.81 3.30 2.70 0.81
46.0 2.16 1.92 0.78 2.44 1.92 0.79 2.58 2.12 0.80 2.76 2.22 0.80 2.95 2.27 0.81 3.04 2.53 0.82
- 9 -
4-1. Cooling capacity 4. Capacity table
CASSETTE TYPE AUU09-18RLF CASSETTE TYPE AUU09-18RLF

¢Model: AUU18RLF
AFR CFM 400
Indoor temperature
°FDB 64 70 75 80 85 90
°FWB 54 60 63 67 71 73
Outdoor temperature
°FDB TC SHC IP TC SHC IP TC SHC IP TC SHC IP TC SHC IP TC SHC IP
kBtu kW kBtu kW kBtu kW kBtu kW kBtu kW kBtu kW
15 15.58 10.90 0.51 17.60 12.32 0.52 18.56 12.99 0.53 19.87 13.91 0.53 21.22 14.85 0.54 21.89 15.33 0.54
23 15.26 10.68 0.55 17.24 12.07 0.56 18.18 12.72 0.57 19.46 13.62 0.57 20.79 14.55 0.58 21.44 15.01 0.58
32 14.94 10.46 0.57 16.88 11.82 0.58 17.79 12.46 0.58 19.05 13.34 0.59 20.36 14.25 0.60 20.99 14.70 0.60
41 14.62 10.23 0.58 16.52 11.56 0.59 17.41 12.19 0.59 18.64 13.05 0.60 19.93 13.95 0.60 20.54 14.38 0.61
50 14.30 10.01 0.59 16.16 11.31 0.60 17.03 11.92 0.60 18.23 12.76 0.61 19.50 13.65 0.62 20.09 14.06 0.62
59 13.98 9.15 0.62 15.80 10.33 0.63 16.65 10.89 0.64 17.83 11.66 0.65 19.07 12.47 0.65 19.64 12.85 0.66
67 15.76 10.47 1.07 17.81 10.47 1.09 18.77 11.57 1.10 20.10 12.11 1.11 21.50 12.42 1.12 22.14 13.78 1.13
77 14.98 10.37 1.21 16.92 10.34 1.23 17.84 11.40 1.24 19.11 11.98 1.25 20.40 12.25 1.27 21.05 13.61 1.27
87 14.16 10.20 1.35 15.97 10.20 1.37 16.86 11.23 1.38 18.05 11.81 1.40 19.28 12.08 1.41 19.89 13.41 1.42
95 14.13 10.27 1.55 15.93 10.27 1.58 16.82 11.33 1.59 18.02 11.87 1.61 19.24 12.15 1.63 19.82 13.51 1.64
104 10.85 9.01 1.12 12.28 8.97 1.14 12.93 9.93 1.15 13.85 10.41 1.17 14.81 10.65 1.18 15.25 11.84 1.19
115 10.07 8.33 1.13 11.40 8.33 1.15 12.01 9.18 1.16 12.86 9.66 1.17 13.75 9.86 1.18 14.16 10.95 1.19
AFR m3/h 680
Indoor temperature
°CDB 17.8 21.1 23.9 26.7 29.4 32.2
°CWB 12.2 15.6 17.2 19.4 21.7 22.8
Outdoor temperature
°CDB TC SHC IP TC SHC IP TC SHC IP TC SHC IP TC SHC IP TC SHC IP
kW kW kW kW kW kW
-10.0 4.57 3.20 0.51 5.16 3.61 0.52 5.44 3.81 0.53 5.82 4.08 0.53 6.22 4.35 0.54 6.42 4.49 0.54
-5.0 4.47 3.13 0.55 5.05 3.54 0.56 5.33 3.73 0.57 5.70 3.99 0.57 6.09 4.27 0.58 6.28 4.40 0.58
0.0 4.38 3.06 0.57 4.95 3.46 0.58 5.21 3.65 0.58 5.58 3.91 0.59 5.97 4.18 0.60 6.15 4.31 0.60
5.0 4.29 3.00 0.58 4.84 3.39 0.59 5.10 3.57 0.59 5.46 3.82 0.60 5.84 4.09 0.60 6.02 4.21 0.61
10.0 4.19 2.93 0.59 4.74 3.32 0.60 4.99 3.49 0.60 5.34 3.74 0.61 5.71 4.00 0.62 5.89 4.12 0.62
15.0 4.10 2.68 0.62 4.63 3.03 0.63 4.88 3.19 0.64 5.22 3.42 0.65 5.59 3.65 0.65 5.76 3.77 0.66
19.4 4.62 3.07 1.07 5.22 3.07 1.09 5.50 3.39 1.10 5.89 3.55 1.11 6.30 3.64 1.12 6.49 4.04 1.13
25.0 4.39 3.04 1.21 4.96 3.03 1.23 5.23 3.34 1.24 5.60 3.51 1.25 5.98 3.59 1.27 6.17 3.99 1.27
30.6 4.15 2.99 1.35 4.68 2.99 1.37 4.94 3.29 1.38 5.29 3.46 1.40 5.65 3.54 1.41 5.83 3.93 1.42
35.0 4.14 3.01 1.55 4.67 3.01 1.58 4.93 3.32 1.59 5.28 3.48 1.61 5.64 3.56 1.63 5.81 3.96 1.64
40.0 3.18 2.64 1.12 3.60 2.63 1.14 3.79 2.91 1.15 4.06 3.05 1.17 4.34 3.12 1.18 4.47 3.47 1.19
46.0 2.95 2.44 1.13 3.34 2.44 1.15 3.52 2.69 1.16 3.77 2.83 1.17 4.03 2.89 1.18 4.15 3.21 1.19
- 10 -
4-1. Cooling capacity 4. Capacity table
CASSETTE TYPE AUU09-18RLF CASSETTE TYPE AUU09-18RLF

4-2. Heating capacity
NOTE: Values mentioned in the table are calculated based on the maximum capacity.
¢Model: AUU9RLF
AFR CFM 318
Indoor temperature
°FDB 60 65 70 75
Outdoor temperature
°FDB °FWB TC IP TC IP TC IP TC IP
kBtu/h kW kBtu/h kW kBtu/h kW kBtu/h kW
-5 -7 14.7 1.84 14.3 1.88 14.0 1.92 13.3 1.99
5 3 16.1 1.79 15.7 1.83 15.4 1.87 14.6 1.94
14 12 16.8 1.73 16.4 1.76 16.0 1.80 15.2 1.87
23 19 17.3 1.67 16.9 1.70 16.5 1.74 15.7 1.81
32 28 17.4 1.61 17.0 1.64 16.6 1.68 15.7 1.74
41 37 17.4 1.67 17.0 1.71 16.6 1.74 15.8 1.81
47 43 18.9 1.73 18.5 1.76 18.0 1.80 17.1 1.87
50 47 20.9 1.75 20.4 1.79 19.9 1.83 18.9 1.90
59 50 21.6 1.76 21.1 1.80 20.6 1.84 19.6 1.91
AFR m3/h 540
Indoor temperature
°CDB 15.6 18.3 21.1 23.9
Outdoor temperature
°CDB °CWB TC IP TC IP TC IP TC IP
kW kW kW kW
-20.6 -21.7 4.31 1.84 4.20 1.88 4.10 1.92 3.90 1.99
-15.0 -16.1 4.73 1.79 4.61 1.83 4.50 1.87 4.28 1.94
-10.0 -11.1 4.91 1.73 4.80 1.76 4.68 1.80 4.45 1.87
-5.0 -7.2 5.08 1.67 4.96 1.70 4.84 1.74 4.59 1.81
0.0 -2.2 5.10 1.61 4.98 1.64 4.86 1.68 4.61 1.74
5.0 2.8 5.11 1.67 4.99 1.71 4.87 1.74 4.62 1.81
8.3 6.1 5.54 1.73 5.41 1.76 5.28 1.80 5.01 1.87
10.0 8.3 6.12 1.75 5.98 1.79 5.83 1.83 5.54 1.90
15.0 10.0 6.34 1.76 6.19 1.80 6.04 1.84 5.74 1.91
¢Model: AUU12RLF
AFR CFM 359
Indoor temperature
°FDB 60 65 70 75
Outdoor temperature
°FDB °FWB TC IP TC IP TC IP TC IP
kBtu/h kW kBtu/h kW kBtu/h kW kBtu/h kW
-5 -7 15.8 2.23 15.4 2.27 15.0 2.32 14.3 2.36
5 3 17.6 2.16 17.2 2.21 16.8 2.25 15.9 2.34
14 12 18.3 2.09 17.8 2.13 17.4 2.17 16.5 2.26
23 19 19.2 2.01 18.7 2.05 18.2 2.10 17.3 2.18
32 28 19.5 1.95 19.0 1.99 18.5 2.03 17.6 2.11
41 37 19.7 1.86 19.2 1.90 18.8 1.94 17.8 2.02
47 43 20.4 1.92 19.9 1.96 19.4 2.00 18.4 2.08
50 47 22.5 1.94 22.0 1.98 21.4 2.02 20.4 2.10
59 50 23.3 1.95 22.8 1.99 22.2 2.03 21.1 2.11
AFR m3/h 610
Indoor temperature
°CDB 15.6 18.3 21.1 23.9
Outdoor temperature
°CDB °CWB TC IP TC IP TC IP TC IP
kW kW kW kW
-20.6 -21.7 4.63 2.23 4.52 2.27 4.41 2.32 4.19 2.36
-15.0 -16.1 5.16 2.16 5.03 2.21 4.91 2.25 4.66 2.34
-10.0 -11.1 5.36 2.09 5.23 2.13 5.10 2.17 4.85 2.26
-5.0 -7.2 5.61 2.01 5.48 2.05 5.35 2.10 5.08 2.18
0.0 -2.2 5.70 1.95 5.57 1.99 5.43 2.03 5.16 2.11
5.0 2.8 5.78 1.86 5.64 1.90 5.50 1.94 5.23 2.02
8.3 6.1 5.99 1.92 5.84 1.96 5.70 2.00 5.42 2.08
10.0 8.3 6.60 1.94 6.44 1.98 6.28 2.02 5.97 2.10
15.0 10.0 6.84 1.95 6.67 1.99 6.51 2.03 6.19 2.11
- 11 -
4-2. Heating capacity 4. Capacity table
CASSETTE TYPE AUU09-18RLF CASSETTE TYPE AUU09-18RLF

¢Model: AUU18RLF
AFR CFM 471
Indoor temperature
°FDB 60 65 70 75
Outdoor temperature
°FDB °FWB TC IP TC IP TC IP TC IP
kBtu/h kW kBtu/h kW kBtu/h kW kBtu/h kW
-5 -7 19.3 2.42 18.9 2.47 18.4 2.52 17.5 2.63
5 3 20.7 2.63 20.2 2.68 19.7 2.74 18.8 2.85
14 12 22.2 2.68 21.6 2.73 21.1 2.79 20.1 2.90
23 19 23.1 2.79 22.6 2.85 22.0 2.91 20.9 3.03
32 28 23.3 3.02 22.8 3.08 22.2 3.14 21.1 3.19
41 37 25.5 2.67 24.9 2.73 24.3 2.78 23.1 2.90
47 43 26.9 2.50 26.2 2.55 25.6 2.60 24.3 2.70
50 47 29.7 2.23 29.0 2.28 28.3 2.32 26.9 2.42
59 50 30.8 2.24 30.1 2.29 29.3 2.34 27.9 2.43
AFR m3/h 800
Indoor temperature
°CDB 15.6 18.3 21.1 23.9
Outdoor temperature
°CDB °CWB TC IP TC IP TC IP TC IP
kW kW kW kW
-20.6 -21.7 5.67 2.42 5.53 2.47 5.40 2.52 5.13 2.63
-15.0 -16.1 6.08 2.63 5.93 2.68 5.79 2.74 5.50 2.85
-10.0 -11.1 6.50 2.68 6.34 2.73 6.19 2.79 5.88 2.90
-5.0 -7.2 6.78 2.79 6.62 2.85 6.45 2.91 6.13 3.03
0.0 -2.2 6.84 3.02 6.68 3.08 6.51 3.14 6.19 3.19
5.0 2.8 7.47 2.67 7.29 2.73 7.12 2.78 6.76 2.90
8.3 6.1 7.88 2.50 7.69 2.55 7.50 2.60 7.13 2.70
10.0 8.3 8.71 2.23 8.50 2.28 8.29 2.32 7.88 2.42
15.0 10.0 9.02 2.24 8.81 2.29 8.59 2.34 8.16 2.43
- 12 -
4-2. Heating capacity 4. Capacity table
CASSETTE TYPE AUU09-18RLF CASSETTE TYPE AUU09-18RLF

5. Fan performance
5-1. Air velocity distributions
¢Model: AUU9RLF
• Air velocity distribution
Measuring conditions Fan speed Operation mode
HIGH FAN
Top view
Vertical airflow direction louver: Up
7 (2.0) 7 (2.0)
7 (2.0)
7 (2.0)
3 (1.0)
3 (1.0)
3 (1.0)
3 (1.0)
2 (0.5)
2 (0.5)
2 (0.5)
2 (0.5)
1 (0.25)
1 (0.25)
1 (0.25)
1 (0.25)
Unit: ft/s (m/s)
(m)(ft)
00
3
3
7
7
10
10
13
13
1
1
2
2
3
3
4
4
(m)
(ft)
0
0
11
33771010 1313
2233 44
Side view
Vertical airflow direction louver: Up
7 (2.0)
3 (1.0)
2 (0.5) 2 (0.5)
1 (0.25) 1 (0.25)
Unit: ft/s (m/s)
(m)(ft)
0
0
3
7
9
1
2
2.7
(m)
(ft)
0
0
11
33771010 1313
2233 44
- 13 -
5-1. Air velocity distributions 5. Fan performance
CASSETTE TYPE AUU09-18RLF CASSETTE TYPE AUU09-18RLF

Measuring conditions
NOTE: Reference data
Fan speed Operation mode Outlet directions
HIGH HEAT 4-way air outlet
• Air velocity distribution
Side view
Vertical airflow direction louver: Down
7 (2.0) 7 (2.0)
5 (1.5) 5 (1.5)
3 (1.0) 3 (1.0)
2 (0.5) 2 (0.5)
1 (0.25) 1 (0.25)
Unit: ft/s (m/s)
(m)(ft)
0
0
3
7
9
8
1
2
2.7
2.5
(m)
(ft)
0
0
11
33771010 1313
2233 44
• Air temperature distribution
Side view
Vertical airflow direction louver: Down
86 (3 0) 8 6 (3 0)
82 (28) 82 (2 8)
79 (26) 79 (26)
75 (24) 75 (24)
72 (22) 72 (22)
Unit: °F (°C)
(m)(ft)
0
0
3
7
9
8
1
2
2.7
2.5
(m)
(ft)
0
0
11
33771010 1313
2233 44
- 14 -
5-1. Air velocity distributions 5. Fan performance
CASSETTE TYPE AUU09-18RLF CASSETTE TYPE AUU09-18RLF

¢Model: AUU12RLF
• Air velocity distribution
Measuring conditions Fan speed Operation mode
HIGH FAN
Top view
Vertical airflow direction louver: Up
7 (2.0) 7 (2.0)
7 (2.0)
7 (2.0)
3 (1.0)
3 (1.0)
3 (1.0)
3 (1.0)
2 (0.5)
2 (0.5)
2 (0.5)
2 (0.5)
1 (0.25)
1 (0.25)
1 (0.25)
1 (0.25)
Unit: ft/s (m/s)
4
3
2
1
0
1
2
3
4
432101234
(m)
(m)
0
3
7
(ft)
3
7
10
13
10
13
13 10 7303710 13 (ft)
Side view
Vertical airflow direction louver: Up
7 (2.0)
3 (1.0)
2 (0.5) 2 (0.5)
1 (0.25) 1 (0.25)
432101234
(m)
0
1
2
2.7
(m) Unit: ft/s (m/s)
0
3
7
9
(ft)
13 10 7303710 13 (ft)
- 15 -
5-1. Air velocity distributions 5. Fan performance
CASSETTE TYPE AUU09-18RLF CASSETTE TYPE AUU09-18RLF

Measuring conditions
NOTE: Reference data
Fan speed Operation mode Outlet directions
HIGH HEAT 4-way air outlet
• Air velocity distribution
Side view
Vertical airflow direction louver: Down
5 (1.5) 5 (1.5)
3 (1.0) 3 (1.0)
2 (0.5) 2 (0.5)
1 (0.25) 1 (0.25)
432101234
(m)
0
1
2
2.7
(m)
Unit: ft/s (m/s)
0
3
7
9
(ft)
13 10 7303710 13 (ft)
2.5
8
• Air temperature distribution
Side view
Vertical airflow direction louver: Down
86 (30) 86 (30)
82 (28) 82 (28)
79 (26) 79 (26)
75 (24) 75 (24)
72 (22) 72 (22)
432101234
(m)
0
1
2
2.7
(m) Unit: ft/s (m/s)
0
3
7
9
(ft)
13 10 7303710 13 (ft)
2.5
8
- 16 -
5-1. Air velocity distributions 5. Fan performance
CASSETTE TYPE AUU09-18RLF CASSETTE TYPE AUU09-18RLF
