Fujitsu Silicone Sleeve User manual

This silicone sleeve is a rugged, lightweight case for protecting your
Slate PC.
Figure 1. Silicone Sleeve with System Installed
The silicone sleeve attaches snugly and securely to your computer.
Please read this manual before installing using the silicone sleeve.
Note: The color of your sleeve may vary from that in the photos.
Inserting the System into the Sleeve
The silicone sleeve is designed to provide a secure fit for the system.
In order to ensure your system is installed correctly, please perform
the following steps.
1. Align the system above the sleeve so that the fingerprint sen-
sor and web camera opening are aligned with those features
on the back of the tablet. (Figure 2)
2. Tuck one of the narrow ends of the system into the sleeve
under the flexible edge (Figure 3). Lay the other end of the
system atop the other end of the sleeve.
3. Due to the secure fit of the sleeve, the unsecured corners of the
sleeve must be bent backwards to allow the system to be laid
into it, after which the corners are bent back over the system
corners to secure them (Figure 4).
Silicone Sleeve User’s Guide
Fujitsu America, Inc.

2
Figure 2. Silicone Sleeve - Back
Figure 3. Laying in System
Web Camera Fingerprint
Sensor Opening
Pen Holder Opening
Threaded insert holes (for use with optional hand strap)
g

3
Figure 4. Securing Corners
Pen Holder
The silicone sleeve has a handy pen holder located at the top
(Figure 2). It’s good practice to stow your pen when not in use in
order to prevent damage to it.
Lanyard / Pen Tether
The pen tether attachment point on the system is exposed so
that when the system is installed in the sleeve you can
secure the pen tether that was included with your system
and/or the lanyard (pictured on the right) that was included
with the sleeve. To install, run the loop on the end of the
tether or lanyard through the pen tether attachment point,
then feed the pen or lanyard through the loop. Pull it taut.
Optional Hand Strap
An optional hand strap is available as an accessory. When
the system is installed in the silicone sleeve, the hand strap
can be attached to the threaded inserts through the holes in the
back of the sleeve (Figure 2).
Using the Optional Docking Cradle
A system that is installed in the silicone sleeve can be used with
the optional docking cradle. Note that there is a thinner section
with both hands. When
the system is lying flat, bend
the corner back over the system corner.

4
on the bottom rear of the sleeve; this is designed to help accom-
modate the docking cradle.
Fujitsu America, Inc.
1250 E. Arques Avenue,
Sunnyvale, California 94085
For more information, call 1-800-FUJITSU or visit our Web site at:
www.ShopFujitsu.
For technical support call:1-800-8FUJITSU (1-800-838-5487)
Fujitsu and the Fujitsu logo are registered trademarks of Fujitsu
Ltd. All other trademarks mentioned herein are the property of
their respective owners. © 2011 Fujitsu America, Inc. All rights
reserved.

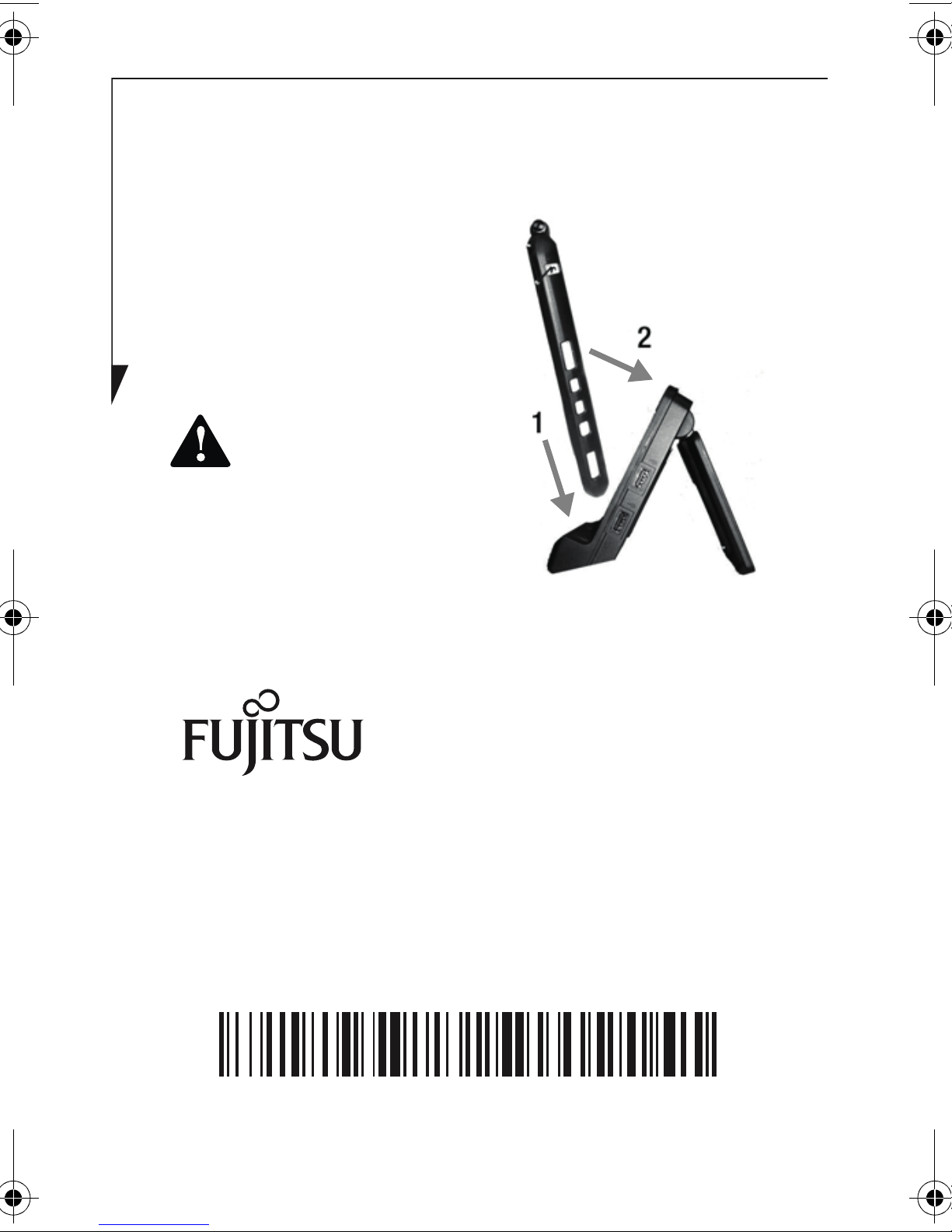

To attach it to the docking cradle,
visually align the connector on the
bottom of your slate with the
connector on the docking cradle
(Fig. 5). While holding the top
away from the cradle, set the slate
onto the cradle with the connec-
tors aligned.
To protect your system
from damage during doc-
king, do not push too
hard, or the connectors may be
damaged. Lay the top of the sys-
tem against the cradle. When pro-
perly installed, the tablet will rest
on the small risers on the base of
the cradle; there should be a small
gap between the bottom of the
Figure 5. Docking System
tablet and base of the cradle.
B6FY-0761-01EN-01
