Assembly Instructions
SMARTCASE S500 (D3544-Sx) S26361-F5000-J004
_________________________________________________________________________________________________________
Table of Contents
Step 1 Prepare the Chassis .............................................................................................................................................2
Step 2 Mount the Cooler.................................................................................................................................................4
Step 3 Insert Modules.....................................................................................................................................................6
Step 4 MB-Mounting in Chassis....................................................................................................................................11
Step 5 Optional Mounting ............................................................................................................................................14

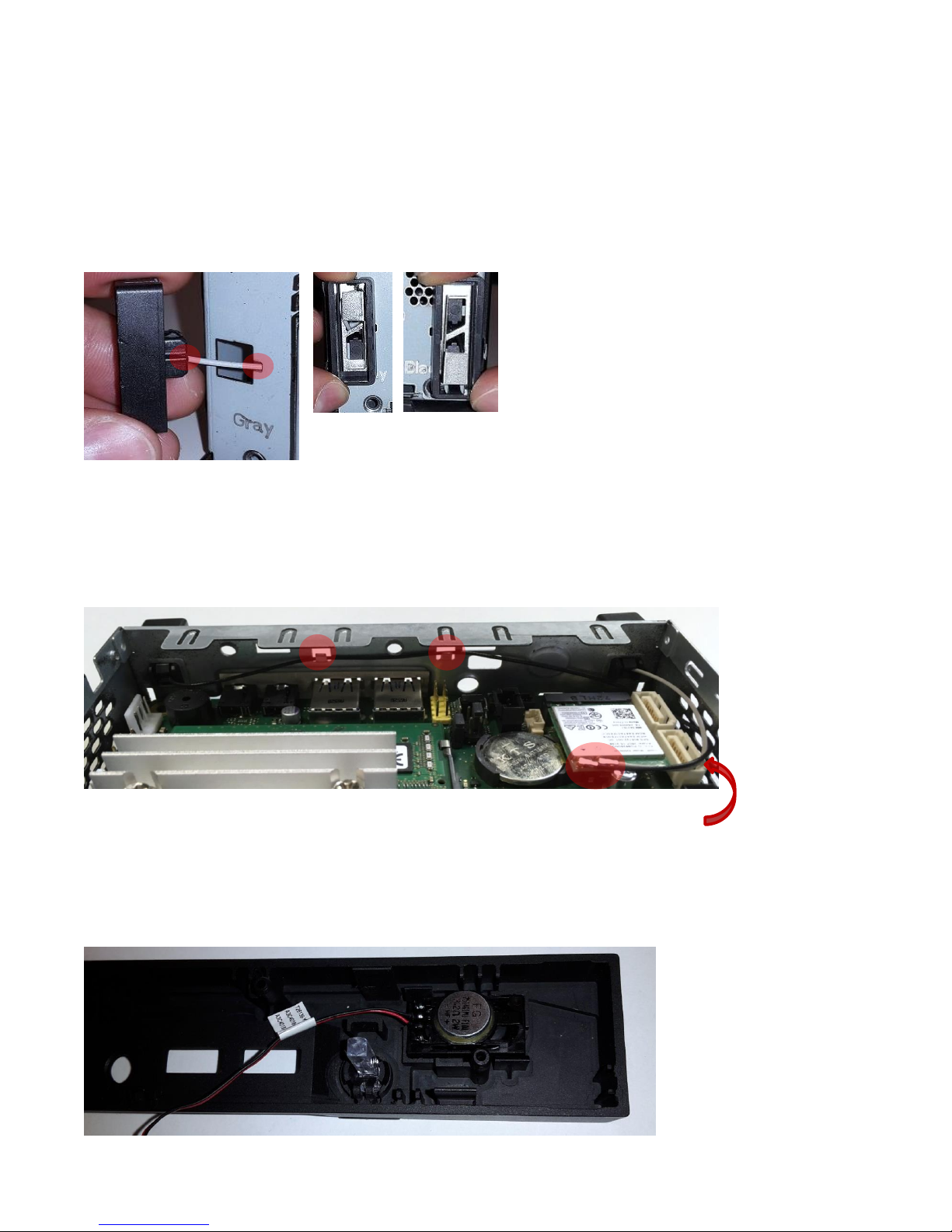

Mounting WLAN-antennas (optional) ......................................................................................................................14
WLAN-aerial cable mounting (optional)...................................................................................................................14
Speaker mounting (optional)...................................................................................................................................14

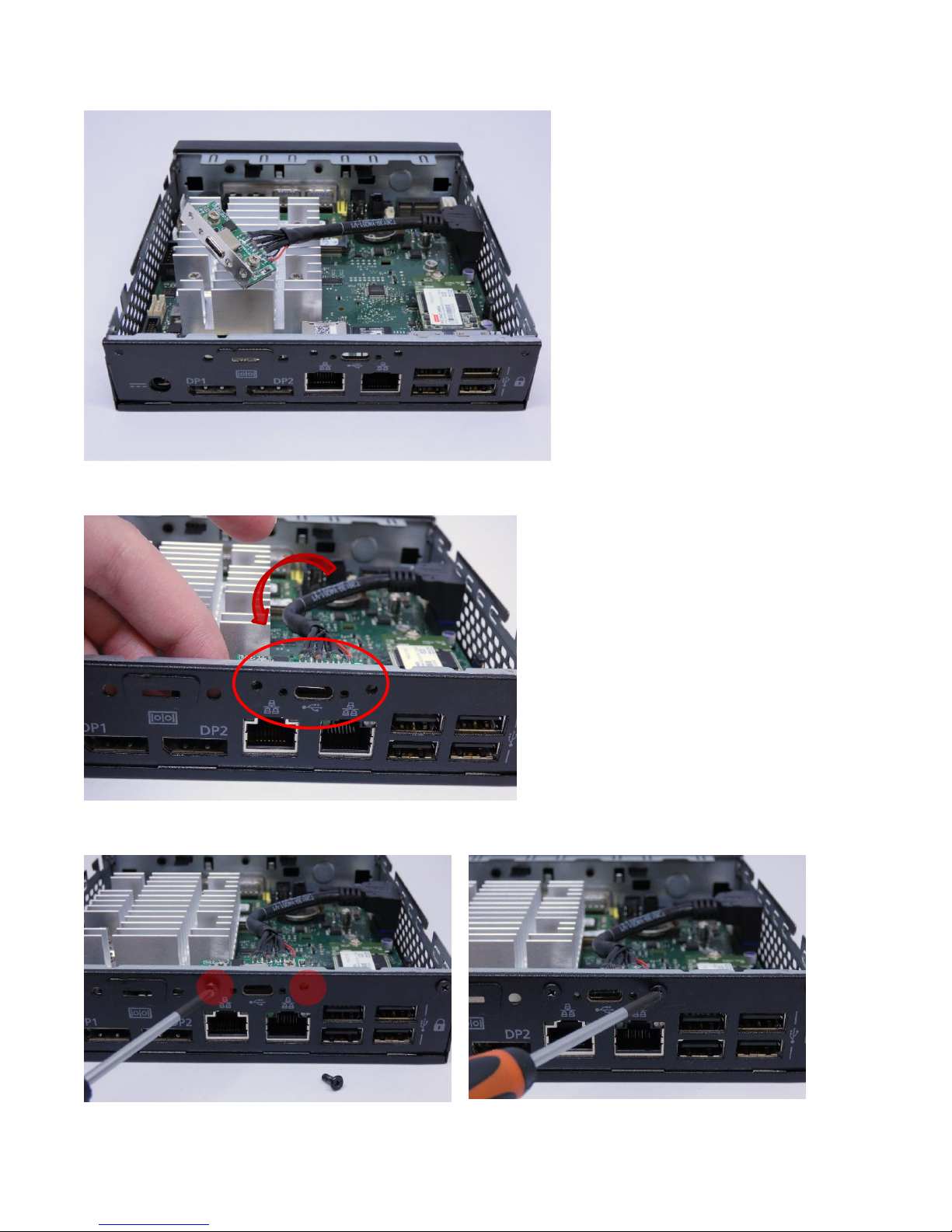

Mounting USB Type C (optional)...............................................................................................................................15
Mounting COM Cable (optional) ...............................................................................................................................18

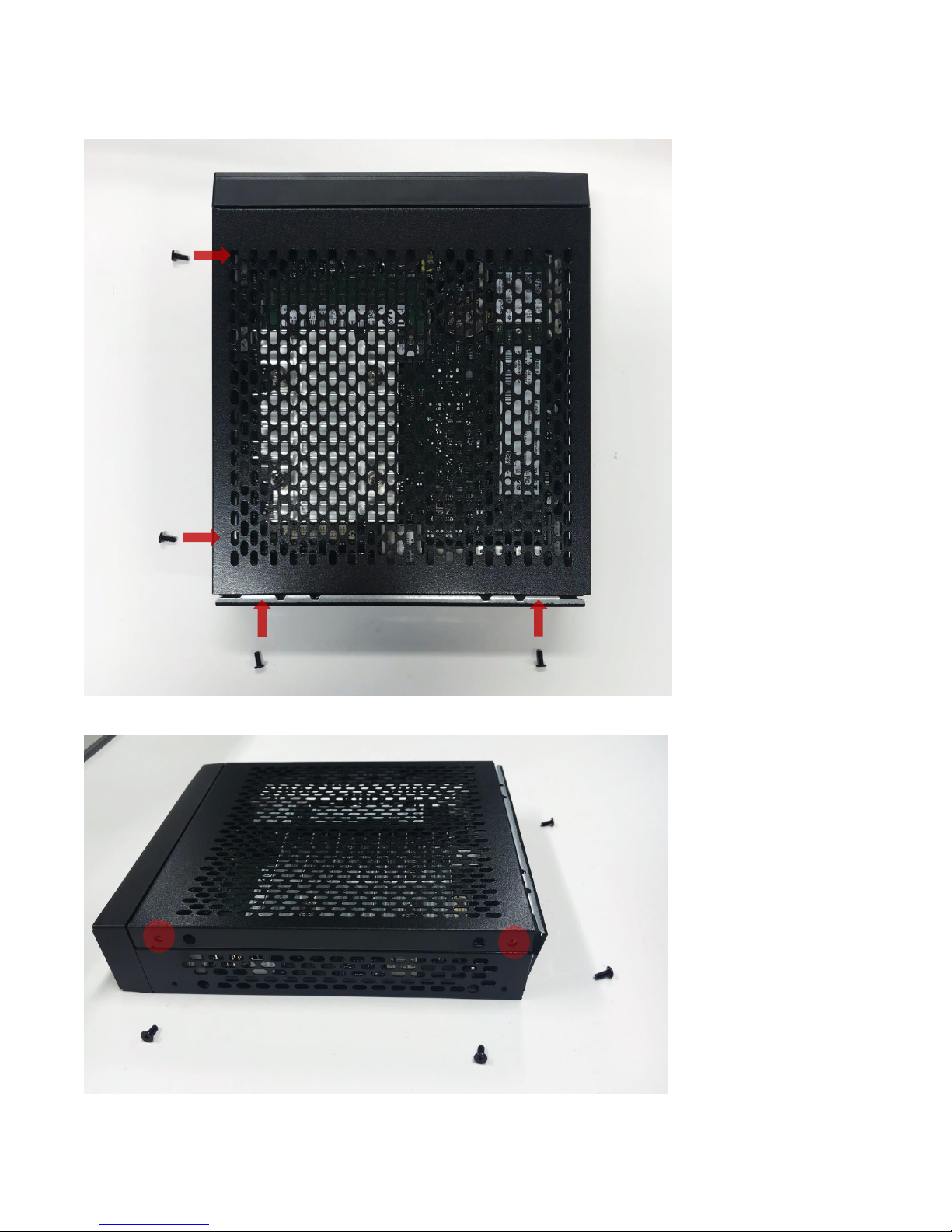

Step 6 Close the Chassis ...............................................................................................................................................19
Step 7 Add Stands.........................................................................................................................................................22

Assembly Instructions SMARTCASE S500
__________________________________________________________________________________________________________________________________________________________
Page 2 of 23 www.fujitsu.com
Step 1 Prepare the Chassis

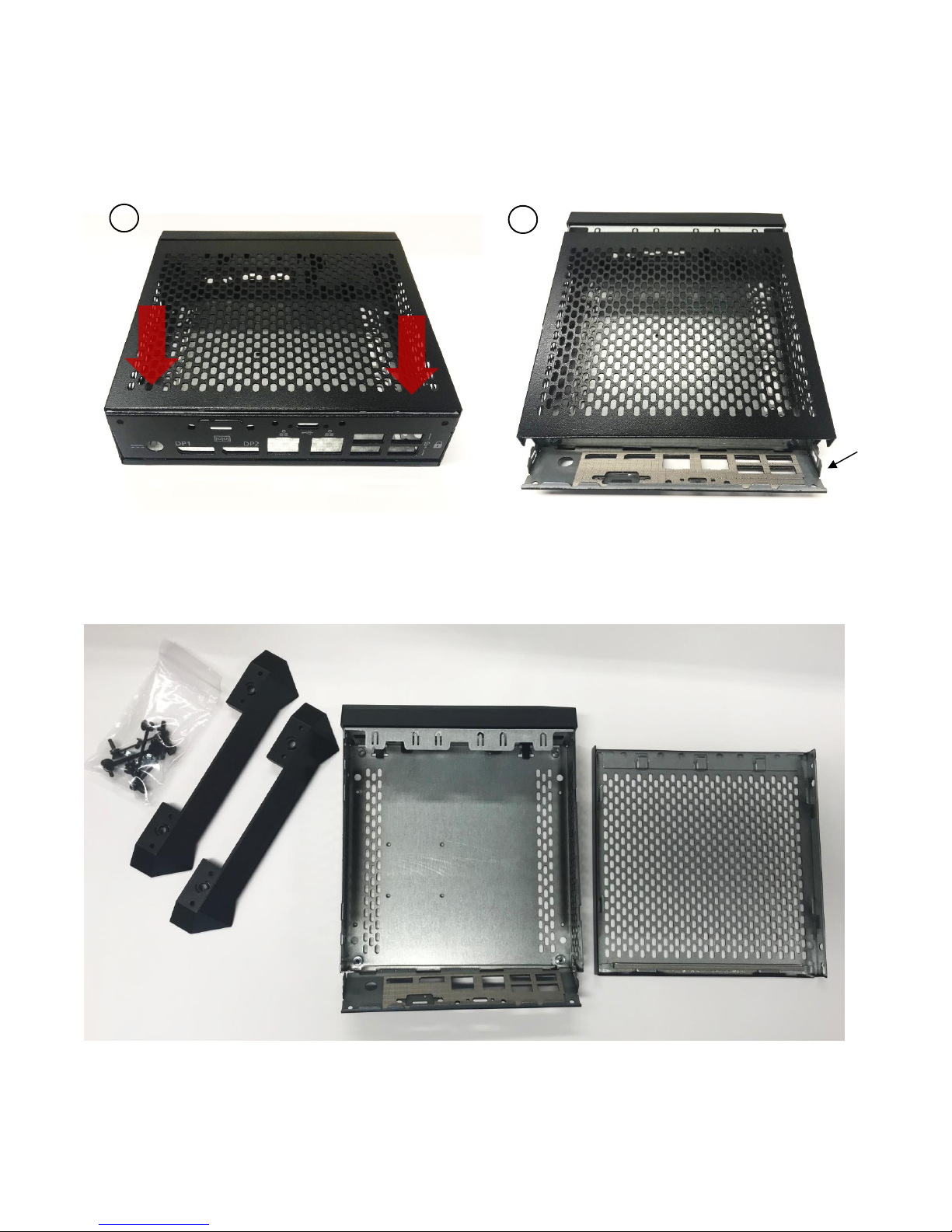

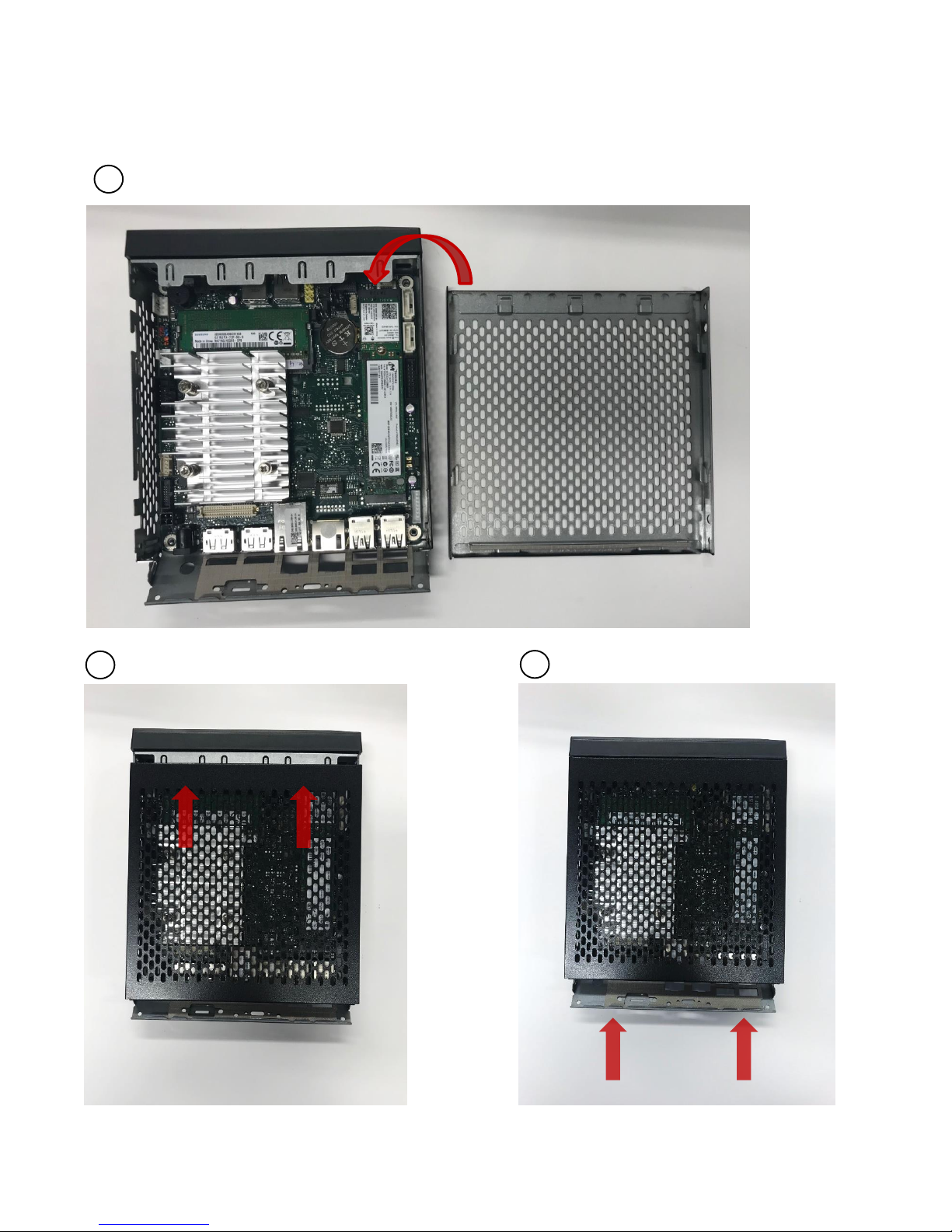

Open the chassis with two hands by putting some pressure on your thumbs to push the cover reward.
Now you can take the top cover off. After opening the chassis unpack the contents.
1
2
rear i/o

Assembly Instructions SMARTCASE S500
__________________________________________________________________________________________________________________________________________________________
Page 3 of 23 www.fujitsu.com
Overview of the content:
You can choose optional between the active cooler and the passive cooler. In the further instructions, we use the
passive cooler but you go the same way for the active cooler.
Mainboard
Passive Cooler
Active Cooler

Assembly Instructions SMARTCASE S500
__________________________________________________________________________________________________________________________________________________________
Page 4 of 23 www.fujitsu.com
Step 2 Mount the Cooler
Before mounting the board into the chassis, it is necessary to add hardware to it first (CPU, Cooler, RAM, plus any
optional additional hardware). First start with the back plate, which is essential for the cooler.
Do not take the stripe off the back plate for sticking it onto the backside of the board. The sticker is necessary for
isolation and safety.

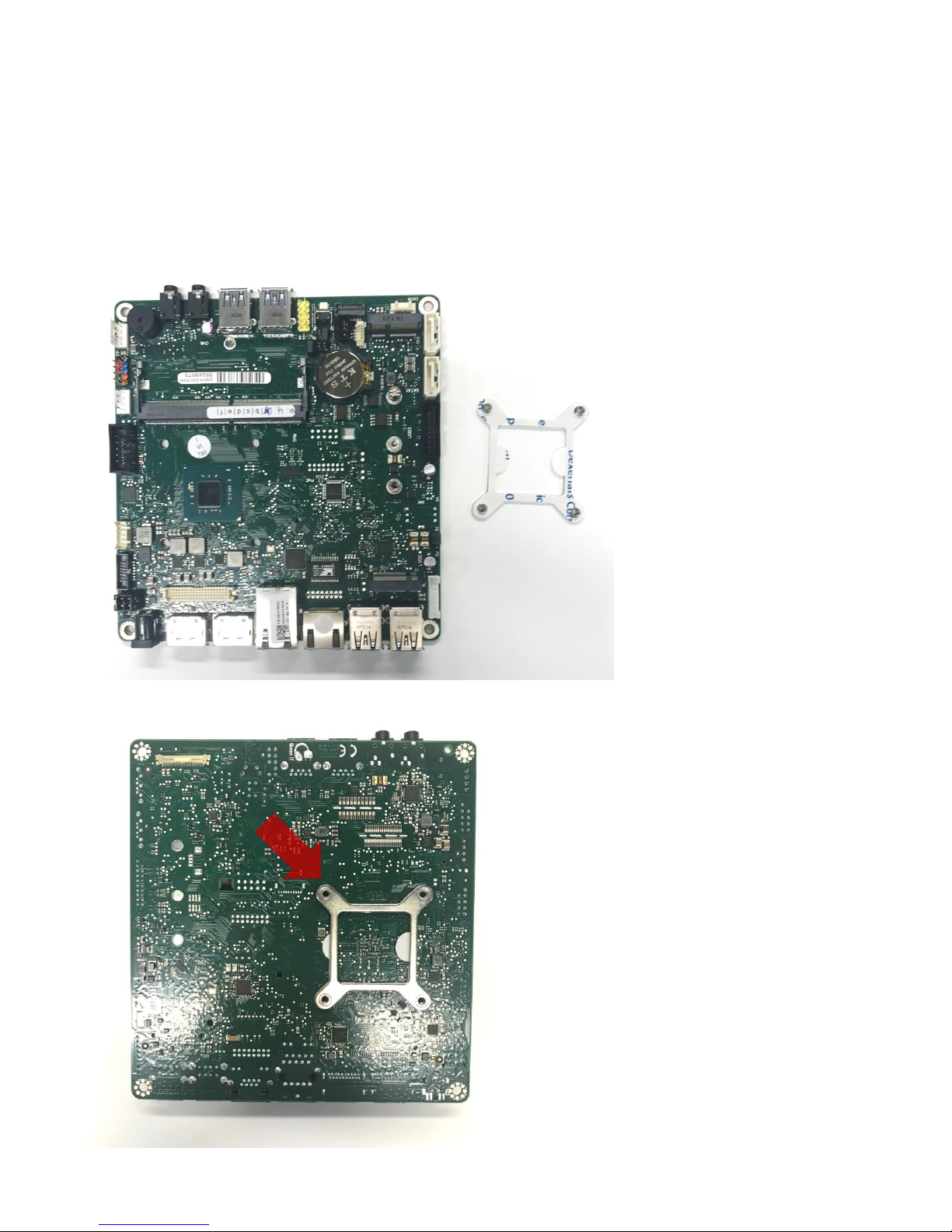

Place the back plate underneath the board.
The side with the indentation has to be positioned
directly under the screw. The end of the back
plate’s notches should be visible after the process.
Back plate

Assembly Instructions SMARTCASE S500
__________________________________________________________________________________________________________________________________________________________
Page 5 of 23 www.fujitsu.com

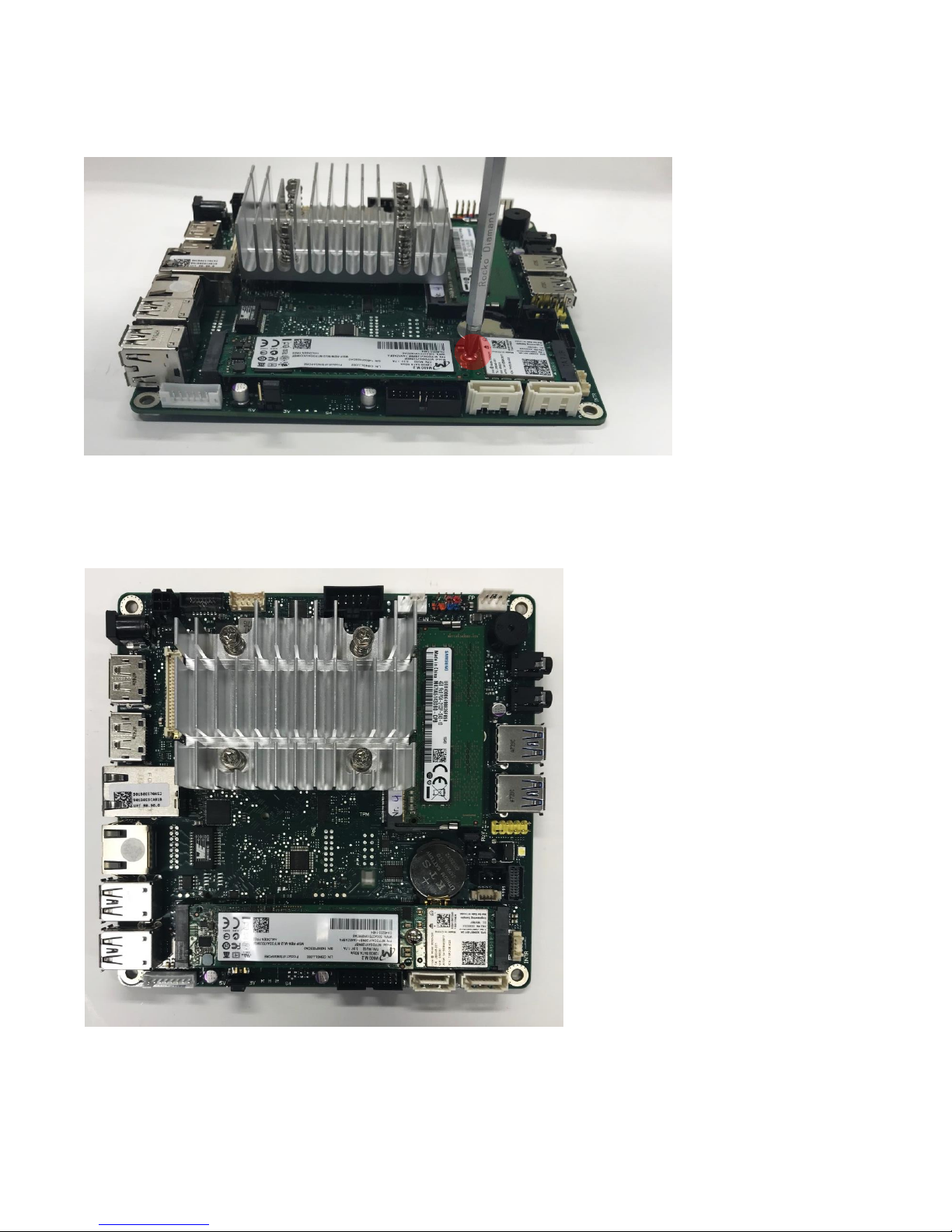

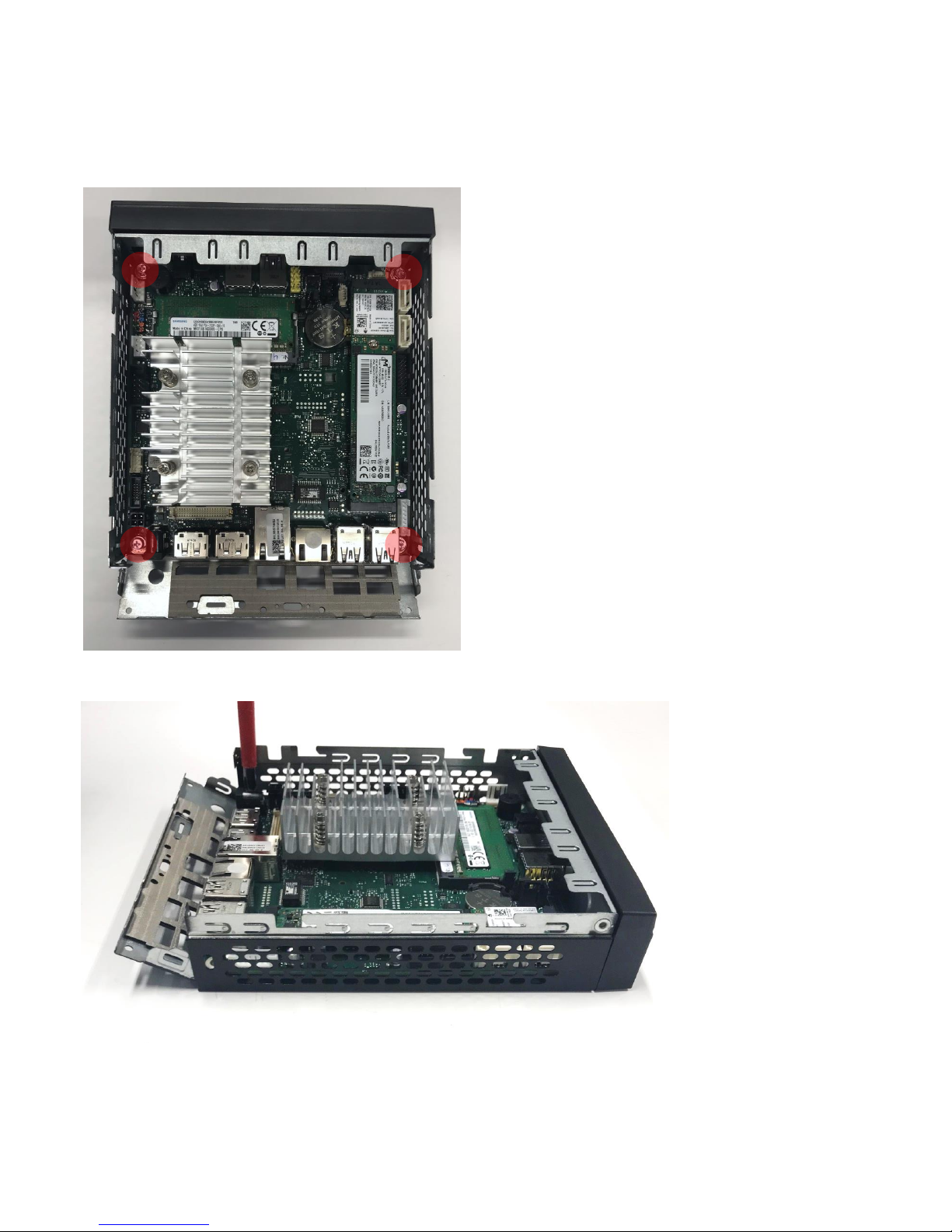

Next, mount the cooler on top of the CPU (1) and tighten the screws in the designated holes (2). Recommended
mounting screw torque: max. 0.8Nm. Be aware that the wire needs to be able to reach the red slot.
Option 1: Active Cooler
Put the cooler on top of the CPU and screw it onto the back plate through the board. Connect the cooler with the
board by the use of the cable connector (see arrow in Step 2).
Option 2: Passive Cooler
Then put the cooler on top of the CPU and screw it onto the back plate through the board. The thermal paste is
already applied.
1
2
1
2

Assembly Instructions SMARTCASE S500
__________________________________________________________________________________________________________________________________________________________
Page 6 of 23 www.fujitsu.com
Step 3 Insert Modules
In the following picture, you can see the board with the three appropriated M.2 WLAN Modules or storage:
Next put the memory in tilted upwards and then push it down with a little pressure.
Attention: Do not touch the pin! Touch the memory at the outside edge. Do not stick a barcode on the memory!
The following procedure is necessary to make correct contact guarantee:
Insert memory at an angle and
pay attention to the notch!
Remove the memory again
completely from the DIMM slot!
Insert memory again
Press down on the memory until
it clicks into place
Do not press in the middle of the
memory, but press down on the
outer edges (yellow arrows on
the following picture)
Mainboard
M.2 2242
SSD/ Storage
M.2 SSD / Storage
2280
M.2 2230
WLAN
Memory

Assembly Instructions SMARTCASE S500
__________________________________________________________________________________________________________________________________________________________
Page 7 of 23 www.fujitsu.com

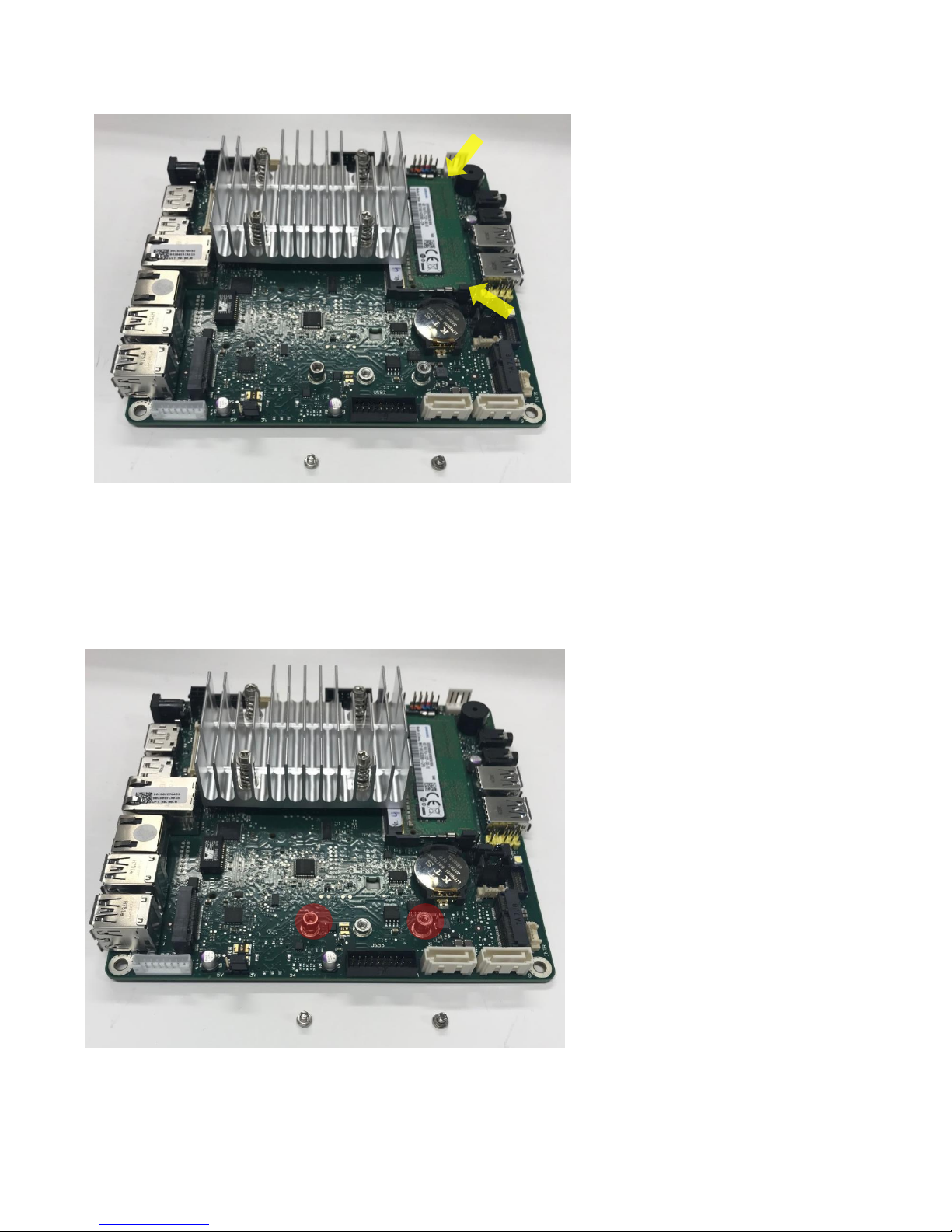

WLAN - Module / M.2. Module mounting
First, you have to remove the screws.

Assembly Instructions SMARTCASE S500
__________________________________________________________________________________________________________________________________________________________
Page 8 of 23 www.fujitsu.com

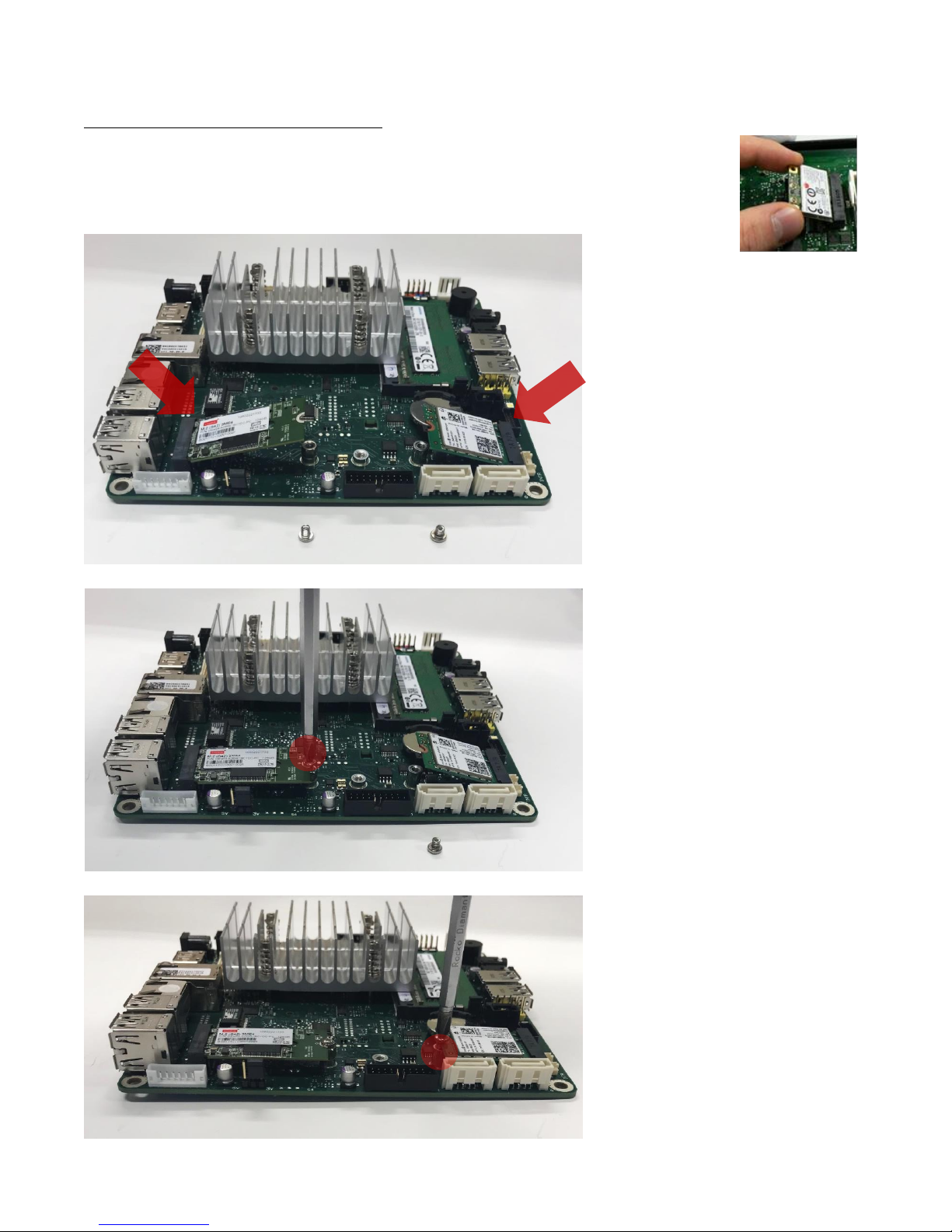

Option 1: M.2. WLAN 2230 and SSD / Storage
Insert WLAN card transversally into the slot (while paying attention to the coding / notch).
Both modules, as shown in the picture, always tackle on the outer edges.
Same procedure for the SSD / storage module (Option 2).
Pay attention
to the notch
In the next step you have to push it down a
little bit and tighten the screws in the
designated hole.
Now do the same step on the other side.

Assembly Instructions SMARTCASE S500
__________________________________________________________________________________________________________________________________________________________
Page 9 of 23 www.fujitsu.com
If all screws are tighten up, the finished result should look like this:
Option 2: SSD / Storage Module
Now you have to put in the M.2. SSD /
Storage 2280 and M.2 2242.
Pay attention to the notch!

Assembly Instructions SMARTCASE S500
__________________________________________________________________________________________________________________________________________________________
Page 10 of 23 www.fujitsu.com
In this case you only have to use one screw. So tighten up this screw in the next step.
The finished result should look like this:
