PRIMERGY BX620 S6
Server Blade
Options Guide
August 2010

Comments…Suggestions…Corrections…
The User Documentation Department would like to
know your opinion of this manual. Your feedback helps
us optimize our documentation to suit your individual
needs.
Feel free to send us your comments by e-mail to
[email protected]ujitsu.com.
Certified documentation
according to DIN EN ISO 9001:2008
To ensure a consistently high quality standard and
user-friendliness, this documentation was created to
meet the regulations of a quality management system
which complies with the requirements of the standard
DIN EN ISO 9001:2008.
cognitas. Gesellschaft für Technik-Dokumentation mbH
www.cognitas.de
Copyright and Trademarks
© cognitas. Gesellschft für Technik-Dokumentation mbH 2010 Pfad: C:\Programme\FCT\tim_app\tim_local\work\PICHOL\OBJ_DOKU-7372-001.fm
Copyright © 2010 Fujitsu Technology Solutions GmbH.
All rights reserved.
Delivery subject to availability; right of technical modifications reserved.
All hardware and software names used are trademarks of their respective manufacturers.
– The contents of this manual may be revised without prior notice.
– Fujitsu assumes no liability for damages to third party copyrights or other rights arising from
the use of any information in this manual.
– No part of this manual may be reproduced in any form without the prior written permission
of Fujitsu.
Microsoft, Windows, Windows Server, and Hyper V are trademarks or registered trademarks of
Microsoft Corporation in the USA and other countries.
Intel and Xeon are trademarks or registered trademarks of Intel Corporation or its subsidiaries
in the USA and other countries.

BX620 S6 Options Guide
Before reading this manual
For your safety
This manual contains important information for safely and correctly using this
product.
Carefully read the manual before using this product. Pay particular attention to
the accompanying manual "Safety Notes and Regulations" and ensure these
safety notes are understood before using the product. Keep this manual and the
manual "Safety Notes and Regulations" in a safe place for easy reference while
using this product.
Radio interference
This product is a "Class A" ITE (Information Technology Equipment). In a
domestic environment this product may cause radio interference, in which case
the user may be required to take appropriate measures. VCCI-A
Aluminum electrolytic capacitors
The aluminum electrolytic capacitors used in the product's printed circuit board
assemblies and in the mouse and keyboard are limited-life components. Use of
these components beyond their operating life may result in electrolyte leakage
or depletion, potentially causing emission of foul odor or smoke.
As a guideline, in a normal office environment (25°C) operating life is not
expected to be reached within the maintenance support period (5 years).
However, operating life may be reached more quickly if, for example, the product
is used in a hot environment. The customer shall bear the cost of replacing
replaceable components which have exceeded their operating life. Note that
these are only guidelines, and do not constitute a guarantee of trouble-free
operation during the maintenance support period.
High safety use
This product has been designed and manufactured for general uses such as
general office use, personal use, domestic use and normal industrial use. It has
not been designed or manufactured for uses which demand an extremely high
level of safety and carry a direct and serious risk to life or body if such safety
cannot be ensured.

OptionsGuide BX620 S6
© cognitas. Gesellschft für Technik-Dokumentation mbH 2010 Pfad: C:\Programme\FCT\tim_app\tim_local\work\PICHOL\OBJ_DOKU-7372-001.fm
These uses include control of nuclear reactions in nuclear power plants,
automatic airplane flight control, air traffic control, traffic control in mass
transport systems, medical devices for life support, and missile guidance control
in weapons systems (hereafter, "high safety use"). Customers should not use
this product for high safety use unless measures are in place for ensuring the
level of safety demanded of such use. Please consult the sales staff of Fujitsu if
intending to use this product for high safety use.
Measures against momentary voltage drop
This product may be affected by a momentary voltage drop in the power supply
caused by lightning. To prevent a momentary voltage drop, use of an AC
uninterruptible power supply is recommended.
(This notice follows the guidelines of Voltage Dip Immunity of Personal
Computer issued by JEITA, the Japan Electronics and Information Technology
Industries Association.)
Technology controlled by the Foreign Exchange and Foreign Trade
Control Law of Japan
Documents produced by Fujitsu may contain technology controlled by the
Foreign Exchange and Foreign Trade Control Law of Japan. Documents which
contain such technology should not be exported from Japan or transferred to
non-residents of Japan without first obtaining authorization in accordance with
the above law.
Harmonic Current Standards
This product conforms to harmonic current standard JIS C 61000-3-2.
Only for the Japanese market: About SATA hard disk drives
The SATA version of this server blade supports hard disk drives with SATA / BC-
SATA storage interfaces. Please note that the usage and operation conditions
differ depending on the type of hard disk drive used.
Please refer to the following internet address for further information on the
usage and operation conditions of each available type of hard disk drive:
http://primeserver.fujitsu.com/primergy/harddisk/

BX620 S6 Options Guide
Only for the Japanese market:
IAlthough described in this manual, some sections do not apply to the
Japanese market. These options and routines include:
– CSS (Customer Self Service)
– USB Flash Module (UFM)
– Replacing the lithium battery

OptionsGuide BX620 S6
© cognitas. Gesellschft für Technik-Dokumentation mbH 2010 Pfad: C:\Programme\FCT\tim_app\tim_local\work\PICHOL\OBJ_DOKU-7372-001.fm

BX620 S6 Options Guide
Contents
1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
1.1 Concept and target groups of this manual . . . . . . . . . . . 9
1.2 Documentation overview . . . . . . . . . . . . . . . . . . . 10
1.3 Extensions and upgrades . . . . . . . . . . . . . . . . . . . 11

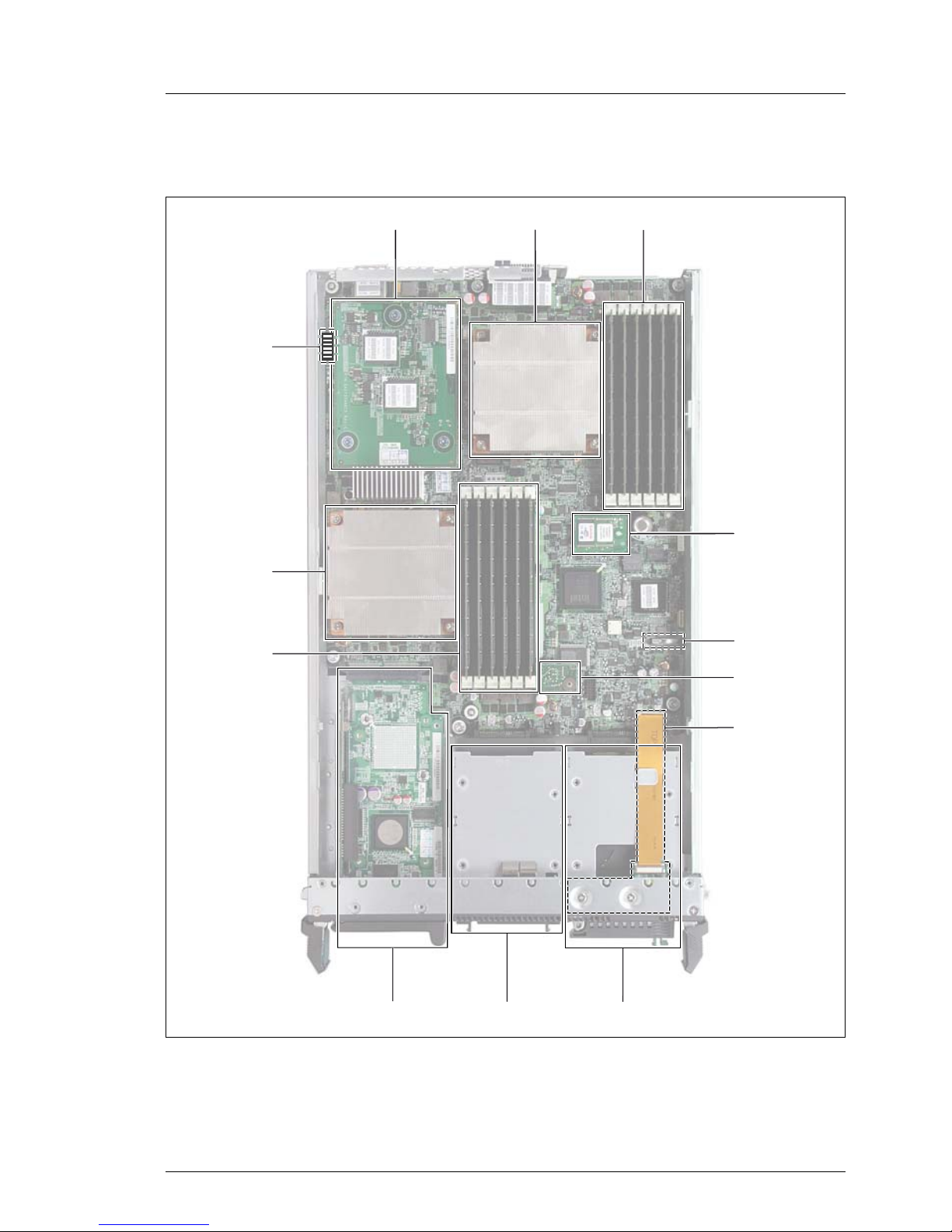

1.4 Structure of the server blade . . . . . . . . . . . . . . . . . 13
1.5 Notational conventions . . . . . . . . . . . . . . . . . . . . 15
2 Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
3 Safety instructions . . . . . . . . . . . . . . . . . . . . . . . 19
4 Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
4.1 Opening the server blade . . . . . . . . . . . . . . . . . . . 23
5 Processors . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
5.1 Installing a second processor . . . . . . . . . . . . . . . . 27
6 Memory modules . . . . . . . . . . . . . . . . . . . . . . . . 33
6.1 Fitting rules . . . . . . . . . . . . . . . . . . . . . . . . . . 35
6.2 Upgrading/replacing the main memory . . . . . . . . . . . . 36
7 Optional I/O modules . . . . . . . . . . . . . . . . . . . . . . 37
7.1 Installing an I/O daughter card . . . . . . . . . . . . . . . . 40

OptionsGuide BX620 S6
Contents
© cognitas. Gesellschft für Technik-Dokumentation mbH 2010 Pfad: C:\Programme\FCT\tim_app\tim_local\work\PICHOL\OBJ_DOKU-7373-001.fm
8 Storage modules . . . . . . . . . . . . . . . . . . . . . . . . 43
8.1 Storage module variants . . . . . . . . . . . . . . . . . . . . 44
8.1.1 BX620 S6 SAS storage module . . . . . . . . . . . . . . . . . 44
8.1.2 BX620 S6 SAS/PCI Express storage module . . . . . . . . . . 45
8.1.3 BX620 S6 SAS/RAID storage module . . . . . . . . . . . . . . 47
8.2 Replacing a storage module . . . . . . . . . . . . . . . . . . 50
9 Completion . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
9.1 Closing the server blade . . . . . . . . . . . . . . . . . . . . 53
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

BX620 S6 Options Guide 9
1 Introduction
The PRIMERGY BX620 S6 dual-socket server blade constitutes the sixth
generation of extremely compact and powerful BX620 server blades. It provides
a wide range of current technologies such as the latest generation of multi-core
processors, DDR3 memory modules with powerful 3-channel architecture per
CPU, modular hard disk controller configuration, and 2.5-inch SAS/SATA
HDD/SSD modules.
The three available storage module variants allow SAS or SATA HDD/SSD
configurations for different usage scenarios. The configuration options range
from the low-cost platform with SATA hard disks up to the high-end platform with
SAS hard disks and a SAS storage module with RAID5 and Cache/iTBBU.
As an option, the communications interfaces can be extended by two Fibre
Channel channels or two additional Ethernet channels.
1.1 Concept and target groups of this manual
This options guide shows you how to expand and upgrade your server.
VCAUTION!
The actions described in this manual should only be carried out by
technical specialists.
IThe installation and removal of the hot-plug components is described in
the operating manual supplied with the server.

10 OptionsGuide BX620 S6
Documentation overview
© cognitas. Gesellschft für Technik-Dokumentation mbH 2010 Pfad: C:\Programme\FCT\tim_app\tim_local\work\PICHOL\OBJ_DOKU-7374-001.fm
1.2 Documentation overview
IPRIMERGY manuals are available in PDF format on the
ServerView Suite DVD 2. The ServerView Suite DVD 2 is part of the
ServerView Suite supplied with every server.
If you no longer have the ServerView Suite DVDs, you can obtain the
relevant current versions using the order number U15000-C289 (the
order number for the Japanese market: please refer to the configurator
of the server http://primeserver.fujitsu.com/primergy/system.html).
The PDF files of the manuals can also be downloaded free of charge
from the Internet. The overview page showing the online documentation
available on the Internet can be found using the URL (for EMEA market):
http://manuals.ts.fujitsu.com. The PRIMERGY server documentation can
be accessed using the Industry standard servers navigation option.
More information on your PRIMERGY BX620 S6 can be found in the following
documents:
– "PRIMERGY BX620 S6 Server Options Guide"
– "PRIMERGY BX620 S6 Server Service Supplement"
– Technical manual for the system board D3051
– "Quick Start Software - Quick Installation Guide" DVD booklet (only included
as a printed copy with the PRIMERGY ServerView Suite)
– “PRIMERGY ServerView Suite Local Service Concept - LSC” manual
– “Safety notes and other important information” manual
– “Warranty” manual
– “Returning used devices” manual
– “Helpdesk” leaflet
Further sources of information:
– PRIMERGY abbreviations and glossary on the ServerView Suite DVD 2
– Manual for the monitor
– Documentation for boards and drives
– Documentation for your operating system
– Information files for your operating system

BX620 S6 Options Guide 11
Extensions and upgrades
1.3 Extensions and upgrades
Second processor
If only one processor is installed in your server blade, you can upgrade it to
include a second one. You may only use processors of the same type in the
server blade. The second processor must have the same clock frequency as the
first.
Upgrading the memory
The server blade offers 6 DDR3 DIMM slots per CPU (organized in 2 banks and
3 channels). All 12 main memory slots support RDIMMs (registered DIMMs)
and UDIMMs (unbuffered DIMMs). Only memory modules of the same capacity
can be installed on the same memory bank.
This allows a maximum memory configuration of 24 GB with UDIMMs
(capacities: 1 GB and 2 GB) and 192 GB with RDIMMs (capacities: 2 GB, 4 GB,
8 GB, and 16 GB).
IA combination of both memory module types is not allowed.
Optional I/O module
The server blade has one slot for an extension board (daughter card) which can
be used to provide two Fibre Channel connections or two additional Ethernet
connections. The following I/O modules are available:
– 4-Gbit Fibre Channel daughter card (PCIe)
– 1-Gbit Ethernet daughter card (PCIe)
To be able to use the additional I/O functionality, at least one FC I/O blade or an
Ethernet I/O blade must be installed in slots NET3 and/or NET4 of the BX600
S3 basic unit. For more information, see the operating manual for your basic
unit.
Storage modules
The hard disks are controlled by a storage module (controller) which can be
plugged into the system board and which may also have additional functions.
The following variants can be used: SAS, SAS/RAID and SAS/PCIe. The PCIe
variant allows the installation of low-profile modules.

12 OptionsGuide BX620 S6
Extensions and upgrades
© cognitas. Gesellschft für Technik-Dokumentation mbH 2010 Pfad: C:\Programme\FCT\tim_app\tim_local\work\PICHOL\OBJ_DOKU-7374-001.fm
Storage modules can be installed/replaced via the front of the server blade
without having to remove the housing cover. However, they cannot be replaced
while the system is running (non-hot-plug) - the server blade must be switched
off.

BX620 S6 Options Guide 13
Structure of the server blade
1.4 Structure of the server blade
Figure 1: PRIMERGYBX620 S6 server blade
The figure 1 shows the positions of the most important components of the
server blade.
678
01
2
3
4
5
/
;
:
9

14 OptionsGuide BX620 S6
Structure of the server blade
© cognitas. Gesellschft für Technik-Dokumentation mbH 2010 Pfad: C:\Programme\FCT\tim_app\tim_local\work\PICHOL\OBJ_DOKU-7374-001.fm
IThe memory modules, the I/O daughter card and the storage module
must be installed in the server blade before it is placed in the basic unit.
DIP switch settings
The server blade comes with the DIP switches set in the following positions:
1 I/O daughter card (Fibre Channel or Gigabit Ethernet daughter card),
optional
2 CPU 2 with heat sink
3 Slots for the CPU 2 memory modules
4 USB Flash Module (UFM)
5 Lithium battery (on the system board)
6 Trusted Platform Module (TPM)
7 Control panel board with foil cable
8 2.5-inch hard disk module 1 (SAS or SATA)
9 2.5-inch hard disk module 2 (SAS or SATA)
10 Storage module
11 Slots for the CPU 1 memory modules
12 CPU 1 with heat sink
13 DIP switch (on the system board)
Switch Function Default
1 Delete password OFF
2 Clear CMOS memory (NVRAM) OFF
3 Restore system BIOS OFF
4 Reserved OFF
5 Reserved ON
6 Reserved ON

BX620 S6 Options Guide 15
Notational conventions
The switch settings have the following meanings:
1.5 Notational conventions
The following notational conventions are used in this manual:
Switch 1 ON Delete password enabled
OFF Delete password disabled
Switch 2 ON Clear CMOS memory (NVRAM) enabled
OFF Clear CMOS memory (NVRAM) disabled
Switch 3 ON Restore system BIOS enabled
OFF Restore system BIOS disabled
Switch 4 ON Reserved
OFF Reserved
Switch 5 ON Reserved
OFF Reserved
Switch 6 ON Reserved
OFF Reserved
Text in italics indicates commands or menu items.
"Quotation marks" indicate names of chapters and terms that are being
emphasized.
Êdescribes activities that must be performed in the order
shown.
VCAUTION! pay particular attention to texts marked with this symbol.
Failure to observe this warning may endanger your life,
destroy the system or lead to the loss of data.
Iindicates additional information, notes and tips.

16 OptionsGuide BX620 S6
Notational conventions
© cognitas. Gesellschft für Technik-Dokumentation mbH 2010 Pfad: C:\Programme\FCT\tim_app\tim_local\work\PICHOL\OBJ_DOKU-7374-001.fm

BX620 S6 Options Guide 17
2Procedure
VCAUTION!
●The activities described in this manual must be performed by
engineers, service personnel or technical specialists.
●Equipment repairs must be performed by qualified staff.
●Any failure to observe the guidelines in this manual, and any
unauthorized opening or improper repairs could endanger the user
(through electric shock, fire hazards) or damage the equipment.
●Please note that any unauthorized opening of the device will result in
the invalidation of the warranty and exclusion from all liability.
ÊFirst of all please familiarize yourself with the safety instructions in the
chapter "Safety instructions" on page 19.
ÊMake sure that all the manuals you need (see "Documentation overview" on
page 10) are available, printing out the PDF files if necessary.
You will definitely need
– the operating manual for the server blade and
– the Service Supplement.
ÊShut down the server blade correctly, switch it off and remove it from the
basic unit as described in the chapter "Preparation" on page 23.
ÊExtend or upgrade your server blade as described in the relevant chapter.
IThe installation and removal of the hot-plug components is described
in the operating manual supplied with the server blade.
ÊClose the server blade, place it back in the basic unit and switch on the
server blade as described in the chapter "Completion" on page 53.
ÊStart the operating system and, if necessary, configure it as required (see
the operating manual).

18 OptionsGuide BX620 S6
Procedure
© cognitas. Gesellschft für Technik-Dokumentation mbH 2010 Pfad: C:\Programme\FCT\tim_app\tim_local\work\PICHOL\OBJ_DOKU-7375-001.fm

BX620 S6 Options Guide 19
3 Safety instructions
IThe following safety instructions are also provided in the manual "Safety
Notes and Regulations".
This device complies with the relevant safety regulations for data processing
equipment, including electronic office machines for use in an office
environment.
If you have any questions as to whether you can set up the device in your
particular environment, please contact your sales outlet or our customer service
centre.
VCAUTION!
●The actions described in this manual shall be performed by technical
specialists. A technical specialist is a person who is trained to install
the server blade including hardware and software.
●Repairs to the device that do not relate to CSS failures shall be
performed by service personnel. Please note that unauthorized
interference with the system will void the warranty and exempt the
manufacturer from all liability.
●Any failure to observe the guidelines in this manual, and any improper
repairs could expose the user to risks (electric shock, energy
hazards, fire hazards) or damage the equipment.
●Before installing/removing internal options to/from the server blade,
turn off the server blade, all peripheral devices, and any other
connected devices. Also unplug all power cords from the power
outlet. Failure to do so can cause electric shock.
Before starting up
VCAUTION!
●During installation and before operating the device, observe the
instructions on environmental conditions for your device.
●If the device is brought in from a cold environment, condensation may
form both inside and on the outside of the device.
Wait until the device has acclimatized to room temperature and is
absolutely dry before starting it up. Material damage may be caused
to the device if this requirement is not observed.

20 OptionsGuide BX620 S6
Safety instructions
© cognitas. Gesellschft für Technik-Dokumentation mbH 2010 Pfad: C:\Programme\FCT\tim_app\tim_local\work\PICHOL\OBJ_DOKU-7376-001.fm
●Transport the device only in the original packaging or in packaging
that protects it from knocks and jolts.
Installation and operation
VCAUTION!
●Read the notes on installation and operation in the operating manual
of the BX600 S3 basic unit.
●When installing the server blade in the basic unit, beware of the
energy hazard at the midplane contacts. A short-circuit on these
contacts may damage the system.
●Data cables must be adequately shielded to avoid interference.
●For the LAN wiring, the requirements according to standards EN
50173 and EN 50174-1/2 apply. The minimum requirement is the use
of a protected LAN line of category 5 for 10/100 Mbit/s Ethernet,
and/or of category 5e for Gigabit Ethernet. The requirements of the
specification ISO/IEC 11801 must also be taken into account.
●Route the cables in such a way that they do not form a potential
hazard (tripping) and cannot be damaged. When connecting the
device, refer to the relevant notes in the operating manual.
●Do not connect or disconnect any data transmission cables during a
thunderstorm (lightning hazard).
●Make sure that no objects (such as bracelets or paper clips) or liquids
get inside the device (risk of electric shock or short circuit).
●In emergencies (e.g. damaged casing, control elements or cables,
penetration of liquids or foreign bodies), switch off the device
immediately, unplug it from the grounded power outlets, and contact
your customer service center.
●Proper operation of the device (in accordance with IEC60950/EN
60950) is only ensured if the casing is completely assembled and the
rear covers for the installation openings are in place (electric shock,
cooling, fire protection, interference suppression).
