Fujitsu PRIMERGY TX150 S6 Owner's manual

PRIMERGY TX150 S6 Server
Service Supplement
Edition February 2008

Comments…Suggestions…Corrections…
The User Documentation Department would like to
know your opinion of this manual. Your feedback helps
us optimize our documentation to suit your individual
needs.
Feel free to send us your comments by e-mail to
[email protected].
Certified documentation
according to DIN EN ISO 9001:2000
To ensure a consistently high quality standard and
user-friendliness, this documentation was created to
meet the regulations of a quality management system
which complies with the requirements of the standard
DIN EN ISO 9001:2000.
cognitas. Gesellschaft für Technik-Dokumentation mbH
www.cognitas.de
Copyright and Trademarks
Copyright © 2008 Fujitsu Siemens Computers GmbH.
All rights reserved.
Delivery subject to availability; right of technical modifications reserved.
All hardware and software names used are trademarks of their respective manufacturers.

TX150 S6 Service Supplement
Contents
1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
1.1 Overview of the documentation . . . . . . . . . . . . . . . . . 5
1.2 Notational conventions . . . . . . . . . . . . . . . . . . . . . 8
2 Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
3 Safety notes . . . . . . . . . . . . . . . . . . . . . . . . . . 11
4 Replacement routines . . . . . . . . . . . . . . . . . . . . . 17
4.1 Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
4.1.1 Floorstand model . . . . . . . . . . . . . . . . . . . . . . . . 17
4.1.1.1 Opening the server . . . . . . . . . . . . . . . . . . . . . . 17
4.1.1.2 Removing the front cover . . . . . . . . . . . . . . . . . . 17
4.1.2 Rack model . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
4.1.2.1 Opening the server . . . . . . . . . . . . . . . . . . . . . . 18
4.1.2.2 Removing the rack front cover . . . . . . . . . . . . . . . . 18
4.2 Replacing the operating panel module . . . . . . . . . . . . 19
4.3 Replacing the standard PS . . . . . . . . . . . . . . . . . . 20
4.4 Replacing the Power backplane . . . . . . . . . . . . . . . . 22
4.5 Replacing the 3.5“ SAS/SATA backplane . . . . . . . . . . . 23
4.6 Replacing the 2.5“ SAS backplane . . . . . . . . . . . . . . 24
4.7 Replacing the IDTEMP combo . . . . . . . . . . . . . . . . . 26
4.8 Replacing the intrusion switches . . . . . . . . . . . . . . . 28
4.9 Replacing the processor . . . . . . . . . . . . . . . . . . . . 30
4.10 Replacing the system board . . . . . . . . . . . . . . . . . . 35

Service Supplement TX150 S6
Contents
5 Appendix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
5.1 Board layout . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
5.1.1 Operating panel board . . . . . . . . . . . . . . . . . . . . . . 39
5.1.2 3.5“ SAS/SATA backplane . . . . . . . . . . . . . . . . . . . . 40
5.1.3 2.5“ SAS backplane . . . . . . . . . . . . . . . . . . . . . . . . 41
5.1.4 Power backplane . . . . . . . . . . . . . . . . . . . . . . . . . 42
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

TX150 S6 Service Supplement 5
1 Introduction
The PRIMERGY TX150 S6 Server is an Intel-based server for small- and
medium-sized networks. The server is suitable for use as a file server and also
as an application, information or Internet server. It is available as a floorstand or
rack model. The floorstand model can be converted to a rack model using an
optional conversion kit.
1.1 Overview of the documentation
Concept and target groups
This Service Supplement completes the information given in the Operating
Manual, the Options Guide and the Technical Manual of the system board.
The activities described in this manual may only be performed by service
personnel.
Service DVD
Service partners of Fujitsu Siemens can order a Service DVD PRIMERGY. On
the DVD the following manuals are available in pdf format:
– The “Safety notes and other important information” manual
– The Operating Manual for PRIMERGY TX150 S6
– The Technical Manual for the system board D2559
– The Options Guide for PRIMERGY TX150 S6
– The Service Supplement PRIMERGY TX150 S6
– The “BIOS Setup” manual

6 Service Supplement TX150 S6
Overview of the documentation Introduction
Information/procedure Manual
Detailed safety notes “Safety notes and other
important information“
manual
Features and technical data of the server Operating Manual
Installation and operation, among other things:
– External ports
– Operation
– Configuration of the server
– Installation of the rack mounting kit
Troubleshooting
Installation/removal or replacing of the CSS
components:
– Hot-plug power supply units
– Hot-plug hard disk drives
– Memory modules
– System fans
– Expansion boards
Information about the system board:
– Features of the system board
– Board layout
– Jumper settings
–LEDdisplays
– Replacing the battery
Technical Manual
Table 1: Overview of the documentation TX150 S6

TX150 S6 Service Supplement 7
Introduction Overview of the documentation
Extensions and upgrades:
IFor some components only the installation
routine is described in the Options Guide.
Removing these components proceed in
reverse order.
– Extending/replacing the main memory
– Installing accessible drives, like floppy disk
drive, DVD/DVD-RW drive, multibay etc.
– Installing a hard disks extension box
– Installing a ServerView Local Service Panel
– Installing expansion boards in the PCI slots
– Installing the RAID key
– Installing the COM2 interface
– Installing the parallel interface
– Converting from standard PS to hot-plug PS
– Converting from floorstand model to rack model
Options Guide
Cabling
Replacement routines:
– Replacing the operating panel
– Replacing the standard PS
– Replacing the Power backplane
– Replacing the 3.5“ SAS/SATA backplane
– Replacing the 2.5“ SAS backplane
– Replacing the IDTEMP Combo
– Replacing the intrusion switches
– Replacing the processor
– Replacing the system board
Service Supplement
Board layout
BIOS setup “BIOS Setup“ manual
Information/procedure Manual
Table 1: Overview of the documentation TX150 S6

8 Service Supplement TX150 S6
Notational conventions Introduction
1.2 Notational conventions
The following notational conventions are used in this manual:
Text in italics indicates commands or menu items.
„Quotation marks“ indicate names of chapters and terms that are being
emphasized.
Êdescribes activities that must be performed in the order
shown.
VCAUTION! pay particular attention to texts marked with this symbol.
Failure to observe this warning may endanger your life,
destroy the system or lead to the loss of data.
Iindicates additional information, notes and tips.
Table 2: Notational conventions

TX150 S6 Service Supplement 9
2Procedure
VCAUTION!
The actions described in these instructions should only be performed by
service personnel.
ÊFirst of all please familiarize yourself with the safety instructions in the
section chapter “Safety notes” on page 11 et seq. .
ÊEnsure that all required manuals (see Service DVD) are available, printing
out the PDF files if necessary. You will definitely need the Operating Manual
for the server, the Options Guide for the server and the Technical Manual for
the system board.
ÊShut down the server correctly, switch it off, pull out the power plug, and
open the server as described in the chapter “Replacement routines” on
page 17 et seq. .
ÊReplace the defective component as described in the relevant chapter.
IProcedures which are identical for the floorstand and rack models are
only described for the floorstand model.
ÊClose the server.1
ÊConnect the cables. 1
ÊConnect the server to the power outlet.1
ÊStart the operating system.1
ÊIf necessary, configure the server as required.1
1These procedures are described in the Operating Manual.

TX150 S6 Service Supplement 11
3 Safety notes
IThe following safety notes are also provided in the “Safety notes and
other important information” manual.
This device complies with the relevant safety regulations for data processing
equipment.
VCAUTION!
The actions described in these instructions should only be performed by
service personnel.
Before operating the device
VCAUTION!
●During installation and before operating the device, observe the
instructions on environmental conditions for your device.
●If the device is brought in from a cold environment, condensation may
form both inside and on the outside of the machine.
Wait until the device has acclimatized to room temperature and is
absolutely dry before starting it up. Material damage may be caused
to the device if this requirement is not observed.
●Transport the device only in the original packaging or in packaging
that protects it from knocks and jolts.
Installation and operation
VCAUTION!
●If the rack model is integrated in an installation that receives power
from an industrial (public) power supply network with the IEC309
connector, the (public) power supply protection must comply with the
requirements for the non-industrial (public) power supply networks for
the type A connector.
●The server automatically sets itself to a voltage in the range of
100 V to 240 V. Make sure that your local voltage is within this range.

12 Service Supplement TX150 S6
Safety notes
VCAUTION!
●This device has a specially approved power cable and must only be
connected to a grounded insulated socket (floorstand model) respec-
tively to a safety socket on the rack mains socket strip (rack model).
●Ensure that the power socket on the device or the grounded wall
outlet is freely accessible.
●The ON/OFF button does not disconnect the device from the mains
voltage. To disconnect the line voltage completely, remove the power
plug from the power socket.
●Always connect the device and the attached peripherals to the same
power circuit. Otherwise you run the risk of losing data if, for example,
the server is still operating but the peripheral device (e.g. storage
subsystem) has failed during a power outage.
●Take notice that the data cables to peripheral devices are adequately
shielded.
●To the LAN wiring the requirements apply in accordance with the
standards EN 50173 and EN 50174-1/2. As minimum requirement
the use of a protected LAN line of category 5 for 10/100 MBps
Ethernet, and/or of category 5e for Gigabit Ethernet is considered.
The requirements of the specification ISO/IEC 11801 are to be
considered.
●Route the cables in such a way that they do not form a potential
hazard (make sure no-one can trip over them) and that they cannot
be damaged. When connecting up a device, refer to the relevant
notes in this manual.
●Never connect or disconnect data transmission lines during a storm
(lightning hazard).
●Make sure that no objects (such as bracelets or paper clips) fall into
or liquids spill into the device (risk of electric shock or short circuit).
●In emergencies (e.g. damaged casing, controls or cables, penetration
of liquids or foreign matter), switch off the device immediately and
remove the power plug.

TX150 S6 Service Supplement 13
Safety notes
VCAUTION!
●Proper operation of the device (in accordance with IEC 60950-1/
EN 60950-1) is only ensured if the casing is completely assembled
and the rear covers for the installation openings have been put in
place (electric shock, cooling, fire protection, interference
suppression).
●Install only system expansions that satisfy the requirements and rules
governing safety and electromagnetic compatibility and relating to
telecommunications terminal equipment. If you install other expan-
sions, you may damage the system or violate the safety regulations
and regulations governing RFI suppression.
●The components or parts marked with a warning label (e.g. lightning
symbol) may only be opened, removed or exchanged by authorized,
qualified personnel. The hot-plug power supply units are exceptions
to this rule.
●The warranty expires if the device is damaged during the installation
or replacement of system expansions.
●You may only set those resolutions and refresh rates specified in the
„Technical data“ section of the monitor description. Otherwise, you
may damage the monitor.
Batteries
VCAUTION!
●Incorrect replacement of batteries may lead to a risk of explosion. The
batteries may only be replaced with identical batteries or with a type
recommended by the manufacturer (see the Technical Manual for the
system board).
●Do not throw batteries into the trash can. They must be disposed of
in accordance with local regulations concerning special waste.
●The battery must be disposed of in accordance with local regulations
concerning special waste.

14 Service Supplement TX150 S6
Safety notes
VCAUTION!
●Replace the lithium battery on the system board in accordance with
the instructions in the Technical Manual for the system board.
●All batteries containing pollutants are marked with a symbol (a
crossed-out garbage can). In addition, the marking is provided with
the chemical symbol of the heavy metal decisive for the classification
as a pollutant:
Cd Cadmium
Hg Mercury
Pb Lead
Working with CDs/DVDs and CD/DVD drives
When working with devices with CD/DVD drives, these instructions must be
followed.
VCAUTION!
●Only use CDs/DVDs that are in perfect condition in your server's
CD/DVD drive, in order to prevent data loss, equipment damage and
injury.
●Check each CD/DVD for damage, cracks, breakages etc. before
inserting it in the drive.
Note that any additional labels applied may change the mechanical
properties of a CD/DVD and cause imbalance.
Damaged and imbalanced CDs/DVDs can break at high drive speeds
(data loss).
Under certain circumstances, sharp CD/DVD fragments can pierce
the cover of the CD/DVD drive (equipment damage) and can fly out
of the device (danger of injury, particularly to uncovered body parts
such as the face or neck).
IYou can prevent mechanical damage and damage to the CD/DVD drive,
as well as premature CD/DVD wear, by observing the following sugges-
tions:
●Only insert CDs/DVDs in the drive when needed and remove them
after use.
●Store the CDs/DVDs in suitable sleeves.

TX150 S6 Service Supplement 15
Safety notes
●Protect the CDs/DVDs from exposure to heat and direct sunlight.
ILaser information
The CD/DVD drive complies with IEC 60825-1 laser class 1.
VCAUTION!
The CD/DVD drive contains a light-emitting diode (LED), which under
certain circumstances produces a laser beam stronger than laser
class 1. Looking directly at this beam is dangerous.
Never remove parts of the CD/DVD drive casing!
Modules with electrostatic-sensitive components:
Systems and components that might be damaged by electrostatic discharge
(ESD) are marked with the following label:
Figure 1: ESD label
When you handle components fitted with ESDs, you must observe the following
points under all circumstances:
●Remove the power plug from the power socket before inserting or removing
components containing ESDs.
●You must always discharge yourself of static charges (e.g. by touching a
grounded object) before working.
●The equipment and tools you use must be free of static charges.
●Only touch the components at the positions highlighted in green (touch
points).
●Do not touch any exposed pins or conductors on a component.

16 Service Supplement TX150 S6
Safety notes
●Use a grounding cable designed for this purpose to connect yourself to the
system unit as you install components.
●Place all components on a static-safe base.
IYou will find a detailed description for handling ESD components in the
relevant European or international standards (DIN EN 61340-5-1,
ANSI/ESD S20.20).

TX150 S6 Service Supplement 17
4 Replacement routines
VCAUTION!
Observe the safety instructions in the chapter “Safety notes” on page 11
et seq. .
4.1 Preparation
4.1.1 Floorstand model
IYou will find a detailed description of “Opening the server“ and
“Removing the front cover“ in the Options Guide TX150 S6.
4.1.1.1 Opening the server
ÊTerminate all applications and shut down the server correctly.
ÊIf your operating system has not switched off the server, press the on/off
switch for at least four seconds (“Power override“ function).
ÊPull all power connectors out of the power outlets.
ÊIf required, remove the lock on the side cover.
ÊUnlock the server.
ÊLoosen the two knurled screws at the server’s rear side.
ÊPush back the left-hand side cover approxiate 2 cm.
ÊRemove the left-hand side cover.
4.1.1.2 Removing the front cover
Remove the front cover when making the following replacements:
– Replacing the operating panel
– Replacing the DVD/DVD-RW drive
– Replacing the intrusion switches
ÊPush the drive cover up as far as possible.
ÊRemove the hard disk cover.

18 Service Supplement TX150 S6
Preparation Replacement routines
ÊDisengage the three tabs on the left side one after the other and rotate the
front cover outward about 2 cm.
ÊPress the two touch points of the lower hooks inward.
ÊPush the drive cover downward.
ÊPress strongly on the upper right cant of the front cover to release the upper
hook and pull out the front cover sideward.
4.1.2 Rack model
IYou will find a detailed description of “Opening the server“ and
“Removing the rack front cover“ in the Options Guide TX150 S6.
ÊTerminate all applications and shut down the server correctly.
ÊIf your operating system has not switched off the server, press the on/off
button for at least four seconds (“Power override“ function).
ÊPull all power connectors out of the power outlets.
4.1.2.1 Opening the server
ÊLoosen the four knurled screws and pull the server as far as possible out of
the rack.
Depending on how accessible the server is in the rack cabinet, it can make
sense to remove it from the cabinet. You will find a detailed description in the
Options Guide or the Operating Manual.
ÊLoosen the two knurled screws at the server’s rear side.
ÊPush back the top cover approxiate 2 cm.
ÊRemove the top cover.
4.1.2.2 Removing the rack front cover
Remove the rack front cover when making the following replacements:
– Replacing the operating panel
– Replacing the DVD/DVD-RW drive
– Replacing the intrusion switches
ÊRemove two screws on either side.

TX150 S6 Service Supplement 19
Replacement routines Replacing the operating panel module
ÊRemove the rack front cover to the front.
ÊDisengage the three tabs on the top side one after the other and pull out the
plastic front cover frontward about 2 cm.
ÊPress the three hooks on the bottom side downward and pull out the plastic
front cover frontward.
4.2 Replacing the operating panel module
ÊOpen the server and remove the front cover / rack front cover as described
in the section “Preparation” on page 17.

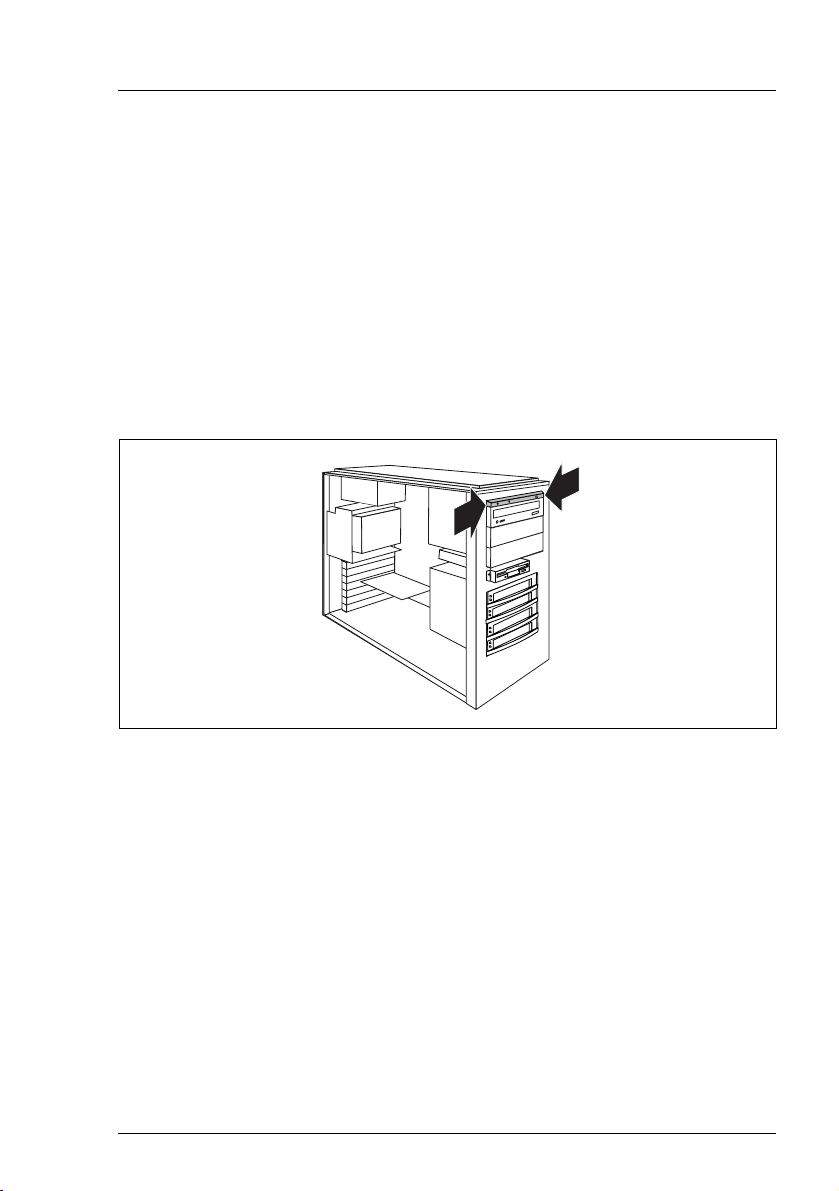

Figure 2: Removing the operating panel module
ÊPress the two metal tongues of the EasyClick rails inward (1) until the locking
mechanism is released.
ÊPull the operating panel module forward out of its mounting location (2) until
you can remove the cables (ribbon cable, USB cable and perhaps
ServerView Local Service Panel cable) from the operating panel board.
Remove the cables.
ÊPull the operating panel module out of its bay as far as it is possible to get
access to the cable tie.
ÊThread the cables through the cable tie.
ÊTake the operating panel module out of its bay.
1
1

20 Service Supplement TX150 S6
Replacing the standard PS Replacement routines
ÊPush the new operating panel module into its bay as far as it is possible to
have access to the cable tie.
ÊThread the cables through the cable tie.
ÊPush the operating panel module into its bay as far as it is possible to plug
the cables.
ÊConnect the cables (ribbon cable, USB cable and perhaps ServerView Local
Service Panel cable) to the operating panel board (see the board layout on
page 39).
ÊPush the operating panel module into the housing until it engages.
ÊClose the server and connect all power plugs (for a detailed description see
the Options Guide).
4.3 Replacing the standard PS
ÊOpen the server as described in the section “Preparation” on page 17.
IYou can replace the power supply without removing the adapter plate.
ÊDisconnect all power cables from the system board and the drives (see the
cabling plans in the Options Guide).

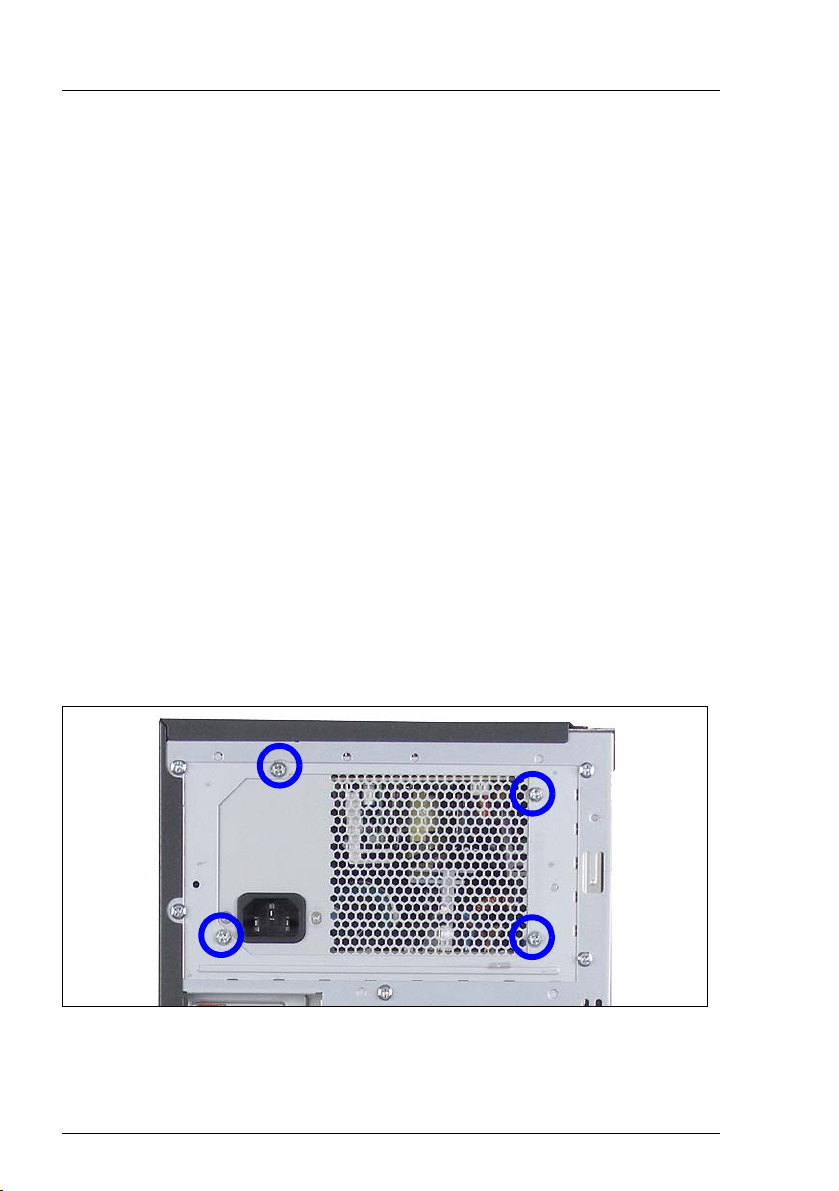

Figure 3: Removing the screws
ÊRemove the four screws of the standard power supply (see the circles).
