Fulgor Milano OVP6-10 User manual

MULTIFUNCTION OVEN - 60CM
Pyrolytic
MODEL OVP6-10

2

TABLE OF CONTENTS
SAFETY INSTRUCTIONS...............................................................................4
INSTALLATION OF THE OVEN......................................................................5
Electricals........................................................................................................ 5
Connection to the electrical power mains........................................................ 7
INSTRUCTIONS FOR USE.............................................................................8
Oven Racks..................................................................................................... 8
Oven extendable racks (if present)..................................................................9
Cooking functions............................................................................................ 10
Electronic control............................................................................................. 12
DOOR LOCKING SYSTEM............................................................................. 19
Automatic door locking during pyrolytic cycle.................................................. 19
Oven lights.......................................................................................................19
CLEANING AND MAINTENANCE...................................................................20
Self-cleaning cycle (pyrolytic cycles)............................................................... 20
Oven door removal.......................................................................................... 21
Removing the “FULL GLASS” panoramic door............................................... 22
How to remove the inner glass of the “FULL GLASS” panoramic door.......... 23
Replacement of the oven light......................................................................... 24
GUIDANCE TEMPERATURE AN TIME SCHEDULE FOR COOKING...........25
At the end of the product life cycle, the products equipped with
electronics, which have not gone through a selection process, are
potentially dangerous for the environment and for human health due
to the presence of dangerous materials. This appliance cannot be
thrown in the domestic waste at the end of its life cycle. Therefore it
must be delivered to an authorised waste collecting center tomake
it safe and to recycle its parts in order to respect the environment.
3

SAFETY INSTRUCTIONS
- Do not disassemble any parts prior to having disconnected the oven from the
mains.
- Do not use the appliance if any part is broken (for example a glass). Disconnect
it from the mains and call service.
- Before using the oven, it is recommended to make it operate at noload at the maximum
temperature for an hour to eliminate the insulating material odour.
- In all models, leave the door closed when the grill is used.
- The cooling fan may remain in operation so long as the oven is hot, even after it has
been switched off.
- During the use the appliance becomes very hot; GRQ·W touch the heating elements
inside the oven.
- During the oven operation, the front is heated as well; consequently keep children
clear of the oven, especially during self-cleaning.
- Parents and adults should pay particular attention when using the product in presence
of children.
- &KLOGUHQVKRXOGEHRYHUVHHQVRDVWRHQVXUHWKDWWKH\GRQ·WSOD\ZLWKWKHHTXLSPHQW
- Keep children under age 8 away, unless constantly supervised.
- This appliance is not intended for use by persons (including children over age 8) with
reduced physical sensory or mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction concerning use of the appliance
by a person responsable for their safety.
- Children may not perform cleaning and maintenance unsupervised.
- In order to avoid damage to the oven enamel coat, do not cover the oven PXIÁH sole
with any item (e.g. aluminum foil, pans and the likes).
- Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door
glass since they can scratch the surface, which may result in shattering of the glass.
- $EUDVLYHGHWHUJHQWVDQGVWHDPFOHDQLQJHTXLSPHQWVKRXOGQRWEHXVHGIRUFOHDQLQJ
- Before performing self-cleaning, take out all accessories (grills, dishes, pans) to avoid
damaging them, remove large cooking residues and then close the door, ensuring that
it is closed properly.
- The oven is cool and power to the oven has been turned off before removing the door.
Failure to do so could result in electrical shock or burns.
5HIHUWRWKHÀJXUHVEHORZIRUWKHFRUUHFWSODFHPHQWRIWKHJULOOV
4

INSTALLATION OF THE OVEN
To install the oven into the kitchen a cutout should be made in accordance with the
dimensions shown in Fig. 1.
The apparatus is to be fastened to the top by means of the two screws provided in the kit
through the holes made on the oven uprights.
The cabinet in which the apparatus is installed shall be open on the back side to ensure
DVXIÀFLHQWDLUFLUFXODWLRQDQGSUHYHQWRYHUKHDWLQJ
Leave a gap of at least 200 cm2 (see Fig. 1) for air circulation if the oven is installed in a
column; this is not necessary if the oven is installed under the work top.
WARNING
As the apparatus is to be ÀWWHG in your kitchen furniture, make
sure that all surfaces in contact with the oven can resist a
temperature of approx 90°C.
Electricals
- $EVRUEHGSRZHU
oven top element:............................................. 2000+1000W 230V - 2000+1000W 240V
oven bottom element: ...................................... 1200+400W 230V - 1200+400W 240V
round element (hot air): ................................... 2500W 240V (on some models)
roasting jack motor: ......................................... 4 W (on some models)
lamp: ................................................................ 25 W
hot air fan motor:............................................... 25 W
cooling fan motor:............................................. 25 W
- 0D[LPXPDEVRUEHGSRZHU(see data plate).
- 6XSSO\YROWDJH (see data plate).
NOTE
This appliance is in compliance with following European directives:
2006/95/CE (LVD), 2004/108/CE (EMC), 2011/65/CE (RoHS),
2012/19/UE (WEEE), 2002/40/CE.
5

H
Appliances A B C D E F G H
Single oven 56 55 58,5 59,5 Min
1,3 58,9 59,5 86,5
Dimensions are in centimeters
Fig. 1
6

Connection to the electrical power mains
WARNING
This apparatus must be earthed.
The oven is only for domestic use.
The feed voltage and the absorbed power are as indicated on the data plate attached to
the left-hand side upright, which can be seen when the oven door is open.
Connecting must be carried out by TXDOLÀHG personnel and in accordance with the
regulations currently in force.
The manufacturer can not be held responsible for any damages to persons or objects
caused by failure to observe these instructions.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent
RUVLPLODUO\TXDOLÀHGSHUVRQVLQRUGHUWRDYRLGDKD]DUG
The oven must be connected to the mains through a multipole circuit breaker with
a contact-to-contact gap of at least 3 mm, making sure that the earth wire is not
disconnected. For connecting use a ÁH[LEOH cable of the H05V2V2-F 3x1,5 mm2type
remembering to make it long enough to allow the oven to be removed from its housing
unit when maintenance work is required.
To connect the cable to the oven
proceed as follows (see Fig. 2):
- Remove the lid (1) by unfastening the
three screws (2). Unfasten the two
screws (3) for the cable holder and
feed the cable through the opening
immediately below the cover.
- Remove about 12 cm of the outside
insulation from the cable and
shorten the two active wires (live and
neutral) to 6 cm, leaving long the one
to be connected to the main earth
terminal on the terminal ER[ remove
about 1 cm of the main insulation
from the three wires and connect
them correctly to the terminal ER[
remembering to respect the polarities.
- Tighten the two screws (3) of the cable holder and put the lid (1) back on with the three
screws (2).
Fig. 2
7

INSTRUCTIONS FOR USE
Oven Racks
WARNING
Never use aluminum foil to cover the oven racks or to line the
oven. It can cause damage to the oven liner if heat is trapped
under the foil.
WARNING
Make sure you do not force it to avoid damage to the enamel.
The oven has rack guides at four levels.
Rack positions are numbered from the
bottom rack guide (#1) to the top (#4).
Check cooking charts for best rack
positions to use when cooking.
Each level guide consists of paired
supports formed in the walls on each side of the oven cavity.
Always be sure to position the oven racks before turning on the oven. Make sure that the
racks are level once they are in position.
The racks are designed to stop when pulled forward to their limit.
To remove oven rack from the oven
(see Fig. 4):
1 Pull rack forward.
2 Lift rack up at front and then remove it.
To replace an oven rack (see Fig. 5):
1 Place rear of rack between rack level
guides.
2 While lifting front of rack, slide rack in all
the way while lowering the front.
1
2
1
2
Fig. 4
Fig. 5
Fig. 3
8

Oven extendable racks (if present)
The extendable rack allows for easier access to cooking foods. It extends beyond the
VWDQGDUGÁDWUDFNEULQJLQJKHIRRGFORVHUWRWKHXVHU
WARNING
Make sute that:
lock. They could unexpectedly extend if the rack is carried
incorrectly. Extending slide arms could cause injury. Rack
should only be held or carried by grasping the sides.
handle when transferring food to and from oven.
NOTE
Always remove the extendable rack before self-cleaning the oven.
To remove extendable rack from the oven
(see Fig. 6):
1 Lift of rack slightly and SXVK it XQWLO the stop
release.
2 Raise back of rack XQWLOIUDPH and stop clear
UDFNJXLGH
3 3XOOUDFNGRZQDQGRXW
To replace an extendable rack (see Fig. 7):
1 Grasp rack ÀUPO\ on both sides. Place rack
LQFOXGLQJIUDPHDERYHGHVLUHGUDFNJXLGH
2 3XVK all the way in XQWLO the back of the rack
drops into place.
3 3XOO both sections forward XQWLO stops
activates. Rack VKRXOG be straight and ÁDW
not crooked.
1
2
3
1
2
3
Fig. 6
Fig. 7
9

Cooking functions
Each type of oven is provided for various cooking systems. A system can be selected
by bringing the pointer of knob to the relating symbol. The Fig. 8 shows the controls
available on the different oven models.

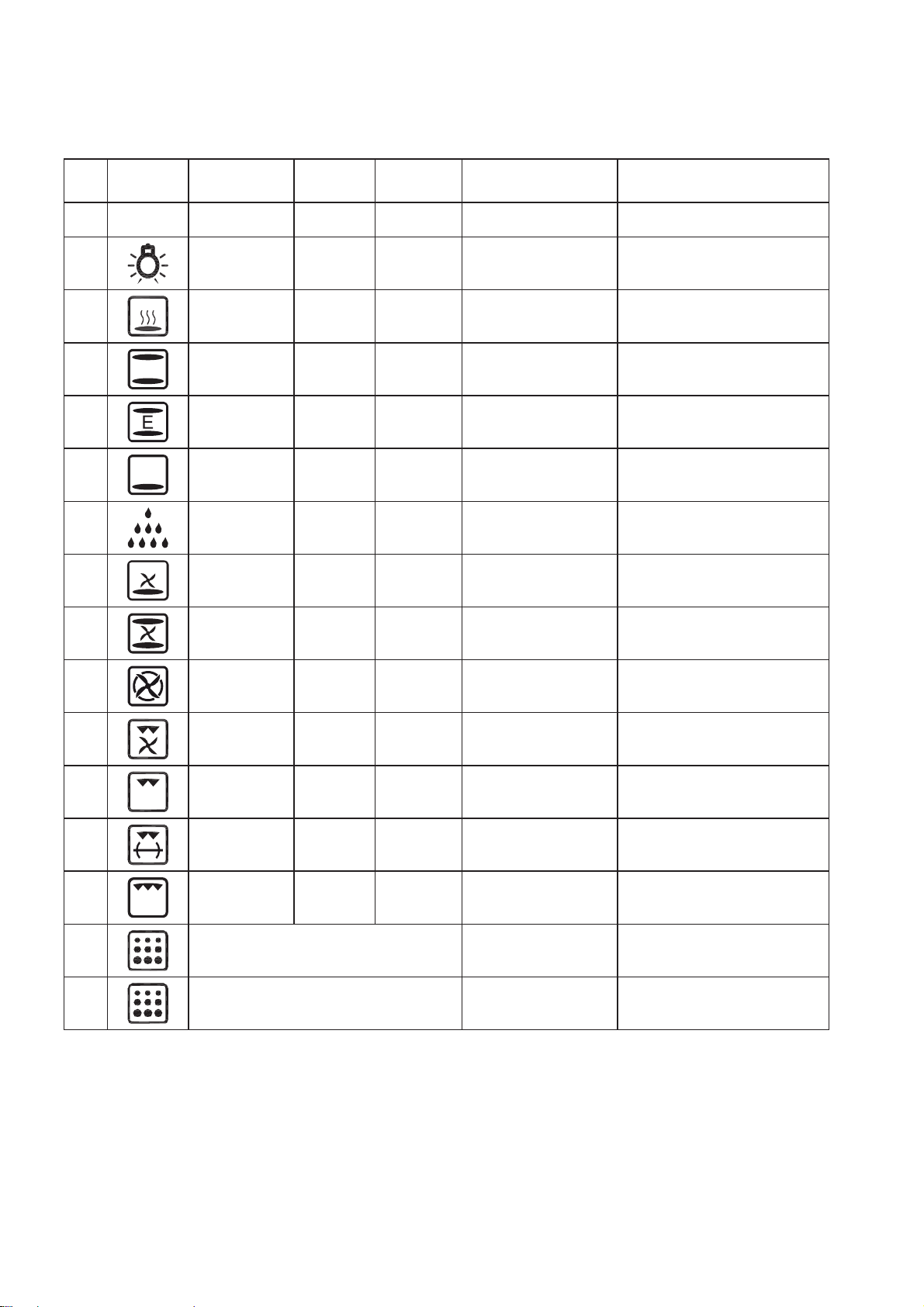

…rofdesUnoitpircseDedoMnocI
0 All the cooking modes are OFF and
the oven heating elements are OFF.
---
The light is on only. ---
In this mode only the internal oven
convection fan is ON i.e. there is no
oven heating
This mode is used to defrost
deepfrozen food.
In this mode only the smaller bottom
heating element is on.
This mode is used to keep foods
warm.
In this mode both upper (top)
and lower (bottom) oven heating
elements are used to heat the oven
air. However, no fan is used to
circulate the heat.
This is the traditional mode of cooking
on one shelf. Therefore only one rack
can be used when selecting the Bake
mode. Ideal for Appetizers, Biscuits,
Coffee Cakes and Cookies.
This mode is intended to save energy.
In particular the oven cooling fan
works only when needed e.g. when
the oven is hot and the electronics
require cooling.
Ideal for frozen or precooked food,
and small portions-mealsThe preheat
time is very short and cooking tends
to be slower.It is not recommended
for heavy loads e.g. large portions or
big meal preparation.
Only the lower (bottom) oven heating
element is activated.
Used to complete cooking.
The Convection Roast mode uses the
upper (top) oven heating element, the
lower (bottom) heating element and
the convection fan inside the oven.
Ideal for the roasting of whole
chickens or turkey and pizza.It can
also be used for baking-cooking
Appetizers, Biscuits, Coffee Cakes
and Cookies on one or more levels.
10

The Convection Bake mode uses
the circular or third heating element
hidden behind the EDIÁH at the
back wall of the oven. The heat is
circulated throughout the oven by the
convection fan.
Consequently different foods can be
cooked simultaneously (maximum
three levels) and is suitable for
preparing a complete dinner (small
portions). Mixing of ÁDYRXUV is
avoided and an important energy
saving is obtained.
The Convection Down mode uses
the lower (Bottom) heating element
and internal fan.
Useful for VRXIÁpV pizzas and pastry
dishes.
suitable for preparing a complete
dinner (small portions). Mixing of
ÁDYRXUV is avoided and an important
energy saving is obtained.
Ideal for VWHDN KDPEXUJHUV chicken
quarters or chicken breasts.
The Grill mode uses intense heat
radiated from the upper (top) heating
element.
Ideal for preparing WRDVW browning
and grilling.
If the spit device is ÀWWHG it is also
used with the spit motor.
If the spit motor is ÀWWHG the spit
roasting of a whole chicken or turkey
is possible.
The standard time is 1.30 h and can
be changed. (see page 14)
PYRO or self-cleaning mode. Here
the oven is automatically cleaned by
burning-off cooking residues at high
temperature (about 475 °C) from 1h
to 3h. During the self-cleaning cycle
all fumes produced are ÀOWHUHG and
then expelled to ambient.
11

Electronic control
Control panel description (“EXTRA SMALL”)
The oven control panel is made with one display and two knobs.
- Time & Temperature display.
- Time & Temperature knob (Push & Shuttle).
- Mode (oven functions) knob.
EDOMEMIT&PMET
Fig. 8
The push & shuttle knob is mainly for clock or temperature setting and automatic time
functions programming. Select the desired item by pushing the knob.
Power-up
At every power-up, in pyrolytic ovens, the latch mechanism runs an automatic self-test:
the oven door locks and unlocks. This operation takes about half a minute. The lock led
WXUQVRQDQGÁDVKZKLOHWKHDFWLRQLVLQSURJUHVVLWUHPDLQVVWHDGLO\GLVSOD\HGZKHQWKH
GRRULVIXOO\ORFNHGLW·VRIIZKHQWKHGRRUKDVEHHQXQORFNHG
Do not try to open the door until the lock led disappears.
Programming time functions
At every power-up, the control shows the time of day blinking, set at 12:00 as the
initial value. The time increases every minute. The only possible action is the “Clock
Regulation”, all other oven operations are inhibited.
In general, turn the Temp/Time selector left or right in order to edit the values and
modify them by steps; hold the knob on the left or right to fasten the decrease/increase
operations.
Setting the time of day
The time of day is always displayed in the 24 hours format. Hours and minutes are set
separately. In order to set the time of day, mode selector must be in ZERO position, the
12

-/+ knob acts on the time of day by default.
- 7XUQWKHVHOHFWRUOHIWULJKWWKHKRXUVÁDVK
- 0RGLI\WKHÁDVKLQJKRXUVYDOXHWXUQLQJWKHVHOHFWRUOHIWULJKW
- Push the Temp&Time selector to switch back and forth between hours and minutes.
- 0RGLI\WKHÁDVKLQJPLQXWHVWXUQLQJOHIWULJKW
- After a few seconds the whole time of day YDOXH starts ÁDVKLQJ wait until the new
time of day is steady.
Fig. 9a
Push the knob to toggle between the time of day and the minute minder and check the
set YDOXHV The clock is selected by default while the symbol appears when the minute
minder is displayed.
Setting the minute minder
When the symbol is displayed, turn the knob left/right in order to set the timer YDOXH
The standard YDOXH is 30 minutes, LW·V possible to modify it in the range between 0 and
240 minutes.
This timer has no LQÁXHQFH on the RYHQ DFWLYLWLHV and can be set also when the RYHQ is
off. The time of day is displayed with priority in any case, the symbol shows the minute
PLQGHULVDFWLYH
When the time expires, the symbol ÁDVKHV and the buzzer sounds a warning sequence
(two short beeps repeated HYHU\ 3 seconds) to recall the user attention. Push the knob
to stop it.
The buzzer stops in any case after a time-out.
TEMP & TIME MODE
Fig. 9b
13

Setting an oven function manually
Turn the mode knob into the desired position, the clock display shows On for a few
seconds. The oven will work for a maximum time (12hours). Depending on the oven
model, the number and type of available functions can be different.
If the selected function works using any heating elements, the symbol is displayed (it
GRHVQ·WDSSHDULQOLJKWDQGGHIURVWSRVLWLRQ
Turn the Temp & Time selector and set the desired oven temperature. The control
offers a PRESET temperature per every cooking mode or a full range between MIN and
MAX to be adjusted by hand. Check the value on the display after having selected the
temperature.
The temperature appears on the clock display for about 5 seconds when the Time &
Temp selector is pushed or when a new function has just been selected.
As soon as the oven starts, the preheat led (indicated by the bars) on the left side of the
FORFNGLVSOD\VWDUWVÁDVKLQJDQGEHFRPHVVWHDGLO\RQZKHQWKHSUHKHDWHQGV
Turn the mode selector to ZERO (OFF) position to stop any activity, the display will show
OFF for a few seconds.
Setting an automatic oven function
After having selected a function as described before, the control can be programmed in
order to set timed cooking activities. The time program remains active even if the function
is changed (exception: pyrolyse). The following possibilities are available:
1 Timed cooking setting the cooking time (duration).
2 Timed cookitng setting the end of cooking time (stop time).
3 Delayed cooking setting duration and stop time.
Push the knob in order to toggle between cooking duration (cook time) and end of cooking
time (stop time): the words “dur” or “End” are displayed respectively.
Turn the knob left/right to edit the duration or the stop time when the proper word is
displayed:
1.When the word dur is displayed, the control shows · as the standard cooking
duration. Turn the knob left/right in order to set the actually desired cooking time
in a range between 0 and 240 minutes. The display will ÁDVK dur and its value
alternatively for a few seconds then it will show the time of day, the pot symbol and
the letter to indicate that a timed cooking is active. The end of cooking time is
updated automatically.
2.When the word End is displayed, the control shows the current time as the initial stop
time. In order to set the actually desired end of cooking time in a 24 hours range:
14

- 7XUQWKHNQREOHIWULJKWWKHKRXUVÁDVK
- 0RGLI\WKHÁDVKLQJKRXUVYDOXHWXUQLQJWKHNQREOHIWULJKW
- Push the knob to switch EDFN DQG forth between hours DQG minutes or ZDLW Dfew
VHFRQGVXQWLOWKHPLQXWHVÁDVK
- 0RGLI\WKHÁDVKLQJPLQXWHVYDOXHWKHNQREOHIWULJKW
- :DLWXQWLOWKHQHZ(QGRI&RRNLQJWLPHYDOXHVWRSVÁDVKLQJ
The GLVSOD\ will ÁDVK (QG DQG its YDOXH DOWHUQDWLYHO\ for Dfew seconds then it will
show the time of GD\ the symbol DQG the letter to LQGLFDWH WKDW Dtimed cooking
LVDFWLYH7KHFRRNLQJGXUDWLRQLVXSGDWHGDXWRPDWLFDOO\
5HSHDW the VDPH RSHUDWLRQV of SRLQW 1 then SXVK the knob until (QG DSSHDUV the
control shows the “current time + cooking time” DV the LQLWLDO VWRS WLPH ,W·V not SRVVLEOH
to lower the end of cooking time below this YDOXH In order to set the DFWXDOO\ desired
HQGRIFRRNLQJWLPHLQDKRXUVUDQJH
- 7XUQWKHNQREOHIWULJKWWKHKRXUVÁDVK
- 0RGLI\WKHÁDVKLQJKRXUVYDOXHWXUQLQJWKHNQREOHIWULJKW
- Push the knob to switch EDFN DQG forth between hours DQG minutes or ZDLW Dfew
VHFRQGVXQWLOWKHPLQXWHVÁDVK
- 0RGLI\WKHÁDVKLQJPLQXWHVYDOXHWXUQLQJWKHNQREOHIWULJKW
- :DLWXQWLOWKHQHZ(QGRI&RRNLQJWLPHYDOXHVWRSVÁDVKLQJ
The GLVSOD\ will ÁDVK (QG DQG its YDOXH DOWHUQDWLYHO\ for Dfew seconds then it will
show the time of GD\ DQG the letter to LQGLFDWH WKDW DGHOD\HG cooking KDV been
SURJUDPPHG As soon DV the GHOD\ time H[SLUHV the RYHQ VWDUWV DQG works for the
SURJUDPPHGFRRNLQJWLPH7KH V\PEROLVGLVSOD\HG
At the end of DQ\ timed DFWLYLW\ the control shuts down the RYHQ the buzzer sounds
DZDUQLQJ sequence (two short EHHSV UHSHDWHG HYHU\ 3 seconds) to UHFDOO the user
DWWHQWLRQ for DPD[LPXP time DQG PDNHV the time UHODWHG icons ( , ) ÁDVK on the
GLVSOD\3XVKWKHNQREWRVLOHQWWKHEX]]HUDQGUHVHWWKHZDUQLQJPHVVDJH
7XUQWKHPRGHVHOHFWRUWR=(522))SRVLWLRQEHIRUHUHXVLQJWKHRYHQ
Oven functions
The control FDQ PDQDJH PDQ\ cooking functions, here below described, their number
DQG DYDLODELOLW\ GHSHQGV on the RYHQ PRGHO The WHPSHUDWXUH UDQJH is between &
DQG & for most IXQFWLRQV Preset WHPSHUDWXUHV DUH PDLQO\ & for FRQYHFWLRQ
PRGHV&IRUWKHUPDOPRGHVDQG&IRUJULOOLQJIXQFWLRQV
([FHSWLRQV DUH (FR%DNH SUHVHW & Pyrolyse À[HG & DQG low WHPSHUDWXUH
PRGHV/LJKW'HIURVW.HHS:DUP
15

Eco-Bake
This function is GHÀQHG in order to obtain a consistent energy saving. The cooling fan is
initially off and turns on only when the inner parts temperature gets high. Cooking might
be a little bit slower than the standard Bake, especially when the oven is heavily loaded.
Defrost
This function is used to defrost frozen food in a short time. It GRHVQ·W heat up the oven,
only the convection fan works. The temperature display shows dEF to indicate that this
special mode is active.
Pyrolyse (Self-Clean)
Turn the mode knob in the proper position to start a cleaning cycle. The temperature
display show the writing 475°.
The clean time can be set according to the same rules of the automatic functions, and
therefore the pyrolitic cycle can be delayed.
The maximum allowed clean time is 3 hours, the minimum 1 hour. The standard time
is 1h:30min, the clock display shows P1:30. At the end of the self-cleaning activity the
display shows P--- steady and ÁDVKLQJ The writings on the display disappear when
the mode selector is placed in the ZERO position. The door remains locked until the oven
temperature drops below the safety threshold, at this time the control unlocks the door.
The cooling fan starts as soon as the function is selected and turns to its higher speed
when the inner parts get hot. The oven temperature is automatically set to 475°C in order
to perfectly clean the cavity.
Fig. 9c
The control also locks immediately the door in order to guarantee the user safety, given
that the temperature inside gets very hot. A lock led (yellow) beside the temperature
display shows the status of the latch mechanism at any time:
- Door unlocked, lock led off.
- Door locked, lock led always on.
- /DWFKPRYLQJWUDQVLWLRQLQSURJUHVVORFNOHGÁDVKLQJ
To reuse the oven after a pyrolyse, turn the mode selector to ZERO (OFF) position.
16

Door lock for children safety (pyro)
This is an additional safety functions available only in pyrolityc ovens. The door latch
mechanism that is managed automatically during pyrolyse can be actuated manually by
the user in order to lock the oven door and prevent children from having free access to
the oven.
Hold the Time&Temp knob for about 3 seconds to lock/unlock the door manually.
Commands lock for children safety (non pyro)
This is an additional safety functions available only in non pyrolityc ovens. Hold the
Time&Temp knob for about 3 seconds to lock the control panel commands and prevent
children from turning on the oven freely. Both knobs are disabled.
Buzzer volume
The buzzer volume can be set turning the Time&Temp knob left/right when the control
is in light mode. At any detents the buzzer sounds a double beep, selecting the volume
out of three available levels. The buzzer must always be silent between 22:00 and 8:00.
Failure declarations and error codes
The control is continuously checking the status of the system. If an abnormal condition is
detected for more than 1 minute, a failure occurs:
- The heaters and the other loads are disabled.
- The display shows a “E” letter followed by a numeric code that depends on the kind of
failure.
- The control emits an acoustic warning signal.
To reset a failure declaration, ÀUVW remove the cause of the failure then turn the selector
to (ZERO) OFF.
Error code table.
Error Description
E1 Temperature sensor broken.
E2 Temperature sensor shorted.
E4 Temperature sensor circuit failure.
E8 /DWFKWLPHRXWRYHUÁRZ
E16 Free.
E32 Free.
E64 Mode selector disconnected. Cannot be reset.
OTHER Sum of error codes simultaneously detected.
17

Cooking mode table with preset, minimum, maximum temperatures (°C) and
nominal power (Watt)
N° MODE PRESET(°C) TMIN(°C) TMAX(°C)
HEATING
ELEMENTS (W) NAME
0
0
OREZ
1THGIL######
280 50 100 400 KEEP WARM
3210 50 250 2200 BAKE
4190 50 250 2200 ECO-BAKE
5210 50 250 1200 LOWER BAKE
6## ## ## DEFROST
7190 50 250 1200 LOWER
CONVECTION BAKE
8190 50 250 2200 CONVECTION ROAST
9190 50 250 2300 CONVECTION BAKE
10 230 50 250 2000 CONVECTION GRILL
11 230 50 250 2000 GRILL
12 230 50 250 2000 GRILL + TURNSPIT
13 230 50 250 3000 SUPER GRILL
14 )LAMREHT(ORYP0042574
15 ORYP0042574
18

DOOR LOCKING SYSTEM
Automatic door locking during pyrolytic cycle
For safety reasons, the door is locked automatically as soon as self-clean mode is
selected (both standard, both eco clean). The door is also unlocked automatically when
the clean time has expired but only after the temperature has fallen below the safety
threshold.
NOTE
It is not possible to exclude the door locking device during self-
cleaning i.e. manually unlock the door since the self-cleaning mode
has the highest priority and overrides all other selections.
The lock symbol ( ) on the display is:
ON When the door is fully locked
OFF When the door is fully unlocked
FLASHING When the latch mechanism is moving. (After self clean the sym
bol will ÁDVK until the temperature will be safe and the door
unlocked).
Oven lights
They turn on during all cooking activities but they are always disabled in self-clean.
19

CLEANING AND MAINTENANCE
Prior to taking any action for cleaning, make sure the apparatus is cut-out from the mains.
It is recommended that the oven interior be frequently cleaned. In particular, it should be
cleaned every time the grill is used to prevent excessive fouling of the oven interior that
may generate fumes or odours during subsequent cooking. Abrasive detergents and
steam cleaning equipment should not be used for cleaning.
WARNING
Do not use harsh abrasive cleaners or sharp metal scrapers to
clean the oven door glass since they can scratch the surface,
which may result in shattering of the glass.
Ovens provided with the hot air system are less subject to dirt inside.
Self-cleaning cycle (pyrolytic cycles)
Although it is not necessary to perform the cleaning operation each time the oven has
been used, do not let the oven get too dirty.
Before performing self-cleaning, take out all accessories (grills, dishes, pans) to avoid
damaging them, remove large cooking residues and then close the door,
ensuring that it is closed properly.
NOTE
Usually self-cleaning requires 2.30 to 3 hours according to the
amount of residue to be removed.
WARNING
Ensure that the door is in the closed position before the self-
cleaning cycle starts, otherwise automatic door locking will
not be completed. See paragraphs that follows.
When the cycle is ÀQLVKHG and the oven has COOLED COMPLETELY, remove the
burned-off residues of the self-cleaning cycle with a damp cloth.
20
