FulTyme RV 2105 User manual

5,000 LB. (2,268 KG)
12V ELECTRIC
TRAILER JACK
INSTALLATION & OPERATION MANUAL
Model 2105

MODEL 2105 • 5,000 LB. 12V ELECTRIC TRAILER JACK
2
WARNING:
Read, Understand, Follow and SaveThese Instructions.
Failure to follow all warnings and instructions may result in product failure, property damage,
serious personal injury.
The warnings, cautions, and instructions discussed in this instruction manual cannot cover all
possible conditions or situations that could occur. It must be understood by the operator that
common sense and caution are factors which cannot be built into this product, but must be
supplied by the operator
INTENDED USE
This electric trailer tongue jack is a 12V motor-driven jack that makes coupling and uncoupling
from the hitch on travel trailers and boat trailers an easier operation. New industrial design cover is
extremely waterproof. Improved LEDs shine down onto your ball and coupler where light is needed
the most.
TECHNICAL SPECIFICATIONS
SPECIFICATIONS
• Model no.: 2105
• Maximum Lift Capacity: 5,000 lb
• Travel: Full 22½" stroke (18" power plus 4½" manual drop leg extension)
• Height Range: 9" to 31½"
• Type: 12V DC A-Frame
• OuterTube Diameter: 2¼"
• Foot Pad: Removable 4½" Drop Leg
COMPONENTS OF KIT AND TOOLS REQUIRED
• Three Grade 5, 1" Long, 3/8"-16 UNC Bolts (included)
• Three 3/8" Flat Washers and Lock Nuts (included)
• 7/16" Wrench (owner supplied, not included)
• Torque Wrench (owner supplied, not included)
• Wire Cutters (owner supplied, not included)
• Wire Strippers (owner supplied, not included)
• Crimpers or Soldering Iron (owner supplied, not included)

INSTALLATION & OPERATION MANUAL
3

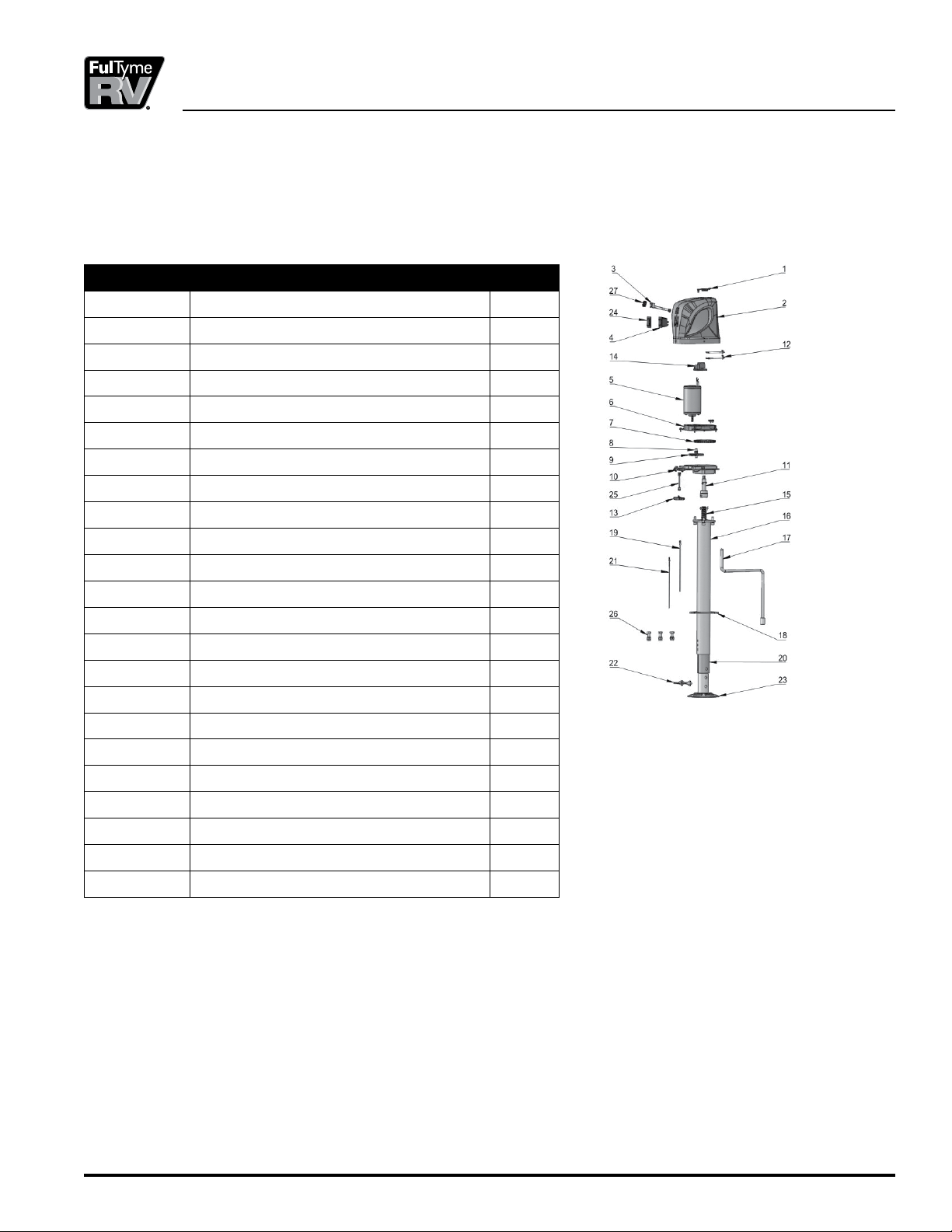

EXPLODED VIEW
PARTS LIST
Parts No. Description Qty
1 Override Protection Cover 1
2 Plastic Cover 1
3 LED Light Switch 1
4 Up/Down Switch 1
5 Motor 1
6-10 Gear Assembly 1
11 Drive Shaft 1
12 Short Positive/Negative Wire 1
13 LED Light 1
14 Wiring Board 1
15 ACME Screw 1
16 OuterTube 1
17 Crank 1
18 Mounting Plate 1
19 Power Supply Wire(black color) 1
20 InnerTube 1
21 Ground Wire(White color) 1
22 Lock Pin 1
23 Drop Leg 1
24 Up/Down Switch Cover 1
25 LED Wire 1
26 Hardware Kit 3
27 LED Switch Cover 1

MODEL 2105 • 5,000 LB. 12V ELECTRIC TRAILER JACK
4
SAVE THESE INSTRUCTIONS –
IMPORTANT SAFETY CONSIDERATIONS
JACK USE AND CARE
• Do not modify the jack in any way. Unauthorized modification may impair the function and/or
safety and could affect the life of the equipment.There are specific applications for which the jack
was designed. In addition, any unauthorized modification will void the warranty.
• Always check for damaged or worn out parts before using the jack. Broken parts will affect the
jack operation. Replace or repair damaged or worn parts immediately.
• Do not force the trailer jack. Do not attempt to lift more than the maximum lifting capacity of
5000-lb.
• Never attempt to adjust the drop leg when there is any load on the jack. When using the drop
foot or drop leg, make certain the supplied pin is fully inserted through both sides of the inner
tube and the drop tube before using the jack.
INSTALLATION INSTRUCTIONS
Before installation, compare the lift capacity of the electrical jack with
your trailer to ensure safe operation of the jack.
1. Park the trailer on a level surface and block the wheels.
2. This trailer jack has been designed to attach to the top surface of
the A-frame coupler.
3. Disconnect the trailer battery.
4. Detach the drop leg (#23) of the jack by removing the lock pin (#22)
and sliding it out.
5. Position the drop leg (#23) in line with the mounting hole with the
foot of the drop leg on the ground.
6. Support the trailer tongue by the frame with jack stands (not
included).
7. If replacing an old jack, remove the old jack from the coupler,
saving the washers and bolts.
8. Insert the electric jack through the A-frame coupler hole and align
the bolt holes so the motor housing is facing forward towards the
tow vehicle.
9. Secure the jack with three Grade 5, 3/8"-16UNC bolts and washers.
Remove paint from around one bolt hole on the jack, and from
around the matching bolt hole on the trailer tongue. If the paint
layer is thick, add a flat washer between the jack and the trailer
to provide good contact. Exposed metal can be painted after
assembly to prohibit corrosion. Bolts should be tightened to 15-20
ft.-lbs
Tip: The salvaged bolts from the old jack are acceptable for reuse if
they are Grade 5 and in good condition.

INSTALLATION & OPERATION MANUAL
5
10. Connect the BLACK wire lead from the jack directly to the positive (+) terminal of the battery or
junction box.This unit has a built-in circuit breaker which automatically trips and resets if the
amperage is too high. Now connect the WHITE ground wire to the negative (-) battery terminal
or to the trailer frame.
11. Check for proper installation by pressing the up/down switch for extending/retracting the jack.
Also check that the light switch turns on the LED light.
12. After checking for proper operation, be sure to reattach the drop leg to the inner tube of the jack
using the lock pin.
13. Retract the jack completely.
OPERATION
1. Park the trailer on a level surface and block the wheels.
Tip: For nighttime hookups, turn the light switch (#3) ON to illuminate your work area.
2. Before operating the jack, extend the drop leg foot (#23) to the appropriate length and secure in
place with the 3/8" safety lock pin (#22) provided.
WARNING: Do not stack blocks under the jack’s foot to increase the height. Stacked blocks
may become unstable and fall.
3. Extend the jack by pushing the operating switch (#4) UP.
Note: Under heavy use, the internal circuit breaker may open, causing the motor to switch off.
In this case, release the operating switch, and wait 15 seconds for the breaker to reset before
resuming operation.
4. Retract the jack by pushing the operating switch (#4) DOWN.
Note: If you attempt to extend or retract the jack and it does not respond, it may be at the end
of the stroke. If the jack fails to respond, try operating it in the opposite direction. If it will not
operate in either direction refer to the troubleshooting guide.
5. After hitching the trailer to a tow vehicle, slide the drop leg (#23) fully into the jack tube, secure
it with the safety lock pin (#22) and retract the jack tube.You may have to raise the jack tube
slightly to release pressure on the safety lock pin.
6. Always check ground clearance before driving off.
MANUAL OPERATION INSTRUCTIONS
1. If for any reason electric power is lost, disconnect the jack from the power source.
2. Remove the rubber access cover on the top of the jack.
3. Insert the provided manual crank handle into the access hole on the top of the jack, engaging
the drive screw.
4. Rotate the manual crank handle counter-clockwise to extend the jack, and clockwise to retract it.
MAINTENANCE
1. The Electric A-frame jack motor is sealed and maintenance-free. It is important to maintain the
electrical system including the battery and charger (not included).
2. Ensure all connections are tight and free of corrosion and that the jack is properly grounded.
3. Make sure the battery is fully charged prior to use.

MODEL 2105 • 5,000 LB. 12V ELECTRIC TRAILER JACK
6
TROUBLESHOOTING
Refer to below troubleshooting guide if the device does not function properly or parts are missing. If
unable to do so, have a qualified technician service the device.
Failure Possible Cause Corrective Action
Motor
will not
operate
Or light
is OK,
but jack
will not
operate.
No or Low Voltage
Check battery & electrical connections. Must have
minimum of 10 VDC. If the battery is low, plug the trailer
cable into the tow vehicle, and start the tow vehicle to
provide power to the jack.
Poor Ground
Clean area between the jack mounting plate and coupler,
and ensure paint has been removed by the star washers.
Direct metal-to-metal contact must exist between
mounting components to ensure good electrical contact.
Check electrical connections.
The trailer
connector on the
jack cannot get
power from the
trailer connector on
the vehicle
The trailer connector on the vehicle must match the trailer
connector on the jack to power it.
Test that the correct terminal is receiving power with a
test light. Number 4 on the connector will receive power.
Connector number 1 is the neutral ground. Consult a
qualified technician on replacing the connector if there is a
mismatch between the vehicle and jack connectors.
Open Internal
Circuit Breaker
Wait 15 seconds for breaker to close or replace with
thermal overload protector
Loose Wires on ON/
OFF Switch Secure wire connections
Loose Wires on the
Motor Secure wire connections
Motor Faulty Replace motor or Replace with a brand new jack
ON/OFF Switch
Faulty Replace switch
Jack can
operate
but light
doesn’t
work
Loose Wires on
Light Switch
Check if the light and/or switch wiring connection is well
secured
Faulty light and/or
switch Replace light and/or switch

INSTALLATION & OPERATION MANUAL
7
Motor
Clutch
Engages
If jack leg is at
fully retracted or
extended position
–
Worn gear Replace gear
Dirty InnerTube Clean inner tube and coat with light coat of silicone spray
Bent InnerTube Replace inner tube
Clutch Faulty Replace motor
Jack at angle Secure mounting bolts and ensure a support plate is used
Excessive tongue
weights Determine if jack is adequate for tongue weight

MODEL 2105 • 5,000 LB. 12V ELECTRIC TRAILER JACK
8
LIMITED 1-YEAR WARRANTY
We make every effort to assure that this product meets high quality and durability standards,
and warrants to the original purchaser that this product is free from defects in materials and
workmanship for the period of one years from the date of manufacture, provided that installation
and use of the product is in accordance with product instructions.
This warranty does not apply to damage due directly or indirectly, to misuse, abuse, negligence or
accidents, repairs or alterations outside our facilities, criminal activity, improper installation, normal
wear and tear, or to lack of maintenance. We shall in no event be liable for death, injuries to persons
or property, or for incidental, contingent, special or consequential damages arising from the use
of our product. Some states do not allow the exclusion or limitation of incidental or consequential
damages, so the above limitation of exclusion may not apply to you.THIS WARRANTY IS
EXPRESSLY IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDINGTHE
WARRANTIES OF MERCHANTABILITY AND FITNESS.
