Furnika SB20 User manual

back wall
front wall
bottom
COMPONENT PARTS
1Guide rails (left and right) 1 set
2
Side wall (left and right) with self-tapping screws
1 set
3
Back wall holder plate (left and right)
1 set
4Front wall fastener with the self-tapping screws 2 pcs
5Plug 2 pcs
DB8181
SBH62
SBDW13
MOUNTING DIMENSIONS for START
with SBDW13
Internal body dimension=LW
Dimensions for back
wall fastening
Dimensions for mounting
of front wall fasteners on the
internal surface of front wall
8 holes h12
back wall
back wall
bottom
bottom
NL – length of guide rails from the sidewall.
Minimal internal size of body in depth (NL+3 mm)
SCHEME OF GUIDE RAILS ADDITION
For sizes: 270 / 300 / 350 / 400
For sizes: 450 / 500 / 550
Front rim of body side wall

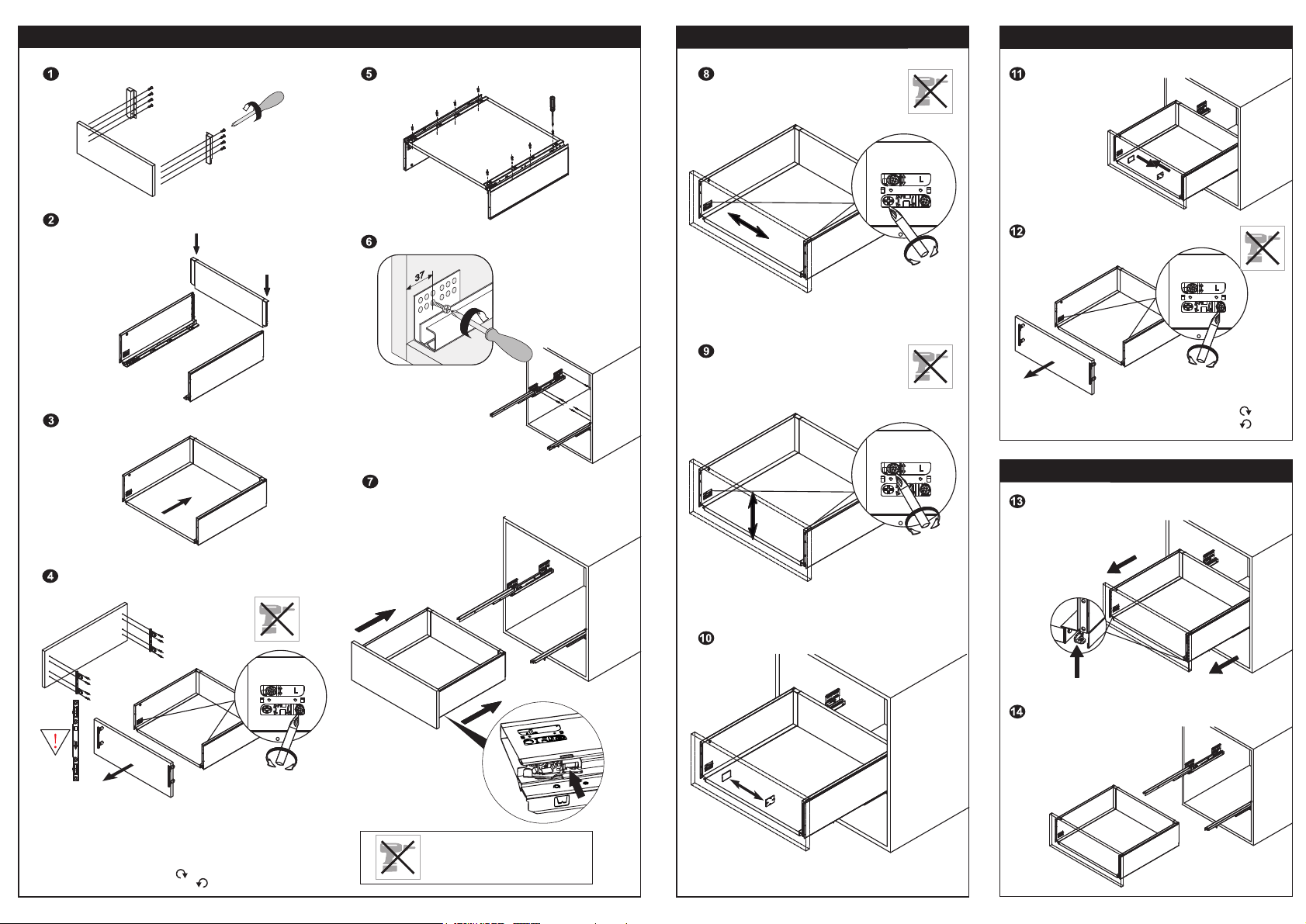

Instruction on assembly
of START based pullout
furniture drawer
SB20

DRAWER ASSEMBLY AND MOUNTING FRONT WALL DISASSEMBLY
FRONT WALL ADJUSTMENT
DRAWER REMOVING
Put together the assembled back wall and left/right
side walls.
Attach the left and right holder plates (of back wall and pot rack)
to the drawer back wall with the help of self-tapping screws.
Mount the guide rails to the drawer body according to
the addition scheme.
Attach the sidewalls to the drawer bottom with the help
of self-tapping screws.
Сlick into place
Size 37 is only for
the assembled front walls.
Pull out the moving elements of guide rails, insert the drawer
and push it until the side walls are fixed with the moving
elements of guide rails. The joining is to be carried out on
the second lug of the fastener.
Insert the drawer bottom into the dapping of left and
right side walls until the back wall stops it.
Front wall holder plate must be freely inserted into the side plate.
It must be joined with the sidewall with the slight effort. Otherwise,
turn the adjusting screw with the screwdriver until it stops in the
end position.
Direction of adjusting screw rotation:
R (right side plate) clockwise
L (left side plate) counterclockwise
Use the screwdriver for adjustment
Horizontal adjustment of the front wall from
the right and left (±1.5 mm)
Remove the plastic plugs
to disassemble the front wall.
Vertical adjustment of the front wall from
the right and left (±1.5 mm)
Turn the adjusting screw with the screwdriver
until it stops in the end position and disassemble
the front wall.
Direction of adjusting screw rotation:
R (right side plate) clockwise
L (left side plate) counterclockwise
Insert (click into place) the plastic plugs.
Сlick into place
Turn up the lever and unlock the drawer fasteners
with the guide rails to remove the whole drawer.
Pull the drawer and pick off from the guide rails.
Fix the front wall fasteners in the drawer front wall with
the help of self-tapping screws. Attach the front wall to
the drawer sidewalls.
