g-lites Moving Head Beam 180 User manual


1. Unpacking
Thank you for G-Lites Moving Head Beam 180. For your own safety, please read this manual
before installing the device. This manual covers the important information on installation and
applications. Please install and operate the fixture with following instructions.
Meanwhile, please keep this manual well for future needs. G-Lites Moving Head Beam 180 is
made of a new type of high temperature strength of engineering plastics and cast aluminum
casing with nice outlook. The fixture is designed and manufactured strictly following CE
standards, complying with international standard DMX512 protocol. It’s available
independently controlled and linkable with each other for operation. And it is applicable for
large-scale live performances, theater, studio, nightclubs and discos.
SI-056 adopts powerful Osram SIRIUS HRI 180W lamp with revolutionary technology which
features high brightness and stability. Please carefully unpack it when you receive the fixture
and check whether it is damaged during the transportation. And please check whether the
following items are included inside the box:
Moving Head---------one Signal Cable----one
Omega Clamp-------Two User Manual----one
Safety Chain---------One
2. Safety Instructions
This device has left the factory in perfect condition. In order to maintain this condition and to
ensure a safe operation, it is absolutely necessary for the user to follow the safety instructions
and warning notes written in this user manual.
If the device has been exposed to temperature changes due to environmental changes, do not
switch it on immediately. The arising condensation could damage the device. Leave the device
switched off until it has reached room temperature.
This device falls under protection-class I. Therefore it is essential that the device be earthed.


The electric connection must carry out by qualified person.
The device shall only be used with rate voltage and frequency.
Make sure that the available voltage is not higher than stated at the end of this manual.
Make sure the power cord is never crimped or damaged by sharp edges. If this would be the
case, replacement of the cable must be done by an authorized dealer.
Always disconnect from the mains, when the device is not in use or before cleaning it. Only
handle the power cord by the plug. Never pull out the plug by tugging the power cord.
During initial start-up some smoke or smell may arise. This is a normal process and does not
necessarily mean that the device is defective, it should decrease gradually.
Please don't project the beam onto combustible substances.
Fixtures cannot be installed on combustible substances, keep more than 50cm distance with
wall for smooth air flow, so there should be no shelter for fans and ventilation for heat
radiation.
If the external flexible cable or cord of this luminaire is damaged, it shall be exclusively
replaced by the manufacturer or his service agent or a similar qualified person in order to
avoid a hazard.
3. Operation Instructions
-The moving head is for beam effect for onsite decoration purpose.
-Don’t turn on the fixture if it’s been through severe temperature difference like after
transportation because it might damage the light due to the environment changes. So make
sure to operate the fixture until it is in normal temperature.
-This light should be keep away from strong shaking during any transportation or movement.
-Don’t pull up the light by only the head, or it might cause damages to the mechanical parts.
-Don’t expose the fixture in overheat, moisture or environment with too much dust when
installing
it. And don’t lay any power cables on the floor. Or it might cause electronic shock to the
people.
-Make sure the installation place is in good safety condition before installing the fixture.


-Make sure to put the safety chain and check whether the screws are screwed properly when
installing the fixture.
-Make sure the lens are in good condition. It’s recommended to replace the units if there are
any damages or severe scratch.
-Make sure the fixture is operated by qualified personnel who knows the fixture before using.
-Keep the original packages if any second shipment is needed.
-Don’t try to change the fixtures without any instruction by the manufacturer or the appointed
repairing agencies.
-It is not in warranty range if there are any malfunctions from not following the user manual to
operate or any illegal operation, like shock short circuit, electronic shock, lamp broke, etc.
4. Mounting and Installation
Cautions: For added protection mount the fixtures in areas outside walking paths, seating
areas, or in areas were the fixture might be reached by unauthorized personnel.
Before mounting the fixture to any surface, make sure that the installation area can hold a
minimum point load of 10 times the device’s weight.
Fixture installation must always be secured with a secondary safety attachment, such as an
appropriate safety cable.
Never stand directly below the device when mounting, removing, or servicing the fixture.
from a ceiling, or set on a flat level surface (see illustration below). Be sure this fixture is kept at
least 0.5m (1.5 ft) away from any flammable materials (decoration etc.).
Always use and install the supplied safety cable as a safety measure to prevent accidental
damage and/or injury in the event the clamp fails.
Mounting points: Overhead mounting requires extensive experience, including amongst others
calculating working load limits, a fine knowledge of the installation material being used, and
periodic safety inspection of all installation material and the fixture. If you lack these
qualifications, do not attempt the installation yourself. Improper installation can result in bodily
injury.


Be sure to complete all rigging and installation procedures before connecting the main power
cord to the appropriate wall outlet.
Clamp Mounting: The Beam provides two unique mounting bracket assemblys that integrates
the bottom of the base, the included “Omega Bracket,” and the safety cable rigging point in
one unit (see the illustration below). When mounting this fixture to truss be sure to secure an
appropriately rated clamp to the included omega bracket using a M10 screw fitted through the
center hole of the “omega bracket”. As an added safety measure be sure to attached at least
one properly rated safety cable to the fixture using on of the safety cable rigging point
integrated in the base assembly.
Regardless of the rigging option you choose for your BEAM, always be sure to secure your
fixture with a safety cable. The fixture provides a built-in rigging point for a safety cable on the
hanging bracket as illustrated above. Be sure to only use the designated rigging point for the
safety cable and never secure a safety cable to a carrying handle.
5. DMX-512 control connections
Connect the provided XLR cable to the female 3-pin XLR output of your controller and the other
side to the male 3-pin XLR input of the moving head. You can chain multiple moving head


together through serial linking. The cable needed should be two core, screened cable with XLR
input and output connectors.
Please refer to the diagram below.
DMX-512 connection with DMX terminator
For installations where the DMX cable has to run a long distance or is in an electrically noisy
environment, such as in a discotheque, it is recommended to use a DMX terminator. This helps
in preventing corruption of the digital control signal by electrical noise. The DMX terminator is
simply an XLR plug with a 120 Ωresistor connected between pins 2 and 3,which is then
plugged into the output XLR socket of the last fixture in the chain. Please see illustrations below.




7. Photometric Data



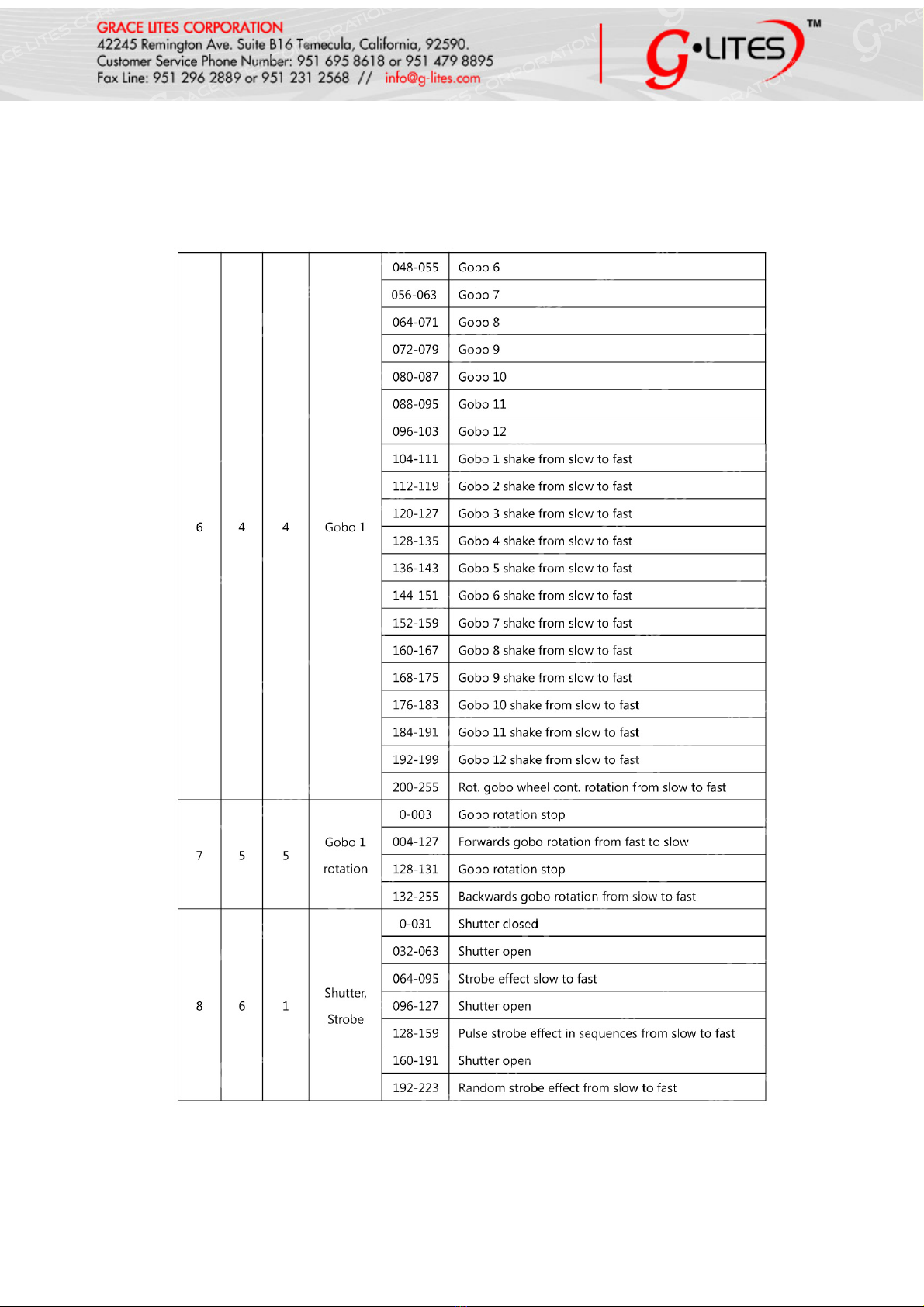

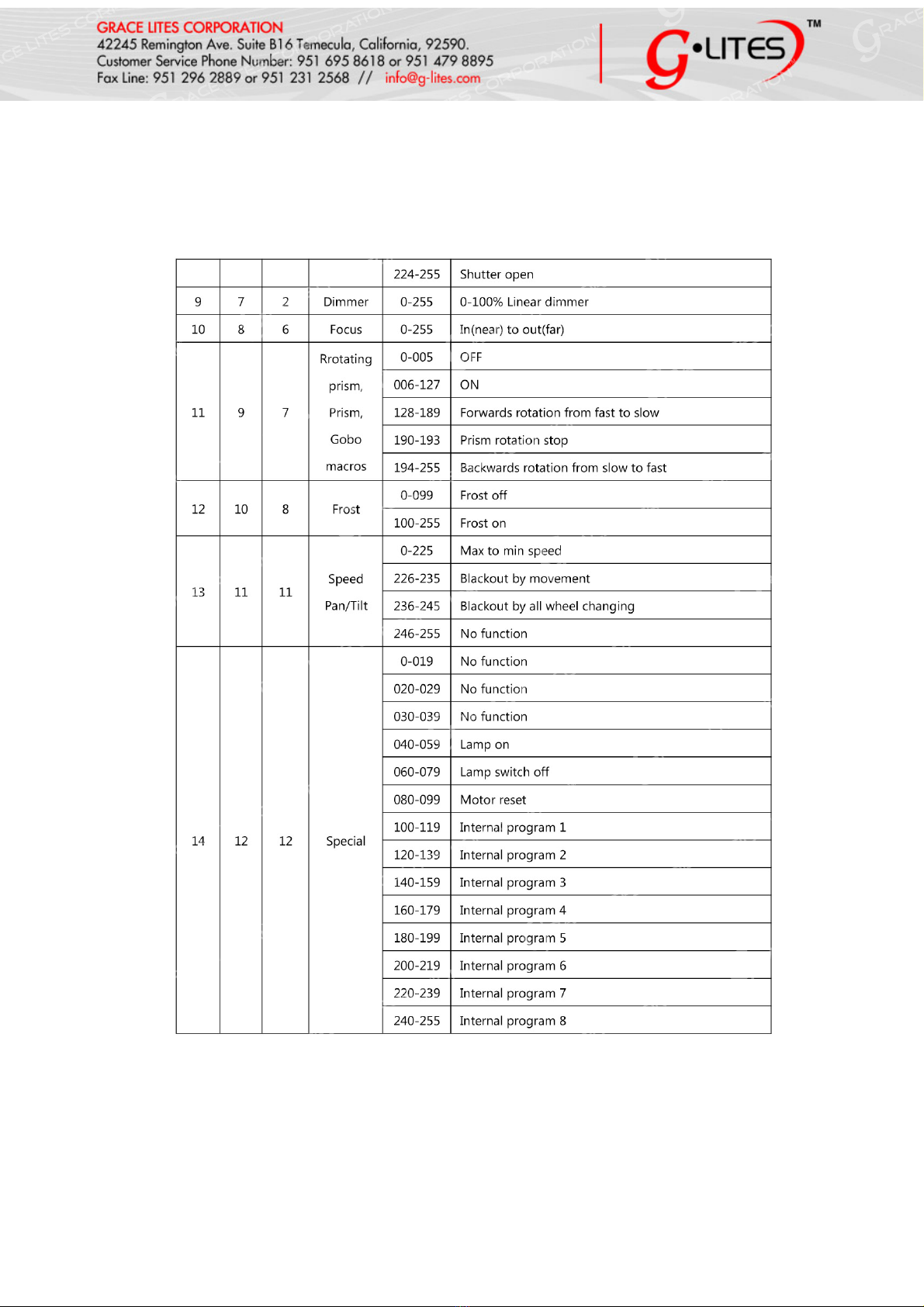

8.DMX Channels






9. Key Features
2000 hour rated lamp source
Osram SIRIUS HRI 180W lamp (8400lumen, 7500°K, 2000h) included
59320 Lux @ 2,5m
2,5° beam angle
No need for adjustment of reflector or lamp
Anti-reflection lenses
1 color wheel with total 13 colors plus open
Variable direction rainbow effect with speed adjustable
1 rotatable gobo wheels with 12 rotatable, indexable and interchangeable gobos plus open
Variable speed gobo scrolling in both directions
12.0mm outside, 8mm image diameter (Gobo Size)
1 rotatable and indexable 8-facet prism with speed adjustable and variable direction
Macro-function for rotatable gobo/prism combinations
Variable Frost Filter (Hybrid effect for Wash)
Dual flag mechanical dimming system
Variable speed strobe effect
Preset variable/random strobe and dimming pulse effects
Motor driven focus from near to far
540°/630° PAN and 265° TILT movement
Automatic Pan / Tilt position correction
16 bit smooth and precise resolution for PAN/TILT movement
Motors for fast and accurate Pan / Tilt positioning
Vector Mode with blackout MIB function


Blue LCD Display
14 DMX channels USITT DMX-512 (16-bit resolution)
Other DMX modes available
Customizable DMX channel assignment
DMX, stand-alone, master/slave, sound activated mode
DMX recorder and edit function integrated
Software update
3-pin or 5-Pin XLR serial input/output
Fan cooling system
Constant temperature readout / management function
DB rating @ 1M = 54,18db
2 x 1/4 turn fastening Omega Clamps
Electronic ballast and power supply


10. Technical Specifications
Input Voltage: AC 100V ~ 240V 50/60Hz
Light Source: 1* Osram SIRIUS HRI 180W lamp
Control Signal: DMX512, master-slave and sound activated or auto operation
Control Channel: 14 DMX Channels
Power Consumption: 342W
Dimensions: 315x359x514mm / 12.4x14.1x20.2 inches
Packing Dimensions: 620*430*415mm / 24.4x16.9x16.3 inches
Net Weight: 15 Kg. / 33 Lb.
Gross Weight: 18 Kg. / 40 Lb.



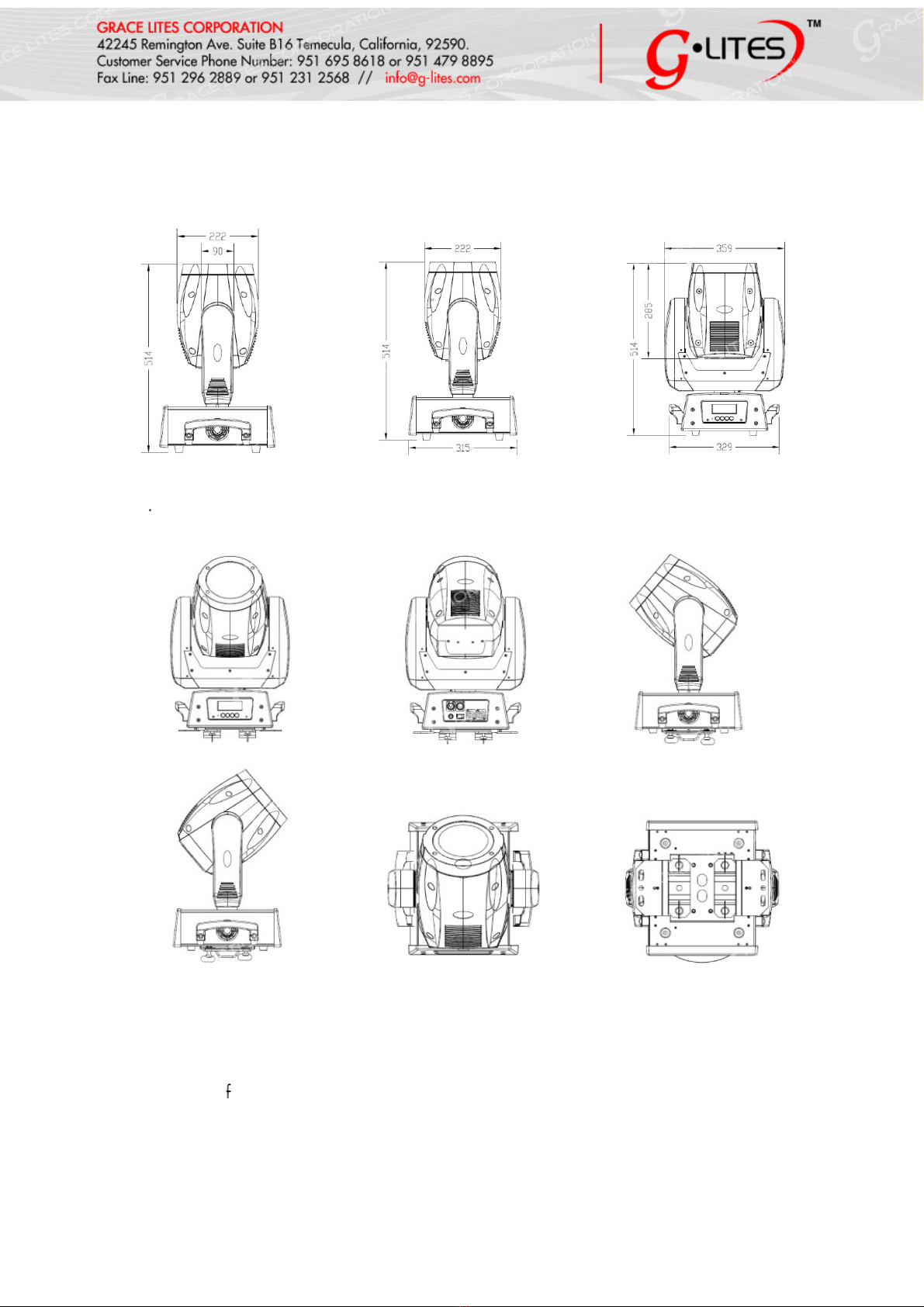

11. Product Dimensions
12. Product Overviews
13. Maintenance and Cleaning
The following points have to be considered during the inspection:
1) All screws for installing the devices or parts of the device have to be tightly connected and
must not be corroded.


2) There must not be any deformations on the housing, color lenses, fixations and installation
spots (ceiling, suspension, trussing).
3）Mechanically moved parts must not show any traces of wearing and must not rotate with
unbalances.
4）The electric power supply cables must not show any damage, material fatigue or sediments.
Further instructions depending on the installation spot and usage have to be adhered by a
skilled installer and any safety problems have to be removed.
In order to make the lights in good condition and extend the life time, we suggest a regular
cleaning to the lights.
1) Clean the inside and outside lens each week to avoid the weakneness of the lights due to
accumulation of dust.
2) Clean the fan each week.
3) A detailed electric check by approved electrical engineer each three month, make sure that
the circuit contacts are in good condition, prevent the poor contact of circuit from overheating.
We recommend a frequent cleaning of the device. Please use a moist, lint- free cloth. Never use
alcohol or solvents.
There are no serviceable parts inside the device. Please refer to the instructions under
“Installation instructions”.
Should you need any spare parts, please order genuine parts from your local dealer.
