1. Preface
Thanks for choosing a
GÖLZ -product. This operating instruction is designed to familiarize the user
with the machine and its designated use.
The operating instruction contains important information on how to operate the machine safely, pro-
perly and most efficiently. Observing these instructions helps to avoid danger, to reduce repair costs
and downtimes and to increase the reliability and life of the machine. The operating instruction is to be
supplemented by the respective national rules and regulations for accident prevention and environ-
mental protection. The operating instruction must always be available wherever the machine is in use.
This operating instruction must be read and applied by any person in charge of work with or on the
machine, such as:
- Operation including setting up, troubleshooting in the course of work, evacuation care and
disposal of fuels and consumables.
- Maintenance (servicing, inspection, repair) and/or
- Transport
In addition to the operating instructions and to the mandatory rules and regulations for accident
prevention and environment protection of the country and place of use of the machine, the generally
recognized technical rules for safe and proper working conditions and procedures must also be
observed.
2. General safety references

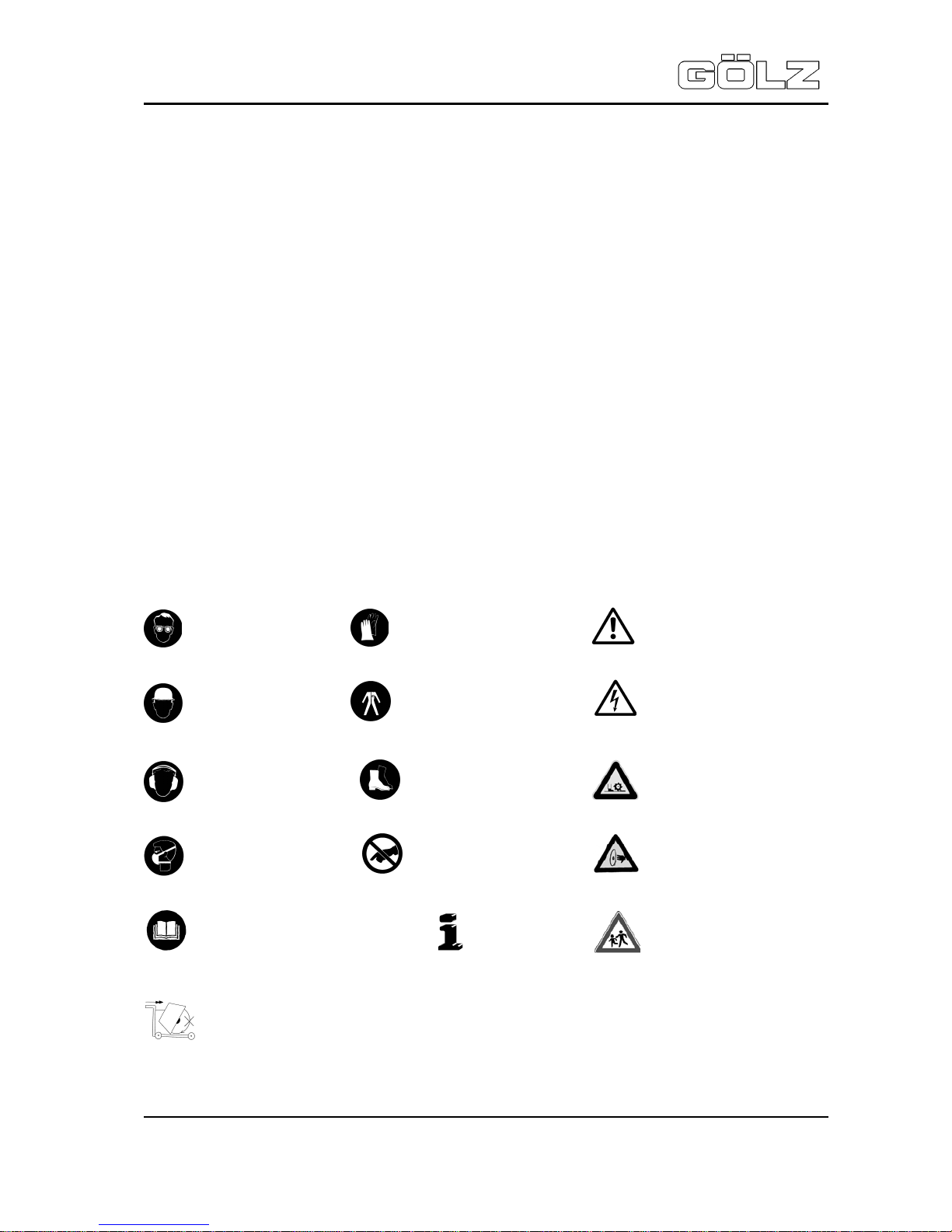

Jedes Umsetzen der Maschine außerhalb des Bereichs, in dem Schneidarbeiten durchgeführt werden, darf nicht mit rotieren-
dem Werkzeug durchgeführt werden!
It is not allowed to move the machine with rotating blade outside of the area in which cutting works have to be performed!
Tout déplacement de la machine doit s'opérer sans rotation de l'outil (risque de blessures) ceci est également valable sur le
chantier pour les déplacement entre coupes!
Vor Inbetriebnahme Betriebsanleitung lesen!
Read owner’s manual before the first initiation!
Lire la notice avant utilisation!
Wichtiger Hinweis!
Important advice!
Indication importante!
Achtung, spielende Kinder!
Be careful with kids on the work side!
Attention aux enfants!
Staubschutz tragen!
Wear dust protection!
Port de masque!
Achtung, Schneidgefahr!
Danger exist to cut oneself!
Attention danger de coupure!
Nicht berühren!
Never touch!
Ne pas toucher!
Gehörschutz tragen!
Wear ear muffs!
Protection acoustique obligatoire!
Schutzschuhe tragen!
Wearsafety boots!
Chaussures de sécurite obligatoires!
Achtung, Schneidgefahr!
Danger exist to cut oneself!
Attention danger de coupure!
Schutzhelm tragen!
Wear safety helmet!
Port du casque!
Schutzkleidung tragen!
Wearsafety clothes!
Vêtements protecteurs obligatoires!
Warnung vor elektrischer Spannung!
Electrical Hazard!
Attention tension électrique!
Augenschutz tragen!
Wear safety glasses!
Port de lunettes!
Schutzhandschuhe tragen!
Wear protective gloves!
Gants obligatoires!
Warnung vor allgemeiner Gefahr!
General danger!
Attention danger particulier!

FS 240 E
Operating manual
- 6- 02822400988
5006148-01
2.1 Basic operation and designated use of the machine
The machine has been built in accordance with state-of-the-art standards and the recognized safety
rules. Nevertheless, its use may constitute a risk to life and limb of the user or of third parties, or cause
damage to the machine and to other material property.
The machine must only be used in technically perfect condition in accordance with its designated use
and the instructions set out in the operating manual, and only by safety-conscious persons who are
fully aware of the risks involved in operating the machine. Any functional disorders, especially those
affecting the safety of the machine, should therefore be rectified immediately.
Separation building implements are exclusively designed for sawing of asphalt, concrete and steel
concrete. Using the machine for purposes other than those mentioned above (such as for) is con-
sidered contrary to its designated use. The manufacturer cannot be held liable for any damage
resulting from such use. The risk of such misuse lies entirely with the user. Operating the machine
within the limits of its designated use also involves observing the instructions set out in the operating
manual and complying with the inspection and maintenance directives.
2.2 Organizational measures
This operating manual must always be at hand at the place of use of the product and must be
accessible to the person operating the machine!
In addition to this operating manual, all other generally applicable legal and other mandatory
regulations relevant to accident prevention and environmental protection must be observed! Such
obligations may also comprise the handling of hazardous materials, provisioning and/ or wearing of
personal protective equipment, or road traffic regulations. This operating manual must be supplemen-
ted by instructions covering the duties involved in supervising and notifying special organizational
features, such as job organization, work flows or the person entrusted with the work.
Person entrusted with work on the product must have read the operating manual prior to taking up
work. This applies especially to persons working only occasionally on the product, e.g. during set-up
or maintenance activities. Check - at least from time to time - whether the personnel is carrying out the
work in compliance with the operating manual and paying attention to risks and safety-relevant factors.
For reasons of safety, long hair must be tied back or otherwise secured, garments must be close-
fitting and no jewellery - including rings - may be worn. Severe injury may result from being caught by
moving parts of the machine. Personal protective equipment must be used wherever required by the
circumstances or by law (e.g. safety glasses, ear protectors, safety boots, suitable safety clothing).
Observe the regulations for prevention of accidents! Observe all safety precautions and warnings
attached to the product and always keep them in good and perfectly legible condition.
The personal protection equipment should consist of the following parts:
1 Helmet with protection of the ears
2/3 Visor or safety glasses / Dust mask
4 Protective gloves
5 Safety clothes
6 Safety boots

FS 240 E
Operating manual
- 7- 02822400988
5006148-01
In case event of safety-relevant modifications or changes in the behaviour of the product, stop the
product immediately and report the malfunction to the competent authority/ person.
Do not remove or make inoperative any safety devices the product is equipped with.
Never make any modifications, additions or conversions which might affect safety without the
manufacturer’s/distributor’s prior approval! This also applies to the installation and adjustment of
safety devices as well as to welding and drilling work on supporting structures.
Damaged or worn parts of the product must be replaced immediately. Use genuine spare parts only.
All spare parts and tools must comply with the technical requirements specified by the manufacturer/
distributor.
Adhere to the legally prescribed preventive maintenance and inspection intervals or those specified in
this operating manual!
All maintenance and repair activities must be performed by qualified personnel using suitable tools
and other suitable workshop equipment.
Observe the fire alarm and fire fighting measures. The personnel must be made familiar with the
location and handling of fire extinguishers!
2.3 Selection and qualification of person
Any work on and with the product must be executed by reliable person only. Statutory minimum age
limits must be observed!
The product must be operated or serviced by trained or properly instructed person only. Clearly define
the individual responsibilities of the person for operation, set-up, maintenance and repair.
Make sure that only authorized work on or with the product.
Define the machine operator’s responsibilities -also with regard to observing road traffic regulations-,
providing the operator with the authority to refuse instructions by third parties that are contrary to
safety.
Do not allow persons to be trained or instructed or persons taking part in a general training course to
work on or with the product without being permanently supervised by an experienced person.
Work on the electrical system and equipment of the product must be carried out only by a skilled
electrician or by properly instructed persons working under the supervision and guidance of a skilled
electrician and in accordance with electrical engineering rules and regulations.
2.4 Normal operation of the machine
Before beginning work, familiarize yourself with the surroundings and circumstances of the site, such
as obstacles which might impede work or traffic, the soil bearing capacity and the required safety
measures, e.g. barriers separating the work site from public traffic.
Check the range in gas-, water- and power supply lines before working. Avoid any operational mode
that might be prejudicial to safety!
Take the necessary precautions to ensure that the machine is used only when in a safe and reliable
state. Operate the machine only if all protective and safety-oriented devices, such as removable
safety devices, emergency shut-off, sound-proofing elements and exhausters, are in place and fully
functional.
Each time before you start working, check the product for obvious damage and defects. Any changes
(including changes in the performance or behaviour of the product) must be reported to the competent
authority/ person immediately.
In the event of malfunctions or changes in the machine’s behaviour, stop the product immediately and
secure it against restarting. Have any defects rectified immediately!
The machine is designed for use in daylight! The machine operator/ owner must ensure sufficient
workplace lighting for non-illuminated work sites!
Take precautions to ensure that the operator always has an adequate view of the work. Before leaving
the machine always secure it against inadvertent movement and unauthorized use!

FS 240 E
Operating manual
- 8- 02822400988
5006148-01
During start-up and shut-down procedures always watch the indicators in accordance with the
operating instructions. Before starting up or setting the machine in motion, make sure that nobody is at
risk. Always keep at a distance from the edges of building pits and slopes.
2.5 Special work related to the maintenance and repair of the machine
Observe the adjustment, maintenance and inspection activities and intervals set out in the operating
manual, including information on the replacement of parts or equipment!
These activities may be performed by skilled personnel only. Brief the operating personnel before
initiating special repair or maintenance activities. Appoint a person to supervise such activities.
In any work concerning the operation, adaptation to production requirements, conversion or
adjustment of the machine and it’s safety-oriented devices or any work related to inspection, mainte-
nance and repair, always observe the start-up and shut-down procedures described in the operating
manual as well as the instructions on maintenance activities!
Ensure that the maintenance area is adequately secured.
The machine is designed for use in daylight! The machine operator/ owner must ensure sufficient
workplace lighting for non-illuminated work sites!
The fastening of loads and the instructing of crane operators should be entrusted to experienced
persons only. The marshaller giving the instructions must be within sight or sound of the operator.
Carry out maintenance and repair work only if the machine is positioned on stable and level ground
and has been secured against inadvertent movement and buckling.
If the machine is completely shut down for maintenance or repair work, it must be secured against
inadvertent restarting.
Clean the machine, especially connections and threaded unions, of any traces of oil, fuel or
preservatives before carrying out maintenance or repair. Never use aggressive detergents. Use lint-
free cleaning rags.
Before cleaning the machine with water or other cleaning agents cover or tape up all openings which -
for safety and functional reasons- must be protected against the ingress of water/ steam/ cleaning
agents. After cleaning, remove all covers and tapes applied for that purpose.
After cleaning, examine the machine for leaks, loose connections, chafe marks or damage. Any
defects found must be rectified without delay.
Always tighten any screwed connections that have been loosened during maintenance and repair. Any
safety devices removed for set-up, maintenance or repair purposes must be refitted and checked
immediately upon completion of the maintenance and repair work.
2.6 Information about special risks electrical energy
Observe the relevant national regulations or standards. Electrical connections must always be kept
free from dirt and moisture. Use only original fuses with the specified rating! Switch off the machine
immediately, if trouble occurs in the electric power supply!
When working with the machine, maintain a safe distance from overhead electric lines. If work is to be
carried out close to overhead lines, the working equipment must be kept well away from them.
Caution, danger! Check out the prescribed safety distances.
If your machine comes into contact with a live wire:
• warn others against approaching and touching the machine
• have the live wire de-energized
Work on the electrical system or equipment may only be carried out by a skilled electrician himself or
by specially instructed personnel under the control and supervision of such electrician and in
accordance with the applicable engineering rules.
If provided for in the regulations, the power supply to parts of machines and plants, on which
inspection, maintenance and repair work is to be carried out must be cut off. Before starting work,
check the de-energized parts for the presence of power and ground or short-circuit them in addition to
insulating adjacent live parts and elements.

FS 240 E
Operating manual
- 9- 02822400988
5006148-01
The electrical equipment of machines is to be inspected and checked at regular intervals. Defects
such as loose connections or scorched cables must be rectified immediately.
Necessary work on live parts and elements must be carried out only in the presence of a second
person who can cut off the power supply in case of danger by actuating the emergency shut-off or
main power switch. Secure the working area with a red-and white safety chain and a warning sign.
Use insulated tools only.
If mobile electrical equipment, connecting cables and/ or extension/ appliance cords with plug
connectors are used, ensure that such equipment, cables and cords are checked for correct function
at least once every six months by a qualified electrician or - if suitable testing equipment is available -
by a properly instructed person.
Protective installations with fault-current protection units used in non-stationary equipment must be
checked for correct operation at least once a month by a properly instructed person.
Fault-current and fault-voltage protection units must be checked for correct operation by actuating the
testing facility:
- once on every working day in the case of mobile equipment,
- at least once every six months in the case of stationary equipment.
2.7 Gas, dust, steam, smoke
Operate internal combustion engines only on adequately ventilated premises. Before starting the
machine on enclosed premises, make sure that there is sufficient ventilation! Danger of life!
Carry out welding, flame-cutting and grinding work on the machine only of this ahs been expressly
authorized, as there may be a risk of explosion and fire.
Before carrying out welding, flame-cutting and grinding operations, clean the machine and its
surroundings from dust and other inflammable substances and make sure that the premises are
adequately ventilated (Risk of explosion). Observe the regulations in force at the respective site!
2.8 Noise
Noise Protection devices on the machine must be in the protection position during operation!
Always wear the specified personal hearing protection (UVV 29 §10)!
2.9 Oils, greases and other chemical substances
When handling hydraulic fluids, lubricating fluids, greases or preservatives (called operating materials
and lubricants in the following), the safety regulations applicable for the respective product must be
observed! Avoid prolonged contact of operating materials and lubricants with the skin!
The skin must be carefully cleaned of adhering operating materials and lubricants!
Exercise caution when handling hot operating materials and lubricants, as there is a danger of burns
or scalding. Particularly at liquid temperatures above 60°C, avoid any skin contact with these liquids!
If operating materials or lubricants get into the eyes, flush thoroughly with drinking water. Then visit a
doctor! Immediately clean up any operating materials and lubricants which have leaked out. Use
absorbent material for this purpose!
Operating materials or lubricants must not be allowed to seep into the soil or to get into the public
sewerage system!
Properly collect, store and dispose of operating materials and lubricants which can no longer be used!
Observe and follow the respective applicable laws and regulations for handling operating materials
and lubricants and their disposal in the country in which these substances are used! Obtain
information from the responsible agencies!

FS 240 E
Operating manual
- 10- 02822400988
5006148-01
4
5
7
10
2.10 Changing the location of the machine
Use only suitable means of transport and lifting gear of sufficient capacity when loading or transporting
the machine! Appoint an experienced instructor for the lifting operation!
Always observe the instructions given in the operating manual when lifting the machine (use only the
prescribed lifting eyes for attaching the lifting gear)!
Use only suitable transport vehicles with sufficient load capacity! Secure the load carefully. Use
suitable fastening points for securing!
Before loading the machine or parts of it, secure the machine/ parts against inadvertent movement!
Attach a suitable warning sign!
Before using the machine again, make sure that such protection material or devices are properly
removed! Parts which had to be removed for transporting of the machine must be refitted and secured
carefully before the machine is used again!
The recommissioning procedure must be strictly in accordance with the operating manual!
Observe the instructions given in the operating manual when reassembling and operating the
machine.
Before setting the machine in motion always check that all accessories are safely stowed.
3. Description

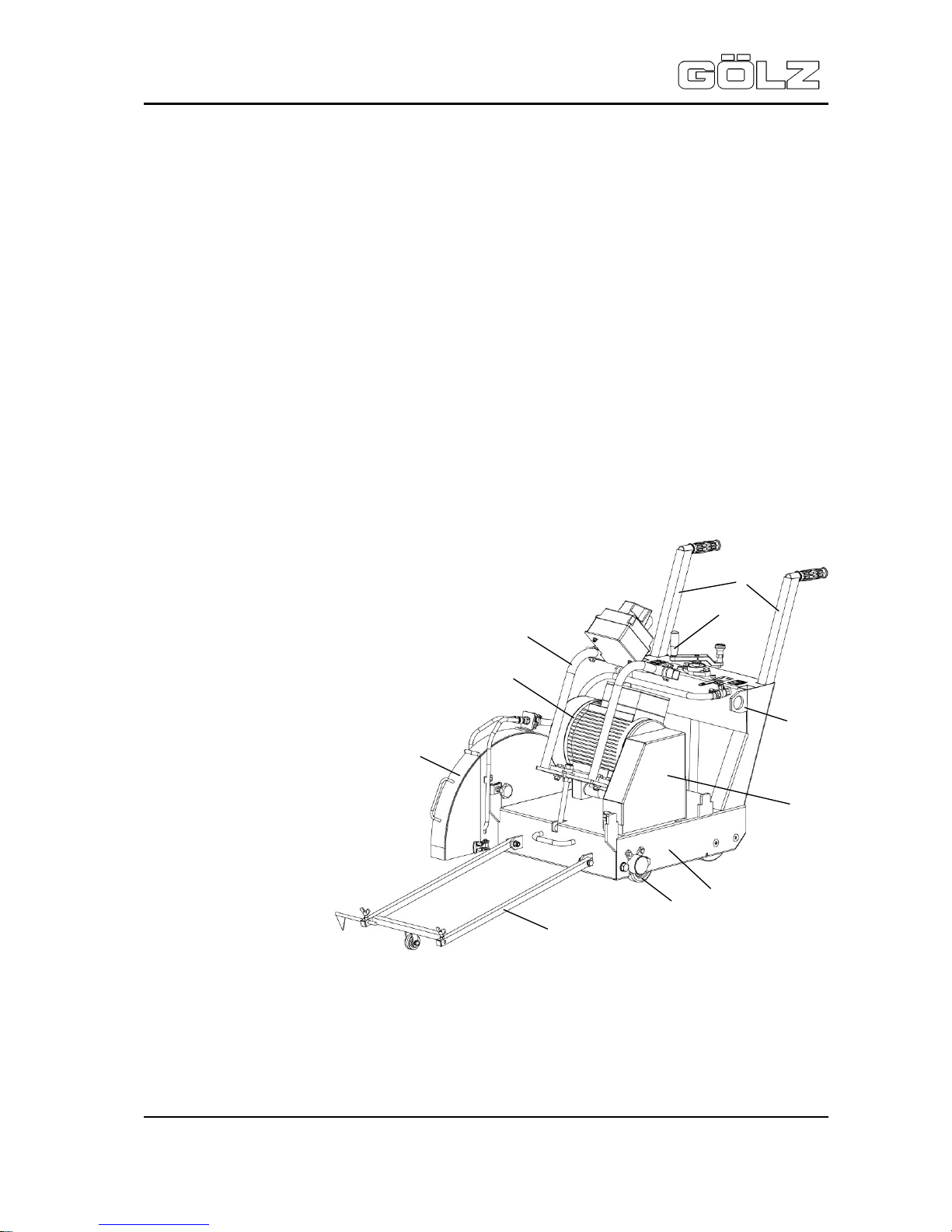

3.1 Main parts
1. Frame
2. Undercarriage
3. V-belt guard
4. Eyebolt
5. Crank handle
6. Adjustable push bow
7. Quick change system
8. Electric motor
9. Blade guard
10. Pointer unit
1
3
6
8
9
2

FS 240 E
Operating manual
- 11- 02822400988
5006148-01
3.2 Technical data
Engine 3-phase electric motor, 400V, 50 Hz, 16 A
Power 7,5 kW (10 HP)
Engine speed 1500 rpm
Blade shaft speed 1500 rpm
Max. cutting speed 47 m/s
Max. blade size Ø 600 mm - Ø 23.6 in.
Flange size Ø 120 mm - Ø 4.275 in.
Blade shaft size Ø 25,4 mm - Ø 1 in.
Max. cutting depth 240 mm - 9.42 in.
Cutting depth selector Crank handle
Feed Manually
Water supply Connection for external water supply
Weight 160 kg - 352.7 lbs.
Dimensions (L x W x H) 840 x 670 x 600 mm - 33 x 26.38 x 23.62 in.
Vibration ISO 5349 VDMA 03/2006 a = 3,7 m/s²
Sound power level DIN ISO 6393 No load = 100 dB(A)
Full load = 119 dB(A)
Sound pressure level DIN EN ISO 6393 No load = 80 dB(A)
Full load = 100 dB(A)
4. Transport and storing
Danger of down coming parts!
Secure boards and machine on the loading area! Do not stand in the danger zone of
the crane !
4.1 Transport
Before transporting dismount the blade and lower the machine until to the stop.
Use boards for load and unloading on a truck. Secure the machine on the loading area.
Fasten a lifting device (tensile strength 1500 kg (3307 lbs.) to the eyebolts (1) when loading and
unloading with an crane. For single transportation the electric motor is detachable by a quick change
system. Open the locking (2) of the V-belt guard (3) clap it backwards.
Loosen the counter nut WS 24 (4) of the spindle (5) and screw down the tension nut WS 24 (6) until
the V-belts are detachable. Pull out the push bows (7) and push them over the carrying bow (8).

FS 240 E
Operating manual
- 12- 02822400988
5006148-01
1
3
2
6
5
47
8
9
Secure with the linch pins and lower the electric motor. Now the locking (9) is free and the electric
motor is detachable. Remount in opposite order and check V-belts for correct tension (see chapter
maintenance).
4.2 Storing
Store the machine in a dry, high or locked place, out of the reach of children or unauthorized persons.
Clean and preserve the machine with corrosion preventive if storing over a longer time like winter time!
5. Starting
5.1 Before starting
Check daily:
• Reliable condition of the machine and blade!
• Well secured blade on the blade shaft!
• Well secured safety devices like blade guard, V-belt guard and splash guard!
• Report any changes (incl. changes in the machine`s working behaviour) to the competent person
immediately. If necessary, stop the machine immediately and lock it!
5.2 Packing
The machine is packed in foil on a pallet. Remove the packing and recycle it. Use recycling contain-
ners.

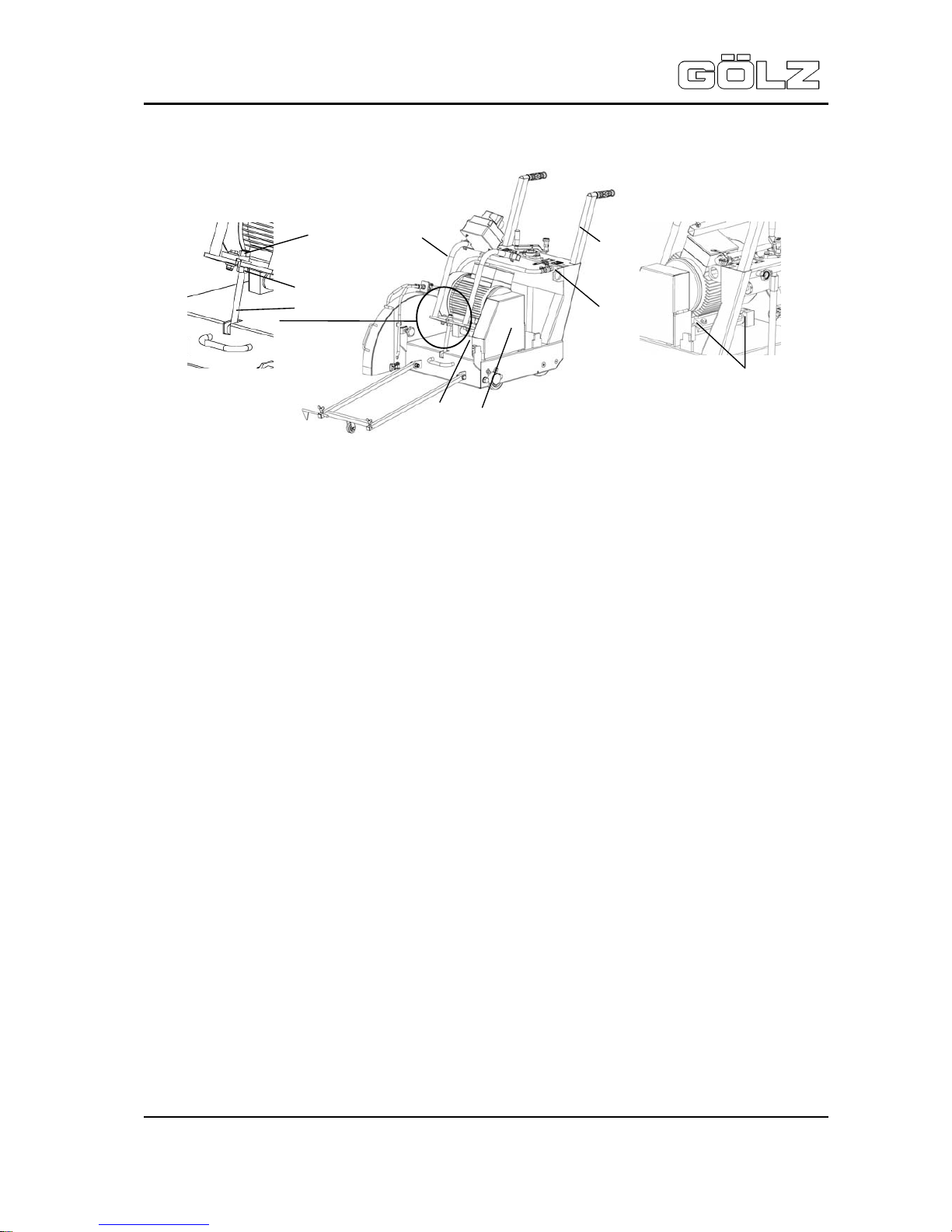

5.3 Mounting the diamond blade
Dismount blade guard. Dismount washer, flange screw and outside flange (left hand threaded if blade
is to be mounted to the right side). Make sure that the blade shaft, flange screw, flanges and blade are
not damaged and free of sawdust and slurry.

FS 240 E
Operating manual
- 13- 02822400988
5006148-01
Washer
„0“ - Position
WS 24
Pay attention to the correct rotation. Direction signs are on the
blade and blade guard. Mount the outside flange and fix it
correctly with the washer and the flange screw. Mount the blade
guard and secure it with the star grips.
Danger of losing the diamond blade if not correctly
fixed on the blade shaft!
5.4 Water supply
Connect the external water supply to the GEKA-coupler at the left side of the tending side. The ball
valve should be closed.
5.5 Power supply
Check the electrical condition, input voltage 400 V/50 Hz. The used power supply must comply with
the regulations of power distribution on building sites (fuse protection over FI-protected switch).
Completely uncoil extension cables. The starter lever must be in 0 position. Insert in the mains plug.
6. Operation
Burning hazard touching hot parts (electric motor)!
Dust when using dry cutting blades!
Danger of down coming parts!
The sound pressure level can exceed 85 dB(A)!
Injury hazard of demolitioining parts!
Injury hazard of drawing in clothes by rotating parts!

FS 240 E
Operating manual
- 14- 02822400988
5006148-01
Triangle position
Phase inverter
Star position
Crank handle Stop bolt acceptance
Ball valve
Lower Lift
Stop bolt
Never touch rotating parts like blade, motor or blade shaft and V-belts!
Before starting the machine must be completely lifted. The blade may not have any
ground contact!
6.1 Cutting line
Mark the cutting line with chalk. Make sure the soil is clean and align the blade with the cutting line.
Hinge down the pointer unit and align the direction sign with the cutting line.

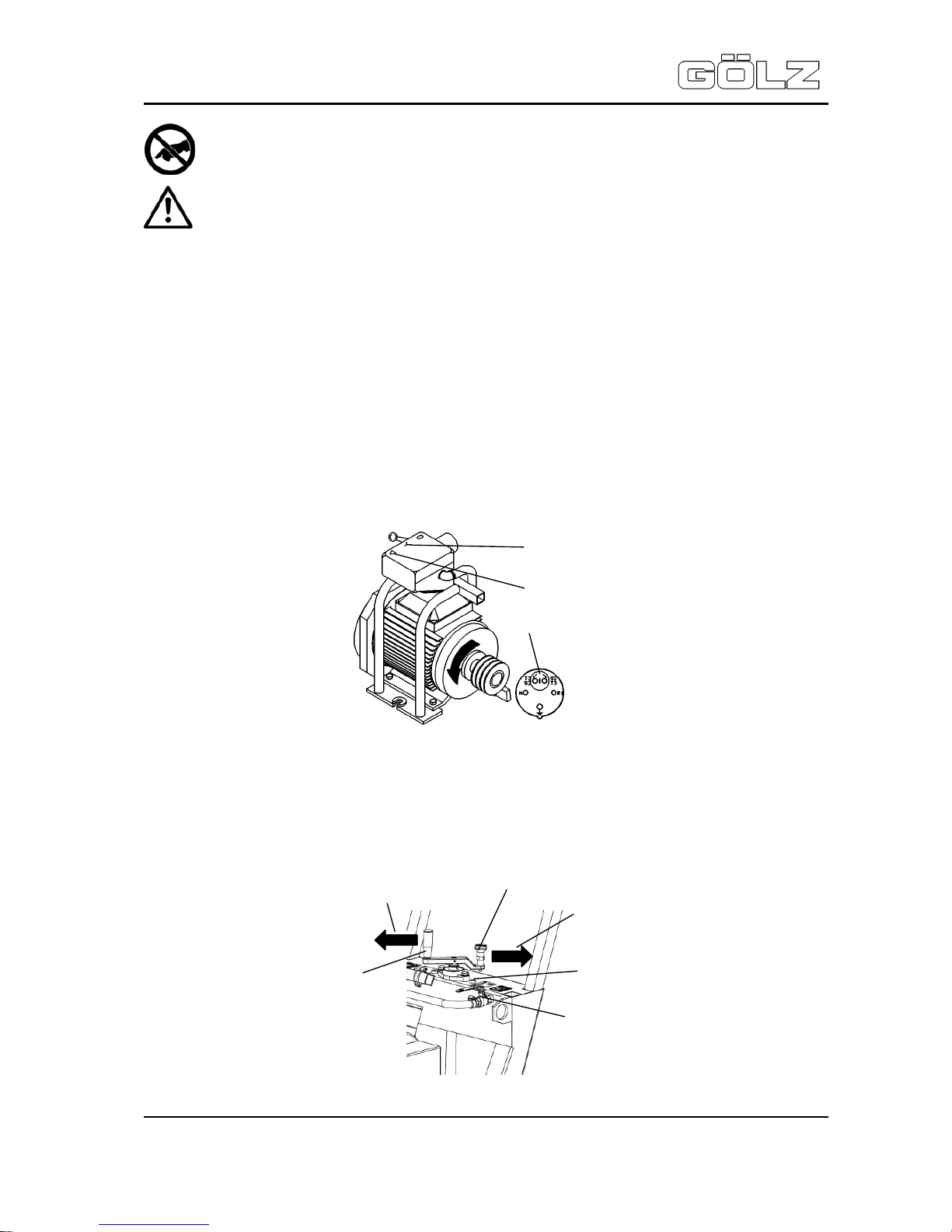

6.2 Starting electric motor
Move the starter lever in star position.
Notice correct rotation of the electric motor (sight on the V-belt pulley - rotation left)!
Wrong rotation - pull mains plug and turn the phase inverter with a screw driver. Repeat starting and
move the starter lever in triangle position after the electric motor has reached maximum speed.
6.3 Setting cutting depth
Open the ball valve and turn the crank handle counter clockwise. Lower the machine to the desired
cutting depth and latch the crank handle in one of the two stop-bolt acceptances.

FS 240 E
Operating manual
- 15- 02822400988
5006148-01

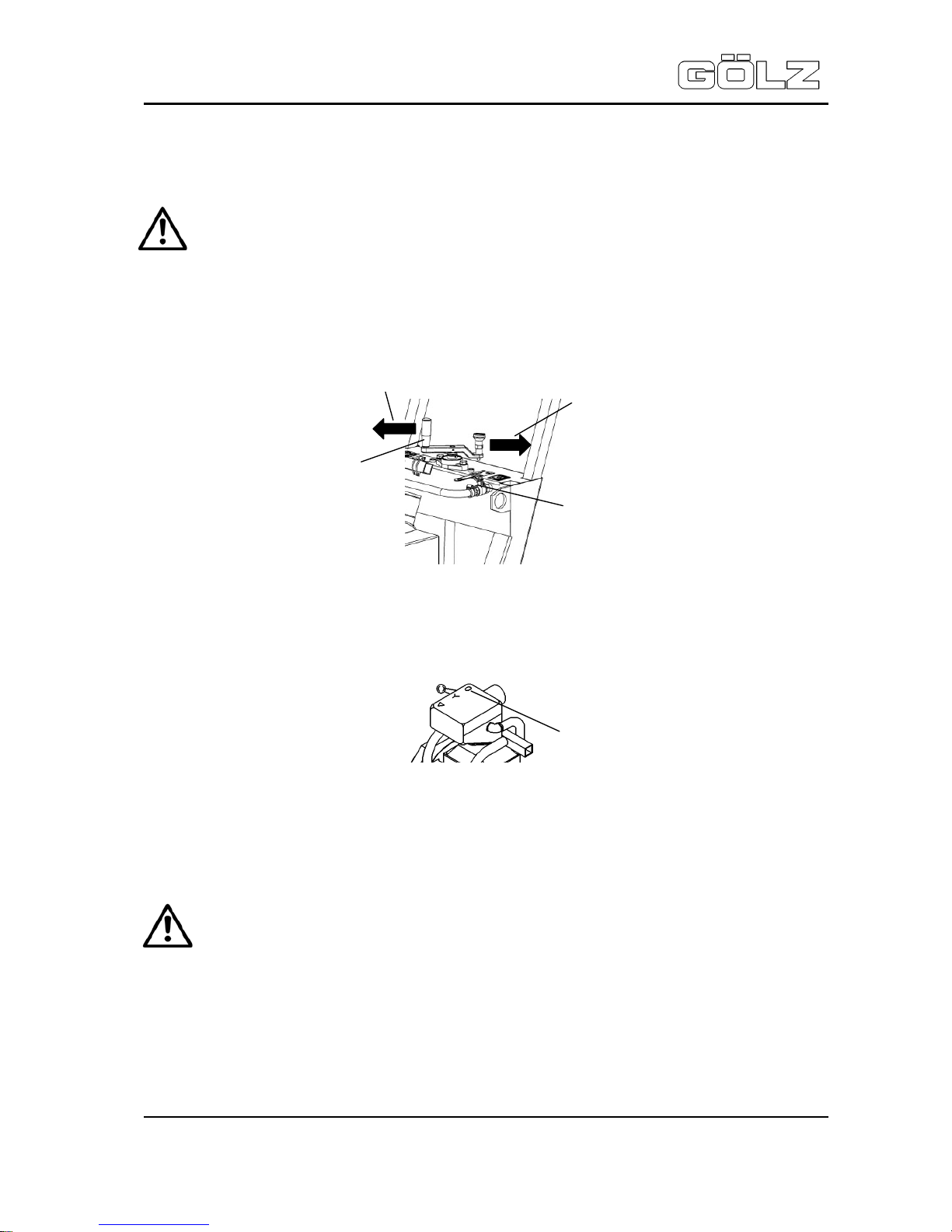

Crank handle
Ball valve
Lower Lift
„0“ - Position
6.4 Feed
Operate with even feed. The electric motor will overstress and the machine might rise out of cut if the
feed is too high. The segments will become dull if the feed is too low.
Operating with too high feed the machine might rise out of cut!
6.5 Finish cutting
Fully lift the floor saw and close the ball valve.
6.6 Stopping electric motor
Move the start lever to the 0 position.
7. Maintenance
Spare parts must comply with the technical requirements specified by the manufacturer. Spare parts
from
GÖLZ can be relied to do so! Observe the following indications:
Cut off electric motor and pull mains plug before maintenance, repair or inspection.
Place machine on stand and secure it against fall down. Work on the electrical system
or equipment may only be carried out by a skilled electrician!
7.1 General
After cutting clean the machine and check the machine and specially the blade for damages.
Necessary repairs must be carried out immediately (see spare parts list).

FS 240 E
Operating manual
- 16- 02822400988
5006148-01
7.2 Lubrication chart
Grease the bearings of the blade shaft, cutting depth selector and the undercarriage every 20-30
working hours with heat resistance fat. Clean periodically lose parts like pointer unit and wheels and
grease them with some drops of oil.
7.3 Electric motor
To prevent overheat clean periodically the ventilator cowl and the cooling ribs.
7.4 V-belts
Check periodically the correct tension of the V-belts. If the machine is new or a new set of V-belt was
mounted check the tension after 8 working hours.
Deflexion in the middle approx. 4 mm (0.16") - maximum deflexion force 19 N. Always use a set of V-
belts. Loosen the counter nut (1) WS 24 of the spindle (3) and tense the V-belts with the adjusting nut
(2) WS 24 until the correct tension is reached and fasten the counter nut (1).
Use always a set of V-belts!
1
2
3
Deflexion 4 mm - 0.16 in.
A
A
= min. 1,3 kg - 2.87 lbs.
A = max. 1,9 kg - 4.18 lbs. with new V-belts
A = max. 1,6 kg - 3.53 lbs. at retension

FS 240 E
Operating manual
- 17- 02822400988
5006148-01
8. Troubleshooting
Problem Cause Remedy
Electric motor
Mains plug not connected Check conection
Fuse of power distribution on
building sites has been released Check fuses
Electric motor does not
operate!
Malfunction of electrical installation The electrical installation must be checked only by an
electrician
Lowering
Machine does not fully lower! Undercarriage or threaded spindle
tight Check undercarriage and threaded spindel
Cutting
Dull diamond blade Sharpen or use softer
diamond blade
Machine rises out of cut! Feed to high Reduce feed
Damaged centering of the blade
shaft Replace blade shaft
Warped blade shaft Replace
Non circular abrasion of the
diamond blade! Loose or damaged blade shaft
bearings Tighten or replace
No free cut because of siedwards
wear-out of segments Replace diamond blade
Diamond blade jams in the cut Damaged diamond blade core Replace diamond blade
Insufficient water flow Check hoses for fracture free
laying
Wrong type of diamond blade Choose different diamond
blade
Feed too high Reduce feed
Abnormal wear-out of
segments
Cutting in loose underground Reduce cutting depth
Insufficient water flow Check hoses for fracture free
laying
Abnormal blade wear-out at
sides of core! Cutting in loose underground Reduce cutting depth
Slippy V-belts Adjust
Bad cutting performance! Blunt diamond blade Sharpen or use softer
diamond blade

FS 240 E
Operating manual
- 18- 02822400988
5006148-01

FS 240 E
Operating manual
- 19- 02822400988
5006148-01
9. Wearing parts
Wearing parts for construction devices mentioned in the operating manual
such as drilling and sawing machines
Wearing parts are the parts subject to operation-related (natural) wear during proper use of the device.
The wearing time cannot be uniformly defined, and differs according to the intensity of use. The
wearing parts must be adjusted, maintained and, if necessary, replaced for the specific device in
accordance with the manufacturer’s operating manual. Operation-related wear is not a reason for
defect claims.
• Feed and drive elements such as toothed racks, gearwheels, pinions, spindles, spindle
nuts, spindle bearings, cables, chains, sprockets, belts
• Seals, cables, hoses, packings, connectors, couplings and switches for pneumatic, hydraulic,
water, electrical and fuel systems
• Guide elements such as guide strips, guide bushes, guide rails, rollers, bearings, sliding
protection supports
• Clamping elements for quick-separating systems
• Flushing head seals
• Slide and roller bearings that do not run in an oil bath
• Shaft oil seals and sealing elements
• Friction and safety clutches, braking devices
• Carbon brushes, commutators/armatures
• Easy-release rings
• Control potentiometers and manual switching elements
• Securing elements such as plugs, anchors, screws and bolts
• Fuses and lamps
• Auxiliary and operating materials
• Bowden cables
• Discs
• Diaphragms
• Spark plugs, glow plugs
• Parts of the reversing starter such as the starting rope, starting pawl, starting roller and
starting spring
• Sealing brushes, rubber seals, splash protection cloths
• Filters of all kinds
• Drive rollers, deflection rollers and bandages
• Cable anti-twist elements
• Running and drive wheels
• Water pumps
• Cut-material transport rollers
• Drilling, parting and cutting tools
• Energy storage
Wearing parts of this machine are grey marked in the spare parts list.

FS 240 E
Operating manual
- 20- 02822400988
5006148-01
10. Ersatzteilliste/Spare parts list/Liste des pièces de rechange
So bekommen Sie schnell und richtig Ihr Ersatzteil
- für Maschine - Modell - Masch.-Nr.
- Artikelnummer - Bezeichnung des Ersatzteiles
- Anzahl der gewünschten Ersatzteile
- Wohin liefern?
- Womit liefern (Post, Eilpost etc.)?
Always indicate:
- machine/model/serial number
- item number and description of the spare part
- amount of spare parts desired
- full address
- goods to be sent by regular mail, express, etc.
Pour obtenir rapidement les pièces de rechange indiquer :
- Nº de la machine, du modèle
- Nº de l’article / description de la pièce désirée
- Nombre de pièces commandées
- Adresse de livraison
- Mode de livraison (poste, express etc...)
