G-Tools G-kit Bonanza 0,35m2 User manual

Manual
www.g-tools.nl
G-kit Bonanza 0,35m2
___________________________________________________________________
Installation instructions
Versie: Eng 2018-9

Manual
www.g-tools.nl
G-kit Bonanza 0,35m2:
Specifications:
Material: aluminium extrusion profiles
patented plastic g-tools corner connectors
moist and fire resistant PVC/XPS sandwich panels
Dimensions: external (h x w x d): 176 X 61,5 X 61,5cm
internal (h x w x d) : 161 X 58,5 X 58,5cm
Items below are only delivered when you’ve bought a complete version:
Timer Legrand Omnirex
minimum switch on period 15 min.
230V, 50Hz, 16A
maximum capacity 3680W
Ventilator Winflex 125 VKO in line axial ventilator, 185m3 / hour
Lighting E.T.I 250 Watt, Powerlux reflector, Sunkraft 250 Watt or
Hanspanel 100 Watt or G-Leds 140 Watt
Filter maximum air flow: 240 m3/hour
optimal air flow: 160 m3/hour
hight: 250mm
diameter filter: 190mm
diameter flange: 125mm
weight: 1,5kg
Warranty procedure:
G-tools offers a 2 years warranty on all components of the Bonanza except bulbs and filters. Please contact your
G-tools rep to explain the problem as there might be an easy fix without having to replace a part.
Maintenance and safety regulations:
The G-Kit Bonanza is a maintenance free object. Never the less there are a few factors to take into account.
- Only use grounded wall outlets to plug the Bonanza in.
- Do not plug the Bonanza into the wall outlet untill the machine is fully assembled and you have read the
instructions.
- Avoid contact of water with all electrical equipment
- When changing the light bulb always unplug the Bonanza from the wall outlet.
- Make sure the light bulb has had plenty of time to cool of before touching it.
- After screwing in the HPS bulb wipe finger prints of the bulb with a clean dry cloth to ensure its full life.
- Wait 20 minutes after the light has turned of before turning it on again.
- It’s recommanded that no more than 1 G-Kit Bonanza goes on a single 15A breaker. We also recommend the
Bonanza is plugged into a surge protector.This will protect the machine from any power spikes due to storms,
power outages, etc.
- Avoid contact with water with the non-laminated sides of the panels.

Manual
www.g-tools.nl
G-kit Bonanza 0,35m2:
Box A: top + bottom panel–box 62 x 62 x 30cm
Amount Description Length (mm) Width
1 roof panel in alu frame( with timer, 615 615
fan, filter, silencer and light*)
1 bottom pannel in alu frame 615 615
4 aluminium flat profile middle 534
4 aluminium angle profile 505
4 adjustable feet 80
4 connector piece 4-way
4 handle with screws and washers
3 air inlet
1 plug*
4 plastic U profile 530
1 cable through entry
1 flange 125mm
Box B: panels –box 120 x 73 x 5cm
Amount Description Length (mm) Width
2 side panels top left and right 1028 563
1 back panel top with: -1 x hole 121mm 1028 563
-3 x hole 76mm
-1 x hole 21mm
3 side and back panels bottom left and right 533 563
1 door bottom 528 295
1 door bottom with weather strip 528 295
1 door top 1014 295
1 door top with aluminium strip and weather strip 1014 295
4 aluminium angle profile 1000
Total packing 2 boxes (without box or pallet)
Items marked with a * are only part of a complete version.

Manual
www.g-tools.nl
G-kit Bonanza installation instructions:
1. General:
To prevent transport damage the bottom and roof of the
cabinet are connected with 4 aluminium profiles.
These profiles serve no further purpose and can be thrown
away.
-Bevestig Push the 4 aluminium adjustable feet on the plastic insert
connectors underneath the bottom panel.
Place the 4 aluminium angle profiles (50,5cm) on the 4
connecters and place side and back panels and the doors.
The door with the weather strip slides through the rail in
the back so te strip seals the gap where the doors overlap.
Make a ring with the 4 flat profiles (53,4cm) and the 4-way
connectors.

Manual
www.g-tools.nl
Place the ring on top of the 4 profiles and push tight.
Place the 4 aluminium angle profiles (100 cm) on the
connecters and place the side panels and the back panel
with the holes.
Place the roof panel (with the filter, light and timer) on top
of the angle profiles and push tight.
Mount the 3 G-tools air inlets (see chapter 2)
Pull the electricity cord through the cable through entry.
(only when you’ve bought the complete version)

Manual
www.g-tools.nl
Mount the cable through entry in the 21mm hole in the
back panel of the cabinet and mount the supplied plug.
Push the flange through the hole in the back panel in to
the silencer.
From outside to within.
Hang the lamp, set the timer (chapter 3) and place the
doors (chapter 4) The door with the aluminium profile and
weather strip slides through the rail in the back so the
strip seals the gap where the doors overlap.

Manual
www.g-tools.nl
Overview installation components:
2. The air inlets
Each air inlet consists of 2 parts.
-Push part 1 inwards through the hole in the back.
-Push part 2 on part 1 and twist & lock.
3. Setting the timer
a. Set the switch on the right side of the timer at the clock symbol.
b. Set the current time by turning the dial of the timer.
c. The pins in the outer ring mean:
Positioned outside –OFF
Positioned inside –ON
Set the timer for lights ON by pushing the pins inward
4.The plastic door profiles
In order to have better access to your plants both top doors are removable.
Place the four plastic U profiles (Z2) in aluminium profile J. Two in every profile. The plastic profiles should be
placed on top of eachother. The top doors will slide through this profile. (see picture 6). The doors can now be
simply removed by lifting them and pulling them towards you.

Manual
www.g-tools.nl

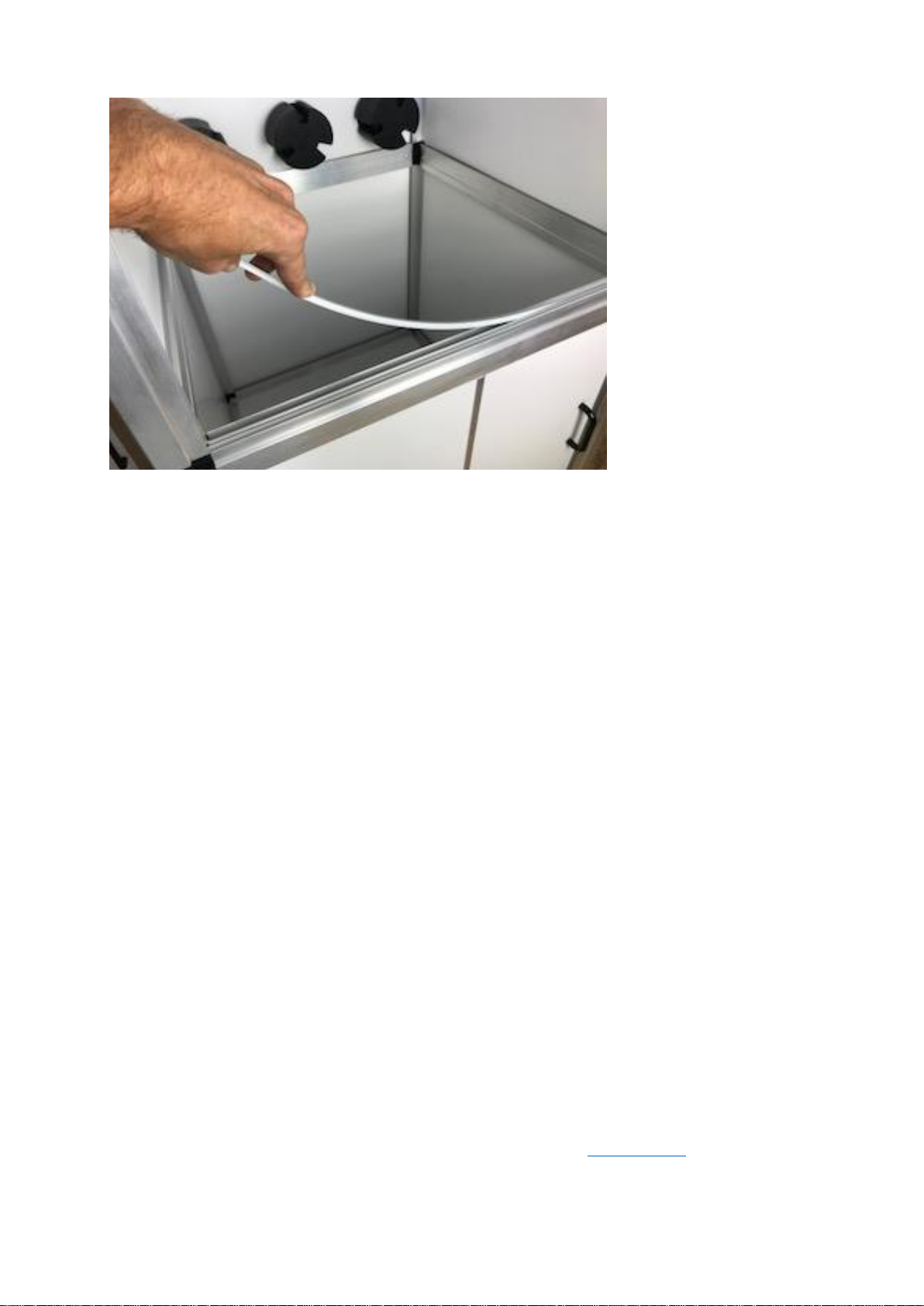

picture 6
Frequently asked questions (F.A.Q.'s)
How much will my electricity-bill go up?
For a G-kit Bonanza 0,35m2 model with 250 W HPS:
When the lights are on for an average of 14/hours /day: approx.. €25,-/ month
For a G-kit Bonanza 0,35m2 model with Hanspanel 100W:
When the lights are on for an average of 14/hours /day: approx.. €9,-/ month
Won't the cabinets get to warm?
Normally it gets 5 to 6 degrees warmer inside the cabinet than outside.
It's best to have it in a room where you can leave a window open.
If you have more than one G-Kit in a room make sure that the light of one switches on when the light of the
other switches off (the lights are on 12 hours a day).
The humidity is too low, what to do?
Especially in the beginning it is important the plant get enough water. To spray them with water in the first two
weeks is the best.
Is it possible to put a G-kit in a barn or garage?
No problem, make sure there is enough fresh air and keep it warm in the winter.
Do I get warranty?
There's a one year warranty on all electrical equipment except for the light-bulb and filter. New parts shall be
send to you after the broken parts have been received at the distribution center.
Contact:
For all your questions visit our website www.g-tools.nl or send an e-mail to: [e-mail]

Manual
www.g-tools.nl
WEEE registration number: DE 68161470
The symbol of the crossed-out wheelie bin on electrical and electronic equipment means that it mustn’t be
removed in household waste. There are free collection points for the return of WEEE available nearby. Please
inquire at your city or municipality about the addresses. You can also contact us regarding other options to return
old equipment. By separate collection of WEEE, the reuse and recycling of old equipment are made possible and
any negative impact on the environment and human health due to hazardous substances in old equipment is
eliminated. You are responsible for the erasure of any private data which could still be stored on old equipment.
Further information can be found on www.elektrogesetz.de.
