Gaggenau CX 482 User manual

Instruction manual
CX 482
Full surface induction cooktop

2
en
Table of contents
Instruction manual
8 Intended use 4
( Important safety information 5
] Causes of damage 7
Overview 7
7 Environmental protection 8
Tips for saving energy 8
Environmentally-friendly disposal 8
f Induction cooking 8
Advantages of induction cooking 8
Cookware 8
* Getting to know your appliance 10
Cooking surface 10
The control panel 10
Overview of the menus 11
Cooking position display 12
Residual heat indicator 12
1 Operating the appliance 13
First-time use 13
Switching the hob on and off 13
Configuring cooking position settings 13
Chef's recommendations 14
u Dynamic cooking 16
Activation 16
Deactivating 16
ˆ Professional cooking 17
Activation 17
Deactivating 18
O Time-setting options 18
Cooking timer 18
Stopwatch function 19
Short-term timer 20
v Booster function for pots 21
Activating 21
Deactivating 21
x Booster function for pans 22
Recommendations for use 22
Activating 22
Deactivating 22
z Keep warm function 23
Activating 23
Deactivating 23
s Transfer function 23
Activation 23
‚ Wireless temperature sensor 24
Preparing and maintaining the wireless temperature
sensor 24
Connecting the wireless temperature sensor to the
control panel 25
Cleaning 25
Replacing the battery 26
Declaration of Conformity 26
Ü Cooking sensor mode 27
Cooking processes with the cooking sensor 27
Benefits 28
Tips for cooking with cooking sensor mode 28
Setting the boiling point 28
Setting procedure 29
Recommended dishes 30
‰ Dynamic cooking for an item of cookware 34
Activation 34
Deactivating 34
‹ Teppanyaki mode 35
Suitable cookware 35
Activation 35
Deactivating 35
A Childproof lock 36
Activation 36
Deactivating 36
Childproof lock 36
Š Pause function 36
Activation 36
Deactivating 36
b Automatic safety cut-out 36
Q Basic settings 37
To go to the basic settings 38
o Home Connect 38
Connection to your home network 38
Home Connect settings 41
Software update 43
Remote diagnostics 43
About data protection 44
Declaration of Conformity 44

3
en
e Hood control 44
Setting up 45
Disconnecting from the network 45
Control the hood via the hob 46
Ventilation control settings 47
D Cleaning 48
Hob 48
Hob surround 48
{ Frequently Asked Questions (FAQ) 49
3 Trouble shooting 52
Warnings and fault messages 52
Tips 52
Demo mode 53
4 Customer service 54
Product number (E no.) and production number (FD no.)
54
Additional information on products, accessories,
replacement parts and services can be found at
www.gaggenau.com and in the online shop
www.gaggenau.com/zz/store

4
en Intended use
m 8 Intended use
Intendeduse Read these instructions carefully. Please keep
the instruction and installation manual, as well
as the appliance certificate, in a safe place for
later use or for subsequent owners.
Check the appliance after removing it from the
packaging. If it has suffered any damage in
transport, do not connect the appliance,
contact the Technical Assistance Service and
provide written notification of the damage
caused, otherwise you will lose your right to
any type of compensation.
Only a licensed professional may connect
appliances without plugs. Damage caused by
incorrect connection is not covered under
warranty.
This appliance must be installed according to
the installation instructions included.
This appliance is intended for private domestic
use and the household environment only. The
appliance must only be used for the
preparation of food and beverages. The
cooking process must be supervised. A short
cooking process must be supervised without
interruption. Only use the appliance in
enclosed spaces.
This appliance is intended for use up to a
maximum height of 4000 metres above sea
level.
Do not use covers. These can cause accidents,
for example due to overheating, catching fire or
materials shattering.
Only use safety devices or child protection
grilles approved by ourselves. Unsuitable
safety devices or child protection grilles may
result in accidents.
This appliance is not intended for operation
with an external clock timer or a remote control.
This appliance may be used by children over
the age of 8 years old and by persons with
reduced physical, sensory or mental
capabilities or by persons with a lack of
experience or knowledge if they are supervised
or are instructed by a person responsible for
their safety how to use the appliance safely and
have understood the associated hazards.
Children must not play with, on, or around the
appliance. Children must not clean the
appliance or carry out general maintenance
unless they are at least 15 years old and are
being supervised.
Keep children below the age of 8 years old at a
safe distance from the appliance and power
cable.
When using the Cooking sensor mode, set the
cooking position on which you have placed the
saucepan with the cooking sensor.
If you wear an active implantable medical
device (e.g. a pacemaker or defibrillator),
check with your doctor that it complies with
Council Directive 90/385/EEC of 20th June
1990, DIN EN 45502-2-1 and DIN EN 45502-2-
2, and that it has been chosen, implanted and
programmed in accordance with VDE-AR-E
2750-10. If these conditions are satisfied, and
if, in addition, non-metal cooking utensils and
cookware with non-metal handles are used, it is
safe to use this induction hob as intended.

5
Important safety information en
m ( Important safety
information
Import ant safetyinformation mWarning – Risk of fire!
▯Hot oil or grease ignite very easily. Never
leave hot fat or oil unattended. Never use
water to put out burning oil or fat. Switch
off the hob. Extinguish flames carefully
using a lid, fire blanket or something
similar.
Risk of fire!
▯The cooking surface becomes very hot. Do
not set any combustible objects on the hob.
Do not store any objects on the hob.
Risk of fire!
▯The appliance gets hot. Do not keep
combustible objects or aerosol cans in
drawers directly underneath the hob.
Risk of fire!
▯The hob switches off automatically and can
no longer be operated. It may switch on
unintentionally at a later point. Switch off
the circuit breaker in the fuse box. Contact
the after-sales service.
Risk of burns!
▯Do not use hob covers here.They can
cause accidents, for example due to
overheating, catching fire or materials
shattering.
mWarning – Risk of burns!
▯The cooking positions and the adjacent
areas, particularly the hob frame (if
present), become extremely hot. Never
touch the hot surfaces. Keep children away
from the appliance.
Risk of burns!
▯The hotplate heats up but the display does
not work. Switch off the fuse in the fuse
box. Inform technical after-sales service.
Risk of burns!
▯Metal objects on the hob quickly become
very hot. Never set metal objects, such as
knives, forks, spoons, lids, or other objects
that contain metal on the hob.
Risk of fire!!
▯After each use, always turn off the hob at
the main switch. Do not wait until the hob
turns off automatically after the pan is
removed.
mWarning – Risk of electric shock!
▯Incorrect repairs are dangerous. Repairs
may only be carried out and damaged
power cables replaced by one of our
trained after-sales technicians. If the
appliance is defective, unplug the
appliance from the mains or switch off the
circuit breaker in the fuse box. Contact the
after-sales service.
Risk of electric shock!
▯Do not use any high-pressure cleaners or
steam cleaners, which can result in an
electric shock.
Risk of electric shock!
▯A defective appliance may cause electric
shock. Never switch on a defective
appliance. Unplug the appliance from the
mains or switch off the circuit breaker in the
fuse box. Contact the after-sales service.
Risk of electric shock!
▯Cracks or fractures in the glass ceramic
may cause electric shocks. Switch off the
circuit breaker in the fuse box. Contact the
after-sales service.
mWarning – Hazard due to magnetism!
The wireless cooking sensor is magnetic.The
magnetic elements may damage electronic
implants, e.g. pacemakers or insulin pumps.
People fitted with electronic implants should
therefore not carry the cooking sensor in their
pockets and always keep it at least 10 cm away
from their pacemaker or similar medical device.
mWarning – Risk of fault!
A fan is located on the underside of this hob. If
a drawer is located on the underside of the
hob, do not store any small or sharp objects,
paper or tea towels in it. These may be sucked
in and damage the fan or impair the cooling.
There must be a clearance of at least 2 cm
between the contents of the drawer and the fan
entry point.

6
en Important safety information
mWarning – Risk of injury!
▯The wireless cooking sensor is powered by
a battery, which may become damaged if it
is exposed to high temperatures. Remove
the sensor from the cookware and store it
away from any heat sources.
Risk of injury!
▯The cooking sensor may be very hot when
removing it from the saucepan. Wear oven
gloves or use a tea towel to remove it.
Risk of injury!
▯When cooking in a bain marie, the hob and
cooking container could shatter due to
overheating. The cooking container in the
bain marie must not directly touch the
bottom of the water-filled pot. Only use
heat-resistant cookware.
Risk of injury!
▯Saucepans may suddenly jump due to
liquid between the pan base and the
cooking position. Always keep the cooking
position and saucepan bases dry.

7
Causes of damage en
] Causes of damage
Causesofdamage Caution!
– Rough pan bases may scratch the hob.
– Avoid leaving empty pots and pans on the cooking
position. Doing so may cause damage.
– Do not place hot pans on the control panel, the
indicator area, or the hob frame. Doing so may
cause damage.
– Hard or pointed objects dropped on the hob may
damage it.
– Aluminium foil and plastic containers will melt if
placed on the cooking position while it is hot. The
use of laminated sheeting is not recommended on
the hob.
Overview
The table below lists the commonest kinds of damage:
Damage Cause Remedy
Stains Food boiling over Remove any food that has boiled over immediately with a
glass scraper
Unsuitable cleaning agents Only use cleaning agents that are suitable for this type of hob
Scratches Salt, sugar and sand Do not use the hob as a work surface or storage space
Rough pan bases can scratch the hob Inspect the cookware
Discolouration Unsuitable cleaning agents Only use cleaning agents that are suitable for this type of hob
Wear caused by cookware Lift pots and pans when moving them.
Blistering Sugar, food with a high sugar content Remove any food that has boiled over immediately with a
glass scraper

8
en Environmental protection
7 Environmental protection
Environmentalprotecti on In this section, you can find information about saving
energy and disposing of the appliance.
Tips for saving energy
▯Always use a matching lid with your cookware.
Cooking without a lid consumes significantly more
energy. Use a glass lid. This allows you to see into
the pan without removing the lid.
▯Use cookware with a flat base. Uneven bases
increase the energy consumption.
▯Always place items of cookware inside the usable
area of the cooking surface.
▯Use small pots and pans to cook small quantities.
Using cookware that is big but barely filled requires
a lot of energy.
▯Cook with as little water as possible. This saves
energy and preserves the vitamins and minerals in
vegetables.
▯Switch to a lower power level in good time. This
prevents energy from being wasted.
Environmentally-friendly disposal
Dispose of packaging in an environmentally-friendly
manner.
The wireless cooking sensor is battery-powered.
Dispose of spent batteries in an environmentally
responsible manner.
f Induction cooking
Inducti oncooking Advantages of induction cooking
Induction cooking is fundamentally different from
traditional cooking methods, as heat builds up directly
in the item of cookware. This offers numerous
advantages:
▯Saves time when boiling and frying.
▯Energy savings.
▯Easier to care for and clean. Spilled food does not
burn on as quickly.
▯Heat control and safety – the hob increases or
decreases the heat supply as soon as the user
changes the setting. If the cookware is removed,
the induction cooking position immediately
interrupts the heat supply without it having been
switched off.
Cookware
Only use ferromagnetic cookware for induction cooking,
such as:
▯Cookware made from enamelled steel
▯Cookware made from cast iron
▯Special induction-compatible cookware made from
stainless steel.
To find out whether your cookware is suitable for
induction cooking, check whether a magnet is attracted
to the base of the item or refer to the manufacturer's
specifications.
Some induction cookware does not have a fully
ferromagnetic base:
▯If the base of the cookware is only partially
ferromagnetic, only the area that is ferromagnetic
will heat up. This may mean that heat will not be
distributed evenly. The non-ferromagnetic area may
not heat up to a sufficient temperature for cooking.
This appliance is labelled in accordance with
European Directive 2012/19/EU concerning
used electrical and electronic appliances
(waste electrical and electronic equipment -
WEEE). The guideline determines the
framework for the return and recycling of used
appliances as applicable throughout the EU.

9
Induction cooking en
▯The ferromagnetic area will also be reduced if the
material from which the base of the cookware is
made contains aluminium, for example. This may
mean that the cookware will not become sufficiently
hot or even that it will not be detected.
Unsuitable pans
Never use diffuser hobs or pans made from:
▯common thin steel
▯glass
▯earthenware
▯copper
▯aluminium
Properties of the base of the cookware
The material(s) from which the base of the cookware is
made can affect the cooking result. Cookware made of
materials that distribute heat evenly, such as saucepans
with a stainless steel sandwich base, save time and
energy.
Cookware with a completely flat base works best. If the
base of the cookware is uneven or embossed, this will
reduce the heat supply.
Cookware that has been removed or is of an
unsuitable size
Always place items of cookware inside the usable area
of the cooking surface. If the cookware is not positioned
correctly, is made of an unsuitable material or is not the
right size, the Õsymbol will appear next to the cooking
position display. Move the cookware or try again with a
different pot or pan.
If you lift the "active" cookware from the cooking surface
for more than 30 seconds, the cooking position
automatically switches off.
Empty cookware or cookware with a thin base
Do not heat empty items of cookware and do not use
cookware that has a thin base. The hob is equipped with
an internal safety system. However, an empty item of
cookware can heat up so quickly that the automatic
switch-off function has no time to react and an
excessively high temperature is reached. This could melt
the base of the cookware and damage the glass plate. If
this happens, switch off the hob and do not touch the
cookware. If this no longer works once it has cooled
down, contact our technical after-sales service.
Pan detection
The hob uses the ferromagnetic diameter and material
of the base of the cookware to automatically detect the
position, size and shape of the cookware being used.
Cookware with a base measuring 90 to 340 mm in
diameter is suitable for use.
Note: The cooking position displays may show a size
and shape that is different from the cookware actually
being used. This is normal and does not affect the
functioning of the hob. For more information, see the
section entitled ~"Frequently Asked Questions
(FAQ)".
FP FP
FP

10
en Getting to know your appliance
* Getting to know your appliance
Gettingtoknowyourappliance This section explains how to use the cooking surface,
the control panel and the various different functions of
the appliance.
Note: Depending on the appliance model, individual
details and colours may differ.
Cooking surface
The entire cooking surface of the hob supplies
induction heating. You can place items of cookware
anywhere inside the usable area of the cooking surface.
The position, size and shape of the cookware will be
detected automatically.
Note: Up to 5 items of cookware can be heated at the
same time on the cooking surface.
The control panel
The control panel has buttons and a touchscreen
display.
Buttons
The buttons are touch-sensitive. To select a function,
touch the relevant symbol. The available functions will
appear in the display.
Notes
– Always keep the control panel clean and dry.
Moisture can prevent it from working properly.
– Never place hot cookware on the touchscreen
display. The electronics could overheat.
Hob
1 Usable cooking surface
2 Control panel


Buttons
#Main switch
0Time menu
ŠShort-term timer
®Stopwatch
¯Childproof lock
HPause function
gHob mode
ËDynamic cooking
¬Professional cooking
ÊClassic cooking
SVentilation control
tBasic settings
ü#Cooking position
1.0 - 9.0 Heat settings
ŽSaucepan booster function
©Frying pan booster function
£Keep-warm function
6Cooking timer
iCookware mode
ÐDynamic control for an item of cookware
ÑClassic cooking for an item of cookware
¨Cooking sensor
ÈTeppanyaki

11
Getting to know your appliance en
Touchscreen display
The touchscreen display gives you an overview of the
cookware on the cooking surface and the buttons for
activating the various functions.
When an item of cookware is set down on the cooking
surface, the cooking position display for this cookware
is shown on the display.
Overview of the menus
The intuitive menu structure helps you to find your way
around the control panel of your hob. You can find out
more about the most important menus in this section.
Main screen
The main display provides an overview of the indicators
for the cookware on the cooking surface. It displays the
cooking mode, power levels, and the timer functions
that are set for the cooking zones that are switched on.
Function bar
The function bar provides access to a number of
functions and other menus.
The following options are shown in the function bar:
▯¯Childproof lock
HPause function
▯gCooking mode
▯SVentilation control
▯tBasic settings
Info menu
The info menu provides you with information about the
appliance or the functions that are currently active.
To access the info menu, touch the =symbol on the
function bar. The sensor will show when the function is
available.
Notifications and alerts
Notifications let the user know that the appliance's
status has changed or tell them when they need to
confirm something.
To return to the main screen, touch the Gsymbol.
Note: The top line of the display lights up orange.
The information makes you aware that a measure is
required.
Follow the instructions in the display and touch the
Gsymbol to return to the main screen.
Note: The top line of the display lights up blue.
Cooking mode
The hob has various functions for the entire cooking
surface.
To access the hob mode menu, touch the g button on
the function bar.
Cooking mode Function
¬Professional cook-
ing
Allows the heat setting to be
selected based on the position of
the cookware on the cooking sur-
face, from right to left.
ÊClassic cooking Allows you to select the heat setting
for the cooking position.
ËDynamic cooking Allows the heat setting to be
selected based on the position of
the cookware on the cooking sur-
face, from front to back.

12
en Getting to know your appliance
Cookware mode
The hob has various functions for the cooking position.
To access the cookware mode menu, tap the cooking
position display and then touch the ibutton.
Cooking position display
When you place an item of cookware on the cooking
surface, the indicator for the relevant cooking position
will light up on the touchscreen display.
Residual heat indicator
The hob has several residual heat indicators fto warn
you that one or more cooking positions is/are still hot.
One, two or all three bars of the indicator fwill light up
depending on how strong the residual heat is. Do not
touch the cooking surface while the indicators are still
lit or immediately after they have switched off.
The residual heat indicators will remain lit for as long as
the cooking surface is still hot, even if you switch off the
hob.
Cookware mode Function
ÐDynamic cooking
for an item of cookware
Allows a particular heat setting to
be selected based on the position
of the cookware by moving it from
front to back on the cooking sur-
face.
ÑClassic cooking for
an item of cookware
Allows the heat setting for each
item of cookware to be selected on
the control panel.
¨Cooking sensor You can use the cooking sensor
that is attached to the outside of the
pan to automatically keep the tem-
perature at a set level. Cooking sen-
sor mode is suitable for food that
requires large quantities of water,
oil or fat for boiling or deep-fat fry-
ing in the pan.
ÈTeppanyaki This enables the teppanyaki surface
to be divided into two sections. This
means you can fry food on one sec-
tion and keep food warm on the
other section, or use the entire area
to fry food at the same heat setting.
Cooking position detected
The cookware was detected on the cook-
ing position. The cooking position dis-
play lights up. Touch the #symbol to
select the cooking position.
Cooking position selected
The indicated cooking position has been
selected. You can now set the power
level.
Cooking position switched on
The indicated cooking position has been
switched on. The selected power level
lights up in the display.
There is no cookware on the cooking position
The cookware has been removed from
the cooking position. The selected
power level is dimmed.
Other indicators and symbols
The settings for the selected hotplate
cannot be configured.
For more information, touch the display.
Possible causes:
▯Up to five items of cookware evenly
distributed over the cooking surface
can be heated at the same time.
▯The cookware is not suitable for use
on an induction hob.
▯The appliance has exceeded its maxi-
mum power consumption.







K
PLQ








K
PLQ


13
Operating the appliance en
1 Operating the appliance
Operatingtheappliance This chapter explains how to set a cooking position. The
table shows heat settings and cooking times for various
meals.
First-time use
When you switch on the appliance for the first time, the
menu for selecting the initial settings appears on the
display. Select the settings you require.
Once you have confirmed these settings, the main
screen will appear.
Note: You can change the settings at any time.For
information on how to select these settings, see the
section entitled ~"Basic settings".
Switching the hob on and off
The main switch is used to switch the hob on and off.
To switch the hob on: Touch the #symbol. The
indicator above the main switch lights up. After a short
switch-on time, the hob will be ready for operation.
To switch the hob off: Touch the #symbol. The display
switches off. All the cooking positions are switched off.
The residual heat indicator will remain lit until the
cooking positions have cooled down sufficiently.
Notes
– The hob will automatically switch off if the cooking
positions have been switched off for more than
30 seconds.
– The settings are stored for 10 seconds after the
hob has been switched off. If you switch the hob
back on during this time, the option to confirm the
previous settings will appear on the main screen.
For information on this setting, see the section
entitled ~"Basic settings".
Configuring cooking position settings
The required heat setting is selected in the settings
area.
Each heat setting has an intermediate setting ending in
.5.
Notes
– To protect the fragile parts of your appliance from
overheating and electrical overloading, the hob may
temporarily reduce the power.
– In order to prevent the appliance from producing
excess noise, the hob may temporarily reduce the
power.
Selecting a hotplate and heat setting
The hob must be switched on.
1Place the cookware on the cooking surface.
2Touch the #symbol for the cooking position on the
touchscreen display. The settings area will light up
on the cooking position display.
3Within the next 4 seconds, scroll up with your finger
and select the heat setting you require.
To select heat setting 9.0, tap 9.0 directly.
The heat setting is set.
Heat setting 1.0 = lowest setting
Heat setting 9.0 = highest setting
K
PLQ






14
en Operating the appliance
Changing the heat setting
Select the cooking position and then set the required
heat setting in the control panel.
Switching off a cooking position
Touch and hold the cooking position display until heat
setting ó.óis displayed in the settings area. The
cooking position will switch off.
Note: If you place an item of cookware on the cooking
surface before switching on the hob, this will be
detected when you touch the main switch and the
cooking position display will appear on the touchscreen
display.
Chef's recommendations
Recommendations
▯When heating up puree, cream soups and thick
sauces, stir occasionally.
▯Set heat setting 8 to 9 for preheating.
▯When cooking with the lid on, turn the heat setting
down as soon as steam escapes between the lid
and the cookware. Steam does not need to escape
for a good cooking result.
▯After cooking, keep the lid on the cookware until
you serve the food.
▯To cook with the pressure cooker, observe the
manufacturer's instructions.
▯Do not cook food for too long, otherwise the
nutrients will be lost. The kitchen clock can be used
to set the optimum cooking time.
▯For a more healthy cooking result, smoking oil
should be avoided.
▯To brown food, fry small portions in succession.
▯Cookware may reach high temperatures while the
food is cooking. We recommend that you use oven
gloves.
▯You can find recommendations for energy-efficient
cooking in section ~"Environmental protection"
Recommended dishes
The table shows which heat setting is suitable for each
type of food. The cooking time may vary depending on
the type, weight, thickness and quality of the food.
Ongoing cooking
setting
Time (min)
Melting
Chocolate, coating 1.0 - 1.5 -
Butter, honey, gelatine 1.0 - 2.0 -
Heating or keeping warm
Stew, e.g. lentil stew 1.5 - 2.0 -
Milk 11.5 - 2.5 -
Heating sausages in water 13.0 - 4.0 -
Defrosting and heating
Spinach, frozen 3.0 - 4.0 15 - 25
Goulash, frozen 3.0 - 4.0 35 - 55
Poaching, simmering
Potato dumplings 14.5 - 5.5 20 - 30
Fish 14.0 - 5.0 10 - 15
White sauces, e.g. Béchamel sauce 1.0 - 2.0 3 - 6
Whisked sauces, e.g. Béarnaise sauce, Hollandaise sauce 3.0 - 4.0 8 - 12
1Without a lid
2Turn several times
3Preheat at setting 8.0-8.5

15
Operating the appliance en
Boiling, steaming, braising
Rice (with double the volume of water) 2.5 - 3.5 15 - 30
Rice pudding 32.0 - 3.0 30 - 40
Unpeeled boiled potatoes 4.5 - 5.5 25 - 35
Boiled potatoes 4.5 - 5.5 15 - 30
Pasta 16.0 - 7.0 6 - 10
Stew 3.5 - 4.5 120 - 180
Soups 3.5 - 4.5 15 - 60
Vegetables 2.5 - 3.5 10 - 20
Vegetables, frozen 3.5 - 4.5 7 - 20
Stew in a pressure cooker 4.5 - 5.5 -
Braising
Rolled roasting joint 4.0 - 5.0 50 - 65
Pot roast 4.0 - 5.0 60 - 100
Goulash 33.0 - 4.0 50 - 60
Braising/frying with a small amount of oil 1
Escalope, plain or breaded 6.0 - 7.0 6 - 10
Escalope, frozen 6.0 - 7.0 6 - 12
Chops, plain or breaded 26.0 - 7.0 6 - 12
Steak (3 cm thick) 7.0 - 8.0 6 - 12
Poultry breast (2 cm thick) 25.0 - 6.0 10 - 20
Poultry breast, frozen 25.0 - 6.0 10 - 30
Rissoles (3 cm thick) 24.5 - 5.5 20 - 30
Hamburgers (2 cm thick) 26.0 - 7.0 10 - 20
Fish and fish fillet, plain 5.0 - 6.0 8 - 20
Fish and fish fillet, breaded 6.0 - 7.0 8 - 20
Fish, breaded and frozen, e.g. fish fingers 6.0 - 7.0 8 - 15
Prawns and scampi 7.0 - 8.0 4 - 10
Sautéing fresh vegetables and mushrooms 7.0 - 8.0 10 - 20
Asian stir fries (vegetables and pieces of meat) 7.0 - 8.0 15 - 20
Stir fries, frozen 6.5 - 7.5 6 - 10
Pancakes (cooked one after the other) 6.5 - 7.5 -
Omelette (cooked one after the other) 3.5 - 4.5 3 - 10
Fried eggs 5.0 - 6.0 3 - 6
Deep-fat frying 1(150-200 g per batch in 1-2 l oil, deep-fat fried in batches)
Frozen products, e.g. chips, chicken nuggets 8.0 - 9.0 -
Croquettes, frozen 7.0 - 8.0 -
Meat, e.g. chicken portions 6.0 - 7.0 -
Fish, breaded or beer-battered 6.0 - 7.0 -
Vegetables, mushrooms, breaded, beer-battered or tempura 6.0 - 7.0 -
Small baked items, e.g. doughnuts, beer-battered fruit 5.5 - 6.5 -
Ongoing cooking
setting
Time (min)
1Without a lid
2Turn several times
3Preheat at setting 8.0-8.5

16
en Dynamic cooking
u Dynamic cooking
Dynamiccooking Use this special function in particular for cooking
processes that require the power levels to be changed
frequently. This allows you to change the power level
quickly and easily during cooking simply by moving the
cookware forwards or backwards.
Activating this function turns the entire cooking surface
into a single cooking area with three different power
levels. The appliance selects which of the default power
levels to use depending on the position of the
cookware. The power level that is assigned to each item
of cookware appears in the relevant cooking position
display.
Default power levels:
Front section = power level ê.ó
Middle section = power level î.ó
Rear section = power level ò.ó
You can change the default power levels. To change the
power levels, see the section entitled ~"Basic
settings"
Notes
– The booster function for saucepans and frying pans
and the keep-warm function are not available while
dynamic cooking mode is active.
– While dynamic cooking mode is active, the different
cookware modes will not be available and you will
not be able to set the cooking time.
– If cookware is moved over the cooking surface, the
hob will automatically start searching and the heat
setting of the area on which the cookware has been
detected will be set.
– For more information on the size and positioning of
the cookware, see the section entitled
~"Induction cooking".
Activation
1Touch the gsymbol.
2Touch the Ësymbol followed by the Gsymbol to
confirm your choice. The three default power levels
are displayed on the main screen.
This function has now been activated.
Set down the cookware
If active cookware is on the cooking position before you
activate the function, the cooking position display
appears without a power level. To confirm the power
level that is assigned, tap on the cooking position
display and then touch the sensor field G.
If new cookware is placed on the cooking position, tap
the cooking position display and then touch the sensor
field G.
Note: If the size of the cookware is not suitable for this
function, the Õsymbol will light up on the cooking
position.
Touch the Õsymbol for information.
To return to the main screen, touch the Gsymbol.
Changing the heat setting
You can change the power levels while you are cooking.
To choose a different power level in the programming
area, touch the area you want to change the power level
of.
Note: If the function is deactivated, the power levels will
return to the default values
Deactivating
1Touch the gsymbol.
2Select a different hob operating mode and then
touch the Gsymbol to confirm your selection. The
heat power levels that are assigned to the relevant
cookware are retained.
This function has now been deactivated.

17
Professional cooking en
ˆ Professional cooking
Professional cooking Use this special function in particular for cooking
processes that require the power levels to be changed
frequently. This allows you to change the power level
quickly and easily during cooking simply by moving the
cookware to the left or right.
Activating this function turns the entire cooking surface
into a single cooking area with three different power
levels. The appliance selects which of the default power
levels to use depending on the position of the
cookware. The power level that is assigned to each item
of cookware appears in the relevant cooking position
display.
Default power levels:
Left-hand section = power level ò.î
Middle section = power level ê.ó
Right-hand section = power level î.ó
You can change the default power levels. To change the
power levels, see the section entitled ~"Basic
settings"
Notes
– For more information on the size and positioning of
the cookware, see the section entitled
~"Induction cooking".
– While this function is active, cookware mode and
the booster function for saucepans and frying pans
will not be available and you will not be able to set
the cooking time.
Activation
1Touch the gsymbol.
2Touch the ¬symbol followed by the Gsymbol to
confirm your choice.
The default power levels is displayed on the main
screen.
This function has now been activated.
Set down the cookware
If active cookware is on the cooking position before you
activate the function, the cooking position display
appears without a power level. To confirm the power
level that is assigned, tap on the cooking position
display and then touch the sensor field G.
If new cookware is placed on the cooking position, tap
the cooking position display and then touch the sensor
field G.
Note: If the size of the cookware is not suitable for this
function, the Õsymbol will light up on the cooking
position.
Touch the Õsymbol for information.
To return to the main screen, touch the Gsymbol.
Combining sections
The sections with the default power levels can be
combined to form one large surface with the same
power level.
To do this, touch one of the vertical edges of the middle
section and swipe left or right with your finger to the
end of the adjacent section.
The power level of the combined area is the same as the
power level of the section being expanded.
To separate the combined area again, touch one of the
vertical edges of the area and swipe left or right with
your finger until the hidden section reappears.
Changing the heat setting
You can change the power levels while you are cooking.
To choose a different power level in the programming
area, touch the area you want to change the power level
of.
Note: If the function is deactivated, the power levels will
return to the default values

18
en Time-setting options
Deactivating
1Touch the gsymbol.
2Select a different hob operating mode and then
touch the Gsymbol to confirm your selection. The
heat power levels that are assigned to the relevant
cookware are retained.
This function has now been deactivated.
O Time-setting options
Time-settingoptions The hob has three timer functions:
▯Setting the cooking time
▯Stopwatch
▯Timer
Cooking timer
The cooking position will switch off automatically once
the time that is set has elapsed.
You can set a cooking time of up to 12 hours 59
minutes.
Setting procedure:
1Select the cooking position and the required heat
setting.
2Touch the selected power level. The 6symbol will
light up in the cooking position display.
3Touch the 6symbol. 00|00 ‹will light up on the
cooking position display.
4Then select the cooking time you require in hours
and minutes.













19
Time-setting options en
5Touch the ²symbol to confirm the selected time.
The time you have set will appear in the cooking
position display.
The cooking time begins to elapse.
Cooking sensor mode
If a cooking time has been set for a cooking position
and cooking sensor mode is active, the time will not
start to count down until the selected temperature has
been reached.
Changing or deleting the time
Select the 6symbol.
Change the time that is currently set and then touch the
²symbol to confirm the setting you have chosen.
To delete the time, touch the Øsymbol.
When the time has elapsed
The cooking position will switch off. An audible signal
will sound. The set cooking time will revert to óó.óó
and the heat setting to ó.ó.
Tap the time indicator. The indicators will go out and the
signal tone will stop.
Stopwatch function
The stopwatch function displays the time that has
elapsed since activation.
This functions independently from the cooking positions
and from other settings. This function does not
automatically switch off a cooking position.
Activating
Touch the Mbutton and select the psymbol. Then
touch the ²symbol to confirm your choice. óó.óó and
the psymbol will light up in the function bar.
The stopwatch has now been activated. The time will
begin to elapse.
Stopping the stopwatch
Touch the psymbol followed by the Hsymbol. The
stopwatch will stop and reappear on the main screen.
To start the stopwatch again, press the psymbol
followed by the ²symbol.
Deactivating
Touch the psymbol followed by the Øsymbol. The
stopwatch will stop. The time will reset to óó.óó and
reappear on the main screen.
This function has now been deactivated.
Note: To clear the menu and return to the main screen,
touch the 'symbol.

20
en Time-setting options
Short-term timer
You can set a time of up to 9 hours, 59 minutes and 59
seconds on the short-term timer.
You can activate it whether the hob is switched on or
off.
It works independently of the cooking positions and
other settings. This function does not automatically
switch off a cooking position.

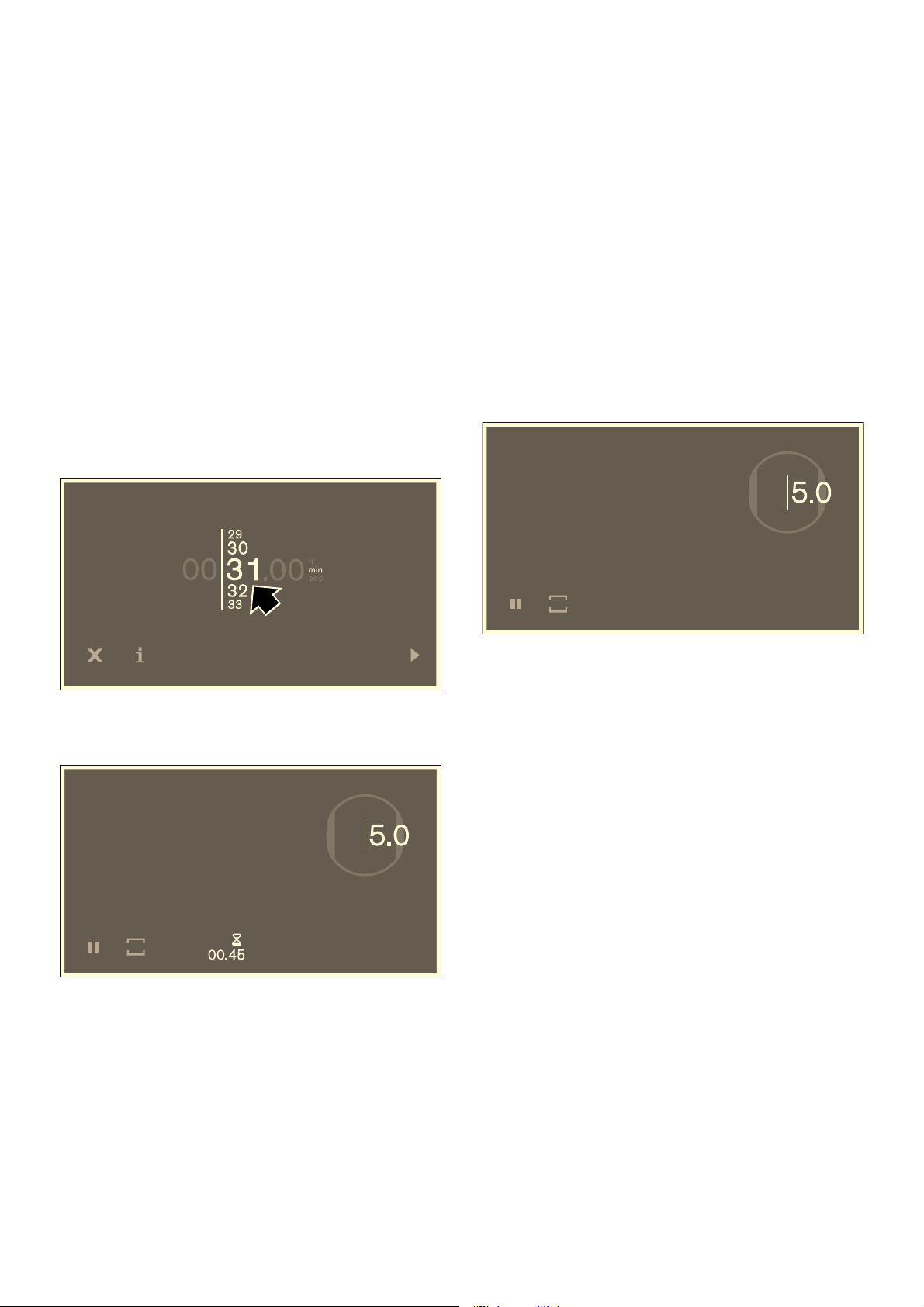

Setting procedure:
1Touch the Mbutton.
2Touch the Šsymbol and confirm your choice by
touching G. óóEóó.óóÕwill light up on the
display.
3Within the next 10 seconds, scroll up or down with
your finger and set the time in minutes, hours and
seconds.
4Touch the ²symbol to confirm the selected
setting. The Šsymbol and the selected time will
light up in the function bar.
The selected time will start to count down.
Changing or deleting the time
Touch the Šsymbol.
Change the time that is currently set and touch the
²symbol to confirm the setting you have chosen.
To delete the time, touch the Øsymbol.
Stopping the short-term timer
Touch the Šsymbol followed by the Hsymbol. The timer
will stop and reappear on the main screen.
To start the timer again, press the Šsymbol followed by
the ²symbol.
When the time has elapsed
A signal tone will sound. óó.óó will flash on the timer
display.
Touch the Šsymbol.The indicators will go out and the
signal tone will stop.
Touching and holding the Šsymbol for a few seconds
will activate the stopwatch. The time that has elapsed is
shown on the display in front of the @symbol.
To set a new time on the short-term timer, touch the time
indicator.
If you touch and hold the time indicator for a few
seconds, the time information on the display will go out.
5HORMDYLVDGRU


