GD06 Ebike Intelligent Display

1
1. Material&Dimension
1) Material
Caser and Cover and Press button: ABS,
LCD window: PMMA

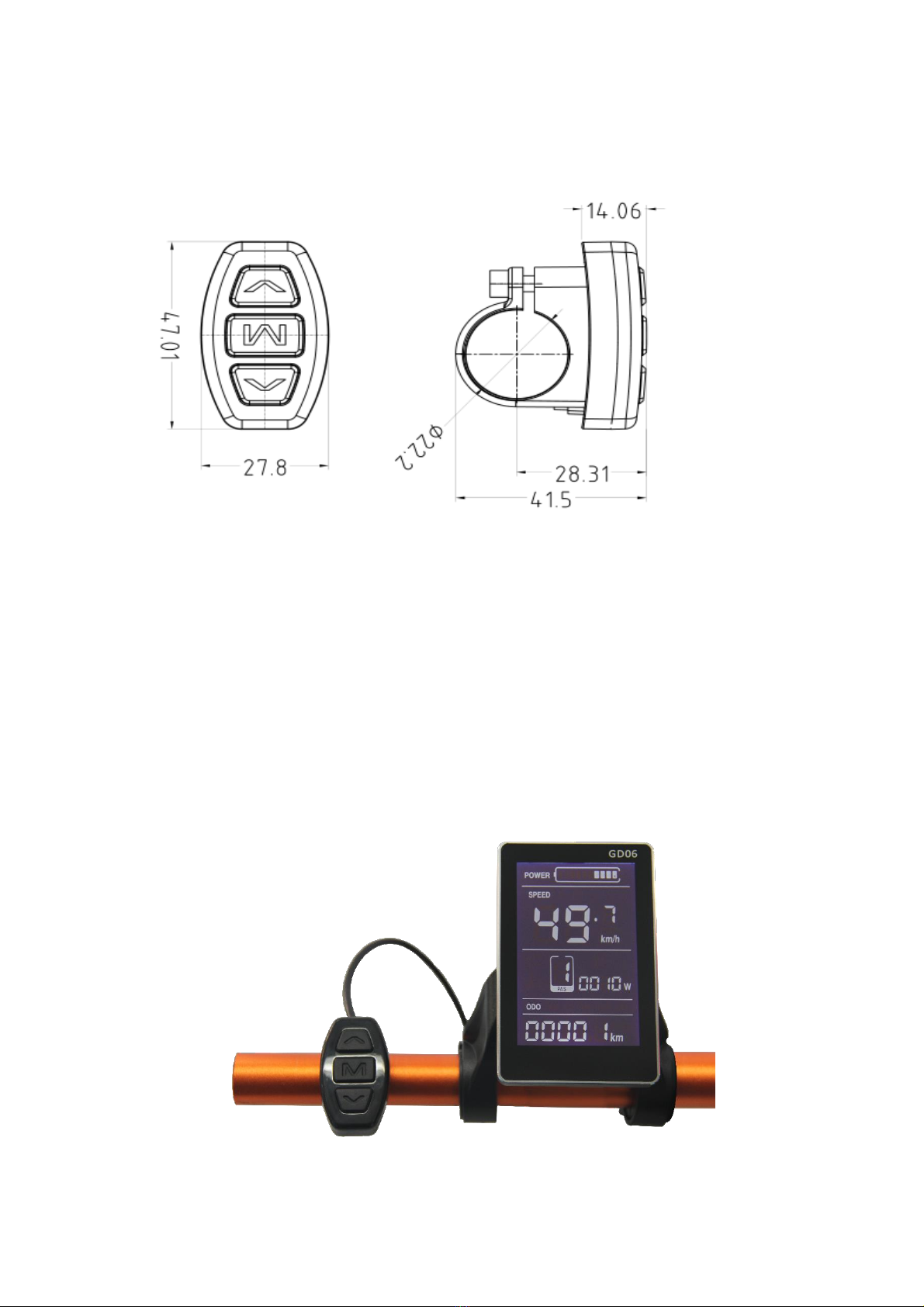

2) Outside and mounting dimensions(mm)

2
3) Press button outside and mounting dimensions(mm)
4) Installation
●Install the display in the middle of handlebar, then adjust
to suitable angle, install the press button to left side
ofhandlebar.
●Power off the device, connect the device to controller.
●Power on

3
2. Overview of GD06
1) UART protocol:
Equipped with independent press buttons
2) Speed：
Real-time SPEED
3) kmh/mile：
Kmh/MPH according to habit
4) Battery level：
Indicates the battery level in real time
5) Head light control：
Press button to power on/off
6) Back light adjustment：
3-level adjustment
7) Assist level：
From 0 to 5, press button to change assist level, 0-no assist,
5-default value
8) Distance：
ODO/Trip/Driving duration
9) Error code：
Please refer to appendix table 1 for definition
10) 6km mode：

4
In this mode, it will display “WALK” on the screen
11)Parameter setting：
Set parameters, such as: wheel size, speed limit etc
3. Presentation of screen
1) Battery level: 5 levels, voltage interval could be customized
2) Speed：Real-time SPEED
3) Speed unit：Kmh/MPH
4) 6km mode
5) Assist level：actual assist level 0~5.
6) Head light icon：indicates when head light and back light are on
7) Distance：Trip/ODO
8) Driving Duration
9) Error code：“ERROR” and code when there is error
4. Press button definition
GD06 uses independent press button, in total threebuttons:
“UP”、 “MODE”、 “DOWN”。

5
5. Operation instructions
1) Power ON/OFF
When the power is off, Long press （MODE）during 3
seconds ，screen will display all contents and start to normal
working mode, and controller will be turned on When the power is
on, Long press （MODE）during 3 seconds，screen will
be powered off，and controller will be turned off 。If no any
operation both on bike and display during 10minutes(time could be
set), the display will turn off automatically, in this case, no power
consumption for both display and controller.
2) ODO/TRIP
Long press and o switch different speed
information，Real time speed（SPEED）→ Max speed（MAX SPEED）
→Average speed（AVGSPEED）
3)ODO/TRIP/ Driving Time/Error Code
Short press to switch ODO/TRIP/ Driving Time/Error Code
Trip(Single trip distance)→ODO(Accumulated distance) →
TM(Driving Time)→REE(Error Code)。

6
4)Assist level
Short press or to change assist level，default
value is level 1
5) Head light control
Long press for 3 seconds turn on/off the head light。
6) 6km mode
When the bike is stopped, long press , will enter 6km/h mode, the
speed will be 4.5~7.5km/h according to different road conditions,
“WALK” will show up on screen, long press again or short
press ，will quit 6km/h mode. Long press or short press could be
customized by clients.
6. Parameter setting
When the display is powered on，long press and ，
will enter parameter setting mode，in this mode, can change
parameter values，long press again and will quit
parameter setting mode or no operation during 10s will also quit
this mode.
In parameter setting mode，short press / will
change parameter value，short press will save current

7
value and switch to next parameter.
1) P01-back light lightness：
short press / will switch from 1 to 3,Level 3 is
lightest. Level 2 is default value.
2) P02-kmh/MPH：
Short press / to Switch kmh/MPH.
3) P03-Working voltage：
short press / to switch 24V,36V,48V.
4) P04-Auto shutdown time:
short press / to switch from 0 to 60, it is the
time(in minutes) to shut down the screen automatically if no
operation 0 means never shut down, Default value is 10 minutes
5) P05-Number of Assist levels：
Short press / to change level 3->5->9.
3：3 assist levels
5：5 assist levels
9：9 assist levels
6) P06-Wheel size selection：
short press / to switch wheel size,step：16

8
inch,20 inch,22 inch,24 inch,26 inch,700C,28 inch.
7) P07-Number of magnets for speed sensor：
short press / to switch fromt 1 to 15.
8) P08-speed limit：
short press / to set the speed limit from 10 to
41km/h.
9) This feature is reserved: display P09, invalid.
10) This feature is reserved: display P10, invalid.
11) P11-assist sensitivity setting：
short press / to switch from 1 to 24.
12) P12-assist starting power setting:
short press / to switch from 0 to 3.
13) P13-Assist magnetic disc types
short press / to switch from 5->6->8->10->12 ，
different numbers of magnets.
14) P14-Current limit for the controller：
short press / to switch from 1 to 20A
15) This feature is reserved: display P15, invalid.

9
16) P16-Reset ODO distance：long press during 5 seconds.
17) P17-The signal direction of the booster sensor：short press
/ to switch from 0 to 1; 0: Booster signal；1
Power signal negative.
18) P18-Shift gears with gear：short press / to
switch from 0 to 1; 0：Don't shift gears；1: Shift gears.
P19- Throttle the 6KM function：short press /
to switch from 0 to 1; 0：Turn to the normal；1：Throttle 6Km。
7. Specifications
1) Power supply: 24V,36V,48V
2) Rated current: 10mA
3) Max current: 30mA
4) Leakage current after power off: <1uA
5) Current supply to controller:50mA
6) Working Temperature：-10~60℃
7) Storage temperature：-20~70℃
8. Error code definition
When an error appears, GD06 will notice users by different codes,
please refer to table 1 for different codes:

10
Code (Decimal)
Signification
0
Normal
6
Low Battery level
30
Communication failure
21
current sensor fault
22
Throttle failure
23
Failure of motor phase line
24
Motor hall failure
25
Brake abnormity
Table 1
9. Notices
Power on and power off must keep an interval of at least 3 seconds,
please don’t press “ ” button frequently when it is powered
off.
When the temperature is under -10℃, the screen will be a little
darker than normal, when the temperature increases, the screen
can go back to normal
10. FAQ
1) Q：Why I can not power off?
A：Please check connection between display and controller.
2) Q：What can I do if an error code displays?

11
A：Find a nearest shop to get repair
11. Warranty
1 year of warranty for quality issue except frame is broken.
12. Version
This is a universal manual for GD06.It could be customized by each
client. Please confirm all details before purchasing.
