Gainwise SS1806-3G-H User manual

3G Gate Opener 1/17 Revision V1.3B, Jan 2020
GAINWISE TECHNOLOGY
MANUAL
3G GATE OPENER
SS1806-3G-H
2 outputs, 3 inputs
`
Please read these instructions completely before use it

3G Gate Opener 2/17 Revision V1.3B, Jan 2020
TABLE OF CONTENTS
1. SAFETY PRECAUTIONS ............................................................................................ 3
2. BRIEF INTRODUCTION ............................................................................................ 3
3. PRODUCT FEATURES ................................................................................................ 4
4. STANDARD PACKING LIST ...................................................................................... 4
5. INSTALLATION ........................................................................................................... 4
5.1 SIM card installation............................................................................................ 4
5.2 Antenna Connection ............................................................................................. 5
5.3 Wiring Diagram ................................................................................................. 5
5.4 Power Supply ....................................................................................................... 6
6. LED INDICATORS ....................................................................................................... 7
7. OPERATION ................................................................................................................. 8
8. PROGRAMMING ......................................................................................................... 8
8.1 Programming by dialing in .................................................................................. 8
8.2 Programming by text message ............................................................................. 9
9. ADMINISTRATOR NUMBER ................................................................................ 10
10. CHECK SIGNAL STRENGTH ........................................................................... 10
11. CHECK RELAY STATUS .................................................................................... 10
12. HOW TO RESET THE UNIT WHEN YOU FORGET THE PASSWORD....… 10
13. CHECK ALL LOGGED DOOR ACCESS EVENTS VIA E-MAIL OR SMS ..... 11
14. USER COMMANDS ................................................................................................. 14
15. SPECIFICATIONS .................................................................................................... 17
16. QUICK PROGRAMMING VIA SMS AND OPERATION ................................. 17

3G Gate Opener 3/17 Revision V1.3B, Jan 2020
Thank you for purchasing 3G Gate Opener. Please read this manual carefully before using. Be sure to
keep this manual for future reference in case of any problems happen.
1. SAFTY PRECAUTIONS
1. Unplug the power adapter before cleaning. Do not use liquid cleaners or aerosol Cleaners. Use a
damp cloth for cleaning.
2. Do not use this product near water.
3. Do not use this product near an area where there is a potential of gas leaks or near any fumes
that can be explosive.
4. Do not place this equipment near or over a radiator or any other heat source.
5. Do not overload the wall outlet or power cord where the power adapter is installed. This can result in
fire or electric shock.
6. Avoid spilling liquid on this equipment and do not insert any objects through the Ventilation slots.
7. Avoid using the equipment during an electrical storm. There is a remote risk of electrical shock from
lighting.
2. BRIEF INTRODUCITON
3G Gate Opener is a 3Gswitch remote control system which can activate automatic gates with a free call
from you mobile phone. The users’ phone numbers are programmed into the device by SMS or call. The
device recognizes incoming Caller ID and drop the call before switching. With this system you can
authorize up to 1150 phone numbers to open the gate or door at no cost
Use of 3G Gate Opener at your company or house does not require any special installation and wiring.
Simply install the 3G Gate Opener and connect the door latch and power supply.
This model with 3 inputs included can monitor the status of an electrical circuit when the circuit’s state
changes, the 3G opener will send an SMS messages to all of the nominated alarm contact saved on the
unit.

3G Gate Opener 4/17 Revision V1.3B, Jan 2020
3. Product Features:
1. Up to 1150 users for access control by caller ID automatic number recognition..
2. Switches relay with free call from mobile phone
3. Secure password protected
4. Programming via simple SMS commands or App
5. 3 inputs for sensors or switches
6. Send SMS notification when a short circuit exists on inputs
7. Check Log history via E-mail or SMS
8. Ideal for remote control of automatic gates, barriers, doors, central heating systems, security alarm,
On/Off lights, pumps and machines.
4. STANDARD PACKING LIST
Item Description Q’ty Included Optional
1 3G Gate Opener 1 ◎
2 12 Volts DC power supply 1 ◎
3 Short Antenna 1 ◎
4 External Antenna - 3 meter length 1 ◎
5 Bracket for antenna 1 ◎
6 Manual 1 ◎
5. INSTALLATION：

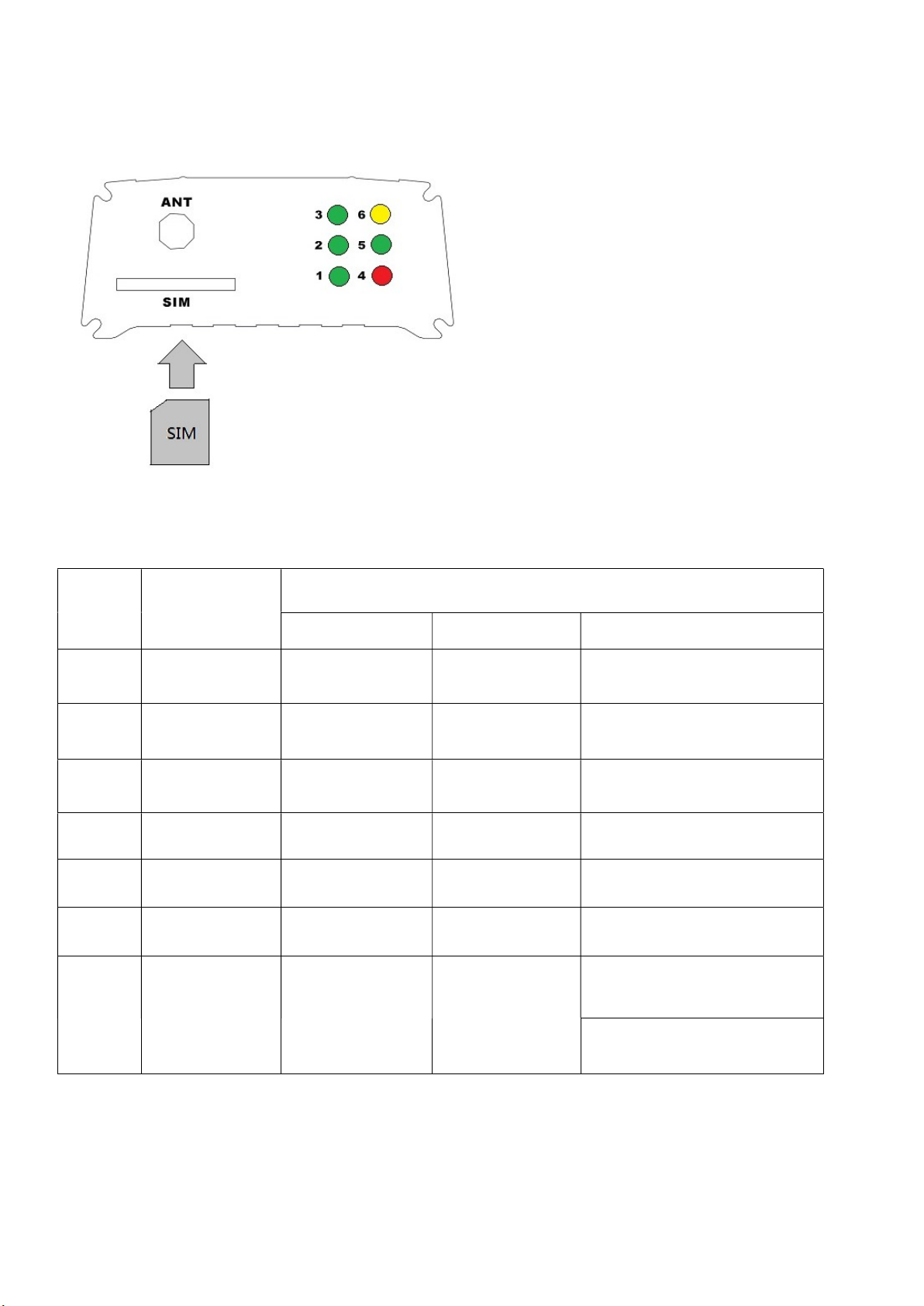

5.1 SIM CARD INSTALLATION (Fig1)
You will need a regular voice and SMS text SIM card and capable of running on 2G/3G service.
1. Use a standard SIM size (Mini), if your SIM is Micro or Nano you must add an adapter.
2. Ensure the SIM card has calling credit, and can make and receive calls on a mobile phone
3. Check that the SIM does not have a PIN code request
4. Disable voicemail service on the SIM
5. Power should be off before inserting the SIM

3G Gate Opener 5/17 Revision V1.3B, Jan 2020
5.2 ANTENNA CONNECTION
1. Ensure that there is good network reception at the location where it wil be installled.
2. If you use a 3 meters antenna install it as high as possible on the top of the pillar for best possilbe
reception.
5.3 WIRING DIGRAM (Fig2 & Fig3)
Fig2
Interface instroduction:
1
2
3
4
5
6
7
8
9
A
B
C
GND
IN1(Lo)
IN2(Lo)
IN3(Hi)
NO2
COM
2
NC2
NO1
COM1
NC1
AC2
AC1
Fig1

3G Gate Opener 6/17 Revision V1.3B, Jan 2020
Fig3
5.4 POWER SUPPLY
The 3G Gate Opener is designed to work with power supplies 12V~24V AC/DC.
The power supply should be capable of supplying a constant current of no less than 1amp.
After a final check of wiring switch on the power. allow 20~30 seconds for the unit to boot up and detect
the network.

3G Gate Opener 7/17 Revision V1.3B, Jan 2020
6. LED INDICATORS
Fig4
LED
Number
Definition
LED Status
Solid Off Flash
1
Trigger input 3 Input 3 active
& Sending SMS
Standby In triggering setup time
(24+Time#)
2 Trigger input 2
Input 2 active
& Sending SMS Standby In triggering setup time (17+Time#)
3 Trigger input 1
Input 1 active
& Sending SMS Standby In triggering setup time (15+Time#)
4 Power Power ON Power OFF X
5 Network status
(3G device) Busy or searching
Module OFF Flashes once per second
(Standby)
5 Network status
(2G device)
Once/ 3 seconds
(standby) Flashes once per second (searching)
6 Device status Standby Power OFF
Flashes once per second
(No SIM inserted )
Flashes twice per second
(SIM not registered)

3G Gate Opener 8/17 Revision V1.3B, Jan 2020
7. OPERATION
Programming of the telephone numbers in and whenever the unit receives a call will recognize an
authorized telephone number calling it and will then reject the call without answering (so there will be no
charge) and open the gate or door. The relay can also be temporarily or permanently switched on or off by
sending SMS or dialing in.
This 3G Opener can allow user to gain access from their mobile phone by two methods
1. Caller ID recognition
2. by access control password mode
1. Caller ID recognition to open
Ring in to open the door with authorized telephone number.
2. Access control password to open
Dial the SIM card telephone number. The unit will answer the call and you will hear a bleep tone. The
door can be opened after enter correct password code. Or just simply send SMS password code to the
device.
*71*5678#：Trigger relay 1
*72*5678#：Hold relay 1
*73*5678#：Release relay 1
*74*5678#：Trigger relay 2
*75*5678#：Hold relay 2
*76*5678#：Release relay 2
*This is for door open option when telephone numbers not stored.
8.PROGRAMMING
Programming can be carried out either by text message or by dialing into the 3G Gate Opener.
8.1 Progrmming by dialing in
Dial the SIM card telephone number. The unit will answer the call and you will hear a bleep tone.
Enter Programming Mode by Pressing…..
*12*1234# (1234 is default password)
A successful pass code will produce a single long beep. A failed attempt will produce 3 short bleeps.
Example: start to program the phone number for dialing in to open the door.
Use the following commands to program the unit
* Insert international country code (1~3 digits): 71[country code] #
* Add a number (up to 1150 numbers):72[relay][phone number] #
* Delete a number: 73[phone number] #
* Delete all numbers: 73*#

3G Gate Opener 9/17 Revision V1.3B, Jan 2020
Note:
*programming dialing in can’t be used from telephones which are already programmed to open the door
when they dial the 3G Gate Opener.
* If the number is programmed to open the door but you still would like to use the same number to dial in
for programming, then you can disable Caller ID display (withhold the number) on the mobile.
8.2 Programming by text message
Programming by text message is the simplest way to customize the settings of the 3G Gate Opener and
add or delete telephone numbers. Simply send texts in the format to the telephone number of the SIM
within the 3G Gate Opener.
Note:
1. A Single SMS text messages is limited to 140 characters.
2. You can program many different user command codes in a single text message with SMS command
format. *12*1234 # [command Code1] # [command Code 2] # [command Code3] #........
3. Each SMS must start with the pass code , default 1234 in the following format *12*1234 #
Followed immediately by a command.
Program with the following format:
*12*1234#71[country code]#72[relay][phone number]#72[relay][phone number]#72[relay][phone
number]#......
Relay= 1 or 2
The passcode *12*1234 only needs to be put at the beginning of each new message.
Example:
Ireland Country code: 353 (UK: 44 / USA: 1) Do not use any leading zeros.
086 5683624 (mobile number 1)
086 5682554 (mobile number 2)
086 2235644 (mobile number 3)
SMS format:
*12*1234#71353#7210865683624#7220865682554#7210862235644#
To delete phone numbers of dialing in to open
SMS format: (to delete phone number 1 and 2)
*12*1234#730865683624#730865682554#
SMS format: (to delete all numbers)
*12*1234#73*#
After the numbers are programmed you can also send the text message to check the stored numbers by
sending SMS format *22*1234# , then the 3G opener will reply the phone number list text message.

3G Gate Opener 10/17 Revision V1.3B, Jan 2020
9. ADMINISTRATOR NUMBER
Once the administrator number is stored, the unit will only accept programming from this number and
only via SMS programming.
Example:
Program a mobile number as an administrator number via SMS
Mobile number: 0865682554
Command to use *12*1234#74 [Admin number]#
SMS format *12*1234#740865682554#
To delete the Admin number *12*1234#74*#
10. CHCK SIGNAL STRENGTH
When a request for 3G signal strength SMS command is sent to the 3G Opener, the unit should
reply with a signal strength code and service provider name. The code will be between 0~31 means
the signal level is from poor to best.
Example:
SMS format *21*1234#
SMS reply Vodafone Signal Level = 31 【Signal is very strong】
11. CHECK RELAY STATUS
You can send SMS command code to check relay status.
SMS format *24*1234#
SMS Reply Relay1 [status], Relay2 [status] (status = Hold / release / trigger)
Input 1 [status] , Input 2 [status], Input 3 [status] (status= high / low)
12. HOW TO RESET THE UNIT WHEN YOU FORGET THE PASSWORD
1. To keep the red button pressed on the PCB
2. Then power up and wait for 5 sec
3. After you see LED 2 and 3 starts to flash which means it’s resetting.
4. Release the red button

3G Gate Opener 11/17 Revision V1.3B, Jan 2020

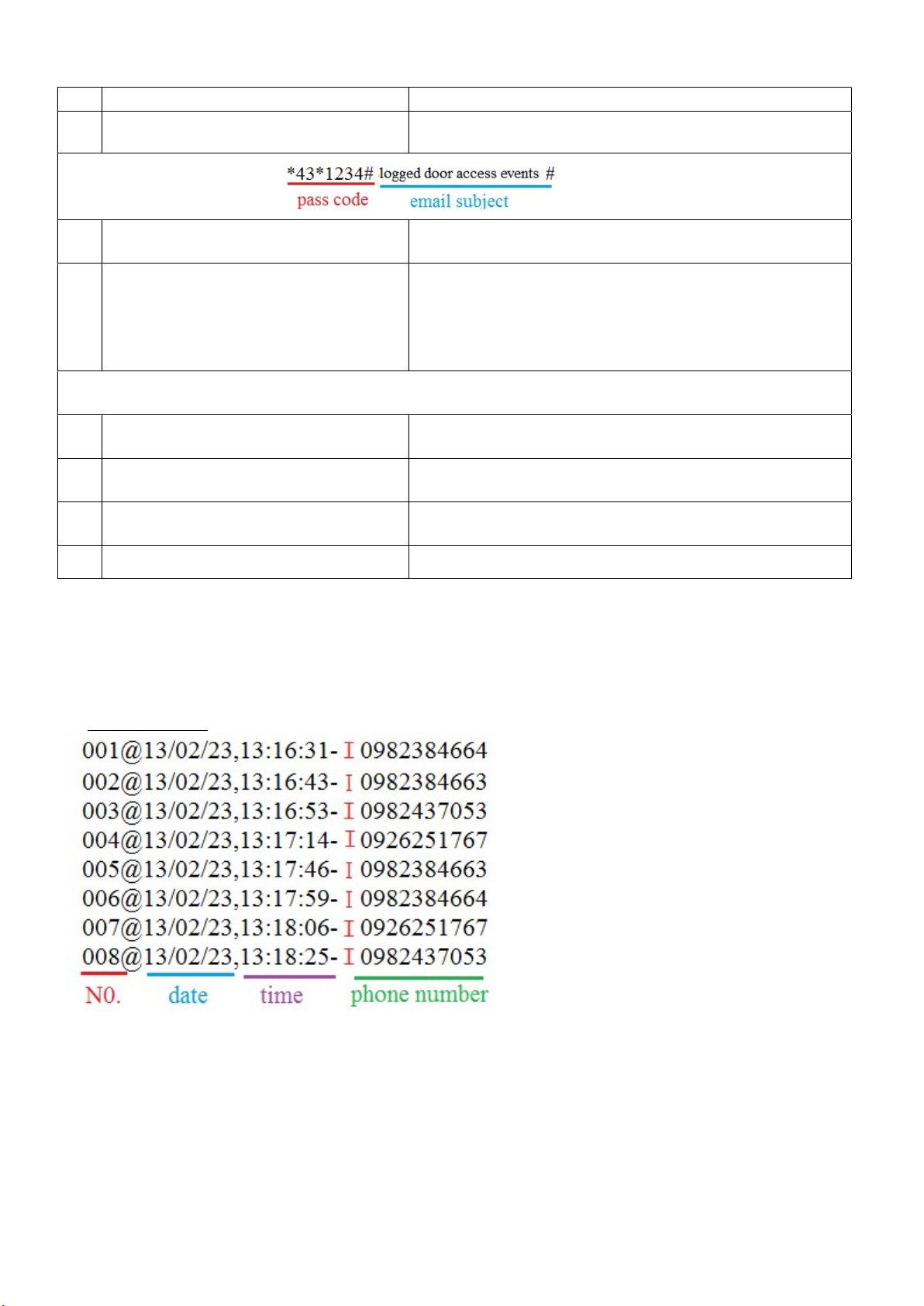

13. CHECK ALL LOGGED DOOR ACCESS EVENTS VIA E-MAIL OR SMS
This system allows you to check the history of all logged door access events via E-Mail or SMS.
There is a list of commands you need and examples to guide you on the settings for this feature.
Please setup following required parameters and commands before you can use it.
1. Via E-Mail
2.
NOTE: G-mail doesn’t support this feature.
No. Function SMS command codes
1 Auto sending a log of dial in numbers
*12*1234#83[N]#
N= 0 (sending when it reaches 100 numbers)- default
N=1 (sending when it reaches 200 numbers, Max)
Sending record when it reaches 200 numbers. / command code example: *12*1234#831#
2 Way of sending a log of dial in
numbers via e-mail or SMS
*12*1234#84[N]#
N=0 (no saving /sending record)
N=1 (via SMS, 4 numbers limited /SMS)
N=
2
(via E
-
mail)
Sending record via email / command code example: *12*1234#842#
3
GPRS parameters setting
*40*1234#APN, auth_type,user name,password#
auth_type: 0= none / 1= PAP / 2= CHAP
Command code
Example:
4
E-mail parameters setting
*41*1234#type,SMTP server,port,user name, password,
e-mail address, e-mail sender name#
Type: 1= normal / 2= SSL/TLS
Command code
Example :
5
Recipient & Carbon copy settings
*42*1234# recipient e-mail address, recipient name,
carbon copy e-mail address, carbon copy name#
Commande code example:

3G Gate Opener 12/17 Revision V1.3B, Jan 2020
No. Function SMS command codes
6 E-mail subject setting *43*1234# e-mail subject#
Command code Example:
7 Immediately sending request logged
events via email or SMS
*44*1234#
SMS reply: successful or failed
8 Check parameters setting
*4[N]*1234#
N=0 ( reply GPRS parameters)
N=1 ( reply e-mail parameters)
N=2 ( reply recipient & carbon copy)
N=3 ( reply e
-
mail subject)
Check GPRS parameters setting / Command code example: *40*1234#
9 Mobile number for receiving logged
events via SMS
*12*1234#85[mobile number]#
10 Delete mobile number for receiving
logged events via SMS
*12*1234#85*#
11 Clock Sync- auto time calibration after
power fail
*12*1234#86[SIM phone number used in the opener]#
12 Delete the phone number for clock Sync *12*1234#86*#
Log example:
Ｉ: Dial in number

3G Gate Opener 13/17 Revision V1.3B, Jan 2020
2. Via-SMS
There are 3 programming codes you will need to make this feature work
You can program many different user command codes in a single text message with SMS command
format. *12*1234 # [command Code1] # [command Code 2] # [command Code3] #........
Example:
Mobile number for receiving logged events 0907967223
SIM phone number held within the opener 0948778458
*12*1234#841#850907967223#860948778458#
Send *44*1234# to check logged events
Log format::
I: Dial IN numbers
N: Next text massage
E: End text message

3G Gate Opener 14/17 Revision V1.3B, Jan 2020
14. USER COMMANDS
You can program many different user command codes in a single text message with SMS command
format. *12*1234 # [command Code1] # [command Code 2] # [command Code3] #........
No. Command Description settings Default
1 01 [new password]# Change password of
Prog
ramming Mode
password:4 ~6digits 1234
2 02[new password]# Change password of Access
control Mode
password:4 ~6digits 5678
3 11[Time]# Door open confirming time Time = 0~99 seconds
0 sec
no
delay
4 12[Time]# Relay 1 activation time Time = 1~9999 seconds
1
5 13[Time]# Relay 2 activation time Time = 1~9999 seconds 1
6 14[Time]# Activation time when input 1
is
trigged
Time = 1~9999 seconds 0 sec
no
delay
7 15[Time]#
Sending SMS duration when
input 1 continues triggering
Time = 0-60 minutes 15[Time]
#
8 16[Time]# Activation time when input 2 is
trigged
Time = 1~9999 seconds 0 sec
no delay
9 17[Time]#
Sending SMS duration when
input 2 c
ontinues triggering
Time = 0-60 minutes 0 min
no
delay
10 23[Time]# Activation time when input 3 is
trigged
Time = 1~9999 seconds 0 sec
no delay
11 24[Time]#
Sending SMS duration when
input
3
c
ontinues triggering
Time = 0-60 minutes 0 min
no
delay
12
18[Status]# Set Input1 status Status= 0 or 1
0=N.O
1=N.C
0
13
19[Status]# Set Input 2 status Status= 0 or 1
0=N.O
1=N.C
0
14
22[Status]# Set Input 3 status Status= 0 or 1
0=N.O
1=N.C
0
15
20[mode]# Set Input 1 mode Mode= 0, 1 , 2 or 3
0 = Disable , 1 = Trigger
2 = Egress 1, 3= Egress2
1

3G Gate Opener 15/17 Revision V1.3B, Jan 2020
No. Command Description settings Default
16
21[mode]# Set Input 2 mode Mode= 0, 1, 2 or 3
0 = Disable , 1 = Trigger
2
=
Egress
1, 3 = Egr
ess2
1
17 27 [mode]# Set Input 3 mode Mode= 0 or 1
0 =
Disable
,
1
=
Trigger
1
18
28+IN*time start+ time
end*time start + time
end*……....#
Set time duration ( enable
inputs )
Example:
Enable input 1time duration
00:00~05:00,
12:00~16:00,
21:00~23:00
SMS
format:
281
*
0005
*1216*2123#
IN= 1, 2 or 3
( input 1~3)
Time start = 00~23
Time end = 01~24
( hour as an unit)
enable
19 *31*1234#[ SMS content]#
SMS message to be sent
when input 1 is triggered.
SMS content=max 100
characters
Trigger1
is Active
20 *32*1234#[ SMS content]# SMS message to be sent
when input 2 is triggered.
SMS content=max 100
characters
Trigger2
is Active
21 *33*1234#[ SMS content]# SMS message to be sent
when input 3 is trigge
red.
SMS content=max 100
characters
Trigger3
is
Active
22
71[country code]#
T
o set
country code
Country code= 1-3 digits
(UK:44 / USA:1)
886
23 72[relay][phone number]#
Store phone number
For ringing in to open the
door
(
max
:
11
5
0
numbers)
Relay= 1 or 2
Phone number =3 ~14
digits
N/A
24 73 [phone number]# Delete a ring in to open
number
phone number =3 ~14
digit
s
N/A
25 73*# Delete all ringing in to open
numbers
26 74[admin number] # Add administrator phone
number
admin number =3 ~14
digits ( no number no
restriction)
N/A
27 74*# Delete administrator phone
number

3G Gate Opener 16/17 Revision V1.3B, Jan 2020
No. Command Description settings Default
28 75[N][phone number]# mobile number to receive an
SMS message when inputs are
trigged or power failure
N=
phone number 1, 2 or 3
phone number
=3
~14
digit
s
N/A
29
75[N]*# Delete mobile number of alarm
contact when inputs are
triggered.
N=1~3
(sequence of phone
number)
N/A
30
SMS confirmation of relay
switching
871+N#
N= 0 or 1 0= disable
1= enable
SMS messages:
Relay 1 trigger, relay 2 trigger
Relay 1 hold, relay 2 hold
R
elay 1 release, relay 2 release
0
31 999# Reset
User commands to check system info & control relay via SMS
No. Command Description SMS Reply
1
*21* 1234 # check 3G signal strength
and operator
Signal Level = 0~31
F
rom poor to s
trong
2
*22*
1234
#
R
eply
stored numbers
[ number1]#[number2]#[number3]#......
E:Next page
/
N: End
3
*23*1234#
Reply alarm contact
numbers when inputs are
triggered
[ number1]#[number2]#[number3]#
4
*24*1234# Check relay and inputs
status
Relay1: < status >
Relay2: < status >
Status= hold/ release/ triggered
IN1:< status>
IN2:< status>
IN3:< status>
Status= high / low
IN1: high/IN2: high/ IN3: low (standby)
IN1: low/IN2: low/ IN3: high (triggered)
6
*31*1234# To check input 1 SMS
conte
nt
Default SMS “ trigger 1 is active”
8
*32*1234# To check input 2 SMS
content
Default SMS “ trigger 2 is active”
10
*33*1234# To check input 3 SMS
content
Default SMS “ trigger 3 is active”
11 *71*5678 # Trigger relay 1 Relay1 trigger
12 *72*5678 # Hold relay 1 Relay1 hold
13 *73*5678# Release relay1 Relay1 release
14 *74*5678 # Trigger relay 2 Relay2 trigger
15 *75*5678 # Hold relay 2 Relay2 hold
16 *76*5678# Release relay2 Relay2 release

3G Gate Opener 17/17 Revision V1.3B, Jan 2020
15. SPECIFICATION:
3G Frequency (GSM fallback) GSM 850/900/1800/1900 Mhz
W
CDMA:
800, 850, 900, 1900 and 2100 MHz
Outputs 2 outputs, NC/NO dry contact, 10A/240V AC / 24V DC
Power supply 12~24V AC/ DC ( 12V DC/ 1.5A power supply adaptor included)
Power Consumption Standby: 42mA/hr / Relay on: 83 mA/hr
Physical size 9.5 (L) X 6.0 (W) x 2.5 (H) cm
Antenna Short Antenna
Humidity Less than 80% RH
Operating Temperature -20℃ to 50℃
Operating Current Maximum 250mA, typically 55mA
16. QUICK PROGRAMMING VIA SMS AND OPERATION
Program dial –to- open phone numbers (1150 numbers)
Note: Program dial to open phone numbers you NEED TO enter country code, and the complete number
as you would dial it.
*12*1234#71[country code]#72[relay][phone number]#72[relay][phone number]#72[relay][phone
number]#......
Relay= 1 or 2
Example:
Ireland Country code: 353 (UK: 44 / USA: 1) Do not use any leading zeroes.
086 5683624 (mobile number 1)
086 5682554 (mobile number 2)
086 2235644 (mobile number 3)
SMS format:
*12*1234#71353#7210865683624#7220865682554#7210862235644#
Operation
You can dial in or send SMS password code to the device to control relay.
*71*5678#：Trigger relay 1
*72*5678#：Hold relay1
*73*5678#：Release relay1
*74*5678#：Trigger relay 2
*75*5678#：Hold relay 2
*76*5678#：Release relay 2
Gainwise Technology Co., Ltd.
