Galaxy Press GS-205B Plus User manual

1
Operation Manual
(GS-205B Plus)
Safety Instructions
When using your heat press,
basic precautions should always be followed,
including the following:
1. Read all instructions.
2. Use heat press only for its intended use.
3. To reduce the risk of electric shock, do not immerse the heat press in water or
other liquids.
4. Never pull cord to disconnect from outlet, instead grasp plug and pull to
disconnect.
5. Do not allow cord to touch hot surfaces, allow heat press to cool completely before
storing.
6. Do not operate heat press with a damaged cord or if the equipment has been
dropped or damaged.To reduce the risk of electric shock, do not disassemble or
attempt to repair the heat press. Take it to a qualified service person for
examination and repair. Incorrect assembly or repair could increase the risk of fire,
electric shock, or injury to persons when the equipment is used.
7. This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction concerning use of the
appliance by a person responsible for their safety.
8. Close supervision is necessary for any heat press being used by or near children.
Do not leave equipment unattended while connected.
9. Burns can occur when touching hot metal parts.
10. To reduce the likelihood of circuit overload, do not operate other high voltage
equipment on the same circuit.
11. If an extension cord is necessary, then a 20 amperage rated cord should be used.
Cords rated for less amperage may overheat. Care should be taken to arrange the
cord so that it cannot be pulled or tripped over.
ＧＡＬＡＸＹ ＰＲＥＳＳ

2
Table Of Contents
Safety Instructions………………………..1
Technical Parameters……………………3
Machine View……………………………..4
Control Panel Guide……………………...5
Operating Instructions……………………6-9
Connecting the System…………………………………………...…6
Turning the System On…………………………………….……..…6
Adjusting the Temperature……………………………………..…...7
Adjusting the Time……………………………………………….......7
Adjusting the Pressure…………………………………………..…..7
Printing and Pressing…………………………………………..…....8
Switch Between F/C……………………………………………..…..8
Temperature Clibration……………………………….………..….…9
Exploded Views And Parts List…………10-12
Electrical Schematic……………………..13
ＧＡＬＡＸＹ ＰＲＥＳＳ

3
Technical Parameters
Model: GS-205B Plus
Heater Size: Max：L300mm*arc L:226mm
Power(120volt) 300W，2.7A
Power(240volt) 300W，1.4A
Temperature Range：Max.200℃/392℉
Time Range：0~999S
Machine Size：39.8×45.5×26.4cm
Packing Size：52.cm*47.5cm*32.5cm
Packing Weight：12Kg
Net weight：8.6Kg
Certificate：CE,FCC
Warranty: One year on whole machine
except heaters
ＧＡＬＡＸＹ ＰＲＥＳＳ

4
Machine View
ＧＡＬＡＸＹ ＰＲＥＳＳ

5

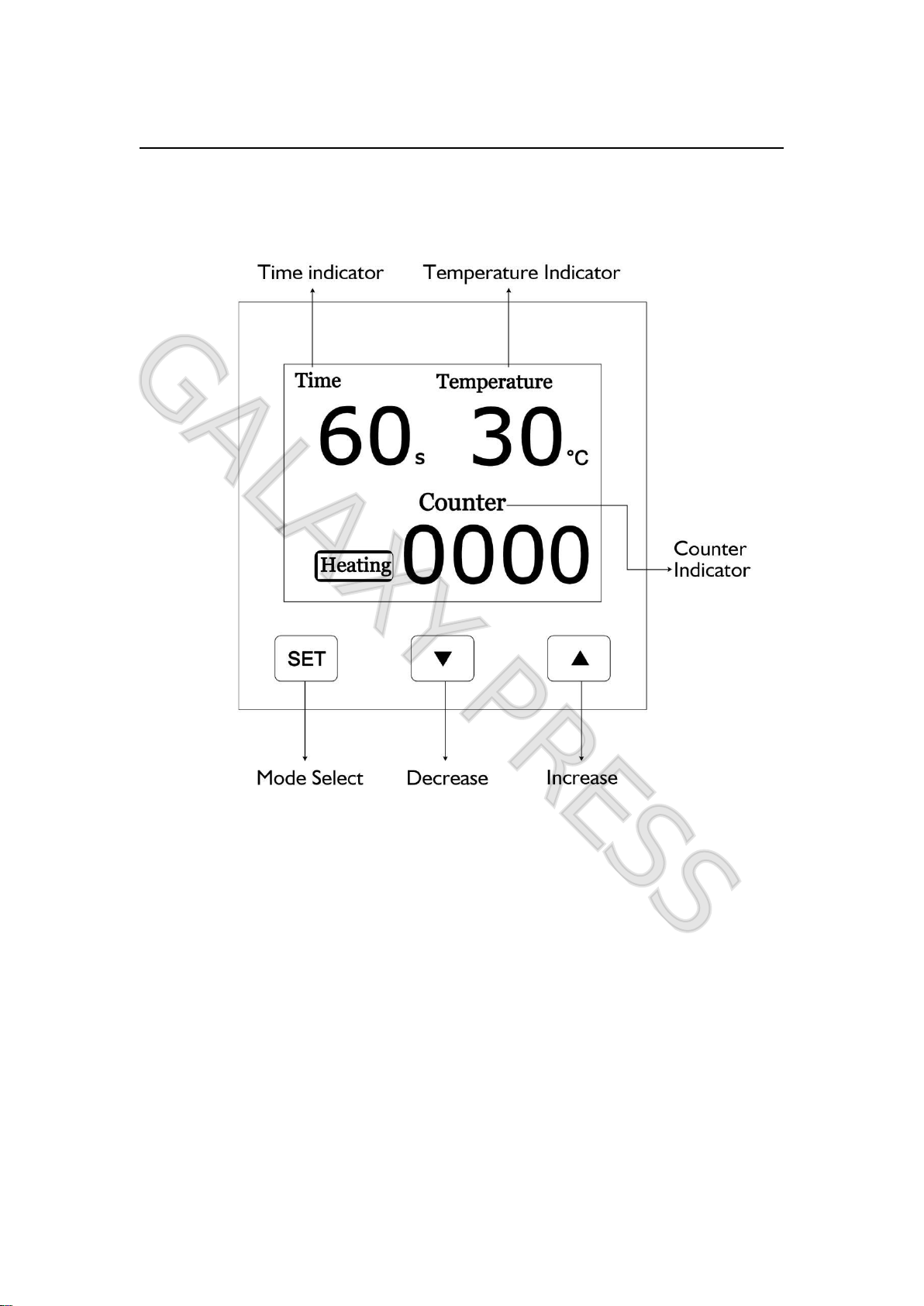

Control Panel Guide
ＧＡＬＡＸＹ ＰＲＥＳＳ

6
Operation Instructions
1.Connecting the System
2.Turn On the System
1.1 Connect the power cord into a
properly grounded electrical outlet
with a sufficient amperage rating.
1.2 VOLTAGE
120 Volt – The GS-205B requires a full 10
amp grounded circuit for 120 volt
operation.
240 Volt –The GS-205B requires a full 7
amp grounded circuit for 240 volt
operation.
1.3 EXTENSION CORDS If used, should
be as short as possible and not less
than 12 gauge.Heavy duty cords are
recommended.
1.4 CIRCUITS that have less than 10 amps or
that have other high demand equipment
or appliances(especially more than one
heat seal machine) plugged in, should not
be used.
NOTE: If the supply cord is damaged, it
must be replaced by the
manufacturer, its service agent or
a similarly qualified person in
order to avoid hazard.
CAUTION :
Failure to follow these instructions will cause:
1) Erratic controller functions.
2) Inaccurate displays and slow heat-up.
3) The circuit breaker to disengage.
2.1 Switch The System On(figure2.1)
2.1
ＧＡＬＡＸＹ ＰＲＥＳＳ

7

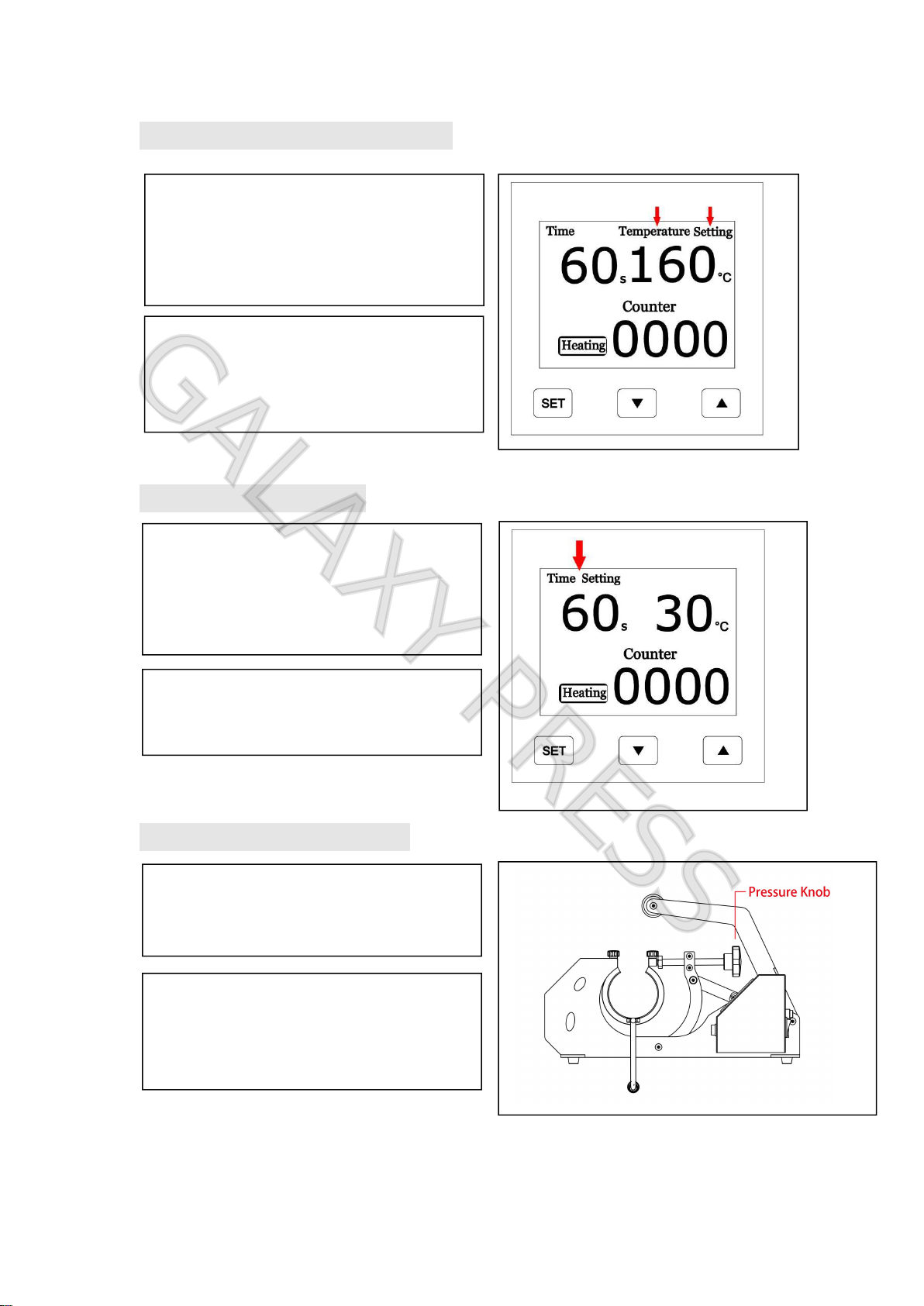

3.Adjusting the Temperature
4.Adjusting the Time
5.Adjusting the Pressure
5.2 A
REMEMBER: To allow for the thickness of your garment when adjusting the pressure.
3.1 Press the “set” button once time.
“Temperature” lights will illuminate, press
the “up” and “down” button to set target
start temperature (see figure 3.1)
3.2 Press the “set” button second time.
“Setting” lights will illuminate, press the
“up” and “down” button to set printing
temperature (see figure 3.1)
4.1 Once you have adjusted the temperature,
press the “set” button again. “Time” lights
located in the display will illuminate. (see
figure 4.1)
4.2 Next, press the “up” and “down” button to
set target printing time.The time setting range
can be set from 0~999.
5.1 The Pressure Adjustment Knob is
located as picture.(See figure 5.1)
5.2 Adjust the pressure by turning the
knob clockwise to increase pressure
and counter clockwise to decrease
pressure.
3.1
4.1
5.1
ＧＡＬＡＸＹ ＰＲＥＳＳ

8
6.Printing And Pressing
7.Switch Between F/C
Once your equipment has reached the designated start temperature:
Position mug and application and proceed to press.
This procedure will start the automatic timing process.
Please note machine will heat up from start temperature to printing temperature
then time starts to count down.
The timer will automatically count down to zero then circuit board will alarm when
the press cycle is complete.
The timer will automatically re-set and you are ready to continue with the next
application.
7.1 Press “set” button for 4 seconds to
enter into second level menu.Display
as below.(see figure 7.1)
7.2 Press “set” button to select “SL2”
mode(See figure 7.2)
7.3, press up and down button to set
value at 0 or 1, 0 for celsius, 1 for
Fahrenheit.
7.4 Press “set” button 4 seconds to quit.
7.27.1
ＧＡＬＡＸＹ ＰＲＥＳＳ

9
8.Temperature Calibration
if temperature on heater is higher than
circuit board shows,pls lower the Pb
value.
Example:
Heater temperature:190C
Circuit board temperature:185C
Pls set Pb Value at
(
-5
)
If temperature on heater is lower than
circuit board shows,pls raise the Pb value.
Example:
Heater temperature:185C
Circuit board temperature:190C
Pls set Pb Value at ( +5 )
8.1 Press “set” button for 4 seconds to
enter into second level menu.Display
as below.(see figure 8.1)
8.2 Press “set” button to select “Pb” mode
(See figure 8.2)
8.3 press “up” and “down” button to make
temperature calibration.
8.4 Press “set” button 4 seconds to quit.
8.1 8.2
ＧＡＬＡＸＹ ＰＲＥＳＳ

10

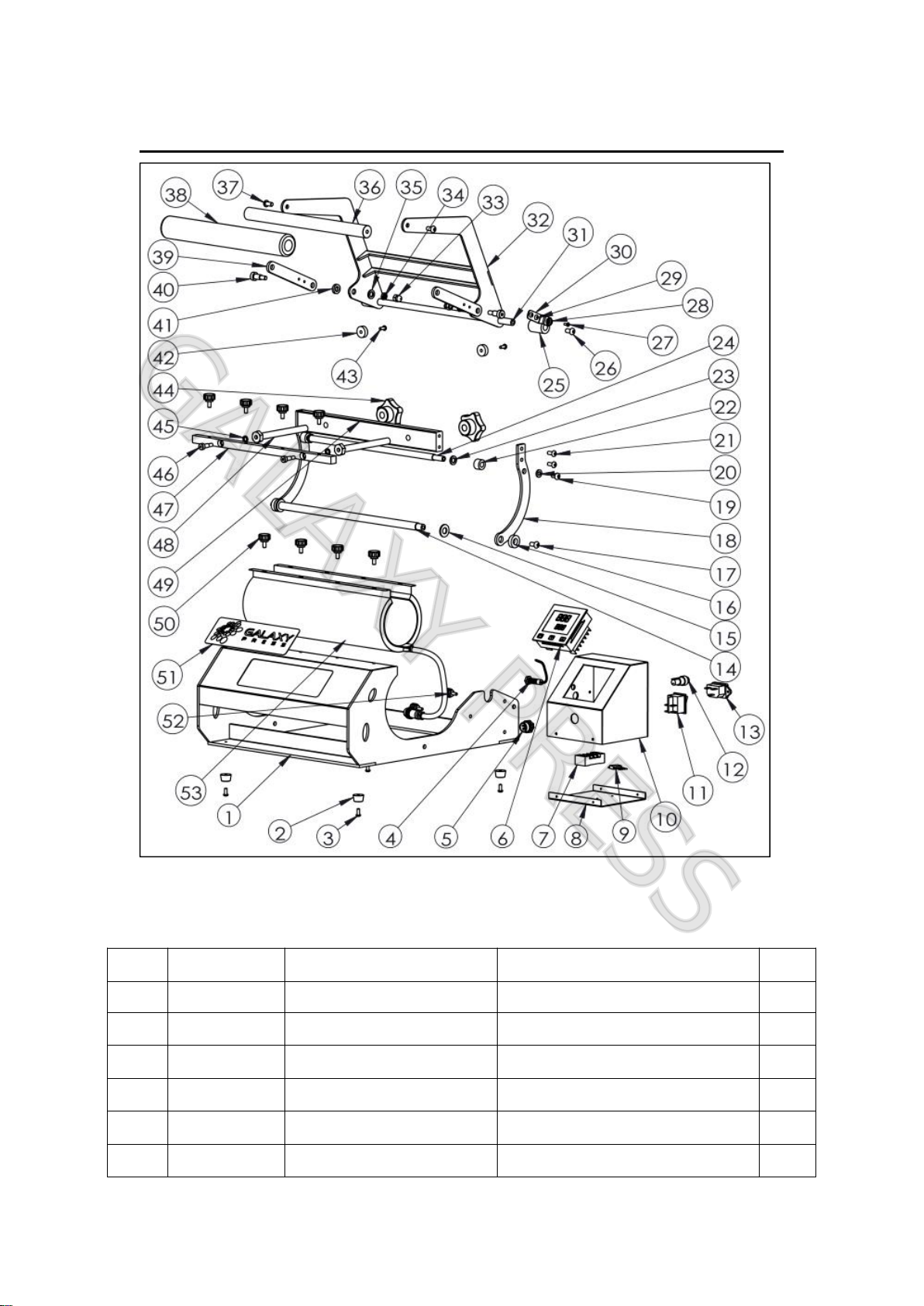

Exploded Views And Parts List
No. Material No. Part Name(Chinese) Part Name(English) Qty
1 J.03.05.0908 底座-205B Plusx1 Machine base 1
2 J.03.03.0038 脚垫 XDD1710-148x4 Rubber foot 4
3 J.03.06.0117 半圆头螺栓-黑M4-10 Ball headed bolt M4*10 4
4 J.03.04.0127 柱形门磁 M8 Magnet switch 1
5 J.02.04.0145 航空插头 4芯（插座） 4phase avaiation plug(Female) 1
6 J.03.04.0148 控制板 GSK-H08 Circuit board GSK-H08 1
ＧＡＬＡＸＹ ＰＲＥＳＳ

11
7 J.03.04.0078 双排三位栅栏接线排 Terminal block 1
8 J.03.05.0609 控制盒底板-205B-钣金 Base board of control box 1
9 J.02.04.0131 可控硅 DX146-10 Traic DX146-10 1
10 J.03.05.0610 控制盒焊接-205B-钣金 Control box-205B 1
11 J.03.04.0079 船型开关 RK1-01 On-off switch 1
12 J.02.04.0141 玻璃保险管座装线-12 Fuse assembled 1
13 J.03.04.0077 IEC 插座 DB-14-1 Socket DB-14-1 1
14 J.03.05.0912 支架撑轴-205B plus Holding shaft-205B plus 1
15 J.03.03.0057 胶垫圈-20x10x1.8 黑Washer 20x10x1.8 black 2
16 J.03.03.0129 胶垫圈-20x10x6 黑Washer 20x10x6 black 2
17 J.03.06.0139 半圆头螺栓-黑M6-12 Ball headed bolt M6-12 2
18 J.03.05.0915 连杆-205B plus Arm link-205B plus 1
19 J.03.06.0129 半圆头螺栓-黑M6-8 Ball headed bolt M6-8 2
20 J.03.06.0118 平垫-黑12-6-1.5 Flat washer 12-6-1.5 2
21 J.03.06.0165 半圆头螺栓-黑M5-12 Ball headed bolt M5-12 4
22 J.03.03.0129 胶垫圈 16-8-10.5 黑Washer 16x8x10.5black 2
23 J.03.03.0097 胶垫圈 14-8-1.8-黑x2 Washer 14x8x1.8 black 2
24 J.03.05.0913 连杆固定轴-205B plus Armlink holding shaft 205B plus 1
25 J.03.03.0139 胶垫圈-20x10x28 黑Washer 20x10x28 black 2
26 J.03.06.0139 半圆头螺栓-黑M6-12 Ball headed bolt M6-12 2
27 J.03.06.0077 沉头螺栓 M3*8x1 Countersunk screw M3x81
28 J.03.06.0023 M3 沉孔磁铁-镀镍 12-3 M3 magnet 12*3 1
29 J.03.06.0141 半圆头螺栓-黑M4-6x2 Ball headed bolt M4*6 2
30 J.03.05.0916 磁铁固定板-205B plus Magnet holding base 1
31 J.02.05.0071 手柄撑轴-205B plus Handle holding shaft 1
32 J.03.05.0914 手柄架-205B plusx1 Handle set 1
33 J.03.06.0159 盖形螺帽-黑M6x2 Cap nut black M6 2
34 J.03.06.0126 薄形螺母-银M6x2 Nut silver M6 2
35 J.03.03.0097 胶垫圈 14-8-1.8-黑Washer 14x8x1.8 black 2
36 J.02.05.0070 手柄轴 205B plusx1 Handle shaft 205B plus 1
37 J.03.06.0139 半圆头螺栓-黑M6-12 Ball headed bolt M6*12 2
38 J.03.03.0138 手柄泡胶管-205B plus Rubber case 205B plus 1
ＧＡＬＡＸＹ ＰＲＥＳＳ

12
39 J.03.05.0915 连杆-205B plusx2 Short arm link 205B plus 2
40 J.03.06.0092 塞打螺栓-黑M6-8-12 Shoulder screw M6-8-12 2
41 J.03.03.0122 胶垫圈 15-8-3.5 黑Washer 15x8x3.5 black 2
42 J.03.03.0140 尼龙限位圈-黑Block washer-black 2
43 J.03.06.0117 半圆头螺栓-黑M4-10 Ball headed bolt M4*10 2
44 J.03.06.0231 五星把手-M10-D40 Pressure screw knob 2
45 J.03.06.0275 平垫-6-10-1 Flat washer 6-10-1 2
46 J.03.06.0142 塞打螺栓 M5-6*12 Shoulder screw M5-6*12 2
47 J.03.05.0911 杯 垫 活 动 固 定 架 -205B
plus
Heater holding shaft 1
48 J.02.05.0072 主调螺栓 M10*110x2 Pressure screwM10*110 2
49 J.03.05.0910 调 节 螺 栓 固 定 板 -205B
Plus
Pressure screw holder 1
50 J.03.06.0032 直纹把手-黑M5-18-10 Handle screw M5-18-10 8
51 J.03.01.0024 前面板 logo Logo sheet 1
52 J.03.06.0014 直纹把手-黑M4-15-10 Handle screw M4-15-10 3
53 J.02.06.0047 杯垫（30oz 直身杯）220V 30oz tumbler heater 220V As
need
J.02.06.0048 杯垫（30oz 直身杯）110V 30oz tumbler heater 110V
ＧＡＬＡＸＹ ＰＲＥＳＳ

13
Electrical Schematic
