Galaxy EC-555 User manual

Galaxy EC-555
Instruction Manual

Thank you for purchasing Galaxy EC-555 Massage Chair.
Before using your massage chair, please read the contents of this
instruction manual and refer to it when needed.
Contents
Safety Precautions ………………………..…….............................
Chair Components ………………………..…….............................
Chair Installation & Moving …………………………………….......
Grounding Instructions……………………………………..……......
Chair Specification ……………………………….....…...................
Controller Diagram……………………………………...…..............
Operation Guide ………………………………...……….................
Troubleshooting ...........................................................................
Care & Maintenance ………………………….....….......................
1-2
3-4
5-8
9
10
11
12-15
16
17

01 Safety Precautions
When using the massage chair, basic precautions should always be followed to
reduce the risk of electric shock, burns, fire or injury to persons. Please read the
following precautions before using the massage chair.
● Make sure the power plug is securely inserted into a proper electrical outlet to
reduce the risk of short-circuit and fire.
● It is highly recommended that a surge protector is used to prevent from
damage.
● DO NOT use the massage chair n areas where the humidity is high such as a
sauna steam room, Pools, bathrooms, AC or heating vents, etc.
● DO NOT use the massage chair outdoors and avoid areas with direct sunlight.
● If the chair is not being used, turn the power switch to the OFF position and
unplug the massage chair from the electrical outlet to prevent any damages to the
chair when there are power outages/surges that may cause serious damage.
● Never plug/unplug the power cord plug socket with wet hands.
● Close and continuous supervision is necessary when the massage chair is used
by, on or near children or disabled persons.
● No more than one person should use the massage chair at the same time.
● The massage chair is intended for use as described in the Instruction Manual.
Dot not use any attachments other than those recommended by the
manufacturer.
● DO NOT attempt to stand or sit on the backrest, armrest or footrest in order to
prevent accident, injury or damage to the chair.
● Avoid falling asleep while using the massage chair.
● Always keep the massage chair clean, and never insert any objects into or
around the gaps of the massage chair.
● DO NOT move the massage chair by pulling on the power supply cord.
● Make sure there are no children, pets or other obstacles behind or underneath
the massage chair.
● If you find any rips or tears in the fabric of the massage chair contact the service
department and stop using the chair immediately.
1

● This massage chair is designed for household use and should not be used in
non-residential settings.
● Please consult your doctor if you are in doubt as to whether or not you should
use this massage chair.
● Please consult a doctor before using the massage chair if you are pregnant,
undergoing any medical treatment, using a medical electronic device such as a
pacemaker, or are experiencing any of the following: Malignant tumor, heart
disease, back pain, abnormal or curved back bone, osteoporosis or acute illness.
● If you experience pain while using the massage chair, stop using the chair
immediately and consult your doctor.
● Never use a massage function on swollen or inflamed parts of the body.
● DO NOT use the massage chair for more than 30 minutes at a time.
● DO NOT use the massage chair where aerosol(spray) products are being used
or where oxygen is being administered.
● This massage chair is a non-professional product designed to provide a
comfortable massage and should not be substituted for appropriate medical
treatment.
● Never operate the appliance with the air hoses that inflate while they are
blocked. Keep the air openings free of lint, hair, and any other obstructions.
● Check the skin in contact with the heated area of the appliance frequently to
reduce the risk of injury. If the heating pad malfunctions and extreme heat is
produced it may cause serious burns.
● Burns may result form improper use. If this is the case immediately shut off the
chair and unplug from the outlet.
● Remove all sharp objects from the body and pockets such as keys and Pens.
● Keep children away from extended foot support (or other similar parts.)
● DO NOT WET-DO NOT USE PINS.
● NEVER REMOVE COVER.
2
!
Caution
The user's weight is usually limited to 220 lbs.
When using the massage chair, the mechanism will stop for safety while there
is too much pressure on it.When that happens, please switch off the power
and restart after 10 seconds.

02 Chair Components
3
Pillow
shoulder rest
Backrest Pad
Seat Panel
Footrest
Armrest
Seat Pad
Calves rest

Massage Position
4 Air bags
1 Vibration
8 Air bags
8 Air bags
VibrationAir bag
4
Heat
2 Heat points

at least 10”
03 Chair Installation & Moving

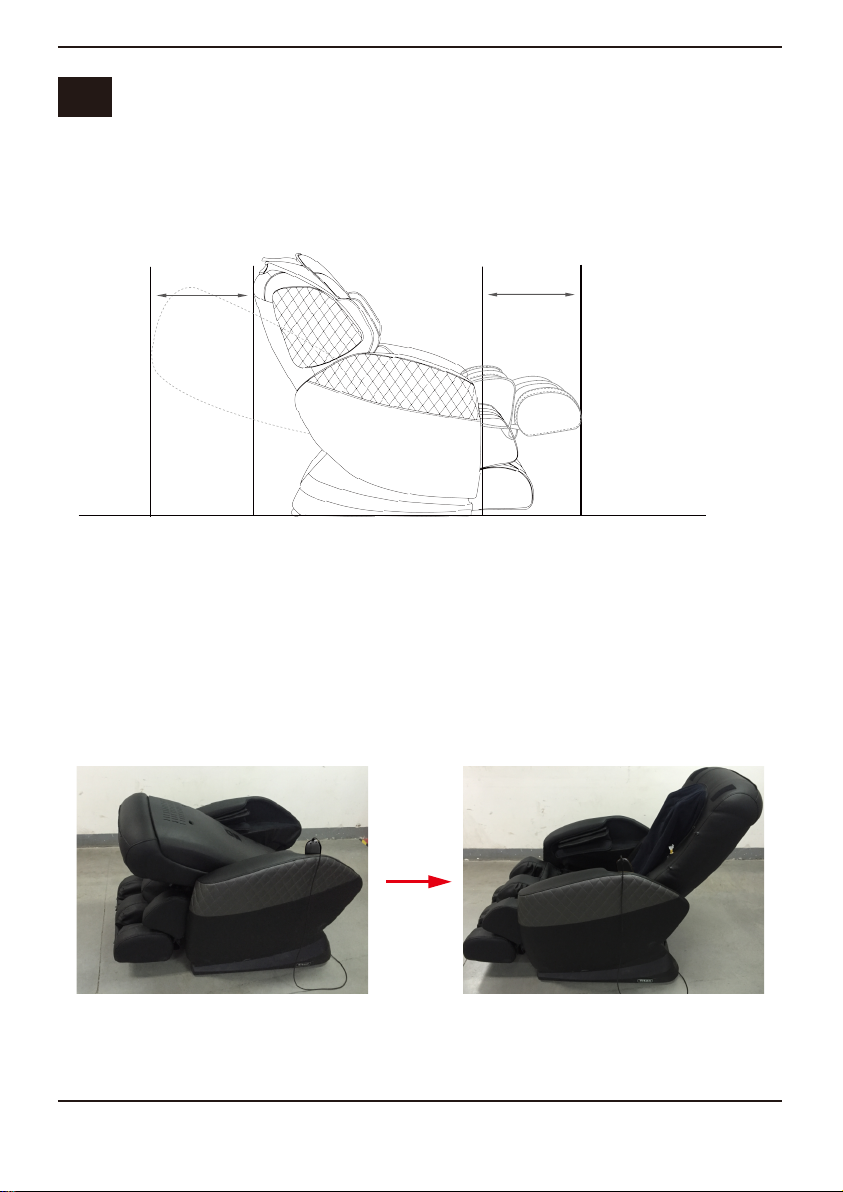

Ensure sufficient spaces around massage chair, please leave 11” of spaces
behind the backrest and 10” of spaces at the front of massage chair.
Step 1:
1.Ensure sufficient space around the massage chair.
2.Lift the backrest, then lower the backrest into the seat brackets, securely lock
5
at least 11”

Step 2:

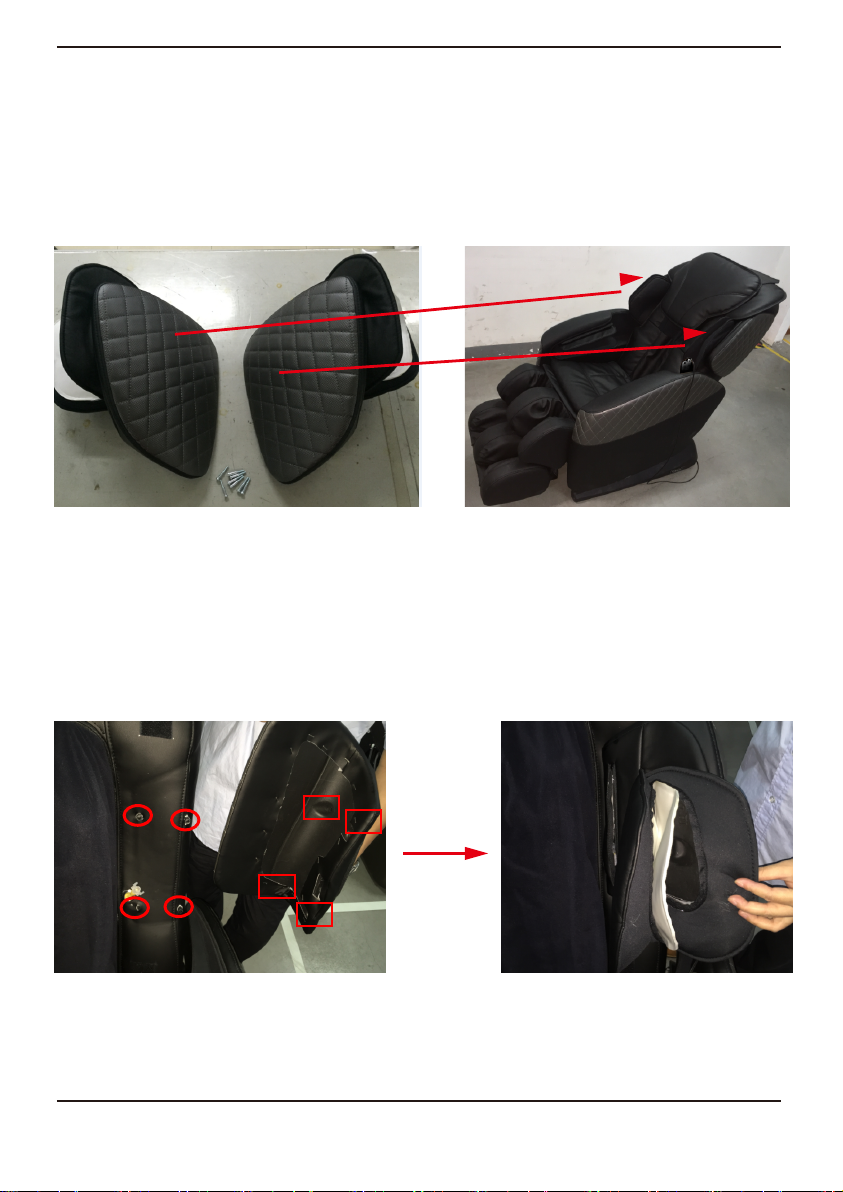

1. Put the shoulder rest on the backrest.
2. Find out right and left shoulder rest.
3. Find out the 4 positioning spots, and fix the shoulder rest into the backrest.
6

7
4. Connect the air tube, and lock the shoulder rest tightly with 4 screws.
Connect the air tube
lock with 4 scerws
5. Put the air bags into the shoulder leather and lock the zips
lock the zips

8
Step 3:

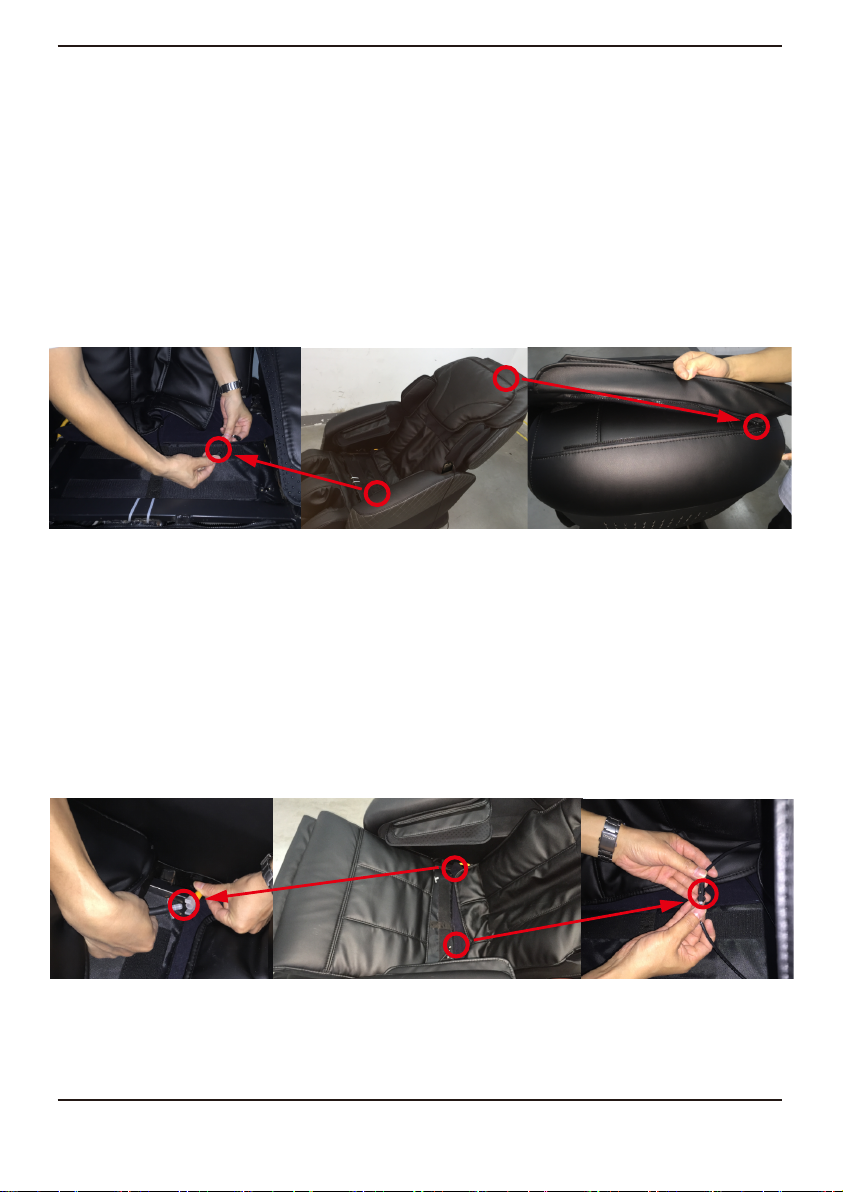

1.Put backrest leather on the backrest , connect the heating wire terminals and
lock the zip.
2. Put the base leather on the base rest, connect the air tube and vibration motor
wire terminals.

9
3.Lock the zip.
Step 4:
Switch on the power and inspect the massage functions.

10
This product must be grounded. If it should malfunction or break down, grounding
provides a path of least resistance for the electric current to reduce the risk of
electric shock. This product is equipped with a cord with an equipment-grounding
conductor and a grounding plug. The plug must be plugged into an appropriate
outlet that is properly installed and grounded in accordance with all local codes
and ordinances.
Danger-Improper connection of the equipment-grounding conductor can result in
a risk of electric shock. Check with a qualified electrician or service technician if
the product will not fit the outlet, have a proper outlet installed by a qualified
electrician.
This product is for use on a nominal 120V circuit and has grounding plug that
looks like that plug illustrated below. Make sure that the product is connected to
an outlet having the same configuration as the plug. No adapter should be used
with this product.
04 Grounding Instructions
Grounded Outlet
Grounding Pin
Grounded Outlet Box

11
05 Chair Specifications
Model No.
Rated Voltage
Rated Frequency
Rated Power Consumption
Timer
Max Time Rate
Dimensions(L x W x H)
Length of Wire
Usage Condition
Safety Feature
EC-555
120V
60Hz
120W
5/10/15/20/25/30 minutes
30 minutes
Upright:
Reclined:
Carton:
Gross Weight:
Net Weight:
Controller wire:
Power supply wire:
Environment temperature: 10°-40°
Contrasting humidity: 30-85RH
Storage temperature: 20°-60° safety
IStorage humidity: 30-85RH
Equipped with overheated and power surge
safety protection.
Storage Condition
Description Specifications
Weight

HEALTHY WAKE UP RELAX
REVITALIZE CLASSIC STRETCH
UPRIGHTRECLINE FULL AIR
SPEED MANUAL INTENSITY WIDTH
FOOT
VIBRATION
Seat
12
06 Controller Diagram
1.Power 2.Pause
5/6.Spot/Zone
3.Time
10.Wake up
9.Healthy
12.Revitalize
16.Arm
15.Shoulder
19.Recline
20.Upright
21.Full air
22.Vibration
7/8. -/+
4.Heat
13. Classic
11.Relax
14.Stretch
17.Seat
18.Foot
23.Speed
24.Manual
25.Intensity
26.Width

13
•
How to Start
1. Connect the power supply, and turn the switch to “I” position, chair is now in
idle mode.
2. During its idle mold only Power, Recline, Incline buttons can work.
Function Description
1.Power
• The power button starts and stops all functions on the massage chair.
• Press once, the chair is idle mode.
• Press again, all functions will stop, and massage rollers will return to original
position.
2.Pause
• The pause button will allow all massage functions to stop temporarily.
• Press once, all the massage functions and timer will be stopped temporarily.
• Press again to resume the massage session.
3.Time
• The timer button controls the length of the massage session.
• The default time for all massage functions is 15 minutes.
• Press each time to change the length of the time in the following sequence:
20>25>30>5>10>15.
4.Heat
• It controls lumbar heat function.
5.Spot
• This key with two functions: one is for spot massage and one is for making
roller upward.
• Press once, it will allow users to choose the exact position to massage.
• Hold the key and don’t release, it will move roller upward. When the roller
reach the position needed, stop holding the key.
• This can be applied to all massage selections.
6.Zone
• This key with two functions: one is for zone massage and one is for making
roller downward.
• Press once, it will allow uses to limit the massage in 12cm long to a particular
body zone.
07 Operation Guide

• Hold the key and don’t release, it will move roller downward. When the roller
reach the position needed, stop holding the key.
7/8.-/+
• Press each time to adjust intensity of Kneading Massage.
9.Healthy
• Rolling and tapping will be activated at the area of mid and low back.
• Recommended for sore mid and low back.
10.Wake up
• Engages the Snooze Auto Program, based on the waist by Kneading, Shiatsu
and other techniques.
• Help to shape up body and relieve stress.
11.Relax
• Combination of kneading and tapping massage kicks off the full body. With
kneading and tapping, start from the head, down to the lower back, and focus on
the buttocks.
12.Revitalize
• This program focuses on neck, shoulder and hip by Rolling and Kneading,
reduction of body fatigue.
13. Classic
• Engages the deep tissue massage to loosen up the muscles.
• Relief of a day’s work pressure.
14.Stretch
• This function allows users to adjust the strength of massage.
• There are total 5 levels for your options.
15.Shoulder
• This function activated the air compression on shoulder area.
16.Arm
• This function activated the air compression on arm area.
17.Seat
• This function activated the air compression in the seat area.
18.Foot
• This function activates the air compression on the calves and feet area.
19.Recline
• This button controls recline angle of the massaging chair.
• Press once, the backrest and footrest will move to a horizontal reclining
position.
14

15
20.Upright
• This button control incline angle of the massage chair.
• Press once, the backrest and footrest will move to an upright sitting.
• Press again to stop the product at your preferred angle.
21.Full air
• Engages a full body Air Pressure Massage.
• Press again to stop the air massage.
22.Vibration
• This button control the vibration in seat area.
• Press once to activate vibration. Press again to stop the vibration.
23.Speed
• Control the speed of Tapping, Kneading, Swedish, Shiatsu, Kneading and
tapping massage.
• Select a massage function and press to select between 5 speeds.
24.Manual
• Controls Kneading, Tapping, Swedish, Shiatsu, Kneading and tapping ,Rolling
massage.
• Press once to activate kneading massage of the full back.
• Each press of button, the massage mode changes in sequence:
Tapping>Swedish>Shiatsu>Kneading and Tapping>Rolling.
25.Intensity
• This button allows users to adjust the intensity of airbag on the calves and feet
area.
• There are five levels for your option.
26.Width
• This button allows you to control the width of the rollers.
• Select a massage function and press to adjust between Narrow, Normal and
Wide widths.

16
08 Troubleshooting
This page summarizes the most common problems you could encounter with the
product. If you are unable to solve the problem with the information below,
contact service center immediately.
If the problem encountered is not listed, please try the following suggestions:
1. Turn off the product and unplug it.
2. Wait for 60 minutes.
3. Plug the product back to the recommended outlet and restart.
4. If the problem persists, contact the authorized service center.
The product
does not work
The product
stopped
working
The product
stopped
working
The product
does not work
The product is
abnormally
warm
Noise can be
heard from the
The product is not plugged
in properly.
Ensure the voltage on the
product corresponds to the
local mains voltage and
then plug in again.Make
sure the outlet is properly
working.
If you want another session,
press the Power button
again.
Unplug the product and let it
cool down for 60 minutes
before you use it again.
Reduce the excessive load
and start again.
Unplug the product an let it
cool down before using it
again.
This is normal and does not
mean that the product is
faulty.
The product has just
finished its auto timer
session and has
automatically switched to
standby mode.
You may have used the
product continuously for 45
minutes where the over heat
protection has been
activated.
An excessive load has been
applied on the product.
The product is likely to be
overused.
Noise is made by the
mechanical parts of the
Problem Possible Cause Suggestion

Cleaning
Never use scouring pads, abrasive cleaning agents or aggressive liquids such
as petrol or acetone to clean the appliance. When wiping down the chair use
non toxic cleaners and be sure the cloth is moist and NOT wet.
Do not immerse to appliance in water.
1.Remove the main plug from the wall socket.
2.Clean the control panel and cords with a dry cloth.
3.Do not use a moist cloth or a cleaning agent.
Storing
1.Disconnect the product from the power source after use.
2.Keep the massage chair away from direct sunlight, high temperature or high
humidity.
3.Do not put heavy objects on the product.
If the outer cover is torn or the mechanism is damaged, stop using the appliance
and get advice from the service center.
If you have any questions with your massage chair, please do not hesitate to
contact the service center.
17
09 Care & Maintenance
