Galaxy SED-MON-IT-860 User manual

IP camera tester
USER MANUAL
（V01.00）

Thank you for purchasing the IP camera tester. Please read the manual before using the IP camera
tester and use properly.
For using the IP camera tester safely, please first read the「Safety Information」carefully in the
manual.
The manual should be kept well in case of reference.
Keep the S/N label for after-sale service within warranty period. Product without S/N label will
be charged for repair service.
If there is any question or problem while using the IP camera tester, or damages occurred on the
product, please contact our technical Department.

Content
1 .Safety information........................................................................................................................1
2. IP Camera Tester Introduction......................................................................................................2
2.1 General ......................................................................................................................................2
2.2 Features......................................................................................................................................3
2.3 Function.....................................................................................................................................4
2.3.1 Touch screen and OSD menu..........................................................................................4
2.3.2 IP camera test..................................................................................................................5
2.3.3 Analog camera test..........................................................................................................5
2.3.4 Video level meter............................................................................................................5
2.3.5 PTZ controller.................................................................................................................6
2.3.6 Enhanced Color bar generator.........................................................................................6
2.3.7 DC12V 2A/DC 5V 2A output power ..............................................................................7
2.3.8 Audio testing...................................................................................................................7
2.3.9 Cable tester......................................................................................................................7
2.3.10 PTZ data analysis..........................................................................................................7
2.3.11 Image magnification......................................................................................................7
2.3.12 Video screenshot, record and playback .........................................................................8
2.3.13DHCP dynamic address assignment..............................................................................8
2.3.14 Access the dynamic IP address......................................................................................8
2.3.15 Multi- segments IP Cameras Test..................................................................................8
2.3.16 IP address scan..............................................................................................................8
2.3.17 PING Test .....................................................................................................................8
2.3.18 Port Finder ....................................................................................................................8
2.3.19 PoE Test........................................................................................................................9
2.3.20 Digital Multi-meter (Optional)......................................................................................9
2.3.21 Visual fault locator (Optional).......................................................................................9
2.3.22 Optical Power Meter (Optional)....................................................................................9

2.3.23 LED lamp......................................................................................................................9
2.3.24 TDR cable open circuit and short circuit measurement (Optional)................................9
2.3.25 WIFI............................................................................................................................10
2.3.26 SDI camera test （*optional）...................................................................................10
2.3.27 PoE power supply .......................................................................................................10
2.3.28 HDMI signal output ....................................................................................................10
2.3.29 Network bandwidth testing..........................................................................................10
2.3.30 Cable Tracer ..............................................................................................................10
2.3.31 Screen display rotates in 180 angle..............................................................................10
2.3.32 FTP Server..................................................................................................................11
2.4 Packing list ..............................................................................................................................11
2.5 Function...................................................................................................................................12
3. Operation....................................................................................................................................15
3.1 Installing the Battery................................................................................................................15
3.2 Instrument connection..............................................................................................................16
3.2.1 IP camera connection............................................................................................................16
3.3.2 Analog camera test................................................................................................................17
3.3 OSD menu ...............................................................................................................................18
3.3.1 Video monitor test.........................................................................................................20
3.3.2 Color-bar generator (TV OUT) .....................................................................................29
3.3.3 ONVIF..........................................................................................................................30
3.3.4 IP camera test................................................................................................................38
3.3.5 SDI Camera Test(*optional)..........................................................................................41
3.3.6 IP address scan..............................................................................................................42
3.3.7 PING Test.....................................................................................................................43
3.3.8 Cable test.......................................................................................................................44
3.3.9 Cable tracer...................................................................................................................44
3.3.10 Port finder...................................................................................................................46
3.3.11 Data monitor ...............................................................................................................47

3.3.12 Optical power meter （Optional ）...........................................................................47
3.3.13 Visual Fault Locator（optional）...............................................................................49
3.3.14 Digital Multi-meter （optional ）.............................................................................50
3.3.15 Video Player................................................................................................................58
3.3.16 Music player................................................................................................................59
3.3.17 LED lamp (Flashlight).................................................................................................60
3.3.18 PoE Voltage test..........................................................................................................61
3.3.19 TDR cable test （optional）...................................................................................61
3.3.20 Calculator....................................................................................................................64
3.3.21 Browser.......................................................................................................................64
3.3.22 IP camera viewer.........................................................................................................65
3.3.23 PoE power / DC12V 2A and DC 5V 2A USB power output.......................................67
3.3.24 Application tools.........................................................................................................68
3.3.25 APPS Tools.................................................................................................................75
3.3.26 System Set...................................................................................................................76
3.3.27Update.........................................................................................................................78
3.4 Audio test.................................................................................................................................79
3.5 HDMI output ...........................................................................................................................79
3.6 PoE power output.....................................................................................................................80
3.7 DC12V 2A power output.........................................................................................................80
4. Specifications.............................................................................................................................82
4.1 General Specifications .............................................................................................................82
4.2 Multi-meter specifications .......................................................................................................84
4.3 Optical power meter specifications..........................................................................................87
4.4 Visual fault locator specifications............................................................................................87

Page.1.
1 .Safety information
◆The tester is intended to use in compliance with the local rules of the electrical usage and avoid to
apply at the places which are inapplicable for the use of electrics such as hospital, gas station etc.
◆To prevent the functional decline or failure, the product should not be sprinkled or damped.
◆The exposed part of the tester should not be touched by the dust and liquid.
◆During transportation and use, it is highly recommended to avoid the violent collision and vibration
of the tester, lest damaging components and causing failure.
◆Don‘t leave the tester alone while charging and recharging. If the battery is found severely hot, the
tester should be powered off from the electric source at once. The tester should not be charged over 8
hours.
◆ Don‘t use the tester where the humidity is high. Once the tester is damp, power off immediately and
move away other connected cables.
◆The tester should not be used in the environment with the flammable gas.
◆Do not disassemble the instrument since no component inside can be repaired by the user. If the
disassembly is necessary indeed, please contact with the technician of our company.
◆The instrument should not be used under the environment with strong electromagnetic interference.
◆ Don‘t touch the tester with wet hands or waterish things.
◆ Don‘t use the detergent to clean and the dry cloth is suggested to use. If the dirt is not easy to remove,
the soft cloth with water or neutral detergent can be used. But the cloth should be tweaked
sufficiently.
About Digital Multi-meter
◆Before using, you must select the right input jack, function and range.
◆Never exceed the protection limit values indicated in specifications for each range of measurement.
◆When the tester is linked to a measurement circuit, do not touch unused terminals.
◆Do not measure voltage if the voltage on the terminals exceeds 660V above earth ground.
◆At the manual range, when the value scale to be measured is unknown beforehand, set the range
selector at the highest position.
◆Always be careful when working with voltages above 60V DC or 40V AC, keep fingers behind the
probe barriers while measuring.

Page.2.
◆Never connect the meter with any voltage source while the function switch is in the current,
resistance, capacitance, diode, continuity, otherwise it will damage the meter.
◆Never perform capacitance measurements unless the capacitor to be measured has been discharged
fully.
◆Never measure any of resistance, capacitance, diode or continuity measurements on live circuits.
Visual laser sources
When you turn on visual laser sources, please don‘t stare at it, or will damage to eyes
When not using it，Please turn it off and cover the protective cap .
2. IP Camera Tester Introduction
2.1 General
The 7 inch touch screen IP camera tester is designed for maintenance and installation of both IP camera
and analog camera as well as other security equipments . 800x600 resolution, enable it to display
network HD camera and analog camera image in top quality. Support both ONVIF PTZ and analog
PTZ control. The combination of touch screen and key buttons make the IP camera tester very user-
friendly.
Meanwhile the tester is also a very great tool for Ethernet network, cabling system and fiber optic
communication etc. It can test PoE power voltage, PING, IP address searching etc. It can diagnose the
location of the BNC and network cable‘s short circuit and open circuit. By sending the audio signal, use
the blue cable tracer tester to find the connected cable from messy cables. Test LAN cable or telephone
cable‘s type and the sequence of wires. Optical power meter and visual fault detector function, effective
to solve the fiber optical transmission problem. Other functions include 24W PoE power supply, digital
multimeter, LED Lamp, DC 12V 2A power output etc. Its portability, user-friendly design and
multi-functions make the IP camera tester become an essential tool for the installers or technicians,
greatly improving the working efficiency and simplifying the installing and maintenance.

Page.3.
2.2 Features
7 inch 800×600 touch screen, easy to operate
ONVIF IP camera test
Test some customized brands‘s H.264/MPEG4/MJPEG IP cameras, such as Dahua,
HIKVISION,ACTI, etc. Customized service is available.
Built in Wi-Fi ,can receive image from wireless camera, as well as ONVIF and customized IP
cameras.
SDI Digital camera image display, record and screen snapshot * (Optional)
HDMI signal output，support 1080P
Analog camera image display, Auto adapt and display the video format of NTSC/PAL
Support more than 30 protocols ,such as PELCO-P、PELCO-D、SAMSUNG etc
Video image magnification, to view the details, easy to use
Snapshot and save the current image as JPG file in the SD card, video record and playback
LED Lamp, easy to operate at night
Micro SD card moveable
LCD screen brightness/contrast/color Saturation adjustable
Visual fault locator , to test fiber‘s bending and breakage(Optional)
Optical power meter ,test fiber loss and value (Optional)
Digital Multi-meter , DC and AC voltage measurement, Resistance measurement
Continuity test, Diode measurements, Capacitance measurement(Optional)
Enhanced Color bar generator, Video Generating, the PAL/NTSC multi-system color bar video
generator (Eight-system switchable, transmit/receive eight-system colorful images).
PEAK video signal level, SYNC signal level, Color burst chroma level measurement，test video
signal attenuation
Cable tracer, by sending the audio signal, enables the blue cable tracer tester to find the
connected cable from messy cables.
Ping test, PING is the most conventional network debugging tools; it is used for testing if the
connected IP camera or other network equipment‘s Ethernet port is working normally and the IP

Page.4.
address is correct.
In digital IP surveillance applications, if IP camera‘s IP address is not clear or forgotten; the
device cannot be used .IP address scan can quickly search the connected IP camera or other
network device‘s IP address.
PoE voltage test，it can test the PoE voltage when the POE switch is supplying the POE power to
IP camera ,wireless AP etc
TDR cable test，test cable open circuit and short-circuit (Optional)
Cable test , Test LAN cable or telephone cable,UTP cable etc ,cable type and the sequence of
wires will be displayed
Support RS232/RS485,Rate 600 ～115200bps adjustable
PTZ protocol analysis, control protocol command displays to check RS485 transmission
whether is normal, easy to find the fault device
PTZ control. Pan/tilts the P/T unit, zooms in/out the lens, adjusts the focus, aperture and
sets and the preset position
DC12V 2A output power for camera
PoE power output，supply temporary power for PoE camera
DC5V 2A power output，as a power bank
Audio input and output, test and output the audio signal
7.4V 48.1Wh Battery energy display, Lithium Ion Polymer Battery can last 16 hours for normal
use after charging for 8 hours
2.3 Function
2.3.1 Touch screen and OSD menu
The IP camera tester combines with capacitive touch screen and key buttons. The combination make the
tester very user- friendly, greatly improving the working efficiency and simplifying the installation and
maintenance..
It is user-friendly to move the function icons from the tester‘s main menu to APPS tool file or move
them back, to make the main menu look simple and clear.

Page.5.
2.3.2 IP camera test
The device is designed with ONVIF test, IP camera test, browser functions etc. It can display the image
from the ip camera and change the IP address etc. 7 inch 800×600 screen display, allows the user to
view the image at larger angle. This is very helpful and convenient for the users to install the ip cameras
at site.
In ONVIF TOOL, it can display the image from ip camera and control the PTZ. Currently the IP camera
tester only supports more than 30 brands‘IP cameras, such as ACTi、Dahua IPC-HFW2100P、Hikvision,
DS-2CD864-E13、Samsung SNZ-5200、Tiandy TD-NC9200S2、Kodak IPC120L、Honeywell
HICC-2300T etc.
OEM service is available. Users can send us the IP camera for our engineers try to add the protocols to
the tester, or send us the video management software (Android version. APK files) to installl in the
tester.
2.3.3 Analog camera test
Display analog camera image ,7 inch 800×600 LCD screen display ,larger viewing angle ,more
intuitively and easily to display the camera image quality. Support PAL/NTSC format. LCD screen
backlight brightness adjustable, and analog video image brightness/contrast/color Saturation adjustable.
2.3.4 Video level meter
The IP camera tester has adopted hardware high-speed sampling and processing technology, enables it
to achieve more accurate measurements in the video signal PEAK, SYNC level,
COLOR BURST chroma level
Video signal PEAK level: For PAL format , the video signal level is 1000±200mV
For NTSC format, the video signal level is 140±15IRE
If the level is too low, it will cause the image to dim and reduce dynamic range, but if the level is
too high, it will lead to virtual shadow and reduce the definition of the image.

Page.6.
SYNC level: by testing the amplitude of the video sync pulse to verify if the video level is correct and
the coaxial cable connectivity is good.
For PAL format, the SYNC level is 300 ±35mV
For NTSC format, the SYNC level is 40 ±5IRE
If the level is too low, it will cause the image to fracture or scroll, but if the level is too high, it will lead
to reduce the image‘s color levels and dynamic range.
COLOR BURST chroma level: by testing the color burst level to estimate whether the coaxial cable is
the best to transmit the details and color.
For PAL format, the Chroma standard level is 280mV
For NTSC format, the Chroma standard level is 40 IRE
If the Chroma level is low or too low, the color will not bright, and some details on the iamge will lost
or get dark or white when the monitor receives the iamge.
If the Chroma level is too high, there will be spots on the image. If this occurs, it cannot get the clear
image with all the details.
If the coaxial cable is too long, it will reduce the chroma level
2.3.5 PTZ controller
Display the input video images. Pan/tilt the P/T unit and zoom in/ out the image. Setup the controlling
parameters like protocol, communication port, baud rate, PTZ ID, pan/tilt speed; set and call preset
position.
2.3.6 Enhanced Color bar generator
The tester sends out the color bar by its BNC output to the monitor at the monitoring center. If the
monitor receive the color bar, it means the video transmit channel works normally. Meanwhile on the
basis of the received color bar, the monitoring center can judge if transmission has loss or interference.
The tester can also send out the color bar by its BNC output, then receive and display the color bar by

Page.7.
its BNC input to test on-site video transmission, such as video optical transmitter and receiver, video
cables.
The new function of sending the testing image can judge if the monitor receives the image well.
The new color bar (red, green, blue, white, black) can test the monitor whether have white or black dot
etc.
2.3.7 DC12V 2A/DC 5V 2A output power
Power the camera with DC12V (2A) power output from the tester. It is helpful for demo and testing
when the power supply is not available. Built in DC5V2A power output，used as a power bank .
2.3.8 Audio testing
Test the audio input from pickup devices. Connect the tester and pickup device with the audio cable.
Supports audio recording and audio output.
2.3.9 Cable tester
Test LAN cable or telephone cable.
Connect LAN cable or telephone cable with the CCTV tester and cable tester. And then the connecting
status, cable type and the sequence of wires will be displayed, as well as display the serial number of
the cable tester kit.
2.3.10 PTZ data analysis
Search the Control protocol code from Multifunction keyboard or DVR by RS485 /RS232 interface, test
the PTZ control command data whether received anomaly and RS485/RS232 data transmission.
Screen displays 16 hexadecimal codes such as
PELCO-P：A0 00（Add）xx xxxxxx AF xx
PELCO-D：FF 01（Add）xx xxxxxxxx
2.3.11 Image magnification
Set image zoom, by x1, x2, x3, x4 times ,can view and display the details .Support analog camera,
ONVIF ,as well as some brands‘specified models, such as DaHua、Hikvision、ACTi、Samsung camera

Page.8.
2.3.12 Video screenshot, record and playback
Capture the video image and save the current video frames as JPEG file, record and save the current
video in the SD card, video image and record files are saved in the SD card. Storage file directory can
be created according to the date.
2.3.13DHCP dynamic address assignment
Built in DHCP server, dynamic assign IP address for the IP camera or network device, meanwhile
inquire and display the assigned IP address.
2.3.14 Access the dynamic IP address
The IP tester can directly access the dynamic IP address assigned from its DHCP server and used it as
the tester‘s IP address. It don‘t need to manually setup.
2.3.15 Multi- segments IP Cameras Test
Support Multi- segments Static IP address setting,，can simultaneously test different segments IP
network cameras
2.3.16 IP address scan
In digital IP surveillance applications, if IP camera‘s IP address is not clear or forgotten; the device
cannot be used .IP address scan can quickly search the connected IP camera or other network device‘s
IP address.
2.3.17 PING Test
PING is the most conventional network debugging tools; It is used for testing if the connected IP
camera or other network equipment‘s Ethernet port is working normally and the IP address is correct.
2.3.18 Port Finder
The tester will send special signals to make the connected POE port flicker at special frequency, which
will enable the installers to easily and quickly find the connected ethernet cable. This function can
prevent mistakenly insertion or disconnection non-corresponding cable to artificially interrupt network
connection.

Page.9.
2.3.19 PoE Test
It can test the PoE voltage when the POE switch is supplying the POE power to IP camera. It can
clearly display the power+ and power- on the Ethernet cable pins, each cable pin‘s voltage and the
failure connection of cable pin series numbers.
2.3.20 Digital Multi-meter (Optional)
The tester has built in highly stable and reliable 33/4 digit (6600) digital multi-meter. It is used for the
DC and AC voltage measurement, AC and DC current measurement, Resistance measurement,
Continuity test, Diode measurements, Capacitance measurement, Auto/Manual measuring range
switching, relative value measurement and locking. It is easy operation and professionally accurate.
2.3.21 Visual fault locator (Optional)
Visual Fault Locator with 650nm wavelength can emit red laser sources to test multi-mode and single
mode fiber‘s bending and breakage, and Continuous light-emitting and 1HZ, 2Hz modulating light
output. It is indispensable tool in fiber project constructing, fiber net-work maintaining, optical
component manufacture and research.
2.3.22 Optical Power Meter (Optional)
The IP camera tester adopts the most advanced handheld instrument specific integrated chip , achieve
ultra-low power operation, with the 7 TFT-LCD High-definition screen display ，five wavelength
calibration points 1625nm,1550nm ,1490nm , 1310nm , 1300nm , 850nm.Linear or nonlinear optical
power display, it can measure the optical power value, and also be used for Relative measurement of
optical fiber link loss. It is necessary tool for fibre-optic communication, cable television system and
security system maintenance.
2.3.23 LED lamp
It is useful for the user to install and maintain security system at night. Press button LED On/Off, easy
operation.
2.3.24 TDR cable open circuit and short circuit measurement (Optional)
TDR cable testing, accurately measure BNC cable, network cable, controls cable‘s open circuit and

Page.10.
short-circuits location. It greatly improves working efficiency.
2.3.25 WIFI
Built in WIFI, can receive the image from wireless camera (ONVIF and customized camera) or network
data etc.
2.3.26 SDI camera test （*optional）
SDI digital video surveillance testing, support 720p 60fps / 1080p 30fps / 1080i 60fps digital
camera image test and video image zoom, record, snapshot, photo viewer and video playback .
2.3.27 PoE power supply
Support PoE power 24W，high capacity 48.1Wh Lithium polymer battery, provides temporary power for
the PoE network camera .
2.3.28 HDMI signal output
With HDMI output port, support 1080p 60fps resolution output,Output the recording and media files to
HD TV monitor.
Meanwhile, the HDMI output can be used as SDI-HDMI convertor to output the SDI video to the HD
TV monitor.
2.3.29 Network bandwidth testing
Network channel bandwidth test, need two IP camera testers to test, one as a transmitter, the other as a
receiver. Or install the testing software in the PC firstly, then work with one IP camera tester to test the
network channel bandwidth.
2.3.30 Cable Tracer
Send the specific signal, easy to find the connected cable from messy cables.
2.3.31 Screen display rotates in 180 angle
The LAN slot, PSE IN slot, UTP/SCAN slot etc, are on the downside of the IPC tester. Before upward
the downside, screen display can be rotated in 180 angle by manual setting. This function is very
convenient for the user to upward the downside to connect the LAN cable and do the testing.

Page.11.
2.3.32 FTP Server
Start the tester‘s Wifi or connect the tester‘s Lan port to network. After the tester is online, start its FTP
Server, the PC can directly access files from the tester‘s SD card without the use of the SD card reader.
It does not need to pull out the SD card or use the SD card reader. This is greatly convenient for the user
to upgrade tester software and access files.
2.4 Packing list
1). Tester
2). Adaptor DC12V 2A
3) Network cable tester
4) Polymer lithium ion battery (7.4V DC 6500mAh)
5). BNC cable
6). RS485 cable
7).SC,ST connector（Only for optical power meter）
8).Multi-meter test leads one pair of red and black (only for the Multi-meter models)
9). Output Power cable
10). Audio cable
11). TDR alligator clamp (only for TDR models)
12). Safety cord
13). Tool bag
14). Manual
15) 4G SD card

Page.12.

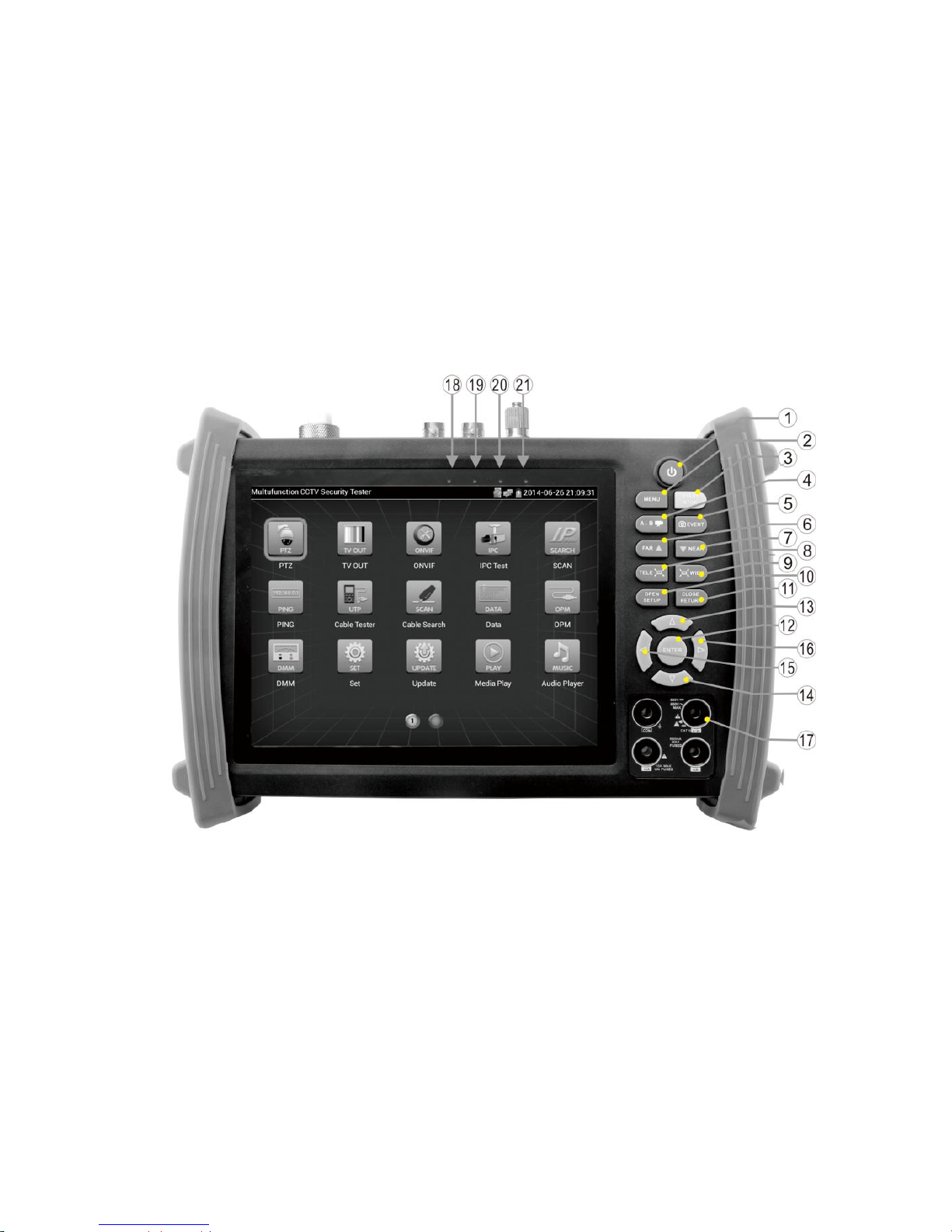

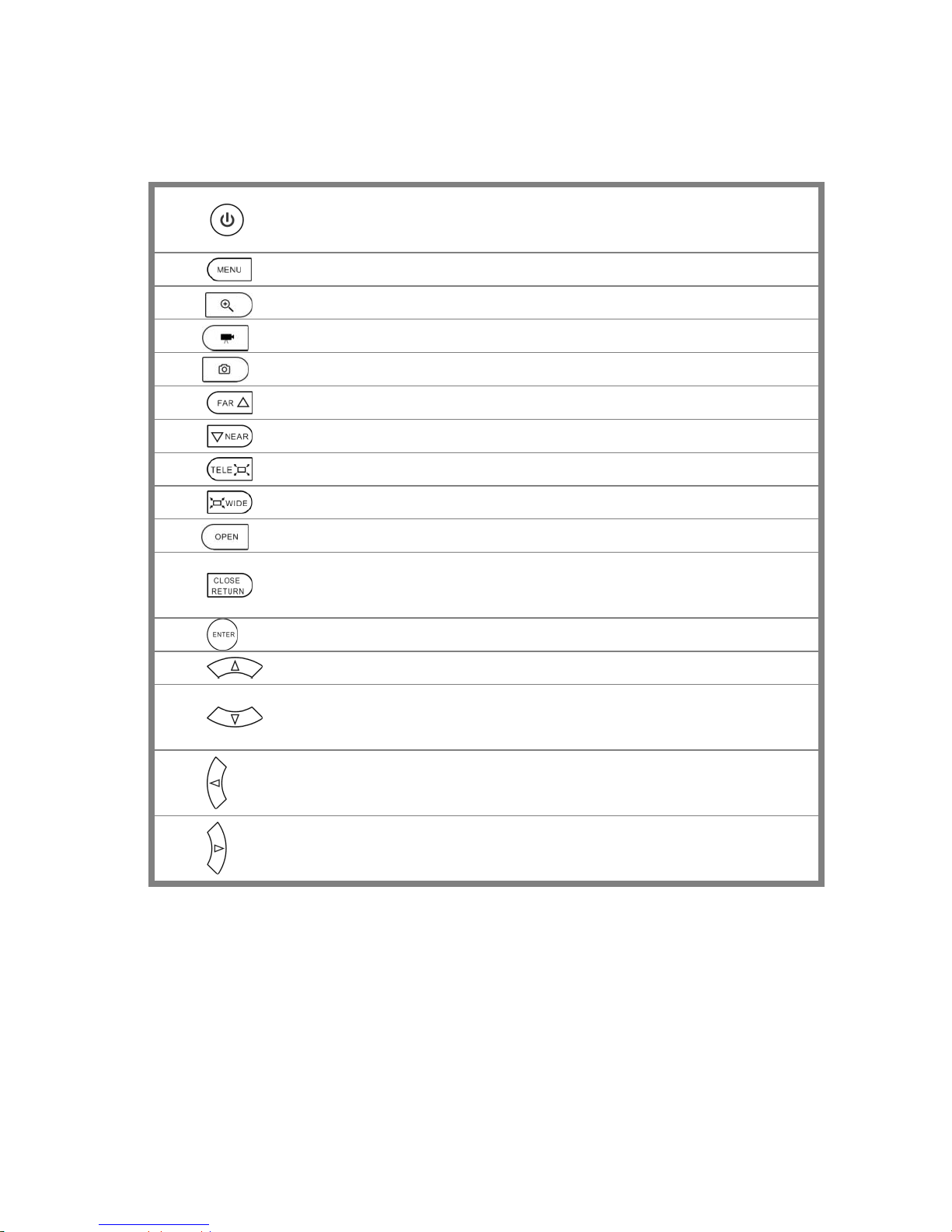

2.5 Function

Page.13.
1
Press more than 2 seconds, turn on or off the device ,short press to turn on or off
the menu display
2
Menu key
3
4xzoom the image display. OTDR start or stop.
4
Video record
5
Snapshot
6
Far focus: Focus the image faraway
7
Near focus: Focus the image nearby
8
TELE: zoom in the image
9
WIDE: zoom out the image
10
Open/set ,Confirm the setting of parameters, open or enlarge the aperture
11
Return/Close : Return or cancel while setting parameters of the menu, close or
decrease the aperture
12
Confirm key
13
Upward, set function or add parameter. Tilt the PTZ upward
14
Downward, set function or reduce the value of the parameter. Tilt the PTZ
downward
15
Leftward, select the parameter whose value will be changed
16
Rightward, select the parameter whose value will be changed. Add the value of the
parameter. Pan the PTZ right

Page.14.
Top interface
Bottom interface
17
Multimeter interface (Optional)
18
The charge indicator: it lights red while the battery is being charged. As the charging is
complete, the indicator turns off automatically
19
The RS485/RS232 data transmission indicator: it lights red while the data is being transmitted
20
The data received indicator: it lights red while the data is being received
21
The power indicator: it lights green while the tester is powered on by the adapter
22
Visible red laser source emits Interface(Optional)
23
DC12V2A power output , for provisional DC power supply
24
SDI input (BNC interface)
25
Video image signal input（BNC interface）
26
Video image signal output（BNC interface）/cable tracer interface
27
Optical power meter interface (Optional)
28
RS485 Interface: RS485communication for the PTZ

Page.15.
29
RS232 Interface: RS232 communication for the PTZ
30
LED lamp
31
TDR cable test interface
32
HDMI output interface
33
Micro SD card moveable，default 4G, support Micro SD card up to 16G.
34
UTP cable port: UTP cable tester port/ Cable tracer port
35
Audio output and earphone interface
36
Audio input
37
PSE power supply input interface
38
PoE power supply output/Lan test interface,
39
USB 5V 2A power output ，only as a power bank ,not transmit data
40
DC12V2A charging interface
41
DC12V2A power output , for provisional DC power supply
3. Operation
3.1 Installing the Battery
The tester has built-in lithium ion polymer rechargeable battery. The battery cable inside battery
cabin should be disconnected for safety during transportation!
Prior to the use of the instrument, the battery cables inside the battery cabin should be well
connected.
Usually it doesn‘t need to disconnect the cable at the normal use
Pressing the key continuously can power on or off the tester.
Notice：Pls use the original adaptor and connected cable of the device!
When the battery icon is full or the charge indicator turns off automatically, indicate the battery
charging is completed
