G&G T3X User manual

CV CONTROLLER
T3-5A
R U N
CV CONTROLLER
R U N
Gener al Information
LED Lamp
Connected Sock et
5~24V
Power Input
Sock et
dc
Remote ID
Learning Button
Running Light
On/O
Pause
Ke y
Mode
Ke ys
Speed
Ke ys
Brightnes s
Ke ys
LED Lamp Connected Sock et
12~24V Power Input Sock etdc
C Terminal of Rec eiver s:
T3-CV
T3-5A
T3- CV T3- CC
T3- 5A
— 5 —
Running Light
T3-CC Receiver
Remote ID
Learning Button
STRONG. SIMPLE. COMPACT.
COLOR CHANGING LED ARCH LIGHTING WIRING DETAIL QUICK START GUIDE
Syncing/Pairing the Receiver(s) to the Remote
To pair, turn on both the receiver and remote. The receivers are located in the forward facing junction box on
each vac stanchion. Press the “ID learning button” on the T3-CC receiver then press and hold any key (except
On/Off) on the remote. The receiver will beep and the remote indicator light will ash green 3 times upon a
successful pairing. To control multiple receivers simultaneously, follow the steps above for each receiver.
• Sync and control all of your arch
lights together
• Select between unique static colors
via a full color wheel or 32 built-in
color changing models
• Easily adjust both speed and
brightness settings
• Create custom, unique color
changing programs
Rev Date 21 0512
www.ggled.net
T800.285.6780 E[email protected]
The T3X Wireless Remote Control offers intelligent, user friendly control of your color changing arch lighting
system. This remote allows you to:
1. Operation Panel and Component Instruction:
T3X
LED RGB Programmable Controller
On/Off
Scene-mode Keys
Touch Full-color Circle
Sync Status
Indicator Light
DIY Key for Color Selection
Switch Key for
Changing Modes
Speed Keys
Mode Keys Brightness Keys
T3X can realize the signal sync on unlimited receivers within effective
distance, a very good solution for the LED project needs sync control
wirelessly.
Can RF remote the functions of switch, pause, mode, speed and LED
brightness. More proudly, the T3X has the brand-new programmable
function, only 10 seconds to DIY a new change effect.
★Buzzer on/off: Press “Scene-mode Key” for 3 seconds.
●
●Additional Functions:
Long press for 2 seconds to enter DIY programming function.
5. Save the new program into the “Scene-mode keys”.
4. Adjust the brightness and the speed by pressing the “SPEED” and “ BRT”.
3. After color selection, press to switch jumping/smooth/flickering changing effect.
2. Press to enter next color. (can save 1-10 colors)
1. Select any color on , the controller will save immediately.
Press “MODE” key under DIY function, can display the standard color for black,
red, green, blue, yellow, purple, cyan and white. Among them, black can be used
for editing fade in dimming effect, etc.
Long press ”DIY key for color selection” to clear the current color.
▲
▲
DIY Key for Color Selection
(Press"PLAY" to play cycle modes.
merely play the dynamic effect,
the static effect will be skipped)
(Press 3 seconds to save)
LED RGB Programmable Controller
Programming has never been so easy.
— 26 —
T3X remote works with T3-CV, T3-CC, T3-5A receiver.

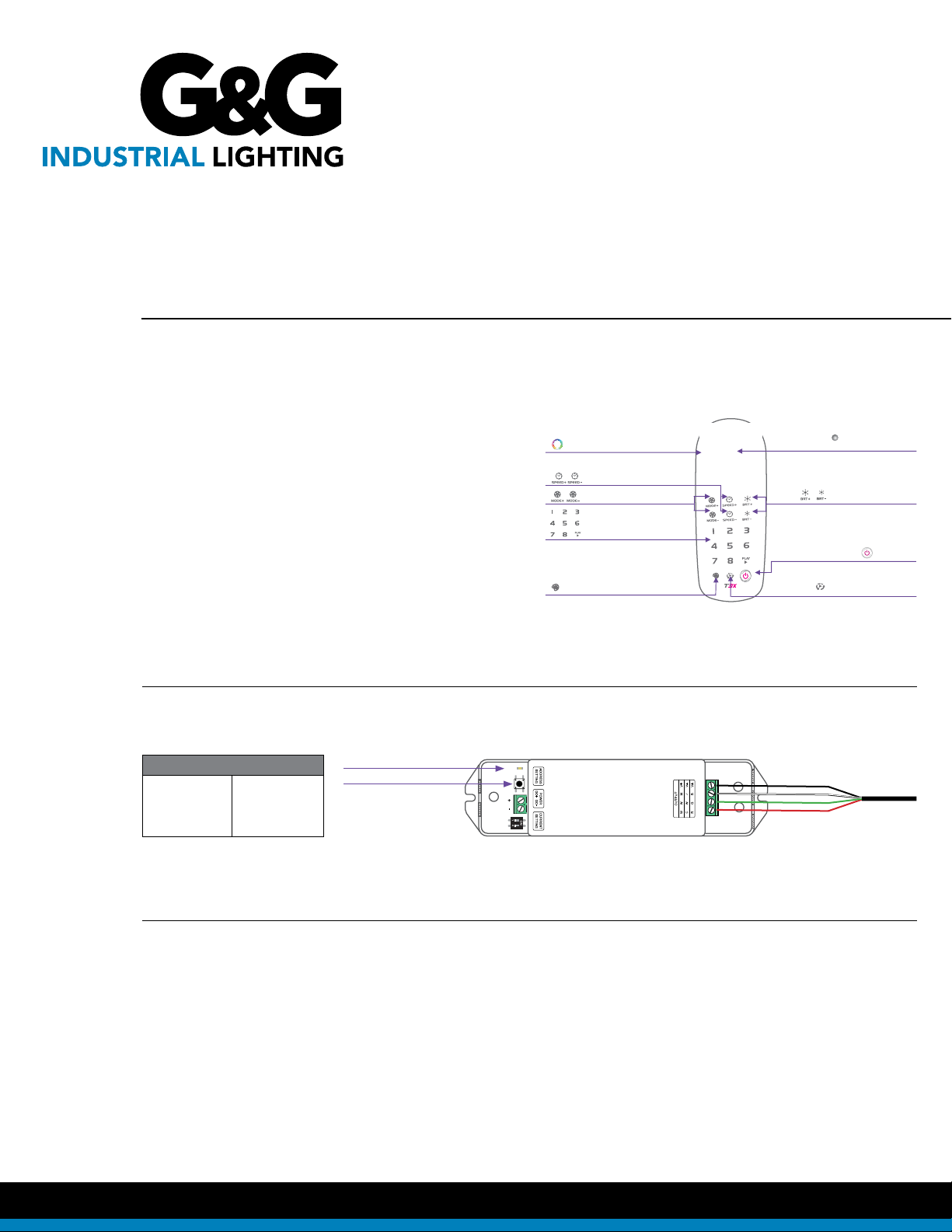

Wiring the LED Fixture to the Receiver
See the below diagram and corresponding table to wire the LED Fixture to the T3-CC Receiver.
Leader Cable
to LED Fixture
Black
White
Green
Red
Leader Cable T3-CC Receiver
Black
White
Green
Red
V+
B
G
R

STRONG. SIMPLE. COMPACT.
Custom Programming Function
Remote Charging
• Press the “DIY Key” (bottom left) for 2 seconds to enter into the Custom Programming Function.
• Select any color on the color wheel then press the “DIY Key” to save that color and enter the next color. You
can enter up to 10 colors in a single custom show.
• After the color selection, press the “Switch Key” (bottom center) to switch between jumping, smooth, or
ickering effects. Adjust the speed and brightness of the effect by the pressing the “SPEED” and “BRT”
buttons.
• Save the new program into the “Scene-mode Keys” (1 through 8) by pressing and holding a scene number
for 3 seconds.
• Connect the USB cable to the mobile charger or computer.
• The center indicator light ashes blue while charging and turns green when the charging is complete. The
remote can be charged in both the on and off state.
• During normal use the indicator light will ash red to indicate low battery.
Rev Date 21 0512
www.ggled.net
T800.285.6780 E[email protected]
COLOR CHANGING LED ARCH LIGHTING WIRING DETAIL QUICK START GUIDE
Pre-Programmed Modes
Select between the 32 pre-programmed modes below
by pressing the “Changing Modes” buttom (bottom
center) and then the MODE + and “MODE – buttons.
The speed and brightness for each mode can also be
adjusted.
4. System Diagram:
3. Tables of Changing Mode:
Comment: Speed/Brightness adjustable.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
No.
Mode
No.
Mode
Static red
Static green
Static blue
Static yellow
Static purple
Static cyan
Static white
RGB jumping
7 colors jumping
White strobe
7 colors strobe
Red fade out and fade in
Green fade out and fade in
Blue fade out and fade in
Yellow fade out and fade in
Purple fade out and fade in
Cyan fade out and fade in
White fade out and fade in
RGB fade out and fade in
Red/Green color smooth
Red/Blue color smooth
Green/Blue color smooth
Red/Yellow color smooth
Green/Cyan color smooth
Blue/Purple color smooth
Green/Yellow color smooth
Blue/Cyan color smooth
Red/Purple color smooth
Blue/White color smooth
RGB color smooth
Full-color smooth
Yellow/Purple/Cyan color smooth
Unlimited receivers can be installed within effective distance, no
wiring needed between the receivers, if you want to increase or
decrease the receivers, just activate or cancel the control ID will
be fine, no any changes and effects on other receivers.
LED RGB Programmable Controller
— 28 —
Single Color Operation
Select between vibrant static colors by using the
Full Spectrum Color Wheel or pressing Modes No.1
through No.7. For Static White press Mode No.7.
See the full table of pre-programmed modes on the
next page.
