Ganz ZN-BT662XE-MIR User manual

INFORMATION TO USER
CAUTION
RISK OF ELECTRIC SHOCK,
DO NOT OPEN
!
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK).
NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SEERIVCE PERSONEL.
This symbol is intended to alert the user to the presence of un-insulated
“dangerous voltage”within the product’s enclosure that may be of sufficient
magnitude to constitute a risk of electric shock to persons.
!
This symbol is intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in the literature
accompanying the appliance.
ZN-BT662XE-MIR Installation Guide

01A.01 3
Table of Contents
1. FEATURES ............................................................................................................... 4
2. PACKAGE CONTENTS .............................................................................................. 5
3. PART NAMES ..........................................................................................................6
4. INSTALLATION ........................................................................................................8
4.1. Installation Template ......................................................................................................... 9
4.2. Adjusting LED options and lens focus .............................................................................. 10
4.3. Setting the Image Attribute.............................................................................................. 10
5. CABLE CONNECTIONS ........................................................................................... 11
6. CONFIGURATION .................................................................................................. 14
6.1.Set up network environment ............................................................................................ 14
6.2. View video on web page .................................................................................................. 14
6.2.1. View video using IPAdmin Tool................................................................................. 14
6.2.2. View video using IP address...................................................................................... 16
6.3. Reset................................................................................................................................. 16
6.4. Factory Default................................................................................................................. 16
APPENDIX (A): SPECIFICATIONS ................................................................................ 17
Summary ................................................................................................................................. 17
Electrical Characteristics ......................................................................................................... 18
Environment Condition ........................................................................................................... 18
Environment Condition ........................................................................................................... 18
APPENDIX (B): DIMENSIONS..................................................................................... 19
APPENDIX (C): HEXADECIMAL-DECIMAL CONVERSION TABLE................................... 20
REVISION HISTORY ................................................................................................... 20
ZN-BT662XE-MIR Installation Guide

01A.01 4
1. FEATURES
Camera
Indoor/Outdoor IR Bullet IP Camera
1/2.7”1080p CMOS
ICR type true day & night
ONVIF Support (End of Aug)
Streaming
Dual streaming mode (such as different codec/resolution/bit rate and so on.)
Burnt-in text supported
Unicast/Multicast supported
Video/Audio
Video compression: H.264/MJPEG, 25/30FPS@1080p(PAL/NTSC)
Analog video out for external monitors
Video Motion Detection supported
Network
RTSP/ HTTP protocol supported
10/100 Base-T Ethernet
Additional Features
OSD for camera control supported
SDK (Software Development Kit) provided
 ZNS presence (Included as basic)
ZN-BT662XE-MIR Installation Guide

01A.01 5

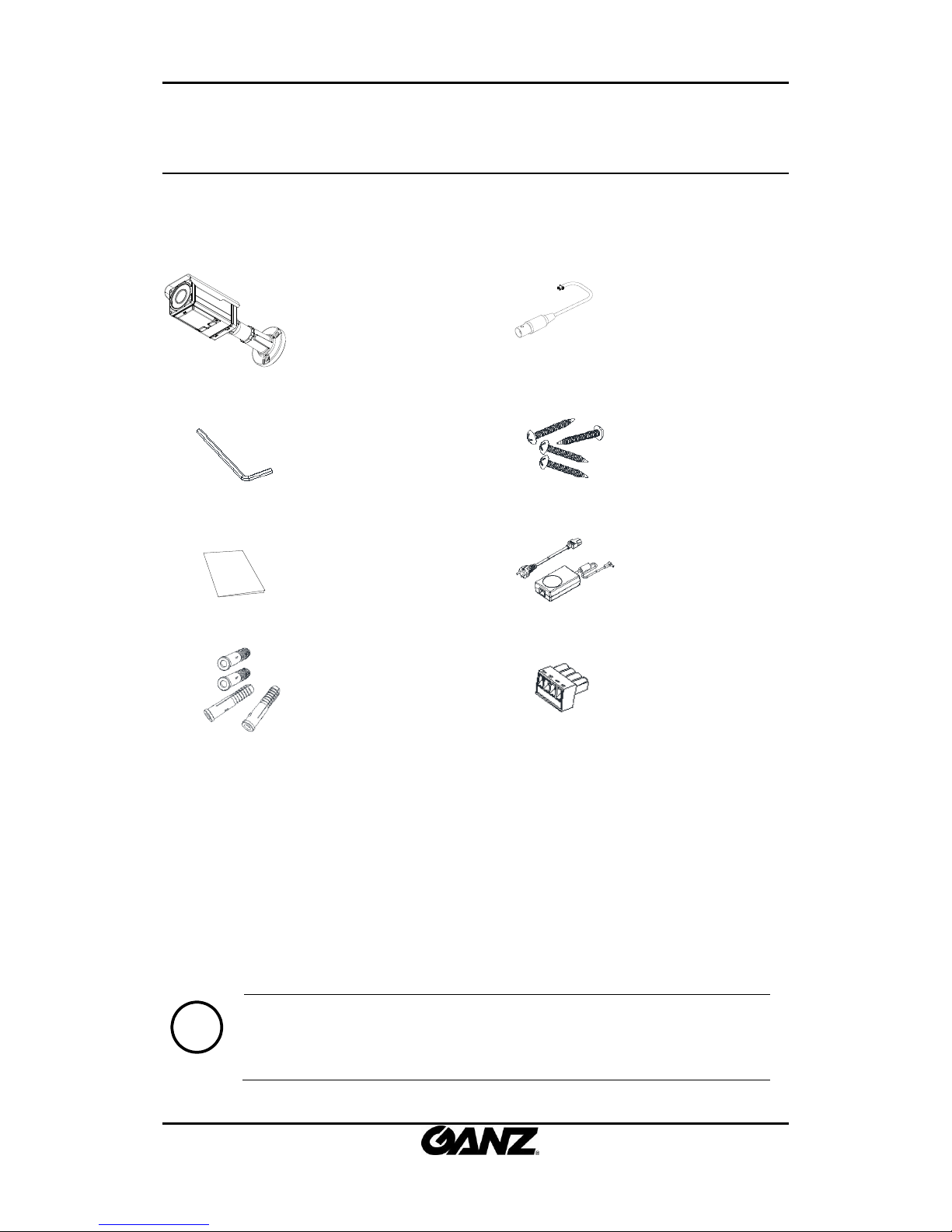

2. PACKAGE CONTENTS
Unpack carefully and handle the equipment with care. The packaging contains:
Camera
Video out cable
Hex wrench driver
Screws
Quick installation Guide
DC power adaptor
Screw anchors
Terminal block
Note
i
The above contents are subject to change without prior notice.
ZN-BT662XE-MIR Installation Guide

01A.01 6

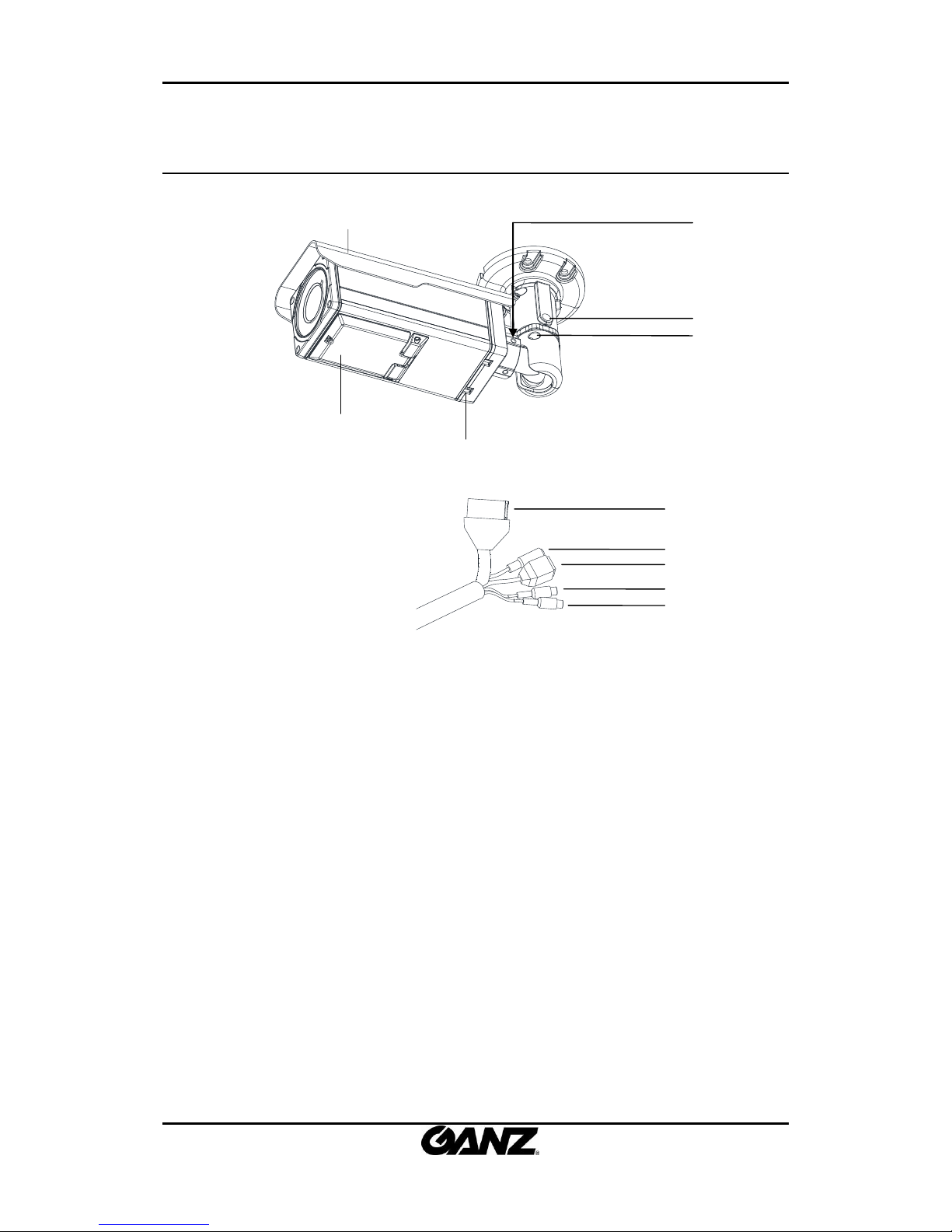

3. PART NAMES
①Sunshield
Position the sunshield to prevent direct sunshine.
②Control panel
Open the control panel to control LEDs, OSD menus, and the extra video output. You can also
find the reset button on the control panel. To learn how to reset your device, refer to 6.3.
Reset.
③Ventilation hole
The ventilation holes help to reduce the temperature difference between inside and outside
and prevent water from being condensate.
④Joint for 3 axis
Use this part to adjust the camera to the desired position. Refer to 4. Installation for more
details.
⑤Panning joint
Use this part for panning adjustment. Refer to 4. Installation for more details.
⑥Tilting adjustment
IPN6602HD-5311 IPN6602HD-5215
TELE
WIDE NEAR
FAR AF
NT/PAL
F/D
VOUT
VOUT F/D
NT/PAL
TELE WIDE
FAR NEAR
IPN6602HD-5215
DCBA
A : DO-
B : DO+
C : DI+
D : DI-
Red : AIN
White : AOUT
Cable arrange
* Models herein and their
appearance are subject to
change without any prior
notice.
①
④
⑦
⑥
⑤
②
⑧
⑨
⑩
③
⑪
ZN-BT662XE-MIR Installation Guide

01A.01 7
Use this part for tilting adjustment. Refer to 4. Installation for more details.
⑦4 Pin Connector
A: DO,- B: DO+, C: DI+, D: DI-
⑧Power Adaptor Connector
The camera needs DC 12V for power supply.
⑨Network Port
Use this RJ45 LAN connector for connecting the camera to network.
⑩Audio In
Connect to the audio input device such as a mike.
⑪Audio Out
Connect to the audio output device such as the amplifier speaker.
ZN-BT662XE-MIR Installation Guide

01A.01 8
4. INSTALLATION
Caution
!
The camera may fall off the ceiling even after the proper installation and
mounting. To prevent any accident, make sure the ceiling is firm and stable
enough to support the camera. If any reinforcement is needed, consult with
your safety personnel and proceed with the installation.
1) Place the installation template that is provided in the package on the
desired position of installation.
2) Drill four holes on the template and insert anchor blocks into the holes.
Fasten the camera with screws.
3) Make sure the cables are properly connected to the camera.

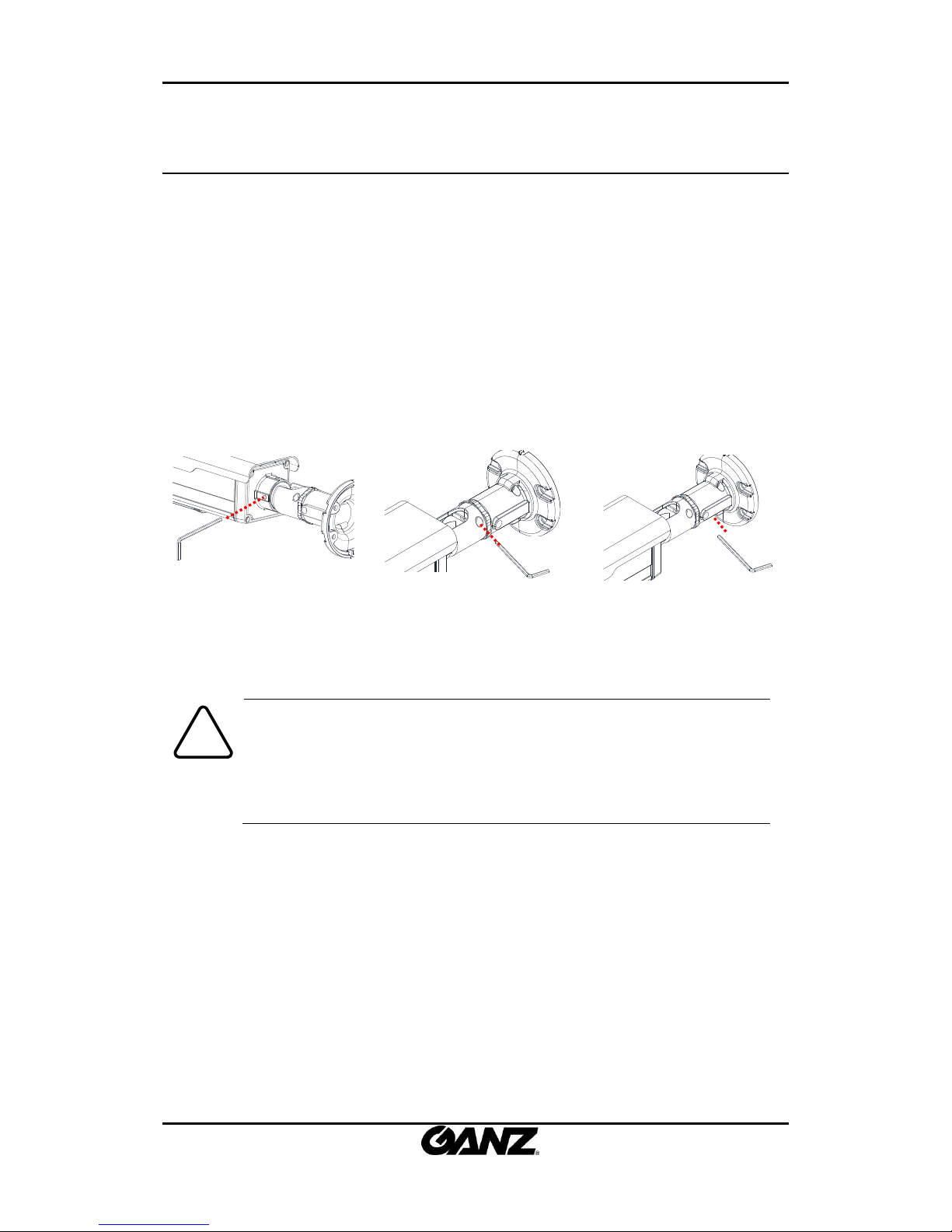

4) Adjust the camera to the desired angle by unscrew the joints by referring to
the following pictures.
Adjust this joint to
install it on the wall
Tiling adjustment
Panning adjustment
ZN-BT662XE-MIR Installation Guide

01A.01 9

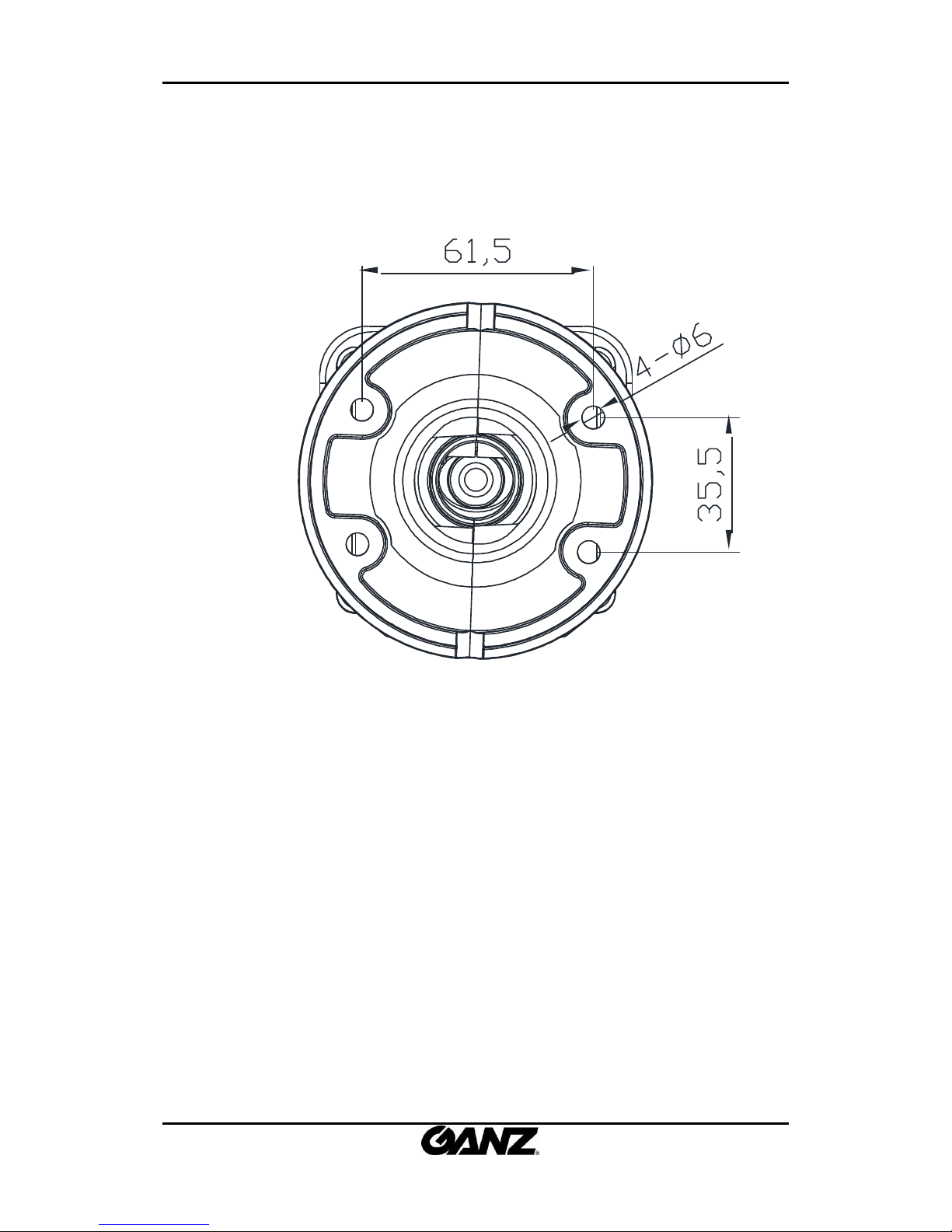

4.1. Installation Template
(Unit: mm)
IPN6602HD-5311
DCBA
A : DO-
B : DO+
C : DI+
D : DI-
Red : AIN
White : AOUT
Cable arrange
ZN-BT662XE-MIR Installation Guide

01A.01 10
4.2. Adjusting LED options and lens focus
Adjust the zoom and focus of the lens with the lever of ①and ②on the following picture.
TELE/WIDE: Uses for zoom
FAR/NEAR: Uses for focus
AF: Auto focus
NT/PAL: NTSC, PAL button
Vout: Uses only for installation
4.3. Setting the Image Attribute
You can set the image attribute of camera through the webpage.
The menu of image attribute can be seen under Setup > Video & Audio > Camera. Brightness,
contrast, saturation and sharpness can be adjusted.
IPN6602HD-5311 IPN6602HD-5215
TELE
WIDE NEAR
FAR AF
NT/PAL
F/D
VOUT
VOUT F/D
NT/PAL
TELE WIDE
FAR NEAR
IPN6602HD-5311 IPN6602HD-5215
TELE
WIDE NEAR
FAR AF
NT/PAL
RESET
VOUT
VOUT
NT/PAL
TELE WIDE
FAR NEAR
RESET
ZN-BT662XE-MIR Installation Guide

01A.01 11
5. CABLE CONNECTIONS
DI/DO Connection
A: DO-, B: DO+ , C: DI+ , D: DI-
Sensor (DI) connection
The camera provides 1 channel D/I. It can be connected to either a voltage type sensor or a
relay type sensor as the following figures. It can be selected by software.
Input voltage range: 0VDC minimum to 5VDC maximum, Max 50mA
Input voltage threshold: 1.5V
Caution
!
Do not exceed the maximum input voltage or relay rate.
IPN6602HD-5215
DCBA
A : DO-
B : DO+
C : DI+
D : DI-
Red : AIN
White : AOUT
Cable arrange
LAN Port
Power DC 12V
Audio In
Audio Out
DI/DO
ZN-BT662XE-MIR Installation Guide

01A.01 12
Alarm (DO) connection
Only the relay type is supported.
Relay Rating: Max 24VDC 50mA
Caution
!
Do not exceed the maximum relay rating.
Power Connection
A 12 DC power connector is required for this device.
Network Connection
This is a RJ45 LAN connector for 10/100 Base-T Ethernet. Connect a LAN cable.
Audio Input/Output Connection
Connect the audio input device such as a mike to the audio input port and the audio output
device such as the amplifier speaker to the audio output port.
Audio Input : Linein, 1.43Vp-p(M in 1.35Vp-p, max 1.49 Vp-p), 39 KΩ
Audio Output : Lineout, 46mW Power, 16 Ω
DO
COM
Relay Type
Device
Internal
+3.3V
DI
COM
DI
COM
+
-
Relay Type
Voltage Type
+
-
Output of
Sensor
Output of
Sensor
Internal
Internal
+
-
ZN-BT662XE-MIR Installation Guide

01A.01 13
Caution
!
Do not connect the speaker without amplifier.
ZN-BT662XE-MIR Installation Guide

01A.01 14
6. CONFIGURATION

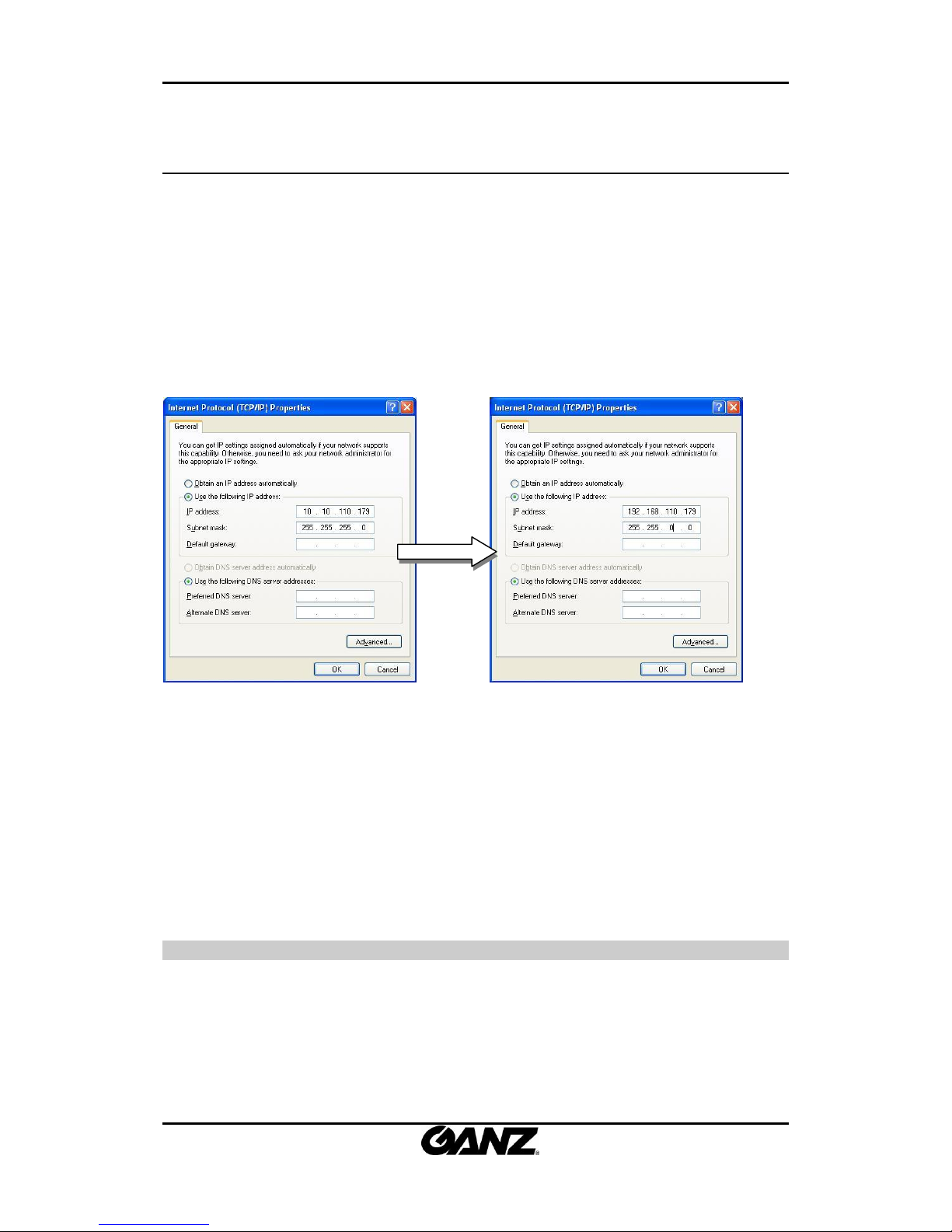

6.1.Set up network environment
The default IP address of your IP device is 192.168.XXX.XXX. You can find the available IP address
from the MAC address of your device. Please make sure the device and your PC are on the same
network segment before running the installation. If the network segment between your PC and
the device is different, change your PC’s settings as below.
IP address : 192.168.xxx.xxx
Subnet mask: 255.255.0.0
6.2. View video on web page
View the live video on a web page using your IP device and its IP address. You can use the
IPAdminTool or enter the IP address on the web page.
6.2.1. View video using IPAdmin Tool
IPAdminTool automatically searches all activated network encoders and IP cameras and shows
the product name, IP address, MAC address and etc. IPAdminTool is provided with SDK at the
following SDK path.
{SDK root}\BIN\TOOLS\AdminTool\
ZN-BT662XE-MIR Installation Guide

01A.01 15
To use the IPAdminTool and view the live video on a web page:
1. Start IPAdminTool. Names and info of currently activated devices appear as a list.
2. Right-click on the desired device and select Web view.
3. Click pop-up blocked and install the ActiveX setup.exe by clicking the Run or Save
button. You need to install the ActiveX for displaying the images.
4. Follow the instructions of the dialog boxes and complete the installation. Then the live
video is displayed on the main page of the web browser.
5. If the live video is not displayed with the message said, “This software requires the
Microsoft XML Parser V6 or higher. Please download MSXML6 from the Microsoft
website to continue. Error code: Can not create XMLDOMDocument.”, please download
and install the relevant MSXML.
Note
i
If the ActiveX setup.exe file fails to be installed successfully, close all of the
Internet Explorer windows and go to Program Files > AxInstall folder on your
computer. Then, run Uninstall.exe and try to perform the steps 1 to 4 above
again.
ZN-BT662XE-MIR Installation Guide

01A.01 16
6.2.2. View video using IP address
View the live video on a web page using your IP device and its IP address. To have the correct
IP address ready and use it on a web page:
1. Convert a MAC address to an IP address or check the IP address on the IPAdminTool. Refer to
Appendix (D): Hexadecimal-Decimal Conversion Table.
(The MAC address is attached on the side or bottom of the device.)
2. Open a web browser and enter the IP address of the device.
3. Click pop-up blocked and install the ActiveX setup.exe by clicking the Run or Save button.
You need to install the ActiveX for displaying the images.
4. Follow the instructions of the dialog boxes and complete the installation. Then the live video
is displayed on the main page of the web browser.
6.3. Reset
1. While the device is in use, press the Reset button.
2. Wait for the system to reboot.
6.4. Factory Default
1. Press reset button and hold.
2. Release the Reset button after 5 seconds until LED blinks.
3. Wait for the system to reboot.
The factory default settings can be inferred as follows:
IP address: 192.168.xx.yy
Network mask: 255.255.0.0
Gateway: 192.168.0.1
User ID: root
Password: pass
MAC address = 00-13-23-01-14-B1 → IP address = 192.168.20.177
Convert the Hexadecimal number to Decimal number.
ZN-BT662XE-MIR Installation Guide

01A.01 17
APPENDIX (A): SPECIFICATIONS
Summary
Camera Module
Image Sensor
OV2715 CMOS
Effective Pixels
768 x 494 (NTSC) /752 x 582 (PAL)
TV System
NTSC / PAL
Horizontal Resolution
TBD
Zoom
X16 Digital Zoom
White Balance
ATW / AWC / Manual / Outdoor / Indoor
Scanning System
2:1 Interlace
Sync System
Internal
Min. Illumination
TBD
Lens
3.0 –9.0mm Vari-Focal F1.2 Motorized Focus & Zoom
Focus
Motorized
Iris
Auto
Day & Night
COLOR / B/W / AUTO
Shutter Speed
1/60s ~ 1/120,000s
S / N Ratio
52 dB (AGC off)
AGC
Low / High / Off (Selectable)
BLC
BLC / HLC / Off
DNR
On/Off (1~32 Level Adjustable)
Video
Compression
H.264, MPEG-4, MJPEG Selectable per Stream
Number of Streams
Dual stream, Configurable
Resolution
1920x1080, 1280x720, 800x450, 480x270, 320x180
Compression FPS
25/30 fps @ D1 (PAL/NTSC)
De-interlacing
Supported (DSP)
Motion Detection
Supported
Burnt-in Text(digital)
Supported (DSP)
Analog Video Output
PAL/NTSC (Auto off)
Audio
Input / Output
1/1
Compression
PCM, G.711
Function
IR Range
Internal Use: 30M
External Use: 20M
Network
10/100 Base-T
ZN-BT662XE-MIR Installation Guide

01A.01 18
Power over Ethernet
802.3af (Normal)
DI / DO
1 / 1 ch
RS-232C/RS-485
Not available
Protocol
TCP/IP, UDP/IP, HTTP, RTSP, RTCP, RTP/UDP, RTP/TCP,
SNTP, mDNS, UPnP, SMTP, SOCK, IGMP, DHCP,
FTP, DDNS, SSL v2/v3, IEEE 802.1X, SSH, SNMP v2/v3
Local Storage
Not available
Electrical Characteristics
Poser source
DC 12V
Power consumption
1200mA (Heater ON)
Analog Video Output
1 Vp-p, 75Ω, Composite
Audio Input
Linein, 1.43Vp-p(Min 1.35Vp-p, max 1.49 Vp-p), 39 KΩ
Audio Output
Lineout, 46mW Power, 16 Ω
Sensor(D/I)
Max 50mA@5VDC, TTL level 4.5V threshold
Alarm(D/O)
Max 500mA@24VAC or 1A@12VDC
On-state resistance: 50 Ω (max continuous)
Environment Condition
Operating Temperature
Operating Range
DC12V : -40˚C ~ 50˚C (-40˚F ~ 122˚F)
PoE : 0 ˚C ~ 50 ˚C (32˚F ~ 122˚F)
Cold Start
DC12V : -20˚C (-4˚F)
PoE: 0 ˚C (32˚F)
Operating Humidity
Up to 85% RH
Environment Condition
Dimensions
83mm x 82mm x 194mm (Without bracket)
Color
Ivory
Weight
Net: 1.5Kg
ZN-BT662XE-MIR Installation Guide

01A.01 19
APPENDIX (B): DIMENSIONS
(Unit: mm)
IPN6602HD-5311
DCBA
A : DO-
B : DO+
C : DI+
D : DI-
Red : AIN
White : AOUT
Cable arrange
ZN-BT662XE-MIR Installation Guide

01A.01 20
APPENDIX (C): HEXADECIMAL-DECIMAL
CONVERSION TABLE
Refer to the following table when you convert the MAC address of your device to IP address.
Hex
Dec
00
0
01
1
02
2
03
3
04
4
05
5
06
6
07
7
08
8
09
9
0A
10
0B
11
0C
12
0D
13
0E
14
0F
15
10
16
11
17
12
18
13
19
14
20
15
21
16
22
17
23
18
24
19
25
1A
26
1B
27
1C
28
1D
29
1E
30
1F
31
20
32
21
33
22
34
23
35
24
36
Hex
Dec
25
37
26
38
27
39
28
40
29
41
2A
42
2B
43
2C
44
2D
45
2E
46
2F
47
30
48
31
49
32
50
33
51
34
52
35
53
36
54
37
55
38
56
39
57
3A
58
3B
59
3C
60
3D
61
3E
62
3F
63
40
64
41
65
42
66
43
67
44
68
45
69
46
70
47
71
48
72
49
73
Hex
Dec
4A
74
4B
75
4C
76
4D
77
4E
78
4F
79
50
80
51
81
52
82
53
83
54
84
55
85
56
86
57
87
58
88
59
89
5A
90
5B
91
5C
92
5D
93
5E
94
5F
95
60
96
61
97
62
98
63
99
64
100
65
101
66
102
67
103
68
104
69
105
6A
106
6B
107
6C
108
6D
109
6E
110
Hex
Dec
6F
111
70
112
71
113
72
114
73
115
74
116
75
117
76
118
77
119
78
120
79
121
7A
122
7B
123
7C
124
7D
125
7E
126
7F
127
80
128
81
129
82
130
83
131
84
132
85
133
86
134
87
135
88
136
89
137
8A
138
8B
139
8C
140
8D
141
8E
142
8F
143
90
144
91
145
92
146
93
147
Hex
Dec
94
148
95
149
96
150
97
151
98
152
99
153
9A
154
9B
155
9C
156
9D
157
9E
158
9F
159
A0
160
A1
161
A2
162
A3
163
A4
164
A5
165
A6
166
A7
167
A8
168
A9
169
AA
170
AB
171
AC
172
AD
173
AE
174
AF
175
B0
176
B1
177
B2
178
B3
179
B4
180
B5
181
B6
182
B7
183
B8
184
Hex
Dec
DE
222
DF
223
E0
224
E1
225
E2
226
E3
227
E4
228
E5
229
E6
230
E7
231
E8
232
E9
233
EA
234
EB
235
EC
236
ED
237
EE
238
EF
239
F0
240
F1
241
F2
242
F3
243
F4
244
F5
245
F6
246
F7
247
F8
248
F9
249
FA
250
FB
251
FC
252
FD
253
FE
254
FF
255
Hex
Dec
B9
185
BA
186
BB
187
BC
188
BD
189
BE
190
BF
191
C0
192
C1
193
C2
194
C3
195
C4
196
C5
197
C6
198
C7
199
C8
200
C9
201
CA
202
CB
203
CC
204
CD
205
CE
206
CF
207
D0
208
D1
209
D2
210
D3
211
D4
212
D5
213
D6
214
D7
215
D8
216
D9
217
DA
218
DB
219
DC
220
DD
221
ZN-BT662XE-MIR Installation Guide
