Garden Treasures GSS00132A User manual

Lowes.com/gardentreasures
ITEM #0401950
MODEL #GSS00132A
3-SEAT
CUSHIONED SWING
Français p. XX
Español p. XX
1
Français p. 12
Español p. 23
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 1-800-643-0067, 8 a.m. - 8 p.m., EST, Monday – Friday.
ATTACH YOUR RECEIPT HERE
Serial Number Purchase Date

Lowes.com/gardentreasures
2
TABLE OF CONTENTS
Package Contents..................................................................................................................................
Hardware Contents................................................................................................................................
Safety Information..................................................................................................................................
Preparation.............................................................................................................................................
Assembly Instructions.............................................................................................................................
Care and Maintenance..........................................................................................................................
Warranty................................................................................................................................................
Replacement Parts List.........................................................................................................................
3
4
5
5
6
10
10
10

Lowes.com/gardentreasures
3
PACKAGE CONTENTS
PART DESCRIPTION QUANTITY
A Top frame bar 1
B Leg 4
C Leg decoration 2
D Arm 2
E Seat and back 1
F Long hanging bar 2
G Short hanging bar 2
H Canopy 1
I Back cushion 3
J Seat cushion 1
K Support canopy crossbar 2
H
KA
I
F
G
B
J
E
D
C

Lowes.com/gardentreasures
HARDWARE CONTENTS (shown actual size)
4
II JJ LL MM NN
AA BB DDCC GGEE FF
HH KK
OO PP QQ RR SS
M6 x 15 L
Bolt
Qty. 12
M6 x 60 L
Bolt
Qty. 4
M8 x 45 L
Bolt
Qty. 4
M8 x 50 L
Bolt
Qty. 2
M8 x 90 L
Bolt
Qty. 4 M8 x 102 L
Bolt
Qty. 4
M6 x 85 L
Bolt
Qty. 4
M6
Washer
Qty. 28
Double
“S” Hook
Qty. 2 Knob
Qty. 2
Allen
Wrench
Qty. 2
Open
Hex
Wrench
Qty. 1
Hex
Wrench
Qty. 1
M8
Washer
Qty. 28
M6
Nut
Qty. 8
M8
Nut
Qty. 14
Small
Plastic
Washer
Qty. 4
Large
Plastic
Washer
Qty. 8
Support
Triangle
Qty. 2

Lowes.com/gardentreasures
SAFETY INFORMATION
Please read and understand this entire manual before attempting to assemble or install the product.
5
•
Assemble the item on a soft, non-abrasive surface such as carpeting to avoid damage.
• Item is heavy. Handle with care.
• May require two adults for safe assembly.
CAUTION
• Recommended maximum sitting weight for the swing is 750 Ibs.
WARNING
Before beginning assembly of product, make sure all parts are present. Compare parts with package
contents list and hardware contents list. If any part is missing or damaged, do not attempt to
assemble the product.
Estimated Assembly Time: 2 hours
Tools Required for Assembly (included): 2 Allen Wrenches, 1 Hex Wrench and 1 Open Hex Wrench.
PREPARATION

Lowes.com/gardentreasures
ASSEMBLY INSTRUCTIONS
6
Hardware Used
M8 x 102 L Bolt
M8 Washer
M8 Nut
x 4
x 8
x 4
GG
II
KK
1. Attach top frame bar (A) to four legs (B). Align the
holes at legs (B) with the holes at the ends of top
frame bar (A). For each hole, insert an M8 x 102 L
bolt (GG) through an M8 washer (II), through leg (B),
through top frame bar (A), through the other leg (B),
through another M8 washer (II) and secure with an
M8 nut (KK). Do not tighten completely.
1
Hardware Used
M8 x 50 L Bolt
M8 Washer
M8 Nut
Support Triangle
x 2
x 4
x 2
x 2
EE
II
NN
KK
3. Align the holes of each support triangle (NN) with
the holes at the two legs (B). NOTE: Make sure the
side of the support triangle with the "inside" sticker
faces inside. Insert an M8 x 50 L bolt (EE) through
M8 washer (II), through support triangle (NN), through
the top frame bar (A), through support triangle (NN),
through an M8 washer (II) again and secure with an
M8 nut (KK). Repeat procedure for other support
triangle (NN). Do not tighten completely.
HH
AA
KK
II
II
GG
2. Align the holes of one leg decoration (C) with the
holes in two legs (B). For each hole, insert an
M6 x 15 L bolt (AA) through an M6 washer (HH),
through the leg decoration (C), and secure into
leg (B). Repeat procedure for the other leg
decoration (C).
Hardware Used
M6 x 15 L Bolt
M6 Washer
x 8
x 8
NN
A
2
CAA HH
B
B
3
II
EE
KK
A
B

Lowes.com/gardentreasures
ASSEMBLY INSTRUCTIONS
7
5. Attach one arm (D) to the seat and back (E). From
the outside insert an M8 x 90 L bolt (FF) through an
M8 washer (II), through the bottom hole of arm (D),
through a large plastic washer (MM), through the
seat hole at seat and back (E), through an M8 washer
(II) and secure with an M8 nut (KK). Repeat
procedure for the other hole. Repeat procedure for
the other arm (D). Do not tighten completely.
Hardware Used
M6 x 85 L Bolt
M6 Washer
M6 Nut
Large Plastic Washer
x 4
x 8
x 4
x 4
CC
HH
MM
JJ
6. From the outside insert an M6 x 85 L bolt (CC)
through an M6 washer (HH), through the top hole of
the arm (D), through a large plastic washer (MM),
through the back hole at the seat and back (E),
through an M6 washer (HH) and secure with an
M6 nut (JJ). Do not tighten completely. Repeat
procedure for the other hole. Repeat procedure for
the other arm (D).
Hardware Used
M8 x 90 L Bolt
M8 Washer
M8 Nut
Large Plastic Washer
x 4
x 8
x 4
x 4
HH
MM
KK
II
FF
Hardware Used
M8 x 45 L Bolt
M8 Washer
M8 Nut
x 4
x 8
x 4
DD
II
KK
4. Attach two lower ends of the support triangle (NN)
to each of two legs (B) by inserting an M8 x 45 L
bolt (DD) through an M8 washer (II), through one
leg (B), through the support triangle (NN) and secure
with an M8 nut (KK). Do not tighten completely.
Repeat procedure for the remaining lower end of
support triangle (NN). Securely tighten all the bolts
and nuts.
B
4
NN
II
DD
KK
5
KK
DD
E
II MM II FF
6
D
JJ HH MM HH CC
E
D

Lowes.com/gardentreasures
ASSEMBLY INSTRUCTIONS
8

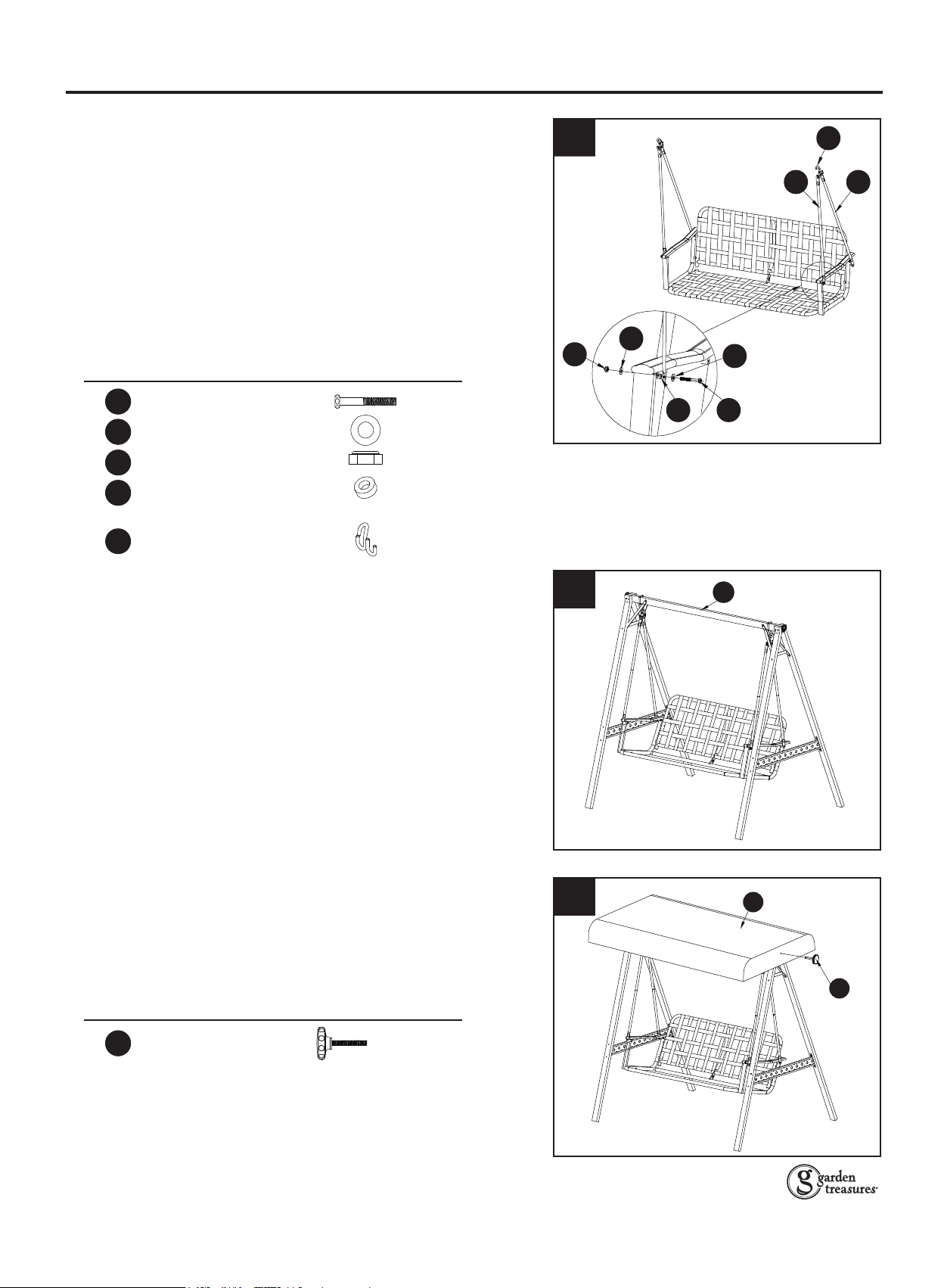

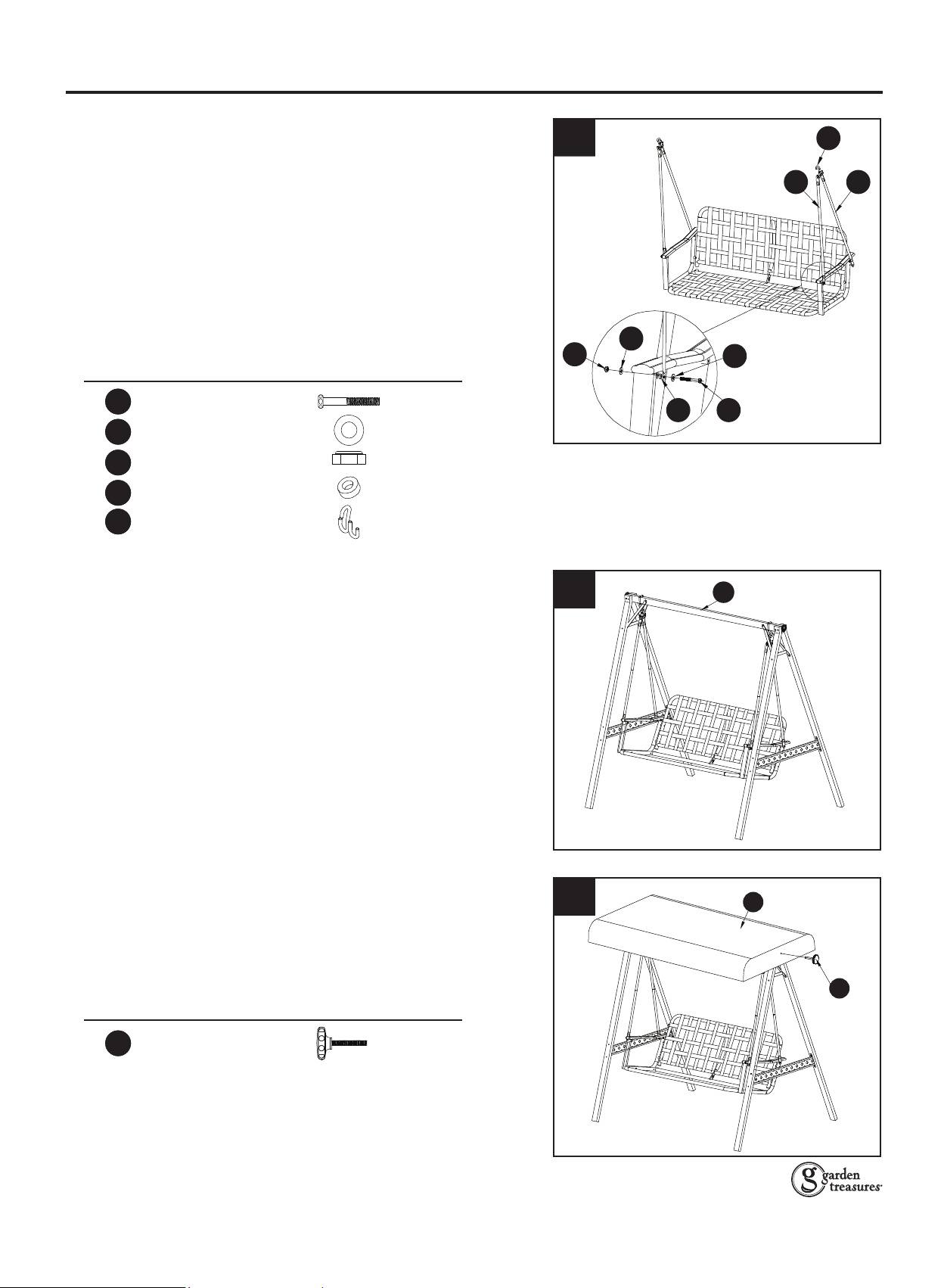

8. Hang the entire seat assembly by the double hooks
through the hanging rings at the top frame bar (A).
8
9. Lift the canopy (H) on the top frame bar (A). Insert
a knob (PP) through the canopy (H) and secure into
the top frame bar (A). Do not tighten completely.
Repeat procedure for the other side. Securely
tighten the two knobs.
9
7. Place a long hanging bar (F) and a short hanging bar
(G) on each double “S” hook (OO). Attach the short
hanging bar (G) to the front of the seat assembly by
inserting an M6 x 60 L bolt (BB) through an
M6 washer (HH), through the short hanging bar (G),
through a small plastic washer (LL), through the hole
of the arm (D), through an M6 washer (HH) and
secure with an M6 nut (JJ). Do not tighten completely.
Repeat procedure for the other short hanging bar (G)
and two long hanging bars (F). Now go back and
tighten all bolts and nuts.
Hardware Used
Hardware Used
Knob x 2
JJPP
M6 x 60 L Bolt
M6 Washer
M6 Nut
Small Plastic Washer
Double “S” Hook
x 4
x 8
x 4
x 4
x 2
JJ
HH
LL
LL
HH
BB
HH
OO
LL
JJ
7OO
F
JJ
LL BB
HH
HH
G
A
H
PP

Lowes.com/gardentreasures
Hardware Used
M6 x 15 L Bolt
M6 Washer
x 4
x 4
AA
HH
ASSEMBLY INSTRUCTIONS
9

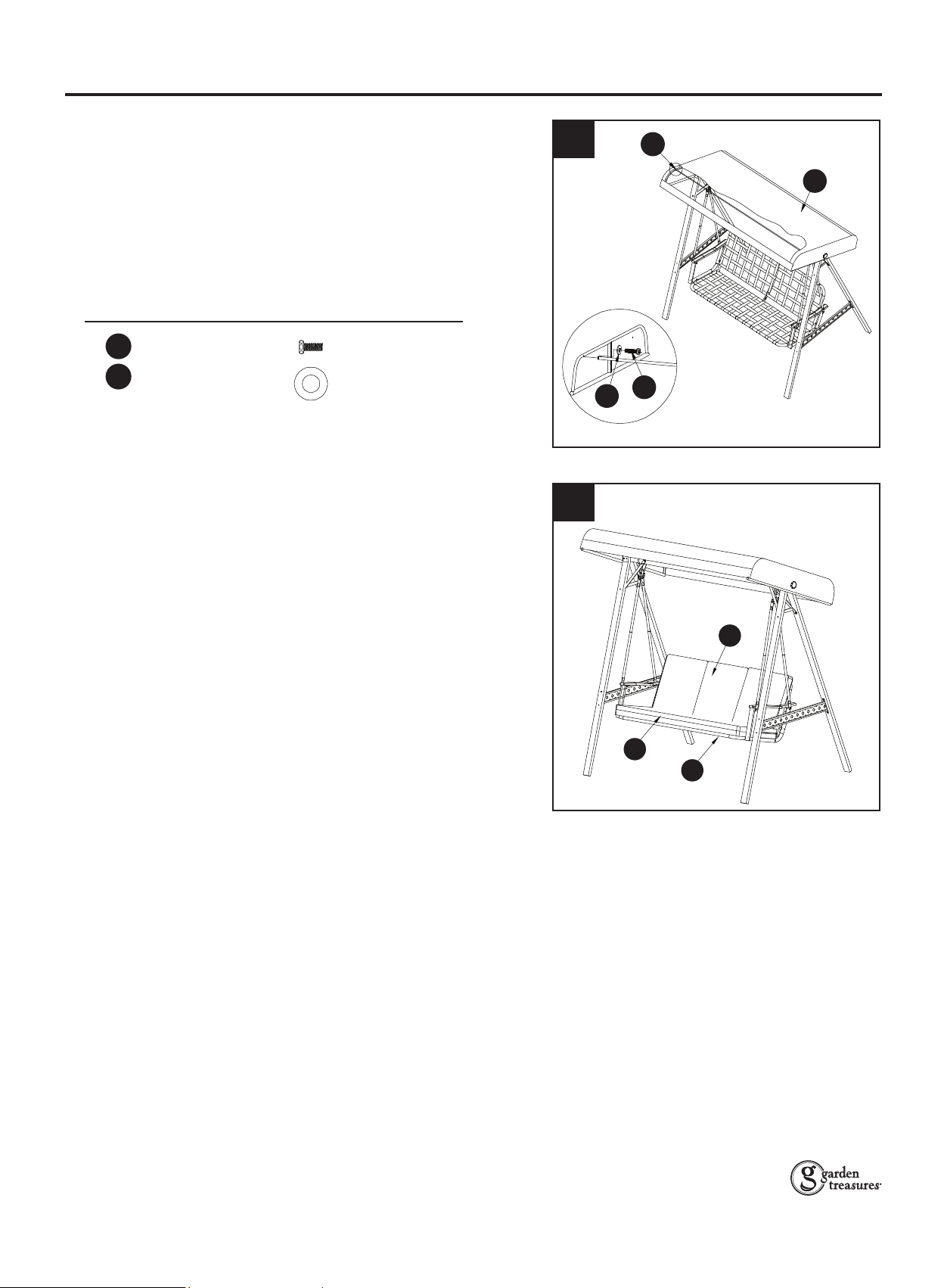

10. Attach one support canopy crossbar (K) to canopy
(H) for each hole by inserting an M6 x 15 L bolt (AA)
through an M6 washer (HH), through the bracket of
support canopy crossbar (K) and secure into side
canopy crossbar. Do not tighten completely. Repeat
procedure for the other support canopy crossbar (K).
Securely tighten all bolts.
11. Make sure that all bolts and nuts are tightened.
Then place the seat cushion (J) and back cushion
(I) onto the seat and back (E). Attach the seat with
hook-and-Ioop fasteners.
11
K
10
H
HH AA
I
E
J

Lowes.com/gardentreasures
PART DESCRIPTION QUANTITY
A Top frame bar 1
B Leg 4
C Leg decoration 2
D Arm 2
E Seat and back 1
F Long hanging bar 2
G Short hanging bar 2
H Canopy 1
I Back cushion 3
J Seat cushion 1
K Support canopy crossbar 2
H
KA
I
F
G
B
J
E
D
C
10
CARE AND MAINTENANCE
Wash with mild soap. Rinse with water and let air dry.
ONE-YEAR LIMITED WARRANTY
This warranty is extended to the original purchaser and applies to defects in materials and
workmanship of your patio furniture provided your furniture is maintained with care and used only for
personal, residential purposes.
Frames are warranted to be free from defects in material or workmanship for a period of one (1) year.
Cushions, Straps and/or Wicker Weaves are covered for a period of one (1) year against defects in
material or workmanship. Sling fabric is covered for a period of one (1) year against defects in
material or workmanship.
Exclusions: Items used for commercial, contract or other non-residential purposes; display models;
items purchased "as is;" or items damaged due to acts of nature, vandalism, misuse or improper
assembly are not covered. Discoloration or fading of the finish or fabrics as a result of
exposure to the elements, chemicals or spills is not covered. Tabletop breakage, corrosion or rusting
of hardware and damage to frames or welds caused by improper assembly, misuse or natural causes
are not covered.
If within the stated warranty period a product is found to be defective in material or workmanship, the
purchaser must contact the manufacturer's customer service department at 1-800-643-0067. The
manufacturer, at its option, will repair or replace the defective parts.
Warranty is to the original purchaser and is non-transferable. Any replacement of warranted items will
be in the original style and color or a similar style and color if the original is unavailable or has been
discontinued. As some states do not allow exclusions or limitations on an implied warranty, the above
exclusions and limitations may not apply. This warranty gives you specific rights, and you may also
have other rights which vary from state to state.
REPLACEMENT PARTS LIST
For replacement parts, call our customer service department at 1-800-643-0067, 8:00 a.m. - 8:00 p.m.,
EST, Monday - Friday.
