Gardena 1278 User manual

Art. 1278
EN Operator’s manual
Irrigation Valve 24 V
EN

2
1278 I1
1
2
I2
1
I4
87
3
878
78 7
I5

3
I3 O1
q

1. SAFETY .............................13
2. INITIAL OPERATION....................14
3. OPERATION ..........................15
4. STORAGE ...........................15
5. TROUBLESHOOTING...................16
6. TECHNICAL DATA .....................17
7. SERVICE/WARRANTY..................18
Original instructions.
For safety reasons, children and young
people under 16 as well as anyone who is
not familiar with these operating instructions
should not use the product. Persons with reduced
physical or mental abilities may use the product only
if they are supervised or instructed by a responsible
person. Children must be supervised to ensure that
they do not play with the product. Never operate the
product when you are tired, ill or under the influence
of alcohol, drugs or medicine.
Intended use:
The Irrigation Valves are intended solely for outdoor
use for fully automatic control of individual irrigation
systems. It is a benefit to arrange a watering system
into separate sections in case of varying watering
needs for different plant areas or if there is insuffi-
cient water available for simultaneous operation
of the entire watering system.
The Irrigation Valve is installed upstream in the
watering system (e.g. Pop-up Sprinklers;
Micro-Drip-System), for example, in the ground.
Please note:
Compliance with the enclosed operating
instructions provided by GARDENA is a pre-
requisite for proper use of the Irrigation Valve.
Fig. 1278:
Together with Water Controls 1283/1284/19032,
Irrigation Valve 1278 forms part of a watering sys-
tem.
The Irrigation Valve should only be
used in conjunction with Water
Controls approved by GARDENA.
GARDENA Irrigation Valve 24 V
12
EN

1. SAFETY
IMPORTANT!
Read the operator’s manual carefully before
use and keep for future reference.
vPlease observe the notes on safety in the
operating instructions.
Blocking the Irrigation Valve:
vIn the case of dirty water, the GARDENA
Central Filter Art. 1510 must be installed
upstream in the watering system.
Water pressure:
The function of your watering system depends
on the available water pressure. Therefore, care
should be taken not to overlap watering cycles of
the various watering circuits and to ensure that the
watering circuits you have planned will be supplied
with sufficient water at an adequate pressure.
Please refer to the planning instructions in the
special brochure entitled “Watering Systems –
Sprinklersystem Planning Guide” available from
GARDENA.
DANGER!
This product makes an electromagnetic field while
it operates. This field may under some conditions
interfere with active or passive medical implants.
To decrease the risk of conditions that can possibly
injure or kill, we recommend persons with medical
implants to speak with their physician and the
medical implant manufacturer before you operate
the product.
DANGER!
Small parts can be easily swallowed. There is
also a risk that the polybag can suffocate toddlers.
Keep toddlers away when you assemble the
product.
13
EN

2. INITIAL OPERATION
If the Irrigation Valve is installed below ground
level, it must be installed in a sturdy and step-
proof valve mount 1(valve box) e.g. GARDENA
Art. 1254/1255/1290/1292.
Install the valve mount [Fig. I1/I2]:

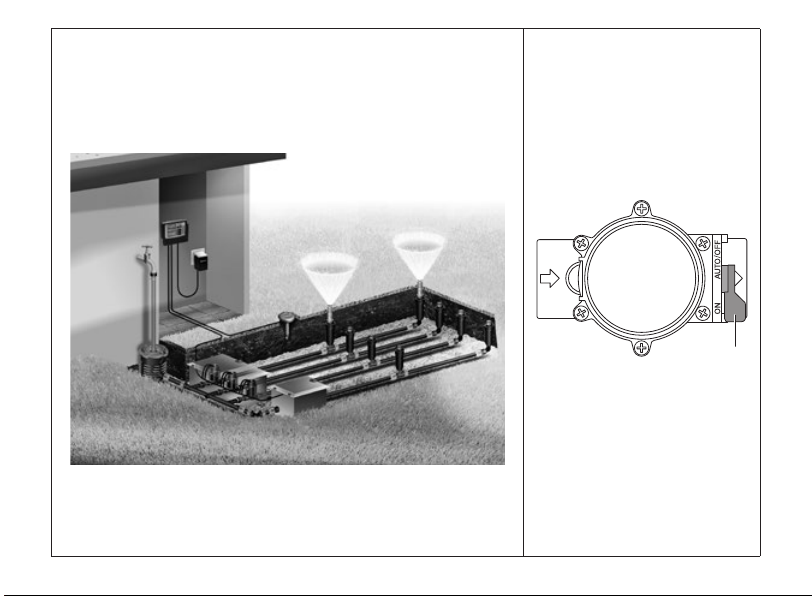

1. Draw up a plan (see e.g. Fig. I3).
Additional information is provided in the
GARDENA Sprinklersystem Planning Guide
which is available from your GARDENA dealer.
2. For underground installation, place a layer of
coarse gravel 2underneath the valve mount 1.
This ensures proper drainage of the box.
3. Install the valve box with the top edge of the box
at ground level.
This avoids damage when mowing the lawn.
Please refer to the relevant operating instructions
for information on how to install the Irrigation
Valves in GARDENA Valve Boxes V1 and V3.
Installing the Irrigation Valve without
a Valve Box [Fig. I4]:
The integrated solenoid valve works only correctly
with the Irrigation Valve connected in flow direction.
CAUTION!
Flow direction!
vPay attention to the flow direction (arrows)
when installing the Irrigation Valve 3.
vSeal the screw connections with PTFE sealing
tape, Art. 7219.
Connecting GARDENA Connecting pipes 8
(2700/2701/2718) or other commercially avail-
able connecting pipes:
1. Screw a GARDENA Connector 72763
(1" = 25 mm) into the Irrigation Valve 3.
2. Connect the GARDENA connecting pipes 8
or other commercially available connecting pipes
(25 mm).
Conventional installation [Fig. I5]:
If using Art. 2750/2751/2752/2753/2755 the
points marked with an arrow must be sealed with
sealing tape (e.g. Art. No. 7219).
14
EN

3. OPERATION
Adjusting valve control [Fig. O1]:
Fully Automatic Control:
vSet selection lever qto “AUTO/OFF”.
Program-controlled water flow to watering system
as per programming on Water Control.
An automatically opened valve cannot be closed
manually.
Manual Control:
vSet selection lever qto “ON”.
Permanent water flow, independent of the
programming.
4. STORAGE
To put into storage/Winter storage:
GARDENA Irrigation Valves are intended for outdoor
use and are only frost-proof to a limited extent. The
only way to protect your Irrigation Valves completely
is to remove the valves before the frosty season
begins. Alternatively, you can drain the pipeline sys-
tem upstream and downstream of the Irrigation
Valve.
Emptying the pipeline system UPSTREAM of
the valve [Fig. O1]:
1. Turn off the tap and disconnect the hose
between the tap and the GARDENA Water
Connection Point Art. 2722.
This allows the air to flow freely and the supply
line can be drained using the drain valve inte-
grated in the Connecting Point. This requires that
the Connecting Point be installed deeper in the
ground than the Irrigation Valve.
2. If the watering system is directly connected to the
water tap, turn off the water supply and open the
venting tap.
3. Set the selection lever qof all valves to the “ON”
position.
4. If you are using the GARDENA Valve Box V3,
make sure you open the integrated drain cap.
15
EN

Problem Possible Cause Remedy
Solenoid valve does not open,
no water flow No water supply. vTurn on water supply.
Control Unit/Radio Receiver/
Watering Controller not connected
correctly to Irrigation Valve.
vConnect Control Unit/Radio
Receiver/Watering Controller
correctly to Irrigation Valve.
5. TROUBLESHOOTING
Emptying the pipeline system DOWNSTREAM
of the valve:
Requirement: The Drainage Valve must be
installed deeper than or at the same depth as
the Irrigation Valve.
vInstall a GARDENA Drainage Valve Art. 2760
immediately after the valve.
The system is drained automatically via the the
GARDENA Drainage Valve.
VIf neither of these requirements is fulfilled,
the valve must be removed and stored in
a place safe from frost.
Disposal:
(in accordance with RL2012/19/EC)
The product must not be disposed of to
normal household waste. It must be dis-
posed of in line with local environmental
regulations.
Important! Dispose of the product through or
via your municipal recycling collection centre.
16
EN

6. TECHNICAL DATA
Solenoid Valve Unit Value 24 V (Art. 1278)
Voltage V 24 (AC)
Operating pressure bar 0,5 to 12
Flow medium clean fresh water
Max. water temperature °C 40
Problem Possible Cause Remedy
Solenoid valve does not close,
continuous water flow Solenoid valve installed opposite to flow direction.
vTurn solenoid valve (observe the
flow direction).
Selection lever qset to “ON”.vSet selection lever qto
“AUTO/OFF”.
NOTE: For any other malfunctions please contact the GARDENA service department. Repairs must
only be done by GARDENA service departments or specialist dealers approved by GARDENA.
17
EN

7. SERVICE/WARRANTY
Service:
Please contact the address on the back page.
Warranty statement:
In the event of a warranty claim, no charge is levied
to you for the services provided.
GARDENA Manufacturing GmbH grants a warranty
for all original GARDENA new products for two years
from the date of original purchase from the retailer,
provided that the devices have been for private use
only. This manufacturer’s warranty does not apply to
products acquired second hand. This warranty
includes all significant defects of the product that
can be proved to be material or manufacturing faults.
This warranty is fulfilled by supplying afully functional
replacement product or by repairing the faulty prod-
uct sent to us free of charge; we reserve the right to
choose between these options. This service is sub-
ject to the following provisions:
• The product has been used for its intended
purpose as per the recommendations in the
operating instructions.
• Neither the purchaser nor a third party has
attempted to open or repair the product.
• Only Original GARDENA replacement parts and
wear parts have been used for operation.
• Presentation of the receipt.
Normal wear and tear of parts and components
(such as blades, blade fixing parts, turbines, light
bulbs, V-belts/toothed belts, impellers, air filters,
spark plugs), visual changes, wear parts and con-
sumables are excluded from the warranty.
This manufacturer’s warranty is limited to replace-
ment and repair of products in accordance with the
abovementioned conditions. The manufacturer’s
warranty does not constitute an entitlement to lodge
other claims against us as a manufacturer, such as
for damages. This manufacturer’s warranty
does not, of course, affect statutory and contractual
warranty claims against the dealer/retailer.
The manufacturer’s warranty is governed by the law
of the Federal Republic of Germany.
In case of a warranty claim, please return the faulty
product, together with a copy of the receipt and
a description of the fault, with postage paid to the
service address.
Consumables:
Faults with the Irrigation Valve caused by incorrectly
installed batteries or leaking batteries in the Control
Unit/ Radio Receiver are not covered by the guaran-
tee.
18
EN

DE Produkthaftung
Wir weisen ausdrücklich darauf hin, dass wir in Übereinstimmung
mit dem Produkthaftungsgesetz nicht für Schäden haften, die
durch unsere Produkte entstehen, wenn diese unsachgemäß und
nicht durch einen von uns autorisierten Servicepartner repariert
wurden oder wenn keine Original GARDENA Teile oder von uns
zugelassene Teile verwendet wurden.
EN Product liability
In accordance with the German Product Liability Act, we hereby
expressly declare that we accept no liability for damage incurred
from our products where said products have not been properly
repaired by a GARDENA-approved service partner or where origi-
nal GARDENA parts or parts authorised by GARDENA were not
used.
FR Responsabilité
Conformément à la loi relative à la responsabilité du fait des pro-
duits défectueux, nous déclarons expressément par la présente
que nous déclinons toute responsabilité pour les dommages résul-
tant de nos produits, si lesdits produits n‘ont pas été correctement
réparés par un partenaire d‘entretien agréé GARDENA ou si des
pièces d’origine GARDENA ou des pièces agréées GARDENA
n‘ont pas été utilisées.
NL Productaansprakelijkheid
Conform de Duitse wet inzake productaansprakelijkheid verklaren
wij hierbij uitdrukkelijk dat wij geen aansprakelijkheid aanvaarden
voor schade ontstaan uit onze producten waarbij deze producten
niet zijn gerepareerd door een GARDENA-erkende servicepartner
of waarbij geen originele GARDENA-onderdelen of onderdelen die
door GARDENA zijn goedgekeurd zijn gebruikt.
SV Produktansvar
I enlighet med tyska produktansvarslagar förklarar vi härmed
uttryckligen att vi inte åtar oss något ansvar för skador som orsa-
kas av våra produkter där produkterna inte har genomgått korrekt
reparation från en GARDENA-godkänd servicepartner eller där
originaldelar från GARDENA eller delar godkända av GARDENA
inte använts.
DA Produktansvar
I overensstemmelse med den tyske produktansvarslov erklærer vi
hermed udtrykkeligt, at vi ikke påtager os noget ansvar for skader
på vores produkter, hvis de pågældende produkter ikke er blevet
repareret korrekt af en GARDENA-godkendt servicepartner, eller
hvor der ikke er brugt originale GARDENA-reservedele eller god-
kendte reservedele fra GARDENA.
FI Tuotevastuu
Saksan tuotevastuulain mukaisesti emme ole vastuussa laitteiden
vaurioista, jos korjauksia ei ole tehnyt GARDENAn hyväksymä
huoltoliike tai jos niiden syynä on muiden kuin alkuperäisten
GARDENA-varaosien tai GARDENAn hyväksymien varaosien
käyttö.
IT Responsabilità del prodotto
In conformità con la Legge tedesca sulla responsabilità del pro-
dotto, con la presente dichiariamo espressamente che declinia-
moqualsiasi responsabilità per danni causati dai nostri prodotti
qualora non siano stati correttamente riparati presso un partner
di assistenza approvato GARDENA o laddove non siano stati
utilizzati ricambi originali o autorizzati GARDENA.
94

ES Responsabilidad sobre el producto
De acuerdo con la Ley de responsabilidad sobre productos ale-
mana, por la presente declaramos expresamente que no acepta-
mos ningún tipo de responsabilidad por los daños ocasionados
por nuestros productos si dichos productos no han sido repa-
rados por un socio de mantenimiento aprobado por GARDENA
o si no se han utilizado piezas originales GARDENA o piezas
autorizadas por GARDENA.
PT Responsabilidade pelo produto
De acordo com a lei alemã de responsabilidade pelo produto,
declaramos que não nos responsabilizamos por danos causados
pelos nossos produtos, caso os tais produtos não tenham sido
devidamente reparados por um parceiro de assistência GARDENA
aprovado ou se não tiverem sido utilizadas peças GARDENA
originais ou peças autorizadas pela GARDENA.
RO Răspunderea pentru produs
În conformitate cu Legea germană privind răspunderea pentru
produs, declarăm în mod expres prin prezentul document că
nu acceptăm nicio răspundere pentru defecţiunile suferite de pro-
dusele noastre atunci când acestea nu au fost reparate în mod
corect de un atelier de service partener, aprobat de GARDENA,
sau când nu au fost utilizate piese GARDENA originale sau piese
autorizate de GARDENA.
95

Deutschland / Germany
GARDENA Manufacturing GmbH
Central Service
Hans-Lorenser-Straße 40
D-89079 Ulm
Produktfragen: ([phone]
Reparaturen: ([phone]
[email protected]
http: //www.gardena.com
Albania
KRAFT SHPK
Autostrada Tirane-Durres
Km 7
1051 Tirane
Argentina
ROBERTO C. RUMBO S.R.L.
Predio Norlog
Lote 7
Benavidez. ZC: 1621
Buenos Aires
[email protected]
Australia
Husqvarna Australia Pty. Ltd.
Locked Bag 5
Central Coast BC
NSW 2252
Phone: (+ 61) (0) 2 4352 7400
customer.service@
husqvarna.com.au
Austria / Österreich
Husqvarna Austria GmbH
Industriezeile 36
4010 Linz
Tel. : [phone]
service.gardena@
husqvarnagroup.com
Azerbaijan
Firm Progress
a. Aliyev Str. 26A
1052 Baku
Belarus
Private Enterprise
“Master Garden”
Minsk
Sharangovich str., 7a
Phone: [phone]
Mob.: [phone]
[email protected]
Belgium
Husqvarna Belgium nv
Gardena Division
Leuvensesteenweg 542
Planet II E
1930 Zaventem
België
Bosnia / Herzegovina
SILK TRADE d.o.o.
Industrijska zona Bukva bb
74260 Tešanj
Brazil
Husqvarna do Brasil Ltda
Av. Francisco Matarazzo,
1400 – 19oandar
São Paulo – SP
CEP: 05001-903
Tel: [phone]
marketing.br.husqvarna@
husqvarna.com.br
Bulgaria
AGROLAND България АД
бул. 8 Декември, № 13
Офис 5
1700 Студентски град
София
Тел.: [phone]
[email protected]
Canada / USA
GARDENA Canada Ltd.
100 Summerlea Road
Brampton, Ontario L6T 4X3
Phone: [phone]
[email protected]
Chile
REPRESENTACIONES
JCE S.A.
Av. Del Valle Norte 857,
Piso 4
Santiago RM
Phone: (+ 56) 2 24142560
[email protected]
China
Husqvarna (Shanghai)
Management Co., Ltd.
富世华（上海）管理有限公司
3F, Benq Square B,
No207, Song Hong Rd.,
Chang Ning District,
Shanghai, PRC. 200335
上海市长宁区淞虹路207号明
基广场B座3楼, 邮编: 200335
Colombia
Husqvarna Colombia S.A.
Calle 18 No. 68 D-31, zona
Industrial de Montevideo
Bogotá, Cundinamarca
Tel. [phone] ext. 105
[email protected]
Costa Rica
Compania Exim
Euroiberoamericana S.A.
Los Colegios, Moravia,
200 metros al Sur del Colegio
Saint Francis – San José
Phone: [phone]
[email protected]
Croatia
Husqvarna Austria GmbH
Industriezeile 36
4010 Linz
Tel. : [phone]
[email protected]
Cyprus
Med Marketing
17 Digeni Akrita Ave
P.O. Box 27017
1641 Nicosia
Czech Republic
Husqvarna Česko s.r.o.
Türkova 2319/5b
149 00 Praha 4 – Chodov
Bezplatná infolinka :
800 100 425
[email protected]
Denmark
GARDENA DANMARK
Lejrvej 19, st.
3500 Værløse
Tlf.: ([phone]
[email protected]
www.gardena.com / dk
Dominican Republic
BOSQUESA, S.R.L
Carretera Santiago Licey
Km. 5 ½
Esquina Copal II.
Santiago
Dominican Republic
Phone: [phone]
[email protected]
Ecuador
Husqvarna Ecuador S.A.
Arupos E1-181 y 10 de
Agosto Quito, Pichincha
Tel. [phone]
francisco.jacome@
husqvarna.com.ec
Estonia
Husqvarna Eesti OÜ
Valdeku 132
EE-11216 Tallinn
[email protected]
Finland
Oy Husqvarna Ab
Gardena Division
Lautatarhankatu 8 B / PL 3
00581 HELSINKI
www.gardena.fi
France
Husqvarna France
9/11 Allée des pierres mayettes
92635 Gennevilliers Cedex
France
http : //www.gardena.com/ fr
N° AZUR: 0 810 00 78 23
(Prix d’un appel local)
Georgia
Transporter LLC
113b Beliashvili street
0159 Tbilisi, Georgia
Great Britain
Husqvarna UK Ltd
Preston Road
Aycliffe Industrial Park
Newton Aycliffe
County Durham
DL5 6UP
[email protected]
Greece
Π.ΠΑΠΑΔΟΠΟΥΛΟΣ ΑΕΒΕ
Λεωφ. Αθηνών 92
Αθήνα
Τ.Κ.104 42
Ελλάδα
Τηλ. ([phone]
[email protected]
Hungary
Husqvarna Magyarország Kft.
Ezred u. 1- 3
1044 Budapest
Telefon: [phone]
[email protected]
Iceland
BYKO ehf.
Bildshöfoa 20
110 Reykjavik
Ireland
Husqvarna UK Ltd
Preston Road
Aycliffe Industrial Park
Newton Aycliffe
County Durham
DL5 6UP
[email protected]
Italy
Husqvarna Italia Spa
Centro Direzionale Planum
Via del Lavoro 2, Scala B
22036 ERBA (CO)
Tel. [phone]
[email protected]
Japan
Husqvarna Zenoah Co. Ltd. Japan
1-9 Minamidai, Kawagoe
350-1165 Saitama
Japan
[email protected]
97

Kazakhstan
LAMED Ltd.
155/1, Tazhibayevoi Str.
050060 Almaty
IP Schmidt
Abayavenue 3B
110 005 Kostanay
Korea
Kyung Jin Trading CO.,LTD.
107-4, SunDuk Bld.,
YangJae-dong,
Seocho-gu,
Seoul, (zipcode: 137-891)
Phone: (+82) (0)2 574-6300
Latvia
Husqvarna Latvija SIA
Ulbrokas 19A
LV-1021 Rīga
[email protected]
Lithuania
UAB Husqvarna Lietuva
Ateities pl. 77C
LT-52104 Kaunas
[email protected]
Luxembourg
Magasins Jules Neuberg
39, rue Jacques Stas
Luxembourg-Gasperich 2549
Case Postale No. 12
Luxembourg 2010
Phone: [phone]
[email protected]
Mexico
AFOSA
Av. Lopez Mateos Sur # 5019
Col. La Calma 45070
Zapopan, Jalisco, Mexico
Phone: [phone]
[email protected]
Moldova
Convel S.R.L.
290A Muncesti Str.
2002 Chisinau
Netherlands
Husqvarna Nederland B.V.
GARDENA Division
Postbus 50131
1305 AC ALMERE
Phone: [phone]
[email protected]
Neth. Antilles
Jonka Enterprises N.V.
Sta. Rosa Weg 196
P.O. Box 8200
Curaçao
Phone: [phone]
[email protected]
New Zealand
Husqvarna New Zealand Ltd.
PO Box 76-437
Manukau City 2241
Phone: (+64) (0) 9 9202410
[email protected]
Norway
Husqvarna Norge AS
Gardena Division
Trøskenveien 36
1708 Sarpsborg
[email protected]
Peru
Husqvarna Perú S.A.
Jr. Ramón Cárcamo 710
Lima 1
Tel: [phone] ext. 416
[email protected]
Poland
Husqvarna
Poland Spółka z o.o.
ul. Wysockiego 15 b
03-371 Warszawa
Phone: [phone]
[email protected]
Portugal
Husqvarna Portugal, SA
Lagoa - Albarraque
2635 - 595 Rio de Mouro
Tel.: [phone]
Fax : [phone]
[email protected]
Romania
Madex International Srl
Soseaua Odaii 117- 123,
RO 013603 Bucureşti, S1
Phone: [phone]
[email protected]
Russia / Россия
ООО „Хускварна“
141400, Московская обл.,
г. Химки,
улица Ленинградская,
владение 39, стр.6
Бизнес Центр
„Химки Бизнес Парк“,
помещение ОВ02_04
http://www.gardena.ru
Serbia
Domel d.o.o.
Autoput za Novi Sad bb
11273 Belgrade
Phone: [phone]
[email protected]
Singapore
Hy-Ray PRIVATE LIMITED
40 Jalan Pemimpin
#02-08 Tat Ann Building
Singapore 577185
Phone: [phone]
[email protected]
Slovak Republic
Husqvarna Česko s.r.o.
Türkova 2319/5b
149 00 Praha 4 – Chodov
Bezplatná infolinka:
800 154 044
[email protected]
Slovenia
Husqvarna Austria GmbH
Industriezeile 36
4010 Linz
Tel. : [phone]
[email protected]
South Africa
Husqvarna
South Africa (Pty) Ltd
Postnet Suite 250
Private Bag X6,
Cascades, 3202
South Africa
Phone: [phone]
[email protected]
Spain
Husqvarna España S.A.
Calle de Rivas nº 10
28052 Madrid
Phone: [phone]
[email protected]
Suriname
Deto Handelmaatschappij N.V.
Kernkampweg 72-74
P.O.Box: 12782
Paramaribo – Suriname
South America
Phone: [phone]
www.deto.sr
Sweden
Husqvarna AB/ GARDENA Sverige
Drottninggatan 2
561 82 Huskvarna
Sverige
Switzerland / Schweiz
Husqvarna Schweiz AG
Consumer Products
Industriestrasse 10
5506 Mägenwil
Phone: (+ 41) (0) 62 887 37 90
[email protected]
Turkey
Dost Bahçe Dış Ticaret
Mümessillik A.Ş
Yunus Mah. Adil Sok. No: 3
Ic Kapi No: 1 Kartal
34873 Istanbul
Phone: [phone]
[email protected]
Ukraine / Україна
ТОВ «Хускварна Україна»
вул. Васильківська, 34,
офіс 204-г
03022, м. Київ
Тел. [phone]
[email protected]
Uruguay
FELI SA
Entre Ríos 1083 CP 11800
Montevideo – Uruguay
Tel : [phone]
[email protected]
Venezuela
Corporación Casa y Jardín C.A.
Av. Caroní, Edif. Trezmen, PB.
Colinas de Bello Monte.
1050 Caracas.
Tlf : ([phone]
[email protected]
1278-20.960.03/1220
© GARDENA Manufacturing GmbH
D-89079 Ulm
http://www.gardena.com
98
