Garmin Atemos 100 Instruction manual

CONFIDENTIAL
This drawing and the specifications contained herein are the property of
GARMIN Ltd. or its subsidiaries and may not be reproduced or used in whole or
in part as the basis for manufacture or sale of products without written
permission.
Garmin Ltd. or its subsidiaries
C/O Garmin International, Inc.
1200 E. 151st Street
Olathe, Kansas 66062 USA
Sheet 1 of 1
Specification Control Document
Drawing Number:
190-02264-90
Description:
Atemos 100 Quick Start Manual (ML)
Revision:
A
Drawn By:
MEH 07/12/17
Revision History
Rev.
Date
Description of Change
ECO No.
A
07/12/17
Production Release
----
Printing Specifications
Tolerance:
±0.0787" (±2 mm)
Material:
Cover: 120-lb coated. Text: 100-lb matte finish offset. Approved equivalents allowed.
Color:
4-color process.
Bindery:
Perfect bound. Approved equivalents allowed.
Folds:
Not applicable
Trimmed Dimensions:
9.5 x 4.75 in.
Finished Dimensions:
4.75x4.75 in.
Notes:
This part shall comply with Garmin Banned & Restricted Substances (GPN 001-00211-00).
Content Management System (CMS) Details
GUID:
GUID-8E32AC5E-25BA-4C62-8420-FB570DCE8F87
Version:
1
Language(s):
EN-US, FR-FR, IT-IT, DE-DE, ES-XM, PT-PT, NL-NL, CS-CZ, HU-HU, RO-RO
Notes

ATEMOS® 100
Quick Start Manual 2
Manuel de démarrage
rapide 10
Manuale di avvio rapido 20
Schnellstartanleitung 29
Guía de inicio rápido 39
Manual de Início Rápido 49
Snelstartgids 58
Stručný návod k obsluze 68
Kezdő lépések 77
Manual de iniţiere rapidă 87

ATEMOS® 100
Quick Start Manual
Getting Started
WARNING
See the Important Safety and Product
Information guide in the product box for
product warnings and other important
information.

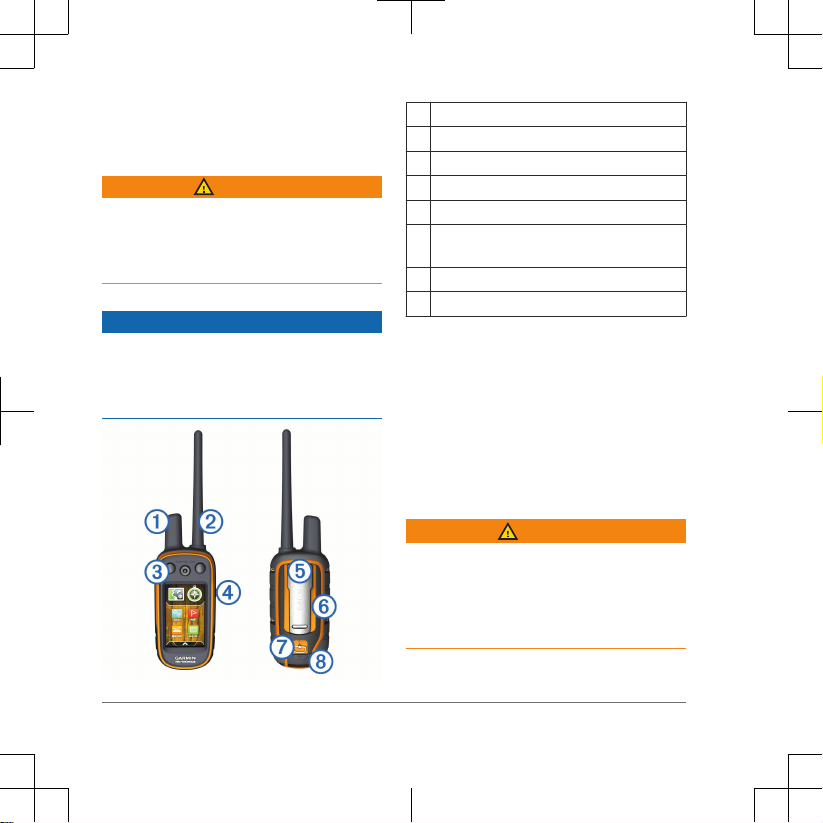

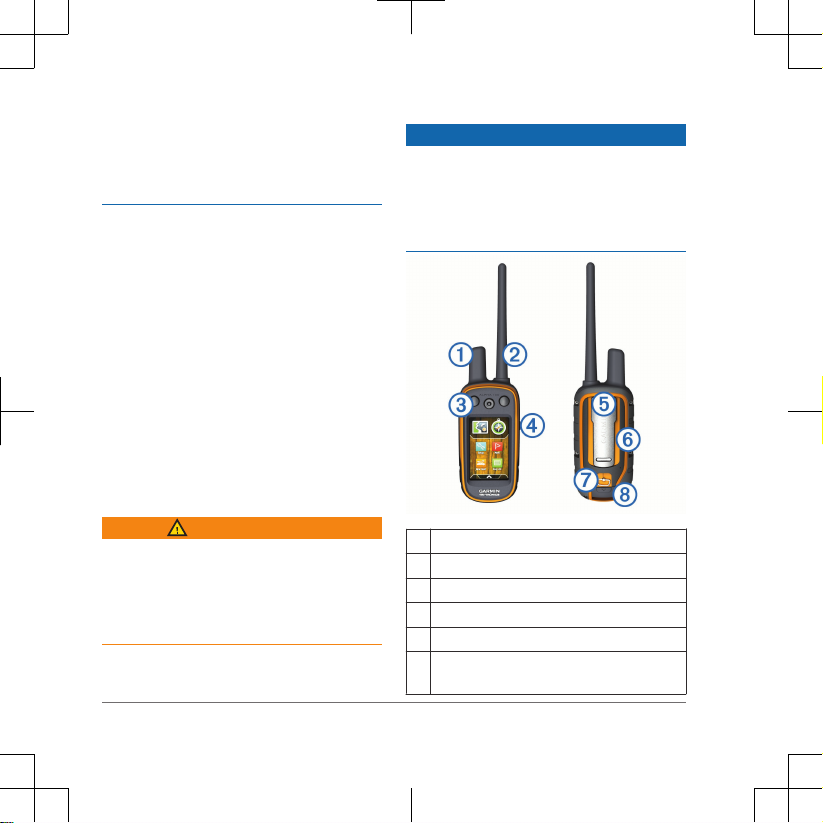

Atemos® 100 Handheld Device
NOTICE
Avoid using a high-powered radio (greater
than 5 W) in close proximity to the
handheld device. It may cause irreversible
damage to the handheld device.
ÀGPS antenna
ÁVHF radio antenna
ÂTraining keys
ÃPower key
ÄMounting spine
ÅmicroSD® memory card slot (under
battery)
ÆBattery cover D-ring
ÇMini-USB port (under weather cap)
Getting the Owner's Manual
You can get the latest owner's manual
from the web.
1Go to www.garmin.com/support.
2Select Manuals.
3Follow the on-screen instructions to
select your product.

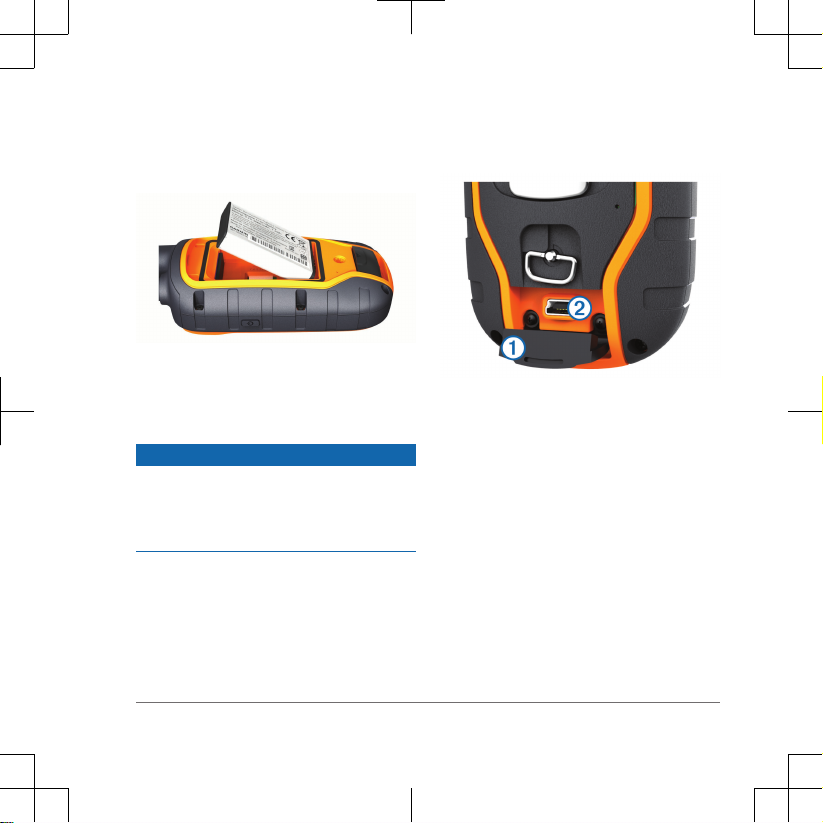

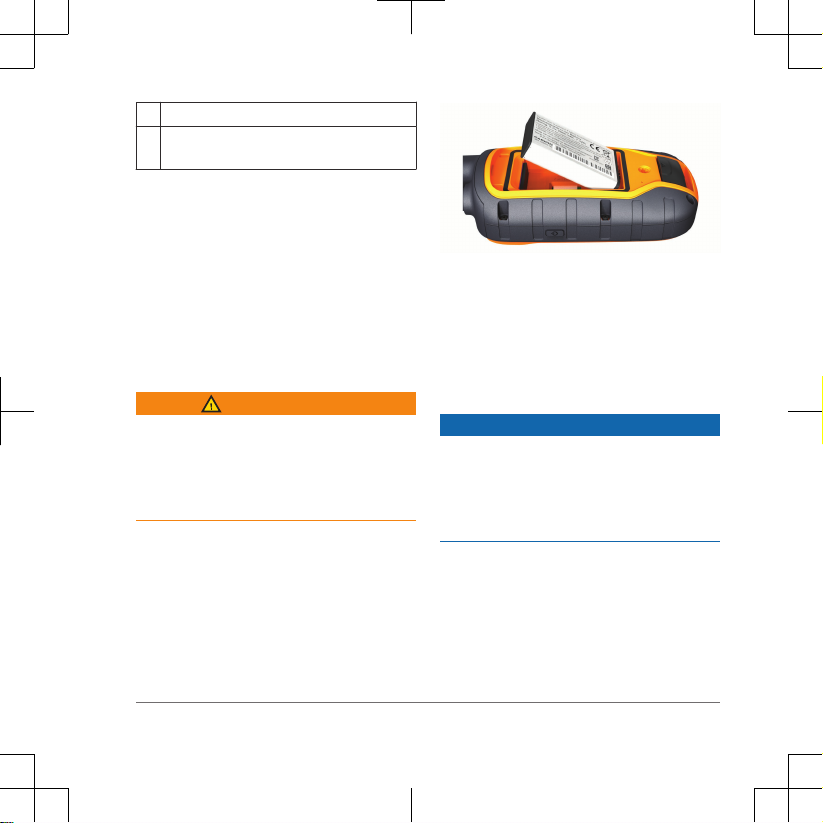

Installing the Battery Pack
WARNING
This product contains a lithium-ion battery.
To prevent the possibility of personal injury
or product damage caused by battery
exposure to extreme heat, store the device
out of direct sunlight.
1Turn the D-ring counter-clockwise, and
pull up to remove the cover.
2 Quick Start Manual

2Locate the metal contacts on the end
of the lithium-ion battery.
3Insert the battery into the
compartment, contacts first.
4Press the battery into place.
5Replace the battery cover, and turn the
D-ring clockwise.

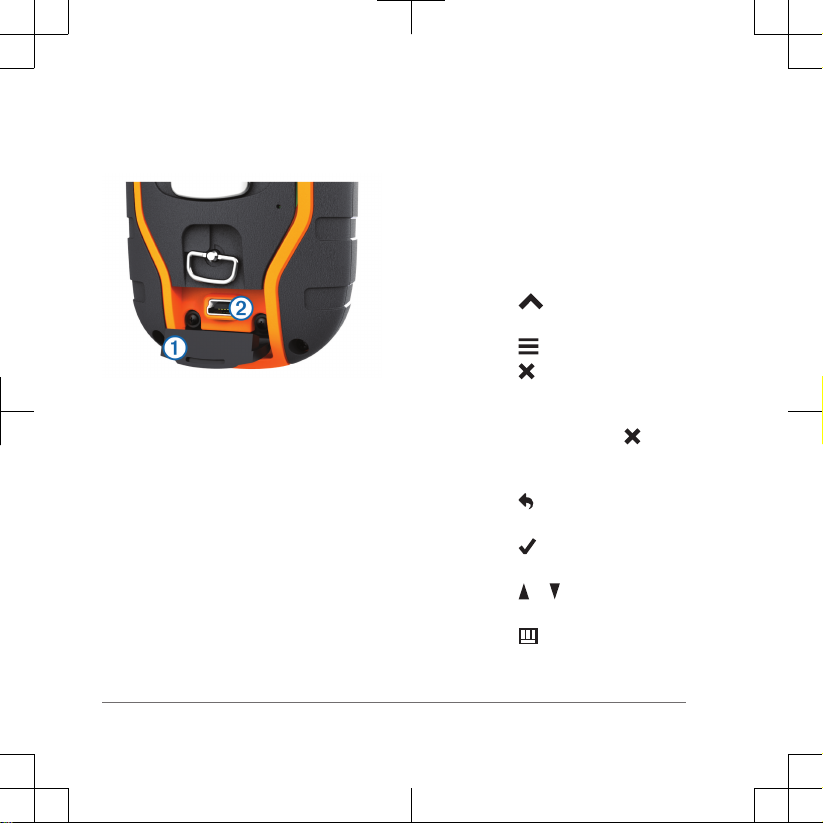

Charging the Handheld Device
NOTICE
To prevent corrosion, thoroughly dry the
USB port, the weather cap, and the
surrounding area before charging or
connecting to a computer.
NOTE: The device does not charge when
it is outside the approved temperature
range (page 9).
You should fully charge the battery before
you use the device for the first time.
Charging a fully depleted battery takes
about 2 hours.
1Lift the weather cap À.
2Plug the small end of the power cable
into the USB port Á on the device.
3Plug the other end of the power cable
into an appropriate power source.
The LCD display on the handheld device
shows the current battery charge level.
Charging is complete when the battery
charge level icon stops flashing.
Turning On the Devices
• On the handheld device, hold the
power key until the LCD display turns
on.
Quick Start Manual 3

Turning Off the Devices
• On the handheld device, hold the
power key until the LCD display turns
off.
Using the Touchscreen
• Select to open the application
drawer.
• Select to open a menu.
• Select to close the page and return
to the previous page.
• If you are more than one menu from
the home screen, select and hold to
return to the home screen.
• Select to return to the previous
page.
• Select to save changes and close
the page.
• Select and to scroll.
• Select to search by name.
Locking the Touchscreen
You can lock the screen to prevent
inadvertent screen touches.
1Select the Power key.
2Select .
Acquiring Satellite Signals
Both the collar and handheld device must
acquire satellite signals before you put the
collar on your dog. Acquiring satellites can
take a few minutes.
1Go outdoors to an open area.
2Turn on both devices (page 3).
3Select the power key on the handheld
device.
shows the GPS signal strength.
When the collar has acquired satellite
signals, the status LED flashes a double-
blink or triple-blink in green.
Dog Collar Device Setup
Methods to Add a Dog Collar Device to
a Handheld Device
If you purchased the dog collar device and
the handheld device separately, you must
add the dog collar device to the handheld
device. You can add up to 20 dog collar
devices to one handheld device.
Using MURS/VHF: Allows you to add a
dog collar device after you have
placed the dog collar device into
pairing mode by pressing the power
key.
4 Quick Start Manual

This method is helpful when you are
adding a new accessory collar to the
system prior to leaving for the hunt
(page 6).
Entering the track and train codes:
Allows you to add a dog collar device
that you do not own and that is not in
the area. The dog's owner must
determine if you can only track the dog
or can track and train the dog. This
method requires the dog's owner to
find and communicate the codes to the
person adding the dog collar device.
This method is helpful when you would
like to add a dog collar device during a
hunt, but you are not near the dog. For
example, you are adding another
member of your hunting party's dog
collar device to your handheld device,
but you do not own the dog collar
device (page 6).
NOTE: This feature varies based on
dog collar device type and feature
availability in your area. You may see
track codes only or track and train
codes.
Sharing wirelessly using ANT+®
wireless technology: Allows you to
add a dog collar device that you do not
own and that is not in the area. The
dog's owner must determine if you can
only track the dog or can track and
train the dog. This method does not
require the dog's owner to find and
communicate the codes to the person
adding the dog collar device. This
method also adds dog information,
such as the dog's name,
communication settings, and initial
position, from the sending handheld
device to your device. The two
handheld devices must be within range
3 m (10 ft.) to share data wirelessly.
This method is helpful when you want
to add a dog collar device during a
hunt, but you are not near the dog. For
example, the dogs have already been
let loose, and you are near the dog
owner, who can share the dog
wirelessly.
VHF Radio Information
This product may be used only on specific
radio frequencies, which vary depending
on the country of use. The handheld
device and the dog device allow the user
to install a different antenna. Changing the
antenna can result in improved radio
Quick Start Manual 5

performance and higher radiated power.
You must not use the device with a third
party antenna or an antenna not approved
by Garmin®. Go to www.garmin.com
/tracking-legal for details about the
performance and radio frequency of this
product, lawful accessories, and power
limits for countries.
Adding a Dog to the Atemos 100
Handheld Using Wireless Pairing
1If the dog collar device is on, turn off
the dog collar device (page 4).
2Hold until the dog collar device
emits two series of beeps (about 2
seconds), and then release .
The status LED flashes rapidly in
green. The dog collar device is now
ready to be linked, or paired, with a
handheld device.
3On the handheld device, select Dog
List > Add Dog.
4Bring the dog collar device near the
handheld device, and select Yes.
5After successfully adding the dog
collar device, enter the name of the
dog, and select > OK.
Adding a Dog Using the Track and
Control Codes
NOTE: This feature varies based on dog
collar device type and feature availability
in your area.
Before you can add a dog using the track
and control codes, the dog owner must
find the track and control codes
(page 7) and tell them to you.
You can use track and control codes to
authorize a handheld device to interact
with your dog collar device. If you are not
near the dog you want to add or you
cannot put the collar into pairing mode,
you can add the dog using the track and
control codes.
1Select Add Dog.
2When asked if you are near the collar,
select No.
3When asked if you know the track and
control codes, select Yes.
4Enter the track or control code for the
collar, and select .
The dog’s track code allows you to
track the dog. The dog’s control code
allows you to both track and train
(correct) the dog.
6 Quick Start Manual

5Enter the name of the dog, and select
OK.
Finding the Dog ID and Track and Train
Codes
You can share a dog’s track code so
another person can view your dog’s
location with the map and dog tracking
compass. Also, you can share a dog’s
train code so another person can track
your dog and train (correct) your dog.
1Select Dog List.
2Select a dog.
3Select Show Info.
Dog Tracking
The handheld device allows you to track
your dog, using the tracking compass or
map. The map displays your location and
your dog's location and tracks. The
compass pointer indicates the direction of
the dog's current location.

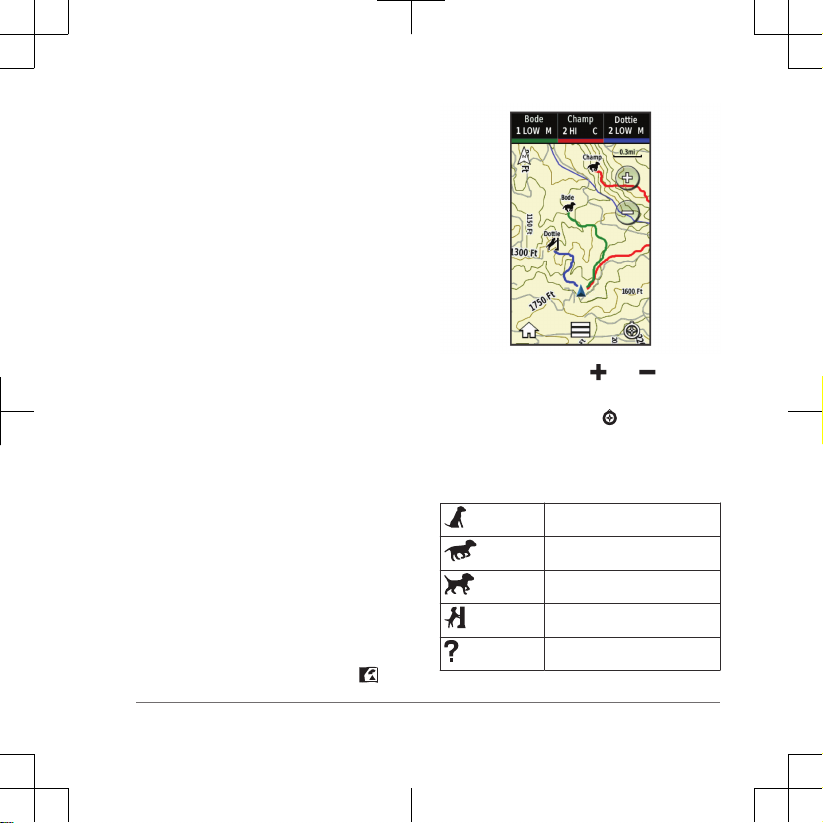

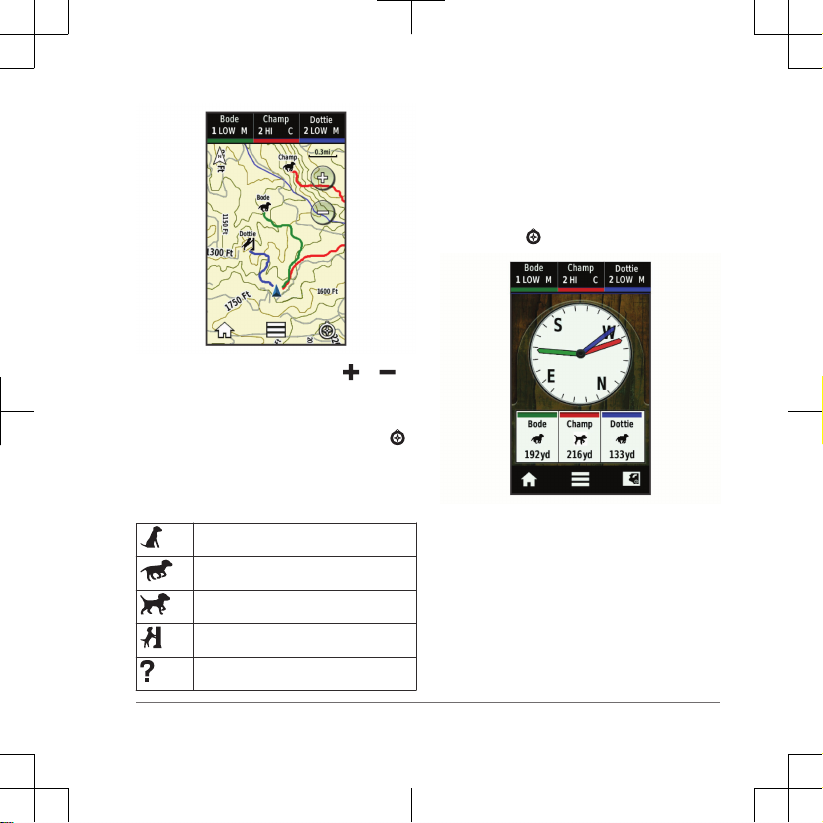

Tracking Your Dog on the Map
Before you can track a dog on the map,
you must add it to the handheld device
(page 6).
You can view the dog's location on the
map.
1From the home screen, select .
2If necessary select and to zoom
in and out of the map.
TIP: If necessary, select to track the
dog using the dog tracking compass
(page 8).
Dog Status Icons
Sitting
Running
On point
Treed
Unknown*
Quick Start Manual 7

*The unknown status icon indicates that
the collar has not acquired a satellite
signal and that the handheld device
cannot determine the location of the dog.

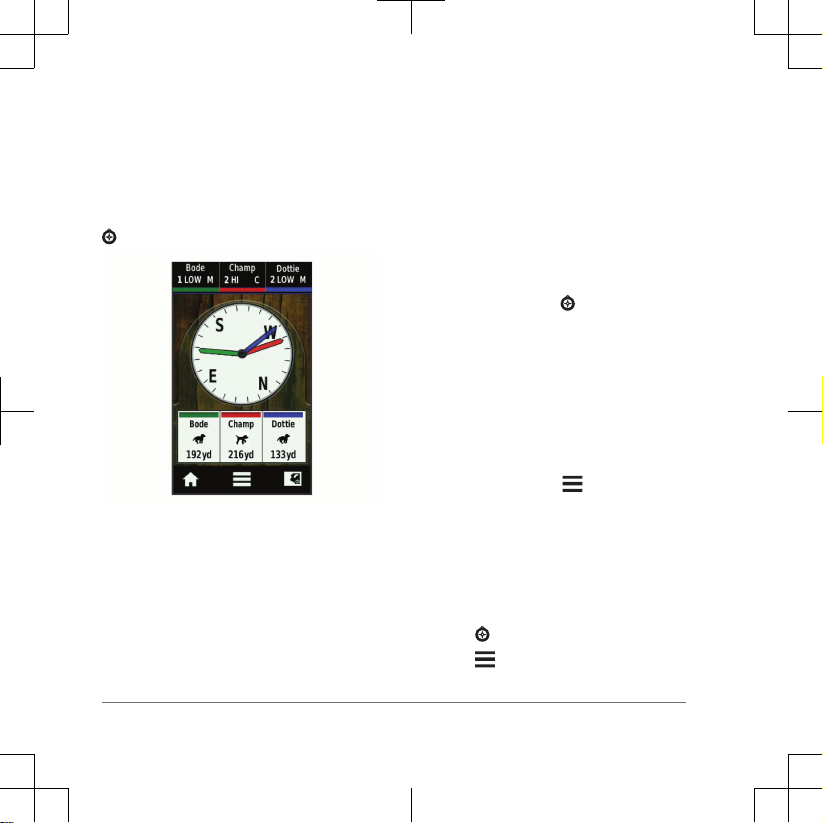

Dog Tracking Compass
To open the dog tracking compass, select
.
You can use the dog tracking compass to
view the direction and distance to your
dog. The dog tracking compass also
shows the dog's status, such as running or
on point (page 7). The color of the pointer
corresponds to the color of the dog track.
The dog tracking compass is most
accurate when the dog is more than 9.1 m
(30 ft.) away. When the dog is less than
9.1 m (30 ft.) away, "Near" appears.
Navigating to Your Dog
1Select Dog List.
2Select the dog.
3Select Show Info > Go.
The map opens.
4Follow the magenta line to the dog.
5If necessary, select to track the dog
using the dog tracking compass.
Pausing Dog Tracking
You can pause the tracking of a single dog
during a hunt. This can be helpful if the
dog is taking a break.
1Select Dog List.
2Select a dog.
3Select Show Info > > Stop
Tracking.
Pausing All Dog Tracking
If you are moving the dogs during a hunt
and you do not want to record the
transportation of the dogs, you can pause
the tracking of all of the dogs.
1Select .
2Select > Pause All Tracking.
8 Quick Start Manual

Device Information
Viewing Device Information
You can view the unit ID, software version,
and license agreement.
Select Setup > About.
Product Updates
On your computer, install Garmin
Express™ (www.garmin.com/express).
This provides easy access to these
services for Garmin devices:
• Software updates
• Map updates
• Product registration
Setting Up Garmin Express
1Connect the device to your computer
using a USB cable.
2Go to garmin.com/express.
3Follow the on-screen instructions.
Atemos 100 Handheld Device
Specifications
Operating
temperature range From -4° to 140°F (from -20° to 60°C)
Charging
temperature range From 32° to 104°F (from 0° to 40°C)
Wireless
frequencies/
protocols
169 MHz @ 26.92 dBm,
2.4 GHz @ 1.82 dBm
Water rating IEC 60529 IPX7*
*The device withstands incidental
exposure to water of up to 1 m for up to
30 min. For more information, go to
www.garmin.com/waterrating.
Battery Information
WARNING
This product contains a lithium-ion battery.
To prevent the possibility of personal injury
or product damage caused by battery
exposure to extreme heat, store the device
out of direct sunlight.
Do not use a sharp object to remove
batteries.
CAUTION
Contact your local waste disposal
department to properly recycle the
batteries.
Long-Term Storage
NOTICE
The normal long-term decrease in the
charging capacity of lithium-ion batteries
can be accelerated by exposure to
Quick Start Manual 9
