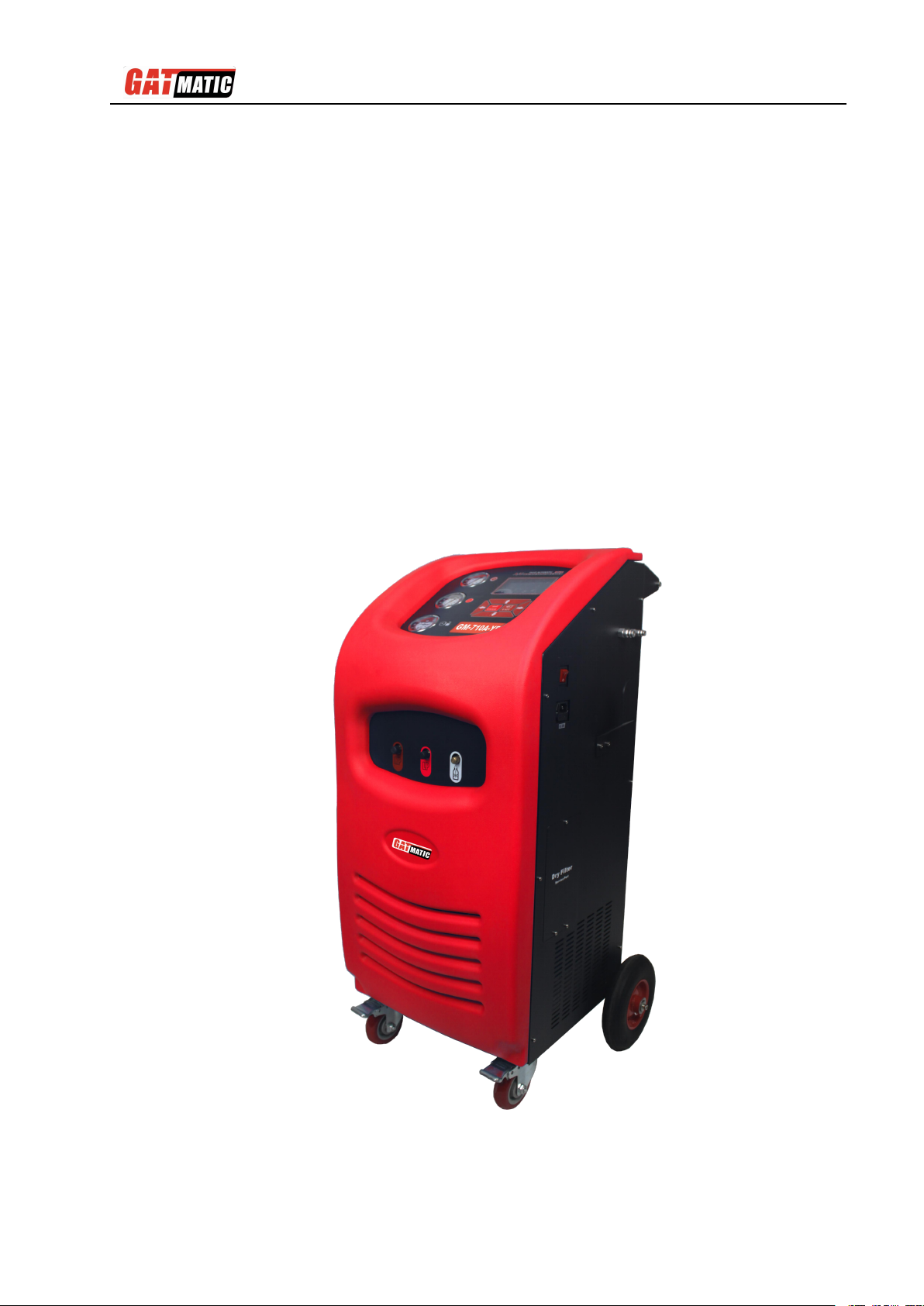

GATmatic GM710A-YF User manual

GM710A-YF A/C Service Station
GM710A-YF
A/C Service Station

GM710A-YF A/C Service Station
Safety
The machine is designed to be used and repaired by qualified personnel only.
The machine designed for use in recovering the R12, R134a or R1234yf refrigerant
fluid used in the air-conditioning (A/C) systems of motor vehicles. Fill the A/C system
with the quantity of refrigerant recommended by the manufacturer.
Check the vehicle use and maintenance manual for the type of refrigerant fluid used
by the A/C system. Do not mix different type of refrigerant otherwise can easily lead to
malfunction of the machine.
Keep away from moving parts and rotating elements such as cooling fans, alternators
and heating components, etc to avoid harm.
Wear protective clothing gloves and goggles.
As automotive air condition maintenance, the operator must be fully familiar with
automotive air conditioning system and operation of the machine. Check whenever
the engine is turned off that the ignition key is turned to the full OFF position!
Do not expose the machine to direct sunlight or rain. Use only in well-ventilated work
areas.
Never exceed 30 ° tilt in transit process upside down is strictly prohibited.
Do not touch the machine high voltage power supply section, and do not maintain the
machine as power on.
Care of the manual.

GM710A-YF A/C Service Station
CONTENTS
1、Introduction ...........................................................................................................................................1
1) Outline ....................................................................................................................................................1
2) Features .................................................................................................................................................1
3) Specifications .........................................................................................................................................1
2、Functions ..............................................................................................................................................2
1) Primary functions ...................................................................................................................................2
2) Subsidiary functions .............................................................................................................................. 2
3. Operation ............................................................................................................................................... 3
1) Parts descriptions .................................................................................................................................. 3
2) First use ................................................................................................................................................. 4
3) Preparations before Operation ..............................................................................................................4
4) Power On ............................................................................................................................................... 4
5) Recovery/Recycling ...............................................................................................................................4
6) Vacuum .................................................................................................................................................. 5
7) New oil adding ....................................................................................................................................... 5
8) Recharging ............................................................................................................................................ 5
9) Auto. Mode .............................................................................................................................................6
10) Database ............................................................................................................................................. 6
11) Subsidiary functions .............................................................................................................................7
A- Usage of the Auxiliary Port ................................................................................................................... 7
B- Parameter setting ..................................................................................................................................7
C- Calibration of load cell .......................................................................................................................... 7
D- Refrigerant supply .................................................................................................................................7
E-Exchange dry filter ................................................................................................................................. 8
F-Change vacuum pump oil ...................................................................................................................... 8
G-System inquiry ....................................................................................................................................... 8
H-Printer Test ............................................................................................................................................. 8
I-Equipment info .........................................................................................................................................8
12) Help ......................................................................................................................................................9

GM710A-YF A/C Service Station
1
1、Introduction
1) Outline
GM series A/C system maintenance equipment is with the latest design technique which uses
the best control principle and the manufacturing process.
GM710A-YF A/C Service Station is intelligent equipment collecting of the A/C recovery, recycling,
recharging and other functions in one. It’s with the beautiful shape, humanized operation
interface, and advanced manufacturing processes to make the A/C maintenance professional
and simple.
2) Features
A、Fully automatic,easy to operate.
B、Unique designed to achieve the high recycling rate no matter with the gas or the liquid.
C、Easy to operate with the concise operating interface.
D、Designed with large size LCD.
E、Database.
F、Program and database can be updated.
G、With printer.
3) Specifications
A、Working conditions:
Ambient temperature: 0~50°C
Relative humidity: ＜85%
B、Voltage input: □AC220V±10％~50Hz □AC110V±10％~60Hz □AC220V±10％~60Hz
(Subject to nameplate)
C、Compressor：12.12cm3
D、Vacuum pump: 7.2m3/h，5Pa
E、Load cell for tank: ±10g
F、Load cell for oil bottle: ±5g
G、Tank: 12L
H、New Oil bottle: 250ml
I、Used Oil bottle:500ml
J、LCD display: 240*128
K、Working pressure: max. 20bar
L、HP gauge: -1bar~3.5MPa
M、LP gauge: -1bar~1.5MPa
N、P gauge: -1bar~3.5MPa

GM710A-YF A/C Service Station
2
2、Functions
1) Primary functions
A、Automatic recovering/recycling
B、Automatic/manual used oil drain
C、Automatic vacuum
D、Automatic/manual new oil injection
E、Automatic recharging with load cell
F、Auto mode
G、Database
2) Subsidiary functions
A、Parameter setting
B、Supply refrigerant
C、Electric scale calibration
D、Maintenance procedures (dry-filter exchange, vacuum pump maintenance)
E、Printer checking
F、System inquiry
G、Equipment info
H、Help

GM710A-YF A/C Service Station
3
3. Operation
1) Parts descriptions
HP gauge
Auxiliary Port
Operation panel
Displayer
LP gauge
HP port
LP port
P gauge
Switch for
new oil adding
New oil bottle
Used oil bottle
Switch for
used oil discharge
Service Port for
Dry-filter

GM710A-YF A/C Service Station
4
2) First use
A、Open the back door and unscrew the electronic scale support screw before using the
equipment. And also take out all of the Protective filler.
B、Please supply about 3 kg refrigerant into the tank of equipment so that all of the functions
can be run normally. Please refer to the chapter of “Refrigerant supply”.
C、Please read this user manual carefully before operating.
3) Preparations before Operation
A、To check if there has enough refrigerant in the tank. The volume should be 2~3 kg.
B、Empty the used oil bottle.
C、Check the automotive A/C system. If there has any leakage, it must be repaired firstly to
avoid refrigerant leak during recovering process.
D、Check if the automotive air-conditioning can run normally.
4) Power On
Note: the descriptions for keys just be shown 5 times.
5) Recovery/Recycling
A、By this function, it will recover the refrigerant remained in the A/C system.
B、Operations:
From the back.
Unscrew the
support screw.

GM710A-YF A/C Service Station
5
C、If it displays code as F00- during the process, please deal with it according to prompt
information.
D、Notice: The used oil can be drained out automatically or by manual.
Note: Press “ ” and “ ” key in recovery function. It will purify the non-condensable gas
automatically.
6) Vacuum
A、By this function, it will clean the water vapor out from the A/C system.
B、It should be more than 15 minutes. Generally, it needs 15 minutes at least for the air
conditioning only with front wind and 20 minutes for with the front and rear wind.
C、Operations:
D、If it displays code as F00- during the process, please deal with it according to prompt
information.
7) New oil adding
A、Fill new oil into the new oil bottle.
Note: add new oil more 20ml than the used oil drained out to avoid the air into the air
conditioning system.
Warning: please do not press the switch of the new oil bottle anytime when the
automotive air conditioning system is not in vacuum state, otherwise it have the risk
of explosive bottles!
B、Method 1: Control by manual.
After vacuum, press the switch of the new oil bottle to control the new oil adding.
Method2：Control automatically. After vacuum, operate by following.
8) Recharging

GM710A-YF A/C Service Station
6
A、The recharging amount setting:
Method 1: Set the amount directly.
Method 2: Set the amount by the database. Steps as following:
B、Note: In the recharging process, if shows the menu, it
means that you need to turn on the car air-conditioning to
complete the recharging process. Later, you should
supply new refrigerant into the tank.
9) Auto. Mode
A、Under this mode, all of the functions can be run full automatically after setting the
parameters.
B、Before running, must drain out the used oil entirely and fill enough new oil into the new bottle.
C、Operations:
D、If it displays code as F00- during the process, please deal with it according to prompt
information.
10) Database
A、Here you can read the refrigerant type and filling amount and the refrigerant oil type and
filling amount of the automotive.
B、Operations:
Press
key
ENTER
ENTER

GM710A-YF A/C Service Station
7

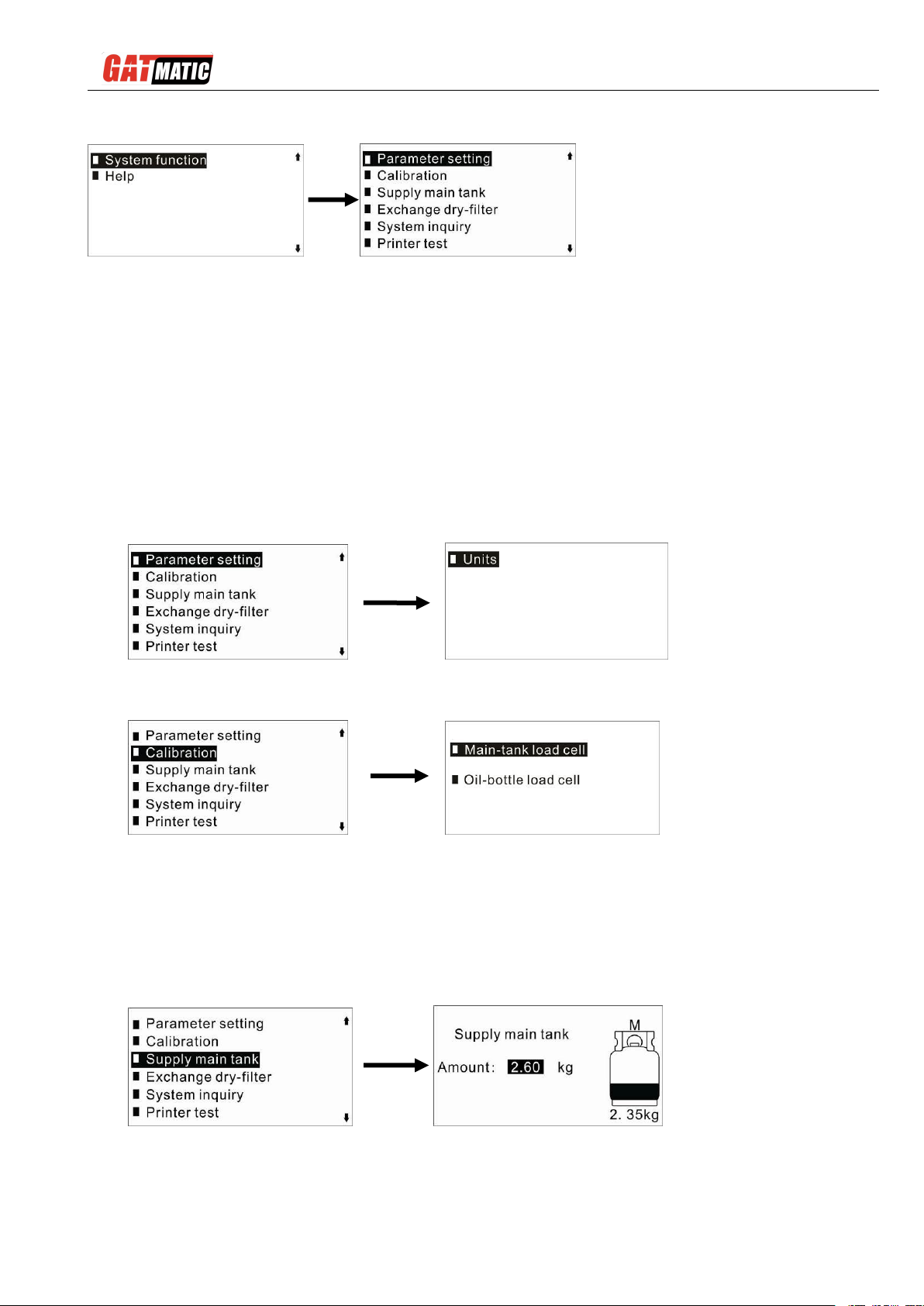

11) Subsidiary functions
A- Usage of the Auxiliary Port
Recharging from cans
a) Before vacuum, connect the pipe with the external tank to the auxiliary port.
Note: the connector to the auxiliary port must be with thimble. Do not open the valve
of external tank during this process.
b) Run vacuum function. After little time, stop vacuum.
c) Open the valve of external tank to recharge the right amount refrigerant into A/C system. And
then close the valve of external tank.
d) After finished, disconnect the pipes and re-back the cap to the auxiliary port.
B- Parameter setting
C- Calibration of load cell
When the load cell is not precise, it needs to be calibrated.
D- Refrigerant supply
A、Connect the port of fresh refrigerant tank to the LP port of equipment. Block the HP port of
equipment with a cap or HP coupler.
Note: it should connect to the liquid port of fresh refrigerant tank. If has no liquid port,
please invert the fresh refrigerant tank.
B、Operations:
Note:
Amount of supplying ：Setting the supplying amount according to the in the tank.
Suggestion: supplying amount = (4.5~5)-amount remained.

GM710A-YF A/C Service Station
8
When finished, please close the valve of the refrigerant tank and run the recovery
function.

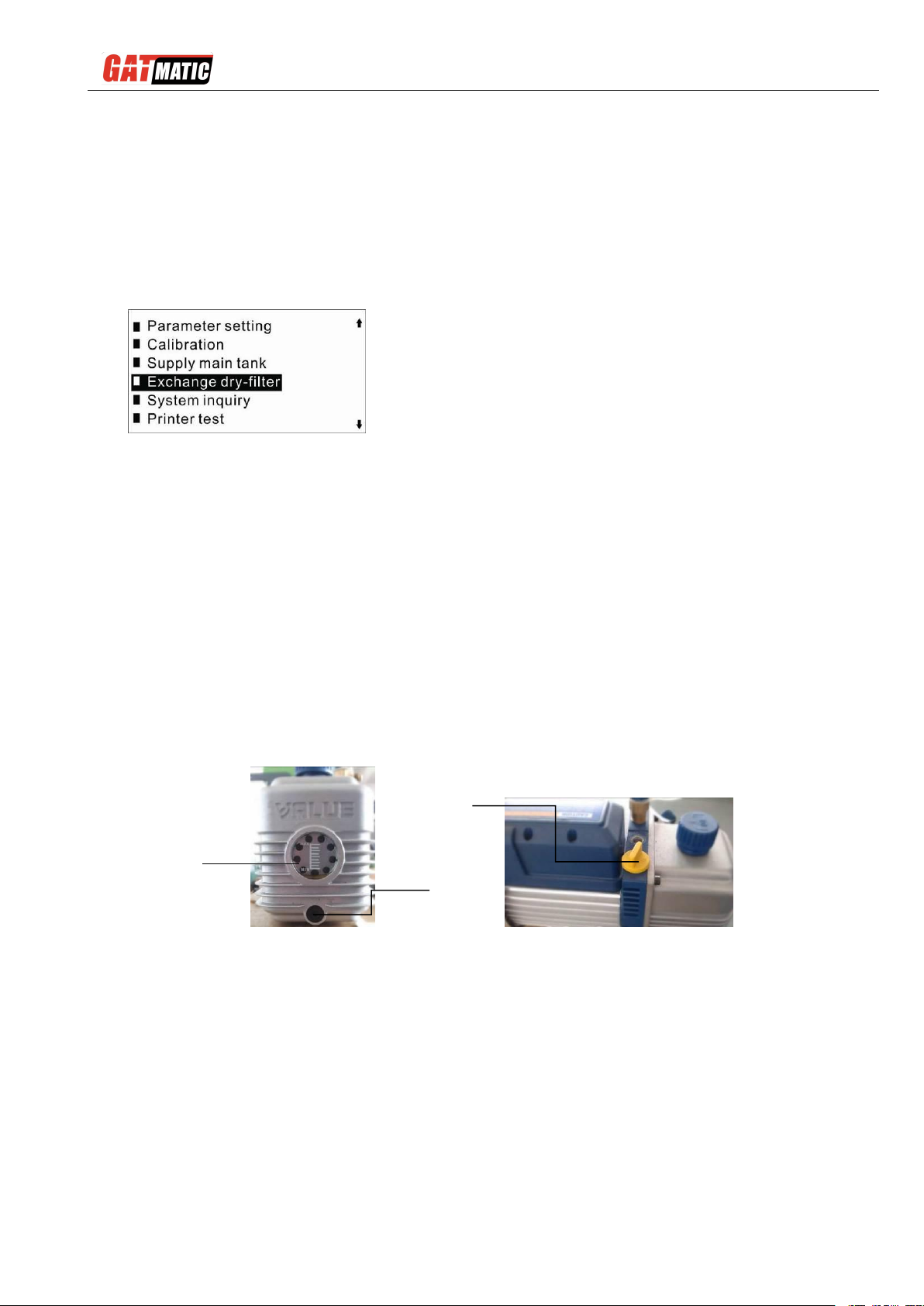

E-Exchange dry filter
A、The dry filter must be exchange when it reaches the life time. There will give a message.
B、If not exchange the dry-filter timely, it will not be able to run the recovery and supplying
functions.
C、Operations:
Please read the ID of the dry-filter at the label. Which is the value followed by letter SN.
Please attention the mounting direction of the dry-filter.
F-Change vacuum pump oil
A、When the pump oil became cream or the unit displays maintenance message, the vacuum
pump oil must be changed.
B、If not change the pump oil, the vacuum function will not be able to run.
C、Steps:
Step1: open the back cover.
Step2: Unscrew the block of the drain port to drain entirely out the old oil. Then re-back the
block to the drain port.
Step3: Unscrew the cap of the fill port and then fill the new oil slowly into the vacuum pump
until the oil level reach at the center site. Then re-back the cap to the fill port.
Note: the new vacuum pump oil cannot be filled too much into the vacuum pump
otherwise it will spray out when working.
Step4: Re-back the cover.
G-System inquiry
Here you can check the working status of the machine.
H-Printer Test
Check the printer if ok.
I-Equipment info
You can check the machine’s information.
Window
Drain port
Fill port

GM710A-YF A/C Service Station
9
12) Help
Here you can check all of the help messages.

GM710A-YF A/C Service Station
10
All rights reserved. V2020
