Gator frameworks GFW-AV-LCD-2 User manual

Product Overview
Model UPC Description Color
Visit Us Today Online @ www.gatorframeworks.com
Call Customer Service For Order Information
1-813-221-4191
GFW-AV-LCD-2
716408532929
Rev. 1 - 3/18/2015
GFW-AV-LCD-2 716408532929 Deluxe Tripod LCD/LED stand Black
Setup Instructions:
1
Place tripod on at, level
surface. Extend tripod
leg housing down
approximately 12” from
starting position to
create a wide, stable
base. The leg with
Frameworks logo should
be positioned forward so
it will be directly under
the TV display.
4
With the TV mounted,
adjust to the desired
screen height.
Finally, check that all
knobs are securely
tightened.
2
With the center tube in
the down position,
attach the TV Mount
and fully tighten the
main star knob.
(Not Shown) Attach
VESA Mount to TV
according to the TV
Manufacturer’s
guidelines.
NOTE: Max TV screen size is 48”
3
Attach VESA Mount to TV
Mount Assembly until it
CLICKS into place. Fully
tighten the small knob
on the VESA Mount to
complete the TV
attachment. Adjust the
forward pitch of the
mount to the desired
angle, and fully tighten
the knob.
NOTE: Shown without TV attached
• It is recommended to use
tripod weights if using with a
screen larger than 32 inches.
• Do not use in a windy
environment or place on an
uneven surface.
12”
45lb
max
23”-48”
Screen VESA
100x100
200x200

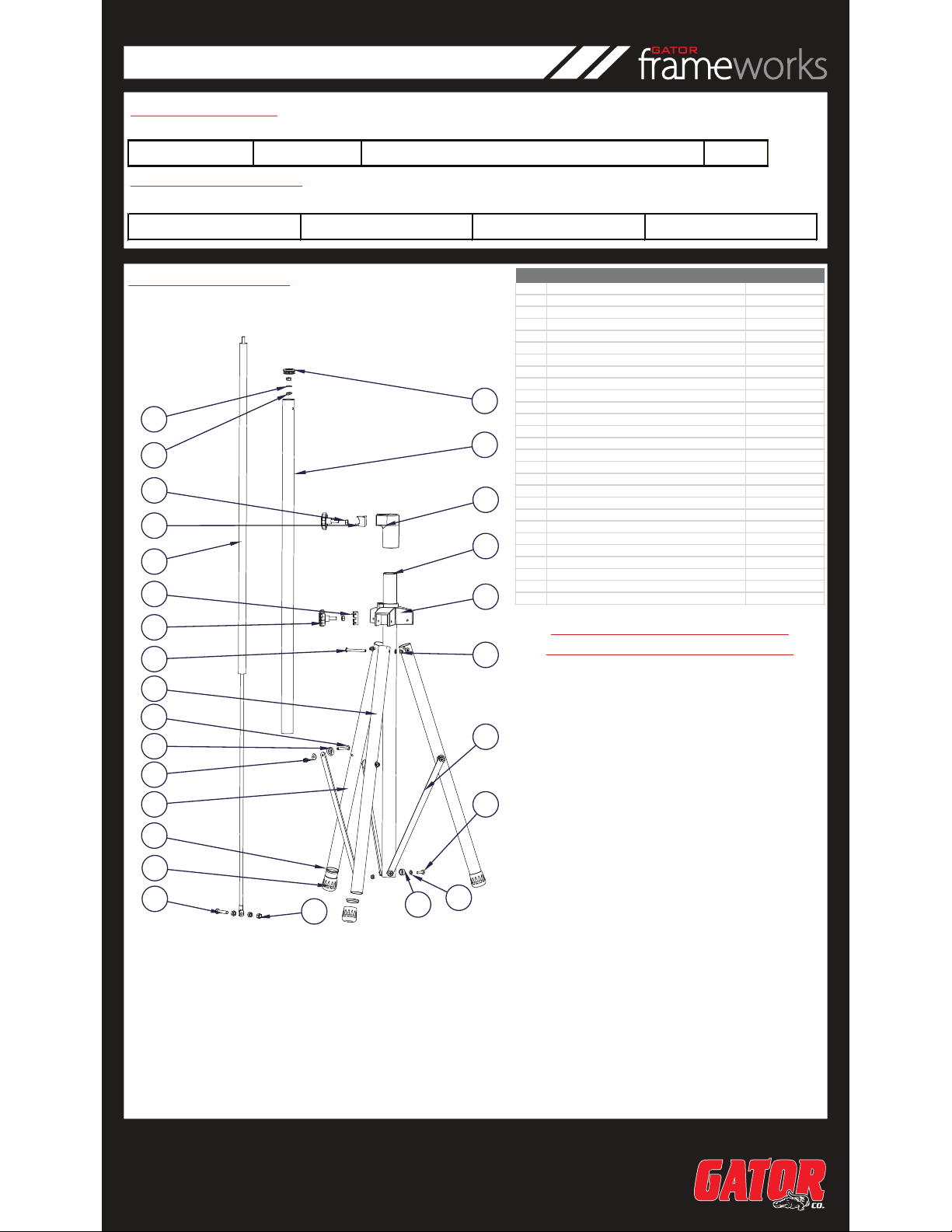

Product Overview
Product Dimensions
Length (inches) Width (inches) Height (inches)
Model UPC Description Color
Weight (pounds)
Shipping Dimensions
Visit Us Today Online @ www.gatorframeworks.com
Call Customer Service For Order Information
1-813-221-4191
GFW-AV-LCD-2
716408532929
1
3
4
5
20 6
9
10
8
7
19
14
15
16
21
22
23
2
24
25
11
13
12
17
18
26
27
GFW-AV-LCD-2 716408532929 Deluxe Tripod LCD/LED stand Black
45.28 5.71 5.31 TBD
CO# DescripƟon Part Number
1 Large inner tubing G logo end cap GFW30107448RP
2Steel telescoping tubing assembly for piston stands GFW40304653NR
3
height adjustment housing for piston dri ven speaker and AV stands
GFW30107522NR
4 Steel main tubing for piston stands GFW20203646NR
5 tripod housing for piston driven stands GFW30107523NR
6 screw M6 GFW60600043NR
7 Speaker AV stand leg brace GFW20104332NR
8 screw M6X20 GFW60300307NR
9 washer for speaker av leg screws GFW60700132RP
10 washer GFW30107521NR
11 screw M8 GFW60600021NR
12 screw M8X45 GFW60300030NR
13 Speaker AV stand rubber feet GFW30101828RP
14 35mm Red rubber ring GFW30107486RP
15 Steel stand leg tubing GFW20203638NR
16 washer GFW20104298NR
17 washer GFW30101803NR
18 screw M6X50 GFW60300003NR
19 Steel leg tubing GFW20103641NR
20 screw for speaker av stand legs M6X53 GFW60300325RP
21 Large G knob with M8x22 bolt GFW40406568RP
22 brake insert for tripod housing GFW30107490NR
23 Piston GFW20600326NR
24
brake insert for piston driven height adjustment housing
GFW30107446RP
25 screw M8*T6 S=13 GFW60600102NR
26 washer ʔ8 GFW60700013NR
27 washer Ɍ8.4*Ɍ16*T1.6 GFW60700166NR
Parts Numbers Ending in ‘RP’
And Bolded Are Replaceable
Rev. 2 - 3/27/2015
