Gator GTRACK3G User manual

1
PRODUCT USER MANUAL
gps tracker
GTRAcK3G
Wired
Network
3G
GPS
Data Recording
+

2
Introduction
Thank you for purchasing the
GTRACK3G GPS Tracker. Please
ensure that you have read the product
manual and instructions in full, prior to
installation and use. Failure to do so
may result in product failure/damage or
incorrect operation and therefore impact
the product performance.
Product overview
The GTRACK3G GPS Tracker has been
designed to offer an efcient, effective
vehicle tracking system for managing
your business eet. A 3G/4G GPS
tracking solution allows you to locate
and track the whereabouts of your
vehicle in real time via the Internet on a
computer or Smartphone.

3
Product features:
• Built-in cellular and GPS antenna for
easy installation
• 3G/4G compatible
• Requires active Text/Data Mini SIM
card (Mobile SIM) not included
• Real-time tracking with history route
• Lithium-ion rechargeable battery
• 3 hour battery backup
• Built-in motion sensor
• Shock/displacement/ low battery/
power off/ over speed alert
• Main power cut off alert
• Power saving sleep mode
• Built-in motion sensor
• ACC detection
• Geo-fence capable
• Remote immobilization
• A-GPS locating (improves startup performance)
• Unit dimension 75x40x12mm
• Weight 39.5g

4
Table of contents
Introduction...................................................p2
Product overview..................................................p2
Product features...................................................p3
Table of contents...................................................p4
Package components...........................................p5
Installation & setup.............................................p6-9
Function commands......................................p10-12
Download Smartphone App................................p12
Login by Smartphone App............................p13-14
Smartphone home screen..................................p15
Device list screen...............................................p16
Historical route screen........................................p17
Geofence location screen...................................p18
Issue command screen.......................................p19
Device screen.....................................................p20
Common command screen................................p21
General command screen..................................p22
Alarm setting screen...........................................p23
Login by Website.................................................p24
LED indicator denition......................................p25
Trouble shooting guide........................................p26
Cautions....................................................p27
Product specications...................................p28-29
SIM card information...........................................p30
APN settings.......................................................p31
Technicalassistance......................................p32-33
IMEI/SIM card number safeguard......................p34

5
Package components
1. GPS tracker
module
2. Relay
and harness
3. Power cable
with in-line
fuse
4. Adhesive
MountPad

6
Activation & Authorisation

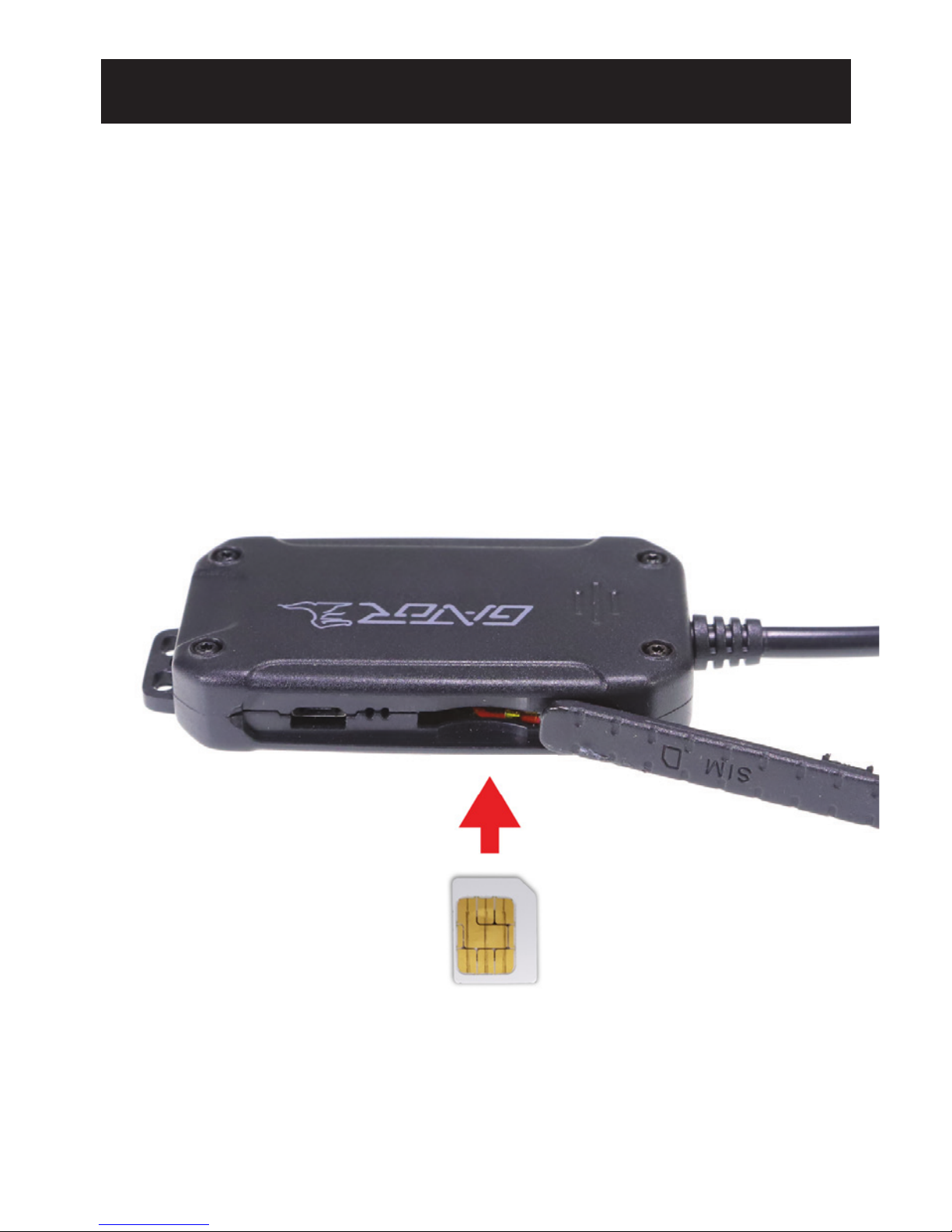

1. Open the rubber plug, Insert an
active Text/Data Mini SIM mini card that
supports 3G/4G/GPRS network into the
slot and make sure the chip side is up.
(Picture 1)
2. Connect power cable and relay
(optional) and follow (Picture 2).

7
3. The Gtrack3G must know who you are
and where to send alerts.
Set ADMIN number, by sending a SMS
command to the SIM card inside your
device.
For example:
admin123456 xxxxxxxxxx
(123456) is the default password.
xxxxxxxxxx is your mobile number.
NOTE: There is a space between
password and mobile number.
Gtrack3G replies (admin okay).
4. Set APN number, by sending a SMS
command to the SIM card inside your
device.
APN123456 SIMCARD PROVIDER
(please use your local APN instead of
CMNET (default), if you do not know the
APN content you should contact your
SIM card supplier).

8
For example:
apn123456 xxxxxxxxxx
(123456) is the default password.
xxxxxxxxxx is your mobile SIM card
provider.
NOTE: There is a space between
password and SIM card provider.
For use in other countries replace the
APN with the corresponding countries
SIM card provider
5. Set the current time by sending a
SMS command to the SIM card inside
your device.
For example:
timezone123456 +10
(VIC daylight savings +10 hours ahead
of GMT).
NOTE: There is a space between
password and GMT time.

9
(Picture 2)

10
Function commands
Function
Text to send to Gtrack3G Reply
apn+123456+space+SIM
provider apn ok
apnuser+123456+space+SIM
provider
apnuser
ok
APN
apnpasswd+123456+space+
SIM provider
apnpasswd
ok
admin
number
admin123456+space+admin
phone number admin ok
time
zone
timezone+123456+space+
GMT No.
timezone
ok
time
sleep sleep123456 time sleep time
ok
shock
sleep
(default)
sleep123456 shock sleep
shock ok
no sleep
sleep123456 off sleep off
ok
upload
frequency
upload123456+space+time upload ok
Desired
circuit
to
immobilise
555 Cut oil OK
Arm &
Disarm 111 or SF Arm delay
in 0s
Position G123456# or where Google
map
Restart rst restart ok
Back to
factory format No reply

11
Function
Text to send to Gtrack3G Reply
apn+123456+space+SIM
provider apn ok
apnuser+123456+space+SIM
provider
apnuser
ok
APN
apnpasswd+123456+space+
SIM provider
apnpasswd
ok
admin
number
admin123456+space+admin
phone number admin ok
time
zone
timezone+123456+space+
GMT No.
timezone
ok
time
sleep sleep123456 time sleep time
ok
shock
sleep
(default)
sleep123456 shock sleep
shock ok
no sleep
sleep123456 off sleep off
ok
upload
frequency
upload123456+space+time upload ok
Desired
circuit
to
immobilise
555 Cut oil OK
Arm &
Disarm 111 or SF Arm delay
in 0s
Position G123456# or where Google
map
Restart rst restart ok
Back to
factory format No reply
Function
Text to send to Gtrack3G Reply
apn+123456+space+SIM
provider apn ok
apnuser+123456+space+SIM
provider
apnuser
ok
APN
apnpasswd+123456+space+
SIM provider
apnpasswd
ok
admin
number
admin123456+space+admin
phone number admin ok
time
zone
timezone+123456+space+
GMT No.
timezone
ok
time
sleep sleep123456 time sleep time
ok
shock
sleep
(default)
sleep123456 shock sleep
shock ok
no sleep sleep123456 off sleep off
ok
upload
frequency
upload123456+space+time upload ok
Desired
circuit
to
immobilise
555 Cut oil OK
Arm &
Disarm 111 or SF Arm delay
in 0s
Position G123456# or where Google
map
Restart rst restart ok
Back to
factory format No reply

12
Function
Text to send to Gtrack3G Reply
apn+123456+space+SIM
provider apn ok
apnuser+123456+space+SIM
provider
apnuser
ok
APN
apnpasswd+123456+space+
SIM provider
apnpasswd
ok
admin
number
admin123456+space+admin
phone number admin ok
time
zone
timezone+123456+space+
GMT No.
timezone
ok
time
sleep sleep123456 time sleep time
ok
shock
sleep
(default)
sleep123456 shock sleep
shock ok
no sleep
sleep123456 off sleep off
ok
upload
frequency
upload123456+space+time upload ok
Desired
circuit
to
immobilise
555 Cut oil OK
Arm &
Disarm 111 or SF Arm delay
in 0s
Position G123456# or where Google
map
Restart rst restart ok
Back to
factory format No reply
Downloading Smartphone APP
For iPhone: search “GTRACK3G” in the
App Store to download
For Android: search “GTRACK3G” in the
App Google play store to download
For further instructions of the Apps
functionality, go to
www.tdj.com.au/help-downloads
and search for your product name

13
Log in by Smartphone APP
Log in by IMEI/ID
Function
Text to send to Gtrack3G Reply
apn+123456+space+SIM
provider apn ok
apnuser+123456+space+SIM
provider
apnuser
ok
APN
apnpasswd+123456+space+
SIM provider
apnpasswd
ok
admin
number
admin123456+space+admin
phone number admin ok
time
zone
timezone+123456+space+
GMT No.
timezone
ok
time
sleep sleep123456 time sleep time
ok
shock
sleep
(default)
sleep123456 shock sleep
shock ok
no sleep
sleep123456 off sleep off
ok
upload
frequency
upload123456+space+time upload ok
Desired
circuit
to
immobilise
555 Cut oil OK
Arm &
Disarm 111 or SF Arm delay
in 0s
Position G123456# or where Google
map
Restart rst restart ok
Back to
factory format No reply

14
Log in by Smartphone APP
Log in by Username (pending)

15

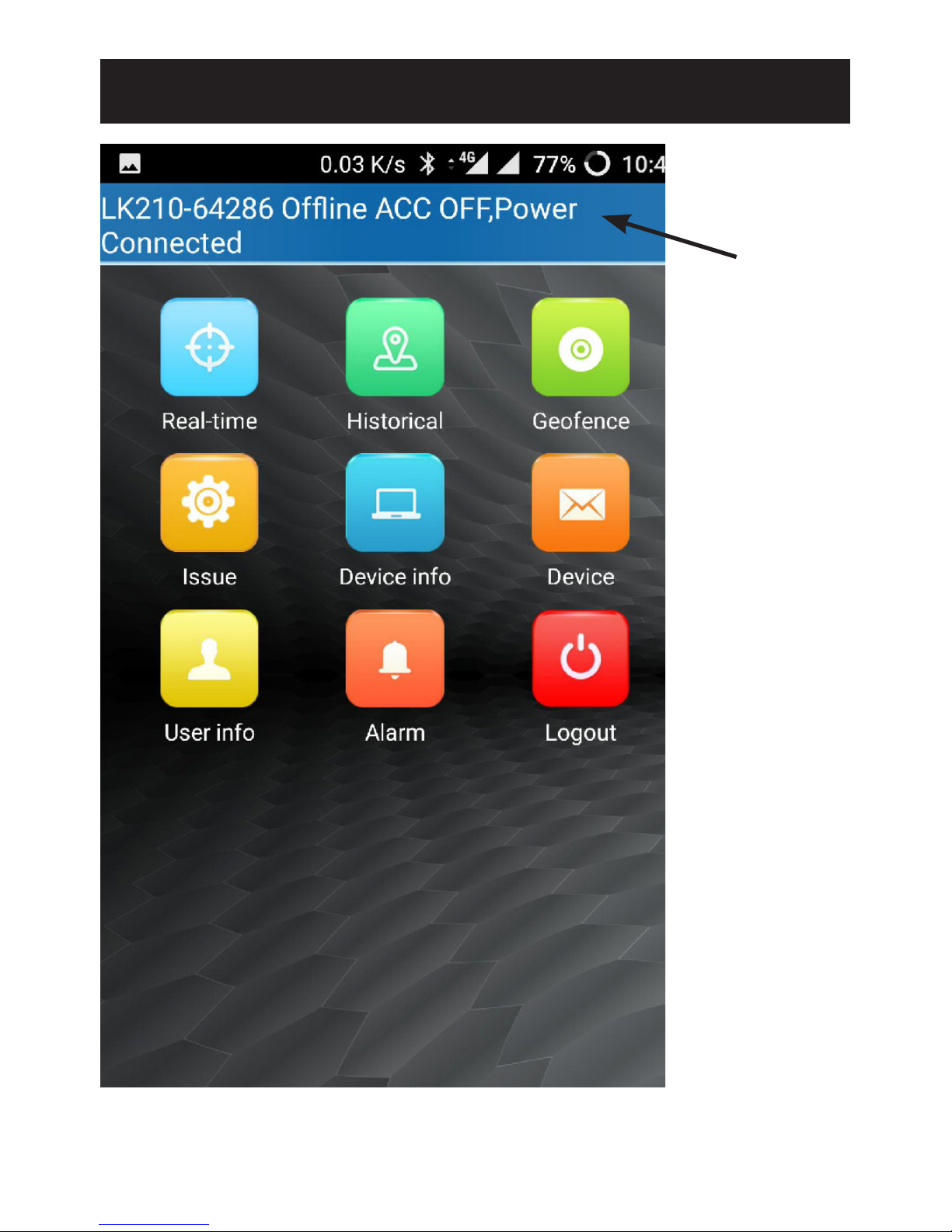

Home screen
Device
status
info

16

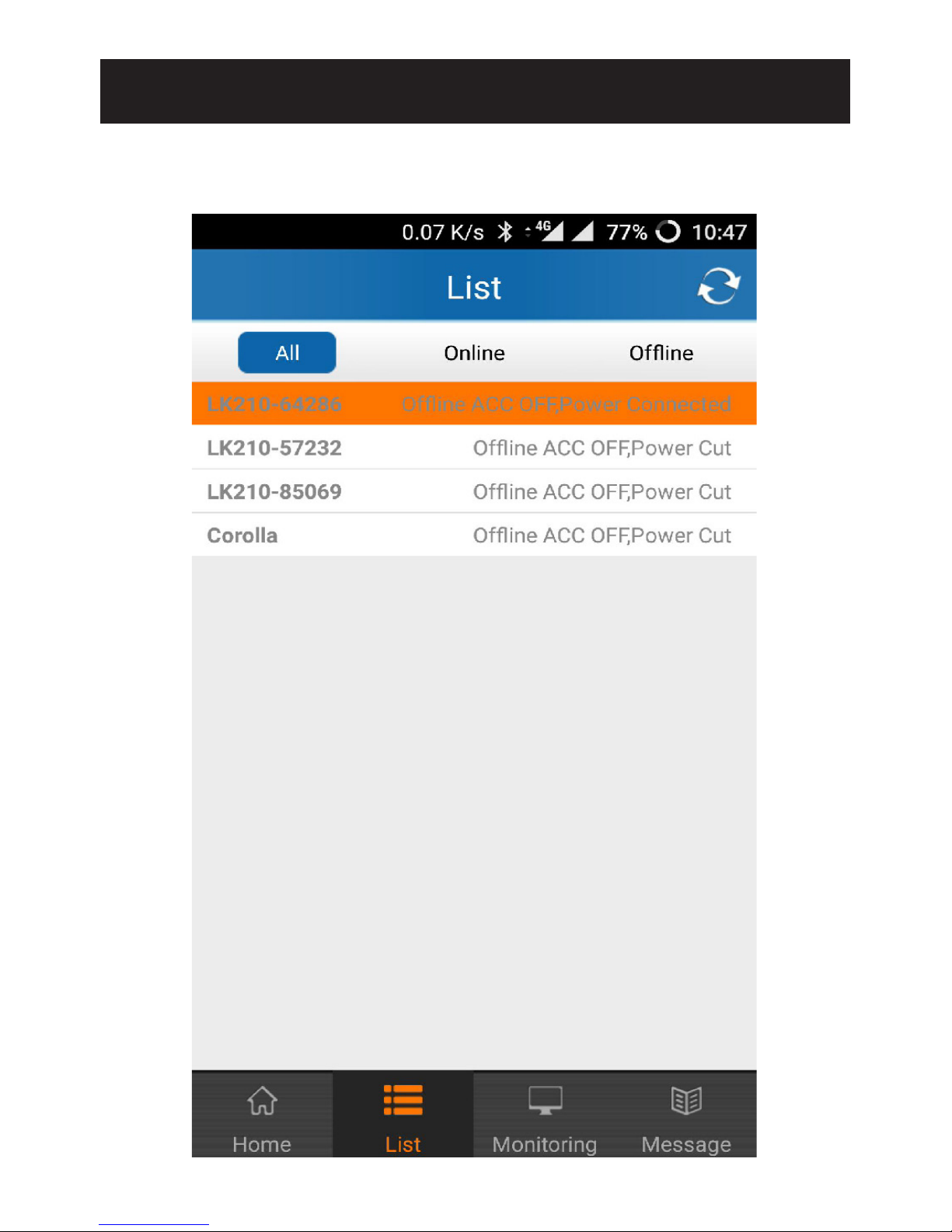

Device List screen

17

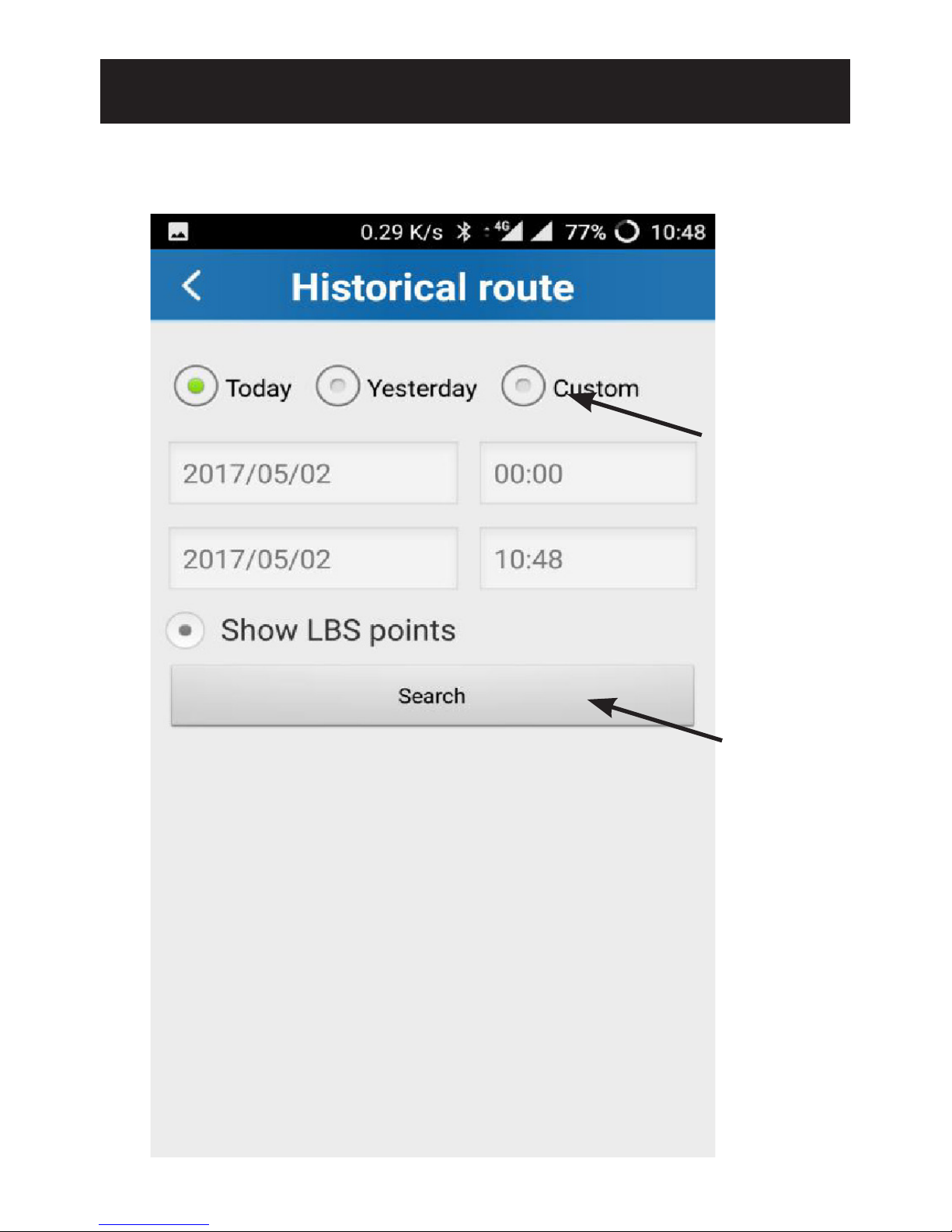

Historical route screen
Set a
time
range
LBS
location

18

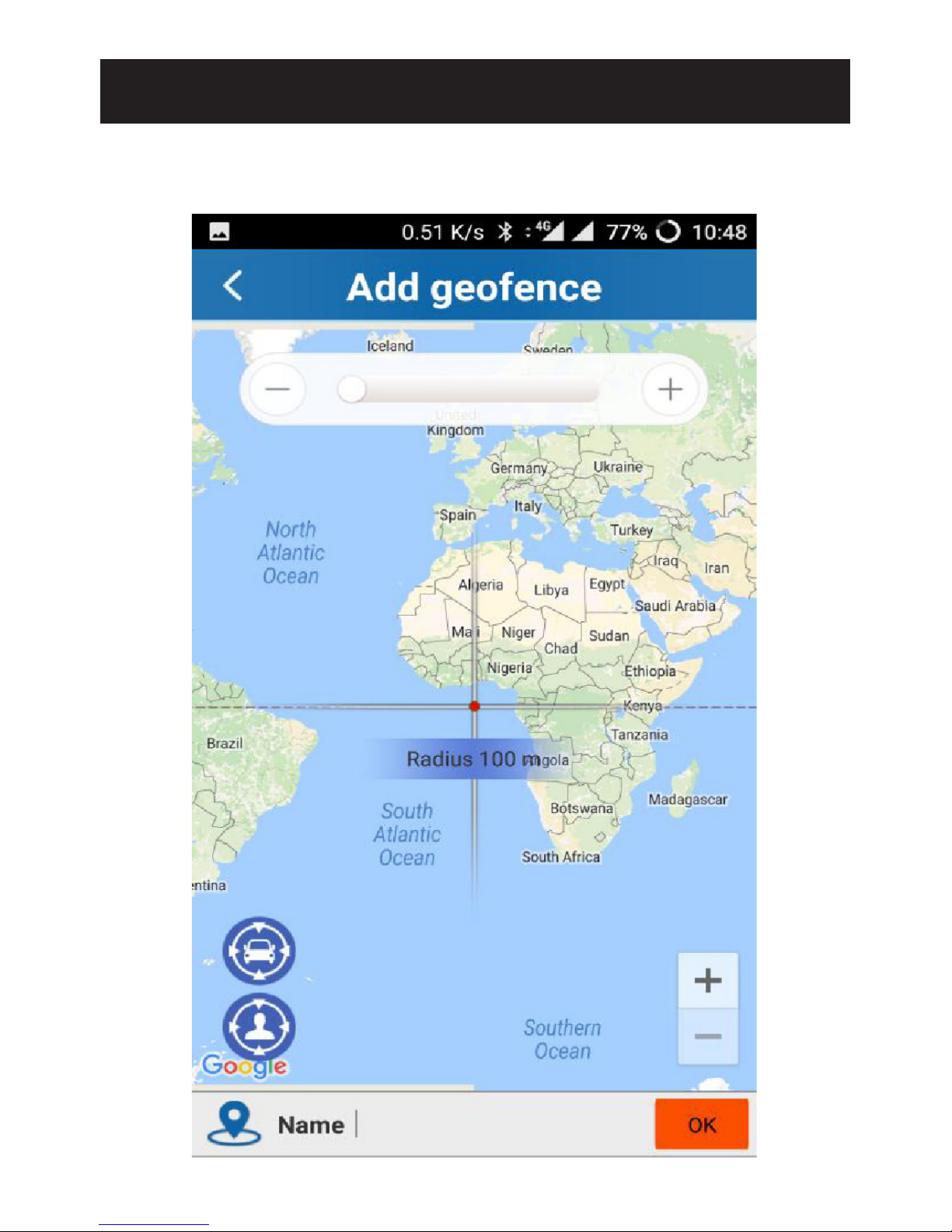

Geofence location screen

19

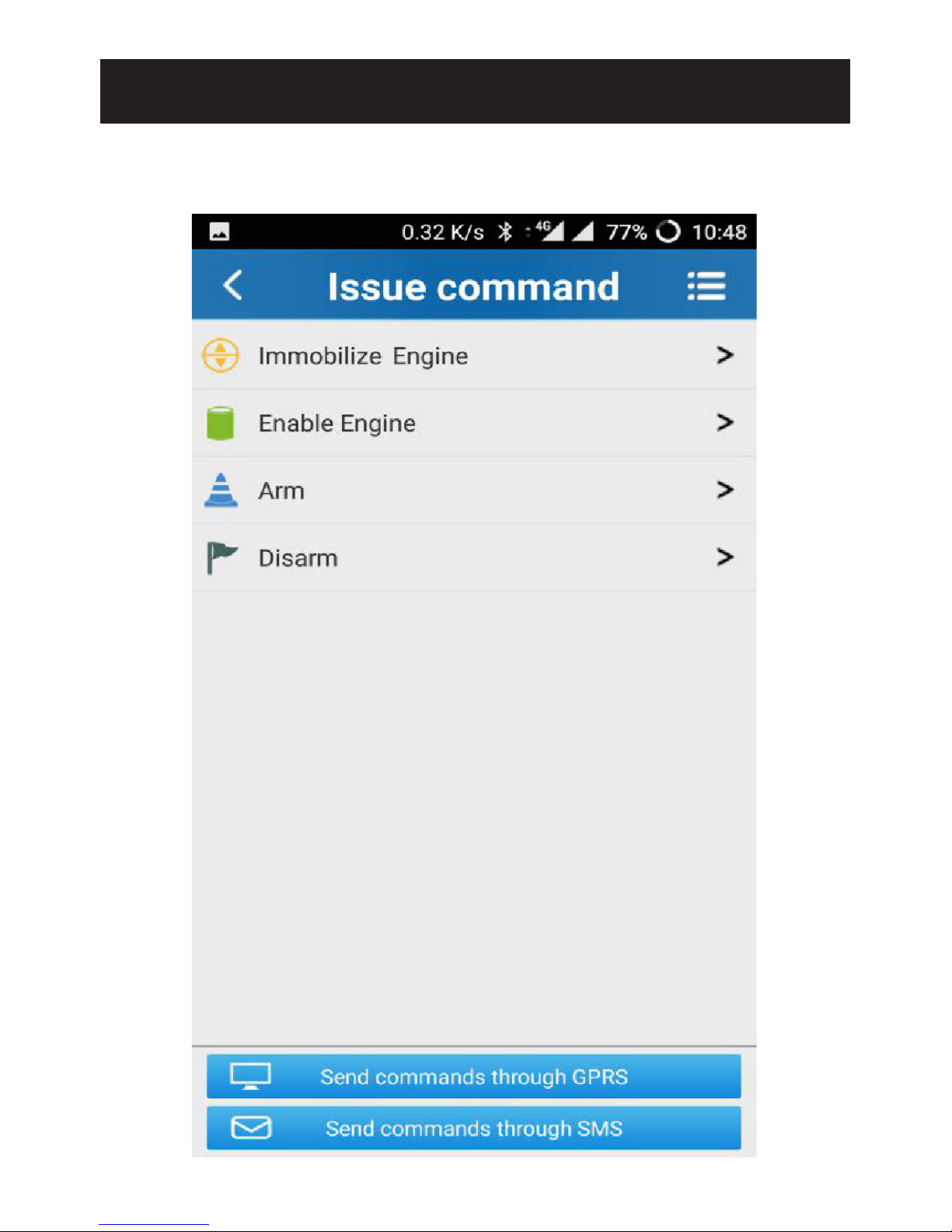

Issue command screen

20

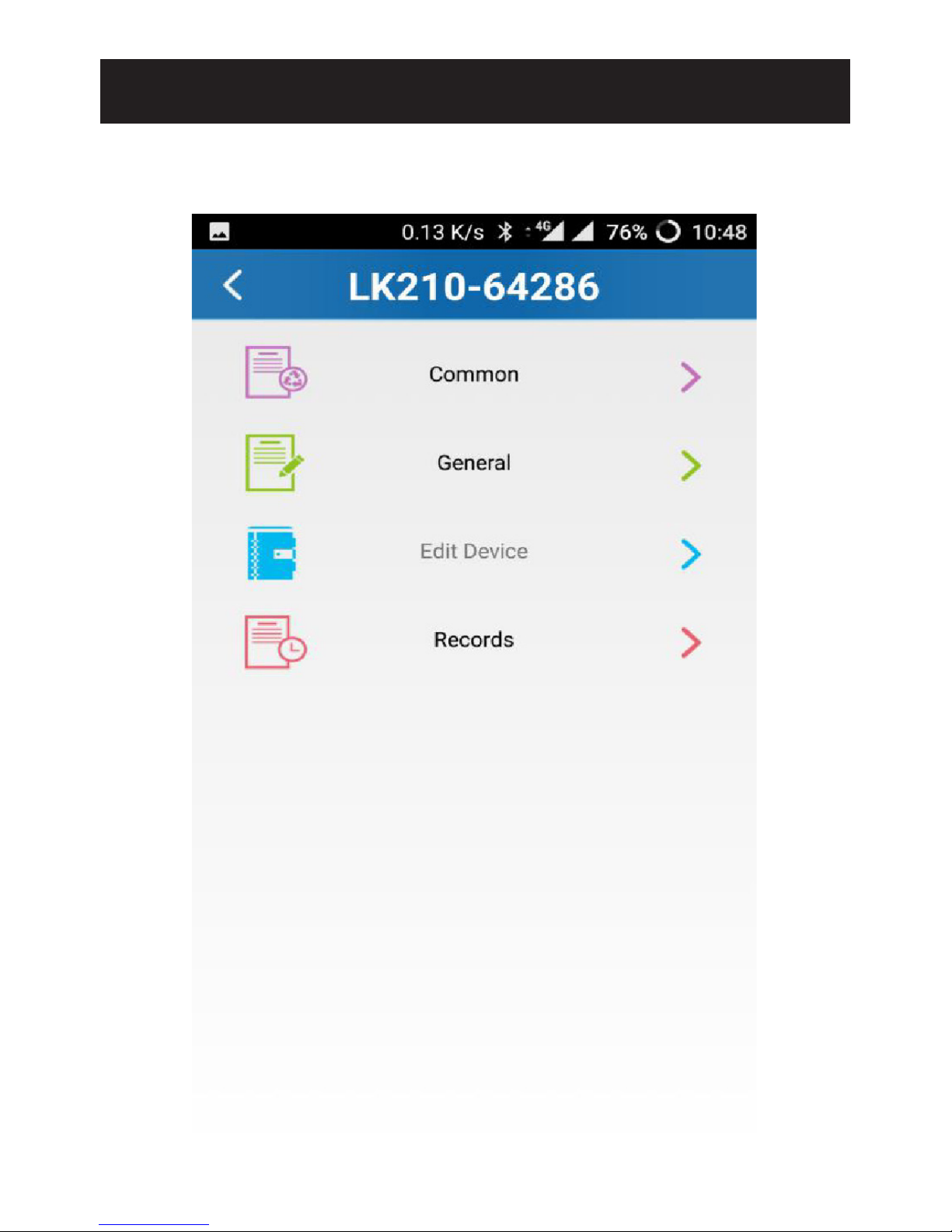

Device screen
