Gavita Pro 1000e User manual

Gavita
Pro line
Pro 750 / 1000 DE US
ee

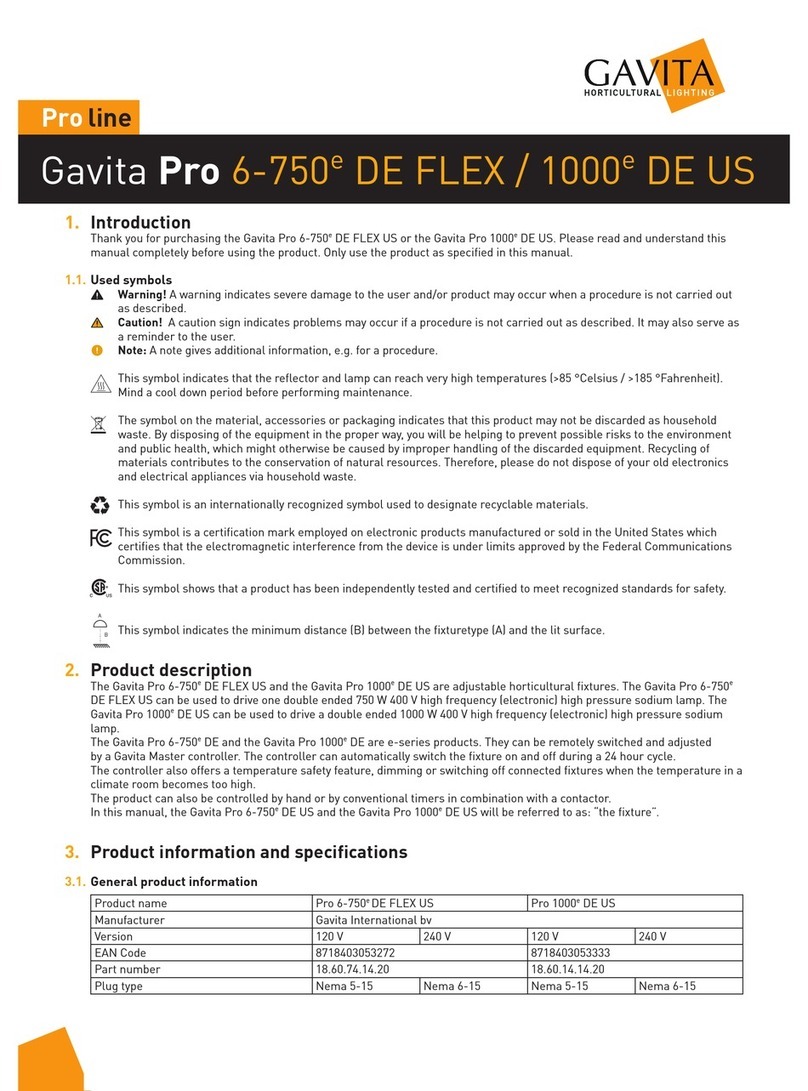

1. Introduction
Thank you for purchasing the Gavita Pro 750e DE US or the Gavita Pro 1000e DE US. Please read and understand this manual
completely before using the product. Only use the product as specified in this manual.
1.1. Used symbols
Warning! A warning indicates severe damage to the user and/or product may occur when a procedure is not carried out
as described.
Caution! A caution sign indicates problems may occur if a procedure is not carried out as described. It may also serve as
a reminder to the user.
Note: A note gives additional information, e.g. for a procedure.
This symbol indicates that the reflector and lamp can reach very high temperatures (>85 °Celsius / >185 °Fahrenheit).
Mind a cool down period before performing maintenance.
The symbol on the material, accessories or packaging indicates that this product may not be discarded as household
waste. By disposing of the equipment in the proper way, you will be helping to prevent possible risks to the environment
and public health, which might otherwise be caused by improper handling of the discarded equipment. Recycling of
materials contributes to the conservation of natural resources. Therefore, please do not dispose of your old electronics
and electrical appliances via household waste.
This symbol is an internationally recognized symbol used to designate recyclable materials.
This symbol is a certification mark employed on electronic products manufactured or sold in the United States which
certifies that the electromagnetic interference from the device is under limits approved by the Federal Communications
Commission.
This symbol shows that a product has been independently tested and certified to meet recognized standards for safety.
A
B
This symbol indicates the minimum distance (B) between the fixturetype (A) and the lid surface.
2. Product description
The Gavita Pro 750e DE US and the Gavita Pro 1000e DE US are adjustable horticultural fixtures. The Gavita Pro 750e DE US can
be used to drive a double ended 750 W 400 V high frequency (electronic) high pressure sodium lamp. The Gavita Pro 1000e DE
US can be used to drive a double ended 1000 W 400 V high frequency (electronic) high pressure sodium lamp.
The Gavita Pro 750e DE and the Gavita Pro 1000e DE are e-series products. They can be remotely switched and adjusted
by a Gavita Master controller. The controller can automatically switch the fixture on and off during a 24 hour cycle.
The controller also offers a temperature safety feature, dimming or switching off connected fixtures when the temperature in a
climate room becomes too high.
The product can also be controlled by hand or by conventional timers in combination with a contactor.
In this manual, the Gavita Pro 750e DE US and the Gavita Pro 1000e DE US will be referred to as: “the fixture”.
3. Product information and specifications
3.1. General product information
Product name Pro 750e 120/240 DE US Pro 1000e 120/240 DE US
Manufacturer Gavita Holland bv
Version 120 V 240 V 120 V 240 V
EAN Code 8718403053272 8718403053333
Part number 18.60.74.14.20 18.60.14.14.20
Plug type Nema 5-15 Nema 6-15 Nema 5-15 Nema 6-15

3.2. Technical specifications
Version Pro 750e 120/240 DE US Pro 1000e 120/240 DE US
Product weight 6.35 kg
Dimensions (L*W*H) 58.5x24x26.5 cm / 23x9.5x10.4” (height excl. mounting hooks)
Temperature case 75 °Celsius / 167 °Fahrenheit
Temperature ambient 0 ~ 35 °Celsius / 32 ~ 95 °Fahrenheit
Input voltage +/-10% 120 V AC 240 V AC 120 V AC 240 V AC
Input current at 100% 7.6 A 3.5 A 9.3 A 4.6 A
Input current at 110/115% 8.3 A 3.9 A 10.6 A 5.3 A
Input power at 100% 805 W 795 W 1085 W 1055 W
Input power at 110/115% 880 W 870 W 1240 W 1210 W
Power factor 0.95 - 0.98
Total Harmonic Distortion < 10%
Frequency 50 - 60 Hz
Certification c CSA us
Insulation Class 1 - requires an earth connection
Power inlet IEC C14
Power output settings (plus EXT) 400/500/600/750/825 Watt /EXT 600/750/825/1000/1150 Watt /EXT
External dim: Gavita Master controller analog protocol (<11.5V)
External control signal: RJ14 connector build in (6P4C)
Ignition voltage: 5 kV / 600 ms
Inrush current: ≤ 50 Amps ≤ 37.5 Amps ≤ 50 Amps ≤ 37.5 Amps
3.3. Compatible products and accessories
Product name Gavita part number
Compatible controllers Gavita EL1 Master controller 60.56.00.12.20
Gavita EL 2 Master controller 60.56.00.24.11
Replacement reflector HortiStar HR96 1000 DE 30.46.02.10
Compatible lamps Gavita Pro 1000 W EL 400V 21.10.16.12
Gavita Pro 1000 W EL DE HPS 26.10.16.11
Gavita Pro 750 W EL DE FLEX HPS 26.74.16.11
Compatible power cords Power cord US 120 V NEMA 5-15, 5 meter / 16 ft 60.30.40.11
Power cord US 240 V NEMA 6-15, 5 meter / 16 ft 60.30.40.09
Compatible interconnect cables
Interconnect cable RJ14, 0.6 meter / 2 ft 60.50.00.08
Interconnect cable RJ14, 1.5 meter / 5 ft 60.50.00.04
Interconnect cable RJ14, 2.4 meter / 8 ft 60.50.00.09
Interconnect cable RJ14, 3 meter / 10 ft 60.50.00.10
Compatible splitter 3 way RJ14 cable splitter 60.50.00.01
3.4. Environment
The product is meant for use in climate rooms. The product may be used in damp environments. The product may not be used
in wet environments or outdoors. The Gavita Pro 750 W and 1000 W lamps function optimal when the ambient temperature is
between 20 ~ 30 °Celsius / 68 ~ 86 °Fahrenheit.
3.5. Legislation
This device complies with Part 18 of the FCC Rules.
CSA approved.

4. Safety recommendations and warnings
Warning! Carefully read the warnings below before using or working with the product!
• Always adhere to the local rules and regulations when installing or using the fixture.
• This product may cause interference to radio equipment and should not be installed near maritime safety communications
equipment or other critical navigation or communication equipment operating between 0.45 - 30 MHz.
• Do not use the fixture when either its lamp or its power cord are damaged. Replace the power cord only with original
certified cords. Replace the lamp only with lamps specified by Gavita (see paragraph 3.3).
• The use of other lamps may damage the product and lamp and will void the warranty.
• Modifications to the cords can lead to unwanted electromagnetic effects, which makes the product not comply with legal
requirements.
• Do not expose the fixture to:
-condensing humidity, heavy mist, fog or direct spray;
-(ambient) temperatures outside the specified range;
-dust and contamination;
-direct sunlight during use or HID light that could heat up the ballast.
• Always disconnect the fixture from mains before performing any maintenance.
• Always allow for a cool down period of at least 30 minutes before touching the lamp or reflector. Touching the lamp or the
reflector when the lamp is lit or immediately afterwards will result in severe burns!
• Never touch the lamp with bare hands as this will cause damage to the lamp.
• Do not use the fixture near flammable, explosive or reactive substances. The lamp and the reflector of the fixture reach
temperatures of >85 °Celsius / 185 °Fahrenheit.
• Do not use sulfur vaporizers or water misters. Sulfur and calcium deposits on your reflector will decrease its efficiency.
• The installation and use of the fixture is the responsibility of the end user. Incorrect use or installation can lead to failure
and damage to the fixture. Damage to the fixture and electronic circuitry as a result of incorrect installation and use
revokes the warranty.
5. Contents (1)
A. Pro 750e DE / 1000e DE fixture
1. Electronic ballast
2. Pro-line bracket
3. Lever to unlatch reflector
4. Lamp sockets
5. Reflector Hortistar HR96 750/1000 DE
6. Mounting points
B. Threeway control cable splitter (3xRJ14)
C. 2x Interconnect/ drop cable (RJ14/RJ14 )
Cable length: 1.5 m / 5 ft
D. Gavita Pro 750 W / 1000 W EL 400 V lamp
E. Power cord with either NEMA 5-15 or
NEMA 6-15 plug
6. Controls, connections and
indications (2)
A. Female RJ14 port for controller input
B. Power output selector knob
C. Status LED
D. IEC connector for power cord
A6
A1
A6
E
B
A3
A5
A6
A1
A6
D
B
A3
A5
EA4
EA4
CC
EE
A2A2
1.
A
B
C
A
B
C
BD
2.
NEMA 5-15
NEMA 6-15

7. Installing the fixture
Warning! Avoid coiled cords. Coiled cords may lead to electromagnetic
interference.
Warning! Always install the lamp before connecting the fixture to the mains.
Warning! When connecting the fixture to the controller it may ignite. Make sure
either power is disconnected or the controller is switched off.
Warning! Ensure the local cabling can support the voltage and current
requirements of the fixture.
7.1. Preparing the fixture for use
• Switch off mains power.
• Install the lamp in the fixture (see paragraph 10.1).
• Hang the lamp by its two mounting points (3). The two mounting point are spaced
407 mm/16 inches apart.
7.2. Connecting the fixture to a controller (controller required)
Note: A RJ14 splitter is provided with the fixture to allow for a group of up to 40
fixtures to be daisy chained to one controller port (4).
For more information on connecting fixtures to a controller, consult the controller
manual.
• Switch the power selector knob on the Gavita ballast to the “EXT” (5) position.
• Connect the controller to the included RJ14 splitter (4D) using the controller’s
connection cable (4C).
• Connect one output of the splitter to the RJ14 plug of the fixture using the
interconnect cable (4E). The indicator light on the ballast will blink when the
connection is successful.
• Connect the other output of the splitter to the input of the following RJ14 splitter
using an interconnect cable (4F).
• Repeat this process to connect up to 40 ballasts per controller port (4A/B).
Warning! Ensure the power cord and the controller cable do not touch the
reflector.
7.3. Connecting the fixture to the mains
Warning! Ensure the cord is not coiled and does not touch any hot surfaces.
Warning! If external switching gear is used to switch the fixture, ensure it can
cope with the inrush current of the fixture (see paragraph 3.2). Always use
a double throw contactor suitable of switching a capacitive load. Never use
household timers to switch the fixture!
• If a controller is used, ensure the controller is connected to the fixture.
• Plug the power cord into the mains.
• Switch on mains power.
8. Product use
Warning! Never use the fixture without a lamp or reflector!
Caution! Before you dim or boost your HPS lamp, make sure that you run it at
nominal value (100%) for at least 100 hours to stabilize the lamp. Failing to do
so may lead to sub-optimal light levels and premature end of life failure of your
lamp.
8.1. Adjusting the output of the lamp manually
Note: Adjustment occurs gradually (60 seconds per step) to increase the lifespan
of the lamp.
• Turn the output control knob to adjust the output of the lamp:
-Pro 750e DE: 400/500/600/750/825 Watt /EXT (6);
-Pro 1000e DE: 600/750/825/1000/1150 Watt /EXT.
8.2. Using the controller to adjust the output of the lamp
The lamp is steplessly variable when connected to a controller.
-Pro 750e DE: 50-110%;
-Pro 1000e DE: 50-115%.
Consult the manual of the controller for more information on controlling the output
of the lamp.
407 mm / 16 inch
3.
1000W
1 m -
40 in
750W
0.75 m -
30 in
Max 40 Ballast
Main Channel
Aux Channel
E
Max 40 Ballast
D C
A B
F
E
F
C
D
4.
400
500
600 750
825
EXT
Gavita Pro 6/750 FLEX
e
5.
400
500
600 750
825
EXT
Gavita Pro 6/750 FLEX
e
6.

9. Troubleshoot using the status LED
The multi colour status LED provides information on the condition of the controller and the lamp. Consult table 1 and 2 to
interpret the status LED. LED signals are represented by colored dots.
- All operating modes include GREEN;
- All warning codes include RED;
- All history codes (except the ignition code) include ORANGE;
- WARNINGS and history codes overrule operating mode display.
9.1. Status indications
Status LED message Status fixture Description Action/Solution
 No power / off The fixture is not connected to the
mains or the power is off Check power
Ballast stand-by
(on EXT)
Fixture is connected to the mains and
to a controller. Output of ballast is off
 Ballast on
(on EXT)
Fixture is connected to the mains and
to a controller. Output of ballast is on
 Ballast on (Manual
dim)
Fixture is connected to the mains and
set to manual output
Fixture is igniting
the lamp Fixture is trying to restart the lamp
No action required. When lamp doesn’t
start: Lamp too hot, defect or not
properly connected (remote). Disconnect,
check power cord and connections
9.2. Error or warning indications
Status LED message Status fixture Description Action/Solution
Too low voltage Input voltage is too low Check mains voltage
Too low voltage
occured in past See above, reset
 Too high voltage Input voltage is too high Check input voltage, check wiring and connection,
check neutral in 3 phase systems
 Too high voltage
occured in past See above, reset
 Too high
temperature
Electronics
temperature is too high
(max. 115 °Celsius/
239 °Fahrenheit)
Disconnect from mains. Check installation, clean
ballast, check environment temperature
(max 35 °Celsius/ 95 °Fahrenheit). Make sure fixture
is not heated by HPS lamp light. Wait untill the lamp is
cooled down, then reconnect to mains

Too high
temperature
occured in past
See above, reset
 No signal from
controller (on EXT)
Fixture is connected
to the mains and set
to EXT but there is no
signal on the control
input.
If a controller is connected, search for loose
connections, defect contacts or short-circuits.
Table 1
Table 2

10. Inspection, maintenance and repair
Warning! Disconnect the product from mains before performing any
maintenance or repairs.
Warning! Do not open or disassemble the fixture, it contains no servicable parts
inside. Opening the fixture can be dangerous and will void the warranty.
Warning! Always allow for a cool down period of at least 30 minutes before
touching the lamp or reflector.
Caution! Do not clean the fixture with detergents, abrasives or other agressive
substances.
Caution! Do not touch the inside of the reflector during installation and do not
use water, abrasives or detergents to clean it. This will damage the reflective
surface.
Caution! Wait 20 minutes before activating the fixture after maintenance work
has been conducted.
• Regularly check the fixture for dust or dirt buildup. Clean if necessary.
Contamination may couse overheating and decreased performance.
-Clean the inside of the reflector only with a soft, dry cloth;
-Clean the electronic ballast and the outside of the fixture using a dry or damp
cloth.
• Check the lamp monthly for discolorations or black markings. Always replace a
damaged lamp.
Note: Before initial use, the lamp could have black markings. This will disappear
when the lamp runs on full power. If not, replace the lamp.
• Regularly check the wiring of the product to ensure it is undamaged.
10.1. Placement and replacement of the lamp
Caution! Do not touch the lamp with bare hands as this will damage the lamp.
Always use a fabric glove to handle the lamp.
Caution! Only use lamps specified by Gavita (see paragraph 3.3).
Note: The lamp must be replaced every year or after 5000 lighting hours,
whichever one comes first.
• Switch off mains power.
• Hold the lamp with a fabric glove to prevent it from falling. Use a protective glove
if the lamp is damaged.
• Open the lamp holders by sliding them outwards (7).
• Carefully take the lamp out of the fixture (8).
• Install the new lamp with the getter (A) near the ballast (9), with the glass
vacuum seal pointed downwards (Philips lamp) or sideways (Gavita lamps).
• Use a fabric glove to carefully press the lamp in the fitting until the metal
springs hold the lamp.
• Close the lamp holders by sliding them inwards (10).
• Switch on mains power.
7.
8.
A
9.
10.

10.2. Placement and replacement of the reflector
Note: Gavita recommends replacing the reflector after 5000 lighting hours.
Depending on the environment and contamination levels the reflector will degrade.
The vega/Miro™ aluminum can not be cleaned without damage. Therefore we
recommend to change the reflector once every year. Also replace the lamp when
replacing the reflector.
• Switch off mains power.
• Remove the lamp from the fixture (see paragraph 10.1).
• Support the reflector on the side of the reflector lever to prevent it from falling
(11).
• Move the reflector lever up to retract the two pins holding the reflector in place
(12).
• Remove the reflector (13).
• Place the new reflector. Ensure the reflector lever is in the opened position to
allow the reflector to pass.
• Ensure the holes in the reflector are aligned with the pins in the fixture (14).
• Release the reflector lever so its two pins hold the reflector in place.
• Insert the lamp in the lamp holder (see paragraph 10.1).
• Switch on mains power.
11. Storage and disposal
• Store the fixture in a dry and clean environment, with an ambient temperature of
-20 ~ 85 °Celsius / -4 ~ 185 °Fahrenheit.
• The product must not be discarded as unsorted municipal waste, but must be
collected separately for the purpose of treatment, recovery and environmentally
sound disposal.
Caution! The lamps are chemical hazardous waste and must be delivered to the
designated authorities.
Caution! The lamp contains mercury.
12. Warranty
Gavita Holland warrants the mechanical and electronic components of their product
to be free of defects in material and workmanship if used under normal operating
conditions for a period of three (3) years from the original date of purchase. If the
product shows any defects within this period and that defect is not due to user error
or improper use Gavita Holland shall, at its discretion, either replace or repair the
product using suitable new or reconditioned products or parts. For HPS lamps the
warranty period is one (1) year from the original date of purchase. In case Gavita
Holland decides to replace the entire product, this limited warranty shall apply to
the replacement product for the remaining initial warranty period, i.e. three (3) years
from the date of purchase of the original product. For service return the fixture to
your shop with the original sales receipt.
11.
12.
13.
14.
