Gazelle E6100 User manual

User Manual
Gazelle with Shimano Steps
E6100 and E5000-System

Table of contents
Safety 4
General 4
Legal requirements 4
- Significance for the user 4
- Safety and warranty 5
- Waste disposal 5
Battery 5
Charger 6
Motor 6
Maintenance and repair 7
Transporting the bike 7
- Transporting the bike by car 7
- Transporting the bike by train 7
- Transporting the bike by air 7
Warranty and service life 7

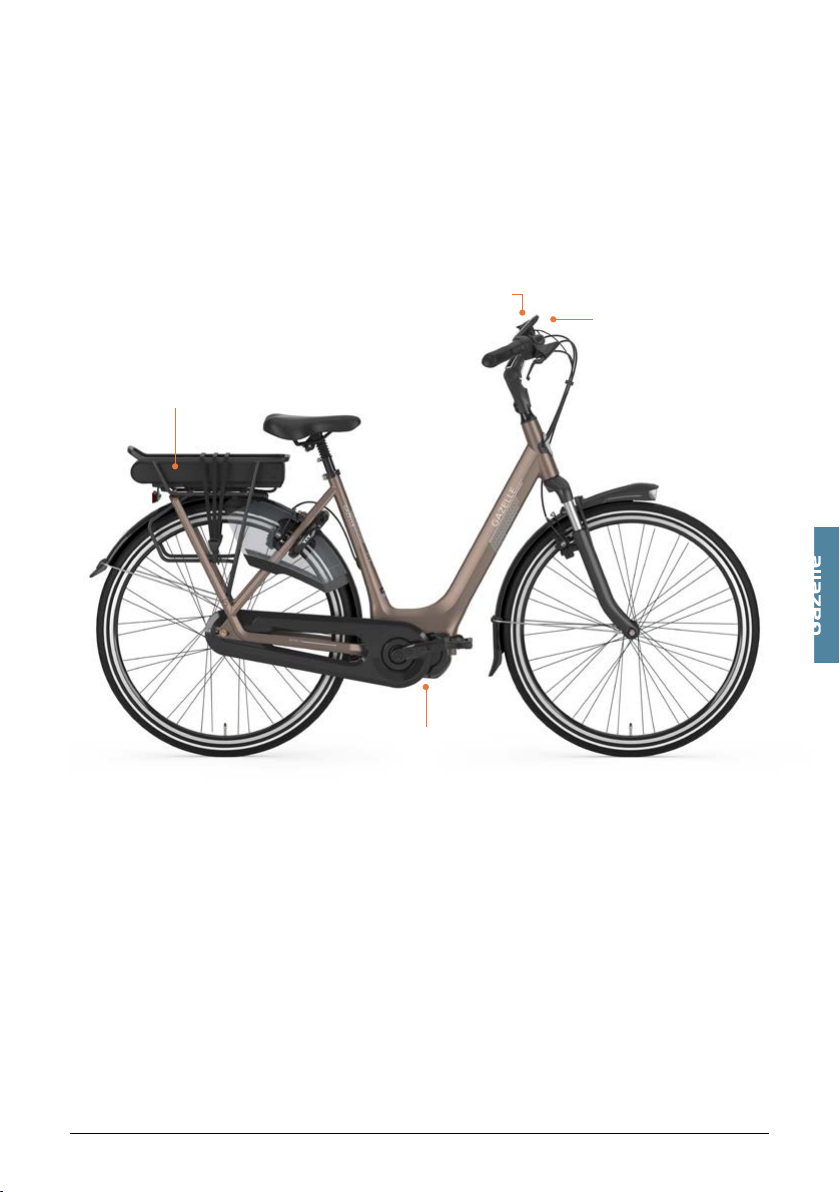

Bike configuration 9
with carrier battery 9
Important Notice 10
Important safety information 10
To ensure safety 10
Features of Shimano Steps 14

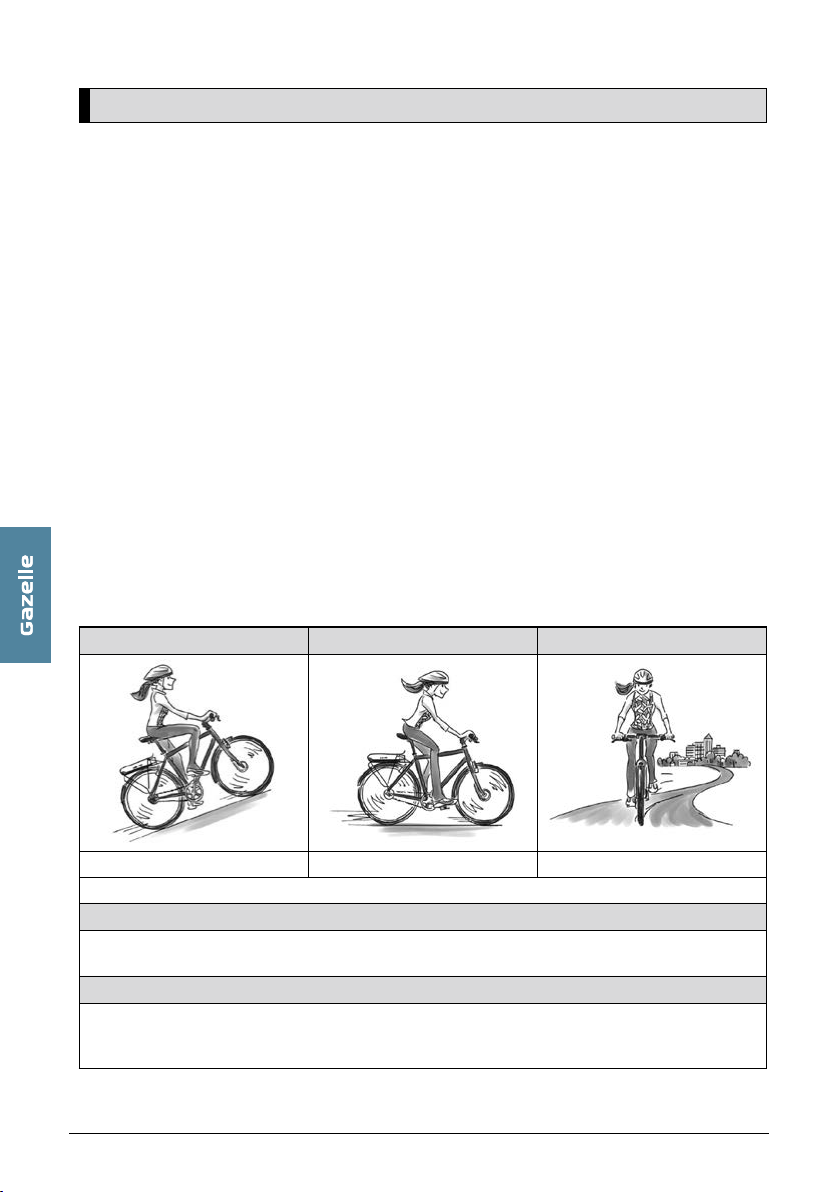

Assist mode 14
Start your Steps 15

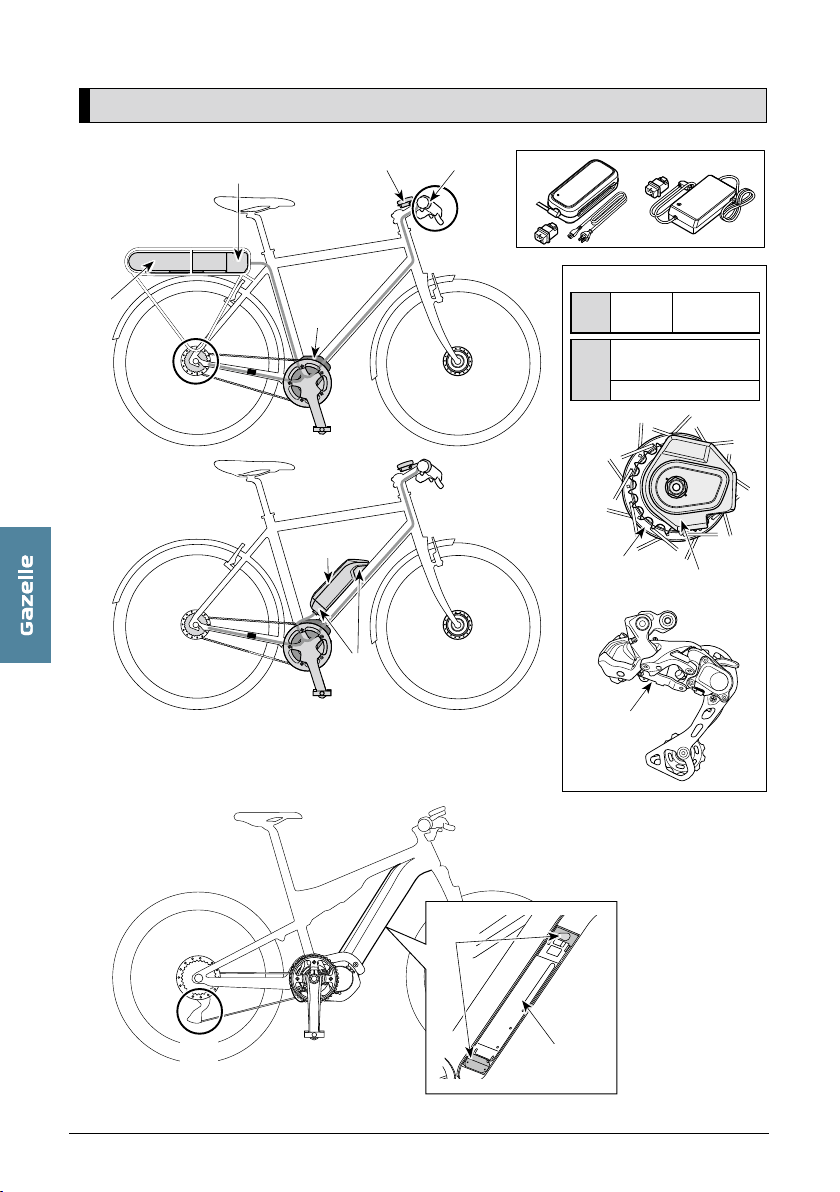

Names of parts 18
Specifications 20
Preparation 20
Charging the battery 20
Charger LED lamp 24
Battery LED lamp 24
Handling the battery 25
Installing and removing the battery 26
Operation 32
Turning the power ON / OFF 32
Basic operation 34
Turning the light ON / OFF 36
Basic status display 37

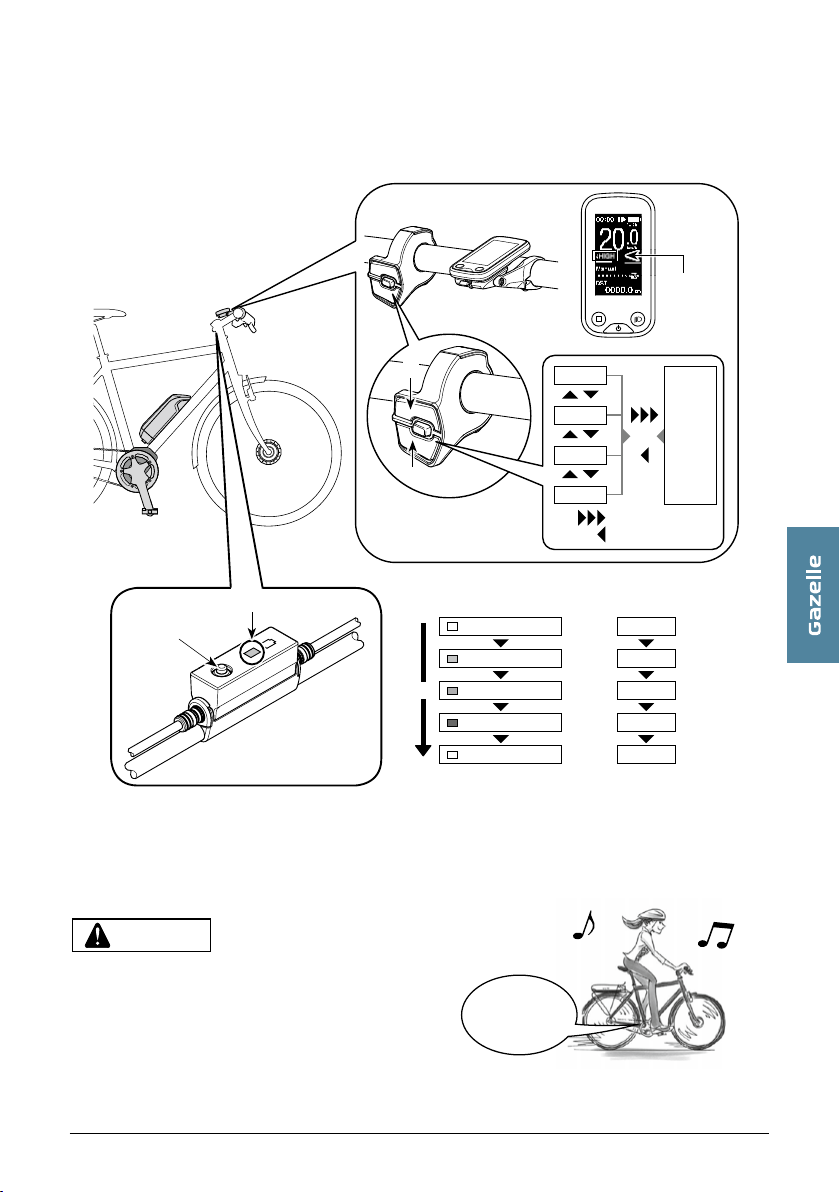

Changing the assist mode 39
Walk assist mode 40
Setting menu (SC-E6100) 42
Settings (EW-EN100) 56
Drive unit setting data backup function 56
Connection and communication with
devices 57
Errors and remedies 58
Battery LED lamp error indications 58
Error messages on the cycle computer 60
Error indications (EW-EN100) 61
Troubleshooting 62
Warning about poten-
tial injury, increased
fall or other injury risk.
Reference to poten-
tial damage to prop-
erty or the environment.
Important supple-
mentary information
or special information about
the use of the bike.
2

Congratulations on
your Gazelle!
Congratulations on your Gazelle with the innovative Shimano Steps
system. This bike provides you with assistance on the move by
means of an innovative electric drive system. This will make your
cycling a great deal more enjoyable when riding into headwinds and
carrying your belongings. You can choose how much of a boost you
would like.This manual will help you discover all the advantageous
features of your bike and use them correctly as you wish.
We strongly advise you to read through this manual attentively.
This manual constitutes a supplement to the general user manual.
This manual is written in general terms. This means that
certain articles will apply to your bike while others will not.
You can download the general user manual from the
www.gazellebikes.co.uk/service-and-warranty/manuals/ website.

Safety
General
Take care when children are around,
especially if they are able to insert
objects through apertures in the motor
housing. There is a risk of a life-threatening
electric shock.
If you think the bike is no longer safe to use,
you must take it out of use at once, secure
it against unintentional switching on or use,
as the case may be, and make it available to
the dealer for inspection. It is no longer safe
to use if current-carrying components or the
battery show visible signs of damage.
The walk assist function must only be used
when wheeling the bike on foot. There is a
risk of injury if the wheels on an e-bike are
not in contact with the ground when using
walk assist.
Do not make any changes to your
electric system or fit any other prod-
ucts to it aimed at increasing the power
output from your electric system. As a rule
you will shorten the service life of the sys-
tem and risk damaging the Drive Unit
(motor) and the e-bike. In addition there
also the danger that you will void the war-
ranty cover on the e-bike you have bought.
Furthermore, as a result of inexpert work on
the system you will jeopardise your safety
and that of other road users which risks acci-
dents caused by manipulations, high person-
al liability costs and potentially even
the danger of criminal prosecution.
Legal requirements
Like all cycles, the bike must comply
with the requirements of the national
highway code.
The legal requirements set out below
are applicable to the bike:
• The motor may only be used to assist
pedalling, i.e. it must only “help” when the
bike user applies eort to the pedals him
or herself.
• The average motor power must not
exceed 250 W.
• As speed increases motor power must
continue to drop progressively.
• The motor must stop at (approximately)
25 km/h.
See also the EC Declaration of Conformity
included with your bike.
Significance for the user
There is no obligation to wear a
helmet. However, for your own
safety we advise you not to cycle without
a helmet.
A separate driving licence is not required for
an electric bike. Insurance is not obligatory
for an e-bike.
There is no age restriction on using an e-bike.
Cycling on cycle tracks is regulated in the
same way as for conventional bikes.
These regulations apply to your bike
when using it within the European Union.
Other provisions may apply in countries
outside the EU and in isolated cases in
Europe as well. Before using your bike
abroad be sure to make enquiries about
which laws apply.
4

Safety and warranty
Read the Gazelle Safety and Warranty
manual for all safety instructions and
warranty conditions. You will be supplied
with this manual included as standard with
your bike and you can also access it digitally
on our website (www.gazellebikes.co.uk/
service-and-warranty/manuals/).
Waste disposal
The motor, display including control unit, bat-
tery, speed sensor, accessories and packag-
ing must be recycled in an environmentally
sound manner. Do not dispose of an e-bike
or its components with household waste!
For EU countries only: Under European
Directive 2012/19/EU electrical equipment
which is no longer usable and under Europe-
an Directive 2006/66/EC defective or spent
accumulators and batteries must be collect-
ed separately and recycled in an environ-
mentally sound manner.
The battery incorporated in the control
computer may only be removed if it is needs
to be disposed of. Opening the housing may
irreparably damage the display.
Hand in batteries and displays which are no
longer usable to an accredited cycle shop.
Battery
Remove the battery from the bike
before working on the e-bike (e.g.
assembly, maintenance, servicing the chain,
etc.), transporting it by car or by air or storing
it. There is a risk on injury in the event of
accidentally activating the electric system.
• Do not open the battery. This risks a
short circuit. Opening the battery renders
any warranty claim null and void.
• Protect the battery against heat (e.g.
against sustained exposure to strong sun-
light as well), fire and immersion in liquids.
There is a risk of explosion.
• Avoid touching the battery with paper
clips, coins, keys, nails, screws or any other
small metal objects which could cause the
contacts to short out. Short circuits between
battery contacts can result in burns or fire.
Damage arising in this way due to a short
circuit will render any warranty claim null and
void.
• Improper use may cause fluid to leak out
of the battery. Avoid contact with it.
In the event of inadvertent contact wash o
with water. If the fluid comes into contact
with the eyes, you must seek medical assis-
tance as well. Battery fluid which has leaked
out may cause skin irritation and burns.
• Fumes may be released in the event of
damage and/or improper use of the battery.
Provide fresh air and seek medical help in
the event of any complaints. These fumes
may irritate the respiratory tract.
• Use only genuine Shimano Steps charg-
ers to charge the battery. A fire risk cannot
be ruled out if a charger is used which is not
a genuine Shimano Steps unit.
• Use the battery only in combination with
an e-bike with a genuine Shimano Steps
motor. This is the only way to protect the
battery against hazardous overloading.
• Use only genuine Shimano Steps bat-
teries which have been approved by the
manufacturer of your e-bike. Use of other
batteries may result in injury and/or fire. • If
other batteries are used no liability will be
accepted by Shimano Steps and no warranty
cover provided.
• Keep the battery out of children’s reach.
Take care not to drop the battery
when removing it from the bike. This
can actually damage the battery housing
irreparably.
5

• Batteries must not be exposed to
mechanical impact. This risks damaging the
battery.
• The bike operates at low voltage (36 V).
You must never attempt to use the bike
with a power source other than the original
battery that goes with it.
You will find descriptions of approved batter-
ies further on in this manual.
Charger
Protect the charger from rain and
moisture. In the event of water ingress
into a charger there is a risk of electric
shock.
• Charge Shimano Steps Lithium Ion
batteries approved for e-bikes only. The
battery voltage must match the voltage on
the charger. Otherwise there is a fire and/or
explosion risk.
• Keep the charger clean. Contamination
may give rise to an electric shock hazard.
• Check the charger, cable and plug each
time before they are used. Do not use the
charger if you have noticed any damage.
Do not open the charger yourself and have
it repaired only by qualified technicians and
only with genuine spare parts.
Damaged chargers, cables and plugs
increase the risk of an electric shock.
• Do not use the charger on a readily flam-
mable surface (such as paper or fabric) or in
a flammable environment. There is a fire risk
to the heat generated in the charger during
charging.
Fumes may be released in the event of
damage and/or improper use of the battery.
Provide fresh air and seek medical help in
the event of any complaints. These fumes
may irritate the respiratory tract.
• Keep children under supervision. This
will ensure that children do not play with the
charger.
• Children and persons who, based on
their physical, sensory or mental capabilities,
their lack of experience and knowledge are
not capable of using the charger safely, must
not use this charger without supervision or
instruction by a responsible person. Other-
wise there is a risk of improper operation
and/or physical injury.
• On the underside of the charger there
is a brief outline of important safety instruc-
tions in English, French and Spanish, that
reads as follows:
- Observe the user manual in order to use
the unit safely. Risk of electric shock.
- Use only in a dry environment.
- Charge Shimano Steps electric system
batteries only. Other batteries may
explode and cause injury.
- Do not replace the mains lead.
There is a fire and/or explosion risk.
Motor
Do not open the motor yourself. The
motor is maintenance-free and must
only be repaired by your Gazelle specialist
and with genuine spare parts. This will
guarantee that motor safety is maintained.
Unauthorised opening of the motor will
render any warranty claims null and void.
• All components fitted to the motor
and other e-bike components (e.g. chain
ring, chain ring pick-up, pedals) must only
be replaced by components of identical
construction or by components specially
approved by the cycle manufacturer for your
e-bike. This will protect the motor against
overloading and damage.
• Remove the battery from the bike before
working on the e-bike (e.g. assembly, main-
tenance, servicing the chain, etc.), transport-
ing it by car or by air or storing it.
There is a risk on injury in the event of acci-
dentally activating the electric system.
6

• The walk assist function must only be
used when wheeling the bike on foot. There
is a risk of injury if the wheels on an e-bike
are not in contact with the ground when
using walk assist.
Use only genuine Shimano Steps batteries
which have been approved by the manufac-
turer of your e-bike. Use of other batteries
may result in injury and/or fire.
If other batteries are used no liability will be
accepted by Shimano Steps and no warranty
cover provided.
• Do not make any changes to your elec-
tric system or fit any other products to it
aimed at increasing the power output from
your e-bike. As a rule you will shorten the
service life of the system and risk damaging
the Drive Unit (motor) and the e-bike. In addi-
tion there also the danger that you will void
the warranty cover on the e-bike you have
bought. Furthermore, as a result of inexpert
work on the system you will jeopardise your
safety and that of other road users which
risks accidents caused by manipulations,
high personal liability costs and potentially
even the danger of criminal prosecution.
The motor is intended exclusively for
your e-bike drive and must not be
used for any other purpose.
Maintenance and repair
When carrying out settings, mainte-
nance or cleaning jobs be aware that
cables must not be pinched and/or kinked
nor must they be damaged by sharp edges.
Have all fitting and setting jobs carried out
by your Gazelle specialist.
Observe operating and storage
temperatures for e-bike components
see further on in this manual. Protect the
motor, display and battery against extreme
temperatures (e.g. under intense sunlight
without adequate ventilation).
These components (especially the battery)
can be damaged by extreme temperatures.
Transporting the bike
Transporting the bike by car
If you intend to transport your bike using a
cycle carrier, you will also need to ensure
that the carrier is suitable for the added
weight of the bike as well. You need to
remove the battery when transporting an
e-bike on a cycle carrier. Make sure that the
bicycle does not obscure the car’s compul-
sory lights.
Transporting the bike by train
You can take your bike in trains displaying a
bike sign.
If you have any questions you can contact
the transporter.
Transporting the bike by air
Your bike will generally be subject to
the cycle provisions of the airline
concerned. Batteries are covered by the law
on hazardous goods transport. There are
specific packaging and marking require-
ments to be observed for transport by
commercial users or transport by third
parties (e.g. air freight or a haulage compa-
ny). For advice on this please contact a
hazardous goods expert.
Warranty and service life
A two-year warranty applies to the battery.
Should a fault occur during this period, your
Gazelle specialist will replace the battery.
Normal ageing as well as wear and tear
of the battery do not constitute a material
deficiency.
7

Take care to ensure that the battery does
not get too hot. Battery ageing increases
sharply with temperatures above 40°C.
Being placed directly in the sun’s rays can
cause a battery to heat up considerably.
Take care to ensure you do not leave the
battery in a hot car and park your bike in the
shade during bike rides. If you cannot avoid
the heat, make sure you do not charge the
battery at the same time.
A fully charged battery ages at an even high-
er rate at high temperatures than a partially
charged one.
If you ride constantly using maximum motor
power, you motor will always need a higher
current. Higher currents cause the battery to
age faster.
You can also increase the service life of your
battery by using the assistance judiciously.
Cycle using a low assistance setting. Low-
er discharge current draws will save your
battery.
Charge the battery to around 60% (3
to 4 charge indication LEDs lit), before
storing it for a long time. Check charge
status after 6 months. If just one charge
indication LED is still lit you will need to
recharge the battery again to around 60%.
If the battery is stored fully dis-
charged for a long time, it may be
damaged despite the low self-discharge
rate and charge capacity may be substan-
tially reduced.
It is inadvisable to leave the battery connect-
ed to the charger for long periods.
The Shimano Steps mid-mounted motor is a
durable and maintenance-free drive unit. It is
nevertheless a wearing component which is
covered by a two-year warranty. As a result
of the added performance, the wearing com-
ponents such as the drive unit and brakes
are subjected to higher loads than on a
conventional bike. Components wear faster
due to the eect of increased power.
8

Bike configuration
With carrier battery
9
Motor
(Carrier) Battery
Control unit
LCD display

3
User's manuals in other languages are
available at :
http://si.shimano.com
IMPORTANT NOTICE
• Contact the place of purchase or a bicycle dealer for
information on installation and adjustment of the
products which are not found in the user's manual. A
dealer's manual for professional and experienced bicycle
mechanics is available on our website (http://si.shimano.
com).
• Do not disassemble or alter this product.
• Use the product according to local laws and regulations.
• The Bluetooth
®
word mark and logos are registered
trademarks owned by Bluetooth SIG, Inc. and any use of
such marks by SHIMANO INC. is under license. Other
trademarks and trade names are those of their respective
owners.
For safety, be sure to read this user's
manual thoroughly before use, and
follow them for correct use.
Important safety information
For replacement information, contact the place of purchase
or a bicycle dealer.
Be sure to observe the following in order to avoid burns or
other injury from fluid leakages, overheating, fire or
explosions.
To ensure safety
DANGER
Handling the battery
• Do not deform, modify, disassemble or apply solder
directly to the battery. Doing so may cause leakage,
overheating, bursting, or ignition of the battery.
• Do not leave the battery near sources of heat such as
heaters. Do not heat the battery or throw it into a fire.
Doing so may cause bursting or ignition of the battery.
• Do not subject the battery to strong shocks or throw it. If
this is not observed, overheating, bursting, or fire may
occur.
• Do not place the battery into fresh water or sea water,
and do not allow the battery terminals to get wet. Doing
so may cause overheating, bursting, or ignition of the
battery.
• Use the SHIMANO specified charger and observe the
specified charging conditions when charging the
specified battery. Not doing so may cause overheating,
bursting, or ignition of the battery.
10

4
WARNING
To ensure safe riding
• Do not give too much of your attention to the cycle
computer display while riding, otherwise accidents may
result.
• Check that the wheels are securely installed to the bicycle
before commencing riding. If the wheels are not securely
installed, the bicycle may fall over and serious injury may
result.
• If riding a power-assisted bicycle, make sure that you are
fully familiar with the starting-off characteristics of the
bicycle before riding it on roads with several vehicle lanes
and pedestrian footpaths. If the bicycle starts off
suddenly, accidents may result.
• Check that the bicycle lights illuminate before riding at
night.
Using the product safely
• Be sure to remove the battery and charging cable before
wiring or attaching parts to the bicycle. Otherwise, an
electric shock may result.
• When charging the battery while it is installed on the
bicycle, do not move the bicycle. The power plug for the
battery charger may come loose and not be fully inserted
into the electrical outlet, resulting in risk of fire.
• When installing this product, be sure to follow the
instructions given in the user's manual. Furthermore, it is
recommended that you use only genuine Shimano parts
at these times. If bolts and nuts are left loosened or the
product is damaged, the bicycle may suddenly fall over
and serious injury may result.
• Do not disassemble the product. Disassembling it may
cause injury to persons.
• After reading the user's manual carefully, keep it in a
safe place for later reference.
Handling the battery
• If any liquid leaking from the battery gets into your eyes,
immediately wash the affected area thoroughly with
clean water such as tap water without rubbing your eyes,
and seek medical advice immediately. If this is not done,
the battery liquid may damage your eyes.
• Do not recharge the battery in places with high humidity
or outdoors. Doing so may result in electric shock.
• Do not insert or remove the plug while it is wet. If this is
not observed, electric shocks may result. If there is water
leaking out of the plug, dry it thoroughly before
inserting it.
• If the charging of the battery continues exceeds 2 hours
after the prescribed charging time, immediately unplug
the battery from the outlet to stop charging, and contact
the place of purchase. Failure to do so may cause
overheating, bursting, or ignition of the battery.
• Do not use the battery if it has any noticeable scratches
or other external damage. Doing so may cause bursting,
overheating or problems with operation.
• The operating temperature ranges for the battery are
given below. Do not use the battery in temperatures
outside these ranges. If the battery is used or stored in
temperatures outside these ranges, fire, injury or
problems with operation may occur.
1. During discharge: –10 °C - 50 °C
2. During charging: 0 °C - 40 °C
Cleaning
• The frequency of maintenance will vary depending on
the riding conditions. Periodically clean the chain using
an appropriate chain cleaner. Do not use alkaline or
acidic cleaning agents for removing rust under any
circumstances. If such cleaning agents are used, they may
damage the chain and serious injury may result.
11

5
CAUTION
To ensure safe riding
• Observe the instructions in the user's manual for the
bicycle, in order to ride safely.
Using the product safely
• Periodically check the battery charger and adapter,
particularly the cord, plug, and case, for any damage. If
the charger or adapter is broken, do not use it until it has
been repaired.
• This appliance is not intended for use by persons
(including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction
concerning use of the appliance by a person responsible
for their safety.
• Do not allow children to play near the product.
Handling the battery
• Do not leave the battery in a place exposed to direct
sunlight, inside a vehicle on a hot day, or other hot
places. This may result in battery leakage.
• If any leaked fluid gets on your skin or clothes, wash it
off immediately with clean water. The leaked fluid may
damage your skin.
• Store the battery in a safe place out of the reach of
infants and pets.
Cleaning
• If any malfunctions or other problems occur, contact the
place of purchase.
• Never attempt to modify the system yourself, as it may
cause problems with system operation.
Note
Using the product safely
• Be sure to install caps to any connectors which are not
being used.
• For installation and adjustment of the product, consult a
dealer.
• The Product is designed to be fully waterproof to
withstand wet weather riding conditions. However, do
not deliberately place them into water.
• Do not clean the bicycle in a high-pressure wash. If water
gets into any of the components, operating problems or
rusting may result.
• Do not turn the bicycle upside down. The cycle computer
or the shifting switch may get damaged.
• Handle the product carefully, and avoid subjecting it to
any strong shocks.
• Although the bicycle still functions as a normal bicycle
even when the battery is removed, the light does not
turn on if it is connected to the electric power system. Be
aware that using the bicycle under these conditions will
be considered non-observance of the road traffic laws in
Germany.
• When charging the battery while it is mounted on the
bicycle, be careful of the following:
- When charging, make sure there is no water on the
charging port or the charger plug.
- Ensure that the battery is locked into the battery
mount before charging.
- Do not remove the battery from the battery mount
while charging.
- Do not ride with the charger mounted.
- Close the charging port cap when not charging.
- Stabilize the bicycle to ensure that it does not
collapse during charging.
Handling the battery
• When you carry a power-assisted bicycle in a car, remove
the battery from the bicycle and place the bicycle on a
stable surface in the car.
• Before connecting the battery, make sure that there is no
buildup of water or dirt in the connector where the
battery will be connected.
• The use of a genuine Shimano battery is recommended. If
using a battery from another manufacturer, make sure to
carefully read the instruction manual for the battery
before use.
Disposal information for countries outside
the European Union
This symbol is only valid within the
European Union. Follow local regulations
when disposing of used batteries. If you
are not sure, consult the place of purchase
or a bicycle dealer.
12

6
Connection and communication with PCs
A PC linkage device can be used to connect a PC to the
bicycle (system or components), and E-TUBE PROJECT can be
used to carry out tasks such as customizing single
components or the whole system and updating firmware.
• PC linkage device: SM-PCE1
• E-TUBE PROJECT: PC application
• Firmware: software inside each component
Connection and communication with
smartphones and tablets
It is possible to customize single components or the system,
and update firmware, using E-TUBE PROJECT for
smartphones/tablets after connecting the bicycle (system or
components) to a smartphone or tablet via Bluetooth® LE.
• E-TUBE PROJECT: app for smartphones/tablets
• Firmware: software inside each component
Cleaning
• The number found on the battery mount key is necessary
when purchasing spare keys. Keep it in a safe place.
There is a space to enter the key number on the back
cover of this user's manual. Enter the key number for
safekeeping and later reference.
• Contact the place of purchase for updates of the product
software. The most up-to-date information is available
on the Shimano website. For details, refer to the
"Connection and communication with the PC" section.
• Do not use thinner or other solvents to clean any of the
products. As such substances may damage the surfaces.
• You should periodically wash the chainrings in a neutral
detergent. In addition, cleaning the chain with neutral
detergent and lubricating it can be an effective way of
extending the useful life of the chainrings and the chain.
• Use a damp cloth, with the water well wrung out, when
cleaning the battery and plastic cover.
• For any questions regarding handling and maintenance,
contact the place of purchase.
• Products are not guaranteed against natural wear and
deterioration from normal use and aging.
• For maximum performance we highly recommend
Shimano lubricants and maintenance products.
Assist
• If the settings are not correct, for instance if the chain
tension is too tight, the proper assist force may not be
obtained. If this happens, contact the place of purchase.
<DU-E6110>
• This component is compatible with coaster brakes. If the
crank is not installed in the correct position or the chain
tension has not been correctly adjusted, contact the place of
purchase, as there may not be proper assistance power.
Label
• Some of the important information contained in this user's
manual is also indicated on the battery charger label.
FCC compliance information
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received,
including interference that may cause undesired
operation.
NOTE: This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against
harmful interference in a residential installation. This
equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there
is no guarantee that interference will not occur in a
particular installation. If this equipment does cause
harmful interference to radio or television reception,
which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and
receiver.
- Connect the equipment into an outlet on a circuit
different from that to which the receiver is
connected.
- Consult the dealer or an experienced radio/TV
technician for help.
13

7
Features of SHIMANO STEPS
• Lightweight, compact design
• Silent, smooth ride
• High shifting performance system (In the case of electronic gear shifting)
This system uses accurate sensors to enable shifting gears by providing the most appropriate level of power assistance
carefully adjusted by computer controls.
• Full Automatic Shifting (In the case of electronic 8/5-speed gear shifting)
The sensors detect riding conditions, whether you are riding up a hill against the wind, or on flat ground with no wind;
the automatic gear shifting system uses computer controls to make your ride more pleasant.
• Start mode (In the case of electronic gear shifting)
This function allows automatic shifting down to a preset gear when you stop the bicycle such as at traffic lights so that
you can start traveling at a light gear.
* If, while the bicycle is stopped, you shift to a gear lower than the set gear, the system will not automatically shift up.
• Coaster brake compatible (DU-E6110)
Smoothly provides sufficient control power.
• Light off road
Sporty, provides powerful assistance. Can only be used when set by the manufacturer of the completed bicycle.
• Walk assistance function (Walk assist mode)
* The Walk assist mode function may not available in certain regions.
* Some of the functions listed above can only be used once the firmware has been updated. If this is the case, consult the
place of purchase, and carry out the firmware updates.
 Assist mode
You can select a SHIMANO STEPS assist mode for each particular application.
[HIGH] [NORM] (Normal) [ECO]
Steep uphill slopes. Gentle slope or level ground. Long distance riding on level ground.
When the battery level is running low, the level of assistance is lowered to increase the traveling range.
[OFF]
• When you don't need power assistance
• When you are concerned about remaining battery power
[WALK]
• When you walk while pushing the E-BIKE loaded with heavy baggage
• When walking the E-BIKE out of an underground bicycle parking garage
* This mode may not be available in certain regions
14

8
Start your STEPS
1. Charge the battery.
It is possible to charge the battety even while it is mounted on the bicycle.
For detals, see “Charging the battery while installed on the bicycle.”
<Down-tube mount type battery>
3
2
1
Light On
Example : BT-E8010
<Rear carrier mount type battery>
1
3
2
Light On
BT-E6000 / BT-E6001
<Integrated battery>
Light On
BT-E8020
Lights up
Charging
(Within 1 hour after the completion of charging)
Flashing Charging error
15

9
2. Turn on the power.
To turn off the power, repeat this procedure.
<Down-tube mount type battery>
BT-E8010 / BT-E8014 BT-E6010
Long press
Or
<Rear carrier mount type battery>
Long press
BT-E6000 / BT-E6001
<Integrated battery>
Long press
NOTE
When turning the power ON/OFF, do not place your foot on the pedal.
16

10
3. Select your preferred assist mode.
The bicycle is equipped with either SC-E6100 or EW-EN100.
* When the power is turned on, assist mode is set to [OFF].
* To change to the [WALK] assist mode, it is
necessary to use the above assist switch.
Assist mode
display
LED lamp (inner side)
Z
< SC-E6100 >
< EW-EN100 >
X
Y
OFF
Lit in light blue
Lit in green
Lit in yellow
OFF
[OFF]
[ECO]
[NORM]
[HIGH]
[OFF]
LED lamp (inner side) indications Assist mode
Z
[HIGH]
[NORM]
[ECO]
[OFF]
[WALK]
XY
Long press Y
Short press X
4. Ride the bicycle.
Assist will start when you start pedaling.
CAUTION
SHIMANO STEPS supports various brake systems.
Before riding, please check the brake system of your bicycle and
how to operate it beforehand.
5. Turn off the power.
Assist
Start
17

11
Names of parts
B
(F)
(A)
(G)
(E)
(B)
(C) (D) (L) *
1 * 2
< For electronic gear shifting >
(A)
Shifting
switch
• SW-E6010
(B)
Motor unit + Internal
geared hub
Rear Derailleur (DI2)
Motor unit
Internal geared
hub
Rear Derailleur
(DI2)
(H)
(H)
(I)
(B) (J)
(K)
18

12
(C)
Cycle computer / Junction [A]
• SC-E6100
• EW-EN100
(H)
Battery (down-tube mount type)
• BT-E6010
• BT-E8010*3
• BT-E8014
(D)
Assist switch • SW-E6010
(I)
Battery mount
(down-tube mount type)
• BM-E6010
• BM-E8010
(E)
Drive unit
• DU-E6100
• DU-E6110
(J)
Battery (Integrated type) • BT-E8020
(F)
Battery (rear carrier mount type)
• BT-E6000
• BT-E6001*3
(K)
Battery mount (Integrated type) • BM-E8020
(G)
Battery mount (rear carrier mount
type)
• BM-E6000
(L)
Battery charger
* 1: EC-E6002 + SM-BCC1
* 2: EC-E6000
*3 If the firmware version of the drive unit is 3.2.6 or lower, the battery may not operate properly. Update the firmware
version via E-TUBE PROJECT.
Specifications
Operating temperature
range: During discharge -10 – 50˚C Battery type Lithium ion battery
Operating temperature
range: During charging 0 – 40˚C Nominal capacity
Refer to the user's manual
for the battery. For the
latest information on
manuals, see the website
(http://si.shimano.com).
Storage temperature-20 – 70˚C Rated voltage 36 V DC
Storage temperature
(Battery) -20 – 60˚C Drive unit type Midship
Charging voltage 100 – 240 V AC Motor type Brush-less DC
Charging time
Refer to the user's manual
for the battery. For the
latest information on
manuals, see the website
(http://si.shimano.com).
Rated drive unit power 250 W
* The maximum speed for which power assistance is provided is set by the manufacturer and is conditional on where the
bicycle is to be used.
19

13
Preparation
You cannot use the battery immediately after shipment.
The battery can be used after charging it with the designated charger.
Be sure to charge it before use. The battery can be used when the LED on it lights up.
The use of a genuine SHIMANO battery is recommended. If using a battery from another manufacturer, make sure to
carefully read the instruction manual for the battery before use.
 Charging the battery
Charging time varies depending on the remaining capacity of the battery and the charger used. For the designated charging
time, refer to the charger user manual.
DANGER
• Use the battery and charger combination specified by the company for charging and follow the charging conditions specified by the
company. Not doing so may cause overheating, bursting, or ignition of the battery.
CAUTION
• When charging the battery while it is mounted on the bicycle, be careful not to trip over the charger cord or get anything caught
on it. This may lead to injury or cause the bicycle to fall over, damaging the components.
NOTE
•When removing the battery charger power plug from the outlet or the charging
plug from the battery, do not pull it out by the cord, or it causes breakage.
•If the bicycle is stored for an extended period of time immediately after purchase,
you will need to charge the battery before using the bicycle. Once the battery is
charged, it starts to deteriorate.
•Connect to E-TUBE PROJECT and click [Connection check] to confirm whether the
battery in use is a genuine SHIMANO battery or another brand.
•Charge the batteries on a flat surface indoors.
20
