GC Tech GCAN-202 User manual

GCAN-202
Ethernet-CAN converter
User Manual
Document version：V3.51 （2017/06/19）

2
Shenyang Guangcheng Technology Co., Ltd. Industrial-grade Ethernet-CAN converter-GCAN-202
Product data sheet
Contents
1. Introduction................................................................................................................3
1.1 Overview..........................................................................................................3
1.2 Properties at a glance .......................................................................................3
2. Installation..................................................................................................................4
2.1 Dimension drawings ........................................................................................4
2.2 Connect to PC..................................................................................................4
2.3 Connect to CAN-Bus.......................................................................................4
3. converter used............................................................................................................5
3.1 Restore the factory settings..............................................................................5
3.2 The structure of CAN-Bus...............................................................................5
3.3 Termination resistor.........................................................................................5
3.4 Indicator light...................................................................................................6
4. Configuration instructions .........................................................................................7
4.1 Connect the software........................................................................................7
4.2 Basic information.............................................................................................7
4.3 Finish the configuration.................................................................................10
4.4 Save / load the configuration file...................................................................10
4.5 Upgrade GCAN-202(use this function under guidance) ...............................10
5. Simple test................................................................................................................11
6. Technical specifications...........................................................................................12
Sales and service..........................................................................................................13

3
Shenyang Guangcheng Technology Co., Ltd. Industrial-grade Ethernet-CAN converter-GCAN-202
Product data sheet
1. Introduction
1.1 Overview
The GCAN-202 is a converter that integrates two CAN interfaces and one Ethernet
interface. Using GCAN-202, users can connect CAN-Bus network and Ethernet,
extends the application scope of CAN-Bus.
1.2 Properties at a glance
Power supply: 9~30V(50mA，24V DC)
Working temperature range from -40 to 85 °C
CAN-Bus supports CAN2.0Aand CAN2.0B frame format, conform to
ISO/DIS 11898 standards
CAN baud rates range from 5Kbps to 1Mbps
CAN-Bus interface with electrical isolation
CAN-Bus isolation module insulation voltage: DC 1500V
Standard Ethernet interface: RJ45, supports 10 / 100M adaptive
The working port, the target IP and the target port can be modified
Support agreement: ETHERNET,ARP, IP, ICMP, UDP, DHCP, DNS, TCP
Compatible with SOCKET work (TCP Server, TCP Client, UDP)
Size:(L)118mm * (W)93mm * (H)23mm

4
Shenyang Guangcheng Technology Co., Ltd. Industrial-grade Ethernet-CAN converter-GCAN-202
Product data sheet
2. Installation
2.1 Dimension drawings
The shell size of the GCAN-202 is shown in Figure 2.1.
Figure 2.1 Dimension drawings
2.2 Connect to PC
Connect the converter to the computer with a network cable. Then GCAN-202 LAN
interface can establish communication.
2.3 Connect to CAN-Bus
In practical use, most of the time just connected the CAN_H to CAN_H and CAN_L
connected to CAN_L, then communication can be realized.

5
Shenyang Guangcheng Technology Co., Ltd. Industrial-grade Ethernet-CAN converter-GCAN-202
Product data sheet
3. converter used
GCAN-202 converter uses a network cable to connect to PC, uses +9 ~ 30V DC
power supply(recommended + 12V or + 24V power supply), uses the "CANet
Config" software to configure.
3.1 Restore the factory settings
Default IP of GCAN-202 is 192.168.1.10, gateway is 255.255.255.0. If the user has
modified the IP and forget it. By pressing the reset button, you can restore the factory
settings.
After GCAN-202 is powered on, you can find the reset button as shown above. Then
press the button for about 5-6 seconds. When the indicator flashes, the system is
restored successfully.
Please note: PC and GCAN-202 must be in the same network segment.
3.2 The structure of CAN-Bus
This is CAN-Bus connection, as shown in figure 3. 2.
Figure 3.2 Topology structure of CAN-bus
3.3 Termination resistor
CAN-Bus requires two 120Ωtermination resistors in the furthest of the two

6
Shenyang Guangcheng Technology Co., Ltd. Industrial-grade Ethernet-CAN converter-GCAN-202
Product data sheet
terminals, as shown in figure 3.3.
Figure 3.3 GCAN-204 connection to other CAN converter
Please note: you should connect the two ends of the resistor to CAN_L and
CAN_H respectively.
3.4 Indicator light
GCAN-202 converter has one PWR indicator, one SYS indicator, one LAN indicator,
two CAN indicator, to indicate the converter status. More functions are shown in table
3.2.
Indicator light Status Indicates the status
PWR Bright Power supply is normal
OFF
Power supply failure
SYS OFF Converter initialization failed
Blinking Converter initialization pass, standby state
CAN1、CAN2
Red CAN-Bus communication failure
Green
blinking
CAN-Bus has data transmission
Blinking with
SYS light
alternately The converter enters the reset state
Table 3.2 Status of the GCAN-202 indicator

7
Shenyang Guangcheng Technology Co., Ltd. Industrial-grade Ethernet-CAN converter-GCAN-202
Product data sheet
4. Configuration instructions
4.1 Connect the software
Software needs to fill in IP address when connecting to GCAN-202.
Click "Connect", and then it will appear the following software interface.
"Connect" - connect the converter(Do not need to click again)
"Upload" - read converter configuration information
"DownLoad" - download the configuration information to the converter's Flash
"Open" - open the configuration information file in the PC
"SaveAs" - save the configuration information file to your computer
"UpDate App" - upgrade the GCAN-202 firmware kernel. (Please use this
function under guidance)
4.2 Basic information
After the connection is successful, click "UpLoad" to upload the parameters of the
converter to the computer.

8
Shenyang Guangcheng Technology Co., Ltd. Industrial-grade Ethernet-CAN converter-GCAN-202
Product data sheet
"IPAddress Info" - Ethernet-side parameter setting
"CAN1 / CAN2 Info" - CAN bus parameter setting
4.2.1 Ethernet parameter settings
Click "IPAddress Info" to enter the Ethernet parameter setting interface
"IPAddress Info" - set the GCAN-202 IP address
"GateWay" - set the GCAN-202 gateway

9
Shenyang Guangcheng Technology Co., Ltd. Industrial-grade Ethernet-CAN converter-GCAN-202
Product data sheet
"Subnet Mask" - set the GCAN-202 subnet mask
4.2.2 CAN-Bus parameter setting
Click "CAN1 / CAN2 Info" to enter the CAN-Bus parameter setting interface.
"TCP Port" - set the CAN-Bus communication port
"CAN Baud" - sets the CAN-Bus communication baud rate
"CAN Mode" - set the CAN-Bus operating mode
"CAN Filter" - not open, the default is set to 0
"TCP Mode" - set the TCP operating mode
"Remote IP" - set the destination host IP address
"Remote Port" - set the port number of the destination host
Note: "Remote IP", "Remote Port" is valid only in TCP Client mode and UDP
mode.
CAN-Bus
baud rate
Corresponding
figures
CAN-Bus
baud rate
Corresponding
figures
1 M bit/s 0 100 k bit/s 8
800 k bit/s 1 80 k bit/s 9
666 k bit/s 2 50 k bit/s 10
500 k bit/s
3
40 k bit/s
11
400 k bit/s
4
20 k bit/s
12
250 k bit/s 5 10 k bit/s 13
200 k bit/s 6 5 k bit/s 14
125 k bit/s
7
Table 4.1 CAN-Bus baud rate and corresponding digital comparison table

10
Shenyang Guangcheng Technology Co., Ltd. Industrial-grade Ethernet-CAN converter-GCAN-202
Product data sheet
4.3 Finish the configuration

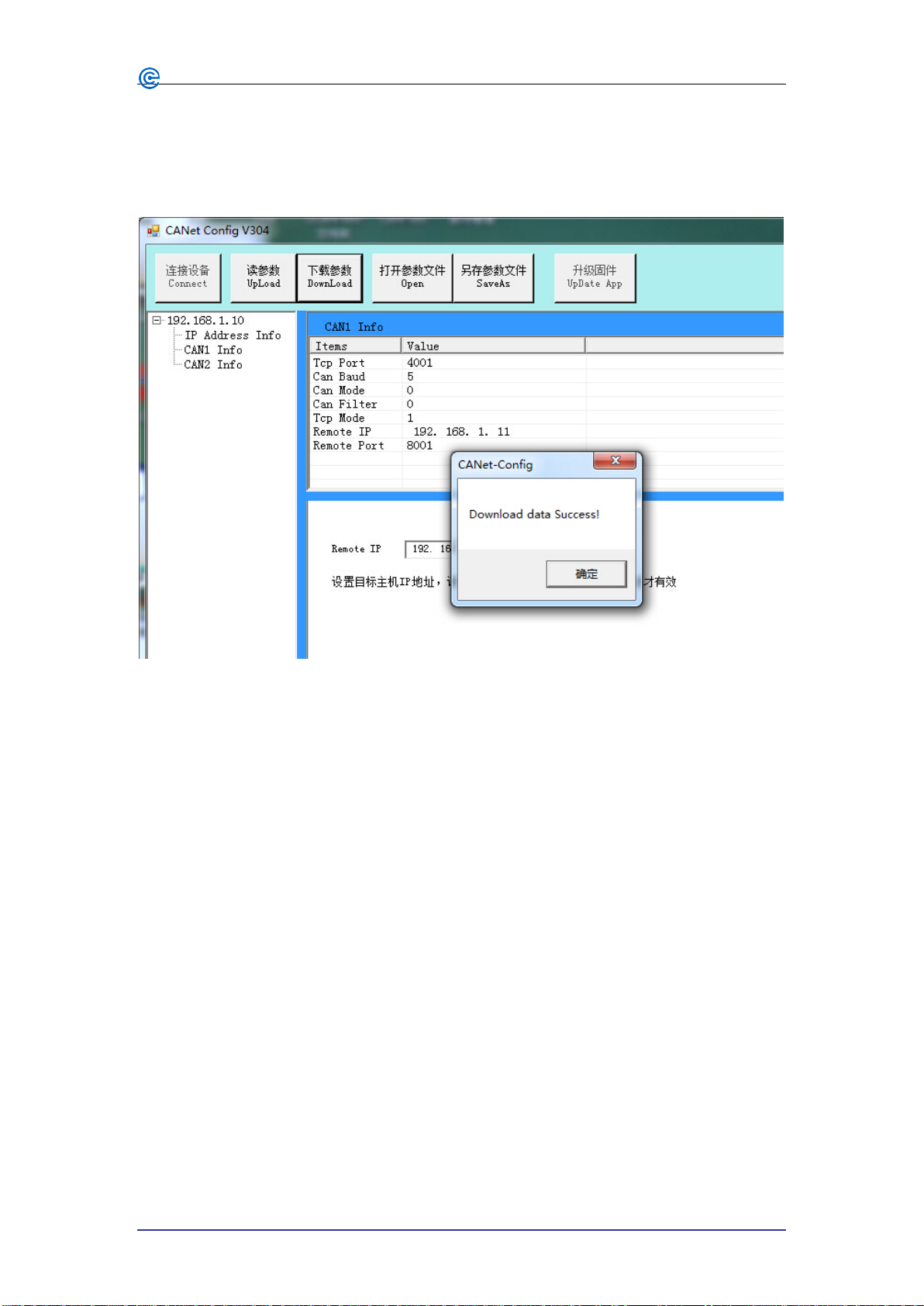

When the configuration is complete, click "DownLoad" to download the
configuration information into the "Flash" of GCAN-202 .
Please note: power-on again after the completion of the download, and then the
new configuration will take effect.
4.4 Save / load the configuration file
You can click "SaveAs", save the data in the computer. This configuration file can
also be opened by the button "Open" for later use.
4.5 Upgrade GCAN-202(use this function under guidance)
If you need to upgrade, please contact us.

11
Shenyang Guangcheng Technology Co., Ltd. Industrial-grade Ethernet-CAN converter-GCAN-202
Product data sheet
5. Simple test
GCAN-202 simple test software is use for testing GCAN-202 in the "TCP Server"
mode.
You can enter the IP address of the GCAN-202 at "IP", enter the port number of the
CAN channel in "Port", and click "Connect" to connect the converter.
If the CAN bus send the data, the software will automatically receive, and display in
the interface of "Receive" . If you want to send data to the CAN bus, edit the data in
the "Send" in accordance with the rules.

12
Shenyang Guangcheng Technology Co., Ltd. Industrial-grade Ethernet-CAN converter-GCAN-202
Product data sheet
6. Technical specifications
Connection
PC interface Ethernet interface, RJ45
CAN interface Terminal blocks
Interface characteristics
Ethernet interface 10 / 100M adaptive
CAN interface ISO 11898 standard, CAN2.0A/B
CAN baud rate 5Kbit/s~1Mbit/s
Electrical isolation 1500V，DC-DC
CAN termination
resistor
Has been integrated, through the DIP switch to select
whether to enable
Power supply
Power supply voltage +9~30V DC
Power supply current 50mA（24V DC）
Environmental testing
Power supply voltage -40℃~+85℃
Power supply current 15%~90%RH，no condensation
EMC test EN 55024:2011-09 EN 55022:2011-12
Protection grade IP 20
The basic information
Outline size
118mm *93mm *23mm
Weight 220g

13
Shenyang Guangcheng Technology Co., Ltd. Industrial-grade Ethernet-CAN converter-GCAN-202
Product data sheet
Sales and service
Shenyang Guangcheng Technology Co., Ltd.
Address: Industrial Design Center, No. 42 Chongshan
Middle Road, Huanggu District, Shenyang
City, Liaoning Province.
QQ: 2881884588
E-mail: [email protected]
Tel: [phone]
Website: www.gcgd.net
Sales and service Tel: [phone]
After - sales service telephone Number: [phone]
WeChat Number: 13840170070
