Introduction
The AVPro Edge AC-DANTE-E is a compact, 2-channel, Dante™ network decoder that employs Dante’s Ultimo
chipset, providing 100% lossless analog conversion from digitally encoded content with sampling rates from
44.1kHz up to 96kHz, in 16-, 24-, or 32-bit word lengths. When powered up and connected to a Dante™ network, the
AC-DANTE-D is automatically discovered on the network and ready to retrieve digital audio from Dante™ devices,
including the AC-DANTE-E encoder, using the Dante™ Controller software.

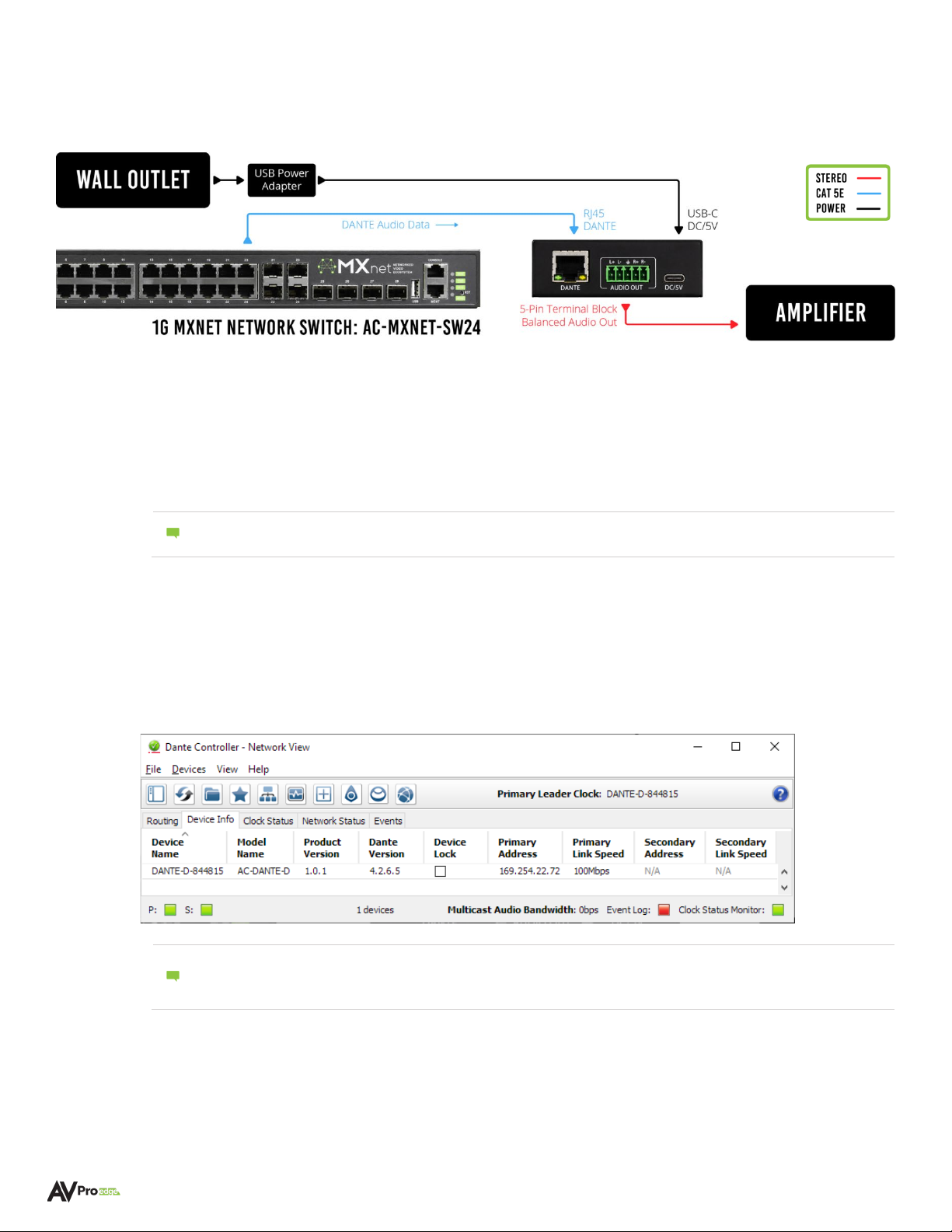

The diagram below shows the basic application of the AC-DANTE-D decoder and the AC-MXNET-SW24 managed
network switch.
Features
•Complete Dante system compatibility
•Plug and play support
•Sample rates up to 96kHz
•16-, 24-, and 32-bit audio support
•5-Pin terminal block connector for analog audio breakout
•Dante™ port LEDs indicate link status and activity
•Unit ships with power supply and USB Type A to Type C cable
Key Benefits
•Accepts any Dante-platform audio signal up to 96kHz in 16-, 24, and 32-bit word lengths
•Low profile, compact design for placement options
•Auto device-discovery on a Dante network
•Activity LEDs provide power and mute status

WWW.AVPROEDGE.COM • 2222 EAST 52nd STREET NORTH • SIOUX FALLS, SD 57104 • [phone]
Product Overview

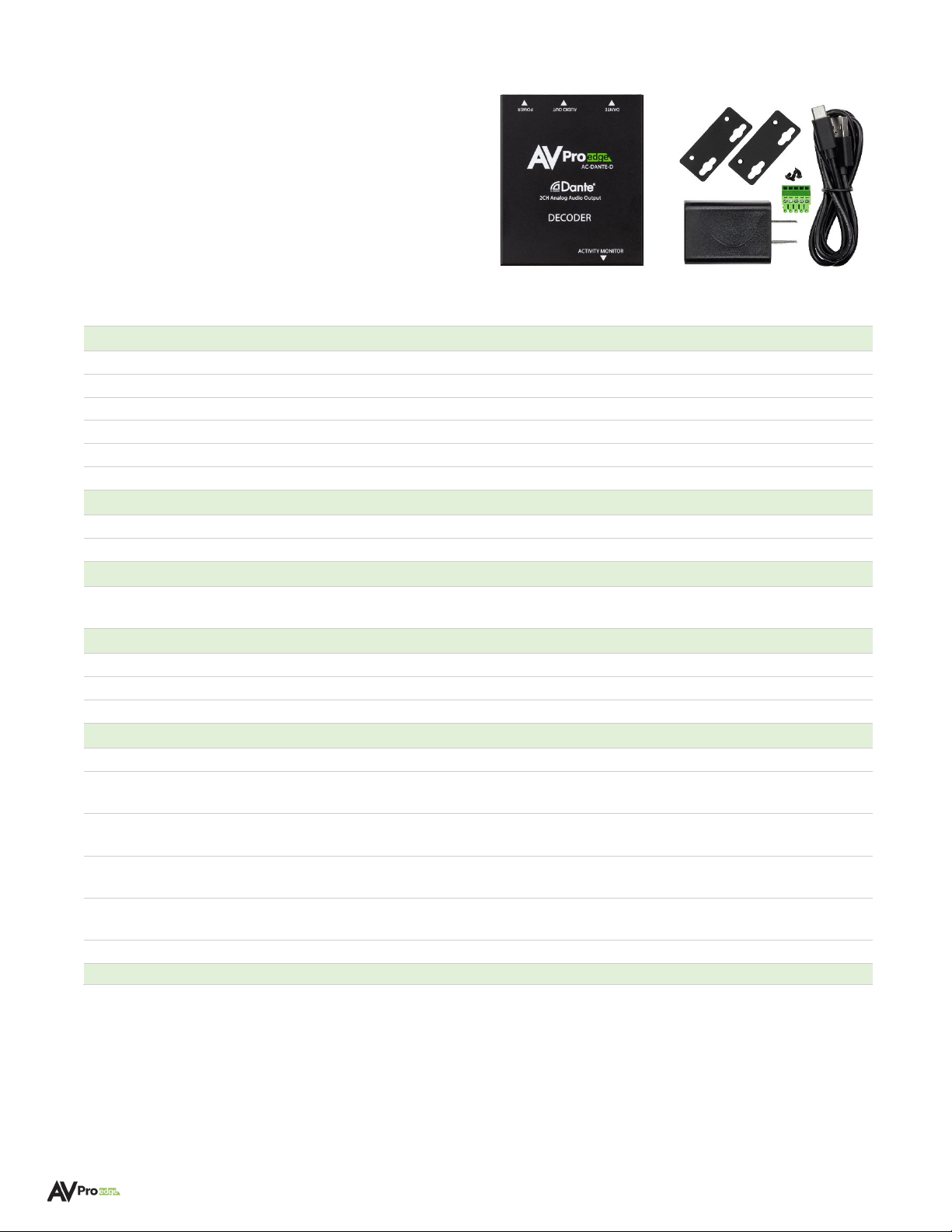

Box Contents
(1x) AC-DANTE-D (Unit)
(1x) 5V 1A USB Power Adapter
(1x) USB-A to USB-C Cable
(1x) 5-Pin Terminal Block
(2x) Mounting Brackets
(4x) Mounting Screws
Technical Specifications
Audio
Frequency Response
20-20kHz
Analog Output Voltage
Balanced or Unbalanced 1VRMS (2.828VP-P) at 0 dBFS
Format
LPCM
Supported Sample Rates
44.1kHz, 48kHz, 88.2kHz, 96kHz
Supported Bit Depths
16, 24, 32
Latency
Configurable 1, 2, 5ms
Audio Connections
Analog Output
1x 5-Pin Terminal Block
Dante Network Audio
1x RJ-45
Power
USB Type-C Power Adapter Input: 100-240VAC, 50/60Hz, 0.5A
Output: 5VDC, 1A
Environmental
Operating Temperature
23°F (-5°C) to 125°F (51°C)
Storage Temperature
-4°F (-20°C) to 140°F (60°C)
Humidity Range
5% to 90% RH (no condensation)
Dimensions
Mounting
Furniture Mount Support
Height x Width x Depth
(Single Unit)
Millimeters: 75 x 90 x 25
Inches: 2.95 x 3.55 x 1
Height x Width x Depth
(Packaged Unit)
Millimeters: 193 x 136 x 41
Inches: 7.6 x 5.35 x 1.62
Weight
(Single Unit)
0.36 lbs (0.164 kg)
Weight
(Packaged Unit)
0.7 lbs (0.32 kg)
Product Warranty
10 Years
*Specifications are subject to change without notice. Mass and dimensions are approximate.

WWW.AVPROEDGE.COM • 2222 EAST 52nd STREET NORTH • SIOUX FALLS, SD 57104 • [phone]
Front and Rear Panels

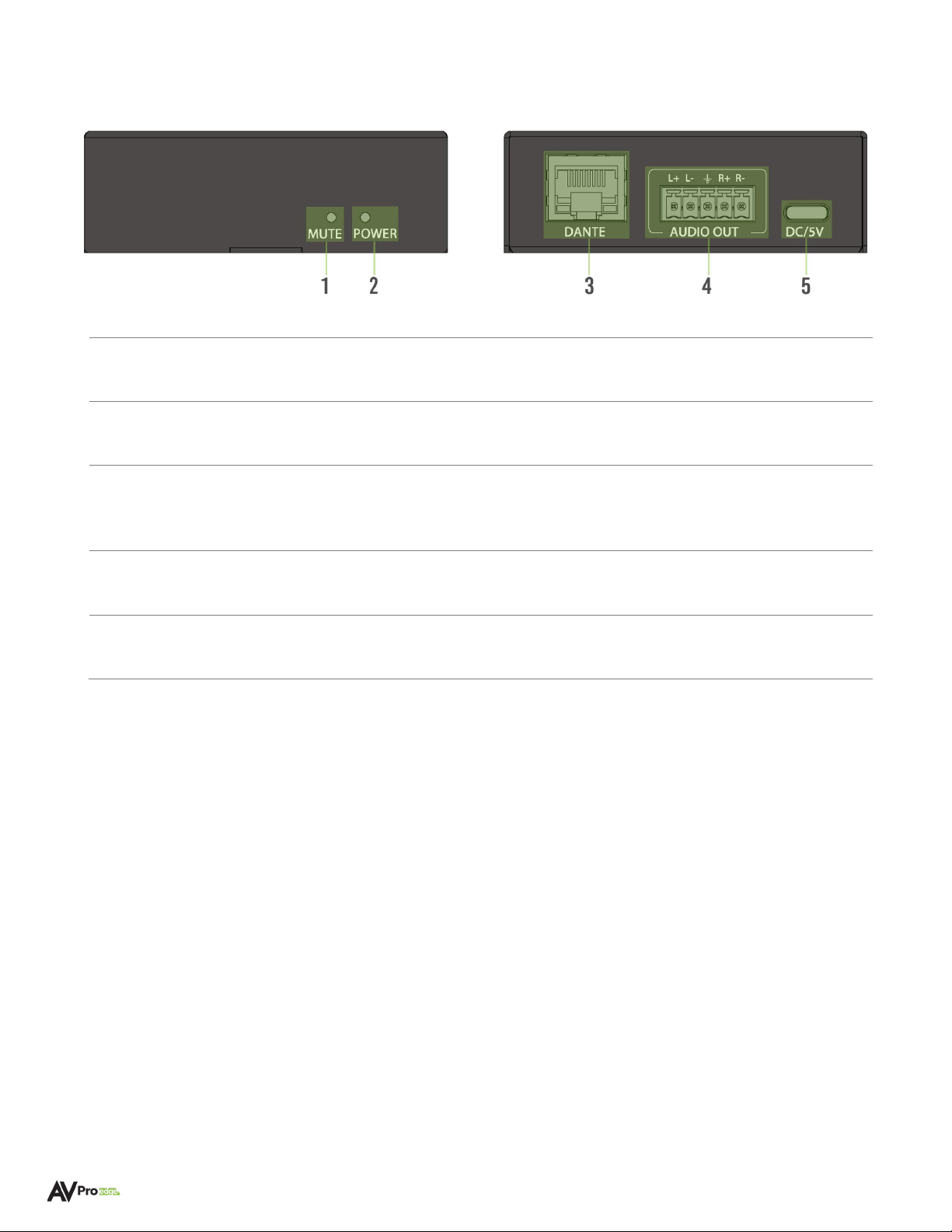

Front Panel Rear Panel
1
Mute
•
Red LED status indicator light
•Illuminates solid red when Dante™ audio stream is muted
2
Power
•
Green LED status indicator light
•Illuminates solid green when power is present on the AC-DANTE-D
3
Dante
•
8-pin RJ-45 female connector port
•Decoded Dante™ digital audio output port
•Connects to the network switch with CAT5e (or better) cable
4
Audio
Out
•
5-Pin terminal block connector port
•
Balanced line-level analog audio output
6
DC/5V
•
USB Type C female connector port
•Connects to DC 5V 1A power supply with USB-A to USB-C cable

WWW.AVPROEDGE.COM • 2222 EAST 52nd STREET NORTH • SIOUX FALLS, SD 57104 • [phone]
Installation
Once the AC-DANTE-D is powered on and connected to the network switch, it will automatically be discovered on
the network using the Dante Controller software.
Connecting the Devices
1Connect the provided USB-A to USB-C cable between the 5V 1A power supply and the AC-DANTE-D
decoder’s DC/5V port. Then plug the power supply into a suitable power outlet.
Both the POWER and MUTE LEDs on the front panel will illuminate solid for 6 seconds, after which the
MUTE LED will shut off and the POWER LED will stay on, indicating the AC-DANTE-D is powered on.
2Connect the audio output device to the AUDIO OUT port on the AC-DANTE-D and ensure the audio
output device is powered on.
3Connect a CAT5e (or better) cable between a computer running the Dante Controller software and the
network switch.
4Connect a CAT5e (or better) cable between the DANTE port on the AC-DANTE-D and the network switch.
The AC-DANTE-D will be automatically discovered and routed using the Dante Controller software.
Note:
The AC-DANTE-D does not support PoE and must be powered locally using the provided 5V
1A power supply and USB-A to USB-C cable.
Note:
The computer running Dante™ Controller and the AC-DANTE-D must both have a physical
connection to the Dante™ network in order for the AC-DANTE-D to be discovered by Dante™
Controller.

WWW.AVPROEDGE.COM • 2222 EAST 52nd STREET NORTH • SIOUX FALLS, SD 57104 • [phone]
Dante Port Wiring
The DANTE audio output port on the encoder utilizes the standard RJ-45 connection. For maximum performance,
the recommended cabling is CAT5e (or better) based on TIA/EIA T568A or T568B standards for the wiring of the
twisted pair cables.
The DANTE audio output port features two status indicator LEDs to show active connections while troubleshooting.
Right LED (Amber) – Link Status
Indicates there is data present between the AC-DANTE-D and the receiving end (typically a network switch).
Steady blinking amber indicates normal operations.
Left LED (Green) – Link/Activity
Indicates there is an active link between the AC-DANTE-D and the receiving end. Solid green indicates the AC-
DANTE-D and the receiving end device have been identified and are communicating with one another.
If either LED is not illuminating, check the following:
•Ensure the AC-DANTE-D is powered on from the DC/5V port.
•Verify cable length is within the maximum distance of 100 meters (328 feet).
•Connect the AC-DANTE-D directly to the network switch, bypassing all patch panels and punch-down
blocks.
•Re-terminate connector ends. Use standard RJ-45 connectors and avoid using push-through or “EZ” type
ends as these have exposed copper wiring at the tips that can cause signal interference.
•Contact AVPro Edge Technical Support if these suggestions do not work.

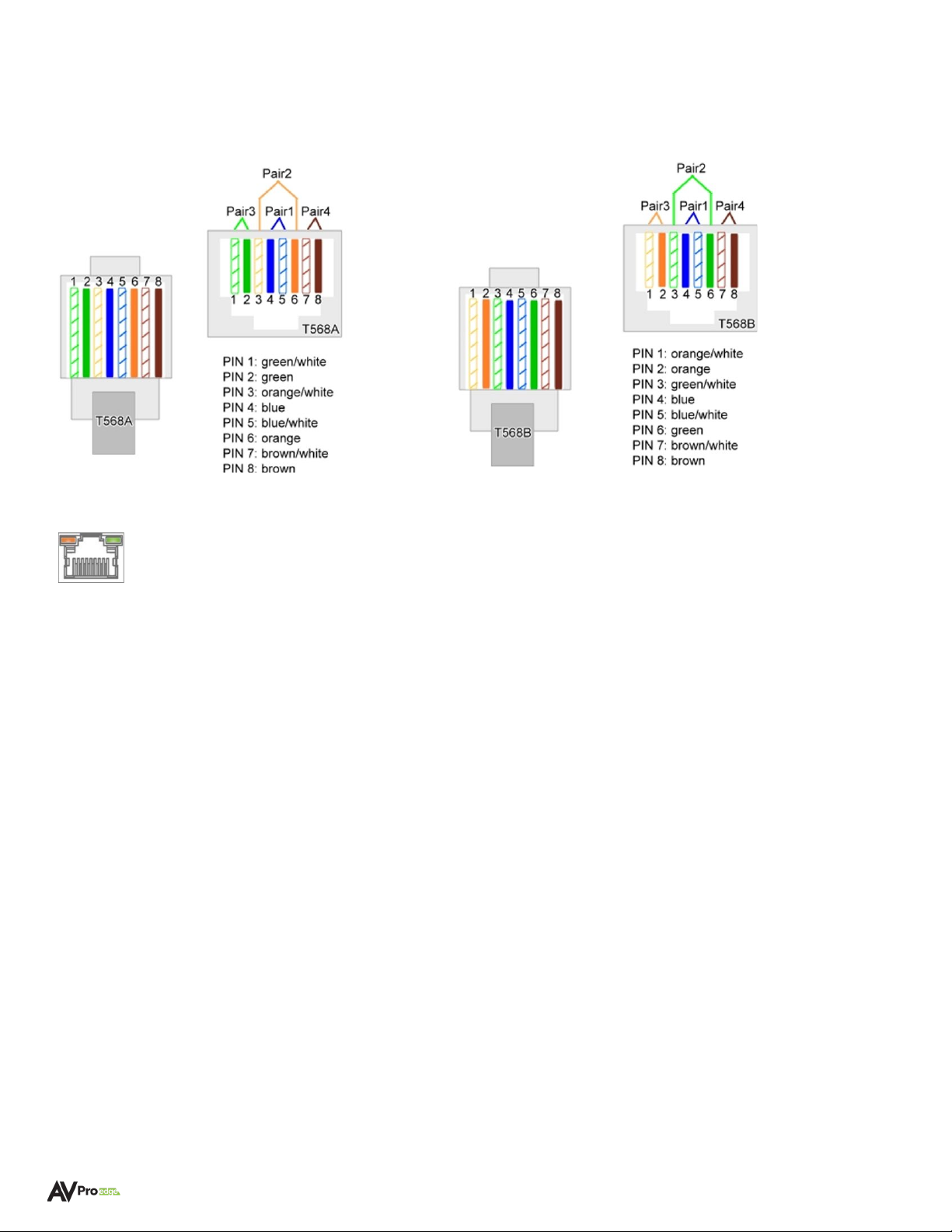

T568A T568B

WWW.AVPROEDGE.COM • 2222 EAST 52nd STREET NORTH • SIOUX FALLS, SD 57104 • [phone]
Audio Output Wiring
The audio output port on the AC-DANTE-D outputs 2-channel balanced audio, ideal for 2-channel systems and
zoned audio systems (does not downmix). This balanced analog output can be used in a balanced audio system,
but can also be converted to a traditional 2-channel unbalanced (L/R) audio output by preparing a cable as
shown below.
Pre-made 5-Pin to RCA cables are also available for purchase separately (SKU: AC-CABLE-5PIN-2CH)
