ACV05
Owner’s Manual &
Installation Instructions
GE Appliances

Customer Service Troubleshooting Tips Installation Instructions Care and Cleaning Operating Instructions Safety Instructions
Safety Information
Safety Precautions . . . . . . . . . . 3
How to Connect Electricity . . . . 3
Use of Extension Cords . . . . . . 4
Use of Adapter Plugs . . . . . . . . 4
Operating Instructions
Controls . . . . . . . . . . . . . . . . . . 5
Care and Cleaning
Grille and Case . . . . . . . . . . . . . 6
Outdoor Coils . . . . . . . . . . . . . . 6
Air Filter . . . . . . . . . . . . . . . . . . 6
Installation
Preparation . . . . . . . . . . . . . . . 7
Window Installation . . . . . . 8–11
Troubleshooting Tips
Before You Call
For Service . . . . . . . . . . . . . . . 12
Normal Operating Sounds . . . 12
Customer Service
Warranty . . . . . . . . . . . . . . . . 15
Product Registration . . . . .13, 14
Service Telephone
Numbers . . . . . . . . . . Back Cover
Congratulations!
You Are Now Part of the GE Family.
Welcome to the GE family. We’re proud of our quality products and we are
committed to providing dependable service. You’ll see it in this easy-to-use
Owner’s Manual and you’ll hear it in the friendly voices of our customer
service department.
Best of all, you’ll experience these values each time you use your air conditioner.
That’s important, because your new air conditioner will be part of your family
for many years. And we hope you will be part of ours for a long time to come.
We thank you for buying GE. We appreciate your purchase, and hope you will
continue to rely on us whenever you need quality appliances for your home.
Inside you will find many helpful hints on how to use and
maintain your air conditioner properly. Just a little preventive
care on your part can save you a great deal of time and money
over the life of your air conditioner.
READ THIS MANUAL
GE & You, A Service Partnership.
FOR YOUR RECORDS
Write the model and serial numbers here:
#
#
You can find them on a label on the side of the air conditioner.
Staple sales slip or cancelled check here.
Proof of the original purchase date is needed to obtain service
under the warranty.
IMPORTANT!
Fill out the Consumer Product Registration Card.
Two Easy Ways To Register Your Appliance!
■Through the internet at www.geappliances.com.
■Complete and mail the enclosed Product Registration Card.
You’ll find many answers to common problems in the Before You
Call For Service section. If you review our chart of Troubleshooting
Tips first, you may not need to call for service at all.
If you do need service, you can relax knowing help is only a phone
call away. A list of toll-free customer service numbers is included
in the back section of this manual. Or you can always call the GE
Answer Center® at 800.626.2000, 24 hours a day, 7 days a week.
IF YOU NEED SERVICE
2

Safety Instructions Operating Instructions Care and Cleaning Installation Instructions Troubleshooting Tips Customer Service
IMPORTANT SAFETY INFORMATION.
READ ALL INSTRUCTIONS BEFORE USING.
WARNING!
For your safety, the information in this manual must be followed to minimize the risk of fire or
explosion, electric shock, or to prevent property damage, personal injury, or loss of life.
Do not, under any circumstances, cut or remove the third (ground) prong from the power cord.
For personal safety, this appliance must be properly grounded.
The power cord of this appliance is
equipped with a 3-prong (grounding)
plug which mates with a standard 3-prong
(grounding) wall outlet to minimize the
possibility of electric shock hazard from
this appliance.
Have the wall outlet and circuit checked
by a qualified electrician to make sure the
outlet is properly grounded.
Where a 2-prong wall outlet is encountered,
it is your personal responsibility and
obligation to have it replaced with a
properly grounded 3-prong wall outlet.
The air conditioner should always be
plugged into its own individual electrical
outlet which has a voltage rating that
matches the rating plate.
This provides the best performance and
also prevents overloading house wiring
circuits which could cause a fire hazard
from overheated wires.
See the Installation Instructions,
Electrical
Requirements
section for specific electrical
connection requirements.
HOW TO CONNECT ELECTRICITY
■ Use this appliance only for its intended
purpose as described in this Owner’s
Manual.
■ This air conditioner must be properly
installed in accordance with the
Installation Instructions before it is
used.
■ Never unplug your air conditioner by
pulling on the power cord. Always grip
plug firmly and pull straight out from
the receptacle.
■ Repair or replace immediately all
electric service cords that have become
frayed or otherwise damaged. Do not
use a cord that shows cracks or abrasion
damage along its length or at either the
plug or connector end.
■ Turn the mode control to OFF and
unplug your air conditioner before
making any repairs or cleaning.
NOTE: We strongly recommend that any
servicing be performed by a qualified
individual.
■ For your safety… do not store or use
combustible materials, gasoline or other
flammable vapors or liquids in the
vicinity of this or any other appliance.
SAFETY PRECAUTIONS
3

Customer Service Troubleshooting Tips Installation Instructions Care and Cleaning Operating Instructions Safety Instructions
4
IMPORTANT SAFETY INFORMATION.
READ ALL INSTRUCTIONS BEFORE USING.
WARNING!
Because of potential safety hazards under
certain conditions, we strongly recommend
against the use of an extension cord.
However, if you must use an extension
cord, it is absolutely necessary that it be
a UL-listed, 14 gauge, 3-wire grounding
type appliance extension cord having a
grounding type plug and outlet and that
the electrical rating of the cord be
15 amperes (minimum) and 125 volts.
CAUTION:
DO NOT use an extension cord with any of
the 230/208 volt models.
USE OF EXTENSION CORDS – 115-Volt models only
Because of potential safety hazards under
certain conditions, we strongly recommend
against the use of an adapter plug.
However, if you must use an adapter,
where local codes permit, a
temporary
connection
may be made to a properly
grounded 2-prong wall outlet by use of a
UL-listed adapter available at most local
hardware stores.
The larger slot in the adapter must be
aligned with the larger slot in the wall
outlet to provide proper polarity in the
connection of the power cord.
When disconnecting the power cord from
the adapter, always hold the adapter in
place with one hand while pulling the
power cord plug with the other hand. If this
is not done, the adapter ground terminal is
very likely to break with repeated use.
If the adapter ground terminal breaks,
DO NOT USE the air conditioner until a
proper ground has been established.
Attaching the adapter ground terminal to a wall
outlet cover screw does not ground the appliance
unless the cover screw is metal, and not insulated,
and the wall outlet is grounded through the house
wiring. You should have the circuit checked by a
qualified electrician to make sure the outlet is
properly grounded.
USE OF ADAPTER PLUGS – 115-Volt models only
Read and follow this Safety Information carefully.
SAVE THESE INSTRUCTIONS

Safety Instructions Operating Instructions Care and Cleaning Installation Instructions Troubleshooting Tips Customer Service

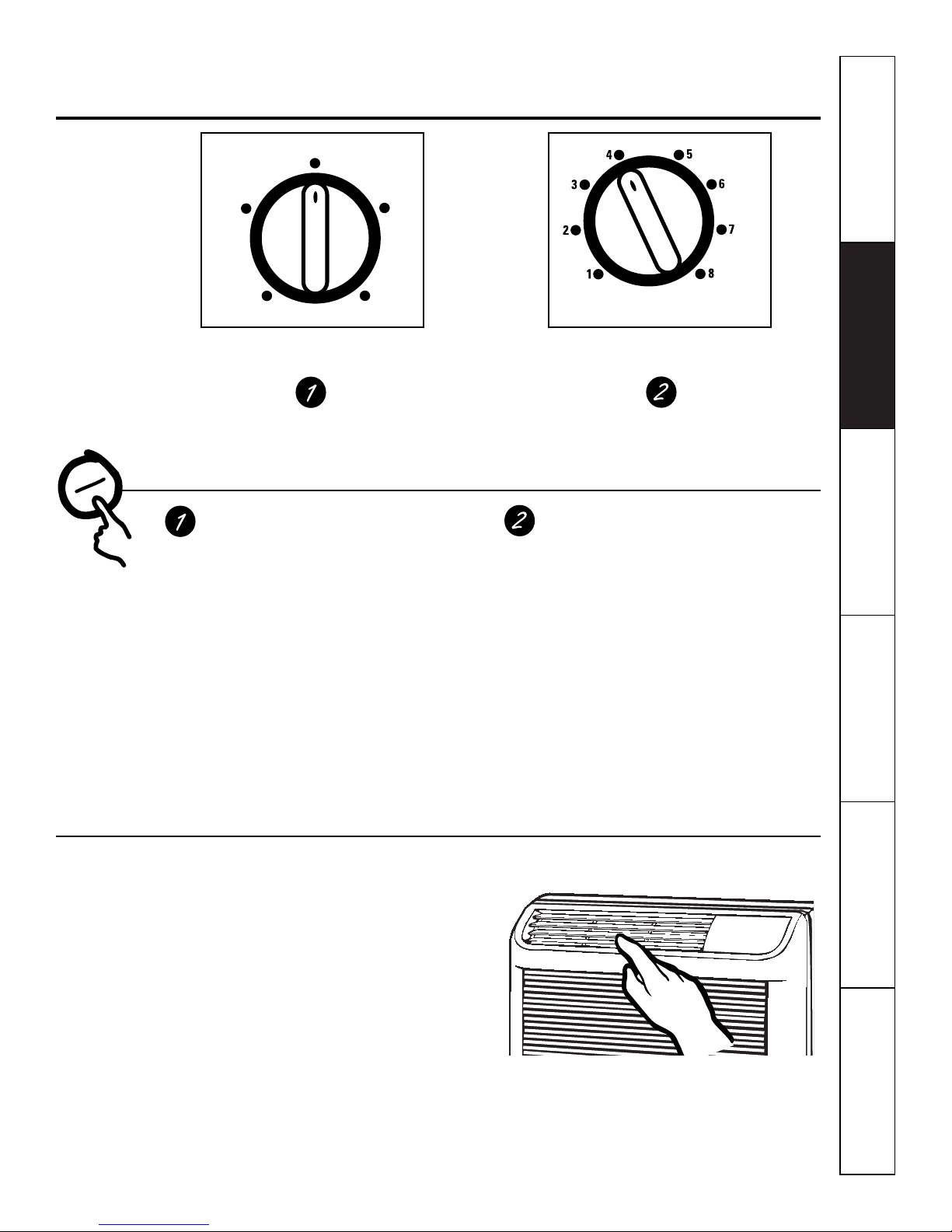

Controls
Mode Control
HIGH COOL, MED COOL and LOW COOL
provide cooling with different fan speeds.
FAN provides air circulation and filtering
without cooling.
NOTE: If you move the switch from a cool
setting to OFF or to a fan setting, wait at least
3 minutes before switching back to a cool setting.
Cooling Descriptions
For Normal Cooling —Select MED COOL with
the temp control at 4 .
For Maximum Cooling —Select HIGH COOL
with the temp control at 8 .
For Quieter & Nighttime Cooling —Select
LOW COOL with the temp control at 4 .
Temp Control
The temp control is used to maintain the
room temperature. The compressor will
cycle on and off to keep the room at the
same level of comfort. When you turn
the knob to a higher number the indoor
air will become cooler. Turn the knob to
a lower number and the indoor air will
become warmer.
The blower runs as long as the mode
control is not on OFF.
MODE CONTROL TEMP CONTROL
MED
COOL
HIGH
COOL
OFF
FAN
LOW
COOL
About the controls on the air conditioner.
Air Direction
Fingertip pressure on the louvers adjusts the
air direction up or straight ahead.
5

Customer Service Troubleshooting Tips Installation Instructions Care and Cleaning Operating Instructions Safety Instructions
6
Care and cleaning of the air conditioner.
Air Filter
The air filter behind the front grille should be
checked and cleaned at least every 30 days or
more often if necessary.
To remove:
Gently pull the filter tab up and slide it out.
The filter can be cleaned with a vacuum
cleaner to remove light dust or washed in
warm, soapy water. Rinse and let the filter dry
before replacing it. Do not expose the filter to
heat or direct sunlight when drying.
CAUTION: DO NOT operate the air conditioner
without a filter because dirt and lint will clog it and
reduce performance.
Outdoor Coils
The coils on the outdoor side of the air
conditioner should be checked regularly.
If they are clogged with dirt or soot they may
be professionally steam cleaned, a service
available through your GE service outlet.
Grille and Case
Turn the air conditioner off and remove the
plug from the wall outlet before cleaning.
To clean, use water and a mild detergent.
Do not use bleach or abrasives.

Safety Instructions Operating Instructions Care and Cleaning Installation Instructions Troubleshooting Tips Customer Service
7
Preparing to install the air conditioner.
Read these instructions completely and carefully.
NOTE TO INSTALLER: Leave these instructions
with the air conditioner after installation is
completed.
NOTE TO CONSUMER: Keep this Owner’s
Manual and Installation Instructions for
future use.
IMPORTANT NOTES:
For personal safety, this air conditioner must
be properly grounded.
It is important to have the wall outlet and
circuit checked by a qualified electrician if
there is any doubt as to whether a proper
ground exists.
Follow National Electric Codes (NEC) and/or
local codes and ordinances.
CAUTION:
Do not, under any circumstances, cut or
remove the third (ground) prong from the
power cord.
Do not change the plug on the power cord of
this air conditioner.
Aluminum house wiring may present special
problems—consult a qualified electrician.
Before You Begin
Some models require 115/120-volt
a.c., 60 Hz grounded outlet protected
with a 15-amp time delay fuse or
circuit breaker.
The 3-prong grounding plug minimizes the
possibility of electric shock hazard. If the wall
outlet you plan to use is only a 2-prong outlet,
it is your responsibility to have it replaced with
a properly grounded 3-prong wall outlet.
Some models require 230/208-volt
a.c., protected with a time delay fuse
or circuit breaker. These models
should be installed on their own single
branch circuit for best performance
and to prevent overloading house or
apartment wiring circuits, which could
cause a possible fire hazard from
overheating wires.
Electrical Requirements

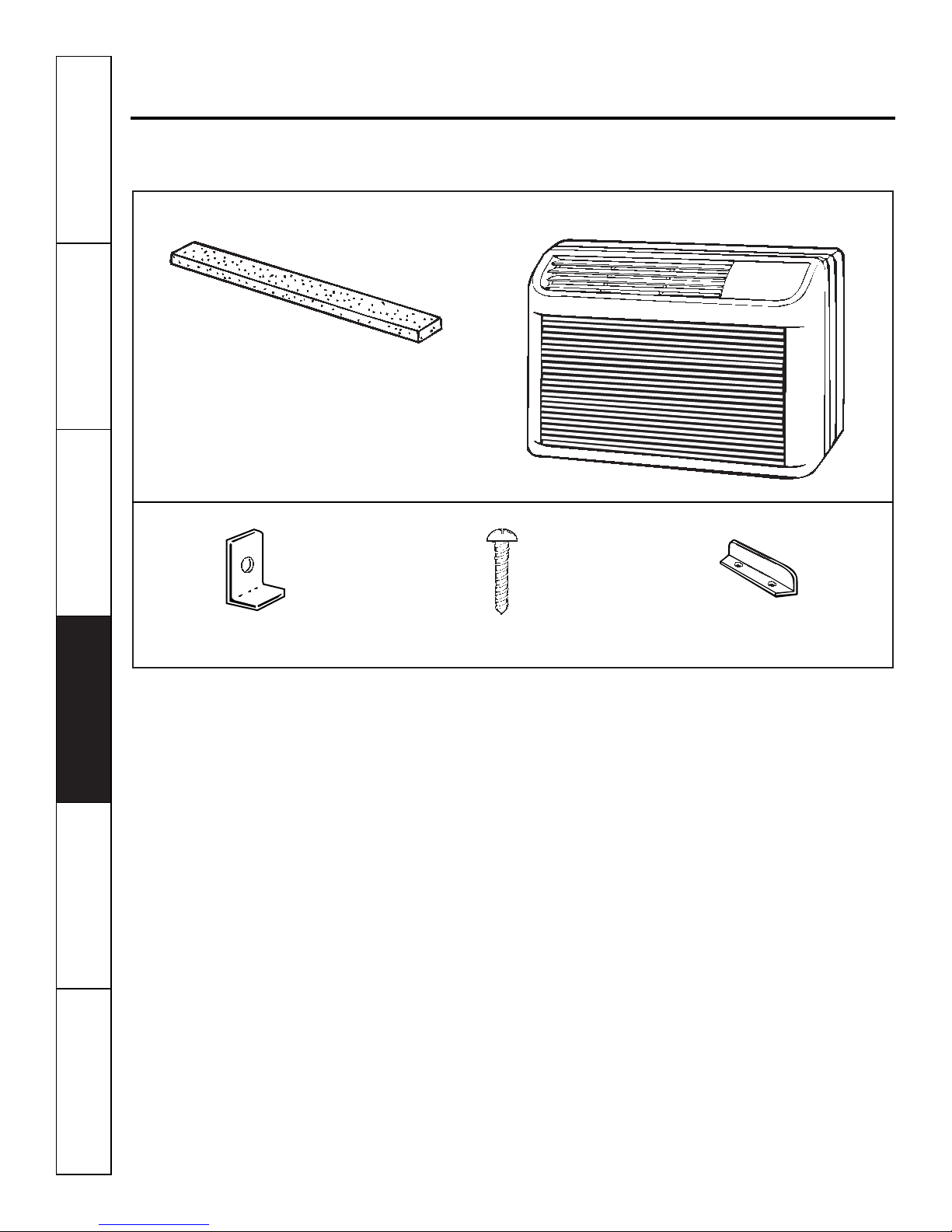

■ Phillips-head screwdriver
■ Flat blade screwdriver
■ Ruler or tape measure
■ Scissors or knife
Tools You Will Need

Customer Service Troubleshooting Tips Installation Instructions Care and Cleaning Operating Instructions Safety Instructions
8
Window installation instructions.
Read these instructions completely and carefully.
Parts Included
Screws (5)
Window locking bracket
Foam top window gasket Air conditioner
Supporting bracket (1)

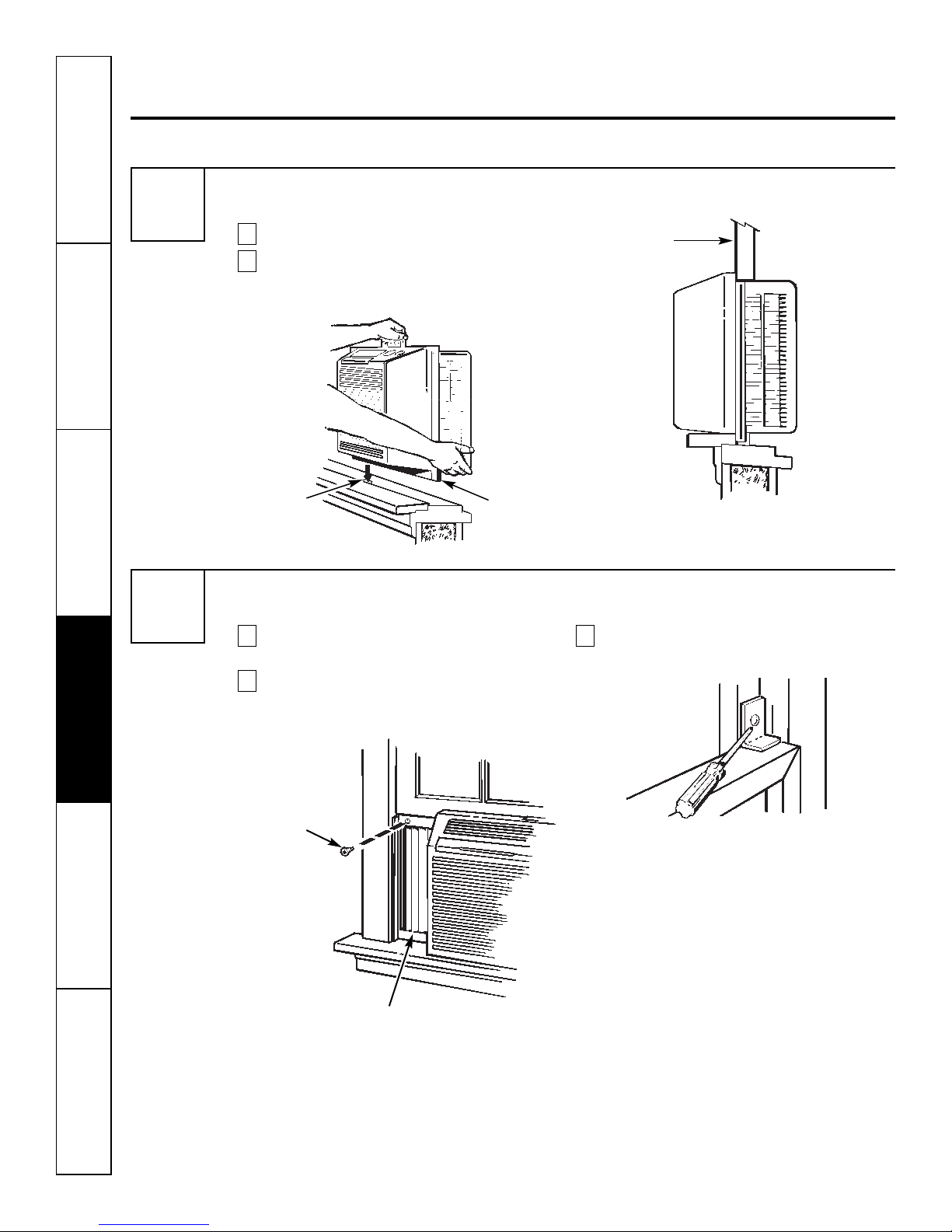

Center the supporting bracket in the
window against the stool.
Attach it to the sill with two screws.
B
A
Install the Supporting Bracket
Safety Instructions Operating Instructions Care and Cleaning Installation Instructions Troubleshooting Tips Customer Service
Read completely, then follow step-by-step.

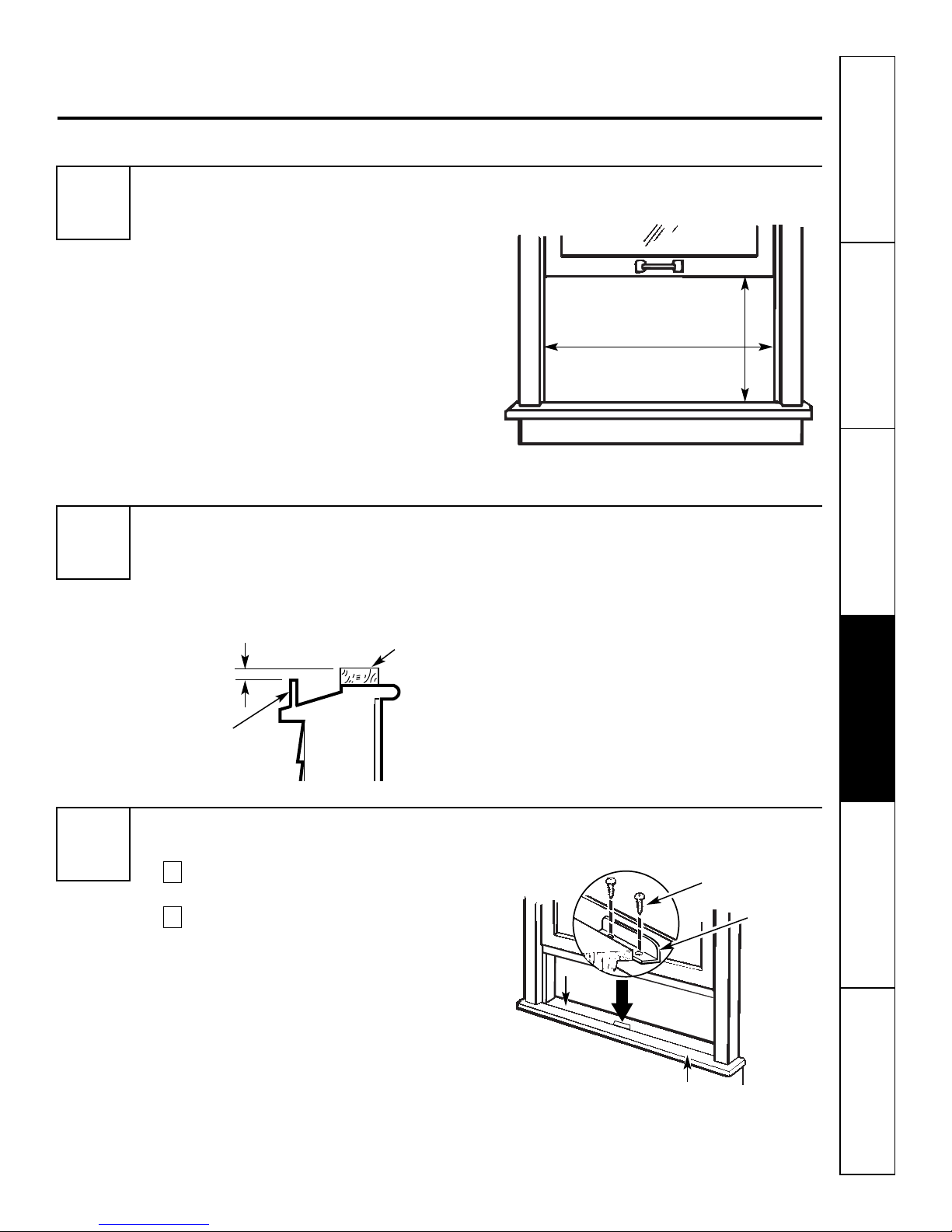

Window Requirements
■These instructions are for a standard
double-hung window. You will need to
modify them for other types of windows.
■All supporting parts must be secured to
firm wood, masonry or metal.
■The electrical outlet must be within
reach of the power cord. Do not use an
extension cord.
Window opening dimensions are for a
standard double-hung window.
14″min.
23″to 36″
Storm Window Requirements
A storm window frame will not allow the air
conditioner to tilt towards the outside and will
keep it from draining properly. To adjust for
this, attach a piece of wood to the stool.
WOOD PIECES:
WIDTH: 2″
LENGTH: Long enough to fit inside the
window frame.
THICKNESS: To determine the thickness,
place a piece of wood on the stool to make it
1/2″higher than the top of the storm window
frame.
Attach securely with nails or screws provided
by the installer.
1/2″higher
than frame
Storm
window
frame
Wood
Stool
1
2
3
9
Stool
Screws
Outside
Inside
Supporting
Bracket
Sill

Customer Service Troubleshooting Tips Installation Instructions Care and Cleaning Operating Instructions Safety Instructions
10
Window installation instructions.
Read these instructions completely and carefully.
Install the Air Conditioner in the Window
If the window has a handle, remove it.
Center the air conditioner in the window
with the bottom rail between the window
stool and the bracket.
B
A
4Lower the
window
Front
grille
Inside
Outside
Bracket Bottom rail
Stool
Install the Window Filler Panels and Locking Bracket
Extend the filler panels to fill the window
opening.
Secure the panels using two screws, one
on each side.
Attach the window locking bracket with
a screw.
C
B
A
5
Screw
(one on
each side)
Sliding panels

Safety Instructions Operating Instructions Care and Cleaning Installation Instructions Troubleshooting Tips Customer Service
Read these instructions completely and carefully.
11

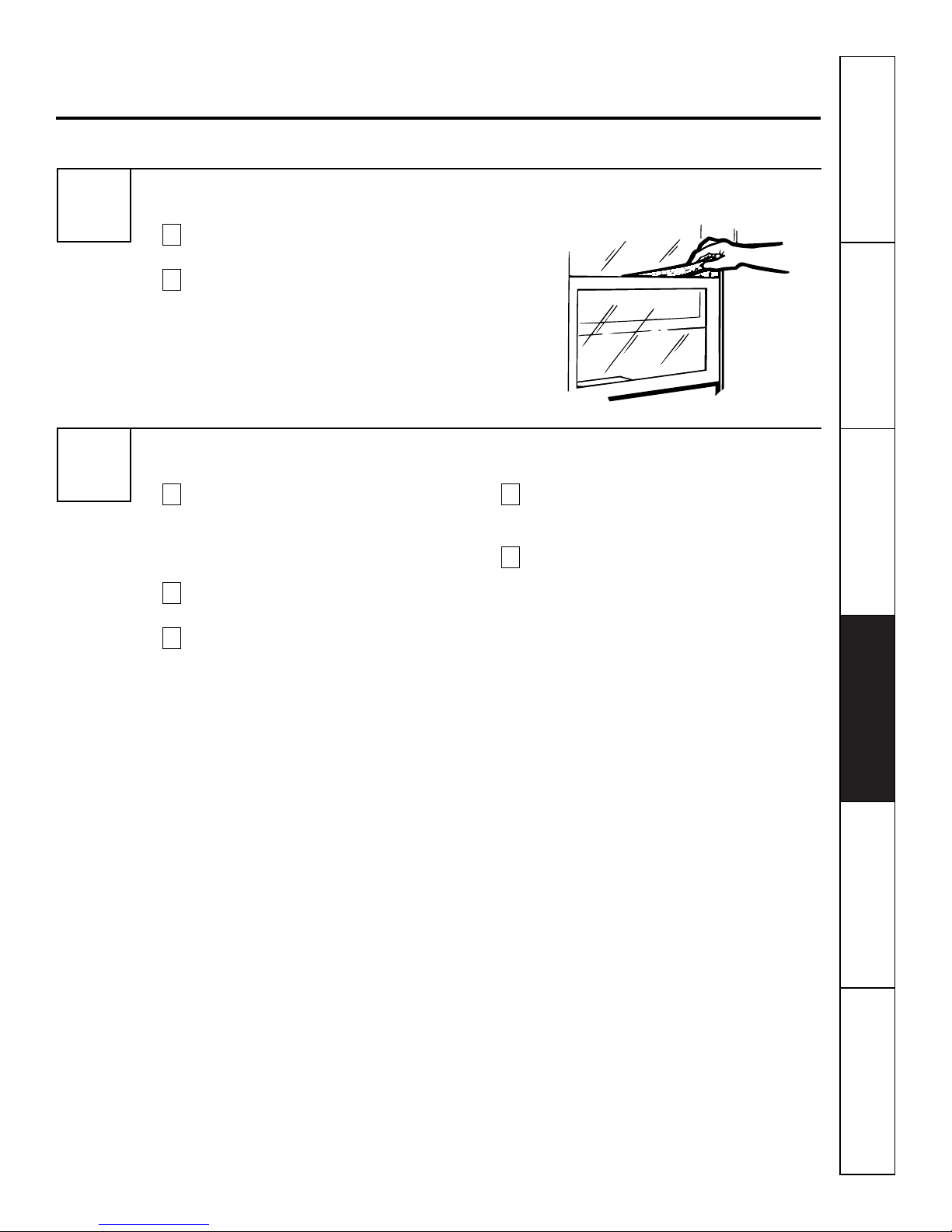

Install the Window Gasket
Cut the foam top window gasket to the
window width.
Stuff the foam between the glass and the
window to prevent air and insects from
getting into the room.
B
A
6
Removal from Window
Turn the air conditioner off and
disconnect the power cord. Wait
5-10 minutes before moving the air
conditioner to allow the water to
drain from the coil into the base pan.
Remove the foam gasket from between
the windows.
Remove the window locking bracket.
Remove the screws securing the sliding
panels on each side. Close the sliding
panels.
Keeping a firm grip on the air
conditioner, raise the window and
carefully “rock” the air conditioner
backward to drain most of the pan.
Carefully lift it from the window to avoid
spilling any remaining water. Store parts
for re-use with the air conditioner.
E
D
C
B
A
7

Customer Service Troubleshooting Tips Installation Instructions Care and Cleaning Operating Instructions Safety Instructions
12
Before You Call For Service…
Troubleshooting Tips
Save time and money! Review the chart on this page
first and you may not need to call for service.
Problem Possible Causes What To Do
Air conditioner The air conditioner •Make sure the air conditioner plug is pushed
does not start is unplugged. completely into the outlet.
The fuse is blown/circuit •Check the house fuse/circuit breaker box and replace
breaker is tripped. the fuse or reset the breaker.
Power failure. •If power failure occurs, turn the mode control to OFF.
When power is restored, wait 3 minutes to restart the
air conditioner to prevent tripping of the compressor
overload.
Air conditioner does Airflow is restricted. •Make sure there are no curtains, blinds or furniture
not cool as it should blocking the front of the air conditioner.
The temp control may •Turn the knob to a higher number. The highest
not be set high enough. setting provides maximum cooling.
The air filter is dirty. •Clean the filter at least every 30 days. See the Care and
cleaning of the air conditioner section.
The room may have •When the air conditioner is first turned on you need
been hot. to allow time for the room to cool down.
Cold air is escaping. •Check for open furnace floor registers and cold
air returns.
Cooling coils have iced up. •See “Air conditioner freezing up” below.
Air conditioner Ice blocks the air flow and •Set the mode control at FAN or HIGH COOL with the
freezing up stops the air conditioner temp at 1 or 2.
from cooling the room.
Normal Operating Sounds
■ You may hear a pinging noise caused by
water being picked up and thrown
against the condenser on rainy days or
when the humidity is high. This design
feature helps remove moisture and
improve efficiency.
■ You may hear the thermostat click when
the compressor cycles on and off.
■ Water will collect in the base pan
during high humidity or on rainy days.
The water may overflow and drip from
the outdoor side of the unit.
■ The fan may run even when the
compressor is not.

General Electric Company
Warranty Registration Department
P.O. Box 34070
Louisville, KY 40232-4070
Please place in envelope and mail to:
GE Service Protection Plus™
GE, a name recognized worldwide for quality and dependability,
offers you Service Protection Plus™—comprehensive protection on
all your appliances—No Matter What Brand!
Benefits Include:
• Backed by GE
• All brands covered
• Unlimited service calls
• All parts and labor costs included
• No out-of-pocket expenses
• No hidden deductibles
• One 800 number to call
You will be completely satisfied with our service protection or you may request your money
back on the remaining value of your contract. No questions asked. It’s that simple.
Protect your refrigerator, dishwasher, washer and dryer, range,TV, VCR and much more—
any brand! Plus there’s no extra charge for emergency service and low monthly financing is
available. Even icemaker coverage and food spoilage protection is offered. You can rest easy,
knowing that all your valuable household products are protected against expensive repairs.
Place your confidence in GE and call us in the U.S. toll-free at 800-626-2224
for more information.
*All brands covered, up to 20 years old, in the continental U.S.
We’ll Cover Any Appliance.
Anywhere. Anytime.*
Cut here
13

Consumer Product Ownership Registration
Dear Customer:
Thank you for purchasing our product and thank you for placing your confidence in us.
We are proud to have you as a customer!
Follow these three steps to protect your new appliance investment:
1
Complete and mail
your Consumer
Product Ownership
Registration today.
Have the peace of mind
of knowing we can
contact you in the
unlikely event of a
safety modification. 2After mailing the registration
below, store this document
in a safe place. It contains
information you will
need should you
require service.
Our service number is
800 GE CARES
(800-432-2737). 3Read your Owner’s
Manual carefully. It will
help you operate your new
appliance properly. If you
have questions, or need
more information, call
the GE Answer Center®
800.626.2000.
Model Number Serial Number
Important: If you did not get a registration card with
your product, detach and return the form
below to ensure that your product is registered.
Consumer Product Ownership Registration
Model Number Serial Number
Important
Mail
Today!
First
Name
Apt. #
Street
Address
City
Last
Name
Zip
CodeState
Date Placed
In Use
Month Day Year Phone Number
GE Appliances
General Electric Company
Louisville, Kentucky 40225
www.ge.com/appliances
Mr. Ms. Mrs. Miss
E-mail Address
Occasionally, we may allow selected companies to send you information.
Check here if you do not want this information.
Cut here
14

15
Safety Instructions Operating Instructions Care and Cleaning Installation Instructions Troubleshooting Tips Customer Service
Air Conditioner Warranty.
All warranty service provided by our Factory Service Centers
or an authorized Customer Care®technician. For service,
call 800-GE-CARES.
For The Period Of: GE Will Replace:
One Year Any part of the air conditioner which fails due to a defect in materials or workmanship.
From the date of the During this full one-year warranty, GE will also provide, free of charge, all labor
original purchase and in-home service to replace the defective part.
Five Years Any part of the sealed refrigerating system (the compressor, condenser, evaporator
From the date of the and all connecting tubing) which fails due to a defect in materials or workmanship.
original purchase During this additional four-year limited warranty, GE will also provide, free of charge,
all labor and in-home service to replace the defective part.
■Service trips to your home to teach you how to use the
product.
■Improper installation. If you have an installation
problem, or if the air conditioner is of improper cooling
capacity for the intended use, contact your dealer or
installer. You are responsible for providing adequate
electrical connecting facilities.
■Failure of the product resulting from modifications to
the product or due to unreasonable use including
failure to provide reasonable and necessary
maintenance.
■In commercial locations labor necessary to move the
unit to a location where it is accessible for service by an
individual technician.
■Replacement of house fuses or resetting of circuit
breakers.
■Failure due to corrosion on models not corrosion-
protected.
■Damage to the product caused by improper power
supply voltage, accident, fire, floods or acts of God.
■Incidental or consequential damage to personal
property caused by possible defects with this air
conditioner.
What GE Will Not Cover:
This warranty is extended to the original purchaser and any succeeding owner for products purchased for
home use within the USA. In Alaska, the warranty excludes the cost of shipping or service calls to your home.
Some states do not allow the exclusion or limitation of incidental or consequential damages. This warranty
gives you specific legal rights, and you may also have other rights which vary from state to state. To know
what your legal rights are, consult your local or state consumer affairs office or your state’s Attorney General.
Warrantor: General Electric Company. Louisville, KY 40225

Customer Service Troubleshooting Tips Installation Instructions Care and Cleaning Operating Instructions Safety Instructions
16
GE Answer Center
®
800.626.2000
The GE Answer Center® is open 24 hours a day, 7 days a week.
In-Home Repair Service 800-GE-CARES (800-432-2737)
Expert GE repair service is only a phone call away.
Special Needs Service 800.626.2000
800-TDD-GEAC (800-833-4322)
GE offers, free of charge, a brochure to assist in planning a barrier-free kitchen for persons
with limited mobility.
Service Contracts 800-626-2224
Purchase a GE service contract while your warranty is still in effect and you’ll receive a
substantial discount. GE Consumer Service will still be there after your warranty expires.
Parts and Accessories 800-626-2002
Individuals qualified to service their own appliances can have parts or accessories sent directly
to their homes (VISA, MasterCard and Discover cards are accepted).
Instructions contained in this manual cover procedures to be performed by any user. Other servicing
generally should be referred to qualified service personnel. Caution must be exercised, since
improper servicing may cause unsafe operation.
Service Satisfaction
If you are not satisfied with the service you receive from GE:
First, contact the people who serviced your appliance.
Next, if you are still not pleased, write all the details—including your phone number—to:
Manager, Customer Relations
GE Appliances
Appliance Park
Louisville, KY 40225
Printed in Mexico
Service Telephone Numbers.
