GE CLIMATISEUR AEH18* Operating instructions

ge.com
©
Safety Instructions ........ 2, 3
Operating Instructions
Additional Controls .......... 7
Control Knob Models ......... 6
Normal Operating Sounds ..... 7
Touch Pad Models ......... 4, 5
Care and Cleaning
Air Filter ................... 8
Grille and Case .............. 8
Outdoor Coils ............... 8
Installation Instructions
Through-the-Wall
Installation--Optional ....... 15
Window Installation ....... 9-14
Troubleshooting Tips ....... 16
Consumer Support
Consumer Support ...Back Cover
Product Registration ..... 17, 18
Warranty .................. 19
AEHI 8*
AEM 18 *
AEQ24
AEV24
AEW24
AE H 2 5-'_
AEM25*
'_ENERGY STAR ® labeled product
I
ENERGYSTAR
As an ENERGY STAR ® partnei, GE has
determined that this product meets
the ENERGY STAR ® guidelines for
energ T efficiency.
Writethemodelandserial numbershere:
Model #
Serial #
Find these numbers on a label on the
side of the air condifione_.
49-7587 11-07JR

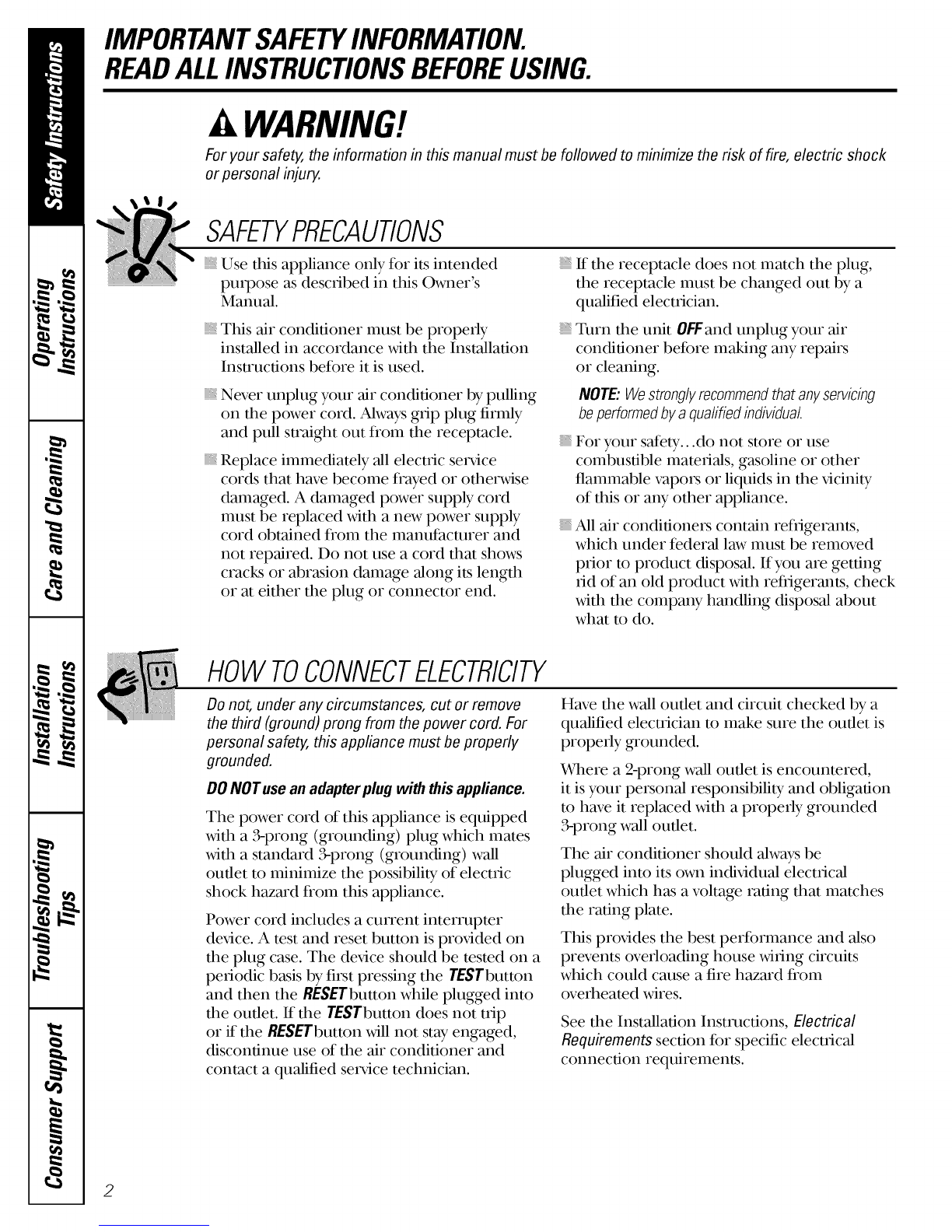

IMPORTANTSAFETYINFORMATION.
READALLINSTRUCTIONSBEFOREUSING.
WARNING!
Foryour safety, the information in this manual must be followed to minimize the risk of fire, electric shock
or personal injurjz
SAFETYPRECAUTIONS
Use this appliance only for its intended
purpose as described in this Owner's
Manual.
This air conditioner must be properly
installed in accordance with the Installation
Instructions before it is used.
Never unplug your air conditioner by pulling
on the power cord. Always grip plug firmly
and pull straight out from the receptacle.
Replace immediately 'all electric ser\,ice
cords that have become flayed or otherwise
damaged. A damaged power supply cord
must be replaced with a new power supply
cord obtained from the manufacturer and
not repaired. Do not use a cord that shows
cracks or abrasion damage along its length
or at either the plug or connector end.
If the receptacle does not match the plug,
the receptacle must be changed out by a
qualified electrician.
Turn the unit OFFand unplug your air
conditioner before making any repairs
or cleaning.
NOTE: Westronglyrecommendthatanyservicing
be performedbya qualified individual
For your safety...do not store or use
combustible mamrials, gasoline or other
flammable vapors or liquids in the x,icinity
of this or any other appliance.
All air conditioners contain refrigerants,
which under federal law must be removed
prior m product disposal. If you are getting
rid of an old product with refiigerants, check
with the company handling disposal about
what to do.
HOWTOCONNECTELECTRICITY
Do not, under any circumstances, cut or remove
the third (ground) prong from the power cord. For
personal safety, this appliance must be properly
grounded.
DONOT use anadapterplug with this appliance.
The power cord of this appliance is equipped
with a 3-prong (grounding) plug which mates
with a standard 3-prong (grounding) wall
outlet to minimize the possibility of electric
shock hazard fiom this appliance.
Power cord includes a current intermpmr
dex,ice. A test and reset button is prox,ided on
the plug case. The dex,ice should be tested on a
periodic basis by first pressing the TESTbutton
and then the RESErbutton while plugged into
the outlet. If the TESTbutton does not trip
or if the RESETbutmn will not stay engaged,
discontinue use of the air conditioner and
contact a qualified ser\,ice technician.
Have the wall outlet and circuit checked by a
qualified electrician to make sure the outlet is
properly _ounded.
Where a 2-prong wall outlet is encounmred,
it is your personal responsibility and obligation
to have it replaced with a properly grounded
3-prong wall outlet.
The air conditioner should always be
plugged into its own indix,idual electrical
outlet which has a voltage rating that matches
the rating plate.
This pro\,ides the best performance and also
prevents overloading house wiring circuits
which could cause a fire hazard from
overheamd wires.
See the Installation Instructions, Electrical
Requirements section fbr specific electrical
connection requirements.
2

WARNING!
CORDS
CAUTION:
DO NOT usean extension cord with any ofthe
230/208 volt models.
ge.com
READANDFOLLOWTHISSAFETYINFORMATIONCAREFULLY.
SAVETHESEINSTRUCTIONS
3

Aboutthecontrolsontheair conditionermmodels with touchpads.
Lights next to the touch pads on the air conditioner control panel indicate the selected settings.
Lightindicatesthe unit
Thedisplayalwaysshowsthe room is in the temperatureor
temperatureexceptwhensettingthe delaytimeSetmode.
SettemperatureoA th2 Delay timer. _I.1___ _
-.,o, oooo,y
: :Ec::;gys.... '- i4tyiilid2e?ti:Sst2
Lightindicates
Circulaireison.
0 Delay1-24hr
Delaytimer
Decrease
O Modeselect
O Fanspeed
Decrease
O Temperature
setlncrease
andDecrease
Delaytimer increase
Circulaire
Auto Fanon/off
Fanspeed Increase
Unit power on/off
4
Air Conditioner Controls Remote Control
Controls
The air conditioner conuols are locmed behind die
control panel dooL Press to open and close die doo_:
NOTE:The remora conuol will work with the conuol
panel door open or closed.
Oower Pad
Turns air conditioner on and off: When
turned on, the display will show the room
temperature.
0Display
Shows the room temperature or time
remaining on the Del W fimeL Shows the Set
mmperamre while setting the temperature in
Coolor Energy Saver modes. The Set light will
mrn on while setting.
NOTE:The display will change to show the
room temperature after settings have been
made. To recall the Setmmpexamre, press the
remp Increase •or Decrease •pads.
Oemp Increase •/Decrease • Pads
Use to set temperature when in Coolor Energy
Savermode. The Setlight will turn on while
setting.
ODelay fimerlncrease •(+)/Decrease •(-)
Pads
Each touch of the Increase •/Decrease •
pads on the unit or the Increase +/Decrease -
pads on the remote control will set the delay
time when using the Delay 1-24hr diner (@).
The Setlight will mrn on while setting.
ian Speed Pads
Use to set the fan speed to LOW,Med, High
or Auto on the unit. NOTE: On the remote
control, use the fan speed Increase +/
Decrease -pads to set the fan speeds to LOW,
Med or High. Use the Auto pad to turn Auto
fail Oil.
Oode Pad
Use to set the air conditioner to Cool,Energy
Saveror FanOnlymode.
0
0
Delay Pads
Delay ON--When the air conditioner is off. it
can be set to automaticaUy come on in 1 to 24
hours at its pre_'ious mode and fan settings.
Delay OFF_\¥hen the air conditioner is on,
it can be set to automatically mrn offin 1 to
24 hours.
Howtoset:
Press file Delay 1-24hr pad on the unit or
die O pad on file remora conuol. Each touch
of the Increase •/Decrease • pads on the
unit or the Increase +/Decrease -pads on
the remora conuol will set the timer in
1-hour intervals. The Setlight will mrn on
while setting.
To review file remaining time on die Delay
1-24hr time_; press the Delay 1-24hr pad on the
unit or the @ pad on the remote control. Use
the Increase •/Decrease • pads on the unit
or the Increase +/Decrease -pads on the
remote control to set a new time if desired.
Tocancel the timer, press d_e Delay 1--24hr pad
until file light on the Delay 1-24hrpad goes off:
CIRCULAIREPad
Turn on to provide continuous side-to-side
air circulation.
For fixed side-to-side air direction, turn on
until the desired air direction is obtained,
then turn it off:

Do Not Operate in Freezing Outdoor Conditions
This cool-only air conditioner was not designed for
fleezing outdoor conditions. It must not be used in
freezing outdoor conditions.
ge.com
CoolMode
Use the Coolmode at Low,Med,Highor AutoFan
Speedfor cooling. Use the TemperatureIncrease•/
Decrease•pads to set the desired temperature
between 64°F and 86°F in 1°F increments.
An electronic fllemlostat is used to mMntain file
room temperature. The compressor will cycle on
and off to keep file room at file set level of comfort.
Set file fllemlostat at a lower number and file indoor
air will become cooleL Set file thealilostat tit a higher
number and the indoor air will become wamleL
NOTE:ff theairconditionerisoffandisthenturnedon
whileset toa Coolsettingorif turnedfromafansetting
toa Coolsetting,it maytakeapproximately3minutes
forthecompressortostartandcoolingtobegin.
CoolingDescriptions
ForNormalCooling--Selectthe Coolmode and
Highor IViedfan with a middle set temperature.
For Maximum Cooling--Select the Cool mode
and High fan with a lower set temperature.
For Quieter & Nighttime Cooling--Select the
Coolmode and Low fan with a middle set
temperature.
Energy Saver Mode
Gontrols the fan.
ON--The fan will cycle on and offMfll file
compressoL This results in Mder variations of room
temperature and humidity. NonnMly used when file
room is unoccupied. NOTE: Thefan maycontinue to run
for ashort time after the compressorcycles off.
OFF--The fan runs all file time, while file
compressor cycles on and off:
Fan OnlyMode
Use the Fan OnlyMode at Low, Medor Highfan
speed to provide air circulation and filtering
without cooling. Since fan only settings do not
provide cooling, a Set mmperamre camlot be
enmred. The room mmpemmre will appear
in the displ W.
NOTE:AutoFanSpeedcannotbeusedwhenin the
FanOnlyMode.
Auto Fan Speed
Set to Auto fan speed for the fan speed to
automatically set to the speed needed to provide
optimum comfort settings with the set tempemtme.
If the room needs more cooling, the fan speed
will automatically increase. If the room needs less
cooling, the fan speed will automatically decre_tse.
NOTE:AutoFanSpeedcannotbeusedwhenin the
FanOnlyMode.
Power Outage Recovery Feature
In the case of a power outage or interruption, the
unit will automatically re-start in the settings last
used after the power is restored. If the Delay1-24hr
feature was set, it will resume countdown. You may
need to set a new time if desired.
Remote Control
To ensure proper operation, aim the remote
control at the signal receiver on the air
condifioneL
The remote control sigmal h_tsa range of
lap to 20 feet.
, Make sure noflfing is between file air conditioner
and the remote control fllat could block file
signal.
, Make sure batteries are flesh and installed
correctly as indicated on file remote conuol. 5

Aboutthecontrolsontheair conditionermmodelswith controlknobs.
Features and appearance will vary.
NODE
OFF
High _ High
COOJ, y ,,i _,Farl
\
Low"
CoN
MODECONTROL
TENP
Coolest 7 1
6
5 3
TEMPERATURECONTROL
Contro/s
The air conditioner controls are located behind the ,_
r.#control panel doo_. Press to open and close the dooL
OMode Control
High Cool,Med Cool and Low Cool
provide cooling with (liff_rent fan speeds.
Fan settings provide air circulation and
filmring without cooling.
NOTE:If youmovethemodecontrolfroma cool
settingtoOFFortoa fansetting,waitatleast
3 minutesbeforeswitchingbacktoa coolsetting.
Cooling Descriptions
ForNormal Cooling--Select HighCoolor Med Cool
with the TEMPERATURE control at midpoint.
For Maximum Cooling--Select High Cool with the
TEMPERATURE control at the highest number
available on your knob.
ForQuieter&NighttimeCooling--Select Low Cool
with the TEMPERATURE control at midpoint.
TEMP Control
The TEMP control is used to maintain the
room temperature. The compressor will cycle
on and off m keep the room at the same level
of comfort. When you ann the ]_lob to a
higher numbex; the indoor air will become
cooler. Turn the knob m a lower number and
the indoor air will become warme_.
OCIRCULAIRE
For continuous side-to-side air circulation,
set the Circulaire switch to ON.
For fixed side-to-side air direction, set the
Circulaire switch to ON until the desired air
direction is obtained, then move it to OFF.
OFF ON
6

Additionalcontrols, geoom
Vent Control
The vent control is located above tile control
panels.
When set at CLOSE,only tile air inside tile room
will be circulated and conditioned. When set at
OPEN, some outside air is let into tt_e room.
Toopen the vent, push the lever to the right.
Toclose it, push it to the left.
A# D#ection--Up and Down
Fingertip pressure on the horizontal louvers
adjusts the air direction up or down.
Control Panel Door
Press to open and close the dooL
NOTE: The remote control (on some models) will
work with tile control panel door open or closed.
Normal operatingsounds.
You may hear a pinging noise caused by
wamr being picked up and thrown against the
condenser on _vfinydays or when the humidity
is high. This design feature helps remove
moisture and improve efficienc>
You may hear file flleimostat click when file
compressor cycles on and off:
Water will collect in die b_tse pan during
high humidity or on _finy days. The water may
overflow and d;ip flom the outdoor side of
the unit.
The fan may run even when the compressor
does not.

Careand cleaningofthe air conditioner.
Grille and Case
Turn the air conditioner off and remove the To clean, use water and a mild detergent. Do not
plug flom the wall outlet before cleaning, use bleach or abrasives.
OutdoorCoils
The coils on the outdoor side of the air conditioner
should be checked regularly: If flley are clogged
Mr1 dirt or soot, flley may be professionMly cleaned.
Air Filter
The air filter behind the front grille should be
checked and cleaned at least eve_T 30 days or
more often if necessary.
Toremove:
[-_ Open the inlet grille upward by pulling out the
bottom of the inlet grille.
[-2--]Using the rob, pull up slightly on the filter
to release it and pull it down.
Clean the filter with winm, soapy wamL Rinse and
let the filmr d_T before replacing it. Do not clean
the filter in a dishwasheL k, CAUTION:DoNoToperatetheair
conditionerwithouta filterbecausedirtandlintwillclogit
andreduceperformance.
Grille Frame Removal (if necessary for coil cleaning)
Remove the air filteL See the Air Filtersection above.
If present, remove the gnille fl_mle attachment screw.
Grasp the lower comets of the gIille flmne while
pressing in on the case side robs with your finger
tips. Pull out to release and lift it up.
NOTE:Donotpullthebottomedgetowardyoumorethan3"
oryoumaydamagethetabsofthegrille.
How to Insert the Batteries in the Remote Control
[-_ Remove the battery cover by sliding it
according to the arrow direction.
Insert new batteries, making sure that the (+)
and (-) of battery are installed conecd):
[-_ Reatmch the cover by sliding it back
into position.
NOTES:
Use 2 "_" (1.5 volt) alkaline bmtefies. Do not
use rechmgeable batteries.
Remove the batteries flom the remora control if
the sysmm is not going m be used for a long time.
8

ilnsta,,at,onnsttuct,onsIAirC°ndit'°nerl
I_ Questions? Call 800.GE.CARES (800.432.2737) or Visit our Website at: ge.com I
BEFORE YOU BEGIN
Read these instructions completely
and carefully.
IMPORTANT - Savethese
instructions for local inspector's use.
• IMPORTANT - Observeall
governing codes and ordinances.
•Note to Installer- Be sure to leave these
instructions with the Consumer.
•Note to Consumer- Keep these
instructions for future reference.
• Skill level - Installation of this appliance
requires basic mechanical skills.
• Completion time- Approximately 1 hour
• We recommend that two people install
this product.
• Proper installation is the responsibility
of the installer.
Product failure due to improper installation
is not covered under the Warranty.
You MUST use all supplied parts and use
proper installation procedures as described
in these instructions when installing this
air conditioner.
_ELECTRICAL REQUIREMENTS
The 3-prong grounding plug minimizes the
possibility of electric shock hazard. If the wall
outlet you plan to use is only a 2-prong outlet,
it is your responsibility to have it replaced with
a properly grounded 3-prong wall outlet.
Some models require 230/208-volt a.c.,
protected with a time delay fuse or circuit
breaker. These models should be installed
on their own single branch circuit for
best performance and to prevent
overloading house or apartment wiring
circuits, which could cause a possible
fire hazard from overheating wires.
- CAUTION:
Do not, under any circumstances, cut or
remove the third (ground) prong from the
power cord.
Do not change the plug on the power cord
of this air conditioner.
Aluminum house wiring may present special
problemsmconsult a qualified electrician.
TOOLS YOU WILL NEED
Adjustable wrench
Phillips head screwdriver
Pencil
Level
Flat-blade screwdriver
Ruler or tape measure
Scissors or knife
Power cord includes a current interrupter
device. A test and reset button is provided on
the plug case. The device should be tested on a
periodic basis by first pressing the TEST button
and then the RESET button while plugged into
the outlet. If the TEST button does not trip or
if the RESET button will not stay engaged,
discontinue use of the air conditioner and
contact a qualified service technician.
9

Window Installation Instructions
PARTS INCLUDED
(Appearance may vary)
Left
accordion
panel
Window
sash seal
mounting
rail
Right
accordion
panel
Window locking
bracket (2)
-- V-support (2)
Bolt (2) & nuts (2)
Type A (6) Type B (4) Type C (7) Type D (6) Type E (4) Type F (2)
10

Window Installation Instructions
WI WINDOW REQUIREMENTS
• These instructions are for a standard
double-hung window. You will need to
modify them for other types of windows.
• The air conditioner can be installed
without the accordion panels if needed
to fit in a narrow window. See the
window opening dimensions.
• All supporting parts must be secured
to firm wood, masonry or metal.
• The electrical outlet must be within
reach of the power cord.
[//"
18" min.
30" to 41"
(With accordion panels)
3h
J
[_] STORM WINDOW REQUIREMENTS
A storm window frame will not allow the
air conditioner to tilt toward the outside,
and will keep it from draining properly.
To adjust for this, attach a piece of wood
to the stool.
WOOD PIECES-
WIDTH: 2"
LENGTH: Long enough to fit inside the
window frame.
THICKNESS: To determine the thickness,
place a piece of wood on the sill to make
it 1/2" higher than the top of the storm
window frame or the vinyl frame.
Attach securely with nails or screws
provided by the installer.
1/2" higher
than vinyl frame
L(on some windows)
/w
1/2" higher--_T- rl_ _Wood
than storm
window
frame _Sill [._
Storm window
frame - r'_ Vinyl frame I I
[] REMOVE THE AIR CONDITIONER
FROM THE CASE
Remove the locking screw and locking
bracket from the lower frame. Save to
reinstall later.
Remove the ground screw and save to
reinstall later.
Remove the ground screw
and save to reinstall later
[] Slide the air conditioner from the case by
gripping the base pan handle and pulling
forward while bracing the case.
141PREPARE THE WINDOW
Cut the window sash seal to the proper
length. Peel off the backing and attach the
seal to the underside of the window sash.
11

Window Installation Instructions
[] PREPARE THE CASE
I-A-] Install the top mounting rail with 4 type B
screws from the inside of the case.
®Insert the frames for the accordion panels
into the top mounting rail and the bottom
frame guides. Attach the accordion panels
to the side of the case using 3 type A screws
on each side.
Note: When attaching the accordion panels,
make sure to only screw the inner panels
to the case sides.
Top mounting rail
Type A
screws
Bottom mounting rail
BACK
INSTALL THE CASE
IN THE WINDOW
Carefully slide the case into the window and
center the case. Lower the window behind
the top mounting rail. Pull the bottom of the
case forward so that the bottom mounting
rail is tight against the back of the window
sill. Mount the case to the window sill using
4 type E screws. Drill pilot holes, if necessary.
__J
Sill
® Make sure the bolts and nuts are all of the
way in both the left and right V-supports.
[] Position the V-supports on the case bottom
so that they will be near the outside wall.
Attach a V-support to each side of the
bottom of the case using type C screws,
3 on each side.
V-support
12

Window Installation Instructions
[] INSTALL THE CASE
IN THE WINDOW (cont.)
[_ Use a wood block (obtained locally) between
the leveling bolts and the wall if the wall is
weak or if the weight of the air conditioner
falls between the studs in the wall.
[_ Adjust the leveling bolts and nuts against the
outside wall so that the case has a slight tilt
to the outside. -Iqghten nuts with an adjustable
wrench. Use a level; no more than a 1/2 bubble
will be the correct case slant to the outside.
[_ Extend the left and right accordion panels
to the vertical window sashes. Drill pilot
holes and attach the top and bottom corners
with 4 type D screws.
Type D
screw
Top mounting rail
Type D
screw
Type D
screw
Type D
screw
171INSTALL SUPPORT BRACKETS
AND THE FOAM TOP WINDOW
GASKET
[_] Drill pilot holes and attach the support
brackets with two type D screws, one on
each side. l I
Cut the foam top window gasket to the
__J window width.
Stuff the foam between the glass and the
window to prevent air and insects from
getting into the room.
13

Window Installation Instructions
[] INSTALL THE AIR CONDITIONER
IN THE CASE
_-] Make sure the ground
wire is off to the side _
and slide the air
conditioner into the
case. Do not push
on the controls or the
finned coils. Make
sure the air
conditioner is
firmly seated.
[_ Reinstall the locking bracket and screw
removed earlier.
FCq
Reconnect the ground wire to the air
conditioner using the screw removed earlier.
IMPORTANT: The ground wire must be
reinstalled to ensure a proper ground.
[_ Remove the front grille from its box and
remove the shipping tape.
[_ Grasp the inlet grille at the bottom corners
and pull it forward. Unhook it from its top
hinges and set it aside.
[_ Using the tab, pull up slightly on the filter
to release it and pull it down and out.
14
INSTALL THE AIR CONDITIONER
IN THE CASE (cont.)
[_ Pull the coiled power cord from its shipped
position in the air discharge area. Attach
the front grille frame to the case by inserting
the tabs on the grille frame into the slots
on the front top of the case.
Fm
Guide the lever carefully
through the grille frame
as you push it in.
Press the grille frame in around the power
cord on the right side. Secure the grille with
a type F (painted) screw on each side and a
type C screw in the front.
Type F
screw
_-I Reinstall the filter.
Type F
screw
,/
Type C screw
[] Reinstall the inlet grille. Connect power.
Caulk or weather-strip any gaps or openings
to the outside to seal the installation.

Through-the-Wall Installation InstructionsmOptional
The case may be installed through-the-wall
in both existing and new construction.
Read completely, then follow step-by-step.
NOTE: Except for the V-support
assemblies (included), obtain all materials
locally for mounting the air conditioner
through-the-wall.
ITI IMPORTANT
Through-the-wall installation is not
appropriate if any of the side or top louvers
in the case will be obstructed by the wall.
All side and top louvers in the case must
project on the outdoor side of the wall.
The room side of the case must project
into the room far enough to maximize the
balance of the unit.
The case must be installed level from side-
to-side and with a slight tilt from front to
rear. Use a level; no more than a 1/2 bubble
will be the correct case slant to the outside.
Lintel angle is required to support bricks or
blocks above opening.
Flashing is required and should extend the
length of the opening to ensure no inside
cavity leakage occurs.
Remove the air conditioner from the case.
L/_.tJ For specific instruction, refer to the Window
Installation Instructions.
[_ Make certain that a wall receptacle is
available close to the hole location or make
arrangements to install a receptacle.
[] Place the case in the wall opening and place
wood support strips between the case
bottom and the flashing on both sides of the
bottom rail. They should be the same height
as the bottom rail and the same length as
the wall opening.
15
ITI IMPORTANT (cont.)
[_ Secure with 14 wood screws anchored at
least an inch into the wall support structure.
NOTE: Drill pilot holes, if necessary, for
proper installation. If the frame is oversized,
use shims to prevent case distortion.
Install the V-supports. See the INSTALL
THE CASE IN THE WINDOW section in the
Window Installation Instructions.
121FINISH THE WALL OPENING
[] Caulk all four sides on the outdoor side of
the case to prevent moisture from getting
through to the interior wall. Use of flashing
(drip rail) will further prevent water from
dripping inside the wall and down the
outside of the building.
Plaster line
Lintel angle
Trim molding
Caulking _ (if desired)
OUTSIDE l_ INSIDE
Air louvers P
(top and //_'Jlv _
•. /._Y_" -- Bottom rail
sides must _'- I_/
project on the I_/
outdoor side I_/
°fthewal') I_
Wood filler and X_._/'/_/_ ,_,./I J_
caulking (above/_ A I "IdOl I
and below the " \Y, I1 Ilf/_/ll/lll
flashing) _/_ l][ _I l "
V-supports /_
/Case Bottom
Flashing /bottom rail
(Drip rail) _
Flashing
(Drip rail) Wood support strips
Place the air conditioner into the case.
i-'1 For specific instruction, refer to the Window
Installation Instructions.

TroubleshootingTips.
Troubleshooting -tips.Save time and money! Review the chart below
first and you may not need to call for service.
Airconditioner
doesnotstart
Possible Causes What ToDo
The air conditioner
is unplugged.
The fuse is blown/circuit
breaker is tripped.
Power failure.
•Make sure file air conditioner plug is pushed completely
into file outlet.
• Check the house fllse/circuit breaker box and replace
the fuse or reset the breakeL
• The unit will automatically re-start in the settings last
used after the power is restored.
• There is a promctive time del W (approximately 3 minutes)
m prevent uipping of the compressor overload. For this
reason, the unit m W not start normal cooling for
3 minums after it is turned back on.
The current interrupter • Press the RESETbutton located on the power cord plug.
device is tripped. • If the RESErbuttonwill not stay engaged, discontinue
use of the air conditioner and contact a qualified service
teclmician.
Airconditionerdoes not Airflow is restricted. • Make sure there me no curtains, blinds or fiunitme
cool as it should blocking the flont of the air condifioneL
The temp control may not • On models with touch pads: In the Cool mode, press the
be set correctly. Decrease •pad.
• On models wifll control knobs, mrn file temperature
knob to a higher numbeL
The air filter is dirty. • Glean the filter at least every 30 days. See the
Care and Cleaning section.
The room may have been hot. • When file air conditioner is fi,st turned on, you need to
allow time for file room to cool down.
Air conditioner
freezingup
• Check fox open flxxnace floor xegismxsand cold air xemms.
• Set the air condifionex"s vent to the closed position.
•See "Air conditionerfreezingup" below.
• On models with control knobs, setthe mode control at
HighFanor HighCoolwiththe TempatI or 2
• On models with touch pads, set the controls at HighFan
or HighCooland set the tl_em_ostatto a higher
tempemtme.
Cold air is escaping.
Cooling coils have iced up.
Ice blocks the air flow and
stops the air conditioner
from cooling the room.
Theremote control The batteries are inserted * Gheck the position of file batteries. They should be
is not working incorrectly, inserted in the opposite (+) and (-) direction.
The batteries may be dead. *Replace the batteries.
Water drips outside Excessively hot and •This is normal.
humid weather.
Waterdrips indoors The air conditioner is not • Fox proper water disposal, make sure file air conditioner
tilted to the outside, slants slightly flom the case flont to the real
Water collects in
base pan
Moisture is removed from
indoor air and drains into
rear of acabinet where afan
blows it against the outdoor
condenser coil.
• This is nomlal for a short period in areas widl little
humidity; normal for a longer period in vexy humid areas.
Delay1-24hrfeaturenot
workingproperly A power outage or interruption
occurred. * The unit will automatically re-start in the settings last used
after the power is restored. If the Delay 1-24hrfeature was
set, it will resume countdown. You m W need m set a new
time if desired.
16

GE Service Protection Plus TM
GE, a name recognized worldwide for quality and dependability, ()tiers you
Service Protection Plus"*--comprehensive protection on all your appliances--
No Matter What Brand!
Benefits Include:
•Backed by GE
•All brands covered
•Unlimited service calls
• All parts and labor costs included
•No out-of-pocket expenses
•No hidden deductibles
•One 800 number to call
We71CoverAnyAppfiance.
Anywhere. Anytime.*
You will be completel), satisfied with ou_ seevice p_otection o_ you ma), _equest you_ money back
on the _emaining value of you_ cont,act. No questions asked. It's that simple.
P_otect you_ _eflige_ato_; dishw_she_; washe_ and d_ye_; _ange, TV, VCR and much moie--any brand!
Plus the_e's no ext_a chaige fo_ emeigency seevice and low monthly financing is ttwailable. Even icemake_
cove__tge and food spoilage piotecfion is off_ed. You can iest easy, knowing that all you_ valuable
household p_oducts a_e p_otected against expensive _epai_s.
Place youx con_deilce in (_E and call us in the U.S. toll-f_ee at 800.626.2224
fo_ mo_e infomlation.
_:All brands (:ox'ered, tlI) lo 20 v( _a_'sold, in lh(_ (:onlin(_nl_al U.S.
.................. ....
Pleaseplacein envelopeand mail to:
General Electric Company
Warranty Registration Department
P.O. Box 32150
Louisville, KY 40232-2150
17

Consumer Product Ownership Registration
Dear Customer:
Thank you for purchasing our product and thank you for placing your confidence in us.
We are proud to have you as a customer!
Follow these three steps to protect your new appliance investment:
Complete and mail
your Consumer
Product Ownership
Registration today.
Have the peace of
mind of knowing we
can contact }Oil iI]
the unlikely event of a
satet} modification.
Afer mailing the
registration bel(m,
store this document
in a sate' place. It
contains intormation
}ou will need should
}ou require service.
Our service nmnber is
800.(;E.CARES
(800.432.2737).
Read }our ()_aler's
Mamml careflHly.
It will help }ou
operate }otlr ilew
appliance properl}
Model Number Serial Number
Important: If you did not get a registration card with your
product, detach and return the form below to
ensure that your product is registered, or register
online at ge.com.
,_.._ (;ut here
Consumer Product Ownership Registration
Model Number Serial Number
M_; Ms. Mrs. Miss
First I_st
Namel IIIIIIIIIIName I I I I I I
Street [
Address I I I I I I I I I I I I I I I I I I I I I I I
ap_.#l ,I I I I I ,IE-maUA_ress*
Zip
Date Placed
'"_1 , I Da,I, I ,_arl. IPho.e_.mberl I, I-I,, Iq
Month
18
GE Consumer &Industrial
Appliances
General Electric Company
Louisville, KV40225
ge.com
* Please provide )our e-mail address to receive, via e-mail, discotmts, special offers and other
important commtmications fl'om GE Appliances (GEA).
Check here if }ou do not want to receive commtmications fl'om GEA's carefull} selected
partners.
FAILURE TO COMPLETE AND RETURN THIS CARD DOES NOT DIMINISH YOUR
_,t_kRRANTY RIGHTS.
For information about GEA's privacy and data usage policy, go to ge.com and click on "Privacy
Policy" or call 800.626.2224.

GEAir ConditionerWarranty.
Aft warranty service provided by our Factory Service Centers,
or an authorized Customer Care®technician. Toschedule service,
on-line, visit us at ge.com, or carl 800.GE.CARES(800.432.2737).
Have serial number and model number available when cafling
for service.
Staple your receipt here.
Proof of the original purchase
date is needed to obtain service
under the warranty.
OneYear
Fromthe!dateofthei!
originalpurchase
GE Will Replace:
Anypartof file air conditioner which fails due to a defect in materials or workmanship.
During this limited one-year warranty, GE will also provide, free of charge,all labor and relamd
se_Mce to replace the defective part.
Service trips to your home to teach you how to
use the product.
Improper installation, delivery or maintenance. If you
have an installation problem, or if the air conditioner
is of improper cooling capacity for the intended use,
contact your dealer or installer. You are responsible
for providing adequate electrical connecting facilities.
Failure of the product resulting from modifications to
the product or due to unreasonable use including failure
to provide reasonable and necessary maintenance.
In commercial locations, labor necessary to move the
unit to a location where it is accessible for service
by an individual technician.
Replacement of house fuses or resetting of circuit
breakers.
Failure due to corrosion on models not corrosion-
protected.
Damage to the product caused by improper power supply
voltage, accident, fire, floods or acts of God.
Incidental or consequential damage caused by possible
defects with this air conditioner.
Damage caused after delivery.
EXCLUSION OFIMPLIED WARRANTIES--Your sole and exclusive remedy isproduct repair as provided in this
Limited Warranty. Any implied warranties, including the implied warranties of merchantability or fitness for a
particular purpose, are limited to one year or the shortest period allowed by law.
This warranty is extended to the original purchaser and any succeeding owner for products purchased for home
use within the USA. In Alaska, the warranty excludes the cost of shipping or service calls to your home.
Some states do not allow the exclusion or limitation of incidental or consequential damages. This warranty gives
you specific legal rights, and you may also have other rights which vary from state to state. Toknow what your
legal rights are, consult your local or state consumer affairs office or your state's Attorney General
Warrantor: General Electric Company.Louisville, KY 40225
19

ConsumerSupport.
GEAppliancesWebsite ge.com
Have a question or need assistance with your appliance? Try the GE Appliances Website any day of the year!
Fox greater convenience and faster service, you can now download Owner's Manuals, order parts or even
schedule sex_qceon-line.
ScheduleService
Expert GE repair service is only one step away from your doox. Get on4ine and schedule your service at
your convenience 24 horns any day of the year[ Or c_fll800.GE.CARES 800.432.2737) during nomml
business hours.
ge.com
RealLifeDesignStudio ge.com
GE supports the Universal Design concept--products, services and envuonments that can be used by
people of aUages, sizes and capabilities. We recogmize the need m design for a wide range of physical and
mental abilities and impaimlents. Fox derails of GE's Univexsal Design applications, including kitchen
design ideas for people with disabilities, check out our Website today. Fox the hearing impaired, please call
800.TDD.GEAC (800.833.4322).
ExtendedWarranties ge.com
Purchase a GE extended warranty and learn about special discounts that are available while your warranty
is still in effect. You can purchase it on-line anytime, or call 800.626.2224 during nomml business horns.
GE Consumer Home Sex_ices will still be there meteryour warranly expires.
PartsandAccessories ge.com
IndMduals qualified to service their own appliances can have parts or accessories sent directly to their
homes (VISA, MasterCard and Discover cards are accepted). Order on-line today, 24 horns every day
or by phone at 800.626.2002 during nomml business horns.
Instructionscontainedinthismanualcoverprocedurestobeperformedbyanyuser.Otherservicing generally
shouldbereferredtoqualifiedservicepersonnelCautionmustbeexercised,sinceimproperservicingmaycause
unsafeoperation.
ContactUs ge.com
If you are not satisfied wit1 die service you receive flom GE, contact us on our Website wit1 all die derails
including your phone numbex; or wrim m: General Managex; Customer Relations
GE Appliances, Appliance Park
I,ouisville, KY40225
RegisterYourAppliance
Register your new appliance on-line--at your convenience! Timely product registration will allow for
enhanced communication and prompt sexa_iceunder the temls of your warranly, should the need arise.
You may also mail in the pre-printed registration card included in the packing material.
ge.com
20 Printed in China
