GE AS05 Series Original instructions

Safety Information
Safety Precautions . . . . . . . .3
How to Connect
Electricity . . . . . . . . . . . . . . . .3
Use of Extension Cords . . .4
Use of Adapter Plugs . . . . . .4
Operating Instructions
Models with Touch Pads 5, 6
Models with
Control Knobs . . . . . . . . .7, 8
Care and Cleaning
Grille and Case . . . . . . . . . . .9
Outdoor Coils . . . . . . . . . . . .9
Air Filter . . . . . . . . . . . . . . . . .9
Installation Instructions
Window Installation–5000
BTU Model (model AS_05)
10, 11–14
Window Installation–
6000, 8000, and 10,000 BTU
Models
(models AS_06, AS_08, and
AS_10) . . . . . . . . . . .10, 15–19
Window Installation–
12,000, 14,0000, 16,000,
18,000, 22,000, and 24,000
BTU Models
(models AS_12, AS_14,
AS_16, AS_18, AS_22,
and AS_24) . . . . . .10, 20–25
Through the Wall
Installation–
Optional All Models . . . . .26
Troubleshooting Tips
Before You Call
For Service . . . . . . . . . . . . . .27
Normal Operating
Sounds . . . . . . . . . . . . . . . . .27
Customer Service
Product
Registration . . . . . . .2, 29, 30
Warranty . . . . . . . . . . . . . . . .31
Service Telephone
Numbers . . . . .2, Back Cover
GE Appliances
49-7387-1 JR 12-99
AS_05 – 5,000 BTU models
AS_06 – 6,000 BTU models
AS_08 – 8,000 BTU models
AS_10 – 10,000 BTU models
AS_12 – 12,000 BTU models
AS_14 – 14,000 BTU models
AS_16 – 16,000 BTU models
AS_18 – 18,000 BTU models
AS_22 – 22,000 BTU models
AS_24 – 24,000 BTU models
www.geappliances.com
Air Conditioners
E DB68-00951(2)
Owner’s Manual &
Installation Instructions

Customer Service Troubleshooting Tips Operating Instructions Safety InstructionsInstallation Instructions
FOR YOUR RECORDS
Write the model and serial numbers here:
#
#
You can find them on a label on the side of the air conditioner.
Staple sales slip or cancelled check here.
Proof of the original purchase date is needed to obtain service under the warranty.
Inside you will find many helpful hints on how to use and maintain your air conditioner properly.
Just a little preventive care on your part can save you a great deal of time and money over the life
of your air conditioner.
READ THIS MANUAL
IF YOU NEED SERVICE
You’ll find many answers to common problems in the Before You Call For Service section. If you
review our chart of Troubleshooting Tips first, you may not need to call for service at all.
If you do need service, you can relax knowing help is only a phone call away. A list of toll-free
customer service numbers is included in the back section. Or, you can always call the GE Answer
Center® at 800.626.2000, 24 hours a day, 7 days a week.
2
IMPORTANT!
Fill out the Consumer Product Registration Card.
Two easy ways to register your appliance!
■Through the internet at www.geappliances.com
■Complete and mail the enclosed Product Registration Card
GE & You, A Service Partnership.

IMPORTANT SAFETY INFORMATION.
READ ALL INSTRUCTIONS BEFORE USING.
WARNING!
For your safety, the information in this manual must be followed to minimize the risk of fire, electric shock
or personal injury.
■ Use this appliance only for its intended
purpose as described in this Owner’s
Manual.
■This air conditioner must be properly
installed in accordance with the Installation
Instructions before it is used.
■Never unplug your air conditioner by pulling
on the power cord. Always grip plug firmly
and pull straight out from the receptacle.
■ Repair or replace immediately all electric
service cords that have become frayed or
otherwise damaged. Do not use a cord that
shows cracks or abrasion damage along its
length or at either the plug or connector end.
■ Turn the mode control OFF and unplug
your air conditioner before making any
repairs or cleaning.
NOTE: We strongly recommend that any
servicing be performed by a qualified
individual.
■ For your safety…do not store or use
combustible materials, gasoline or other
flammable vapors or liquids in the vicinity
of this or any other appliance.
SAFETY PRECAUTIONS
3
Customer ServiceTroubleshooting Tips
Operating Instructions
Safety Instructions Installation Instructions
Do not, under any circumstances, cut or remove
the third (ground) prong from the power cord. For
personal safety, this appliance must be properly
grounded.
The power cord of this appliance is equipped
with a 3-prong (grounding) plug which mates
with a standard 3-prong (grounding) wall
outlet to minimize the possibility of electric
shock hazard from this appliance.
Have the wall outlet and circuit checked by a
qualified electrician to make sure the outlet is
properly grounded.
Where a 2-prong wall outlet is encountered,
it is your personal responsibility and obligation
to have it replaced with a properly grounded
3-prong wall outlet.
The air conditioner should always be
plugged into its own individual electrical
outlet which has a voltage rating that matches
the rating plate.
This provides the best performance and also
prevents overloading house wiring circuits
which could cause a fire hazard from
overheated wires.
See the Installation Instructions,
Electrical
Requirements
section for specific electrical
connection requirements.
HOW TO CONNECT ELECTRICITY

Customer Service Troubleshooting Tips Operating Instructions Safety InstructionsInstallation Instructions
4
IMPORTANT SAFETY INFORMATION.
READ ALL INSTRUCTIONS BEFORE USING.
WARNING!
Because of potential safety hazards under certain
conditions, we strongly recommend against the
use of an extension cord.
However, if you must use an extension cord,
it is absolutely necessary that it be a UL-listed,
14 gauge, 3-wire grounding type appliance
extension cord having a grounding type plug
and outlet and that the electrical rating of the
cord be 15 amperes (minimum) and 125 volts.
CAUTION:
DO NOT use an extension cord with any of
the 230/208 volt models.
USE OF EXTENSION CORDS – 115-Volt models only
Because of potential safety hazards under certain
conditions, we strongly recommend against the use
of an adapter plug.
However, if you must use an adapter, where
local codes permit, a
temporary connection may
be made to a properly grounded 2-prong wall
outlet by use of a UL-listed adapter available at
most local hardware stores.
The larger slot in the adapter must be aligned
with the larger slot in the wall outlet to provide
proper polarity in the connection of the power
cord.
When disconnecting the power cord from the
adapter, always hold the adapter in place with
one hand while pulling the power cord plug
with the other hand. If this is not done, the
adapter ground terminal is very likely to break
with repeated use.
If the adapter ground terminal breaks,
DO NOT USE the air conditioner until a
proper ground has been established.
Attaching the adapter ground terminal to a wall outlet
cover screw does not ground the appliance unless the
cover screw is metal, and not insulated, and the wall
outlet is grounded through the house wiring. You should
have the circuit checked by a qualified electrician to
make sure the outlet is properly grounded.
USE OF ADAPTER PLUGS – 115-Volt models only
Read and follow this Safety Information carefully.
SAVE THESE INSTRUCTIONS

■ To ensure proper operation, aim the
remote control at the signal receiver
on the air conditioner.
■ The remote control signal has a range of up
to 21 feet.
■ Make sure nothing is between the air
conditioner and the remote control
that could block the signal.
■ Make sure batteries are fresh and installed
correctly–see the Care and Cleaning section.
Customer ServiceTroubleshooting Tips
Operating InstructionsSafety Instructions Installation Instructions
About the controls on the air conditioner–models with touch pads.
Features and appearance will vary.
5
MODE
TIMER
MED
HIGH
LOW
ENERGY
SAVER
FAN
COOL
POWER
FAN CIRCULAIRE
Air Conditioner Controls
Remote Control
Controls
ON/OFF Pad
Turns air conditioner on and off.
Display
Shows the set temperature or time remaining
on timer.
MODE
Use to set the air conditioner to COOL or
FAN mode.
Increase ▲ /Decrease ▼ Pads
Use to set temperature when in COOL mode or
to set the time when using the timer feature.
FAN Pad
Use to set the fan speed at LOW, MED or HIGH .
CIRCULAIRE Pad
Turn on to provide continuous side-to-side
air circulation.
For fixed side-to-side air direction, turn ON
until the desired air direction is obtained,
then turn it OFF .
ENERGY SAVER Pad
Controls the fan.
ON– The fan and compressor cycle on and off.
This results in wider variations of room
temperature and humidity. Normally
used when the room is unoccupied.
Note: The fan will continue to run for a short
time after the compressor cycles off.
OFF– The fan runs all the time, while the
compressor cycles on and off.
This switch must be set at OFF in order to use the fan
settings (on the mode control).
TIMER Pad
Turn on and use the INCREASE ▲ /
DECREASE ▼ pads to set the number of hours
you want the air conditioner to run before
turning off automatically. You can set the
timer to run for up to 24 hours. To cancel the
timer, press the TIMER pad until the display
time disappears.
Remote Control Signal Receiver
Remote Control
MED
HIGH
TEMP
FAN
MODE
OFF
TIMER
COOL
ENERGY
SAVER
LOW
FAN
on/off
CIRCULAIRE

6
Customer Service Troubleshooting Tips Operating Instructions Safety InstructionsInstallation InstructionsCustomer Service Troubleshooting Tips Installation Instructions Safety Instructions
Operating Instructions
Customer Service Troubleshooting Tips Installation Instructions Safety Instructions
Operating Instructions
About the controls on the air conditioner–models with touch pads.
When the air conditioner is turned on, it will
automatically start in the setting last used.
Lights beside the touch pads on the air conditioner
control panel indicate the selected settings.

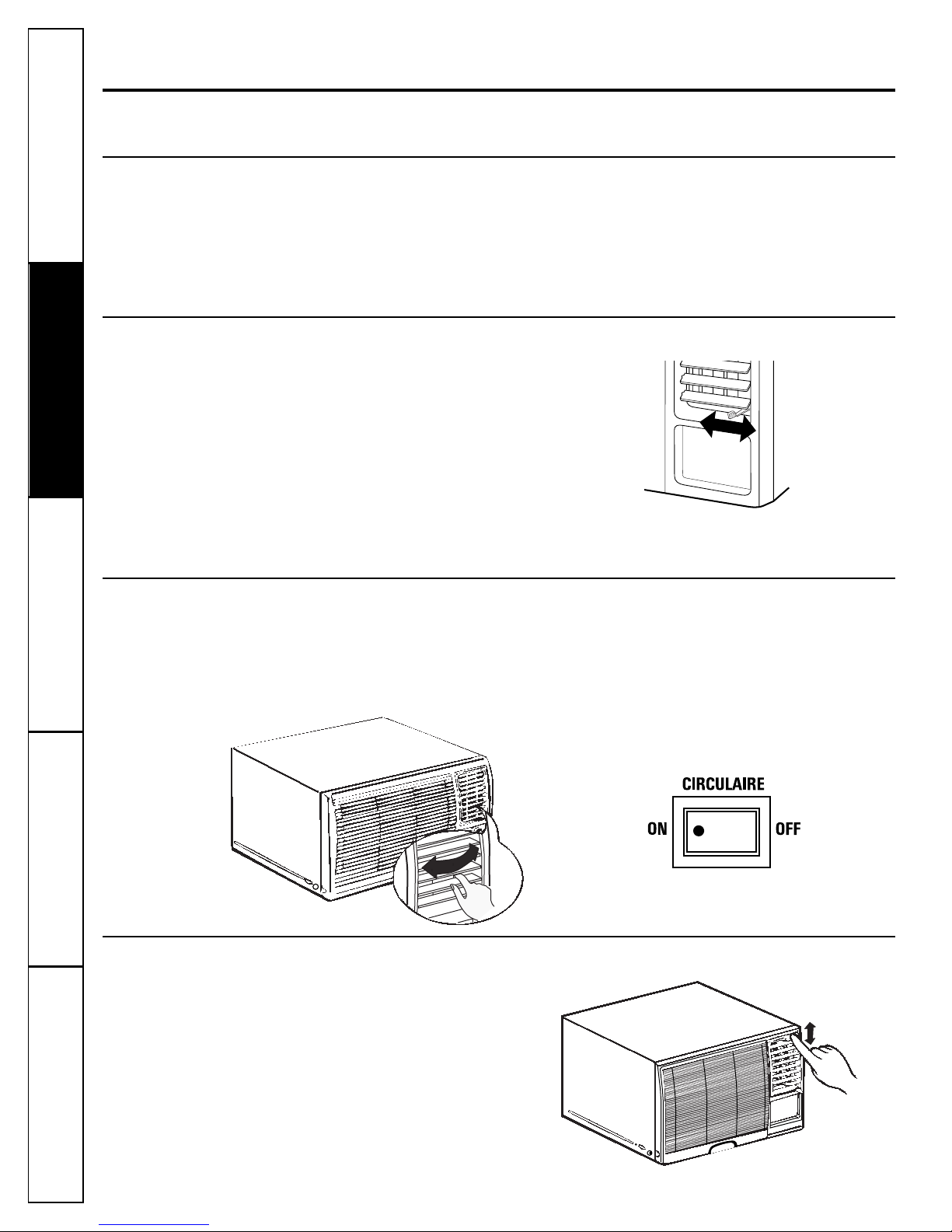

Vent Control
The vent control is located above the control knobs.
When set at CLOSE , only the air inside the room will
be circulated and conditioned. When set at OPEN ,
some inside air is exhausted outside.
To open the vent, push the lever to the right.
To close it, push it to the left.
COOL Mode
Use the COOL mode with HIGH, MED or LOW fan for
cooling. Use the INCREASE ▲ / DECREASE ▼ pads to
set the desired temperature between 64°F and 86°F
in 2°F increments.
A thermostat is used to maintain the room
temperature. The compressor will cycle on and off
to keep the room at the set level of comfort. Set the
thermostat at a lower number and the indoor air
will become cooler. Set the thermostat at a higher
number and the indoor air will become warmer.
NOTE: If the air conditioner is off and is then turned on
in a cool setting, it will take approximately 3 minutes for
the compressor to start and cooling to begin.
Cooling Descriptions
For Normal Cooling– Select the COOL mode and HIGH
or MED fan with a middle set temperature.
For Maximum Cooling– Select the COOL mode and
HIGH fan with a lower set temperature.
For Quieter & Nighttime Cooling– Select the COOL
mode and LOW fan with a middle set temperature.
NOTE: If you switch from a COOL setting to OFF or to a
fan setting, wait at least 3 minutes before switching
back to a COOL setting.
Air Direction – Up and Down
Fingertip pressure on the horizontal louvers adjusts
the air direction up or down.
FAN Mode
Use the FAN at HIGH, MED, or LOW to provide air
circulation and filtering without cooling. Since fan
only settings do not provide cooling, a temperature
setting will not be displayed.

Customer ServiceTroubleshooting Tips
Operating InstructionsSafety Instructions Installation Instructions
About the controls on the air conditioner–models with control knobs.
Features and appearance will vary.
Controls
Mode Controls
HIGH COOL, MED COOL and LOW COOL provide
cooling with different fan speeds.
LOW FAN or HIGH FAN provides air circulation
and filtering without cooling.
NOTE: If you move the switch from a cool setting to OFF or to
a fan setting, wait at least 3 minutes before switching back to
a cool setting.
Cooling Descriptions
For Normal Cooling —Select HIGH COOL or MED
COOL with the temp control at midpoint.
For Maximum Cooling —Select HIGH COOL with the
temp control at the highest number available on
your knob.
For Quieter & Nighttime Cooling —Select LOW COOL
with the temp control at midpoint.
Temp Controls
The temp control is used to maintain the
room temperature. The compressor will cycle
on and off to keep the room at the same level
of comfort. When you turn the knob to a
higher number the indoor air will become
cooler. Turn the knob to a lower number and
the indoor air will become warmer.
7

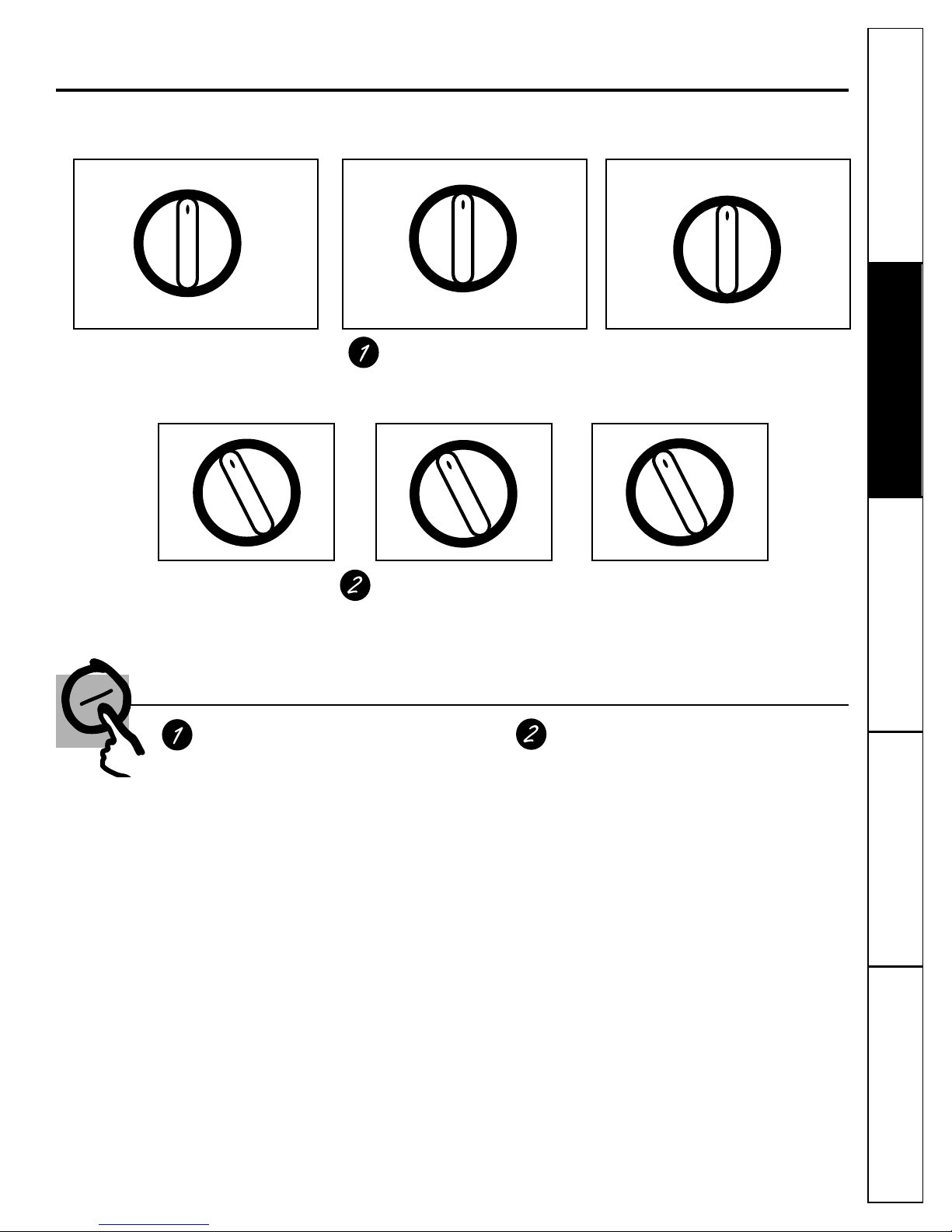

MODE CONTROLS
Your model will have one of the above type controls.
TEMP CONTROLS
Your model will have one of the above type controls.
OFF
LOW
FAN
LOW
COOL
HIGH
FAN
HIGH
COOL
MED
COOL
OFF
LOW
FAN
LOW
COOL
HI
FAN
HI
COOL
1
2
3
4
56
7
8
9
10
1
2
3
45
6
7
81
2
34
5
6
OFF
LOW
FAN
LOW
COOL
HI
FAN
HI
COOL
MED COOL

8
Customer Service Troubleshooting Tips Operating Instructions Safety InstructionsInstallation InstructionsCustomer Service Troubleshooting Tips Installation Instructions Safety Instructions
Operating Instructions
Customer Service Troubleshooting Tips Installation Instructions Safety Instructions
Operating Instructions
About the controls on the air conditioner–models with control knobs.
Additional controls and important information.
Vent Control
The vent control is located above the control knobs.
When set at CLOSE , only the air inside the room will
be circulated and conditioned. When set at OPEN ,
some inside air is exhausted outside.
To open the vent, push the lever to the right.
To close it, push it to the left.
Air Direction – Side-to-Side
On some models, the side-to-side air direction is
adjusted by grasping and moving the inner vertical
louvers to the desired position.
CIRCULAIRE (on some models)
For fixed side-to-side air direction, set the
Circulaire switch to ON until the desired air
direction is obtained, then move it to OFF .
For continuous side-to-side air circulation, set the
Circulaire switch to ON and leave it there.
Energy Saver (on some models)
The energy saver switch controls the fan.
ON —The fan and compressor cycle on and off
together. This results in wider variations of room
temperature and humidity. Normally used when
the room is unoccupied.
OFF — The fan runs all the time, while the
compressor cycles on and off.
This switch must be set at OFF in order to use the
fan settings (on the mode control).
Air Direction – Up and Down
Fingertip pressure on the horizontal louvers adjusts
the air direction up or down.

Air Filter
The air filter behind the front grille should be
checked and cleaned at least every 30 days or more
often if necessary.
To remove (on some models):
Clean the filter with warm, soapy water. Rinse and
let the filter dry before replacing it.
CAUTION: DO NOT operate the air conditioner without
a filter because dirt and lint will clog it and reduce
performance.
To remove (on some models):
Open the inlet grille upward by pulling out the
bottom of the inlet grille.
Using the tab, pull up slightly on the filter to
release it and pull it down.
2
1
Outdoor Coils
The coils on the outdoor side of the air conditioner
should be checked regularly. If they are clogged
with dirt or soot they may be professionally steam
cleaned, a service available through your GE
service outlet.
Grille and Case
Turn the air conditioner off and remove the plug
from the wall outlet before cleaning.
To clean, use water and a mild detergent. Do not
use bleach or abrasives.
Customer ServiceTroubleshooting Tips
Operating InstructionsSafety Instructions Installation Instructions
Care and cleaning of the air conditioner.
9
Grab the tab on the filter
and pull it to the right.
How to Insert the Batteries
Remove the battery cover by sliding it
according to the arrow direction.
Insert new batteries making sure that the (+)
and (–) of battery are installed correctly.
Reattach the cover by sliding it back
into position.
NOTES:
■ Use 2 “AAA” (1.5 volt) batteries. Do not use
rechargeable batteries.
■ Remove the batteries from the remote control if
the system is not going to be used for a long time.
3
2
1

10
Customer Service Troubleshooting Tips Operating Instructions Safety InstructionsInstallation InstructionsCustomer Service Troubleshooting Tips Installation Instructions Safety Instructions
Operating Instructions
Customer Service Troubleshooting Tips Installation Instructions Safety Instructions
Operating Instructions

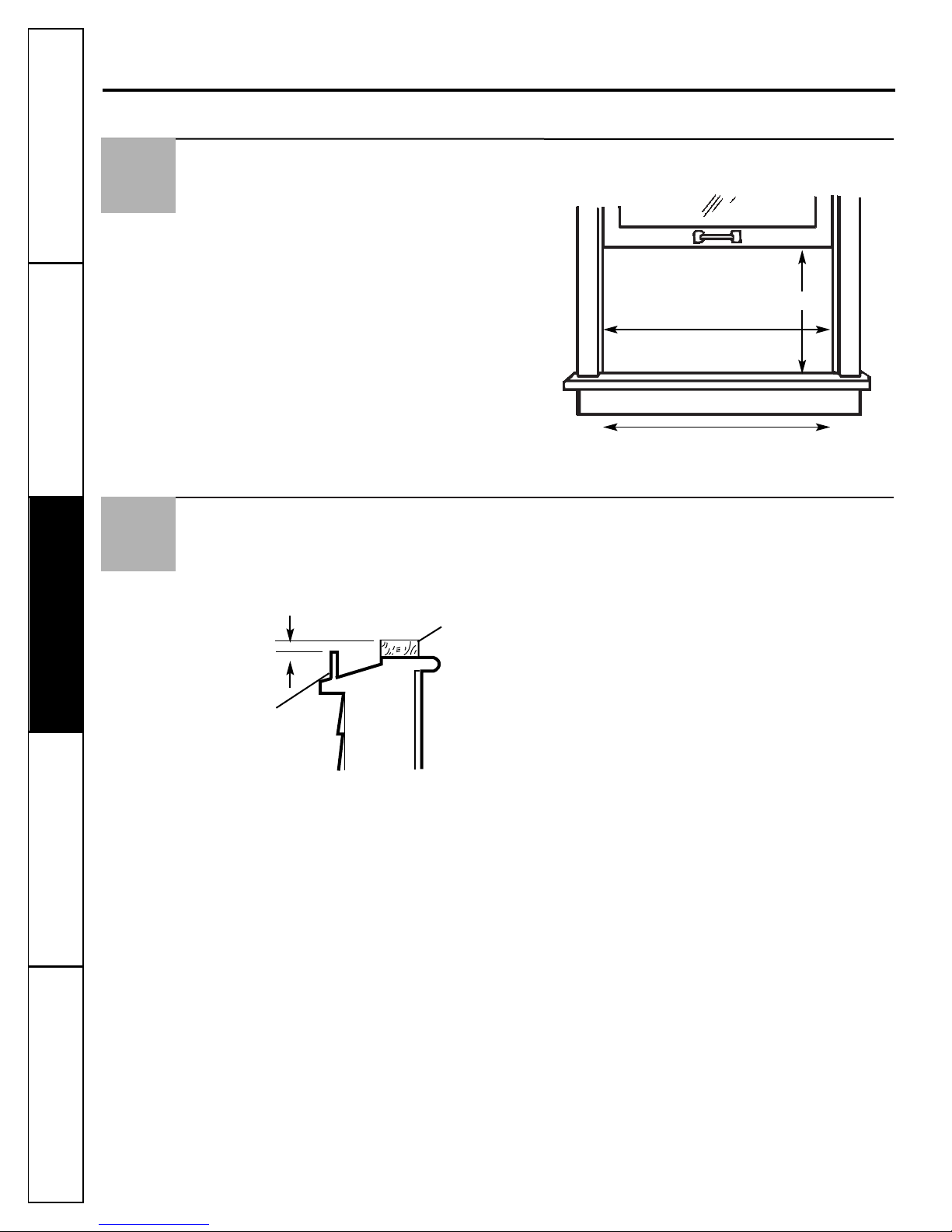

Preparing to install the air conditioner–All models.
Read these instructions completely and carefully.
NOTE TO INSTALLER: Leave these instructions with
the air conditioner after installation is completed.
NOTE TO CONSUMER: Keep this Owner’s Manual
and Installation Instructions for future use.
IMPORTANT NOTES:
For personal safety, this air conditioner must be
properly grounded.
It is important to have the wall outlet and circuit
checked by a qualified electrician if there is any
doubt as to whether a proper ground exists.
Follow National Electric Codes (NEC) and/or local
codes and ordinances.
CAUTION:
Do not, under any circumstances, cut or
remove the third (ground) prong from the
power cord.
Do not change the plug on the power cord
of this air conditioner.
Aluminum house wiring may present
special problems—consult a qualified
electrician.
Before You Begin
Some models require 115/120-volt a.c.,
60 Hz grounded outlet protected with
a 15-amp time delay fuse or circuit breaker.
The 3-prong grounding plug minimizes the
possibility of electric shock hazard. If the wall outlet
you plan to use is only a 2-prong outlet, it is your
responsibility to have it replaced with a properly
grounded 3-prong wall outlet.
Some models require 230/208-volt a.c.,
protected with a time delay fuse or circuit
breaker. These models should be installed
on their own single branch circuit for best
performance and to prevent overloading
house or apartment wiring circuits, which
could cause a possible fire hazard from
overheating wires.
Electrical Requirements
