GE MobileLink CB-1000 Guide

MobileLink
Wireless Communications for ECG
Installation and Troubleshooting Guide
2002783-060 Revision D

T-2 MobileLink Revision D
2002783-060 17 August 2004
127(The information in this manual only applies to the following software versions:
MAC 5000 version 7A.2 or higher;
MUSE 5C: version 005C.10 or higher
5D: version 005D.04 or higher
5E: version 005E.08 or higher
It does not apply to other software versions. Due to continuing product innovation, specifications in this
manual are subject to change without notice.
MAC, MUSE, and MUSE CVare trademarks owned by GE Medical Systems Information Technologies,
a division of General Electric Corporation. All other marks are not owned by GE and are instead owned by
their respective owners.
© 2003-2004, General Electric Company. All rights reserved.

Revision D MobileLink i
2002783-060
Contents
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
General Information and Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Revision History . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Customer Responsibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
On-Line Center Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Before You Begin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Print the Configuration Capture File . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Installation Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Client Bridge Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Install the Client Bridge on the MAC 5000 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Configure the MAC 5000 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Repeat for Each MAC 5000 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Set Up and Configure the MUSE File Server . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Verification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Using the Serial/IP Tools to Troubleshoot the Connection . . . . . . . . . . . . . . . . . . 29
Field Replaceable Units . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Original Style Trolley . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
New Style Trolley . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . 34
Client Bridge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
PC Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . 34

ii MobileLink Revision D
2002783-060
For your notes

Revision D MobileLink 1
2002783-060
Introduction
Introduction
This document provides detailed procedures for the installation and
configuration of the software and hardware necessary needed for
wireless transmission of data from the MAC 5000 resting ECG analysis
system to the MUSE CV information system. Once this option is properly
installed and configured, the modem of the MAC 5000 is not used, or
required, in order to transfer and receive data from or to the MUSE
system. To the MAC 5000 user who is transmitting data to the MUSE
system, the functionality of the MobileLink option and the modem option
are the same.
127(
Sending a report from the MUSE system to the MAC 5000 is not
supported by the MobileLink option.
General Information and Guidelines
These are the conventions used in this manual.
 Items shown in Bold text are keys on the keyboard, text to be
entered, or hardware items such as buttons or switches on the
equipment.
 To perform an operation which appears with a plus (+) sign between
the names of two keys, you press and hold the first key while
pressing the second key once. This is called a keystroke combination.
For example, “Press Ctrl + Esc” means to press and hold down the
Ctrl key while pressing the Esc key.
 When instructions are given for typing a precise text string with one
or more spaces, the point where the spacebar must be pressed is
indicated as: [Space]. The purpose of the [ ] brackets is to ensure
you press the spacebar when required.
 Enter means to press the “Enter” or “Return” key on the keyboard.
Do not type “enter”.
 Italicized items are software terms which identify menu items,
buttons, or options in various windows.
Revision History
Each page of the document has the document part number and revision
letter at the bottom of the page. The revision letter changes each time the
document is updated.
Table 1. Revision History, PN 2002783-060
Revision Date Comment
A 1 February 2003 Initial release of document.
B 9 June 2003 Removed references to access point. Configuration
Capture file changed from “rtf” to “txt” file. Added
information about new MAC 5000 trolley.

2 MobileLink Revision D
2002783-060
Introduction
System Requirements
Before installing the MobileLink option, ensure that the following
requirements are met.
 MAC 5000 carts must be at software version 7A.2 or higher.
 MUSE CV system must meet one of the following requirements:
5C: 005C.10 or higher,
5D: 005D.04 or higher,
or
5E: 005E.08 or higher
Customer Responsibility
GE Service is responsible for the initial installation and configuration of
the MobileLink wireless communication for ECG. Any changes made to
configuration, security, etc. by the customer after the initial installation
are the responsibility of the customer.
On-Line Center Support
Contact the GE Medical Systems Information Technologies On-Line
Center at 1-800-558-7044 if you have questions or problems while
performing this installation.
C 17 July 2003 Added information about 5D.04 MUSE software.
D 17 August 2004 Added information for turning off firewall software. Added
European FRUs. Added MUSE 5E software.
Table 1. Revision History, PN 2002783-060 (Continued)
Revision Date Comment

Revision D MobileLink 3
2002783-060
Before You Begin
Before You Begin
Print the Configuration Capture File
Be sure all the information about this system has been accurately
entered into the Configuration Capture file (2002783-067). Prior to this
installation, you may have received a copy of this file from Project
Management with information gathered during pre-installation. If so,
use that copy of the Configuration Capture file. If you have not received a
Configuration Capture, you can obtain a blank version of this file on the
MobileLink CD (PN 2015391-001). Print a copy of this file as a reference
to use during the installation. During installation, you will be adding
information to this file and storing the completed file on the MUSE file
server.
127(
Station Name & Port Number have been pre-entered in this file with
the following convention:
127(
The Station Name & Port Numbering system is a suggested
convention.
Configuration Capture file
(2002783-067)providesdataentry
provided for up to 30 MAC 5000
systems. 18B
Station Name Port Number
MAC5K001 3001
MAC5K002 3002
MAC5K003 3003
etc. etc.

4 MobileLink Revision D
2002783-060
Installation Procedures
Installation Procedures
Client Bridge Configuration
127(

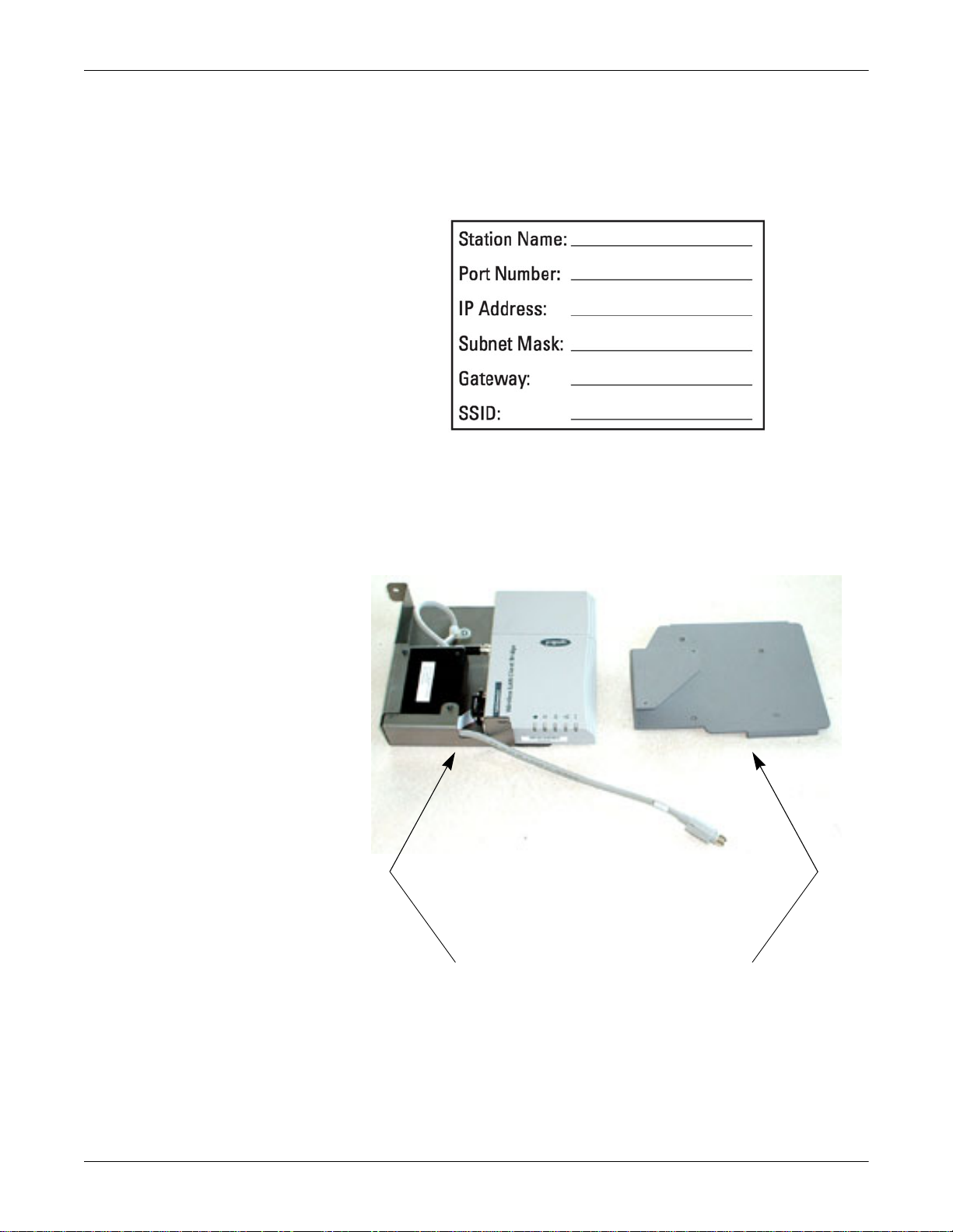

As you configure the bridge, be sure that the information is
accurately recorded on the Service Label (one provide with each
client bridge) and that this information matches the information in
the Configuration Capture file (2002783-067) and the information
entered during the configuration. After configuration is done and the
information has been entered on the label, you will be asked to apply
the label to the bottom of the client bridge bracket assembly.
Service Label
1. Connect the client bridge to a computer using a straight through
network cable. Plug in the AC adapter for power.
127(
In order for the symbolst.exe application to work properly, the
computer must be connected ONLY to the client bridge. Any
other network communications will cause errors with the
application.
If the computer is unable to access the client bridge, see
“Troubleshooting” on page 27 for a suggested remedy.
2. Insert the MobileLink CD.
3. Execute the SymbolStationManager program by double-clicking the
symbolst.exe file.
13A

Revision D MobileLink 5
2002783-060
Installation Procedures
The CB-1000 Unit List window appears.
4. Select the device identified on the top line and click Configure.
The startup screen for the configuration tool appears.
01B
02A

6 MobileLink Revision D
2002783-060
Installation Procedures

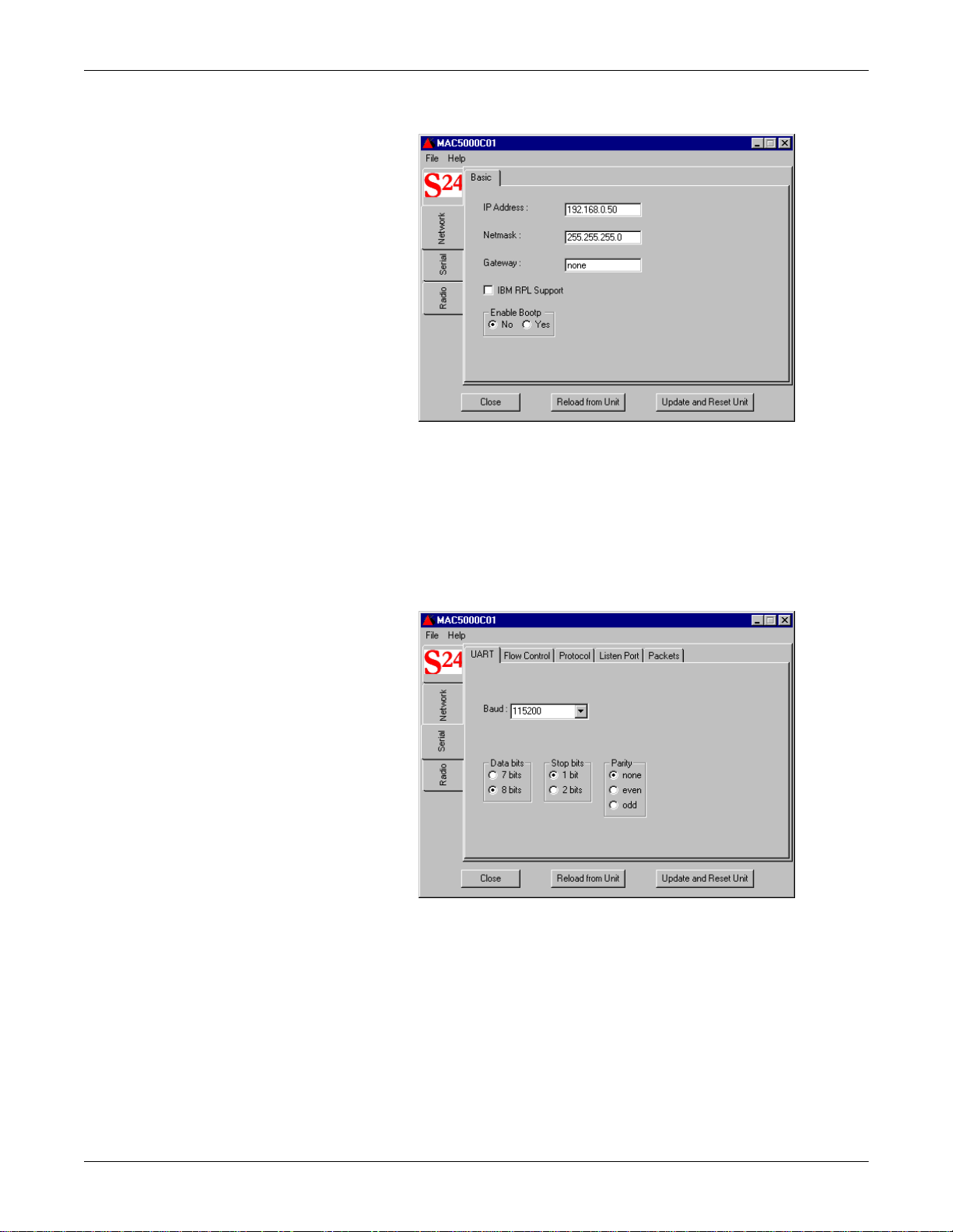

5. Select the Network tab on the left side.
Enter the IP Address of the MAC 5000 client bridge and the
associated Netmask for this network segment.
127(
The Gateway address is only needed if the MAC 5000 will be on a
different subnet than the MUSE file server.
6. Select the Serial tab on the left side and then select the UART tab
from the top row of tabs.
7. Select/verify the following in the UART tab:
Baud 115200
Data bits 8 bits
Stop bits 1bit
Parity none
03A
04A

Revision D MobileLink 7
2002783-060
Installation Procedures
8. Select the Flow Control tab.
9. Select/verify the following in the Flow Control tab:
10. Select the Protocol tab.
11. Select/verify that TCP Listen Port is selected in the Protocol tab.
Hardware flow control none
Software incoming flow control no
Software outgoing flow control: no
05
A
06
A

8 MobileLink Revision D
2002783-060
Installation Procedures

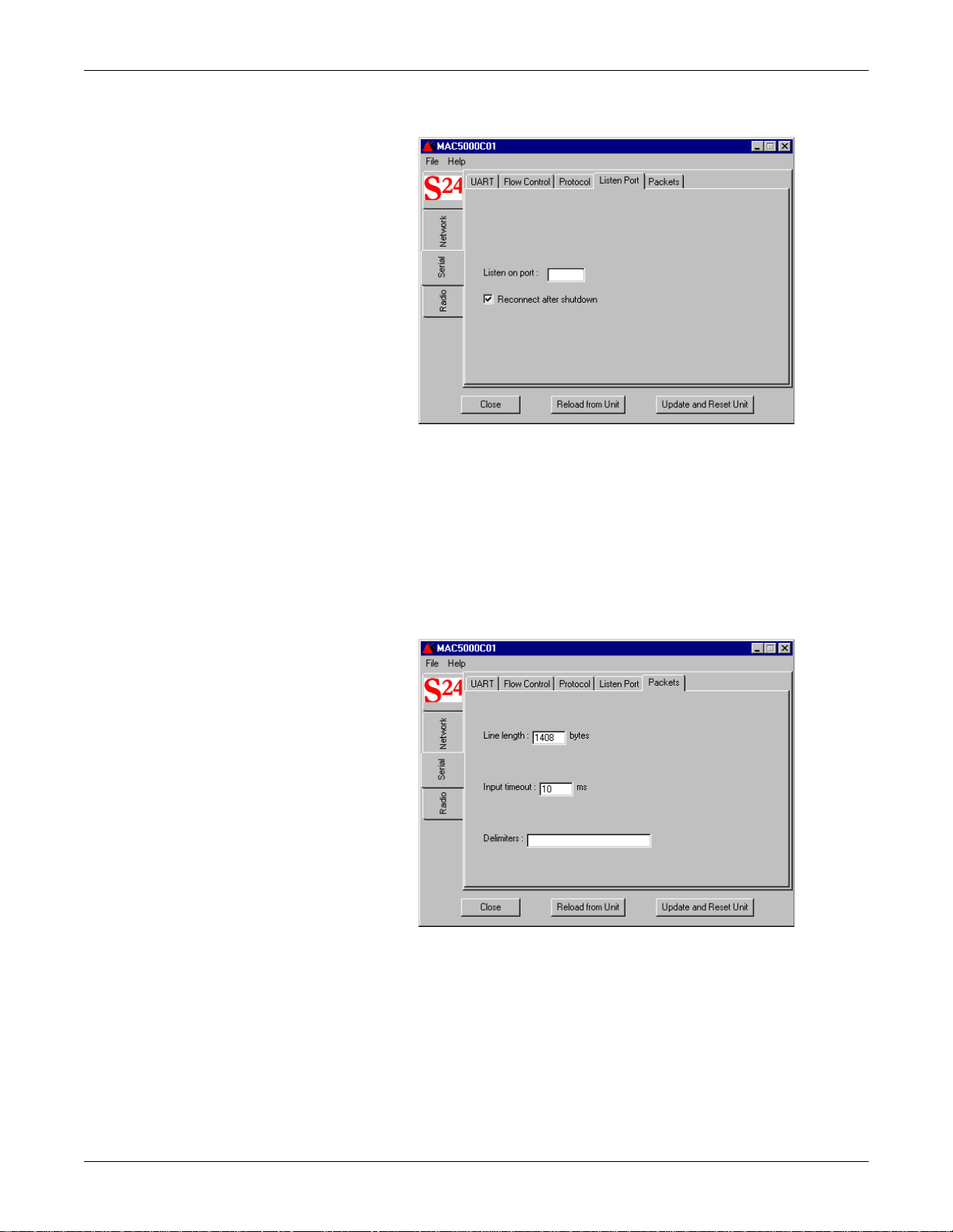

12. Select the Listen Port tab.
13. Select/enter the following in the Listen Port tab.
a. Enter the Port Number designated for this MAC 5000 in the
Configuration Capture file. If you are using the suggested
naming convention, enter 3001 if this is MAC5K001, enter 3002
if this is MAC5K002, etc.
b. Select/verify the Reconnect after shutdown box is checked.
14. Select the Packets tab.
15. Verify that all the defaults on this tab are entered:
Linelength: 1408 bytes
Input timeout: 10 ms
Delimiters: [blank]
07A
08A

Revision D MobileLink 9
2002783-060
Installation Procedures
16. Select the Radio tab on the left side and the Basic tab at the top.
17. Enter/verify the following in the Basic tab.
18. Select the Advanced tab.
19. Select/verify the following in the Advanced tab.
20. Select the Encryption tab.
ESSID [enterthe SSID number from the Configuration Capture file or
from the customer]
ANY [not checked]
Station name: MAC5K001, etc.
Operating mode Infrastructure
MAC address: built-in
Antenna diversity [checked]
Transmit rate 1, 2, 5, 11 (the defaults)
Medium reservation none (the default)
09A
10A
9

10 MobileLink Revision D
2002783-060
Installation Procedures
21. Set up the Encryption tab to match the encryption being used on the
access point.
If the access point is not using encryption, be sure that the Enable
encryption checkbox is not checked as shown below.
Encryption Not Enabled
However, if encryption is being used, check the Enable encryption
checkbox and select the appropriate Transmit key option. The
transmit key is the key which will be used by the client bridge to
encrypt messages sent via the PC card.
Enter up to four encryption key values. The values may be either text
(ASCII) strings or hexadecimal numbers. The table below
summarizes the rules for entering the encryption keys.
127(
All keys entered in this window must be of the same encryption
level (40-bit or 128-bit).
Hexadecimal values must be preceded by 0x and are composed of
the numbers 0to 9and letters Athrough F(or athrough f).
ASCII keys must not begin with 0x.
A key must always be entered in the key4 field. This value is
used by the system to determine whether the key is40 or 128-bit.
The value in key4 must be in the correct format and it must be
the same length as the other key. The easiest way to make sure it
is correct is to copy the other key and paste it into the key4 field.
22. Select the Update and Reset Unit button.
11
A
Encryption
Level
Key Length Examples
Hex ASCII Hex ASCII
40 bit 0x = 10 digits 5 characters 0xAB12CD34EF ALazy
128 bit 0x + 26 digits 13 characters 0xAX846CF92373B6CD17B23160D3 ALazyBrownDog

Revision D MobileLink 11
2002783-060
Installation Procedures
23. If this is the first client bridge to be configured, select File →Save
Configuration and browse to a location on your hard drive to save
this configuration file.
127(6
For security reasons, the encryption information does not get
stored as part of the saved Configuration Capture file. If the
customer is entering the encryption information for each bridge,
they will need to be aware of this information, and be prepared to
type the encryption key into the setup for each client bridge.
When you are configuring more client bridges, select File →Load
Configuration. Browse to the location on your hard drive where
the configuration was saved in step 23. As you configure more
client bridges, the configuration of the first bridge will appear.
Change settings where appropriate. If done accurately, this will
save time in configuring the other client bridges.

12 MobileLink Revision D
2002783-060
Installation Procedures
Install the Client Bridge on the MAC 5000
There are currently two styles of trollies for the MAC 5000 in use. Use
the figures shown below to determine if you have an original style trolley
or a new style trolley.
MAC 5000 Trolley (Original Style)
MAC 5000 Trolley (New Style)
If you are mounting a client bridge to a MAC 5000 with an original style
trolley, go to “Installing Client Bridge on an Original Style Trolley” on
page 13.
If you are mounting a client bridge to a MAC 5000 with a new style
trolley, go to “Installing Client Bridge on a New Style Trolley” on
page 18.
34A
35A

Revision D MobileLink 13
2002783-060
Installation Procedures
Installing Client Bridge on an Original Style Trolley
1. Be sure that all the information which was entered during client
bridge configuration has been accurately recorded on the Service
Label shown below.
Service Label
2. Apply the Service Label to the bottom of the bracket which will be
used to assemble the client bridge to the original trolley. (This is the
bracket which does not have the client bridge mounted.)
Client Bridge Kit
13A
MAC5K001
3001
192.168.0.5
255.255.255.0
none
WLAN
Original style bracket
to be used with an
original style trolley.
Client bridge is mounted
to bracket to be used
with new style trolley.
36A

14 MobileLink Revision D
2002783-060
Installation Procedures
3. Remove the three mounting screws which hold the client bridge/
power supply assembly to the bracket (two screws from the power
supply and one which holds the nylon strain relief to the bracket).
Discard the nylon strain relief. Set the three screws aside.
4. Unsnap the client bridge from its mounting plate. Remove client
bridge/power supply assembly from bracket and disconnect the
power cable from the 5VDC connector on the client bridge.
5. Replace the two screws which were removed in step 3 into the power
supply housing. Remove the other two screws (diagonally opposite
from the two screws just replaced) and set aside along with the screw
for the strain relief. They will be needed later when mounting this
assembly to the original style bracket.
6. Remove the client bridge mounting bracket by unscrewing the two
mounting screws which hold it to the bracket.
Remove three
mounting screws.
37A
mounting
screws
client bridge
mounting
bracket

Revision D MobileLink 15
2002783-060
Installation Procedures

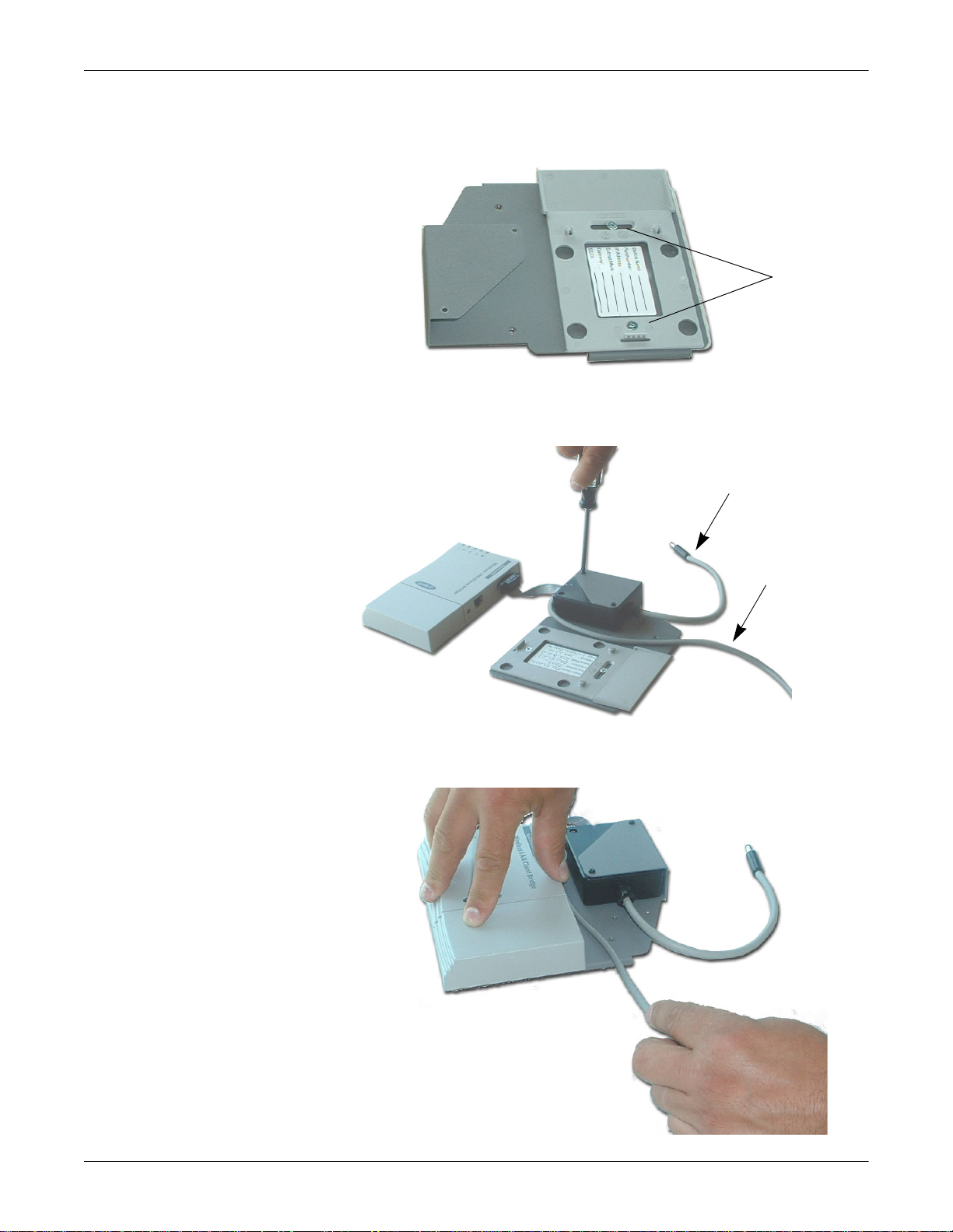

7. Using the two screws removed in step 6, attach the client bridge
mounting bracket to the original style bracket.
8. Using the two screws removed in step 5, attach the power supply to
the original style bracket as shown below. Route the communications
cable between the power supply and the plastic client bridge bracket
9. Snap the client bridge onto the client bridge mounting bracket as
shown. Ensure that the communications cable is not pinched under
the client bridge.
38A
mounting
screws
43A
power cable
communication
s
cable
44A

16 MobileLink Revision D
2002783-060
Installation Procedures
10. Re-connect the power cable to the 5VDC connector on the client
bridge.

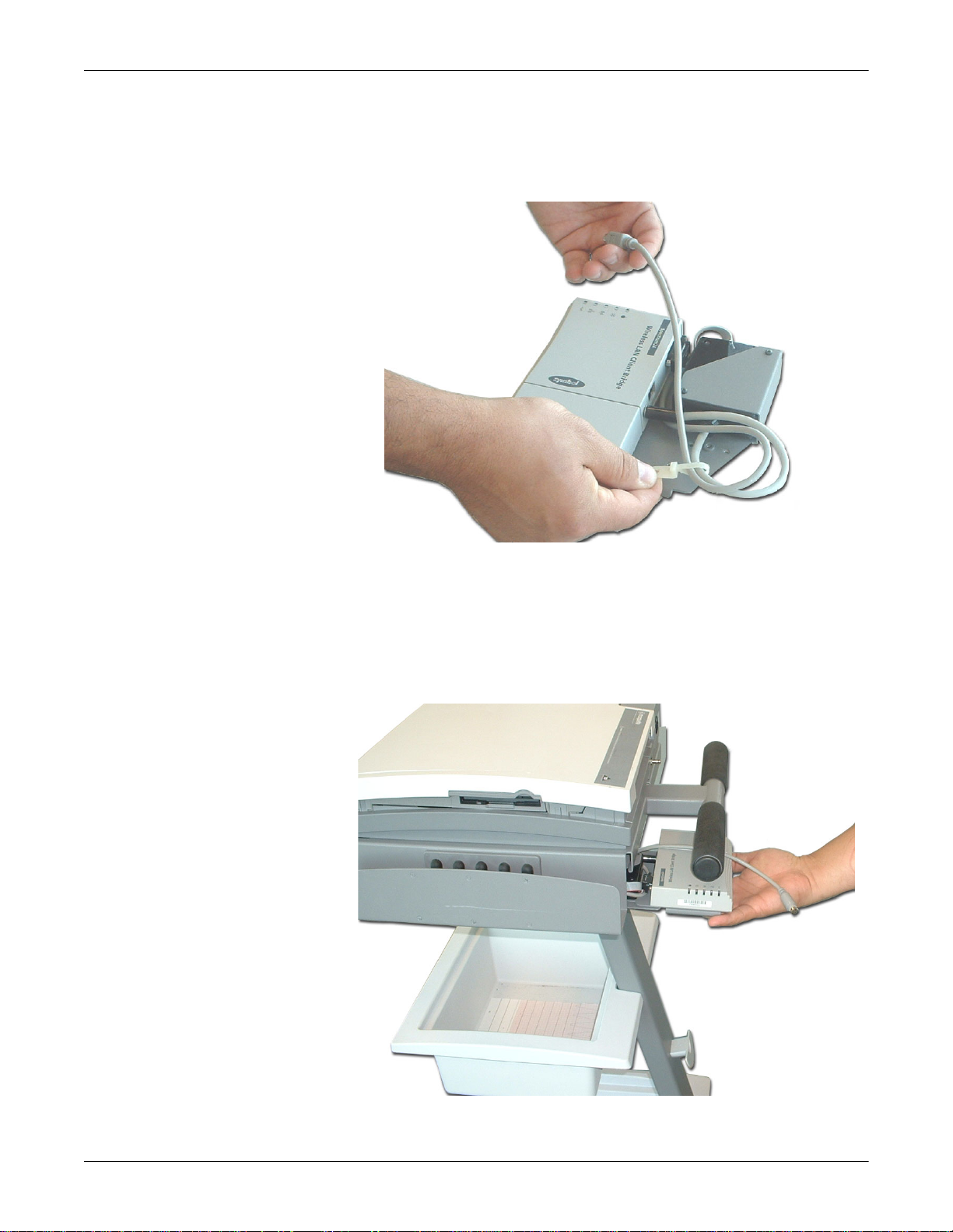

11. Loop the power cable and the communications together through the
nylon strain relief as shown below.
12. Tighten the strain relief and mount it to the bracket with the screw
removed in step 5.
127(
When properly assembled, you should have approximately 11"
from the strain relief to the end of the communications cable.
13. Slide the client bridge bracket assembly onto the MAC 5000 report
tray as shown below.
Sliding Client Bridge Bracket Assembly onto Report Tray
19B
