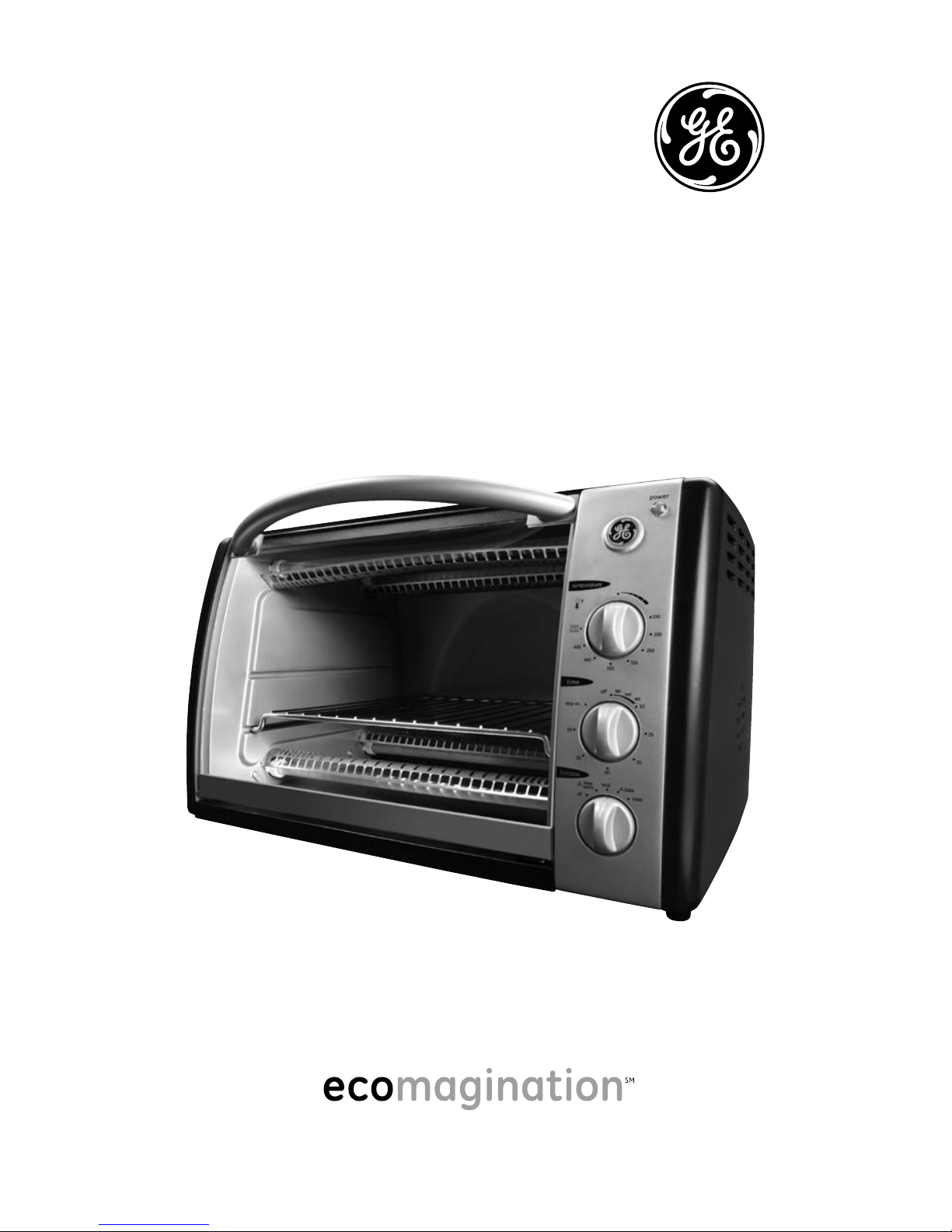

GE 169140 User manual

CONVECTION
TOASTER OVEN
Model Number: 169127/169140
UPC: 681131691277 (US)/681131691406 (Canada)
Customer Assistance
1-877-207-0923 (US)
1-877-556-0973 (Canada)
Thank you for purchasing a GE small appliance.
In keeping with the GE ecomagination initiative, please consider the option to
recycle the packaging material and donate the appliance you are no longer using.
To read about GE’s ecomagination commitment, visit
http://ge.ecomagination.com

IMPORTANT SAFEGUARDS
2
SAVE THESE INSTRUCTIONS!
• READ ALL INSTRUCTIONS BEFORE USING.
• Do not touch hot surfaces. Use handles or
knobs.
• To protect against electric shock, do not
place cord, plugs, or appliance in water or
other liquid.
• Close supervision is necessary when any
appliance is used by or near children.
• Unplug from outlet when not in use and
before cleaning. Allow to cool before
putting on or taking off parts, and before
cleaning the appliance.
• Do not operate any appliance with a
damaged cord or plug or after the
appliance malfunctions, or has been
damaged in any manner. Call our toll-free
customer service number for information
on examination, repair or adjustment.
• Do not use outdoors.
• Do not let cord hang over edge of table or
counter, or touch hot surfaces.
• Do not place on or near a hot gas or
electric burner, or in a heated oven or in a
microwave oven.
• Do not use appliance for other than
intended use.
• Do not clean with material scouring
pads. Pieces may break off and touch
electrical parts.
• The use of accessory attachments not
recommended by the appliance
manufacturer may cause injuries.
• When operating the oven keep at least
four inches of space on all sides of the
oven to allow for adequate air circulation.
• To disconnect, turn the control to OFF, then
remove the plug. Always hold the plug, but
never pull the cord.
• Extreme caution must be used when
moving an appliance containing hot oil, or
other hot liquids.
• Do not cover CRUMB TRAY or any part of
the Oven with metal foil. This may cause
overheating of the OVEN.
• Use extreme caution when removing tray
or disposing of hot grease or other hot
liquids.
• Oversized foods or metal utensils must not
be inserted in a toaster oven as they may
create a fire or a risk of electric shock.
• A fire may occur if the oven is covered or
touching flammable material, including
curtains, draperies, walls, and the like,
when in operation. Do not store any item
on the Oven during operation.
• Extreme caution should be exercised
when using containers constructed of
anything other than metal or glass.
• Do not place any of the following
materials in the Oven: cardboard, plastic,
paper, or other flammable materials.
• Do not store any materials, other than
manufacturer’s recommended accessories,
in this Oven when not in use.
• Always wear protective, insulated oven
mitts when inserting or removing items
from the hot Oven.
• Avoid scratching door surface or nicking
edges. If the door has a scratch or nick,
contact our toll-free consumer relations
line before using the oven.
• To reduce risk of fire, do not place
anything directly on top of appliance
surface when in operation.
When using electrical appliances, basic safety precautions should always be
followed, including the following:

3
CONSUMER SAFETY INFORMATION
This unit is for household use only.
Polarized Plug
This appliance has a polarized plug, (one blade is wider than the other). As a
safety feature to reduce the risk of electrical shock, this plug is intended to fit in a
polarized outlet only one way. If the plug does not fit fully into the outlet, reverse
the plug. If it still does not fit, contact a qualified electrician. Do not attempt to
defeat this safety feature.
Caution: A short power-supply is provided to reduce the risk of personal injury
resulting from becoming entangled in or tripping over a longer cord. Extension
cords are available and may be used if care is exercised in their use. If an
extension cord is required, special care and caution is necessary. Also the cord
must be: (1) the marked electrical rating of the cord set or extension cord should
be at least as great as the electrical rating of the appliance. And (2) the cord
should be arranged so that it will not drape over the counter top or tabletop,
where it can be pulled on by children or tripped over unintentionally.
Electrical Power
If the electric circuit is overloaded with other appliances, your appliance may not
operate properly. It should be operated on a separate electric circuit from other
appliances.
Caution: Unplug appliance from electrical outlet when assembling, removing
parts or cleaning. Never place this appliance or cord in water or other liquids.

4
PARTS
1. Door Handle
2. Power Light
3. Control Panel
4. Curved Glass Door
5. Rack Support Guides
6. Heating Elements
7. Crumb Tray
8. Back Rack shown face up
9. Broil Rack
10. Bake Pan
11. Cookie Sheet

5
Bake Rack—May be positioned in the upper or lower Rack Support
Guides for toasting, baking, and general cooking.
Cookie sheets—Each cookie sheet holds approximately 9-12 medium-
size cookies.
Bake Pan & Broil Rack—For use in broiling and baking meat, poultry,
fish, and various other foods. The Broil rack allows fat drippings to drip
into the Bake Pan and away from the food. This will help prevent
spattering that could result in smoking and flare-ups.
Note: Sugar and salt-based foods have a tendency to stick to all
surfaces and are very hard to clean. When cooking these types of foods
with the Bake Pan and Broil Rack, soak and clean them immediately
after each use.
PARTS AND FEATURES
Control Panel
Temperature Control—Turn to select
temperature 150 degrees to Broil
Time Control—To activate the timer or to toast,
turn the dial to the right (clockwise). A bell will
sound at the selected time (0-60 minutes).
Function Control—Turn to select the desired
cook function:
•
Convection keep warm—Keep food warm for
up to 60 minutes.
• Broil—For broiling fish, steak, poultry and
pork chops, etc.
•
Convection bake—For baking cakes, pies,
cookies, poultry, beef, pork, etc.
•
Toast—For toasting bread, muffins, frozen
waffles, etc.
Power On Light—The Power On light will
illuminate whenever the Oven is turned on.
ACCESSORIES

6
INSTRUCTIONS FOR USE
Caution:
Appliance surfaces are hot during and after use. Always wear protective, insulated
oven mitts when touching hot oven, dishes and food, or when inserting or
removing Bake Rack, Broil Rack, or Cookie Sheet.
Never leave oven unattended while in use. Be sure the Crumb Tray is in position
while using any of the Toaster Oven’s functions.
To activate timer for periods less than 20 minutes, turn dial past 20 and back to
desired time or for toast function to desired darkness.
Broiling/Top Browning
For best results, it is recommended that you preheat the oven for 10 minutes at
your desired temperature.
Trim excess fat from meat and dry any moisture that may be on the food.
1. Set the Temperature Control to Broil/Toast.
2. Turn the Function Control to Broil.
3. Set the Time control to preheat the oven for 10 minutes.
4. Place the Bake Rack in the upper Rack Support Guide, facing up.
5. Place the Broil Rack onto the Bake Pan.
6. Place the food on the Broil rack. Brush food with sauces or oil, if desired. Then
slide onto the Bake Rack.
7. Food should be placed as close as possible to the top heating element without
touching it.
8. Turn on the Time control.
9. Turn food over midway through cooking time.
10. Timer will shut off automatically or manually turn timer to off.
Convection Bake
Positioning the Bake Racks
Cookies can be baked using either or both Rack Support Guides with Racks facing
up. Layer cakes can be baked on the lower position with the Bake Rack facing
down, and on the upper position with the Bake Rack facing up.
Pies can be baked in either or both positions with the Bake Rack facing down.
Be sure to place Cookie Sheet under the pies to catch any spills or drips.
Baking Guide
Follow the package or recipe instructions for baking times and temperature.

7
INSTRUCTIONS FOR USE
Note: When using a single rack, position the Bake Rack in the bottom Support
Guide, facing up.
Bakeware that will fit in the Oven are: a bundt pan, 6-cup muffin pan, 9-inch pie
pan, 9-inch loaf pan, or an angel food cake pan.
Do not use roasting bags or plastic or glass containers in the oven.
1. Place the Bake Rack in the lower Rack Support Guide or according to recipe
directions.
2. Preheat the oven as directed in the recipe.
3. Turn the function control to Convection Bake.
4. Place item to be baked on the Bake Rack.
5. Turn on the time control.
6. Timer will shut off automatically or manually turn timer to off.
Toasting
The large capacity oven allows for toasting up to 6 slices of bread. When toasting
only 1 or 2 items, place the food in the center of the oven.
1. Be sure the Crumb Tray is in place.
2. Set the Temperature control to Broil/toast.
3. Turn the function control to toast.
4. Bake Rack should be positioned in lower rack support guide, facing up.
5. Place food to be toasted on the Bake Rack.
6. Turn the time control to the desired darkness. To activate timer, turn dial past
20 and back to desired darkness.
7. Bell will signal and oven will turn off at the end of the toast cycle.
Convection Warm
Keeps cooked food warm for up to 60 minutes. Longer periods of time are not
recommended as food will become dry or spoil.
1. Set the temperature control to 250ºF or less.
2. Turn the function control to warm.
3. Turn on the time control
4. Timer will shut off automatically or manually turn timer to off.
CARE AND CLEANING
Caution: Do not immerse cord, plug, or appliance into water or any other liquid. Do not
use metal scouring pads to clean the oven. Pieces of the pad may break off and touch
electrical parts.
1. Unplug the Oven and allow all parts to cool completely before cleaning or moving.
2. All accessories should be washed in hot, sudsy water or can be cleaned in the
dishwasher. Rinse and dry all accessories thoroughly.
3. The Glass Door can be wiped clean with a damp sponge and wiped dry with a
paper or cloth towel.
4. Clean the outside with a damp sponge. DO NOT USE AN ABRASIVE CLEANER,
AS IT MAY DAMAGE THE EXTERIOR FINISH.

CUSTOMER ASSISTANCE
TWO-YEAR LIMITED WARRANTY
What does your warranty cover?
• Any defect in material or workmanship.
For how long after the original purchase?
• Two years.
What will we do?
• Provide you with a new one.
• For those items still under warranty but
no longer available, WAL-MART reserves
the right to replace with a similar GE
branded product of equal or greater value.
How do you make a warranty claim?
• Save your receipt.
• Properly pack your unit. We recommend
using the original carton and packing
materials.
• Return the product to your nearest
WAL-MART store or call Customer
Assistance at 1-877-207-0923 (U.S.)
or 1-877-556-0973 (Canada).
What does your warranty not cover?
• Parts subject to wear, including, without
limitation, glass parts, glass containers,
cutter/strainer, blades, seals, gaskets,
clutches, motor brushes, and/or
agitators, etc.
• Commercial use or any other use not
found in printed directions.
• Damage from misuse, abuse, or neglect,
including failure to clean product
regularly in accordance with
manufacturer’s instructions.
How does state law relate to this
warranty?
• This warranty gives you specific legal
rights, and you may also have other
rights which vary from state to state
or province to province.
• This warranty is in lieu of any other
warranty or condition, whether express
or implied, written or oral, including,
without limitation, any statutory warranty
or condition of merchantability or fitness
for a particular purpose.
• WAL-MART, GE and the product
manufacturer expressly disclaim all
responsibility for special, incidental and
consequential damages or losses caused
by use of this appliance. Any liability is
expressly limited to an amount equal to
the purchase price paid whether a claim,
however instituted, is based on contract,
indemnity, warranty, tort (including
negligence), strict liability, or otherwise.
Some states or provinces do not allow
this exclusion or limitation of incidental
or consequential losses so the foregoing
disclaimer may not apply to you.
What if you encounter a problem with
this product while using it outside the
country of purchase?
• The warranty is valid only in the country
of purchase and you follow the warranty
claim procedure as noted.
For faster service, please have the model number and product name ready for the
operator to assist you. This number can be found on the bottom of your appliance and
on the front page of this manual.
Model Number: ____________________ Product Name:_________________________
Customer Assistance Number 1-877-207-0923 (U.S.) or 1-877-556-0973 (Canada)
Keep these numbers for future reference!
For more information, please visit us at www.gehousewares.com
is a trademark of General Electric
Company and is used under the
license by Wal-Mart Stores Inc.,
Bentonville, AR 72716
Marketed in Canada by:
Wal-Mart Canada Corp.
1940 Argentia Road, Mississauga, Ontario L5N1P9
