GE PGP953 User manual

Istallatio
Istructio s 30" SealedGasCooktop
PGP953, PGP959, CGP350
i Questions? Call 800.GE.CARES (800.432.2737) or Visit our Website at: ge.com
r_ In Canada, call 1.800.561.3344 or Visit our Website at: www.geappliances.ca i
IN THE COMMONWEALTH OF
MASSACH USETTS:
, This product must be installed by a licensed
plumber or gas fitter.
, When using ball-type gas shut-off valves, they
shall be the T-handle type.
, A flexible gas connector, when used, must not
exceed 3 feet.
BEFORE YOU BEGIN
Read these instructions completely
and carefully.
.IMPORTANT - Savetheseinstructions
for local inspector's use.
, IMPORTANT - Observeallgoverning
codes and ordinances.
, Note to Installer- Be sure to leave these
instructions with the Consumer.
Note to Consumer - Keep these instructions for
future reference.
, Product failure due to improper installation is not
covered under the Warranty.
AWARNING - Thisappliancemust be
properlygrounded.
.IMPORTANT - Leak testingofthe
applianceshallbe conducted accordingto the
manufacturer's instructions.
, Proper installation is the responsibility of the
installer and product failure due to improper
installation is NOT covered under warranty.
WARN ING - Disconnectallelectrical
power at the main circuit breaker or fuse box
before installing.
FOR YOUR SAFETY:
AWARNING - iftheinformation
in this manual is not followed exactly, a fire,
explosion or gas leak may result causing
property damage, personal injury or death.
Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any
other appliance!
WHAT TO DO IFYOU SMELL
GAS:
Do not try to light any appliance. Do not touch
any electrical switch; do not use any phone in
your building.
Immediately call your gas supplier from a
neighbor's phone. Follow the gas supplier's
instructions.
, If you cannot reach your gas supplier, call the
fire department.
Installation and service must be performed
by aqualified installer, service agency or
the gas supplier.
This cooktop has been certified by UL. You'll find
safety precautions in your Owner's Manual.
Read them carefully.
Installation of this cooktop must conform with
local codes or in the absence of local codes with
the National Fuel Gas Code, ANSI Z223.1/NFPA
54-Latest edition.
Be sure your cooktop is installed properly by a
qualified installer or service technician.
To eliminate reaching over surface burners,
cabinet storage above burner should be avoided.
Do not install the unit near an outside door or
where a draft may affect its use.
31-i0807-2 (09-11GE) 1

Installation Instructions
IMPORTANT SAFETY INSTRUCTIONS
ELECTRICAL REQUIREMENTS
This appliance must be supplied with the proper
voltage and frequency and connected to an
individual, properly grounded branch circuit,
protected by a circuit breaker or fuse having
amperage as noted on the rating plate.
We recommend you have the electrical wiring and
hookup of your cooktop connected by a qualified
electrician. After installation, have the electrician
show you where your main cooktop disconnect is
located.
Check with your local utilities for electrical codes
which apply in your area. Failure to wire your
cooktop according to governing codes could result
in a hazardous condition.
If there are no codes, your cooktop must be wired
and fused to meet the requirements of the National
Electrical Code, ANSI/NFPA No. 70--Latest edition.
You can get a copy by writing:
National Fire Protection Association
Batterymarch Park
Quincy, P1A 02269
In Canada your cooktop must be wired and fused
to meet the requirements of the Canadian Electrical
Code.
Be sure the installation of this product in a mobile
home conforms with the Manufactured Home
Construction and Safety Standard, Title 24 CFR,
Part 3280. If this standard does not apply, you
must follow the standard for Manufactured Home
Installations, ANSI/VCSBS A225.1, or with local
codes where applicable.
You can get a copy of the Federal Standard by
Writing:
Office of Mobile Home Standards
HUD Building
451 7th Street, S.W.
Washington, D.C. 24010
PARTS INCLUDED
2Screws Regulator 2 Hold
Down Brackets
MATERIALS YOU MAY NEED
Joint Sealant Pipe Fittings Shut-Off Valve
CSA-Approved Flexible Gas Line
3/8" Min. ID, 1/2" NPTConnection,
3-foot Maximum Length (Massachusetts Only)
TOOLS YOU WILL NEED
FOR INSTALLATION
Pencil
Phillips-Head
Screwdriver
Ruler or Straightedge
Safety Glasses
Saber Saw
Pipe Wrench
!/8" Drill Bit & Electric or
Hand Drill

Installation Instructions
PRE-INSTALLATION CHECKLIST
[Z]
@
When preparing cooktop opening, make
sure the inside of the cabinet and the
cooktop do not interfere with each other.
(See section on preparing the opening.)
Remove packaging materials, grate boxes,
regulator with literature, and literature
package from the cooktop before beginning
installation.
i/
/i/
Foam
Pac_,_,_///_,_r_/,_ _ _ _ _
Cooktop J
Package
Grate boxes
E1 Remove Installation Instructions from
literature pack and read them carefully
before you begin.
Be sure to place all literature (Owner's Manual,
Installation Instructions, etc.)in a safe place
for future reference.
El
El
FF1
[]
Make sure you have all the tools and
materials you need before starting the
installation of the cooktop.
Your home must provide the adequate
electrical service needed to safely and
properly use your cooktop. (Refer to section
on electrical requirements.)
When installing your cooktop in your home,
make sure all local codes and ordinances
are followed exactly as stated.
Hake sure the wall coverings, countertop
and cabinets around the cooktop can
withstand heat (up to 200°F) generated by
the cooktop.

Installation Instructions
PREPARING THE OPENING
r_] MAINTAIN THE FOLLOWING
MINIMUM CLEARANCE DIMENSIONS
13" IVlAX. Depth of unprotected R - IVllN.clearance
from cutout to right
side wall
I
30" MIN. clearance from
countertop to unprotected
overhead surface
I
C - NIN. I
clearance from I
cutout to rear
wall
L - MIN.clearance
from cooktop to left
side wall 2-1/2" MIN from
cutout to front of
countertop
50" or wider
cabinet base
18" MIN. height
countertop
to nearest
cabinet on either
side of unit
NOTE: All gas cooktop models require 7/16" free
area below cooktop bottom to combustible material.
L R C
PGP953 3-3/4" 6" 2-1/4"
PGP959 12" 12" 2-7/8"
CGP350 12" 12" 2-7/8"
ALL HORIZONTAL CLEARANCES MUST BE MAINTAINED
FOR A MINIMUM OF 18" ABOVE THE COOKING SURFACE.
[_] OVERALL COOKTOP DIMENSIONS
30- ------j__-21-
'"T
19-3/8" q_.._
]-Z/4"
[]] CUTOUT DIMENSIONS OF
COUNTERTOP
To ensure accuracy, it is best to make
a template when cutting the opening
in the counter.
/8" width cut
[]-] RECOMMENDED GAS SUPPLY
LOCATION FROM BACKWALL
Recommended
gas supply
location
r' Min. From Backwall
From Cutout
Center Line
[_] MAKE SURE WALL COVERINGS,
COUNTERTOP AND CABINETS
AROUND COOKTOP CAN
WITHSTAND HEAT {UP TO 200°F)
GENERATED BY COOKTOP
Wall covering,
cabinets and
countertop must l
withstand heat I

Installation Instructions
iNSTALLiNG THE COOKTOP UNiT
rT]LOCATE ELECTRICAL OUTLET AND
GAS SHUT-OFF VALVE BENEATH
CABINET
NEVER REUSE OLD
CONNECTORS WHEN
INSTALLING THIS
UNIT.
i
I_ 7f
_1 LJ
II
ShutOff _,H IF''
_Valve --_ j ElectricalOutlet 12"
Below
Countertop
Install a manual shut-off valve in the gas line in an
easily accessible location outside the cooktop. Be
sure you know how and where to shut off the gas
supply to the cooktop. Install the electrical outlet
12" below the countertop.
[_] PROTECT SURFACE OF COOKTOP
Place a towel or tablecloth onto the countertop.
Lay the cooktop upside down onto the protected
surface.
Bottom of cooktop j
Cloth under Cooktop
r_ LOCATE MOUNTING PARTS
Remove the hold down brackets from the
literature package.
ATTACH BRACKETS TO COOKTOP
Remove the screw from the side of the cooktop
and screw the hold-down bracket
to the side of the cooktop unit. Repeat for opposite
side of cooktop.
Bottom of
Cooktop
-1
Cookto
Surface
Pre-drilled
hole X
r_ INSERT COOKTOP INTO CUTOUT
Insert the cooktop centered into the cutout opening.
Hake sure the front edge of the countertop is
parallel to the cooktop. Hake final check that all
required clearances are met.
Once the unit is in place, screw the
hold- down bracket into the cabinet sides
to secure the unit into place.

Installation Instructions
INSTALLATION--GAS CONNECTIONS
r_ PROVIDE ADEQUATE
GAS SUPPLY
This cooktop is designed to operate on natural
gas at 5" of water column manifold pressure and
7" of water column (W.C.) supply pressure. It is
shipped from the factory set for natural gas. The
convertible pressure regulator supplied with the
unit must be connected in series with the manifold
of the cooktop and must remain in series with the
supply line regardless of whether natural or L.P.
gas is being used. FOR PROPEROPERATION, THE
HAXIHUH INLET PRESSURETO THE REGULATOR
HUST BE NO HaRE THAN 14" OF WATER COLUHN
PRESSURE.For checking the regulator, the inlet
pressure must be at least 1" W.C.. (or 3.4 KPA)
greater than the regulator output setting. If
the regulator is set for 5" W.C. of water column
pressure, the inlet pressure must be at least 6" W.C.
If the regulator is set for 10" W.C., the inlet pressure
must be at least 11" W.C.. The gas supply line to
the cooktop should be 1/2" or 3/4" pipe.
J_ INSTALL REGULATOR
NEVER REUSEOLD CONNECTORS WHEN
INSTALLING THIS COOKTOP.
AWARNING: Never reuse old flexible
connectors. The use of old flexible connectors
can cause gas leaks and personal injury. Always
use new flexible connectors when installing a gas
appliance.
Screw a section of pipe onto
the inlet end of the pressure
regulator and install the
coupling.
Pressure __-]
Regulator '_
Coupling _ t_
To reduce the likelihood of gas leaks, apply teflon
tape or a thread compound approved for use with
LP or Natural gases to all threaded connections.
r3] INSTALL REGULATOR ONTO
BURNER BOX BOTTOM
Screw the regulator
onto the burner
box bottom pipe
connection. Hake
sure the top of
the regulator is
facing towards the
cabinet front, easily
accessible through
the cabinet doors.
The regulator may
also be installed
prior to inserting
Pressure _1
Regulotor-=---_l
Coupling l LI
:\
Ii Electrical
II Outlet 12"
I Below
Countertop
the cooktop into the cutout if extreme caution is
used to ensure the regulator connection is not
compromised.
r_ COMPLETE CONNECTION WITH A
COUPLING
Complete the
connection between
the regulator pipe
coupling and
the shut-off valve. Pressure
Regulator
Coupling
Shut-Off _7
Valve
I
II
II Electrical
I Outlet 12"
I Below
Countertop

Installation Instructions
[_ CHECK FOR LEAKS
LEAKTESTING OF THE APPLIANCE SHALL BE
CONDUCTED ACCORDING TO THE MANUFACTURER'S
INSTRUCTIONS.
Before testing for leaks, make sure all burner knobs
are in the OFF position.
After connecting the cooktop to gas, check system
for leaks with a manometer. If a manometer is not
available, turn the gas supply on to the cooktop
and use a liquid leak detector at all joints and
connections to check for leaks.
Tighten all connections if necessary to prevent gas
leakage in the cooktop or supply line.
DO NOT USE OPEN FLAME TO CHECK FOR
LEAKS!
Disconnect the cooktop and its individual shut-off
valve from the gas supply piping system during any
pressure testing of that system at test pressures
greater than 1/2 psig (3.5 kPa).
Isolate the cooktop from the gas supply piping
system by closing its individual shut-off valve
during any pressure testing of the gas supply
system at test pressures equal to or less than 1/2
psig (3.5 kPa).
[_] INSTALLATION OVER BUILT-IN
OVEN
See built-in oven installation for complete
installation instructions.
90° Elbow
1
5" To Center of
2" Dia. Hole From
Countertop
2" Dia. Hole
(20 7/8" from front
of Countertop to
Hole Center)
View from Front of Cooktop

Installation Instructions
INSTALLATION--ELECTRICAL CONNECTIONS
AWARNING - Disconnecto11electricol
power ot the main circuit breoker
or fuse box before instolling.
ELECTRICAL SUPPLY AND OUTLET
An odequote electricol supply ond outlet must
be used to operote the electricol ports of your
cooktop.
[]
B]
The power cord of this appliance is equipped
with o 3-prong (grounding) plug which must
be used with u properly grounded I-hole
outlet with o standard 120 Volt, 60 cycle AC
household current.
If you do not hove o I-hole grounded outlet,
hove o quolified electrician chonge your old
one. DO NOT, UNDER ANY CIRCUMSTANCES,
CUT OR REMOVE THE THIRD (GROUND) PRONG
FROM THE POWER CORD. DO NOT USE AN
ADAPTER. DO NOT USE AN EXTENSION CORD.
Insure proper
ground and
firm connection
before use

Installation Instructions
COOKTOP BURNERS
E_ ASSEMBLING THE COOKTOP BURNERS
The electrode of the igniter is exposed. Be careful not to turn on any cooktop controls
while the top of the burner is removed. Do not remove the top or touch the electrode
of any burner while another burner is turned on. Electrical shock might result.
[] Place the burner head onto the burner base. Hake sure to place the correct
burner head on the correct burner base and that the burner head sits level on
the burner base. The burner heads are not interchangeable. Ensure the slot in
the burner head is positioned over the electrode and that the burner head is
fully inserted inside the burner base. A small gap between the base and head is
normal.
[]
J
Burner cap properly seated
Place the burner caps on the burner heads, making sure to place the correct
burner cap on the correct burner head. The burner caps are not Burner cap not properly seated
interchangeable. Each cap has three to four pins. Hake sure that the burner
caps are properly seated on the burner heads and that none of the pins sit in the stability chamber.
OR
{\ '7 Burner
Burner
base base
[_ CHECK IGNITERS
Operation of the electric igniters should be checked after the cooktop and supply line have been carefully
checked for leaks and the cooktop has been connected to the electrical power.
On models so equipped, check to be sure the cooktop is in the UNLOCKED position.
r_ Push and turn a burner valve to the LITE position. All spark igniters will make a series of sparks (ticking
sounds), but only the burner turned to LITE will light.
. The burner should light when gas is available to the burner.
. Once the burner lights, it should be turned out of the LITE position.
r_ Try each valve separately until all burners have been checked.

Installation Instructions
COOKTOP BURNERS (CONT.)

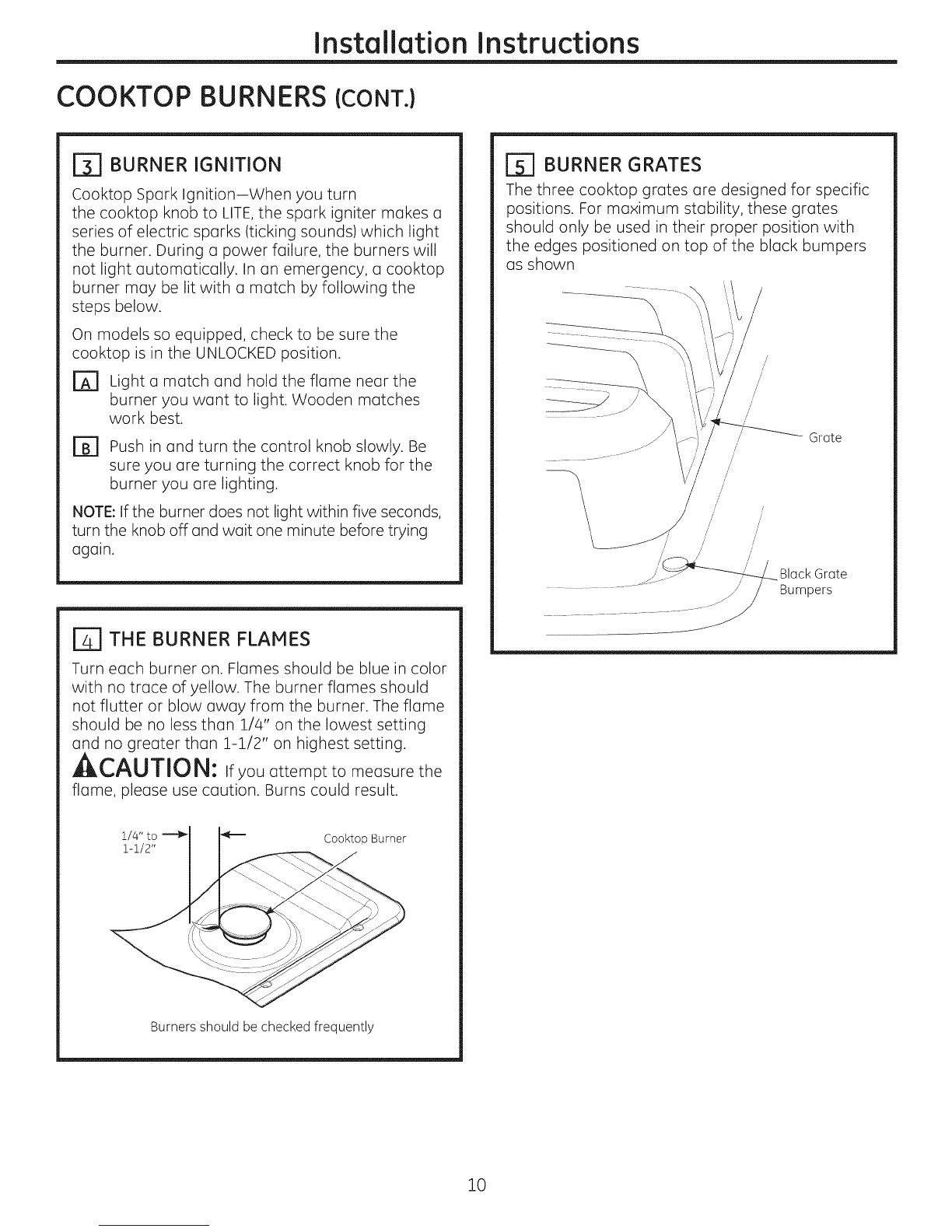

ITI BURNER IGNITION
Cooktop Spark Ignition-When you turn
the cooktop knob to LITE,the spark igniter makes a
series of electric sparks (ticking sounds) which light
the burner. During a power failure, the burners will
not light automatically. In an emergency, a cooktop
burner may be lit with a match by following the
steps below.
On models so equipped, check to be sure the
cooktop is in the UNLOCKED position.
rA1 Light a match and hold the flame near the
burner you want to light. Wooden matches
work best.
r_ Push in and turn the control knob slowly. Be
sure you are turning the correct knob for the
burner you are lighting.
NOTE: If the burner does not light within five seconds,
turn the knob off and wait one minute before trying
again.
[_ THE BURNER FLAMES
Turn each burner on. Flames should be blue in color
with no trace of yellow. The burner flames should
not flutter or blow away from the burner. The flame
should be no less than 1/4" on the lowest setting
,_ great er thanand1-1/2" on highest setting.
nCAUT/ON: Ifyou attempt to measurethe
flame, please use caution. Burns could result.
i/4" to
i-i/2" Cooktop Burner
Burners should be checked frequently
[_] BURNER GRATES
The three cooktop grates are designed for specific
positions. For maximum stability, these grates
should only be used in their proper position with
the edges positioned on top of the black bumpers
as shown
/
/
/
/
//
/'
// //
/' /
//
/
Grate
Black Grate
Bumpers
10
