GE Profile PGP990DENBB Original instructions

PGP990
GEAppliances.com
49-80558-3 04-13 GE
Owner’s Manual
& Installation
Instructions
Cooktop
Safety Instructions ... 2–5
Operating Instructions
Accessories..................7
Controls................... 8,9
Cookware................... 9
ElectricIgnition.............. 8
Features.................... 6
Griddle......................14
GrillModule.............10–13
Surface Burner
Modules............... 6,8–10
VentilationSystem........ 6,9
Care and Cleaning
Control Knobs and
ControlPanelSeal ......... 15
GreaseJar................. 15
GriddleAccessory.......... 17
Grill Burner ................. 16
Grill Grate .................. 16
Igniters......................17
PorcelainBurnerBasin..... 17
PorcelainCooktop ......... 15
SealedBurnerModule ..... 17
Stainless Steel Surfaces .....15
Vent Grille and Filter........ 16
Installation
Instructions ..........18–29
LP Conversion .......30–33
Troubleshooting
Tips ....................34,35
Consumer Support
Consumer Support..........40
Warranty ...................39
Gas Downdraft
Write the model and serial
numbers here:
Model # __________________
Serial # ___________________
Find these numbers on a label
under the cooktop.
Printed in Korea

2
IMPORTANT SAFETY INFORMATION.
READ ALL INSTRUCTIONS BEFORE USING.
³'RQRWVWRUHRUXVHJDVROLQHRURWKHUIODPPDEOH
YDSRUVDQGOLTXLGVLQWKHYLFLQLW\RIWKLVRUDQ\
RWKHUDSSOLDQFH
³WHAT TO DO IF YOU SMELL GAS
'RQRWWU\WROLJKWDQ\DSSOLDQFH
 'RQRWWRXFKDQ\HOHFWULFDOVZLWFKGRQRWXVH
DQ\SKRQHLQ\RXUEXLOGLQJ
 ,PPHGLDWHO\FDOO\RXUJDVVXSSOLHUIURPD
QHLJKERU·VSKRQH)ROORZWKHJDVVXSSOLHU·V
LQVWUXFWLRQV
 ,I\RXFDQQRWUHDFK\RXUJDVVXSSOLHU
FDOOWKHILUHGHSDUWPHQW
³,QVWDOODWLRQDQGVHUYLFHPXVWEHSHUIRUPHGE\
DTXDOLILHGLQVWDOOHUVHUYLFHDJHQF\RUWKHJDV
VXSSOLHU
WARNING: If the information in this manual
is not followed exactly, a fire or explosion may
result, causing property damage, personal injury
or death.
WARNING!
For your safety, the information in this manual must be followed to minimize the risk of fire or explosion, electric shock,
or to prevent property damage, personal injury, or loss of life.
C
E
R
T
I
F
I
E
D
D
E
S
I
G
N

GEAppliances.com
IMPORTANT SAFETY NOTICE
The California Safe Drinking Water and Toxic Enforcement Act requires the Governor of California to publish a list of
substances known to the state to cause cancer, birth defects or other reproductive harm, and requires businesses to warn
customers of potential exposure to such substances.
Gas appliances can cause minor exposure to four of these substances, namely benzene, carbon monoxide, formaldehyde
and soot, caused primarily by the incomplete combustion of natural gas or LP fuels. Properly adjusted burners, indicated
by a bluish rather than a yellow flame, will minimize incomplete combustion. Exposure to these substances can be
minimized by venting with an open window or using a ventilation fan or hood.
Have the installer show you the location of the cooktop gas shutoff valve and how to shut it off if necessary.
Have your cooktop installed and properly grounded by
a qualified installer, in accordance with the Installation
Instructions. Any adjustment and service should be performed
only by qualified gas cooktop installers or service technicians.
Be sure your cooktop is correctly adjusted by a qualified
service technician or installer for the type of gas (natural or
LP) that is to be used. Your cooktop can be converted for use
with either type of gas. See the Installation Instructions. Your
model is factory adjusted for use with natural gas.
Do not attempt to repair or replace any part of your cooktop
unless it is specifically recommended in this manual. All other
service should be referred to a qualified technician.
Locate the cooktop out of kitchen traffic path and out of
drafty locations to prevent poor burner performance.
Plug your cooktop into a 120-volt grounded outlet only. Do
not remove the round grounding prong from the plug. If in
doubt about the grounding of the home electrical system,
it is your personal responsibility and obligation to have an
ungrounded outlet replaced with a properly grounded, three-
prong outlet in accordance with the National Electrical Code.
Do not use an extension cord with this appliance.
Let the burner grate and other surfaces cool before touching
them or leaving them where children can reach them.
Be sure all packaging materials are removed from the
cooktop before operating it to prevent fire or smoke damage
should the packaging material ignite.
Be sure your cooktop is correctly adjusted by a qualified
service technician or installer.
Do not leave children alone or unattended where a cooktop
is hot or in operation. They could be seriously burned.
Do not allow anyone to climb, stand or hang on the cooktop.
CAUTION: Items of interest to children should not be
VWRUHGLQFDELQHWVDERYHDFRRNWRS³FKLOGUHQFOLPELQJRQWKH
cooktop to reach items could be seriously injured.
Always keep wooden and plastic utensils and canned food a
safe distance away from your cooktop.
Always keep combustible wall coverings, curtains or drapes a
safe distance from your cooktop.
Never wear loose-fitting or hanging garments while using
the appliance. Be careful when reaching for items stored
in cabinets over the cooktop. Flammable material could be
ignited if brought in contact with flame or hot surfaces and
may cause severe burns.
Teach children not to play with the controls or any other part
of the cooktop.
SAFETY PRECAUTIONS
3
WARNING: NEVER use this appliance as a
space heater to heat or warm the room. Doing so may
result in carbon monoxide poisoning and overheating of
the cooktop.

4
IMPORTANT SAFETY INFORMATION.
READ ALL INSTRUCTIONS BEFORE USING.
Always keep dish towels, dishcloths, pot
holders and other linens a safe distance
from your cooktop.
Do not store flammable materials near
a cooktop.
Do not store or use combustible materials, gasoline or other
flammable vapors and liquids
in the vicinity of this or any other appliance.
Do not let cooking grease or other flammable materials
accumulate on or near the cooktop.
Do not operate the burner without all burner
parts in place.
Do not clean the cooktop with flammable or volatile cleaning
fluids.
Do not clean the cooktop when the appliance
is in use.
Avoid scratching the cooktop with sharp instruments, or with
rings and other jewelry.
Never use the cooktop as a cutting board.
Do not use water on grease fires. Never pick
up a flaming pan. Turn the controls off. Smother
a flaming pan on a surface burner by covering the pan
completely with a well-fitting lid,
cookie sheet or flat tray. Use a multipurpose
dry chemical or foam-type fire extinguisher.
Flaming grease outside a pan can be put out
by covering it with baking soda or, if available,
by using a multipurpose dry chemical or
foam-type fire extinguisher.
Do not obstruct the flow of combustion and ventilation air.
Leak testing of appliance shall be conducted according to the
manufacturer’s instructions.
WARNING: To reduce the risk of fire, electrical shock,
or injury to persons, observe the following:
$ Use this unit only in the manner intended
by the manufacturer. If you have questions, contact the
manufacturer.
% Before servicing or cleaning the unit, switch power off at
service panel.
& When cutting or drilling into wall or ceiling,
do not damage electrical wiring and other hidden utilities.
' Ducted fans must always be vented to
the outdoors.
( To reduce the risk of fire, use only metal ductwork.
WARNING: To reduce the risk
of a cooktop grease fire:
$ Keep fan, filters and grease-laden surfaces clean.
% Always turn vent ON when cooking at
high heat.
& Use high settings on cooktop only when necessary. Heat oil
slowly on low to medium setting.
' Don’t leave the cooktop unattended when cooking.
( Always use cookware and utensils appropriate for the type
and amount of food being prepared.
CAUTION: For general ventilating use
only. Do not use to exhaust hazardous or explosive materials
and vapors.
SAFETY PRECAUTIONS
&RRNPHDWDQGSRXOWU\WKRURXJKO\³PHDWWRDWOHDVWDQ,17(51$/WHPSHUDWXUHRI)DQGSRXOWU\WRDWOHDVW
DQ,17(51$/WHPSHUDWXUHRI)&RRNLQJWRWKHVHWHPSHUDWXUHVXVXDOO\SURWHFWVDJDLQVWIRRGERUQHLOOQHVV
COOK MEAT AND POULTRY THOROUGHLY…

READ AND FOLLOW THIS SAFETY INFORMATION CAREFULLY.
SAVE THESE INSTRUCTIONS
GEAppliances.com
5
8VHSURSHUSDQVL]H³DYRLGSDQVWKDWDUHXQVWDEOHRUHDVLO\WLSSHG6HOHFWFRRNZDUHKDYLQJIODWERWWRPVODUJHHQRXJKWR
cover burner grate. To avoid spillovers, make sure cookware is large enough to contain the food properly. This will both save
cleaning time and prevent hazardous accumulations of food, since heavy spattering or spillovers left on cooktop can ignite.
Use pans with handles that can be easily grasped and remain cool.
WARNING!
SURFACE BURNERS
Always use the LITE position when igniting the top burners
and make sure the burners have ignited.
Never leave the surface burners unattended at high flame
settings. Boilovers cause smoking and greasy spillovers
that may catch on fire.
8VHRQO\GU\SRWKROGHUV³PRLVWRUGDPSSRWKROGHUV
on hot surfaces may result in burns from steam. Do
not let pot holders come near open flames when lifting
cookware. Do not use a towel or other bulky cloth in place
of a pot holder. Such cloths can catch fire on a hot burner.
When using glass cookware, make sure it is designed for
cooktop cooking.
To minimize the possibility of burns, ignition of flammable
materials and spillage, turn cookware handles toward
the side or center of the cooktop without extending over
adjacent burners.
Always turn the surface burner controls off before
removing cookware.
Carefully watch foods being fried at a high flame setting.
Always heat fat slowly and watch as it heats.
Do not leave any items on the cooktop. The hot air from
the vent may ignite flammable items and will increase
pressure in closed containers, which may cause them to
burst.
If a combination of oils or fats will be used in frying, stir
together before heating or as fats melt slowly.
Do not use a wok on the cooking surface if the wok has
a round metal ring that is placed over the burner grate
to support the wok. This ring acts as a heat trap, which
may damage the burner grate and burner head. Also, it
may cause the burner to work improperly. This may cause
a carbon monoxide level above that allowed by current
standards, resulting in a health hazard.
Foods for frying should be as dry as possible. Frost on
frozen foods or moisture on fresh foods can cause hot fat
to bubble up and over the sides of the pan.
Use the least possible amount of fat for effective shallow
or deep-fat frying. Filling the pan too full of fat can cause
spillovers when food is added.
Use a deep fat thermometer whenever possible to prevent
overheating fat beyond the smoking point.
Never try to move a pan of hot fat, especially a deep fat
fryer. Wait until the fat is cool.
Do not flame foods on the cooktop. If you do flame foods
under the hood, turn the fan on.
'RQRWOHDYHSODVWLFLWHPVRQWKHFRRNWRS³WKH\PD\PHOW
if left too close to the vent.
Keep all plastics away from the surface burners.
If you smell gas, turn off the gas to the cooktop and call a
qualified service technician. Never use an open flame to
locate a leak.
To avoid the possibility of a burn, always be certain that
the controls for all burners are at the off position and all
grates are cool before attempting to remove them.
Never clean the cooktop surface when it is hot. Some
cleaners produce noxious fumes and wet cloths could
cause steam burns if used on a hot surface.
Never leave jars or cans of fat drippings on or near your
cooktop.
Do not use aluminum foil under burner grate. Misuse
could result in a fire hazard or damage to the cooktop.
Do not cover or block the area around the cooktop knobs.
This area must be kept clear for proper ventilation and
burner performance.
Clean only parts listed in this Owner’s Manual.

6
Features of your cooktop.
Throughout this manual, features and appearance may vary from your model.
3

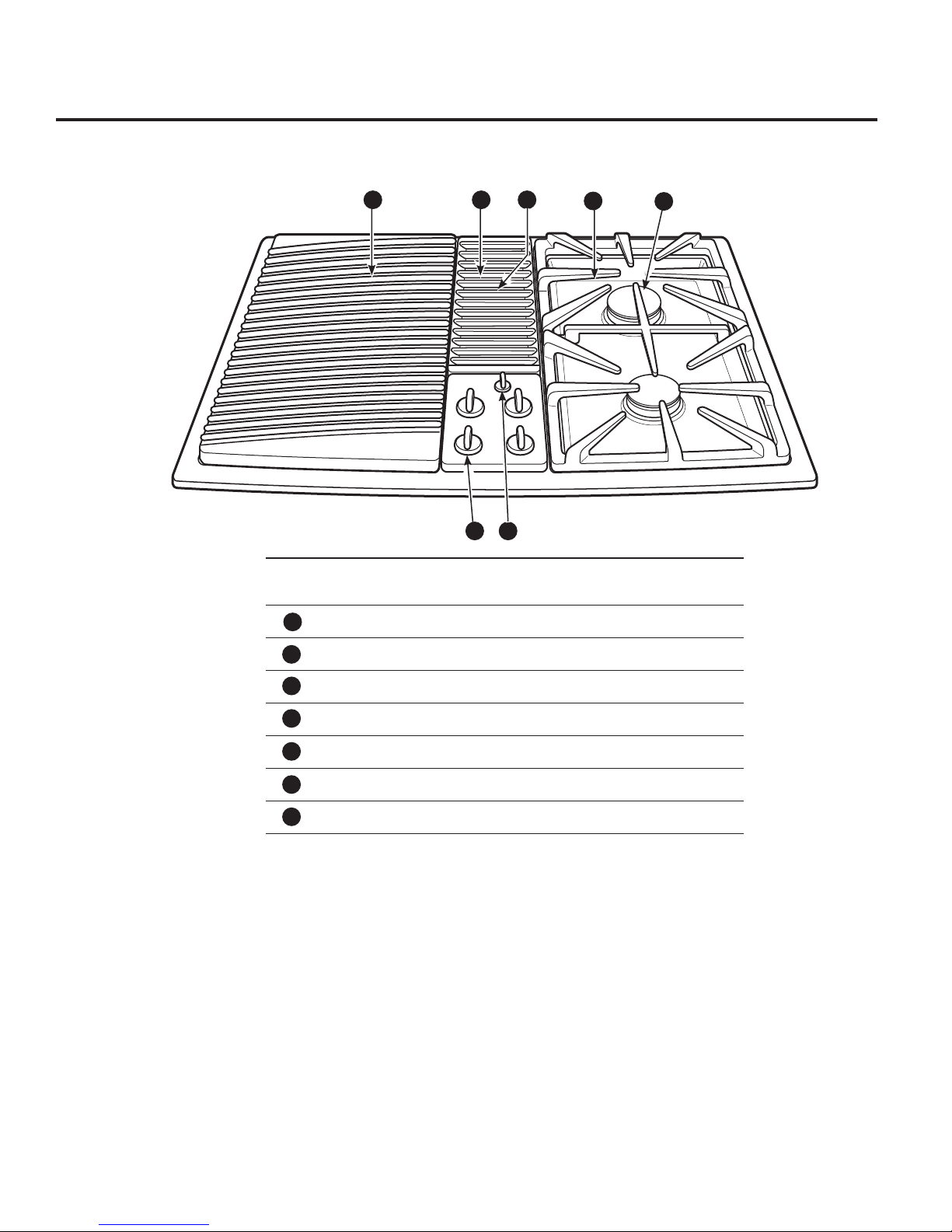

Feature Index
  *ULOO0RGXOHRSWLRQDO
  9HQWIDQRSHUDWHVDXWRPDWLFDOO\ZKHQJULOOLVLQXVH
  9HQW)LOWHUORFDWHGEHORZWKHYHQWJULOOH
  &DVW,URQ%XUQHU*UDWH
  6XUIDFH%XUQHUV
  6XUIDFH%XUQHU&RQWUROV
  9HQW&RQWURO
1
2
3
4
5
6
7
1 2 45
76

7
Cooktop accessories. GEAppliances.com
Throughout this manual, features and appearance may vary from your model.

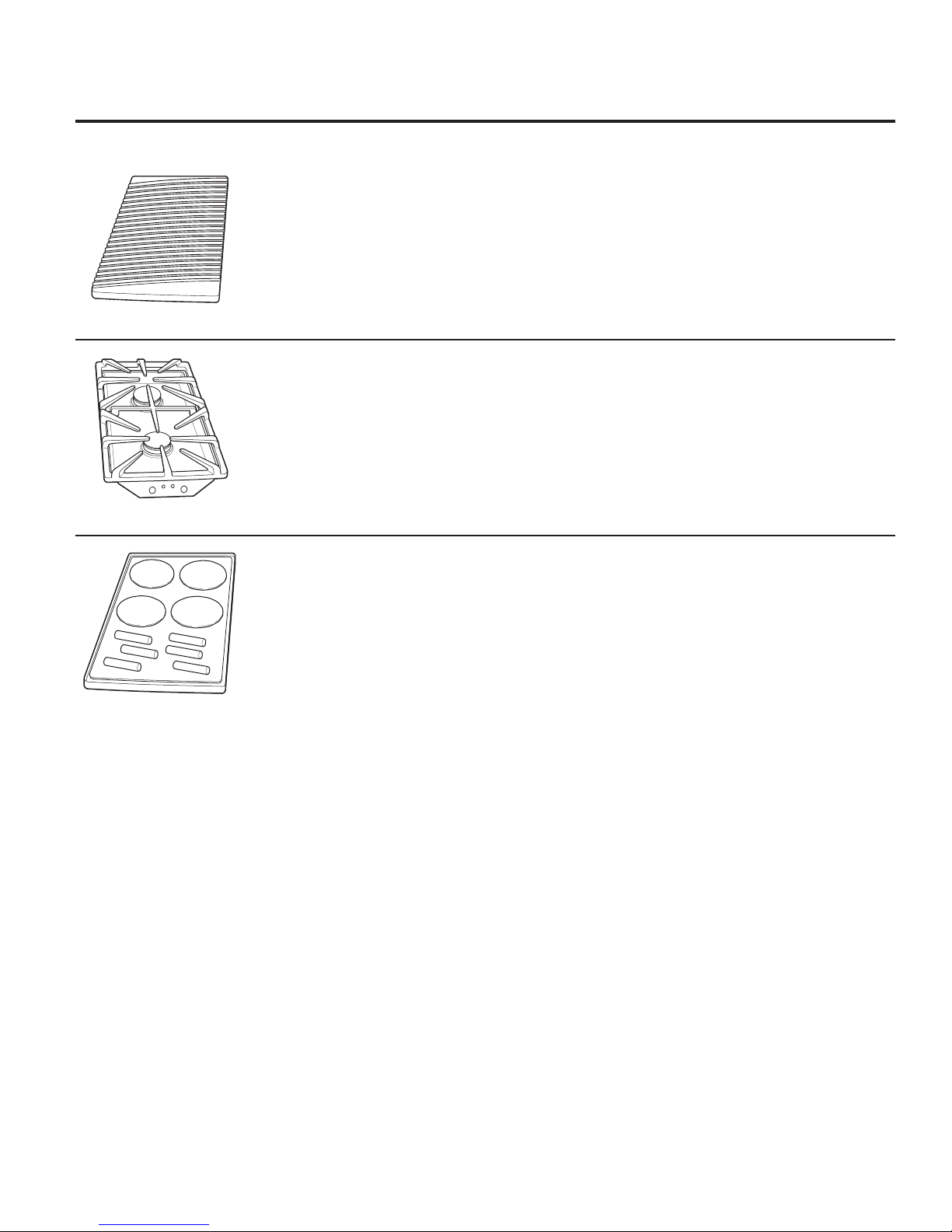

Grill Model JXGG90L
Consists of a black grill grate and a grill
burner.
Sealed Burner Module Models JXGB90B (black), JXGB90S (stainless steel)
and JXGB90W (white)
The grill assembly can be removed and a
sealed burner module installed.
NOTE: Optional surface burner module
(JXGB90) can replace the grill assembly.
Burners supplied with cooktop and optional
module air shutters have been adjusted for
compatibility on both sides.
Griddle Model JXGL90L
Can be used only with the grill burner.
Self-draining griddle makes many favorite
foods easier to fix. Family-sized surface lets
you cook several pancakes, hamburgers or
grilled sandwiches at the same time.

8
Using the gas surface burners.
Throughout this manual, features and appearance may vary from your model.
How to Light a Gas Surface Burner
Push the control knob down and turn it to
the LITE position.
You will hear a little clickingQRLVH³WKH
sound of the electric spark igniting the
burner.
After the burner ignites, turn the knob to
adjust the flame size.
To turn a burner off, turn the knob
clockwise, as far as it will go, to the OFF
position.
If the flame is too low at the setting, the
YDOYHFDQEHDGMXVWHG5HIHUWR)ODPHVWRR
high or too low at the LO/SIMMER setting
in the Troubleshooting Tips section.
Push the control knob down and
turn it to the LITE position.
How to Select Flame Size
For safe handling of cookware, never
let the flames extend up the sides of the
cookware.
Watch the flame, not the knob, as you
reduce heat. The flame size on a gas
burner should match the cookware you
are using.
Any flame larger than the bottom of the
cookware is wasted and only serves to
heat the handle.
If the burner has not been used recently,
the flames may make a loud noise. This is
normal, and it should dissipate after 4 to 5
minutes.
Electric Ignition
Your surface burners are lit by
electric ignition, eliminating the need
for standing pilots with constantly
burning flames.
In case of a power outage, you can
light the surface burners on your
cooktop with a match. Hold a lit
match to the burner, then turn the
control knob to the high position.
Use extreme caution when lighting
the burners this way.
Surface burners in use when an
electrical power failure occurs will
continue to operate normally.
IN CASE OF A POWER FAILURE,
THE VENTILATION SYSTEM WILL
NOT OPERATE. DO NOT USE THE
GRILL MODULE OR GRIDDLE IF
THE VENTILATION SYSTEM IS NOT
OPERATIONAL.
Before Lighting a Gas Burner
Make sure all grates on the cooktop are
in place before using any burner.
Only surface burners may be used on
the right side.
After Lighting a Gas Burner
Donotoperatetheburnerforanextended
period of time without cookware on the
grate. The finish on the grate may chip
without cookware to absorb the heat.
Check to be sure the burner you turn on
is the one you want to use.
Be sure the burners and grates are cool
before you place your hand, a pot holder,
cleaning cloths or other materials on
them.
When trying to simmer delicate foods,
use the right side of the unit for best
results. The LO setting on the left side
is hotter to accommodate the grill
module. If you find that the LO setting
is too hot, you can adjust the valve. See
the Troubleshooting Tips section.
Do not allow large pans to extend
over the control knobs. Heat trapped
between large pans and control knobs
could cause possible damage to the
control knobs.

Wok This Way
We recommend that you use a flat-bottomed
wok, available at your local retail store.
Only a flat-bottomed wok should be used. Do
not use a flat-bottomed wok with a wok holder.
Do not use a flat-bottomed wok on a support
ring. Placing the ring over the burner or grate
may cause the burner to work improperly,
resulting in carbon monoxide levels above
allowable current standards. This could be
dangerous to your health.
Use a flat-bottomed wok.
Cookware
Use large diameter cookware on rear burners.
Aluminum: Medium-weight cookware is
recommended because it heats quickly
and evenly. Most foods brown evenly in an
aluminum skillet. Use saucepans with tight
fitting lids when cooking with minimum
amounts of water.
Enamelware: Under some conditions, the
enamel of some cookware may melt. Follow
cookware manufacturer’s recommendations
for cooking methods.
Glass: There are two types of glass cookware:
those for oven use only and those for cooktop
cooking (saucepans, coffee and teapots). Glass
conducts heat very slowly.
Cast Iron: If heated slowly, most skillets will
give satisfactory results.
Heatproof Glass-Ceramic: Can be used for
either surface or oven cooking.
It conducts heat very slowly and cools very
slowly. Check cookware manufacturer’s
directions to be sure it can be used on a gas
cooktop.
Stainless Steel: This metal alone has poor
heating properties and is usually combined
with copper, aluminum or other metals for
improved heat distribution. Combination metal
skillets usually work satisfactorily if they are
used with medium heat as the manufacturer
recommends.
Using your cooktop. GEAppliances.com
The built-in vent system helps remove
cooking vapors, odors and smoke from foods
prepared on the cooktop.
To turn on the vent fan, use the vent control
switch on the control panel.
• Turn the vent fan speed control knob to
HI, MED or LO as needed.
NOTE: Even if the fan switch is in the OFF
position, the fan will turn on automatically
and operate continuously while the grill
burner module is in use.
Continuous use of the vent system while
cooking helps keep the kitchen comfortable
and less humid, reducing cooking odors
and soiling moisture that normally creates a
frequent need for cleaning.
At the HI fan speed setting, it is normal
for the nearby burner flames to be drawn
toward the vent grille. If cooking performance
is affected, then use a lower fan speed setting.
IN CASE OF A POWER FAILURE, THE
VENTILATION SYSTEM WILL NOT OPERATE.
DO NOT USE THE GRILL MODULE OR
GRIDDLE IF THE VENTILATION SYSTEM IS NOT
OPERATIONAL.
How to Operate the Downdraft Vent System
Using the downdraft vent system.
9

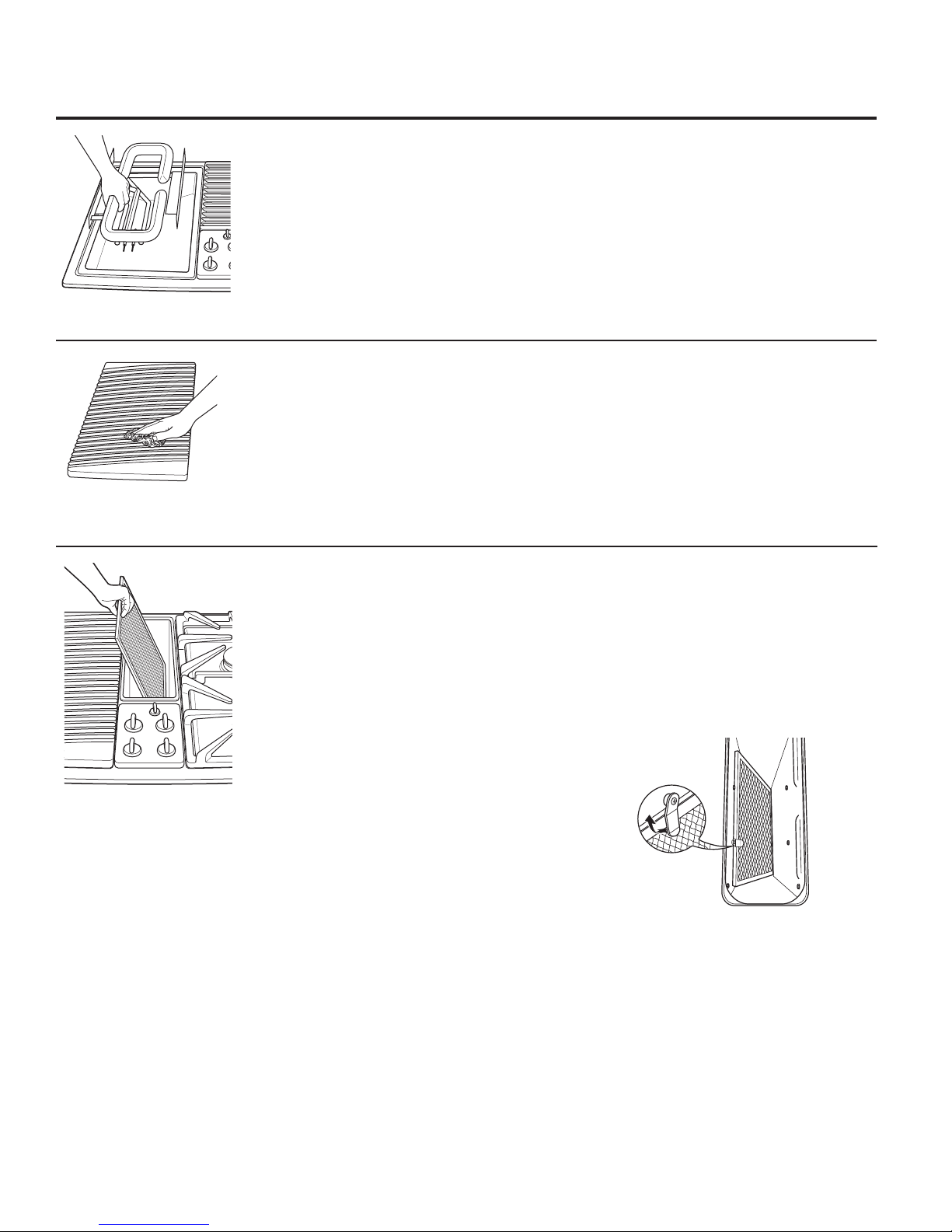

To Remove the Grill Module:
1. Make sure that all control knobs are set to
OFF and all grill components are cool.
 5HPRYHWKHJULOOJUDWH
3. Lift the grill burner up slightly and pull it
away from the white slotted receptacle and
brass orifices. Lift it out of the basin when it
is completely unplugged.
4. Do not store or stack modules where they
could fall or be damaged.
NOTE:The optional sealed burner module
JXGB90 can replace the grill burner assembly.
Surface burner and grill modules.
Throughout this manual, features and appearance may vary from your model.
10
Sealed Burner Module
To Install the Sealed Burner Module:
1. Make sure that all control knobs are set to
OFF.
2. Clean the cooktop basin to remove any
grease accumulation. See the Care and
Cleaning the Cooktop section.
3. With the back of the burner module tilted up
and the two round openings and three pins
facing toward the front, insert the module in
the cooktop basin.
4. Slide the burner module forward until the
pins start to engage the white slotted
receptacle.
5. Lower the back of the module into place and
carefully slide it forward until the pins are
fully engaged.
6. Place the burner caps on the burners.
Carefully place the grate onto the module
with the two tabs on the underside toward
the center of the cooktop.
To Remove the Sealed Burner Module:
1. Make sure that all control knobs are set to
OFF and that the cooktop is cool.
2. Lift up the edge of the burner module until
the bottom of the module clears the edge of
the basin.
IMPORTANT: Do not lift the module too high
ZKLOHLWLVVWLOOFRQQHFWHG³\RXFRXOGGDPDJH
the ignitor rods and mixer tubes.
3. Hold the module by the sides and pull it
away from the slotted receptacle and brass
orifices. Lift it out of the basin when it is
completely unplugged.
4. Do not store or stack modules where they
could fall or be damaged.
NOTE: The optional sealed burner module
JXGB90 can replace the grill burner assembly.
Grill Module
To Install the Grill Module:
1. Make sure that all control knobs are set to
OFF.
2. Position the grill burner with the two round
tubes and three pins facing the front.
3. Slide the grill burner forward until the pins
and ignitors are engaged in the white slotted
receptacle; then lower the burner until it
rests on the mounting pins.
4. Carefully place the grill grate on the cooktop.
The grate is designed to fit one way only.
See the illustration.
NOTE: Before using the grill for the first time,
heat the grill burner to remove the protective
shipping coating. Heat the grill burner on HI for
10 minutes and use the vent system to remove
any additional smoke during cooling.
The grill consists of a black grill grate and the grill burner. Only install the grill on the left side of your
cooktop.

11
Grilling. GEAppliances.com
Using the Grill
•7KHYHQWIDQZLOOWXUQRQDXWRPDWLFDOO\DQG
RSHUDWHFRQWLQXRXVO\ZKLOHWKHJULOOEXUQHU
PRGXOHLVLQXVH
• Before using the grill for the first time, wash
JULOOJUDWHLQKRWVRDS\ZDWHU5LQVHDQGGU\
• Precondition grate by brushing with
vegetable oil or spraying with a non-stick
coating such as Pam®. Do this every time
before you grill.
• For easier clean-up, spray grate and burner
basin with a non-stick coating.
• 8VHQRQPHWDOOLFVSDWXODVRUXWHQVLOVWR
SUHYHQWGDPDJLQJWKHQRQVWLFNJULOOJUDWH
ILQLVK
• Preheat the grill on high for 5 to 10 minutes.
Preheating improves the flavor and
appearance of meats and quickly sears the
meat to help retain the juices.
• ([FHVVLYHDPRXQWVRIIDWVKRXOGEH
WULPPHGIURPPHDWV Some fat is necessary
to produce the smoke needed for that
smoked “outdoor” flavor. However, excessive
fat can create cleaning and flare-up problems.
• Allowing excessive amounts of grease or
drippings to constantly flame voids the
warranty on the grill grate. Excessive flare-
ups indicate that either the grill interior
needs to be cleaned, excessive amounts of
fat are in the meat or that the meat was not
properly trimmed.
• Grease drippings will occasionally ignite
to produce harmless puffs of flame for a
second or two. This is a normal part of the
cooking process.
• Never leave the grill unattended during
operation.
IMPORTANT:
IN CASE OF A POWER FAILURE, THE
VENTILATION SYSTEM WILL NOT OPERATE.
DO NOT USE THE GRILL MODULE OR
GRIDDLE IF THE VENTILATION SYSTEM IS NOT
OPERATIONAL.
• Do not use aluminum foil inside the grill area.
• Do not use charcoal or wood chips in the grill
area.
• Do not allow burner basin to become
overloaded with grease. Clean after each use.
• Do not cover grate completely with meat.
Leave air space between each steak, etc., to
allow proper ventilation as well as to prevent
flare-ups.
• Do not use cooking pots, pans, skillets, etc.,
on the grill grate.
Should a Sustained Flare-Up Occur:
1. Use the vent control to turn the fan on.
2. Immediately turn the grill control knobs to
the OFF position.
5HPRYHWKHPHDWIURPWKHJULOO

Grilling.
12
Grilling Tips
• With your grill, any food you’ve considered
“at its best” when prepared outdoors can
now be prepared indoors with less fuss
and great flavor.
• The following suggestions are good rules
to follow and will increase your enjoyment
of the equipment. Be sure to follow
directions in this manual for using the grill.
• Suggested cooking times and control
settings are approximate due to variations
in meats. Experience will quickly indicate
cooking times as well as which settings
work best.
• For best results, buy top-grade meat. Meat
that is at least 3/4-inch thick will grill better
than thinner cuts.
• For the attractive “branded” look on steaks,
be sure the grill is preheated. Allow one
side of the meat to cook to the desired
doneness, or until the juices appear on
the top surface, before turning. Turn steaks
and hamburgers just once. Moving the food
around causes loss of juices.
• When basting meats or applying sauces
to foods, remember that excessive
amounts wind up inside your grill and do
not improve the food flavor. Apply sauces
during the last 15 to 20 minutes of cooking
time unless the recipe specifies otherwise.
Sugar-based marinade (for example,
barbecue sauce) will caramelize on grill
grate and will create a cleaning chore.
• There are many meat marinades which will
help tenderize less expensive cuts of meat
for cooking on the grill.
• Certain foods, such as poultry and non-
oily fish, may need some extra fat. Brush
with oil or melted butter occasionally while
grilling.
• Use tongs with long handles or spatulas for
turning meats. Do not use forks because
these pierce the meat, allowing juices to
be lost.
• To help retain meat juices, salt after
turning meat or after cooking is completed.
• Score the fat on the edges of steaks but
do not cut into the meat to prevent curling
while cooking.

13
Grilling guide. GEAppliances.com
Preheat the grill on high for 5 to 10 minutes for best flavor.
Type Control Setting Cooking Time Procedure
Meat
Steak (1/2”–3/4”)
5DUH +, WRPLQXWHV 7XUQDIWHUWRPLQXWHV
Medium HI 10 to 16 minutes Turn after 5 to 8 minutes.
Well HI 21 to 24 minutes Turn after 6 to 12 minutes.
Steak (1”–11ø4”)
5DUH +, WRPLQXWHV 7XUQDIWHUWRPLQXWHV
Medium HI 18 to 30 minutes Turn after 9 to 15 minutes.
Well HI 24 to 34 minutes Turn after 12 to 17 minutes.
Hamburgers (3–4 oz.) Medium 20 to 25 minutes Turn after half the time.
Pork chops Medium 20 to 30 minutes Turn occasionally.
Fully cooked smoked pork chops Medium 10 to 15 minutes Turn after half the time.
Ham slices Medium 15 to 20 minutes Turn after half the time.
Pork ribs Medium 50 to 65 minutes Turn occasionally. Brush
with barbecue sauce during
the last 15 minutes.
Fully cooked sausages
Hot dogs, brats HI 7 to 12 minutes Turn occasionally.
Polish HI 13 to 16 minutes Turn occasionally.
Fresh sausages
Links Medium 15 to 25 minutes Turn occasionally.
Patties (3” diameter) Medium 15 to 20 minutes Turn after half the time.
Italian sausage Medium 25 to 30 minutes Pierce casing with a fork.
Turn once.
Lamb chops Medium 20 to 30 minutes Turn occasionally. Brush with
glaze, if desired.
Poultry
Chicken
Pieces: bone-in Medium 35 to 50 minutes Turn occasionally.
Boneless breasts Medium 25 to 35 minutes Turn occasionally.
Wings Medium 25 to 35 minutes Turn occasionally.
Cornish hen (halved) Medium 35 to 45 minutes Turn occasionally.
Fish
Small, whole (1”) Medium 15 to 20 minutes Brush with butter. Turn after
half the time.
Steaks (1”) Medium 20 to 25 minutes Brush with butter. Turn after
half the time.
)LOOHWV³ZLWKVNLQRQµ 0HGLXP WRPLQXWHV 6WDUWVNLQVLGHGRZQ%UXVK
with butter. Turn after half
the time.
Shrimp (skewered) Medium 10 to 20 minutes Turn and brush with butter
or marinade frequently.
Bread
Garlic bread Medium 4 to 6 minutes Turn after half the time.
Hot dog or hamburger buns Medium 1 to 2 minutes Turn after half the time.
† The U. S. Department of Agriculture says “Rare beef is popular, but you should know that cooking it to only 140°F means some
food poisoning organisms may survive.” (Source: Safe Food Book. Your Kitchen Guide. USDA Rev. June 1985.)

Griddle.
14
Griddle Accessory
Using the griddle:
1. Before the first use, wash your new
griddle in hot soapy water, rinse and dry.
Then “condition” the surface by wiping on
a thin coating of cooking oil or shortening.
5HPRYHH[FHVVRLORUVKRUWHQLQJE\ZLSLQJ
again with another paper towel.
2. Insert grill burner. DO NOT use grill grate.
3. Place griddle over grill burner so that the
drain holes are in front. This will permit
excess grease to be collected in the
grease container.
4. Preheat the griddle 5 to 10 minutes at the
specified setting as noted in the Griddle
Guide.
5. Use non-metallic spatulas or utensils
while cooking to prevent damaging the
finish.
IMPORTANT:
IN CASE OF A POWER FAILURE, THE
VENTILATION SYSTEM WILL NOT OPERATE.
DO NOT USE THE GRILL MODULE OR
GRIDDLE IF THE VENTILATION SYSTEM IS NOT
OPERATIONAL.
Griddle Guide
NOTE: These are suggested guides for control settings and times. Factors such as low gas pressure may affect the times
and control settings that provide the best results. Preheat 5 to 10 minutes at specified setting.
Control Approximate Cooking Approximate Cooking
Food Item Setting Time First Side Time Second Side
Bacon Medium 4–5 minutes 3–4 minutes
Buns HI 2–3 minutes
Eggs Medium 2–3 minutes 1 minute
Fish sticks (frozen) Medium 7–8 minutes 5–7 minutes
Ham slice Medium 6–7 minutes 5–6 minutes
Hamburgers Medium 5–7 minutes 4–6 minutes
Hot dogs HI 5 minutes 5 minutes
French toast HI 2–4 minutes 2–3 minutes
Grilled cheese sandwiches HI 2–3 minutes 2–3 minutes
Pancakes HI 1–2 minutes 1–2 minutes
Sausage patties Medium 6–8 minutes 4–5 minutes
NOTE: The griddle uses the grill burner module, so the fan will turn on automatically and operate continuously while the
griddle accessory is in use.

Control Knobs and Control Panel Seal
After grilling there may be soot on the knobs
and control panel seal. This soot can be
removed by scrubbing with a plastic scrubber
and mild dishwashing detergent. The control
knobs may be removed for cleaning.
To remove a knob, pull it straight up.
Wash the knobs in soap and water but do not
soak. Avoid getting water down into the knob
stem holes.
Wipe with a sponge, damp cloth or paper
towel. Do not scrub with steel wool pads or
abrasive cleansers.
To replace a knob, match the flat part of the
knob opening with the flat side of the shaft.
Care and cleaning of the cooktop. GEAppliances.com
Before Cleaning
Before cleaning any part of your cooktop, be
sure all controls are off and DISCONNECT
ELECTRICAL POWER TO THE COOKTOP at
the fuse box or circuit breaker panel, or pull
the cooktop power plug, located beneath the
cooktop and inside the cabinets.
Do not operate the cooktop without all parts
in place.
Grease Jar
A grease jar is located below the grill basin
pan under the countertop. Check periodically
to prevent spillovers. Unscrew and remove.
If the jar is broken, replace with any heat
tempered jar, such as a canning jar, that has a
wide mouth screw neck.
Porcelain Cooktop
The porcelain enamel finish is sturdy but
breakable if misused. This finish is acid-
resistant. However, any acidic foods spilled
(such as fruit juices, tomato or vinegar) should
not be permitted to remain on the finish.
If acids spill on the cooktop while it is hot,
use a dry paper towel to wipe it up right away.
When the surface has cooled, wash with soap
DQGZDWHURUFOHDQVLQJSRZGHUV5LQVHZHOO
For other spills, such as fat spatterings,
wash with soap and water or cleansing
SRZGHUVDIWHUWKHVXUIDFHKDVFRROHG5LQVH
well. Polish with a dry cloth.
Stainless Steel Surfaces
Do not use a steel wool pad; it will scratch
the surface.
To clean the stainless steel surface, use warm
sudsy water or a stainless steel cleaner or
polish. Always wipe the surface in the direction
of the grain. Follow the cleaner instructions for
cleaning the stainless steel surface.
To inquire about purchasing stainless steel
appliance cleaner or polish, or to find the
location of a dealer nearest you, please call
our toll-free number:
National Parts Center 800.626.2002
GEApplianceParts.com
15

The grill burner should be cleaned after
each use. It can be cleaned with a non-
DEUDVLYHSDGRULQWKHGLVKZDVKHU5LQVH
and dry thoroughly before using again. For
heavy soil, the burner should be cleaned
first with a soapy steel wool pad, rinsed
and dried. Then it can be cleaned in a self-
cleaning oven for two hours.
NOTE: Check to be sure all burner ports are
open. To open clogged ports, insert a twist
tie directly into each port.
Grill Burner
Care and cleaning of the cooktop.
16
The grate should be cleaned after each
use. It can be cleaned with detergent and a
plastic scrubber, such as Tuffy, or washed
in the dishwasher if burned-on residue is
first removed. For heavy soil, the grate can
be soaked in hot, soapy water mixed with
household ammonia.
Do not use metal brushes or abrasive
scouring pads or other scrubbers intended
to clean outdoor grills.
These will remove the finish as well as
scratch the grate. Do not clean in a self-
cleaning oven or use oven cleaners on the
grate.
Grill Grate
Vent Grille: The vent grille lifts off easily.
Wipe clean or wash in the sink with mild
household detergents.
NOTE: On models with a white vent grille,
stubborn stains may be removed by soaking
the grille in a 50/50 mix of bleach and water
overnight. After cleaning, rinse the grille
thoroughly and dry it before replacing.
Filter: Turn off the fan before removing.
Turn the filter retainer clip to remove the
filter. The filter is a permanent type and
should be cleaned when soiled. Clean
in the sink with warm water and liquid
dishwashing detergent.
IMPORTANT: Do not operate the fan without
the filter. The filter should always be placed
at an angle. As you face the front of the
cooktop, the top of the filter should rest
against the left side of the vent opening and
the bottom of the filter should rest against
the right side of the ventilation chamber at
the bottom. If the filter is flat against the fan
wall, ventilation effectiveness is reduced.
Ventilation Chamber: This area, which
houses the filter, should be cleaned in the
event of spills or whenever it becomes
coated with a film of grease. The ventilation
chamber may be cleaned with a paper
towel, damp cloth or sponge and a mild
household detergent or cleanser.
Vent Grille and Filter
When replacing the filter, make
sure it rests, at an angle, on the
supports in the vent opening.
Latch it in place.

17
Griddle Accessory
DO NOT immerse a hot griddle in cold water.
Once the griddle has cooled, wash with soap
or detergent in hot water in the sink. Be sure
to remove all food residue before cooking on
the griddle again.
5HPRYHVWXEERUQVSRWVZLWKDSODVWLFVFRXULQJ
pad. For best results, use only those cleaning
products which are recommended for use
when cleaning non-stick surfaces. Do not use
steel wool or coarse scouring pads.
DO NOT wash in a dishwasher.
GEAppliances.com
Igniters Electrodes
It is important to keep igniter port openings on
burners clear and free of obstructions to avoid
ignition failure and possible gas buildup. If the
port openings are blocked, use a twist tie or
paper clip to remove any clogs in the burner
slits.
This small metal rod in the burner produces
the spark and must be kept clean and dry to
properly ignite the gas. Use a dry paper towel
or scrub pad to keep the electrode clean.
Sealed Burner Module
Cooktop Surface:
To prevent the cooktop from discoloring or
staining:
• Clean the cooktop after each use.
• Wipe up acidic or sugary spills as soon as
the cooktop has cooled, because these
spills may discolor the porcelain.
Sealed Burners:
The sealed burners of your cooktop are
secured to the cooktop module and are not
designed to be removed. Since the burners
are sealed into the module, boilovers or
spills will not seep underneath the cooktop.
However, the burner heads should be cleaned
after each use.
Burner Grate:
The grate must be properly positioned before
cooking. Improper installation of the grate
may result in chipping of the cooktop.
Do not operate burners without a pan on the
grate. The grate’s porcelain finish may chip
without a pan to absorb the heat from the
burner flame.
Although the burner grate is durable, it will
gradually lose its shine and/or discolor, due to
the high temperatures of the gas flame.
Burner Caps:
Lift off when cool. Wash burner caps in hot,
soapy water and rinse with clean water. You
may scour with a plastic scouring pad to
remove burned-on food particles.
Porcelain Burner Basin
This area is located under the grill and surface
burners and should be cleaned after each use
of the grill.
To remove light soil, clean with soapy water
or with a cleaner such as 409®. For easier
cleanup, soak paper towels in a household
cleanser, lay in the burner basin and soak for
at least a half hour or longer.
To remove moderate soil, scrub with Comet®,
Bon Ami®, a soft scrub cleanser or plastic
scrubber.
To remove stubborn soil, spray with an oven
FOHDQHU/HWVRDNRYHUQLJKW:LSHFOHDQ5LQVH
and dry.

I03257$176$)(7<
,16758&7,216
The cooktop has been design-certified by CSA
International. As with any appliance using gas and
generating heat, there are certain safety precautions you
should follow. You’ll find these precautions in the Important
Safety Instuctions section in the front of this Owner’s
0DQXDO5HDGWKHPFDUHIXOO\
• Be sure your cooktop is installed properly by a qualified
installer or service technician.
• The cooktop must be electrically grounded in accordance
with local codes, or in their absence, with the National
(OHFWULFDO&RGH$16,1)3$1R³/DWHVW(GLWLRQ
• Installation of this cooktop must conform with local codes,
or in the absence of local codes, with the National Fuel
*DV&RGH$16,=1)3$³/DWHVW(GLWLRQ
• Improper installation, adjustment, alteration, service or
PDLQWHQDQFHFDQFDXVHLQMXU\RUSURSHUW\GDPDJH5HIHU
to this manual. For assistance or additional information,
consult a qualified installer, service agency, manufacturer
(dealer) or the gas supplier.
• Disconnect electrical supply before servicing.
• Never reuse old flexible connectors. The use of old flexible
connectors can cause gas leaks and personal injury.
Always use 1(:flexible connectors when installing a gas
appliance.
• Make sure the wall coverings around the cooktop can
ZLWKVWDQGKHDWJHQHUDWHGE\WKHFRRNWRSXSWR)
• Avoid placing cabinets above the cooktop.
• If cabinets are placed above the cooktop, allow a
minimum clearance of 30”between the cooking surface
and the bottom of protected cabinets.
• A non-combustible material must be installed on the
under side of the cabinet. Use a flame retardant millboard
at least 1/4” (6.3 mm) thick, or gypsum board at least
3/16” (4.7 mm) thick, covered with 28 gauge sheet steel
or 0.020” (.5 mm) thick copper. The maximum depth of
cabinets above the cooktop is 13” (33 cm).
• An air curtain or other overhead range hood , which
operates by blowing a downward airflow onto a range,
shall not be used in conjunction with a gas range
unless the hood and range have been designed, and
tested in accordance with ANSI Z 21.1 and listed by an
independent testing laboratory for combination use.
)25<2856$)(7<
,I<RX6PHOO*DV
2SHQZLQGRZV
'RQ·WWRXFKDQ\HOHFWULFDOVZLWFKHV
([WLQJXLVKDQ\RSHQIODPH
,PPHGLDWHO\FDOO\RXUJDVVXSSOLHU
'RQRWVWRUHRUXVHJDVROLQHRURWKHUIODPPDEOHYDSRUV
DQGOLTXLGVLQWKHYLFLQLW\RIWKLVRUDQ\RWKHUDSSOLDQFH
,QVWDOODWLRQ Gas Downdraft Cooktop
,QVWUXFWLRQV
If you have questions, call 800.GE.CARES (800.432.2737) or visit our Website at: GEAppliances.com
B()25(<28%(*,1
5HDGWKHVHLQVWUXFWLRQVFRPSOHWHO\DQGFDUHIXOO\
•,03257$17–Save these instructions
for local inspector’s use.
•,03257$17–Observe all governing
FRGHVDQGRUGLQDQFHV
• 1RWHWR,QVWDOOHU – Be sure to leave these
instructions with the Consumer.
• 1RWHWR&RQVXPHU – Keep these instructions for
future reference.
• Proper installation is the responsibility of the installer.
• Product failure due to improper installation is not
covered under the Warranty.
:$51,1*–Before beginning the
installation, switch power off at the service panel and
lock the service disconnecting means to prevent power
from being switched on accidentally. When the service
disconnecting means cannot be locked, securely fasten
a prominent warning device, such as a tag, to the
service panel.
,QWKH&RPPRQZHDOWKRI0DVVDFKXVHWWV
•This product must be installed by a licensed plumber or
gas fitter.
•When using ball-type gas shut-off valves, they shall be
the T-handle type.
•A flexible gas connector, when used, must not exceed 3
feet.
18

Sheet Metal
Screws (7)
Grease Jar
19
Gas Pressure
5HJXODWRU Blower Assembly Blower Plenum
Vent Filter
,QVWDOODWLRQ,QVWUXFWLRQV
813$&.<285&22.723
• Cooktop with side hold-down
bolts (2)
• Blower assembly
• Blower plenum
• Vent guard and mounting nuts (4)
• Sheet metal screws (7)
• Vent grille
• Vent filter
• Sealed burner module
• Sealed burner grate
• Grease jar
• Sealed burner caps (2)
• Gas pressure regulator
• Attached 120-volt grounded
plug cord
• LP Conversion (attached to the
electrical box)
3$576,1&/8'('
Cooktop with Side Hold-Down Bolts (2)
Sealed Burner Module
Sealed Burner Caps (2)
Burner Grate
Vent Grille
Shipping Tape
Vent Guard and
Mounting Nuts (4)

35(3$5,1*)25,167$//$7,21
,QVWDOODWLRQ,QVWUXFWLRQV
722/6$1'3$5761(('('
• Large flat-blade screwdriver
• Phillips screwdriver
• 3/8” socket and ratchet
• Saw
• Carpenter’s square
• Pipe wrench
• Gas line shut off valve
• Pipe joint sealant for use with gas connections that
resists action of LP gas
)RUIOH[LEOHFRQQHFWLRQZKHUHORFDOFRGHVSHUPLW
• Flexible metal tubing (same 3/4” or 1/2” I.D. as gas
supply line)
• Flare union adapter for connection to supply line
(3/4” NPT x 3/4” I.D. or 1/2” NPT x 1/2” I.D.)
• Flare union adapter for connection to regulator
(1/2” NPT x 3/4” I.D. or 1/2” I.D.)
)RUULJLGFRQQHFWLRQ
• Pipe fittings as required
Tie down
bolt on each
end
Grease Container
3UHVVXUH5HJXODWRU
Wiring Box Cover
29” ± 1ø16”
%ORZHUFDQEHVZLYHOHG
91ø2”813ø16”
22.2 cm
15ø16”
21” ± 1ø16”
Minimum
Clearance
Minimum
Clearance
73.66 ± .16 cm
24.13 cm
2.38 cm
9”
22.86 cm
53.5 ± .16 cm
143ø16”
36.04 cm
,03257$17
0RWRU&OHDUDQFH³3URYLGHµPLQFPFDELQHW
clearance to motor for cooling purpose.
127( Where possible, 6” (15.2 cm) is recommended
for motor/blower service.
6LGH&OHDUDQFH³*ULOOVLQVWDOOHGQHDUDVLGHZDOOVKRXOG
allow a minimum clearance of 8” (20.3 cm).
You must allow room enough to remove and empty
grease container(s).
&$87,21 Warranty is void on equipment installed
RWKHUWKDQDVUHFRPPHQGHGE\*(5HFRPPHQGHG
wall caps and transitions must be used for proper
operation and installation.
20
* Blower may be rotated for horizontal or vertical direction by loosening
nuts around blower inlet. Accessible inside ventilation chamber.
43ø16” 10.64 cm
181ø2”
47 cm
Minimum
Clearance
2”
5.08 cm
Minimum
Clearance
141ø2”
36.83 cm 127ø8”
32.7 cm
Grease
Container
Appliance
Pressure
5HJXODWRU
Select appropriate duct
cutout. (See ducting
installation instructions.)
35(3$5$7,21
