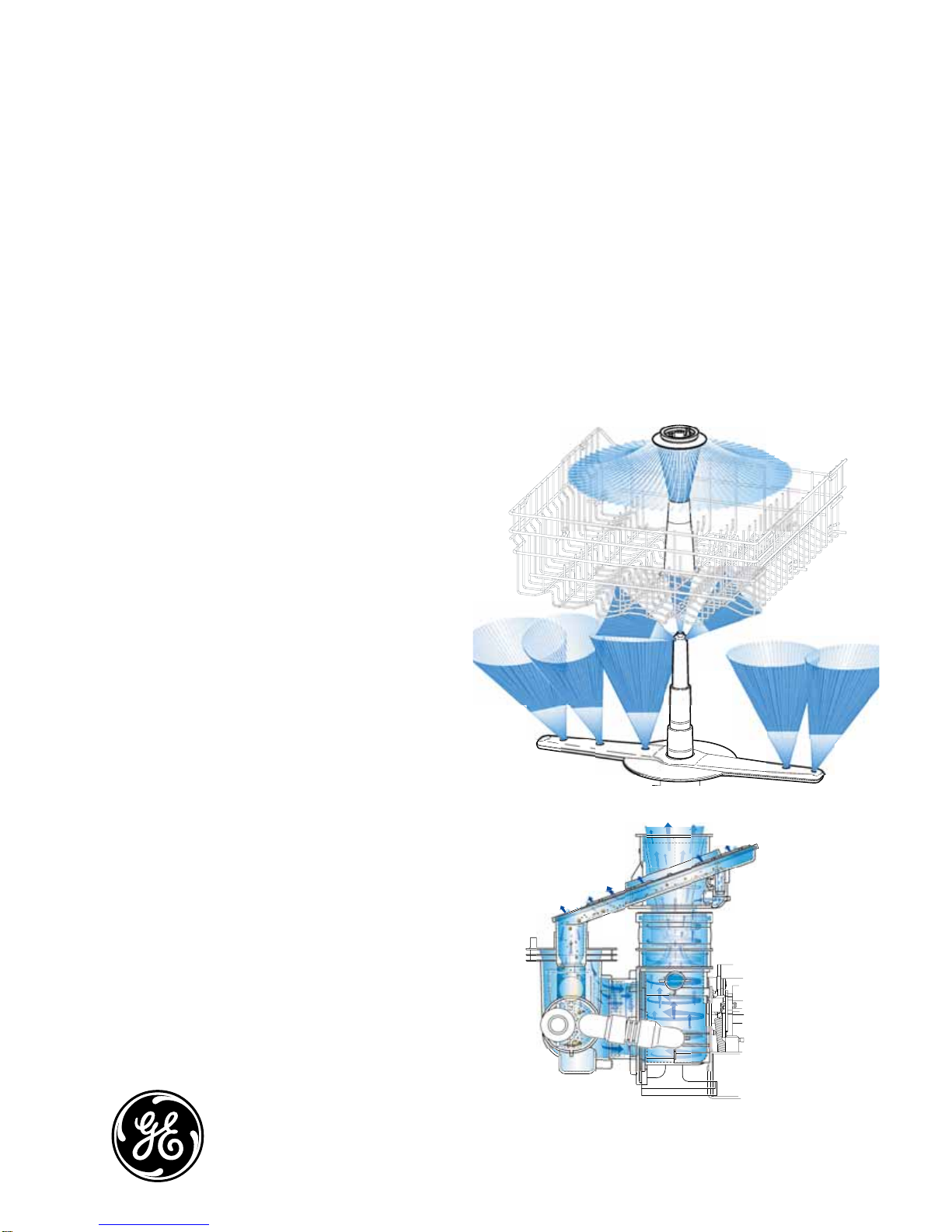

GE Dishwasher
Water Distribution
System
Technical Service Guide
July 2007
GE Consumer & Industrial
Collection Chamber
Spray Arm
Pump Assembly
•
•
•
31-9155

– 2
IMPORTANT SAFETY NOTICE
The information in this service guide is intended for use by
individuals possessing adequate backgrounds of electrical,
electronic, and mechanical experience. Any attempt to repair a
major appliance may result in personal injury and property
damage. The manufacturer or seller cannot be responsible for the
interpretation of this information, nor can it assume any liability in
connection with its use.
WARNING
To avoid personal injury, disconnect power before servicing
this product. If electrical power is required for diagnosis or test
purposes, disconnect the power immediately after performing the
necessary checks.
RECONNECT ALL GROUNDING DEVICES
If grounding wires, screws, straps, clips, nuts, or washers used to
complete a path to ground are removed for service, they must be
returned to their original position and properly fastened.
GE Consumer & Industrial
Technical Service Guide
Copyright © 2007
All rights reserved. This service guide may not be reproduced in whole or in part
in any form without written permission from the General Electric Company.

– 3 –
Table of Contents
Calrod Element................................................................................................................14
Collection Chamber and Sump........................................................................................13
Component Locator Views............................................................................................... 9
Components.....................................................................................................................12
Filter and Drain System ...................................................................................................16
High Drain Loop/Air Gap..................................................................................................15
Introduction...................................................................................................................... 5
Main Motor.......................................................................................................................15
Motor-Pump Mechanism..................................................................................................12
Nomenclature................................................................................................................... 4
PowerScrubTM Wash Systems.......................................................................................... 8
Pump Assembly ............................................................................................................... 6
Service Mode...................................................................................................................15
Spray Arm and Fine Filter Assembly................................................................................12
Spray Arm Base...............................................................................................................14
Troubleshooting ...............................................................................................................15
Warranty...........................................................................................................................17
Washability Complaints....................................................................................................16

– 4

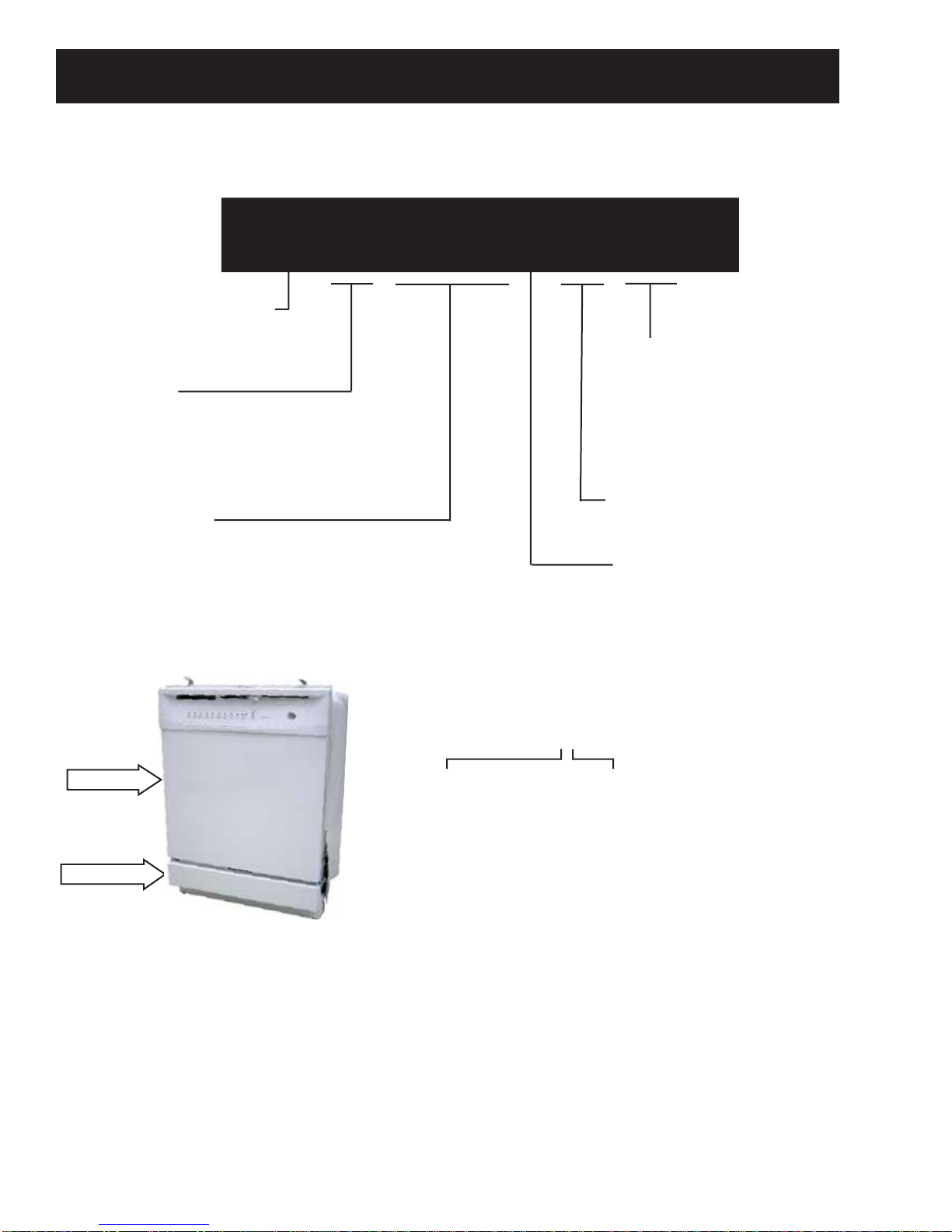

Model Designator
Designates features – the higher
the number, the more features.
G S D 4 0 6 0 N 0 0 S S
Brand
P = Profile
E = General Electric - NATM
G = General Electric
A = Americana
Product Type
CD = Counter Top DW = Dishwasher
SD = Standard SC = Convertible
SM = Spacemaker SS = Compact (18 in.)
RF = Retrofit HD = Home Depot Derivative
Exterior Color
BB = Black
II = Requires Custom Panel
and Handle
SS = Stainless Steel
WW = White
Model Year Designator
Engineering Model Suffix
Model Number
The serial plate of your dishwasher
is located on the tub wall just inside
the door jam.
The mini manual is located behind
the toe plate.
The letter designating
the year repeats every
12 years.
Example:
T - 1974
T - 1986
T - 1998
Serial Number
The first two characters of the serial number
identify the month and year of manufacture.
Example: AM123456S = January, 2007
A- JAN 2007 - M
D - FEB 2006 - L
F - MAR 2005 - H
G - APR 2004 - G
H - MAY 2003 - F
L - JUN 2002 - D
M - JUL 2001 - A
R - AUG 2000 - Z
S - SEP 1999 - V
T - OCT 1998 - T
V - NOV 1997 - S
Z - DEC 1996 - R
Nomenclature
Mini Manual
Nomenclature
Serial Plate

– 5 –
Introduction
This technical service guide covers the changes in the standard line of dishwashers. The 2007 standard
dishwashers include 39 models in 12 family groups.
The most significant changes are in the new water distribution system. These changes include the following
features:
New Spray Arm Assembly - has a new spray arm base with locking ring and release tab for removal
New Extra Fine Filter Assembly - filtration up to one-onehundreth of an inch, is self cleaning, and
has 1 screw and a release tab for removal
New Pump Assembly - has a low flow impeller, new grater nut, new arm valve, and a new disposer
blade
New Single Part Collection Chamber - with sump and check ball that works with the fine filter
•
•
•
•

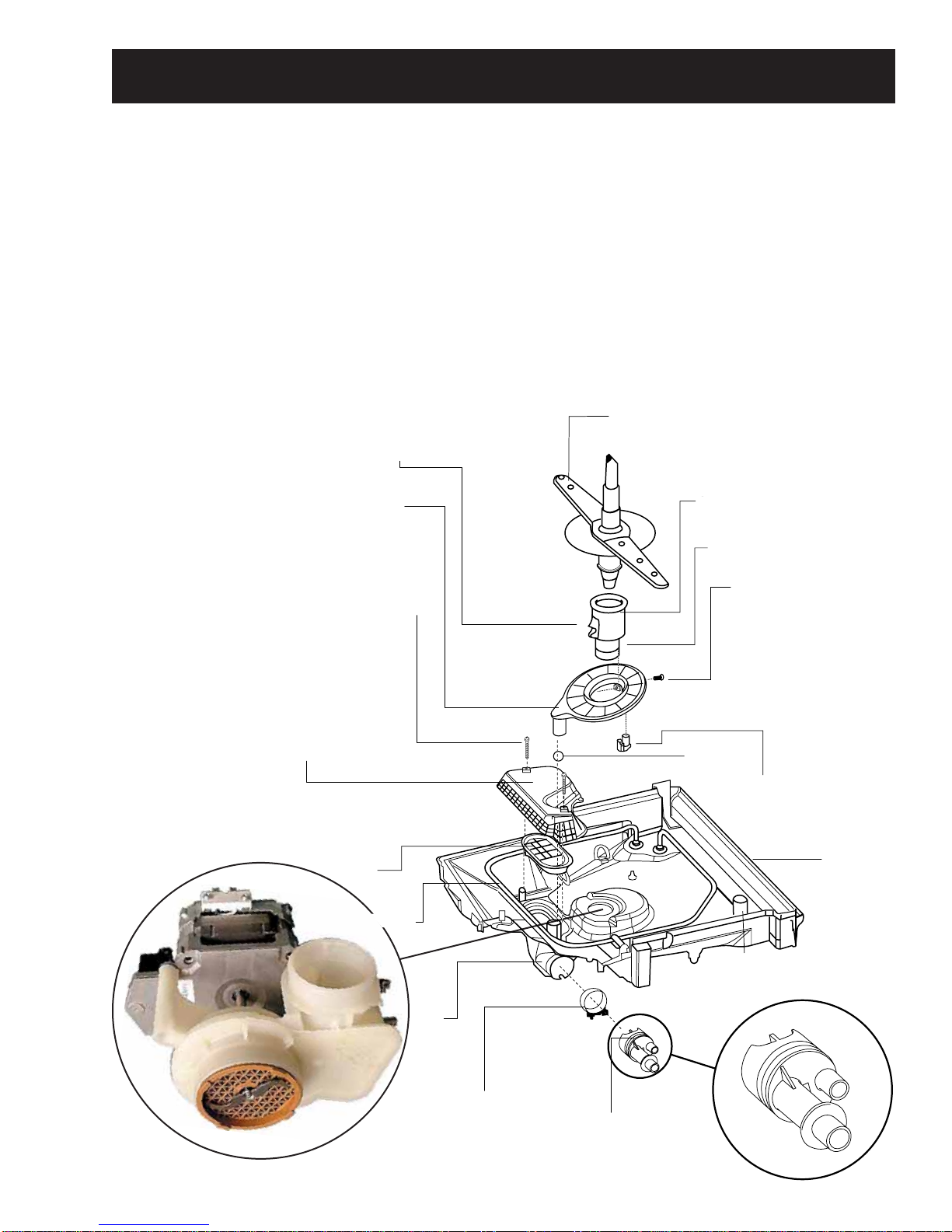

FRONT
Spray Arm
Assembly
Extra Fine Filter
Assembly
Single Part
Collection
Chamber
Pump Assembly
WTR^[[TRcX^]RWP\QTaXbaT\^eTSUa^\cWTbd\_cWTQP[[[cTafX[[
0UcTaR^[[TRcX^]RWP\QTaXbaTPbbT\Q[TSc^bd\_U^[[^fbcT_b #
T[cTaaT\^eP[_a^RTSdaTP]ScWT]Sa^_cWTQP[[QPRZX]c^cWT


 




  "
 
!
  "
  
  "
"
  "

  !
    

  "
  "
 
 
! 
 




Base Spray Arm
Right Hand Threads
Remove screw
to disassemble
fine filter
assembly from
base spray arm.
Pull tab out to release spray arm.
Push tab in to remove fine filter
assembly.
Remove the
sump cover
screws. Slide
sump cover
to left

– 6

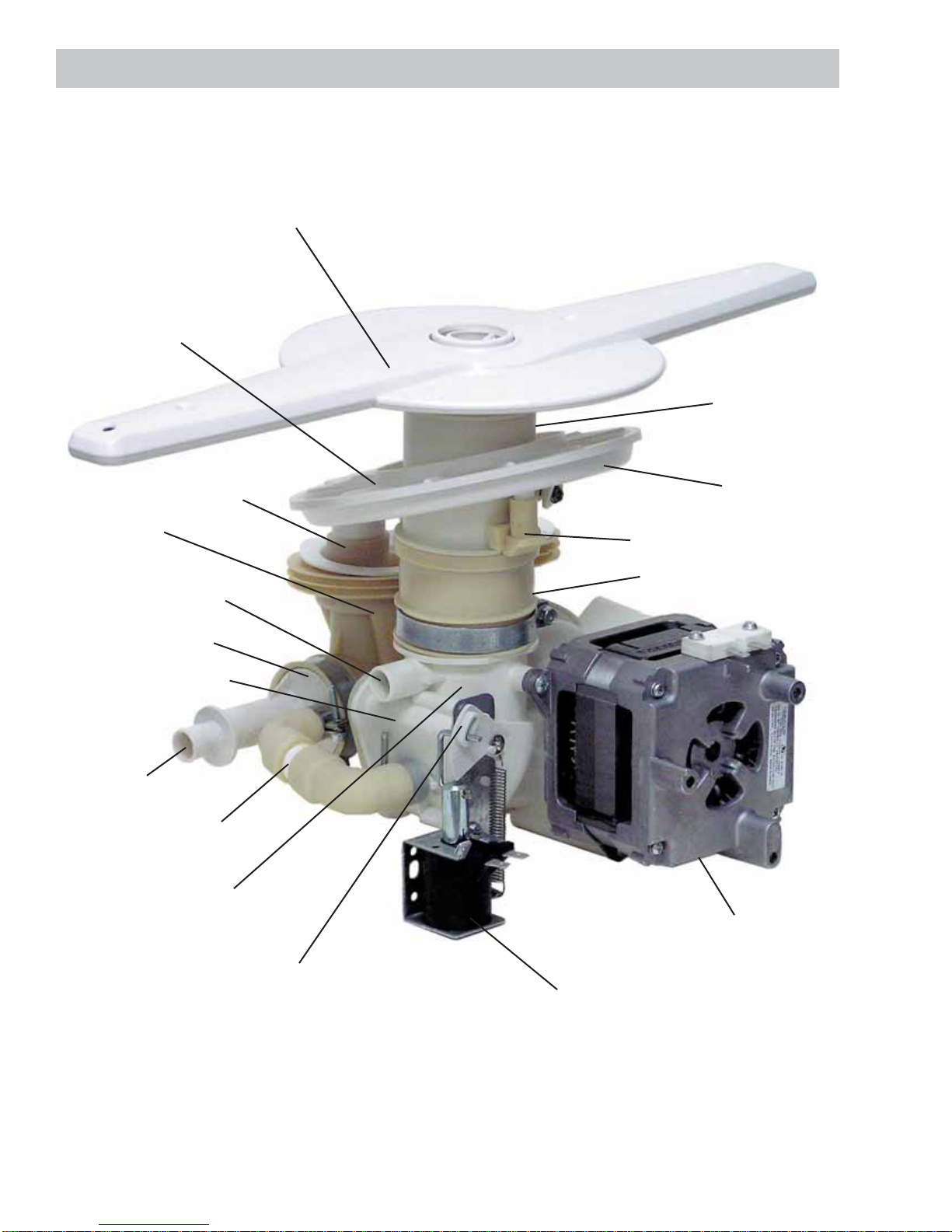

Pump Assembly
Sump Chamber
(Behind Collection
Chamber)
Upper Spray Arm Outlet
Nut Grater
Filter Coupler
Fine Filter
Fine Screen
Check Ball Coupler
Metal Impeller Blade
Drain Solenoid
Drain Valve
Bypass Drain Connector
Drain Outlet
Lower Spray Arm
Collection Chamber
Spray Arm Base
Pump Assembly Connector
Main Motor

– 7 –
Wash Cycle
Water and debris flow from the tub,
into the sump chamber (1). A metal
impeller blade pulverizes the larger
debris as it moves through the nut
grater (2) and upward (3) towards the
lower spray arm.
A portion of the water carrying debris is
diverted from the spray-arm path and
moves through the filter coupler (4),
into the fine filter (5), and through the
fine screen (6) which traps the debris.
The debris tumbles down the incline,
passes through the check ball coupler
(7) and settles at the bottom of the
collection chamber (8).
1
2
3
4
5
6
7
8
50
123
4
5
6
7
Drain Cycle
Water and debris flow from the tub
into the sump chamber (1), through the
metal impeller blade of the nut grater
(2) and upward toward the lower spray
arm.
2. The drain solenoid closes the drain
valve (3). Water is directed into the
bypass drain connector (4) and moves
into the collection chamber (5). Water
pressure pushes the filter check ball (6)
upwards, closing off the passage to the
fine filter.
3. Water and collected debris pass
through the drain hose connection (7)
and are discharged through the drain
hose.

– 8
5-Level Wash - Models containing an upper
spray arm have 5 wash levels. These models
include the PowerTowerTM spray and the new
lower spray arm.
5-Level Wash - Models containing
PowerShowerTM have 5 wash levels. These
models include the PowerTowerTM spray and the
new lower spray arm.
4-Level Wash - The basic models have 4 wash
levels. These models utilize the PowerTowerTM
spray and the new lower spray arm.
1.
2.
3.
1.
3.2.
PowerScrubTM Wash Systems

– 9 –

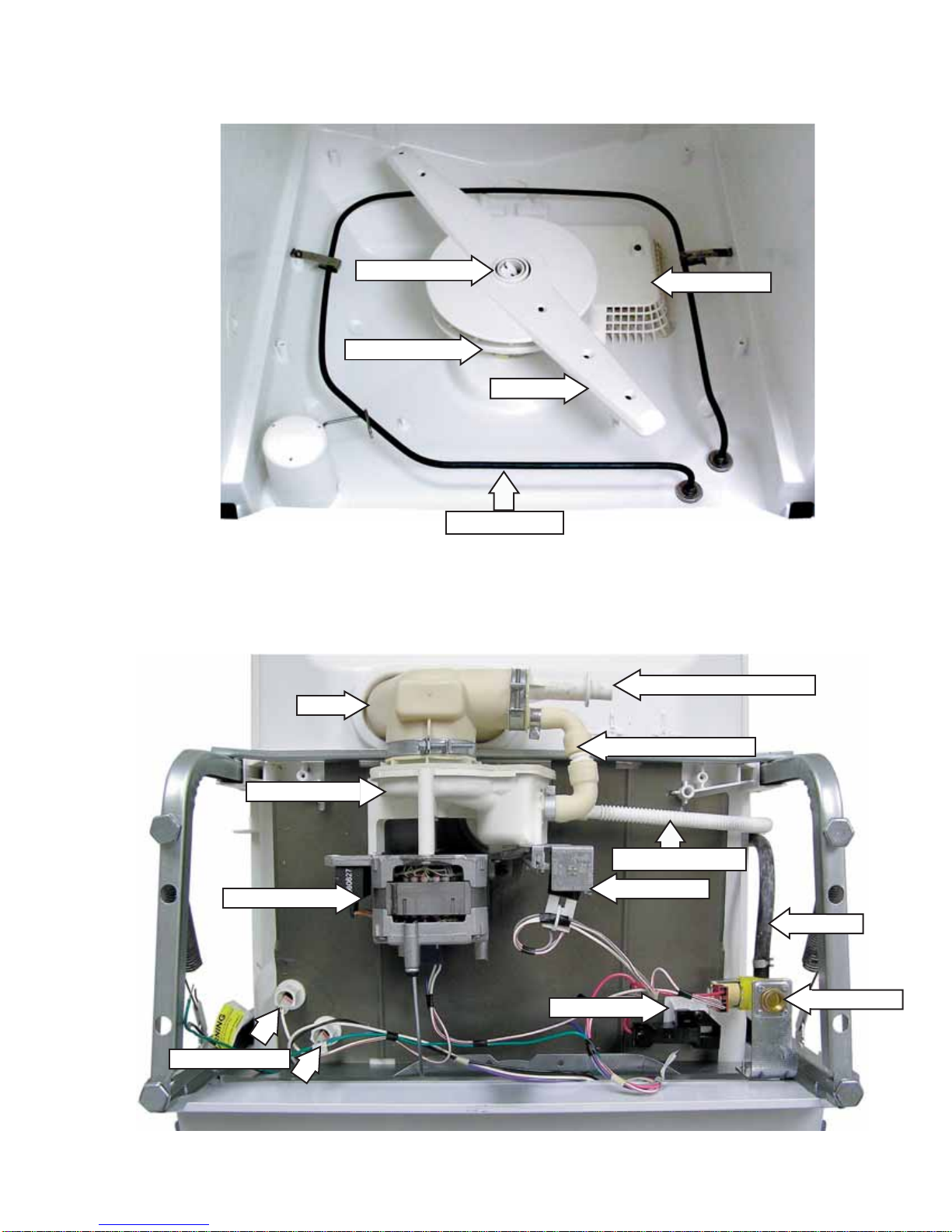

Component Locator Views
Front View
Control Panel View
Insulation
Door Spring
Access Panel
Control Panel
Control Assembly
Static Dry Vent
Door Latch
Door Latch
Static Dry Vent
Timer
Control
Electronic
Control
Timer Control

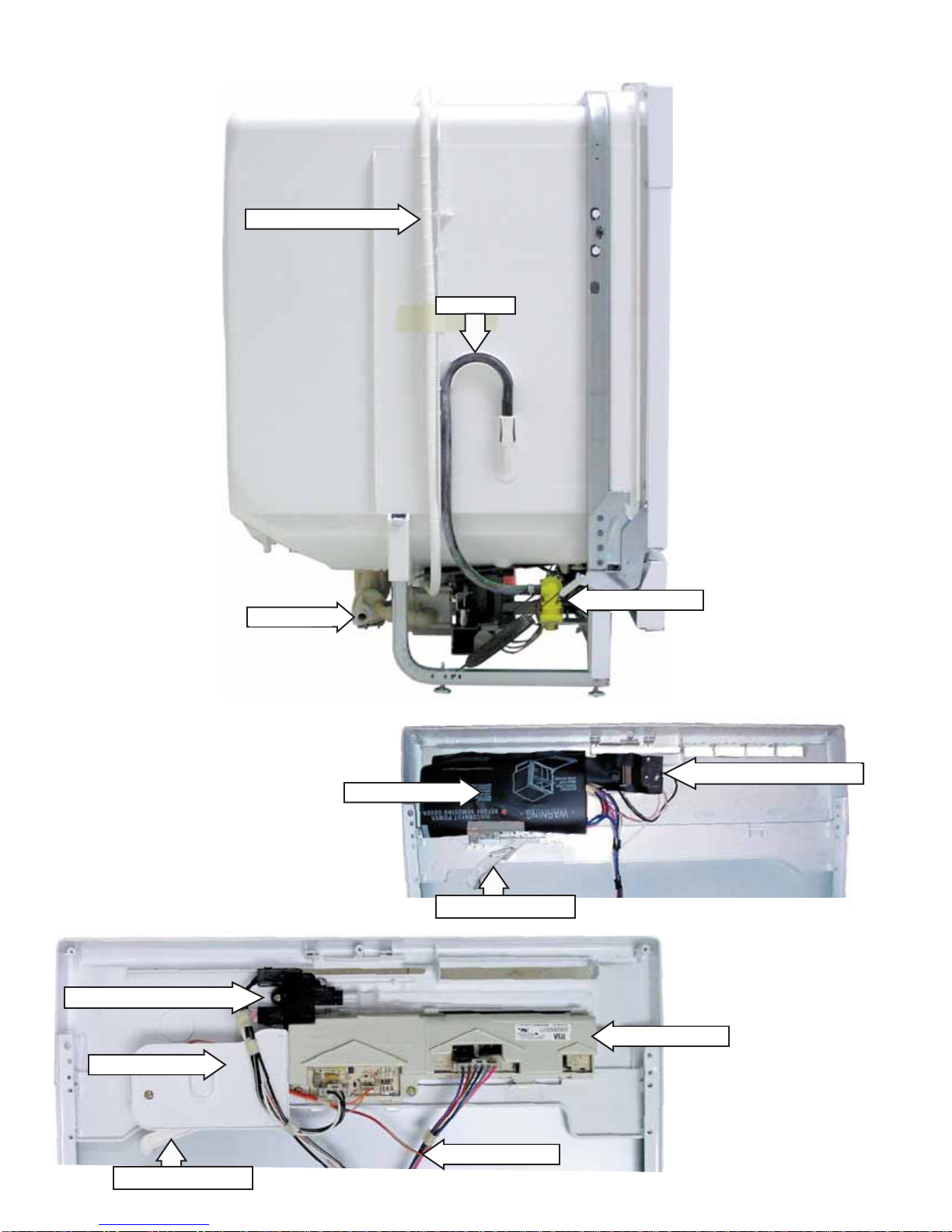

– 10
Wash Cycle Timer
Inside Door Panel View
Control Board
Interlock Switch Assembly
Detergent Motor
Detergent Trip Lever Wiring Harness
Fill Hose
Top Spray Arm Hose*
Drain Outlet Water Valve
* On some models.
Detergent Trip Lever
Interlock Switch Assembly
Timer
Control
Electronic
Control
Left Side View (Insulation Removed)
