GE 040315A-0 - ILLUSTRATED REV A Setup guide

Not for
Reproduction
Illustrated Parts List
MODEL
040315A-0
7,000 Watt
Home Generator System
Rev. A IPL No. 314263 2/1/2011

Not for
Reproduction

Not for
Reproduction
Table Of Contents

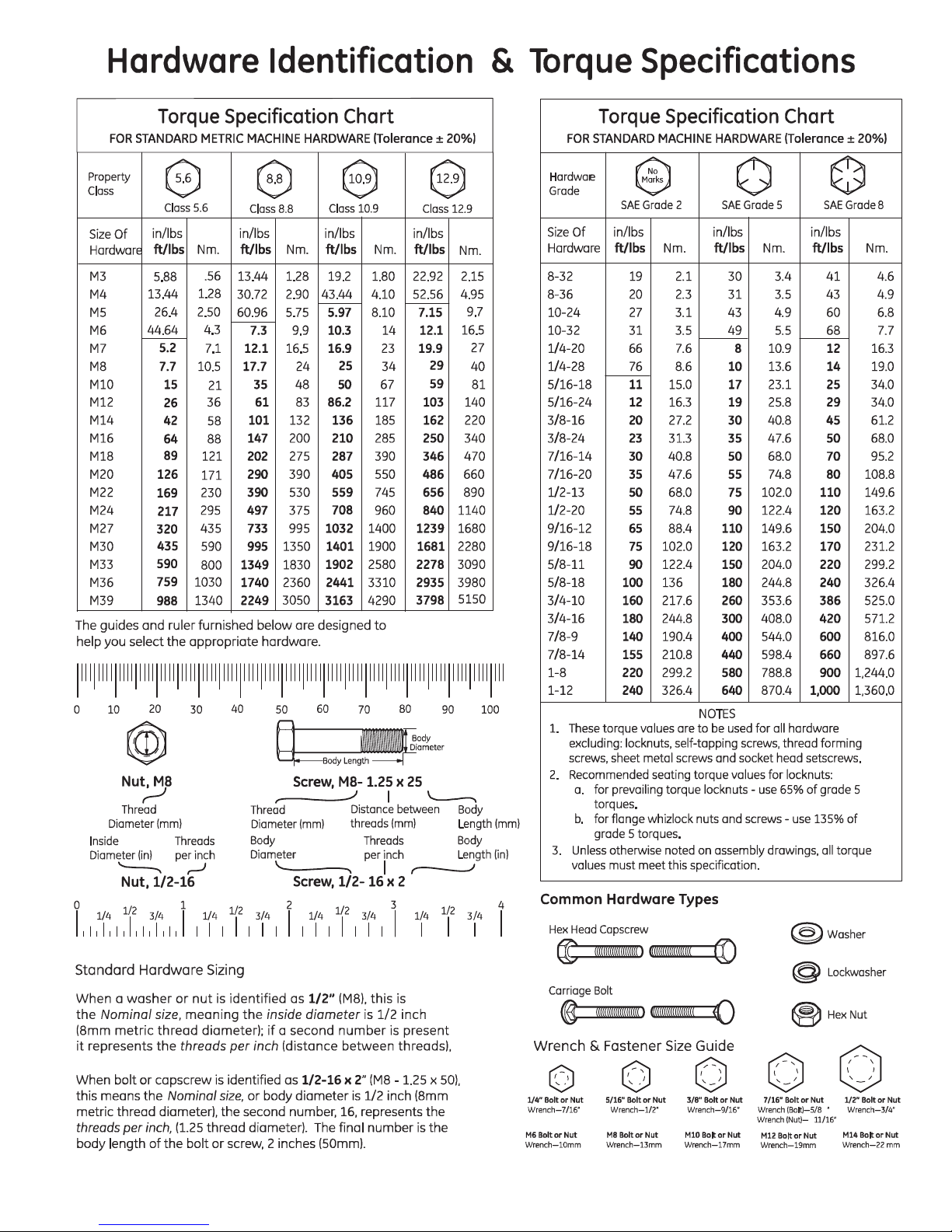

Torque Specification Chart ............................................................................................ Inside Back Cover
PRODUCT COMPONENTS PAGES
Main Unit .............................................................................................................................................................. 4
Alternator .............................................................................................................................................................. 6
Control Panel ....................................................................................................................................................... 7
Enclosure ............................................................................................................................................................. 9

Not for
Reproduction
Ex
p

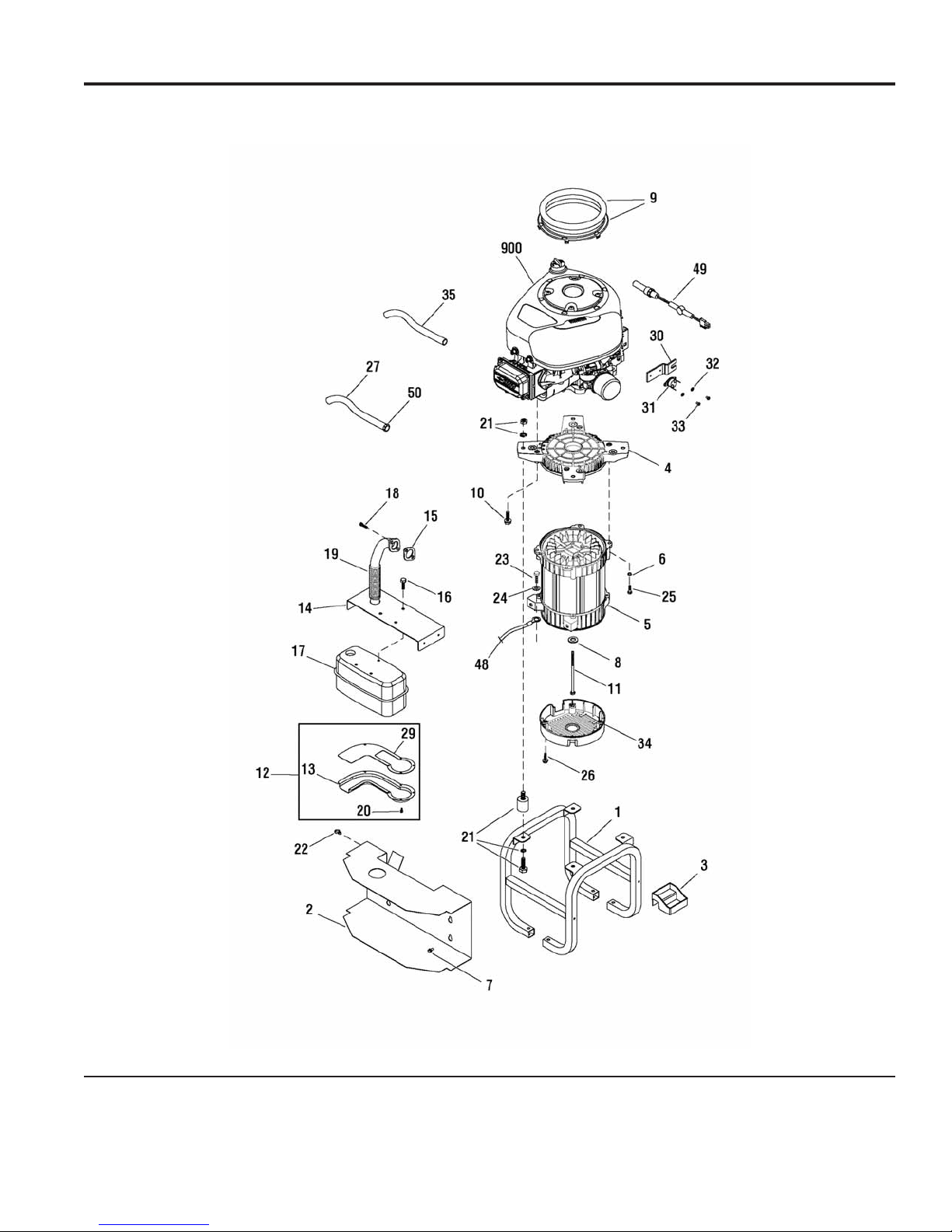

loded View - Main Unit
NOTE: Unless noted otherwise, use the
standard hardware torque
specification chart.
313698
4
The above parts group applies to the following Mfg. Nos.:
Briggs & Stratton Power Products Group, LLC
Copyright © by Briggs & Stratton Corporation
Milwaukee, WI, USA. All rights reserved
2011
040315A-0 - 7,000 Watt Home Generator System (General Elect
314263IPL No.

Not for
Reproduction
Part No. Descri
p
tionRef.
Parts List - Main Unit
Footnotes:
Part No. Descri
p
tionRef.
CRADLE1 B191860GS
BOX, Muffler2 313654GS
TRAY, Oil Drain3 193536GS
ADAPTER, Engine4 191793GS
ALTERNATOR ASSEMBLY5 -----
* WASHER, Lock, M86 -----
BOLT7 B4300GS
WASHER, 8.4 x 22.2 x 38 96796GS
KIT, Seal9 311723GS
TAPTITE10 2830598SM
CAPSCREW, Hex Head, 5/16-24 x 9.8411 187365HGS
KIT, Deflector, Muffler Assembly12 207270GS
ASSEMBLY, Deflector Muffler13 193475GS
BRACKET, Muffler14 313651GS
GASKET15 692236
SCREW, Taptite, M8 1.25 x 1516 83512GS
MUFFLER17 207059GS
SCREW, Socket Head Cap18 698941
PIPE, Exhaust19 194159GS
KIT, Muffler Hardware20 195008GS
KIT, Vibration Mount21 194209GS
CLIP, Retainer Fuel Hose22 192940GS
* CAPSCREW, Hex Head, M6 - 1.0 x 3023 -----
* WASHER, Lock, M624 -----
* CAPSCREW, Hex Head, 5/16-18 x 125 -----
SCREW, Taptite, M5 - .8 x 1026 74908GS
HOSE, Fuel27 206817GS
ARRESTOR, Spark29 194221GS
PLATE, Switch30 206047GS
SWITCH31 206045GS
WASHER, Lock, #432 27772GS
* - Items without part numbers are common fasteners and are available at your local hardware store.
** Contact Engine Manufacturer
5
The above parts group applies to the following Mfg. Nos.:
Briggs & Stratton Power Products Group, LLC
Copyright © by Briggs & Stratton Corporation
Milwaukee, WI, USA. All rights reserved
2011
040315A-0 - 7,000 Watt Home Generator System (General Elect
314263IPL No.

Not for
Reproduction
Ex
p
loded View - Main Unit
NOTE: Unless noted otherwise, use the
standard hardware torque
specification chart.
313698
6
The above parts group applies to the following Mfg. Nos.:
Briggs & Stratton Power Products Group, LLC
Copyright © by Briggs & Stratton Corporation
Milwaukee, WI, USA. All rights reserved
2011
040315A-0 - 7,000 Watt Home Generator System (General Elect
314263IPL No.

Not for
Reproduction
Part No. Descri
p
tionRef.
Parts List - Main Unit
Footnotes:
Part No. Descri
p
tionRef.
* SCREW, Phillips Head, 4-40 x .01933 -----
COVER, Bearing34 192906GS
HOSE, Oil Drain35 1723165SM
WIRE, Ground48 15253621GS
WARMER, Oil49 01916
CLAMP50 57822GS
** ENGINE900 -----
MANUAL, Operator’s (Not Illustrated)-- 313689GS
MANUAL, Engine (Not Illustrated)-- 277766TRI
KIT, Manual ACC (Not Illustrated)-- 313695GS
FLEX HOSE (Not Illustrated)-- 202295GS
PAINT, Touchup, Silver (Not Illustrated)-- 198811GS
FILTER, Oil (Not Illustrated)-- 492932B
FILTER, A/C Cartridge (Not Illustrated)-- 790263
KIT, Conversion, LP (Not Illustrated)-- 195069GS
BIT, Screw (Not Illustrated)-- 196731BGS
WARMER, Battery (Optional Accessory)-- 01915
KIT, Maintenance (Optional Accessory)-- 6034
PAINT, Touchup Spray, 12oz, Gray (Optional
Accessory)
-- 199474GS
* - Items without part numbers are common fasteners and are available at your local hardware store.
** Contact Engine Manufacturer
7
The above parts group applies to the following Mfg. Nos.:
Briggs & Stratton Power Products Group, LLC
Copyright © by Briggs & Stratton Corporation
Milwaukee, WI, USA. All rights reserved
2011
040315A-0 - 7,000 Watt Home Generator System (General Elect
314263IPL No.

Not for
Reproduction
Ex
p

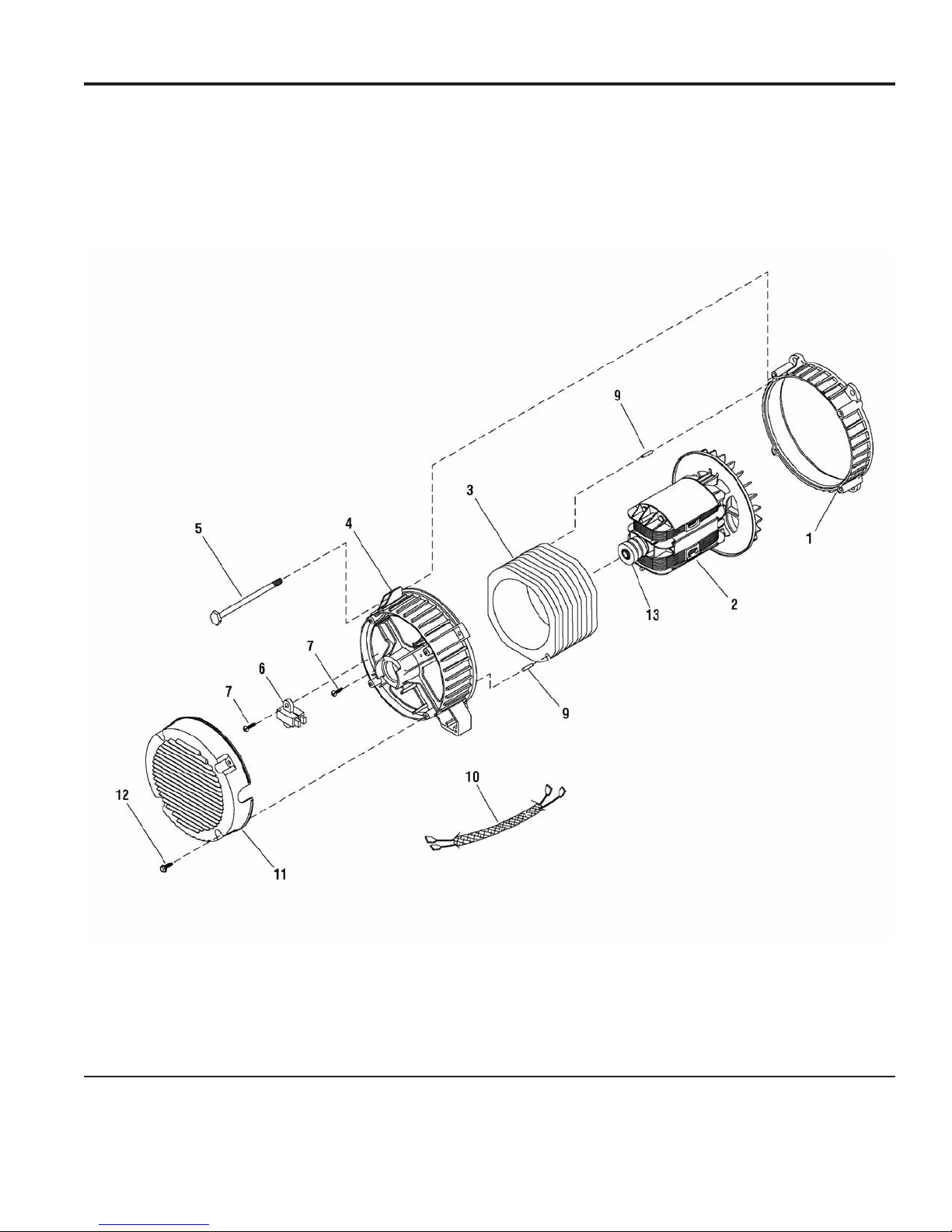

loded View - Alternator
NOTE: Unless noted otherwise, use the
standard hardware torque
specification chart.
206480
8
The above parts group applies to the following Mfg. Nos.:
Briggs & Stratton Power Products Group, LLC
Copyright © by Briggs & Stratton Corporation
Milwaukee, WI, USA. All rights reserved
2011
040315A-0 - 7,000 Watt Home Generator System (General Elect
314263IPL No.

Not for
Reproduction
Part No. Descri
p
tionRef.
Parts List - Alternator
Footnotes:
Part No. Descri
p
tionRef.
ADAPTER, Alternator1 209599GS
ROTOR2 195430GS
STATOR3 206542GS
RBC (with O-Ring p/n 189197GS)4 193336GS
BOLT5 86308BGS
BRUSH ASSEMBLY6 66386GS
TAPTITE7 66849GS
PIN9 81917GS
HARNESS, Wiring10 193472GS
COVER, Rear Bearing11 192906GS
TAPTITE12 74908GS
BEARING13 65791GS
9
The above parts group applies to the following Mfg. Nos.:
Briggs & Stratton Power Products Group, LLC
Copyright © by Briggs & Stratton Corporation
Milwaukee, WI, USA. All rights reserved
2011
040315A-0 - 7,000 Watt Home Generator System (General Elect
314263IPL No.

Not for
Reproduction
Ex
p

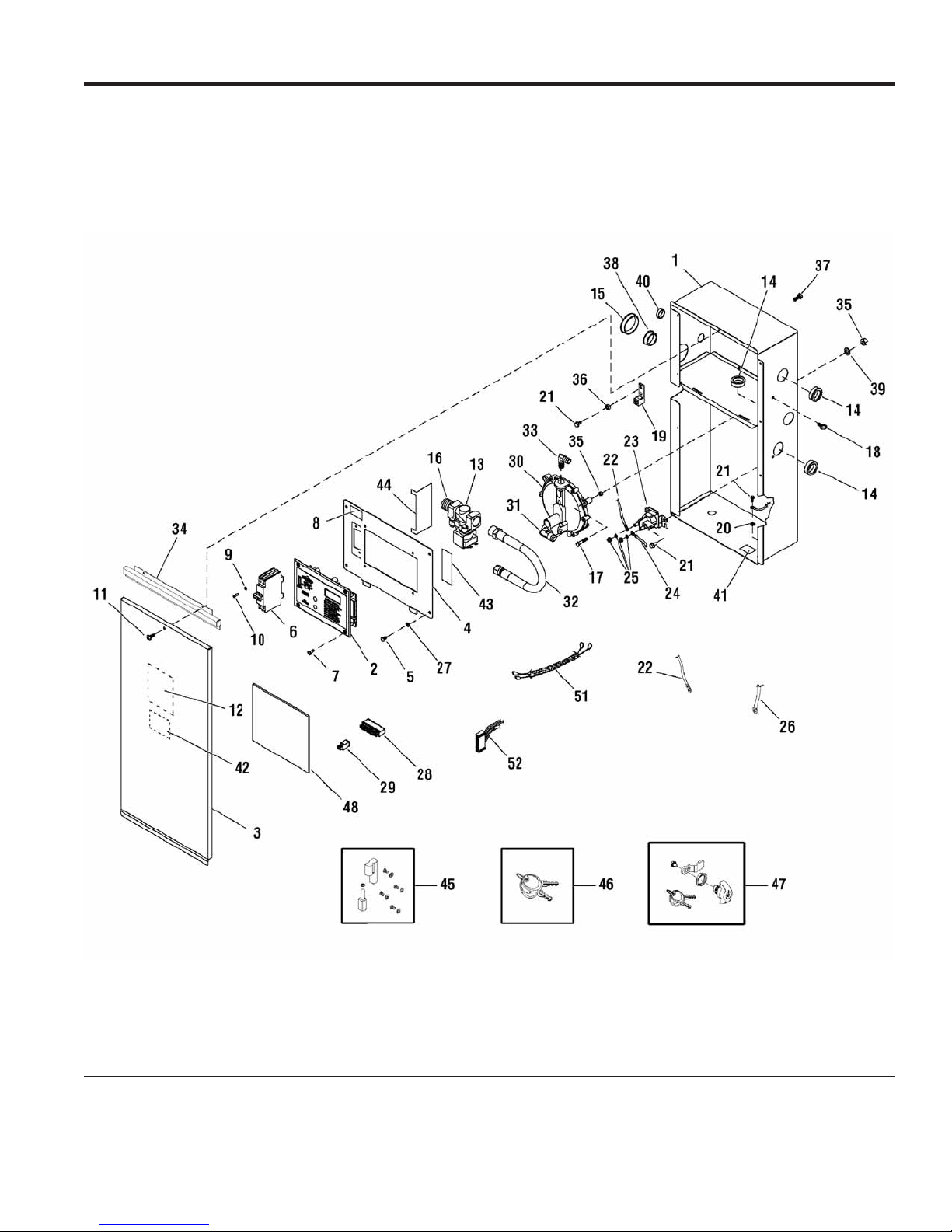

loded View - Control Panel
NOTE: Unless noted otherwise, use the
standard hardware torque
specification chart.
208189
10
The above parts group applies to the following Mfg. Nos.:
Briggs & Stratton Power Products Group, LLC
Copyright © by Briggs & Stratton Corporation
Milwaukee, WI, USA. All rights reserved
2011
040315A-0 - 7,000 Watt Home Generator System (General Elect
314263IPL No.

Not for
Reproduction
Part No. Descri
p
tionRef.
Parts List - Control Panel
Footnotes:
Part No. Descri
p
tionRef.
BOX, Control Panel1 207903GS
BOARD, Circuit2 311351GS
PANEL, Access3 T207012GS
PANEL, Control4 T201825GS
SCREW5 192445GS
BREAKER, Circuit, 30A6 208789GS
SCREW7 205947GS
DECAL8 205394GS
* WASHER, Shakeproof, #69 -----
* SCREW, Phillips Head, #6-32 x 3/810 -----
* SCREW, #10 x 5/811 -----
DECAL12 205397GS
SOLENOID, Gas Fuel13 194683GS
BUSHING, Snap14 186173GS
BUSHING, Snap15 203015GS
FITTING16 192449GS
* CAPSCREW, Hex Head, M6-1 x 3017 -----
CLIP18 192940GS
LUG19 199011GS
* WASHER, Shakeproof, EXT, M6-1/420 -----
BOLT21 B4300GS
CABLE, Battery, Red22 193171GS
DECAL-- 206609GS
CONTACTOR, Starter23 691656
WIRE24 194659GS
KIT, Hardware25 194251GS
CABLE, Battery, Black26 188573AGS
DECAL-- 206609GS
* WASHER, Shakeproof, EXT #1027 -----
CONNECTOR, 10 Pin28 205992GS
CONNECTOR, 2 Pin29 205991GS
* Items without part numbers are common fasteners and are available at your local hardware store.
11
The above parts group applies to the following Mfg. Nos.:
Briggs & Stratton Power Products Group, LLC
Copyright © by Briggs & Stratton Corporation
Milwaukee, WI, USA. All rights reserved
2011
040315A-0 - 7,000 Watt Home Generator System (General Elect
314263IPL No.

Not for
Reproduction
Ex
p
loded View - Control Panel
NOTE: Unless noted otherwise, use the
standard hardware torque
specification chart.
208189
12
The above parts group applies to the following Mfg. Nos.:
Briggs & Stratton Power Products Group, LLC
Copyright © by Briggs & Stratton Corporation
Milwaukee, WI, USA. All rights reserved
2011
040315A-0 - 7,000 Watt Home Generator System (General Elect
314263IPL No.

Not for
Reproduction
Part No. Descri
p
tionRef.
Parts List - Control Panel
Footnotes:
Part No. Descri
p
tionRef.
REGULATOR, NG/LPG30 193291GS
FITTING31 186151GS
HOSE, Flex, NG/LPG32 186148GS
FITTING33 205955GS
SUPPORT RAIL34 T207901GS
* NUT, M6 - 1.035 -----
* NUT, 1/4-2036 -----
* CAPSCREW, Hex Head, 1/4 - 20 x 3/437 -----
BUSHING, Snap38 197493GS
* LOCKWASHER, 1/439 -----
BUSHING, Snap40 186582GS
DECAL41 B4986GS
DECAL42 193297GS
DECAL43 196699GS
INSULATION44 207040GS
HINGE45 198890GS
KEY, Latch46 207652GS
LATCH47 209538GS
INSULATION48 193664GS
HARNESS, Wiring51 206318GS
HARNESS, Wiring52 198894GS
FUSE (Not Illustrated)-- 198573GS
* Items without part numbers are common fasteners and are available at your local hardware store.
13
The above parts group applies to the following Mfg. Nos.:
Briggs & Stratton Power Products Group, LLC
Copyright © by Briggs & Stratton Corporation
Milwaukee, WI, USA. All rights reserved
2011
040315A-0 - 7,000 Watt Home Generator System (General Elect
314263IPL No.

Not for
Reproduction
Ex
p

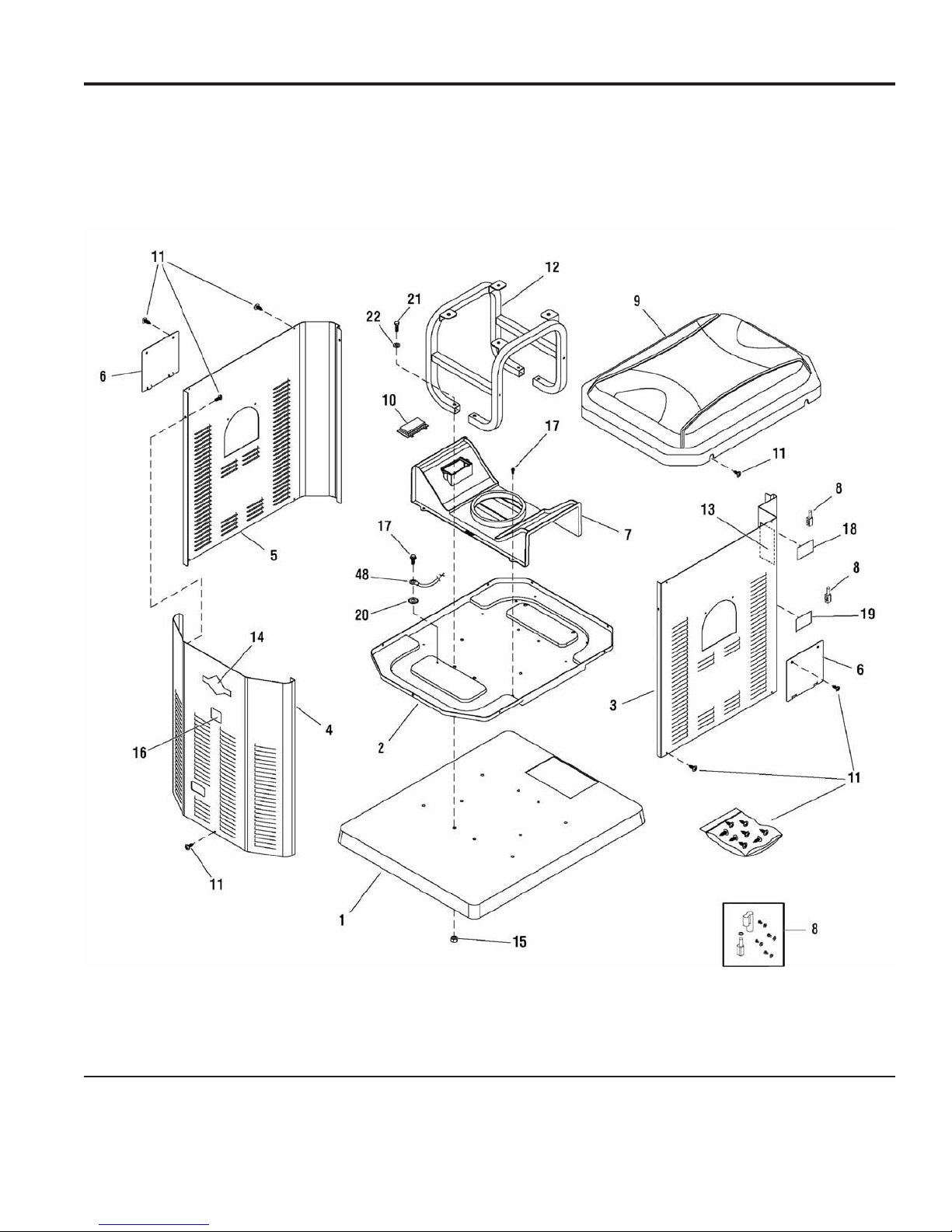

loded View - Enclosure
NOTE: Unless noted otherwise, use the
standard hardware torque
specification chart.
208195
14
The above parts group applies to the following Mfg. Nos.:
Briggs & Stratton Power Products Group, LLC
Copyright © by Briggs & Stratton Corporation
Milwaukee, WI, USA. All rights reserved
2011
040315A-0 - 7,000 Watt Home Generator System (General Elect
314263IPL No.

Not for
Reproduction
Part No. Descri
p
tionRef.
Parts List - Enclosure
Footnotes:
Part No. Descri
p
tionRef.
PAD, Mounting1 192441AGS
BASE, Plate2 T191852GS
ASSEMBLY, Panel, Right3 208287GS
ASSEMBLY, Panel, Front4 208197GS
ASSEMBLY, Panel, Left Side5 208199GS
COVER, Oil Filter Drain6 T208787GS
DUCT7 195228GS
HINGE8 198890GS
ASSEMBLY, Roof9 207586GS
REGULATOR, Voltage10 196070GS
KIT, Enclosure Hardware Bag11 206387GS
CRADLE12 B191860GS
DECAL, Warning, Auto Start/Shock13 206824GS
DECAL, Logo14 207095GS
* NUT, Flange Serrated, 5/16-1815 -----
DECAL, Warning Hot16 200409GS
BOLT17 B4300GS
DECAL, Rainproof18 195642GS
DECAL, Fuel Inlet19 186643GS
* WASHER, Shakeproof, Ext M6 - 1/420 -----
* CAPSCREW, Hex Head, 5/16-18 x 221 -----
* WASHER, Flat, 5/16 - M822 -----
WIRE, Ground48 15253621GS
* - Items without part numbers are common fasteners and are available at your local hardware store.
15
The above parts group applies to the following Mfg. Nos.:
Briggs & Stratton Power Products Group, LLC
Copyright © by Briggs & Stratton Corporation
Milwaukee, WI, USA. All rights reserved
2011
040315A-0 - 7,000 Watt Home Generator System (General Elect
314263IPL No.

Not for
Reproduction

Not for
Reproduction

Not for
Reproduction

Not for
Reproduction

Not for
Reproduction
is a trademark of General Electric company
and is under licensed by Briggs & Stratton
Power Products Group, LLC.
Copyright © . All Rights reserved. No part of this material may
be reproduced or transmitted in any form without the express
written permission of Briggs & Stratton Power Products Group, LLC.
2011
