GE 076004-0 Setup guide

Illustrated Parts List
IPL No. 208892 Rev. A (03/12/2010)
Liquid-Cooled
Home Generator System
30000 Watts
MODEL
076004-0
NG & LP
Not for
Reproduction

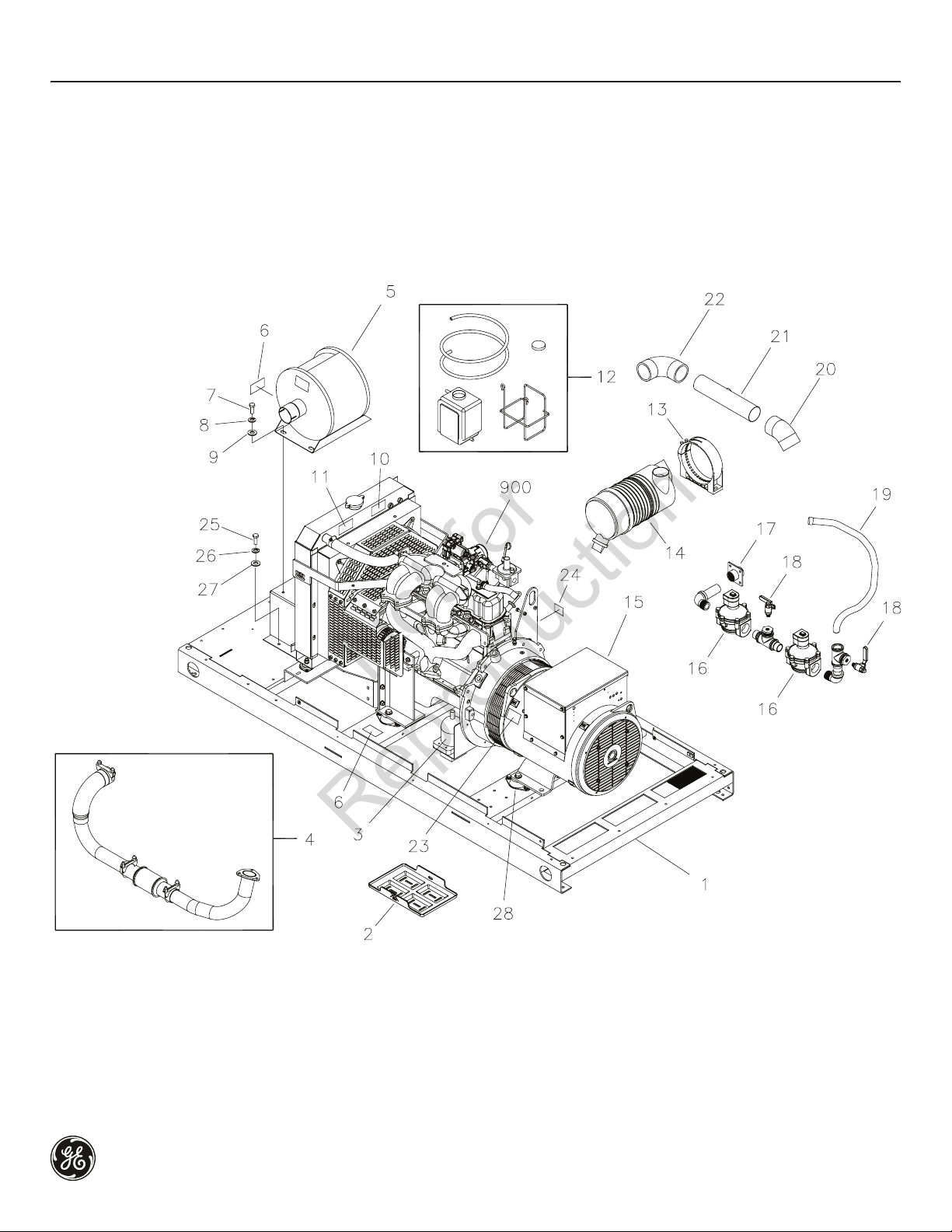

Exploded View - Main Unit
2 BRIGGSandSTRATTON.COM
Copyright © 2010. All rights reserved. No part of this material may
be reproduced or transmitted in any form without the express
written permission of Briggs & Stratton Power Products Group, LLC.
is a trademark of General Electric Company
and is under license by Briggs & Stratton
Power Products Group, LLC.
Not for
Reproduction

Parts List - Main Unit
3
Item Part # Description
1 AE207462GS BASE
2 205623GS TRAY-BATTERY
3 206119GS HEATER
4 204892GS KIT-EXHAUST
5 204654GS MUFFLER
6 205398GS DECAL
7 * HHCS-5/16-18 x 3/4
8 * WASHER-5/16 - M8, LOCK
9 * WASHER-5/16 - M8, FLAT
10 205396GS DECAL
11 205399GS DECAL
12 205226GS BOTTLE-OVERFLOW
13 205103GS CLAMP
14 204274GS FILTER-AIR
207575GS FILTER-CARTRIDGE
15 204343GS ALTERNATOR
207019GS RECTIFIER-BRIDGE
207020GS REGULATOR-VOLTAGE
16 206120GS VALVE-FUEL
17 AE204802GS COUPLER
18 206626GS VALVE-BALL
19 207914GS HOSE-FUEL
20 205012GS ELBOW
21 204841GS TUBE
22 204869GS ELBOW
23 205401GS DECAL
24 186649GS DECAL
25 * HHCS-1/4-20 x 3/4
26 * WASHER-1/4-M6, LOCK
27 * WASHER-1/4
28 204653GS MOUNT-VIBRATION
* HHCS-1/2-13 x 30
* WASHER-1/2
* NUT-1/2-13
900 § ENGINE
Parts Not Illustrated
207649GS KIT-MANUAL ACC
207635GS MANUAL-OPERATOR
207637GS MANUAL-INSTALL
206992GS MANUAL-ENGINE
841281 SWITCH-OIL PRESSURE
204751GS SWITCH-TEMP
207337GS KIT-LED REMOTE
205206GS HOSE
206943GS HOSE-DRAIN
198573GS FUSE
208345GS PAINT-TOUCHUP, SLVR PRLSCNT
208346GS PAINT-TOUCHUP, SLVR
205622GS KIT-HARDWARE BATTERY
195642GS DECAL-Rainproof
Optional Accessories Not Included
208350GS PAINT-SPRAY, SLVR
208349GS PAINT-SPRY, SLVR PRLSCNT
207244GS KIT-DECALS, FRNCH
207422GS DECAL-Do Not Lift, Frnch
6167 KIT-MAINTENANCE
§ - Contact Engine Manufacturer.
* - Items without part numbers are common fasteners and are
available at local hardware stores.
Not for
Reproduction

4

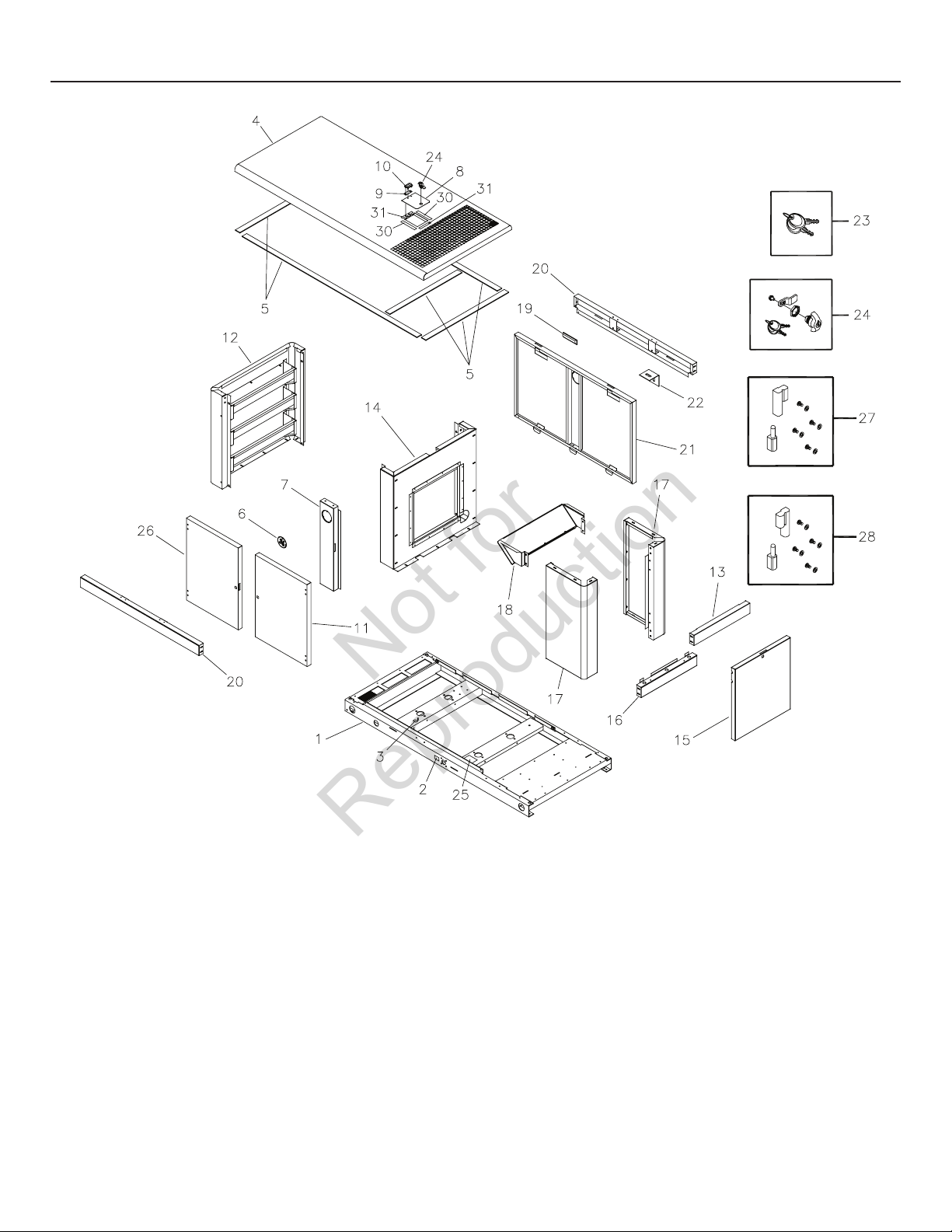

Exploded View & Parts List- Enclosure
Item Part # Description
1 AE207462GS BASE
2 186643GS DECAL, Fuel Inlet
3 B4986AGS DECAL, Ground
4 207703GS ASSY, Roof
5 205368GS SEAL TAPE, Vinyl
6 207096GS BADGE, Logo
7 207995GS ASSY, Support Door
8 AE204451GS COVER, Radiator
9 AE204443GS PLATE, Hinge
10 205225GS HINGE
11 207994GS ASSY, Door, Right
12 207709GS ASSY, Bulkhead, Alt.
13 207697GS ASSY, Support Rail, Top
14 207699GS ASSY, Bulkhead, Engine
15 207701GS ASSY, Door
16 207705GS ASSY, Support Rail, Bttm
17 207693GS ASSY, Corner, Exhaust
18 207707GS ASSY, Baffle Exhaust
19 186049GS HANDLE, Door
Item Part # Description
20 207679GS ASSY., Support Rail
21 207677GS ASSY, Weldment Door
22 AE204460GS BRACKET
23 207652GS KEY, Latch
24 204700GS KIT, Door Latch
25 205126GS DECAL, Requirements
26 207993GS ASSY, Door, Left
27 204852GS KIT, Door Hinge, Left
28 204920GS KIT, Door Hinge, Right
30 197316GS SEAL, Foam
31 207758GS SEAL, Foam
Parts Not Illustrated
205358GS SEAL, Hollow, 200 Ft Roll
(Cut to Fit)
Not for
Reproduction

Item Part # Description
1 AE207665GS PANEL, Frnt, Breaker Box w/Decals
2 207176GS CONTROL PANEL
3 21217GS MOUNT, Vibration
4 201307GS PLUG, Relay
5 205028GS BLOCK, Terminal
6 205026GS RELAY
7 198549GS DECAL, Terminal Block
8 205029GS BLOCK, Terminal
9 190841GS TERMINAL, Neutral
10 204519GS INSULATOR
11 204144GS CIRCUIT BREAKER
12 186173GS BUSHING, Snap
13 192151GS FUSE HOLDER
14 205110GS FUSE
15 198550GS DECAL, Grnd Neutral
16 204530GS KIT, Load Lug Conversion
17 B4986AGS DECAL, Ground
18 203015GS BUSHING, Snap
19 B5082AGS DECAL, Danger High Voltage
20 205392GS DECAL, Warning, Auto Start
Item Part # Description
21 205394GS DECAL, Warning, Electrical Shock
22 193297GS DECAL, Caution, Standby
23 205395GS DECAL, Warning, Electrical Shock
24 205393GS DECAL, Warning, Outdoor Install
25 AE205058GS COVER, 10 Pin Connector
26 205030GS JUMPER, Screw
27 AE206191GS PLATE, Bottom Access
28 205588GS DIODE
29 207241GS DECAL, Warning, Fuse
30 198516GS CONNECTOR, Trmnl, 10-Pin
31 AE205553GS PANEL, LH, Breaker Box
32 AE205554GS PANEL, RH, Breaker Box
33 AE205685GS PANEL, Bottom Breaker Box w/Decal
Part Not Illustrated
205031GS WIRE HARNESS
198573GS FUSE, ATO Type, 15amp
205115GS DECAL, Fuse
192597GS DECAL, Utility 240 VAC

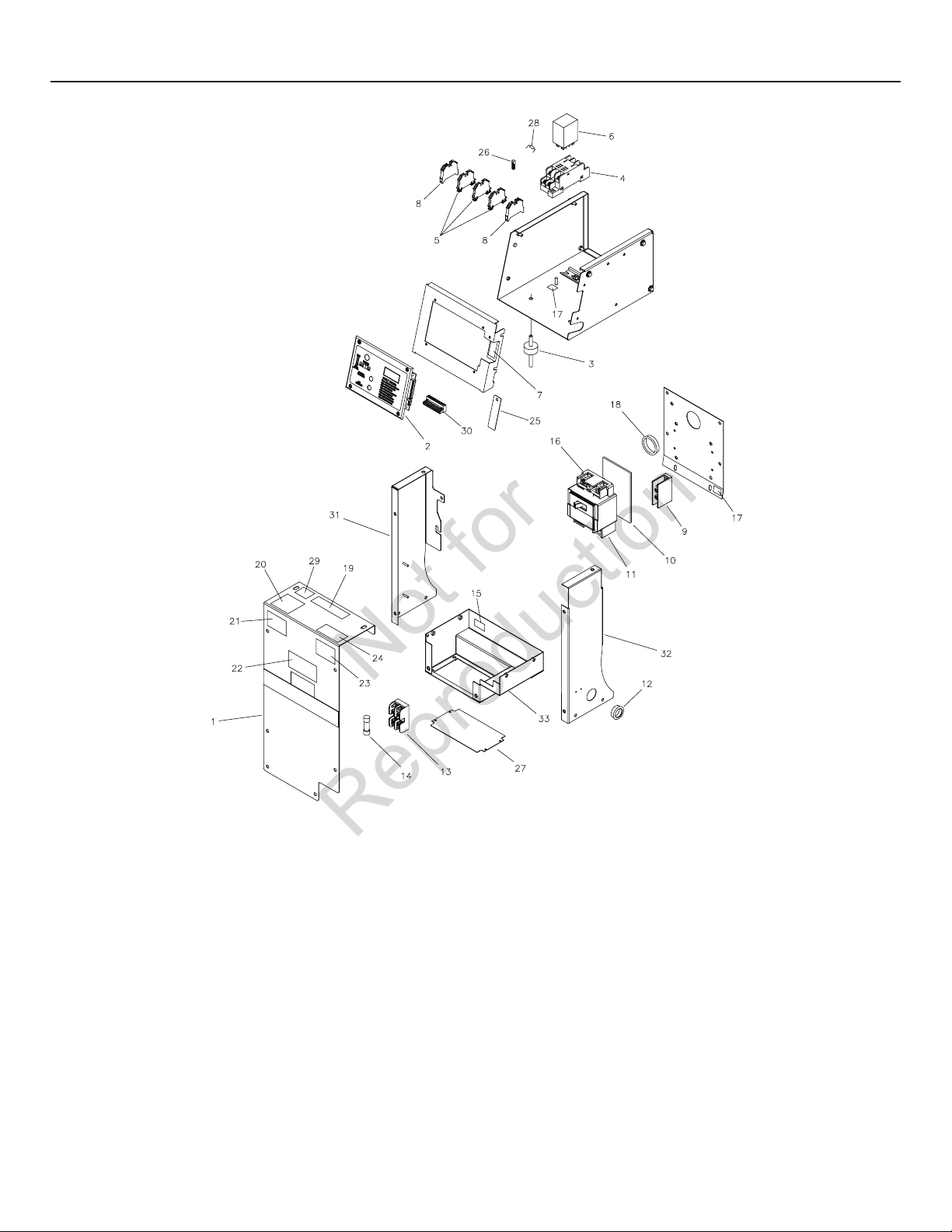

Exploded View & Parts List - Control Panel
Not for
Reproduction
