GE 040316-0 Setup guide

Illustrated Parts List
IPL No. 209451 Rev. B (03/19/2010)
10000 Watt
Home Generator
System
MODEL
040316-0
Not for
Reproduction

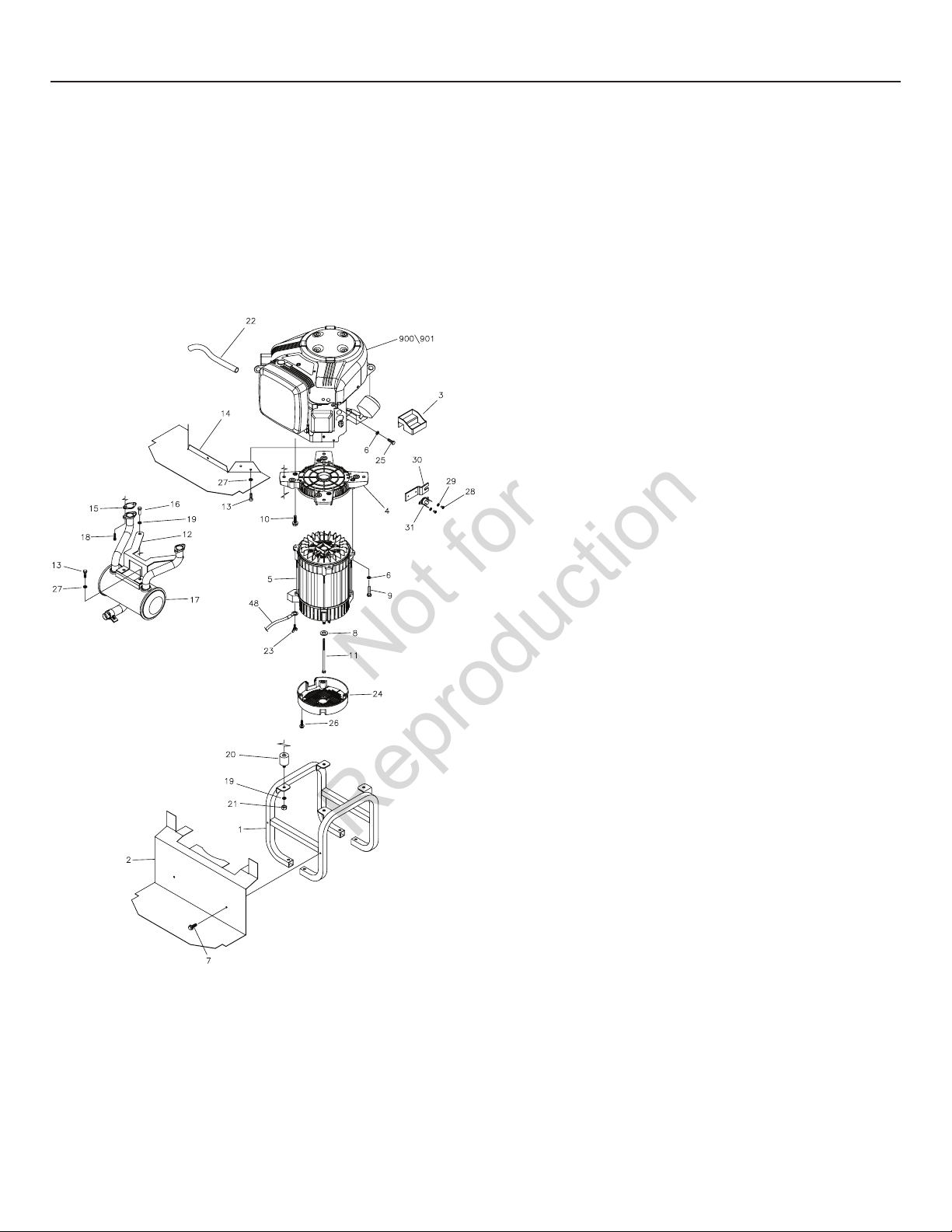

Exploded View & Illustrated Parts List - Main Unit
Item Part # Description
1 B195088GS CRADLE
2 200856GS BOX-MUFFLER BOTTOM
3 193536GS TRAY-OIL DRAIN
4 196727GS ADAPTER-ENGINE
5 NSP ALTERNATOR
6 * WASHER-5/16-M8 LOCK
7 B4300GS BOLT
8 96796GS WASHER
9 * HHCS-5/16-18 x 1
10 2830598SM TAPTITE
11 187365EGS BOLT
12 200857GS BRACKET-MUFFLER
13 * HHCS-M6-1.0 x 12
14 200855GS BOX-MUFFLER TOP
15 692236 GASKET
16 * HHCS-3/8-16 x 1
17 201561GS MUFFLER
18 698941 SCREW
19 * WASHER-3/8 LOCK
20 38353GS MOUNT-VIBRATION
21 * NUT-3/8-16
22 1723165SM HOSE-OIL DRAIN
23 86494GS SCREW
24 192906GS COVER-REAR BEARING
25 * HHCS-M8-18 x .50
26 74908GS TAPTITE
27 * WASHER-1/4 LOCK
28 186242GS SCREW
29 27772GS WASHER
30 195124GS PLATE
31 195130GS SWITCH
48 15253621GS WIRE
900 § ENGINE
901 843858 HOSE
Items Not Illustrated
207987GS MANUAL-OPERATOR
208203GS KIT-MANUAL ACC
202295GS FLEX HOSE
198811GS PAINT-TOUCHUP SILVER
207337GS KIT-LED REMOTE
841359 FILTER-CARTRIDGE
272490S FILTER-PRE-CLEANER
492932B FILTER-OIL
279550TRI MANUAL-ENGINE
209432GS MANUAL-INSTAL
Optional Accessories
6030 KIT-COLD WEATHER
6035 KIT-MAINTENANCE
199475GS PAINT-SPRAY SILVER
* - Items without part numbers are common fasteners and are
available at local hardware stores.
§ - Contact Engine Manufacturer
2
Not for
Reproduction

Exploded View & Illustrated Parts List - Enclosure
3
Item Part # Description
1 192441AGS PAD-MOUNTING
2 T191852GS BASE
3 208208GS PANEL-SIDE
4 208207GS PANEL
5 208209GS PANEL-SIDE
6 T208787GS COVER-OIL FILTER
7 195228GS DUCT
8 194819GS SEAL
9 208609GS ROOF (Includes Item #8)
10 196070GS REGULATOR-VOLTAGE
11 206387GS KIT-HARDWARE ENCLOSURE
12 B195088GS CRADLE
13 198890GS HINGE
14 207095GS DECAL
Item Part # Description
15 198890GS HINGE
16 200409GS DECAL
17 B4300GS BOLT
18 195642GS DECAL
19 186643GS DECAL
22 * NUT, 5/16-18, FLANGE SERRATED
23 * WASHER, 5/16-M8, FLAT
24 * HHCS, 5/16-18 x 2
25 206824GS DECAL
48 15253621GS WIRE
* - Items without part numbers are common fasteners and are
available at local hardware stores.
Not for
Reproduction

4
Exploded View - Control Panel
Not for
Reproduction

Item Part # Description
1 207903GS BOX-CONTROL PANEL
2 207176GS BOARD-CIRCUIT
3 T207012GS PANEL-ACCESS
4 T201825GS PANEL-CONTROL
5 192445GS SCREW
6 208790GS BREAKER-CIRCUIT, 50A
7 205947GS SCREW
8 205394GS DECAL
9 * WASHER-SHAKEPROOF #6
10 * PPHMS-#6 - 32 x 3/8”
11 * SCREW-10 x 32 x 1
12 205397GS DECAL
13 B4773GS SOLENOID-GAS FUEL
14 186173GS BUSHING-SNAP
15 203015GS BUSHING-SNAP
16 192449GS FITTING
17 * HHCS-M6-1.0 x 30
18 195009GS KIT-RETAINER CLIPS
19 T207901GS SUPPORT RAIL
20 * WASHER-SHAKEPROOF, EXT M6-1/4
21 B4300GS BOLT
22 193171GS CABLE-BTTRY, RED
206609GS DECAL
23 691656 CONTACTOR-STARTER
24 194659GS WIRE
25 194251GS KIT-HARDWARE
26 188573AGS CABLE-BTTRY, BLK
206609GS DECAL
27 * WASHER-SHAKEPROOF, EXT. #10
28 205992GS CONNECTOR-10 PIN
29 205991GS CONNECTOR-2 PIN
Item Part # Description
30 193291GS REGULATOR-NG/LPG
31 186151GS FITTING
32 186148GS HOSE
33 205955GS FITTING
34 843858 HOSE
35 * NUT-M6-1.0
36 193664GS INSULATION
37 B4986AGS DECAL
39 * LOCKWASHER-1/4
40 186582GS BUSHING-SNAP
41 197493GS BUSHING-SNAP
42 * HHCS-1/4-20 x 3/4
43 * NUT-1/4-20
44 199011GS LUG
45 193297GS DECAL
46 196699GS DECAL
47 207040GS INSULATION
48 198890GS HINGE
49 207652GS KEY-LATCH
50 209538GS LATCH
51 206318GS HARNESS-WIRING
52 198894GS HARNESS-WIRING
Items Not Illustrated
198573GS FUSE
* - Items without part numbers are common fasteners and are
available at local hardware stores.
Illustrated Parts List - Control Panel
Not for
Reproduction

6
Exploded View & Illustrated Parts List - Alternator
Item Part # Description
1 209599GS ADAPTER-ALTERNATOR
2 201309GS ROTOR
3 207506GS STATOR
4 193336GS RBC (with O-Ring p/n 189197GS)
5 66449LGS BOLT
6 66386GS ASSY-BRUSH
7 66849GS TAPTITE
8 65791GS BEARING
9 81917GS PIN
10 193472GS HARNESS-WIRING
11 192906GS COVER-REAR BEARING
12 74908GS TAPTITE
13 * WASHER-1/4 LOCK
* - Items without part numbers are common fasteners and
are available at local hardware stores.
is a trademark of General Electric Company
and is under license by Briggs & Stratton
Power Products Group, LLC.
Copyright © 2010. All rights reserved. No part of this material may
be reproduced or transmitted in any form without the express
written permission of Briggs & Stratton Power Products Group, LLC.
