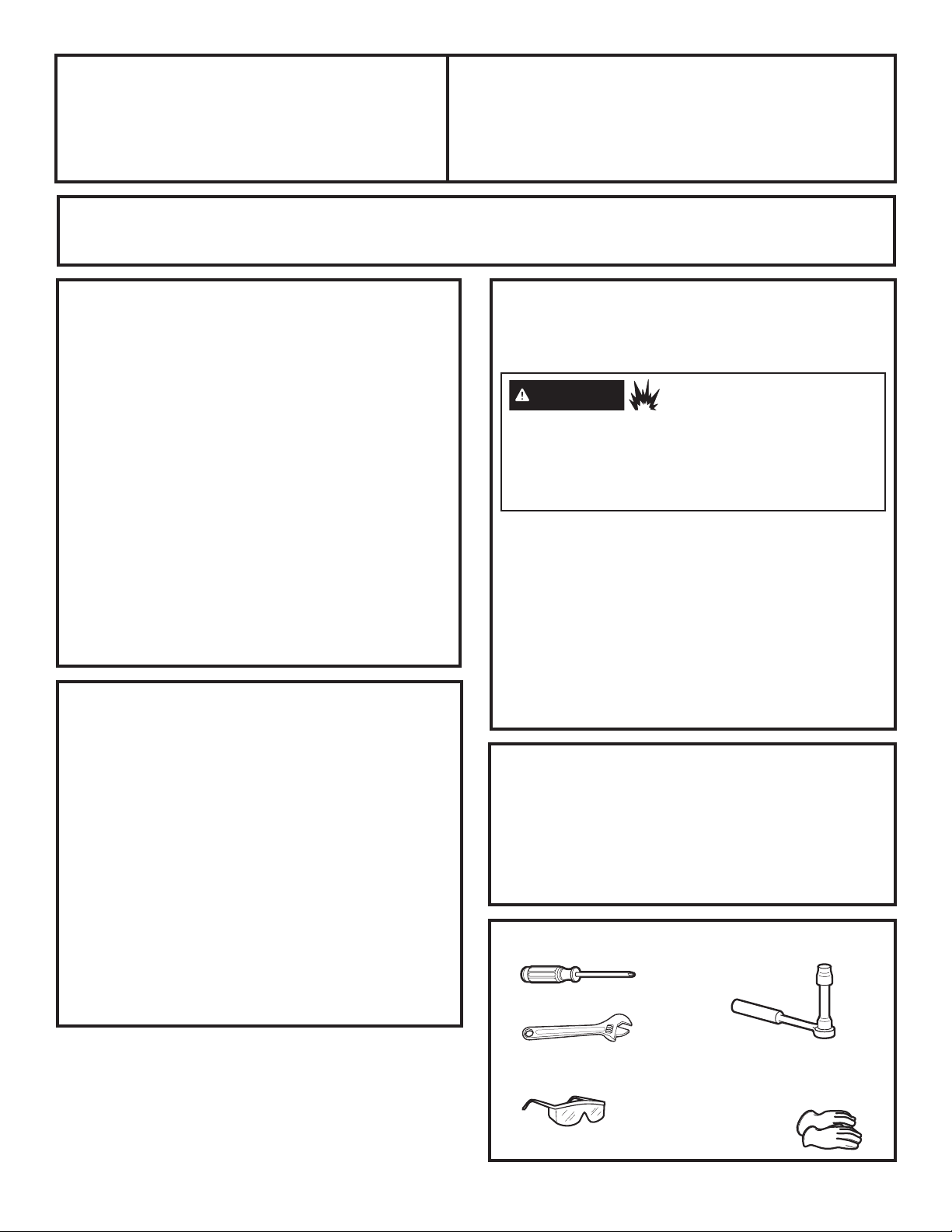

GE RISER KIT User manual

0020507767ZB 31-3000212 Rev. 0 07-19 GEA
INSTALLATION
INSTRUCTIONS
RISER KIT
For Washer Models: GFW148, QFT150
For Vented Dryer Models: GFD14, QFD15
For Condenser Dryer Models: GFT14, QFT15
For Combi Washer/Dryer: GFQ14
BEFORE YOU BEGIN
Read these instructions completely and carefully.
• IMPORTANT – Save these instructions for
local electrical inspector’s use.
• IMPORTANT – Observe all governing
codes and ordinances.
• Note to Installer – Be sure to leave these
instructions with the Consumer.
• Note to Consumer – Keep these instructions for
future reference.
• Service must be performed by a qualified installer.
• Do not allow children on or in the appliance. Close
supervision of children is necessary when the
appliance is used near children.
• Proper installation is the responsibility of the installer.
• Completion time - 30-60 minutes
WASHER REQUIREMENTS
FOR ALCOVE OR CLOSET
INSTALLATION
• Minimum clearance between washer cabinet and
adjacent walls or other surfaces is:
0” either side
1” front and rear
1” top
• Consideration must be given to provide adequate
clearance for installation and service.
• Closet doors must be louvered or otherwise
ventilated and have at least 60 square inches
(387.1 square centimeters of open area. If the
closet contains both a washer and a dryer, doors
must contain a minimum of 120 square inches
(774.2 square centimeters) of open area.
DRYER REQUIREMENTS FOR
ALCOVE OR CLOSET INSTALLATION
• Minimum clearance between washer cabinet and
adjacent walls or other surfaces is:
0” either side
1” front and rear
1” top
• Consideration must be given to provide adequate
clearance for installation and service.
• Closet doors must be louvered or otherwise
ventilated and have at least 60 square inches
(387.1 square centimeters of open area. If the closet
contains both a washer and a dryer, doors must
contain a minimum of 120 square inches (774.2
square centimeters) of open area.
Keep flammable materials and vapors, such as gasoline,
away from dryer.
Place dryer at least 18” (46 cm) above the floor for a
garage installation.
Failure to do so can result in death, explosion, or fire.
- Explosion Hazard
WARNING
MINIMUM CLEARANCE OTHER
THAN ALCOVE OR CLOSET
INSTALLATION
Minimum clearance to combustible surfaces and for air
opening are: 0” both sides, 1” rear and 1” top.
Consideration must be given to provide adequate
clearance for installation and service.

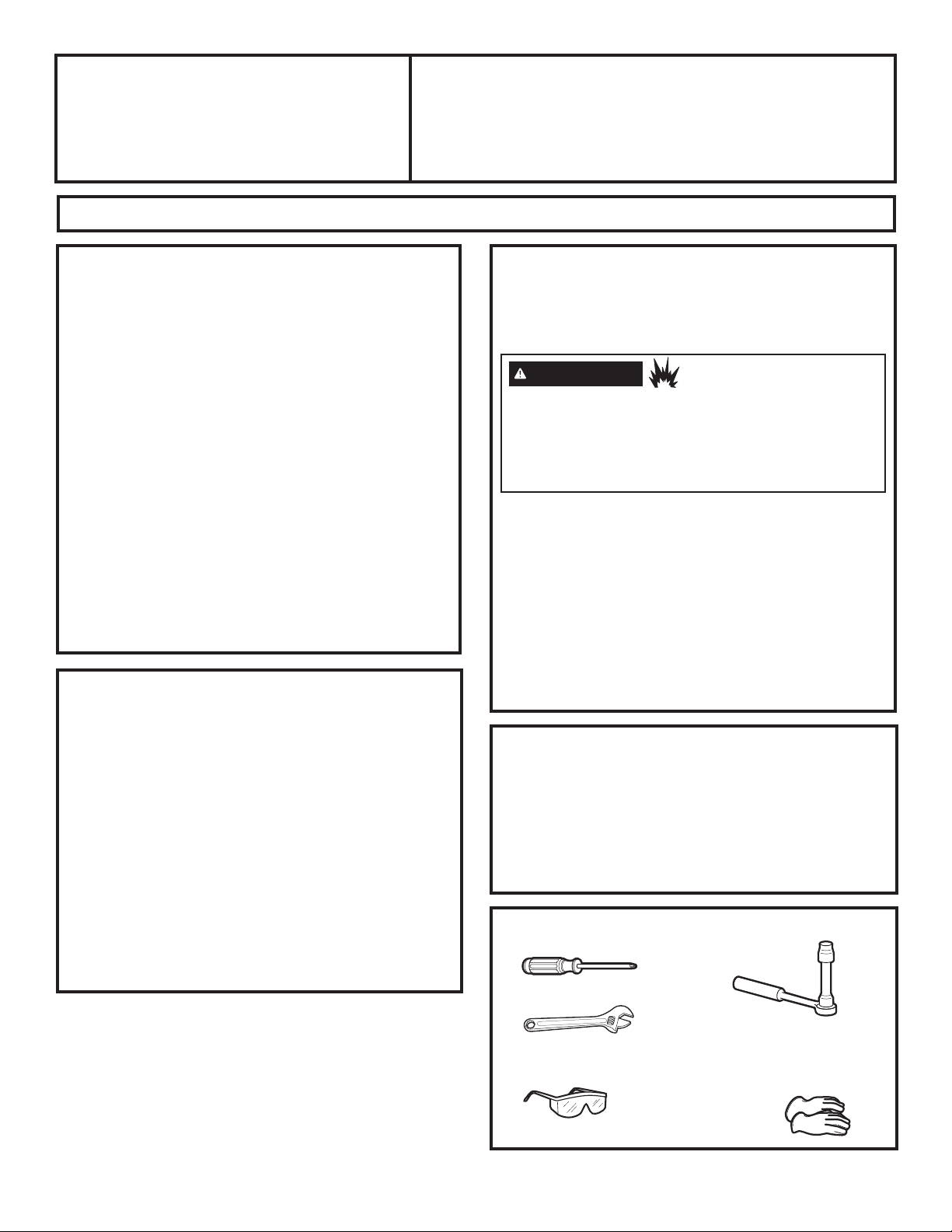

TOOLS YOU WILL NEED
ʄ Safety glasses ʄ Gloves
ʄ 9/16" Open End Wrench
or Adjustable Wrench
ʄ 5/8" Deepwell Socket
Wrench or 5/8" Socket
Wrench with Extension
ʄ Phillips screwdriver
If you have any questions, call GE Appliances at 800.GE.CARES (800.432.2737) or visit our Website at:
GEAppliances.com
In Canada, call 800.561.3344 or visit GEAppliances.ca

231-3000212 Rev. 0
Installation Instructions
WASHER/DRYER INSTALLATION PREPARATION
IMPORTANT: Do not lay the washer or dryer on its
back! Do not remove the shipping bolts on the back
side of the washer. The bolts must remain in place until
the washer is returned to an upright position.
To prevent damage, flatten the product carton to use
as a pad. Then carefully lay the left or right side of the
washer or dryer on top of the flattened product carton.
INSTALLING THE RISER

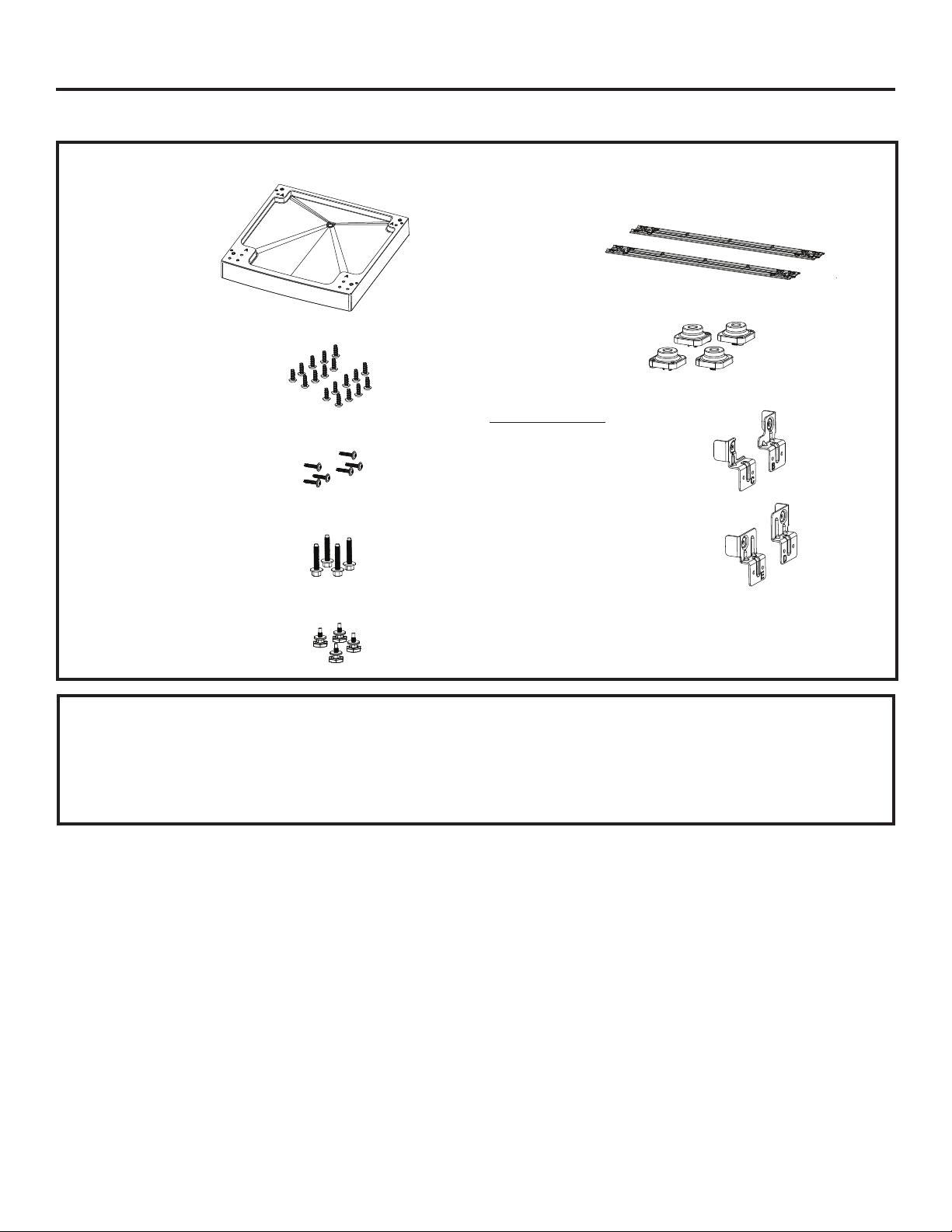

KIT CONTAINS:
1 Riser Body 2 Leveling
Leg Brackets
18 Short Mounting
Screws
4 Plastic Spacer (A)
6 Long Mounting Screws
4 Metal Brackets
- For Condenser Dryer (B & C)
- For Vented Dryer (D & E)
4 Bolts
4 Leveling Legs

31-3000212 Rev. 0 3
Installation Instructions
2 INSTALLING LEVELING LEG
BRACKETS
• Secure both leveling leg brackets to the bottom
of the riser with the 18 short mounting screws
(9 per leveling leg bracket). After attaching the
screws, fully screw in the 4 leveling legs. Do not
tighten the lock nuts at this time.
3 LEVELING UNIT
• Carefully upright the washer and move it close
to its final location.
• Make sure that the washer is level by placing
a level on top. Check side to side and front to
back.
• Use and open ended wrench to adjust the legs
in and out. Tighten the lock nut against the
bottom of the pedestal.
NOTE: To minimize vibration, the locking nuts
must be tight.

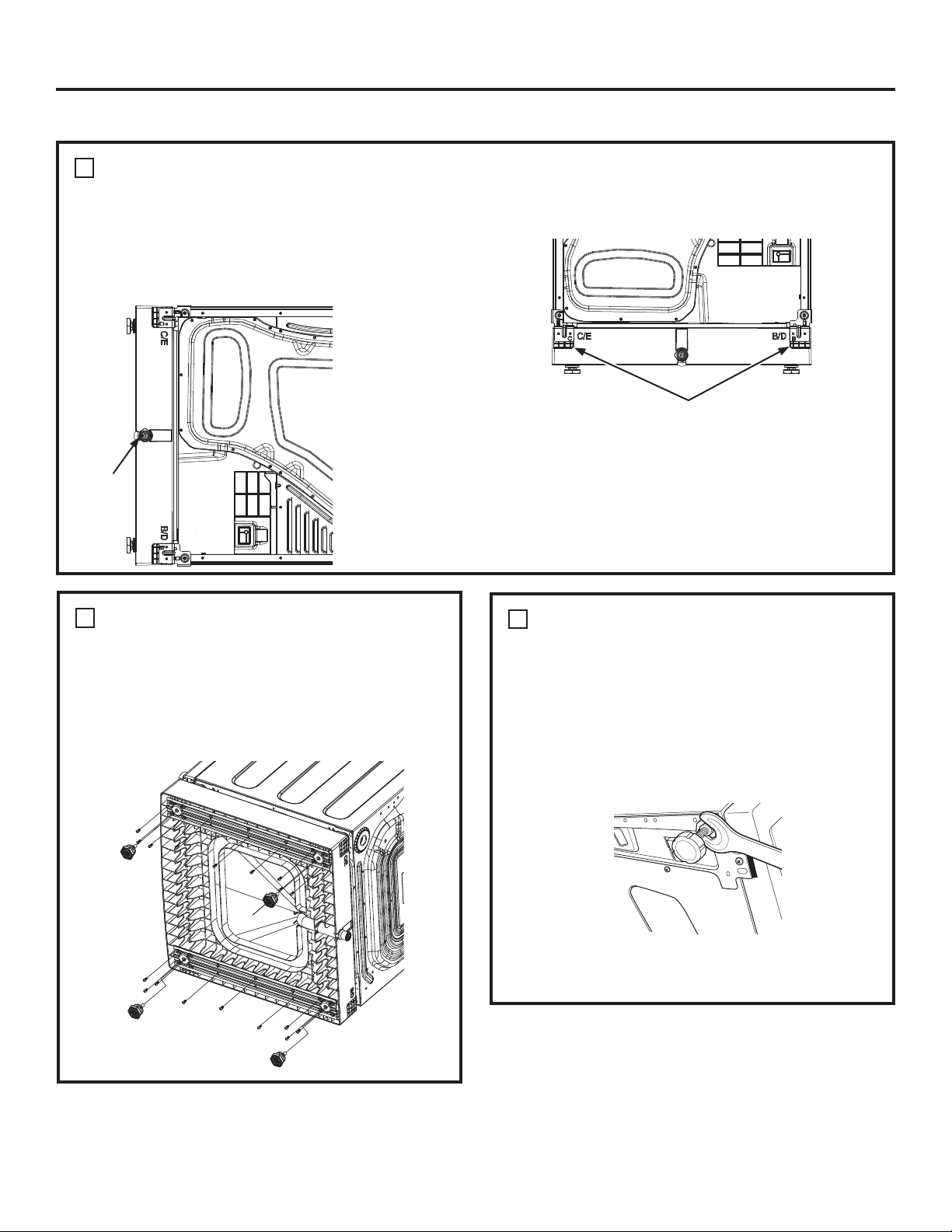

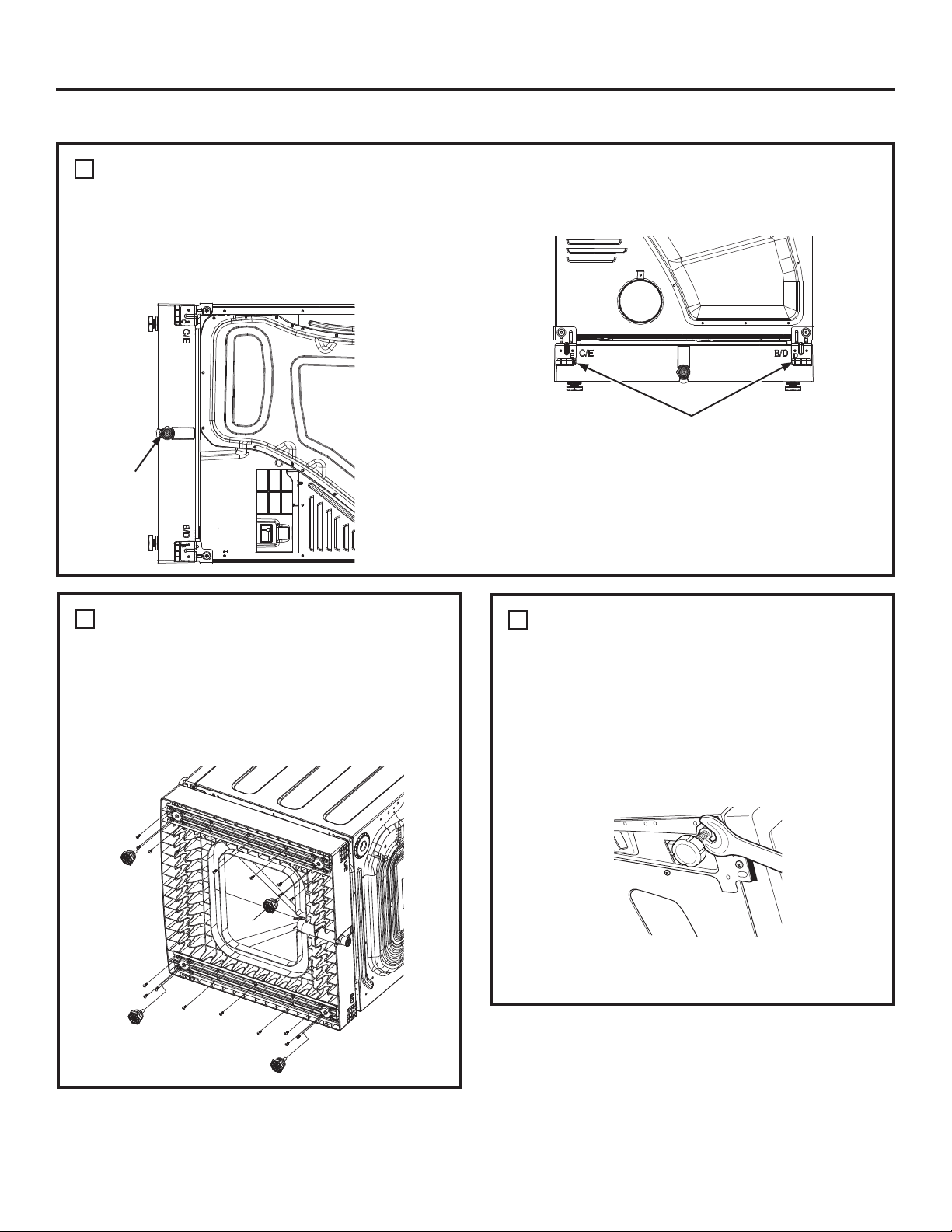

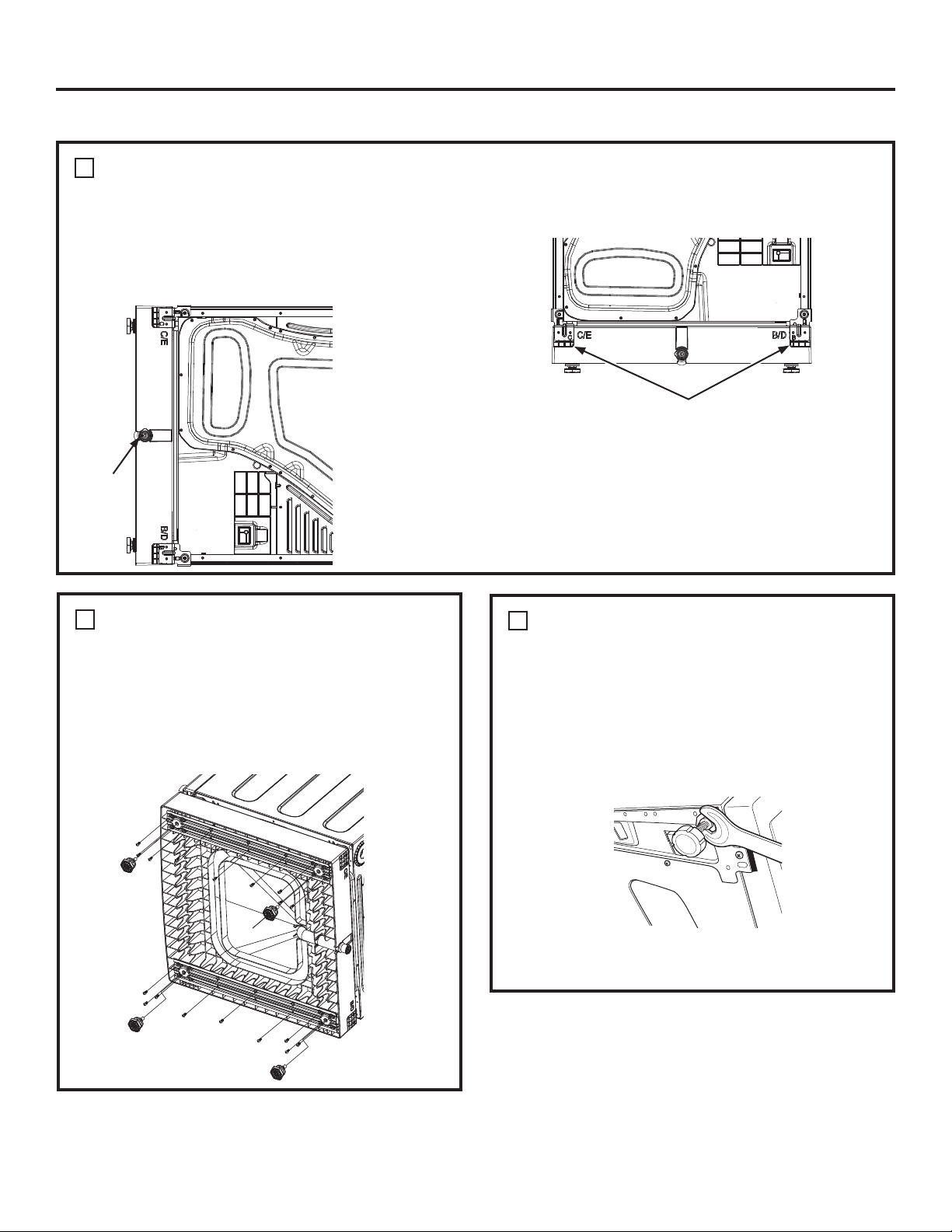

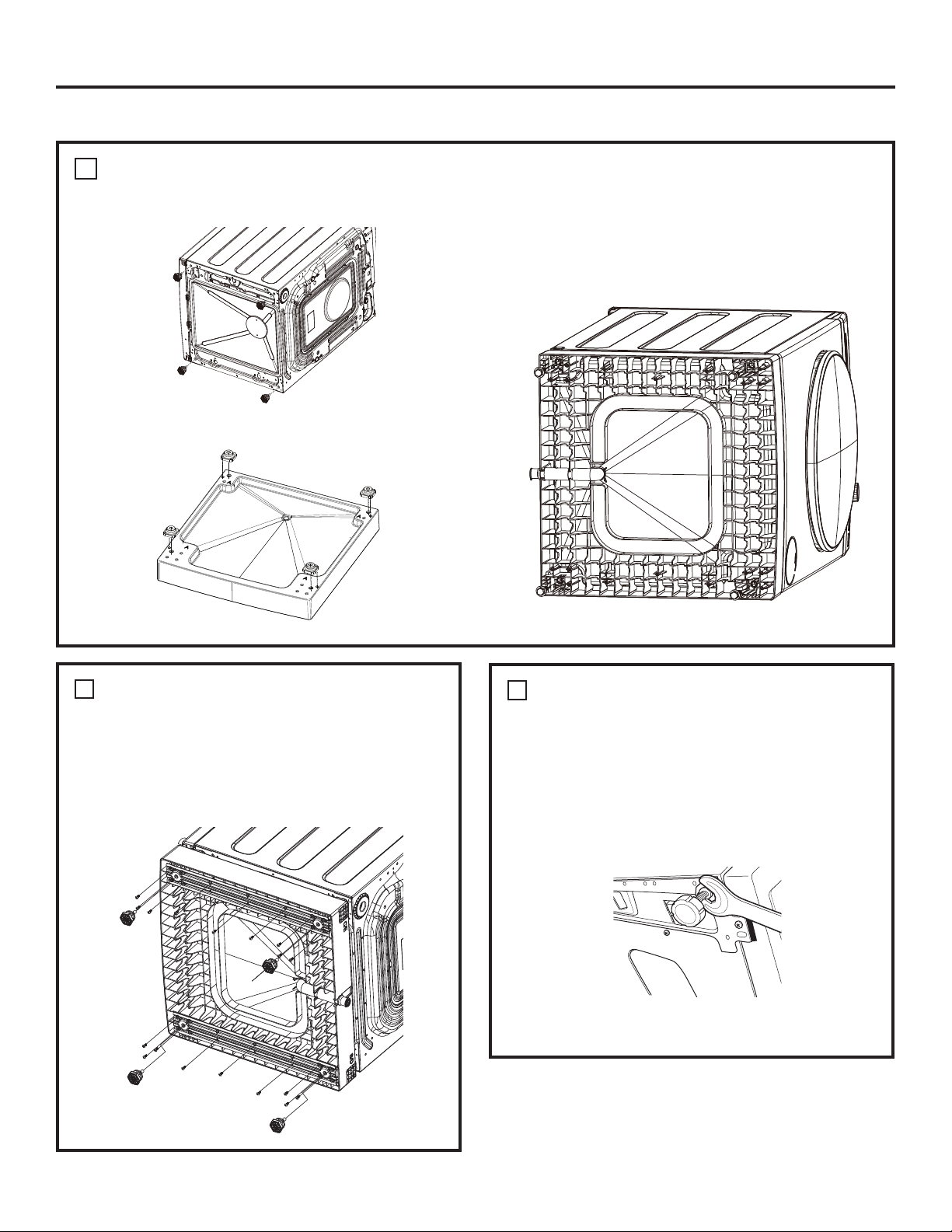

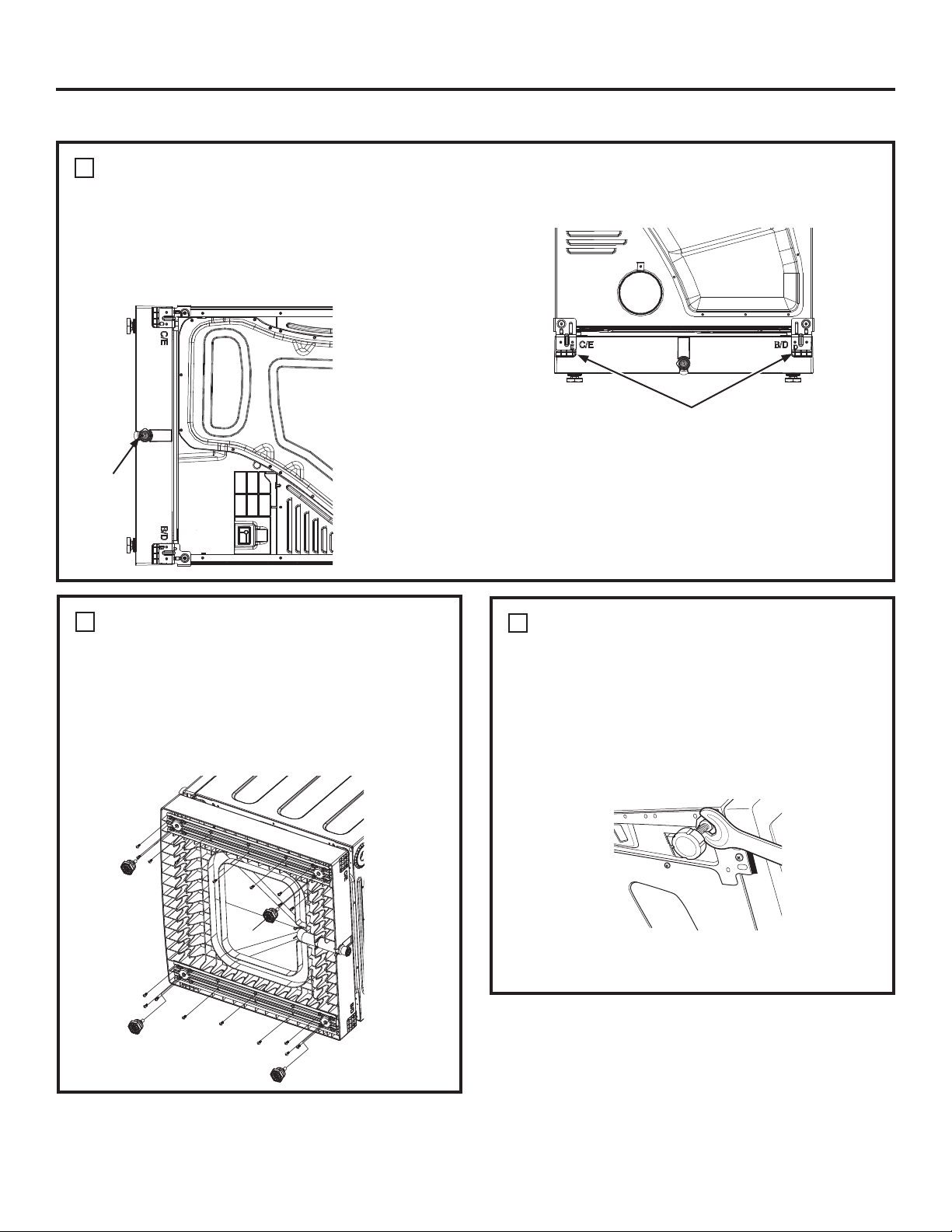

1 INSTALLING RISER BODY
• Use an open-end wrench to remove the 4 washer
leveling legs.
• Locate the 4 plastic spacers (A) and match them
to their locations on the riser. Snap into place.
• Align top of riser body with bottom of washer and
ensure the riser hose is on the same side as the
back of the washer. Using a 5/8" socket wrench
(deep well or extension required). Install all 4 bolts
through the bottom of the riser and into the empty
leveling leg holes in the washer. DO NOT tighten.
• After all 4 bolts are in place, securely tighten.
INSTALLING THE RISER ONTO A WASHER

431-3000212 Rev. 0
Installation Instructions
INSTALLING THE RISER ONTO A WASHER (cont.)

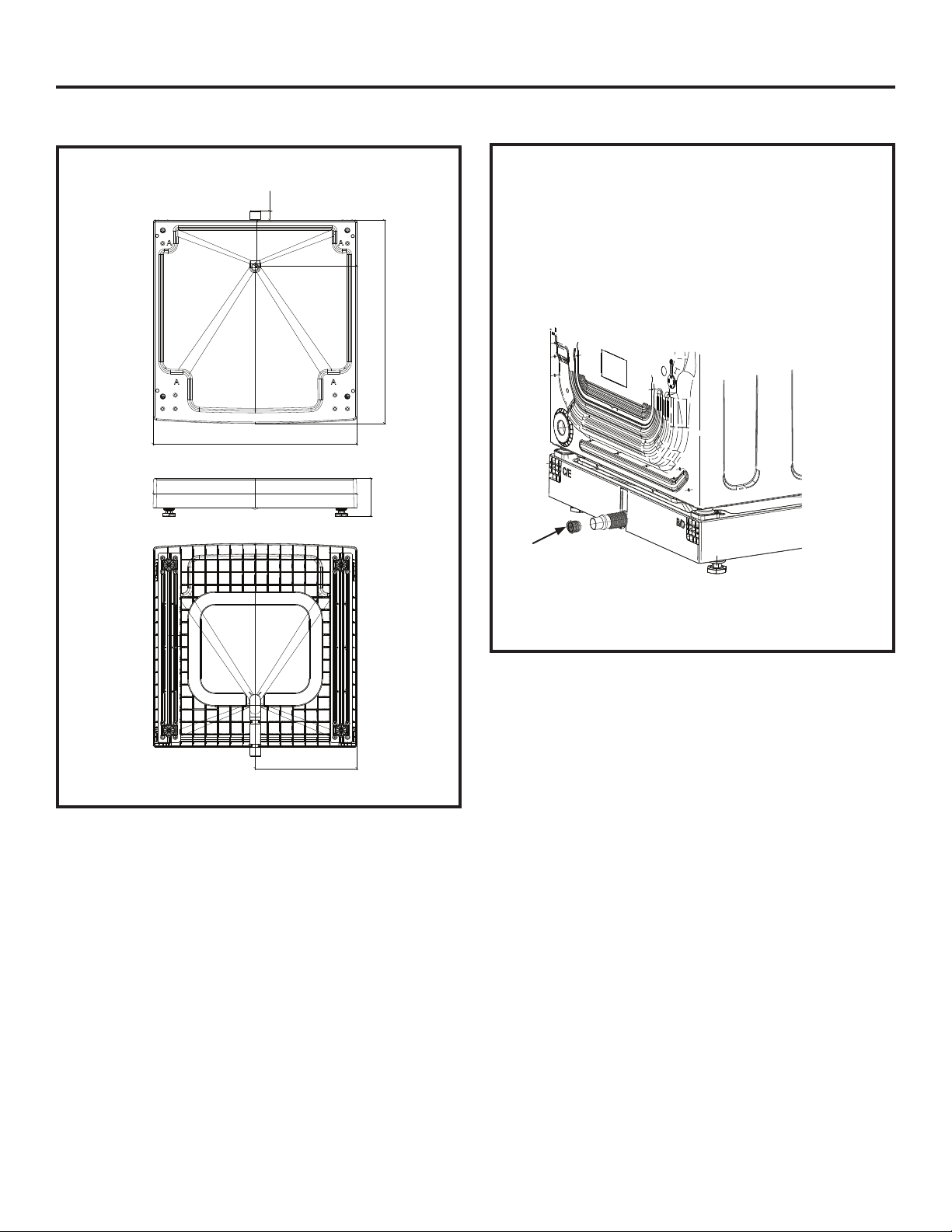

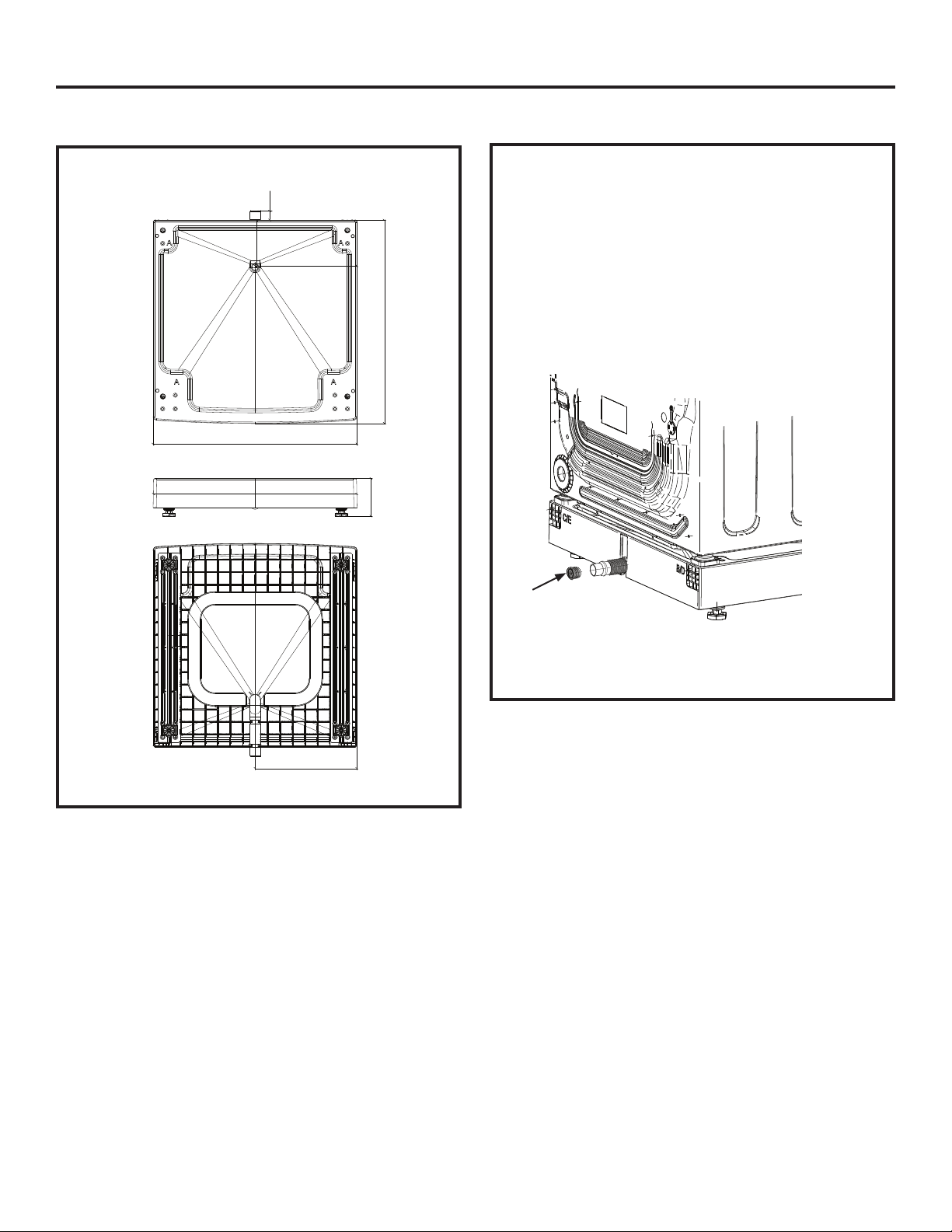

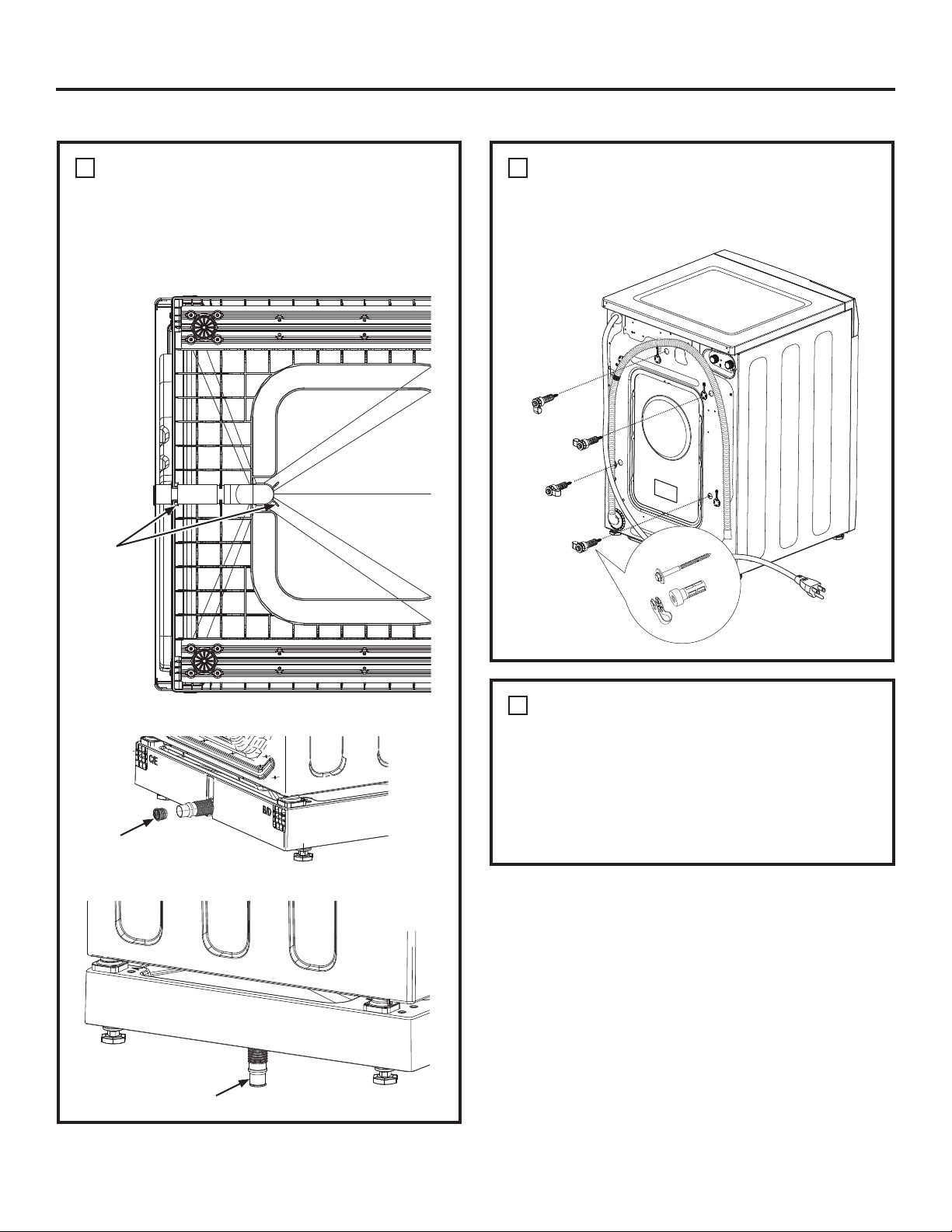

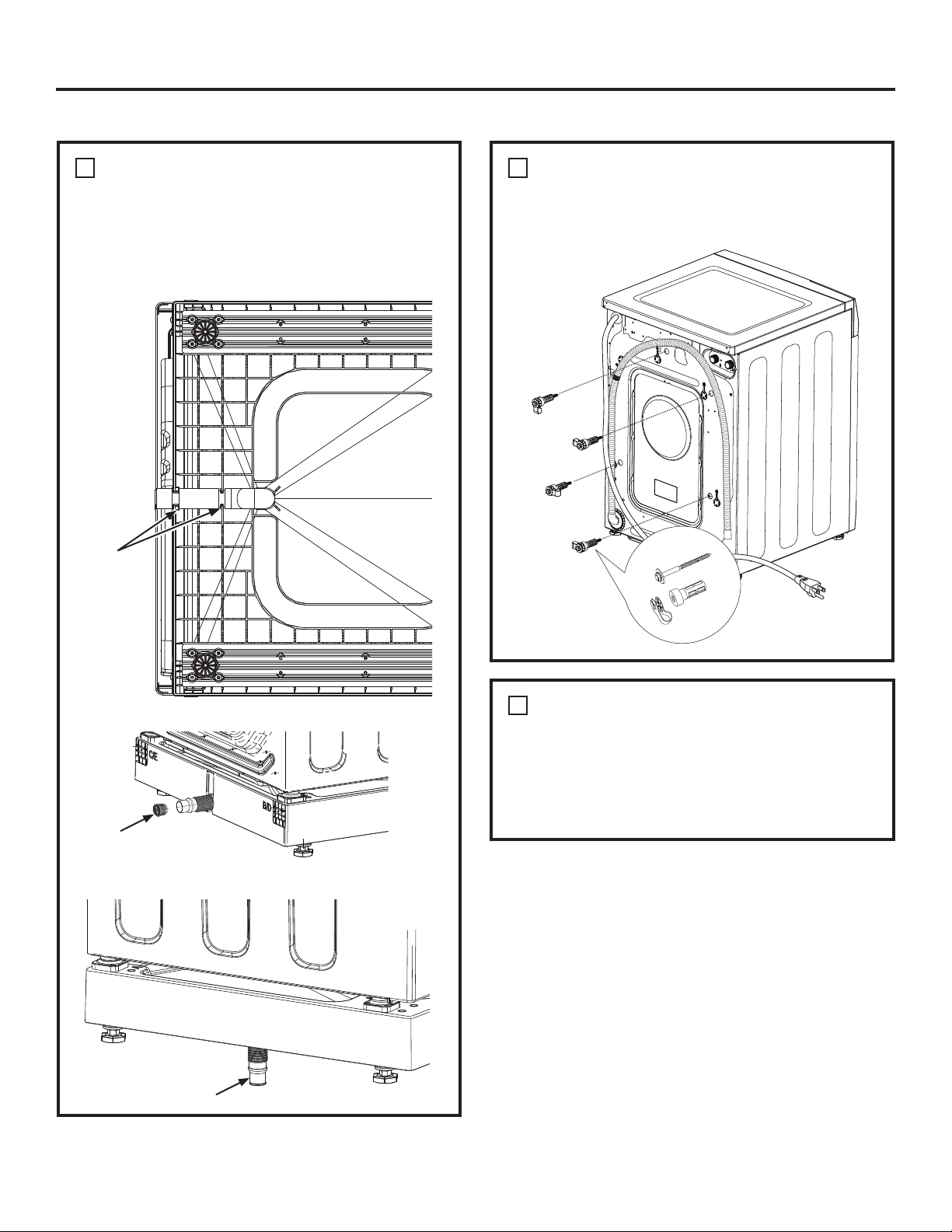

4 PLUMBING OF DRAIN HOSE
(Optional)
The drip pan has a drain hose that can be
plumbed into a floor drain.
• Tilt the unit and disengage the hose from the 2
horse collar features.
• Remove the cap from the end of the hose.
• Insert hose into floor drain.
5 REMOVE SHIPPING SCREWS
Remove the 4 shipping screws on the back side
of the unit.
6 FINALIZE THE INSTALLATION
Refer to the washer Installation Instructions to
complete the installation.

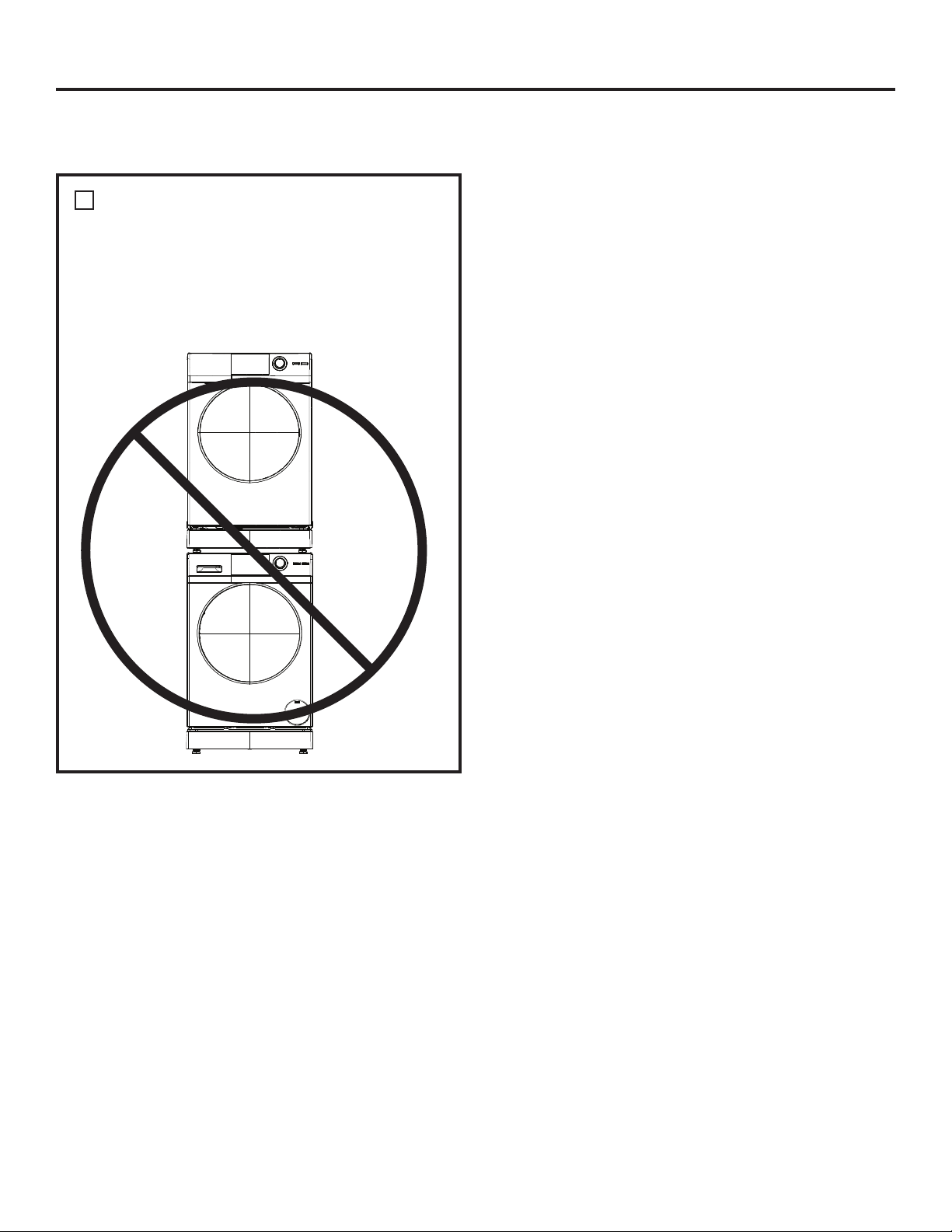

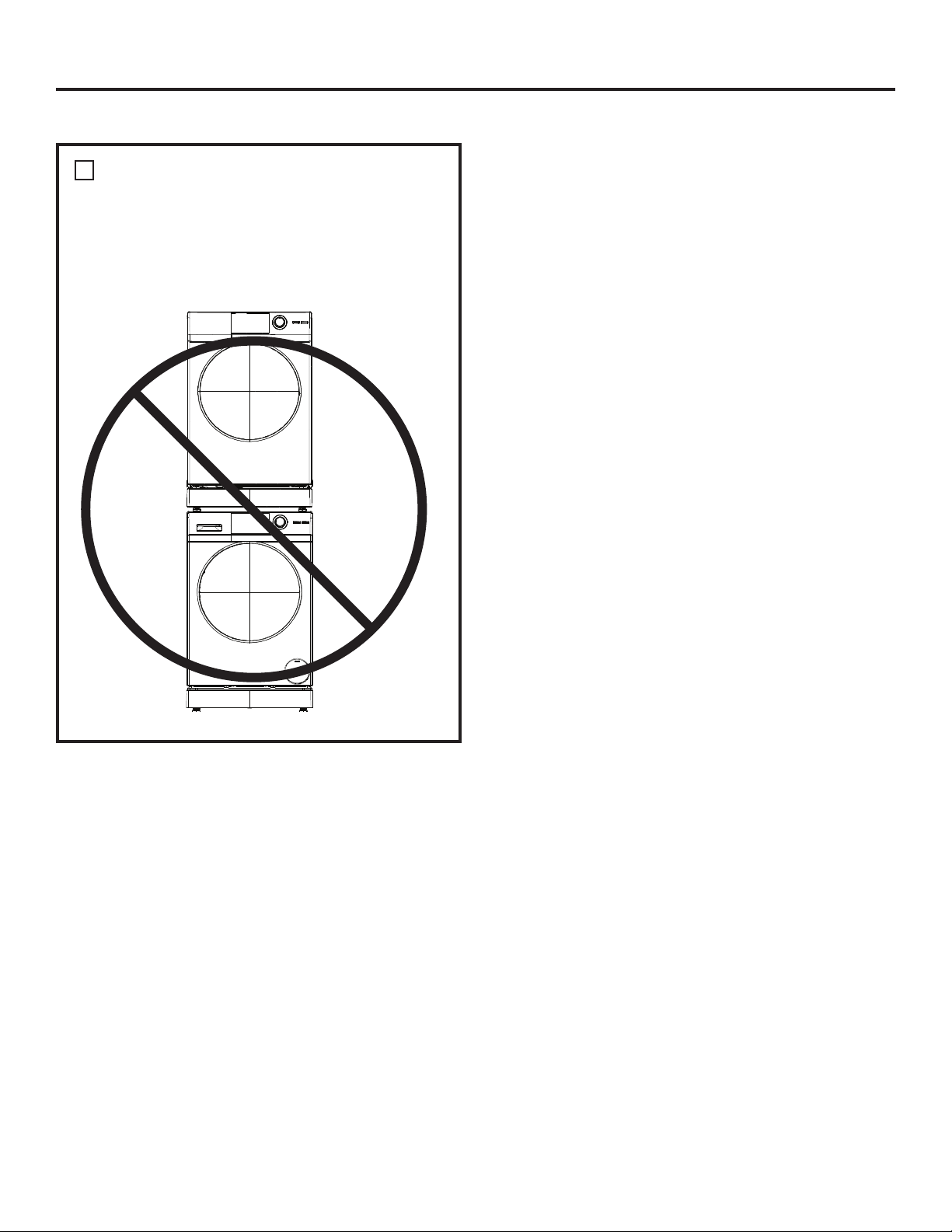

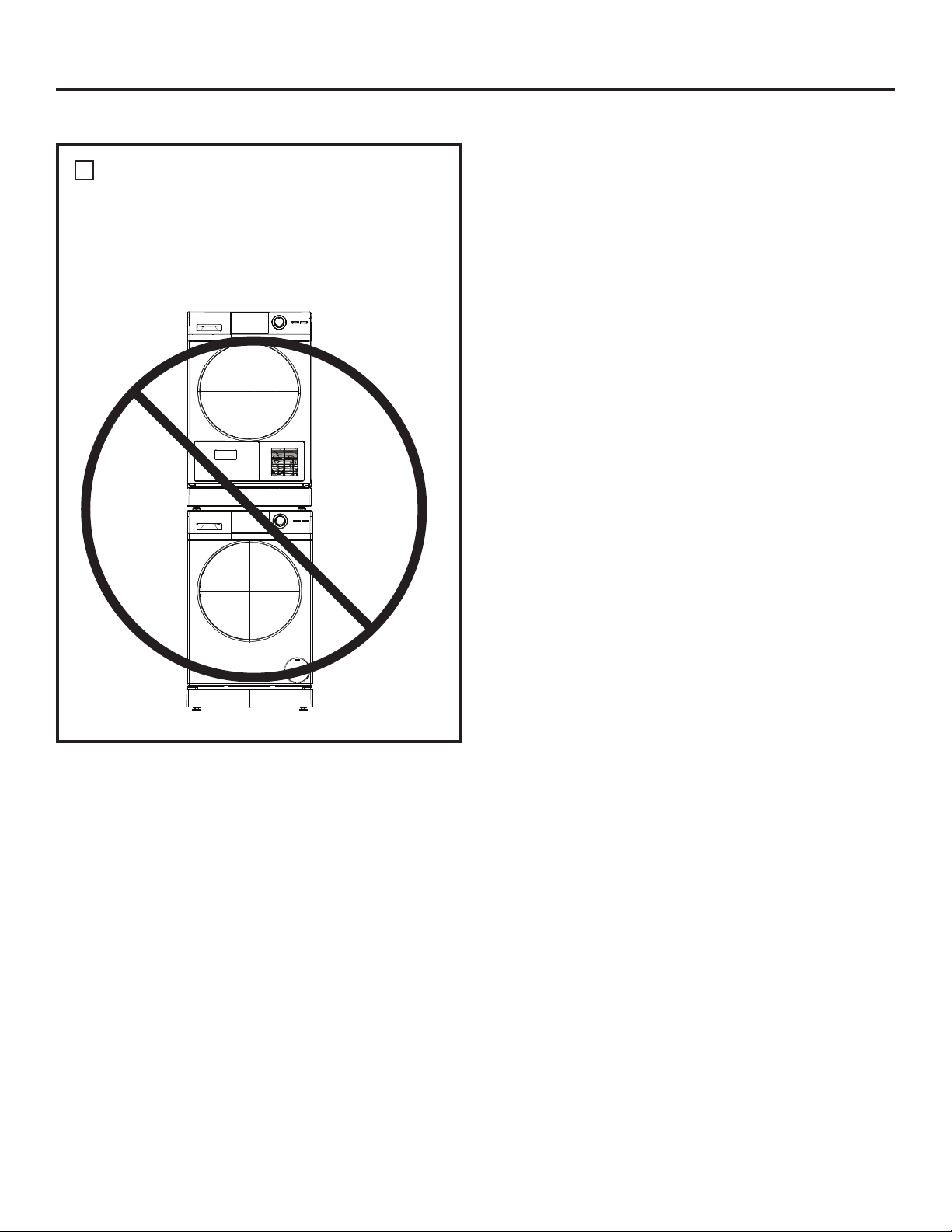

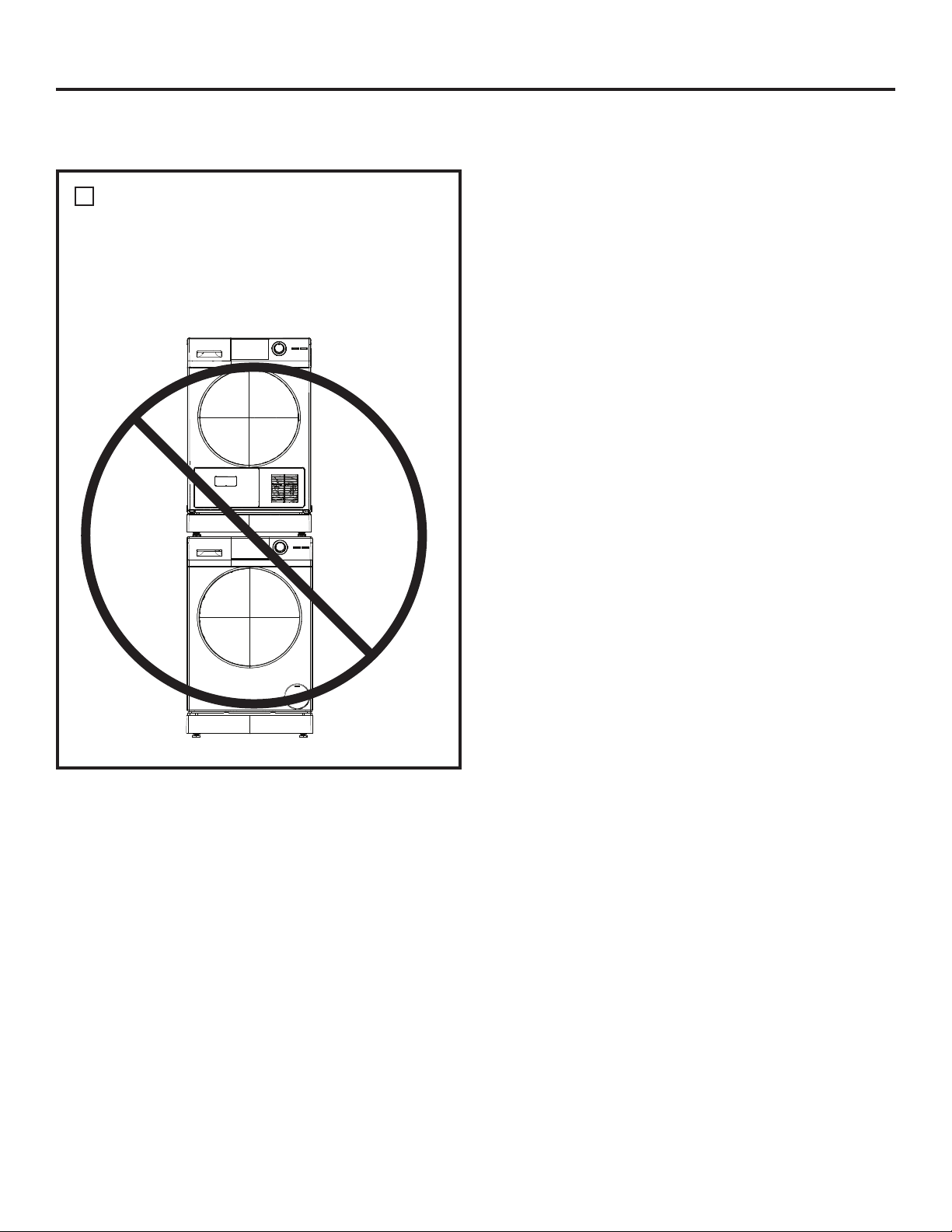

NOTE: If a dryer is stacked on top of the
washer, refer to the stacking kit installation
instructions (GFA24KITL).
Drain Hose
Disconnect
Hose Here
Cap

31-3000212 Rev. 0 5
ROUGH-IN DIMENSIONS
1.1
5.5
23.5
11.8
23.5
4.4
23.5
11.8
DRAIN HOSE USAGE
Option 1: Draining water into portable container
Intended for use when hos is NOT plumbed into floor
drain and need to drain water from drip pan.
• Disengaged from its holding location
• Pull hose out.
• Remove cap to drain water.
Option 2: Draining water into floor drain
• See Step 4 .
Installation Instructions
INSTALLING THE RISER ONTO A WASHER (cont.)
FRONT VIEW
BOTTOM VIEW
TOP VIEW
Cap
